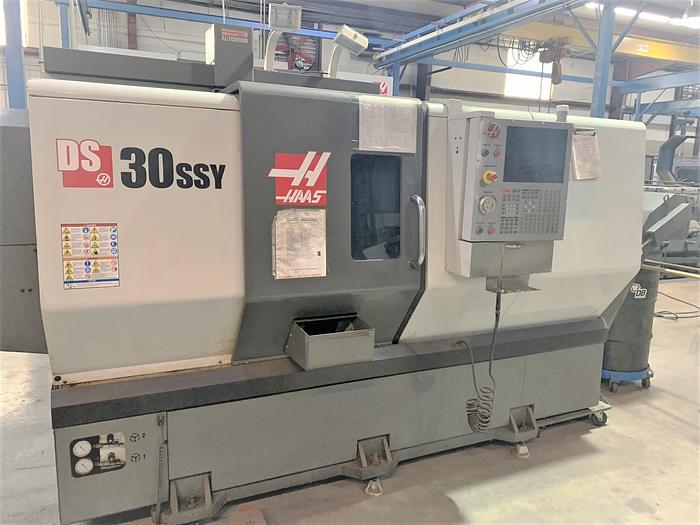

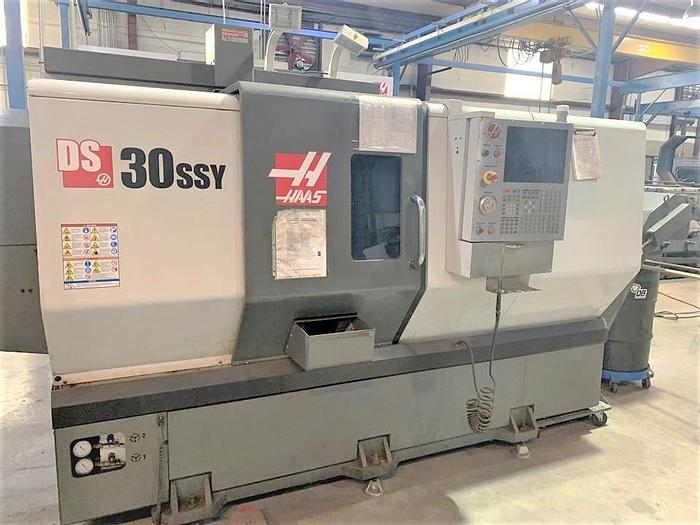

2013 Haas DS-30SSY Big Bore
2013 Haas DS-30SSY Big Bore
Texas
Description
Subspindle Y Axis Capability Full C Axis Spindle Rotation Live Milling / Drilling Capable 8.3" Hydraulic 3 Jaw Chuck on Main Spindle 8.3" Hydraulic 3 Jaw Chuck on Subspindle 300 PSI Hi-Pressure Coolant System Big Bore Spindle Option
Automatic Tool Presetter
Parts Catcher

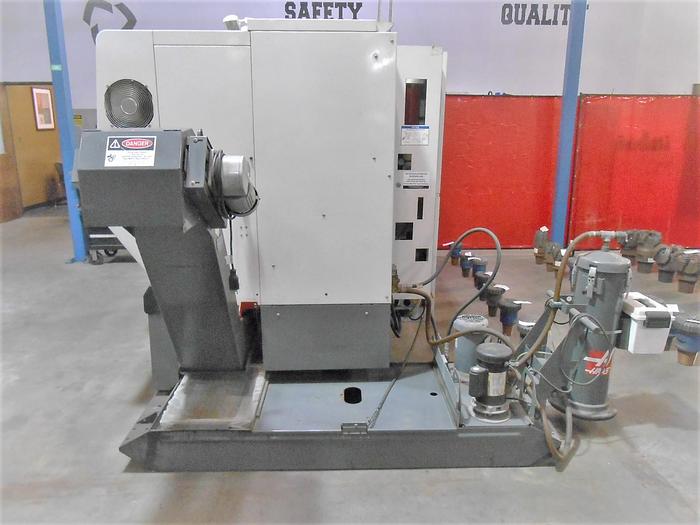

Chip Conveyor

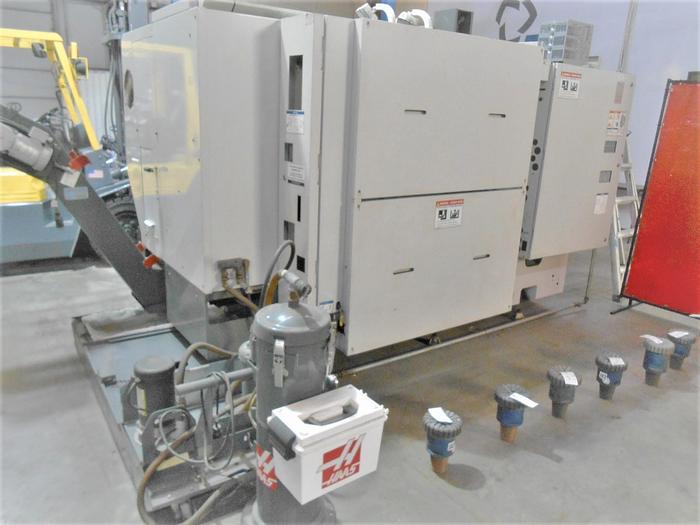

Haas Intuitive Programming System - Conversational Auxilary Coolant Filter System Auto Jet Air Blast
Spindle Orientation Servo Auto Door Rigid Tapping Ethernet Interface
USB Port Interface

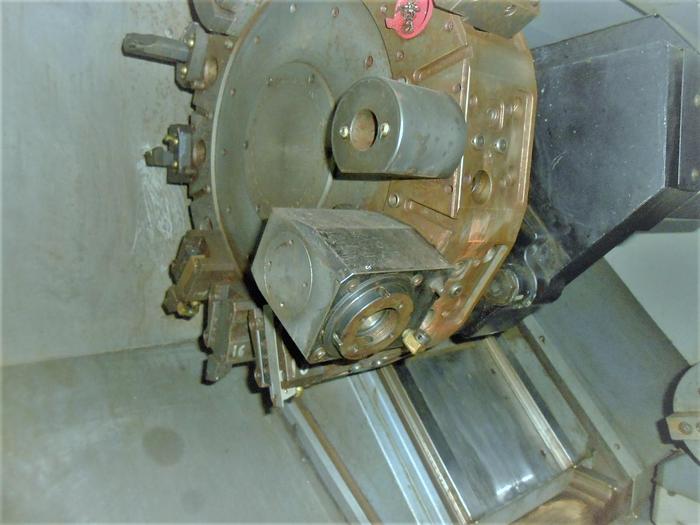

RS 232 Port Interface VB24 VDI/BOT Hybrid Turret
Compensation Tables High Torque Live Tooling w/C-Axis

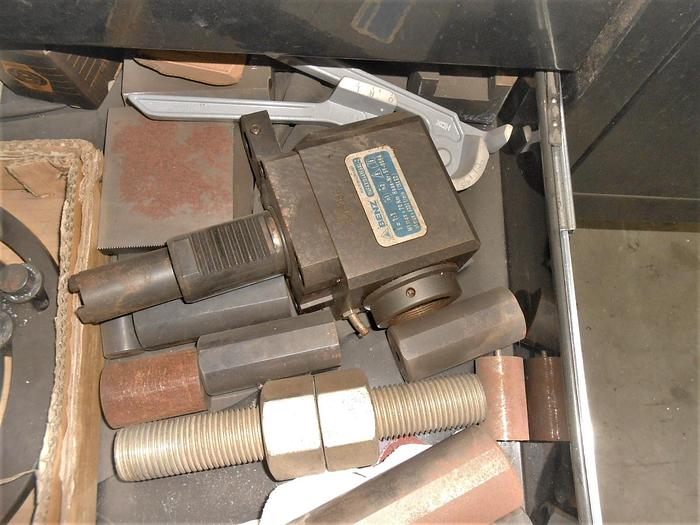

Early Power Failure Detection Module High Intensity Lighting Internal High Voltage Transformer All Available Manuals (1) Axial (1) Radial Live Tool Holder

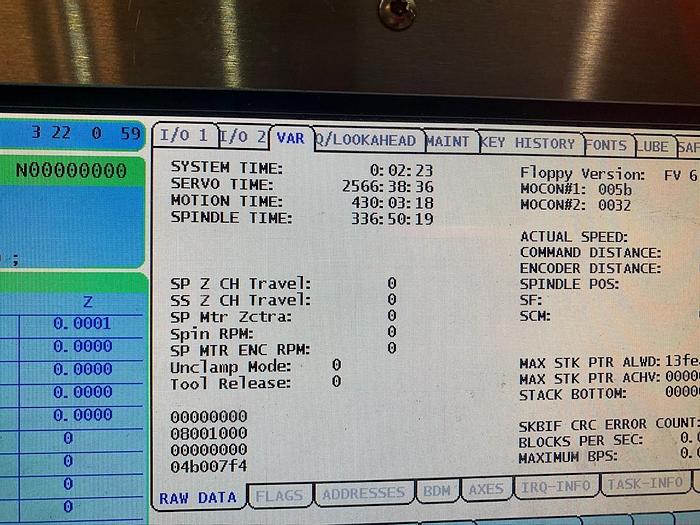

Servo On Hours - 2,566
Motion Hours - 430
Spindle Hours - 336

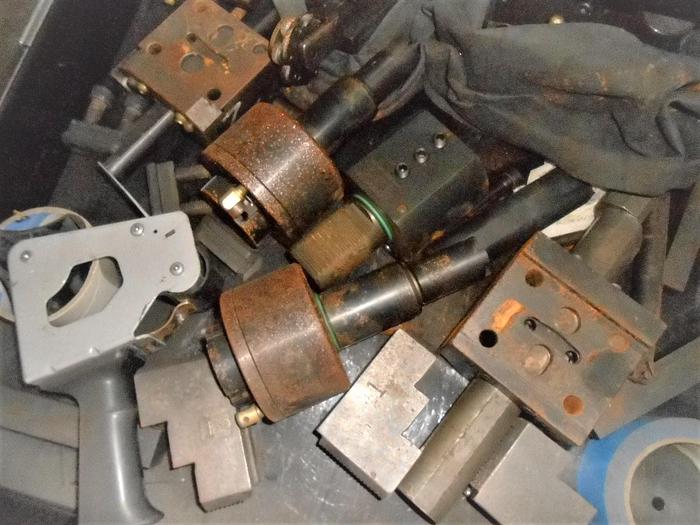

Miscellaneous Static Tool Holders
Specifications
| Manufacturer | Haas |
| Model | DS-30SSY Big Bore |
| Year | 2013 |
| Condition | Used |
| Stock Number | 117404 |

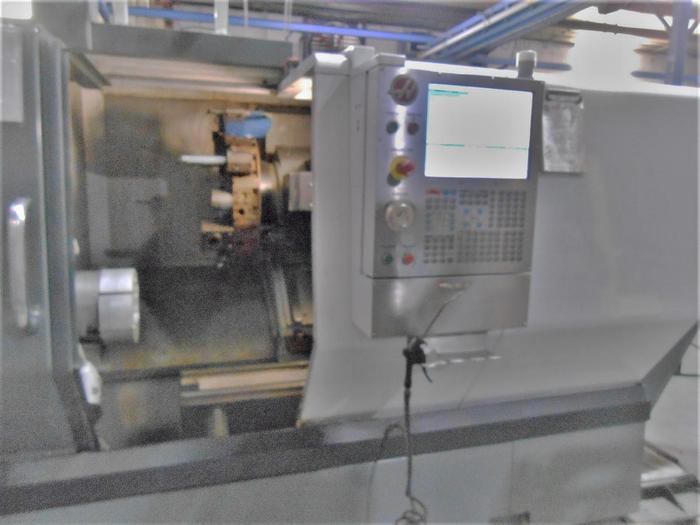

| Control | Haas 32 BIT |

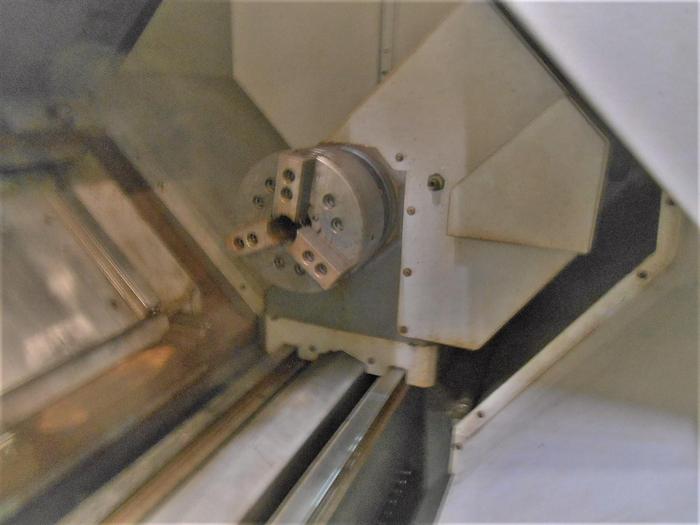

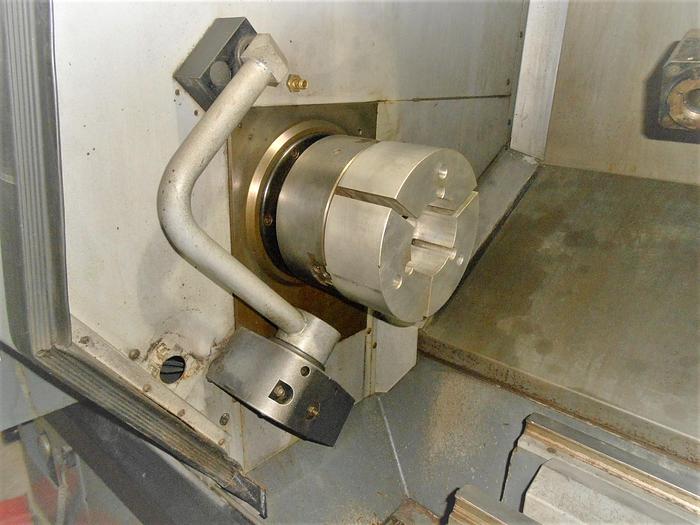

| Chuck Sizes Main / Subspindle | 8.3" Hydraulic / 8.3" Hydraulic |
| Maximum Swing | 31.75" |
| Maximum Swing Over Cross Slide | 20.75" |
| Maximum Cutting Diameter | 16" |
| Maximum Distance Between Spindles | 23" |
| Maximum Bar Capacity | 3.03" |
| X-axis travel | 12.5" |
| Z-Axis Travel | 23" |
| Y-Axis Travel | +/- 2.0" |
| Spindle Nose / Spindle Bore | A2-6" / 3.5" |
| Spindle Speeds | 4,800 RPM |
| Spindle Motor | 30 HP |
| Subspindle Nose / Subspindle Bore | A2-5" / 2.44" |
| Subspindle Speed | 4,800 RPM |
| Subspindle Motor | 20 HP |
| Rotary Tool Speed / Rotary Motor | 3,000 RPM / 5 HP |
| Number of Turret Positions | 12 Station Turret - VDI/BOT |
| Rapid Traverse Rates X, Y / Z | 472 IPM / 1200 IPM |
| Machine Dimensions | N/A |
| Machin e Weight | 14,600 lbs. |
