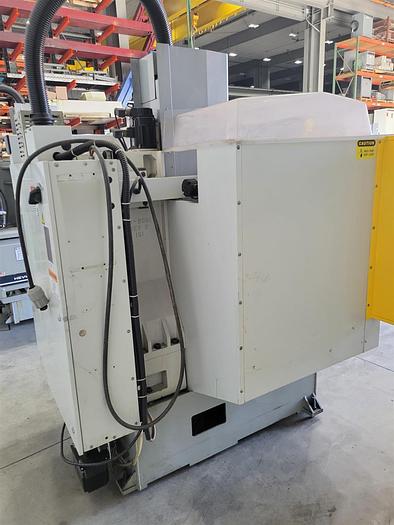

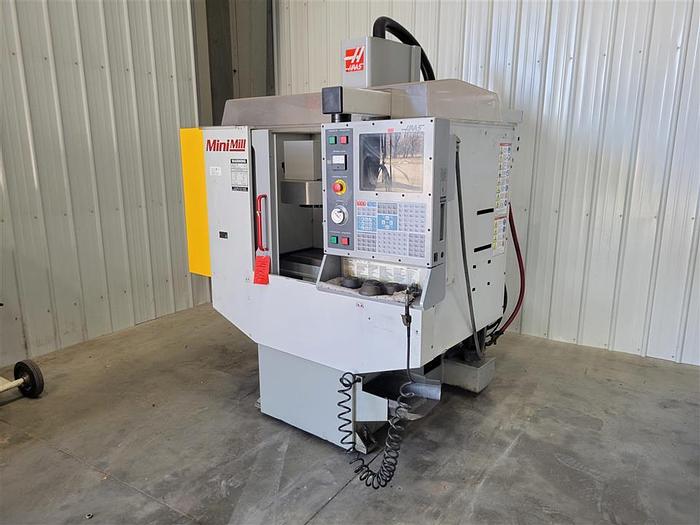

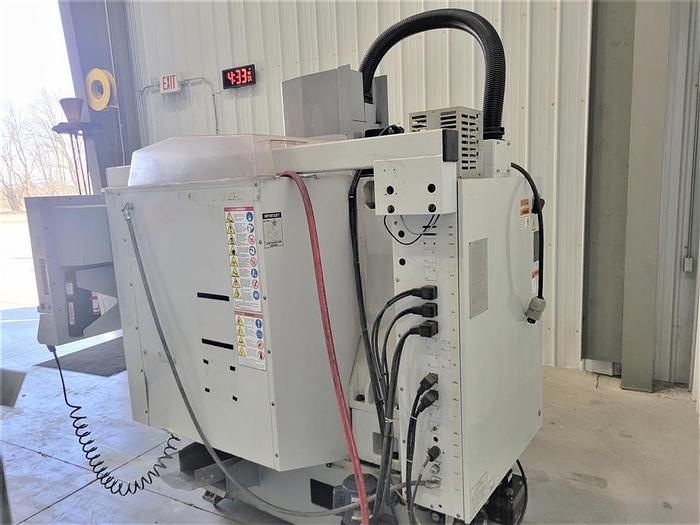

2001 Haas Mini Mill
Sold
2001 Haas Mini Mill
$18,500 (USD)
Location:Michigan
Description

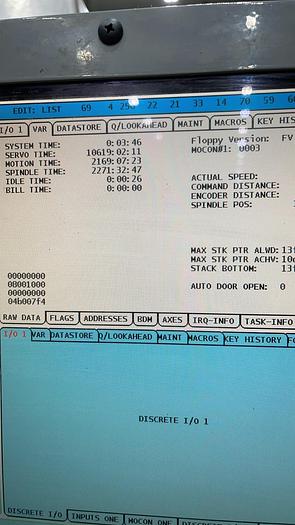

Overhead Plastic Cover Coolant Tank with Pump RS-232 Port/DNC Link Direct Belt Drive G Code Compatible Helical Interpolation Vector Drive Spindle Haas Manual Leveling Pads Accepts 240V Single Phase or 208V 3 Phase Only 2169 Motion Hours Just 2271 Spindle Hours
Specifications
| Manufacturer | Haas |
| Model | Mini Mill |
| Year | 2001 |
| Condition | Used |
| Stock Number | 117401 |
| Quantity | 1 |

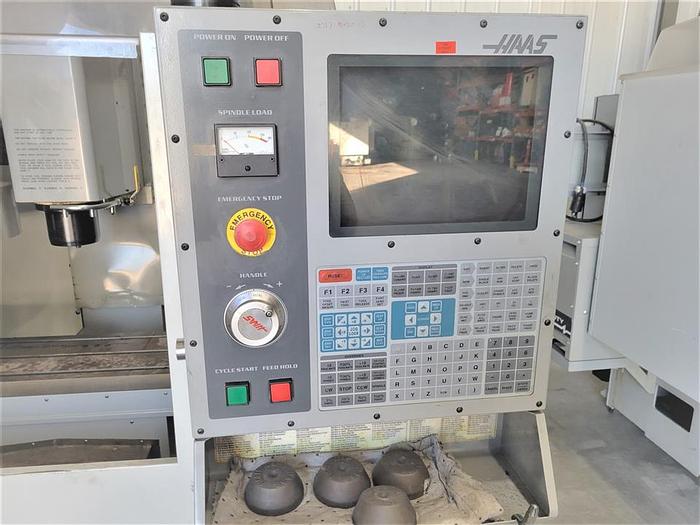

| Control | Haas 32 BIT |

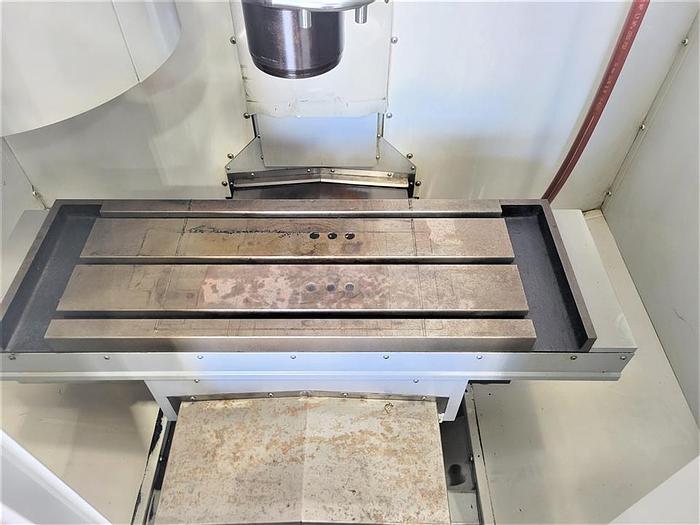

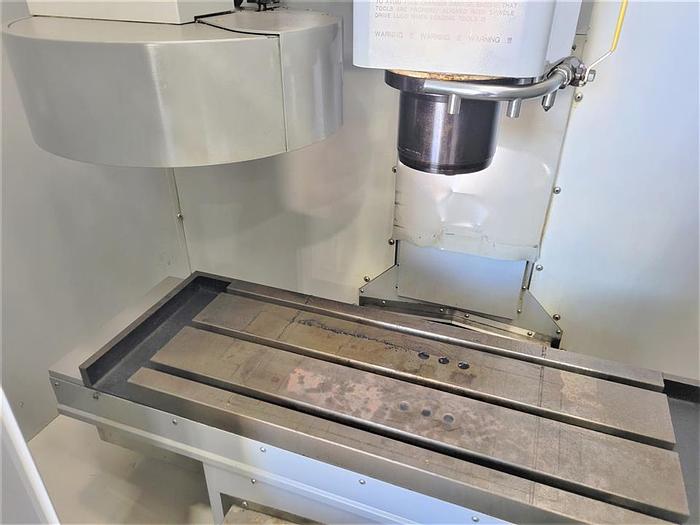

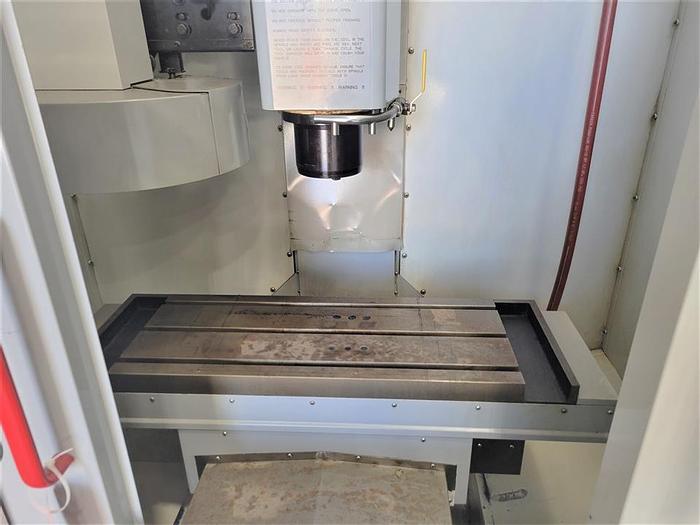

| Table size | 36"x12" |
| Maximum Table Load | 500 lbs |
| X-Axis Travel | 16" |
| Y-Axis Travel | 12" |
| Z-Axis Travel | 10" |
| Spindle Taper | CAT 40 |
| Spindle Speed | 6,000 rpm |
| Spindle Motor | 7.5 hp |
| Distance Spindle Nose to Table Top | 4"-14" |
| Tool Magazine Capacity | 10 atc |
| Rapid Traverse Rates | 650 ipm |
| Maximum Tool Diameter / Weight | 3.5" / 12 lbs |
| Machine Dimensions LxWxH | 78"x80"x98" |
| Machine Weight | 3,400 lbs |
