2007 Fadal VMC4525HT
No longer available
2007 Fadal VMC4525HT
$32,500 (USD)
Location:Dundee, FL
Description
24 Station Side Mounted ATC Boxed Ways 2 Speed Spindle Drive High Torque Spindle Rigid Tapping Dual Arm Toolchanger RS 232 Port Interface
Specifications
| Manufacturer | Fadal |
| Model | VMC4525HT |
| Year | 2007 |
| Condition | Used |
| Stock Number | 116838 |
| Quantity | 1 |

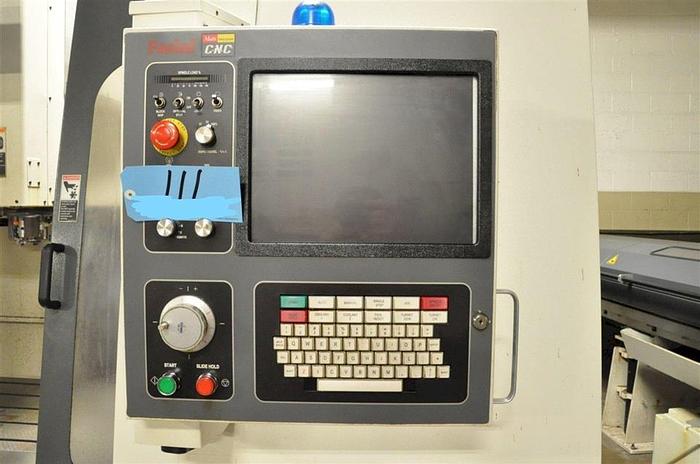

| Control | Fadal 32MP Control |

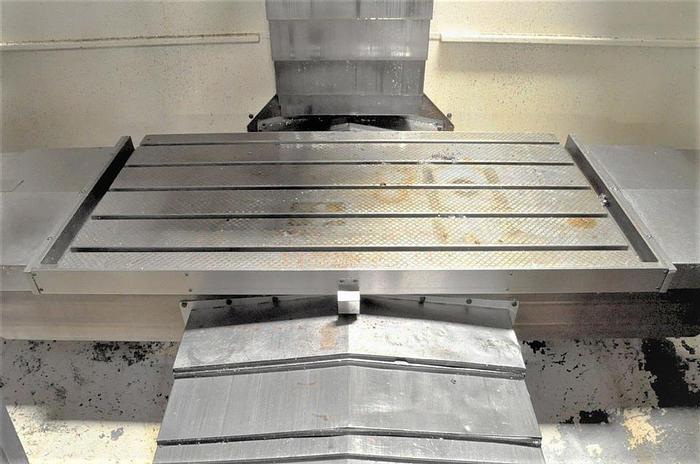

| Table Size | 53.5"x25" |
| Maximum Table Load | 4,250 lbs |
| X-Axis Travel | 45" |
| Y-Axis Travel | 25" |
| Z-Axis Travel | 32" |

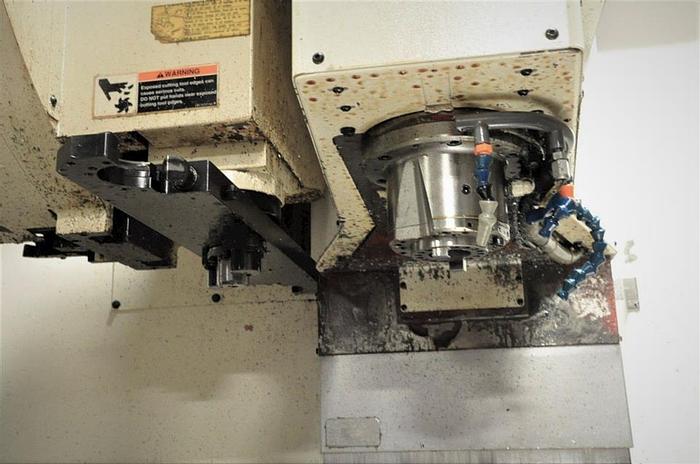

| Spindle Taper | CAT 40 |
| Spindle Speeds | 10,000 rpm |
| Spindle Motor | 22.5 hp |
| Spindle Torque | 220 ft. lbs |

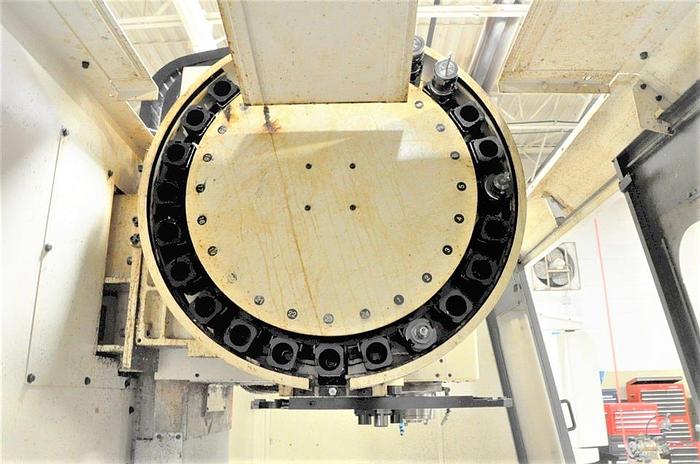

| Tool Magazine Capacity | 24 atc |
| Maximum Tool Diameter / Length / Weight | 6" / 15" / 15 lbs |
| Rapid Traverse Rates (X, Y, Z) | 900 ipm, 900 ipm, 700 ipm |
| Machine Dimensions LxWxH | 131"x102"x102" |
| Machine Weight | 15,750 lbs |
