2006 Fadal VMC4020HT
No longer available
2006 Fadal VMC4020HT
$27,500 (USD)
Dundee, FL
Description
Remanufactured in 2006 Wired for 4th Axis Fadal 4th Axis Rotary Table Multi Processor Control Complete Coolant System Boxed Ways High Torque Spindle Motor All Available Manuals Wired 240V Electrics One Owner Machine
Specifications
Manufacturer | Fadal |
Model | VMC4020HT |
Year | 2006 |
Condition | Used |
Stock Number | 116937 |
Quantity | 1 |

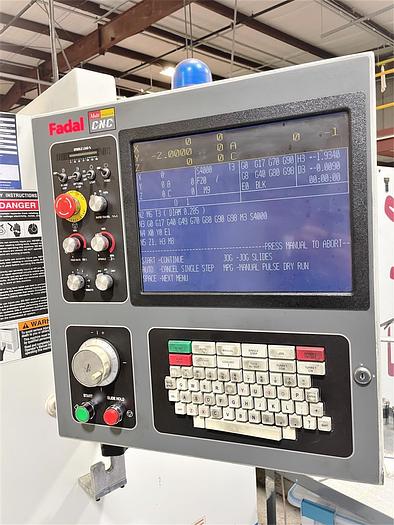

Control | Fadal 32MP Control |
Table size | 48" x 20" |
Maximum Table Load | 3,641 lbs. |
Distance Spindle Nose to Table Top | 4" - 24" |
X-Axis Travel | 40" |
Y-Axis Travel | 20" |
Z-Axis Travel | 20" |
Spindle Taper | CAT #40 |
Spindle Speeds | 10,000 RPM |
Spndle Motor | 22.5 HP |
Column Surface to Spindle Center | 20" |
Number of Tool Positions | 21 Station ATC |
Maximum Tool Weight | 15 lbs. |
Rapid Traverse Rates | 900 IPM |
Cutting Feedrates | 400 IPM |
Machine Dimensions | 146"x103"x128" |
Machine Weight | 11,000 lbs. |
