2003 Fadal VMC4525HT
No longer available
2003 Fadal VMC4525HT
$47,500 (USD)
Dundee, FL
Description

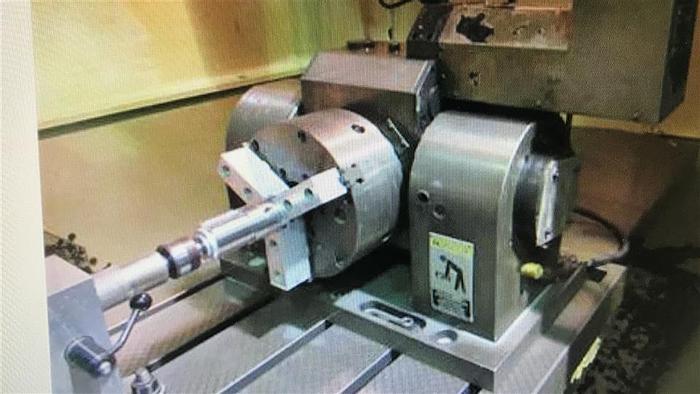

4th/5th Axis Trunnion with Tailstock Boxed Ways 2 Speed Spindle Drive High Torque Spindle Rigid Tapping Dual Arm Toolchanger Remote Jog Handle USB Port Plumbed for Coolant Thru the Spindle Some Tooling All Available Manuals
Specifications
| Manufacturer | Fadal |
| Model | VMC4525HT |
| Year | 2003 |
| Condition | Used |
| Stock Number | 115307 |
| Quantity | 1 |

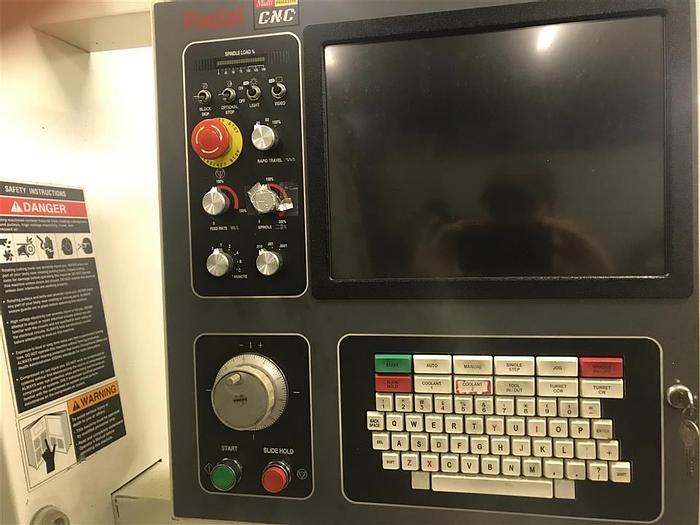

| Control | Fadal 32MP Control |
| Table Size | 53.5"x25" |
| Maximum Table Load | 5,421 lbs |
| X-Axis Travel | 45" |
| Y-Axis Travel | 25" |
| Z-Axis Travel | 24" |
| Distance Spindle Nose to Table Top | 4"-24" |
| Spindle Speeds | 10-10,000 rpm |
| Spindle Taper | CAT 40 |
| Spindle Motor | 22.5 hp |
| Spindle Torque | 220 ft. lbs |
| Tool Magazine Capacity | 24 atc |
| Maximum Tool Diameter / Length / Weight | 6" / 15" / 15 lbs |
| Rapid Traverse Rates X, Y / Z | 1,000, 1000 / 700 ipm |
| Machine Dimensions LxWxH | 131"x102"x102" |
| Machine Weight | 15,750 lbs |
