2006 Doosan/Daewoo Puma 400LC
No longer available
2006 Doosan/Daewoo Puma 400LC
$84,500 (USD)
Texas
Description

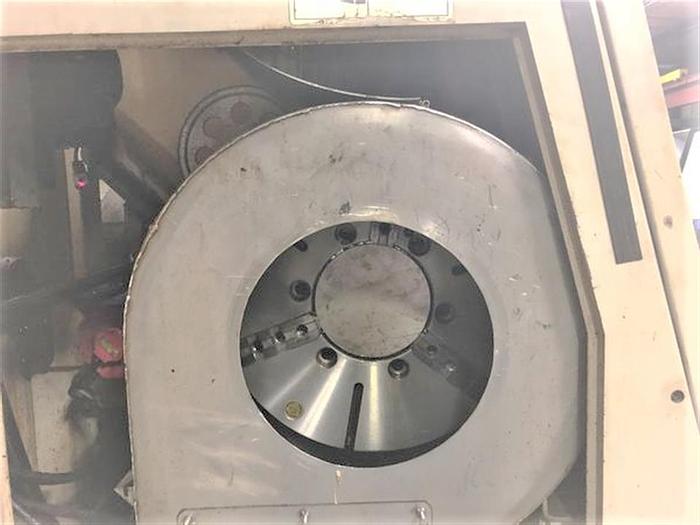

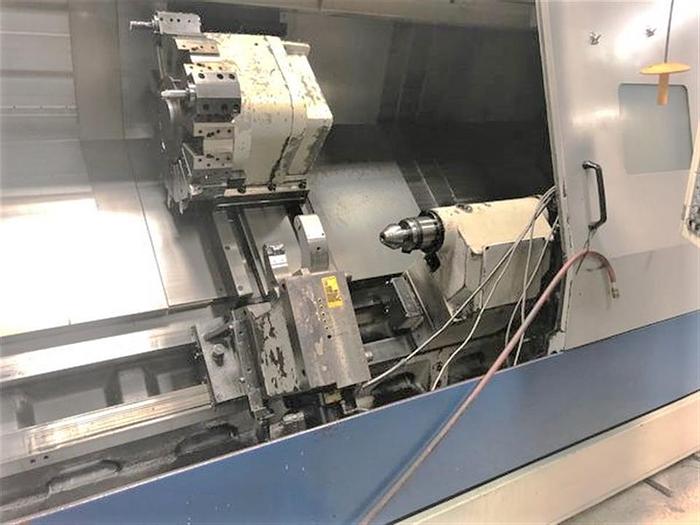

Chip Conveyor 21" 4 Jaw Manual Chuck w/ 6.5" Hole 3 Jaw Chuck Mounted on Rear of Spindle Tailstock Hydraulic Steady Rest 3.5" Floppy Disk Interface RS 232 Port Interface Coolant System with Tank & Pump All Available Tooling All Available Manuals *Used in Cutting Carbon Steel & Various Stainless 11,347 Cutting Hours
Specifications
| Manufacturer | Doosan/Daewoo |
| Model | Puma 400LC |
| Year | 2006 |
| Condition | Used |
| Stock Number | 117472 |
| Quantity | 1 |

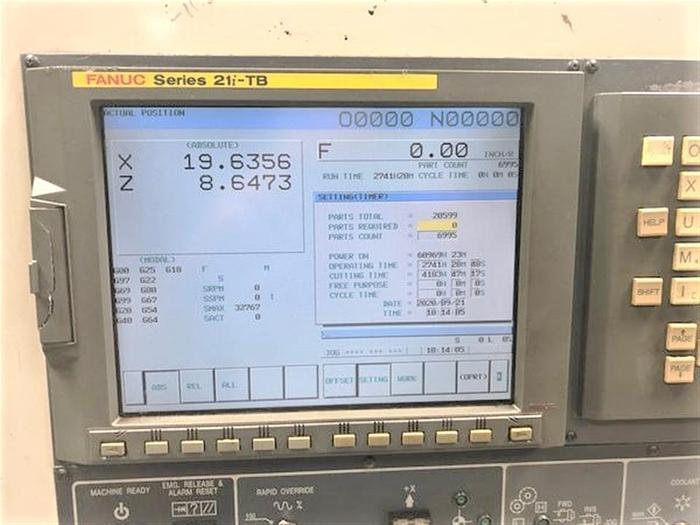

| Control | Fanuc 21i-TB |

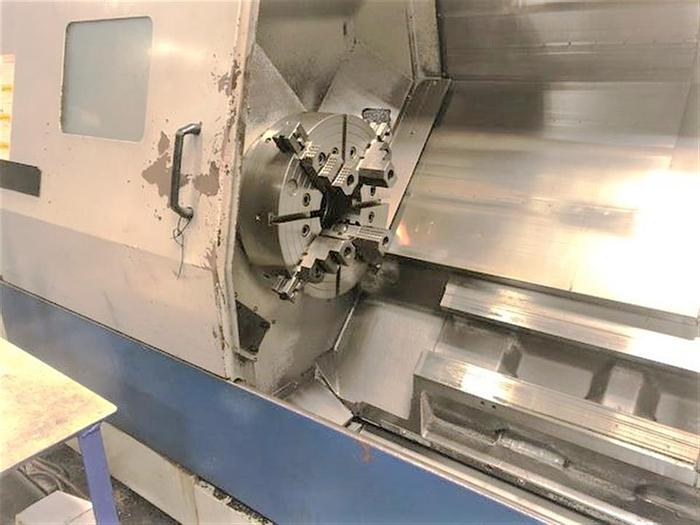

| Chuck Size | 21" 4 Jaw Manual Chuck |
| Maximum Swing | 30.31" |
| Maximum Turning Diameter | 21.7" |
| Maximum Turning Length | 81.65" |
| Maximum Bar Capacity | 6.5" |
| X-Axis Travel | 14.25" |
| Z-Axis Travel | 84.84" |
| Spindle Nose / Spindle Bore | A2-11" / 6.51" |
| Spindle Speeds | 1 - 1,500 RPM |
| Spindle Motor | 50 HP |
| Number of Turret Positions | 12 Position Turret |
| Rapid Traverse Rates X/Z | 630 IPM / 710 IPM |
| Tailstock Quill Diameter / Center | 4.7" / MT #5 |
| Tailstock Quill Travel | 4.7" |
| Machine Dimensions | 211" x 86" x 92" |
| Machine Weight | 28,100 lbs. |
