2007 Doosan/Daewoo Puma 400LC
No longer available
2007 Doosan/Daewoo Puma 400LC
$99,500 (USD)
Location:Dundee, FL
Description

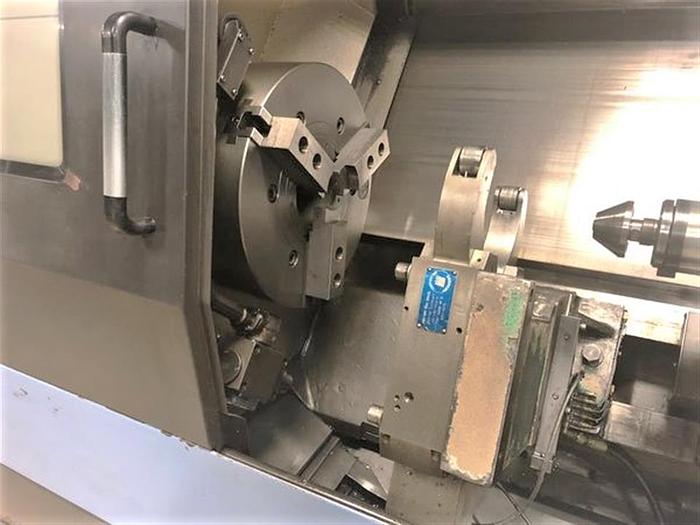

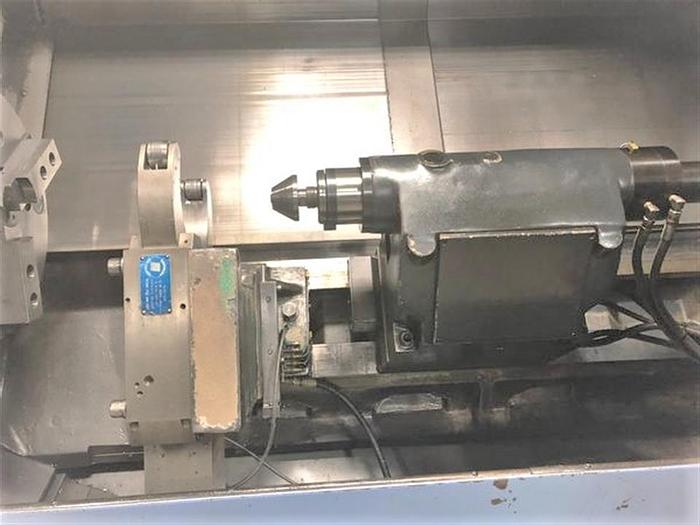

Chip Conveyor 21" 3 Jaw Hydraulic Chuck Tailstock Tool Presetter Hydraulic Steady Rest 3.5" Floppy Disk Interface RS 232 Port Interface Coolant System with Tank & Pump All Available Tooling All Available Manuals Machine Cutting Hours 7,041
Specifications
| Manufacturer | Doosan/Daewoo |
| Model | Puma 400LC |
| Year | 2007 |
| Condition | Used |
| Stock Number | 117470 |

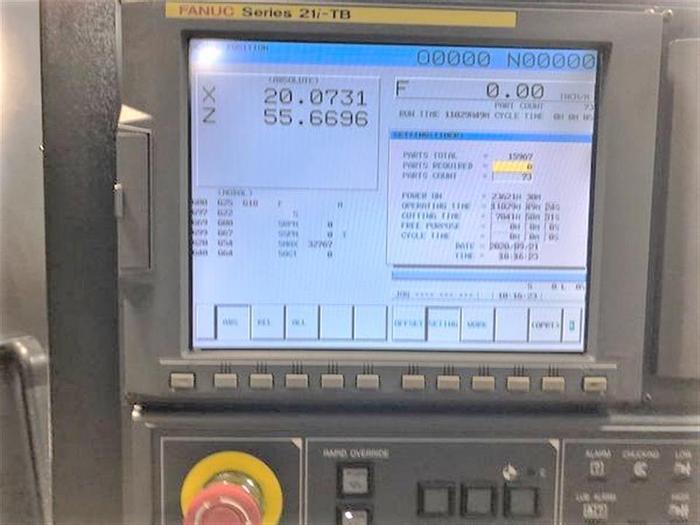

| Control | Fanuc 21i-TB |
| Chuck Size | 21" 3-Jaw Hydraulic |
| Maximum Turning Diameter | 21.7" |
| Maximum Turning Length | 81.65" |
| X-Axis Travel | 14.25" |
| Z-Axis Travel | 84.84" |
| Maximum Swing | 30.31" |
| Spindle Nose / Bore / Bar Capacity | A2-11 / 6.51" / 6" |
| Spindle Speed | 1,500 rpm |
| Spindle Motor | 50 hp |
| Number of Turret Positions | 12 |
| Rapid Traverse Rates X/Z | 630 ipm / 710 ipm |
| Tailstock Quill Diameter / Center | 4.7" / #5MT |
| Tailstock Body Travel / Quill Travel | NA / 4.7" |
| Machine Dimensions LxWxH | 211"x86"x92" |
| Machine Weight | 28,100 lbs |
