1999 Daewoo Puma 400B
No longer available

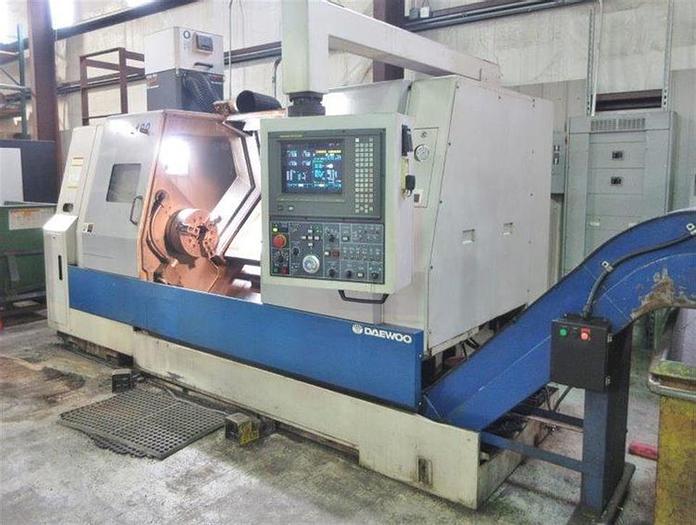

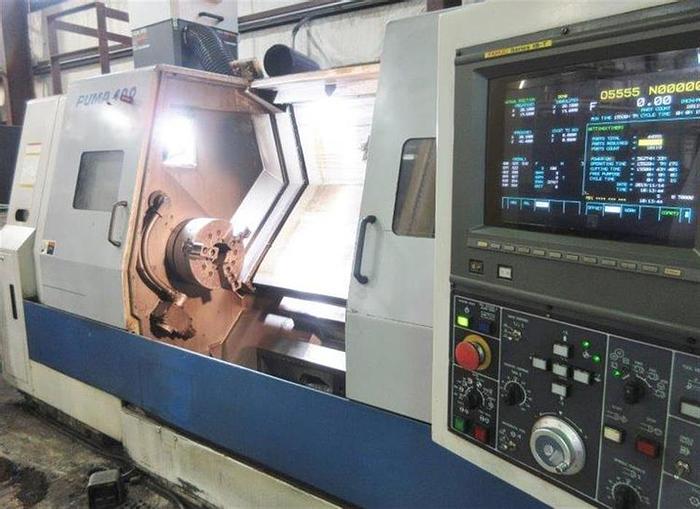

1999 Daewoo Puma 400B
$36,950 (USD)
Louisiana
Description

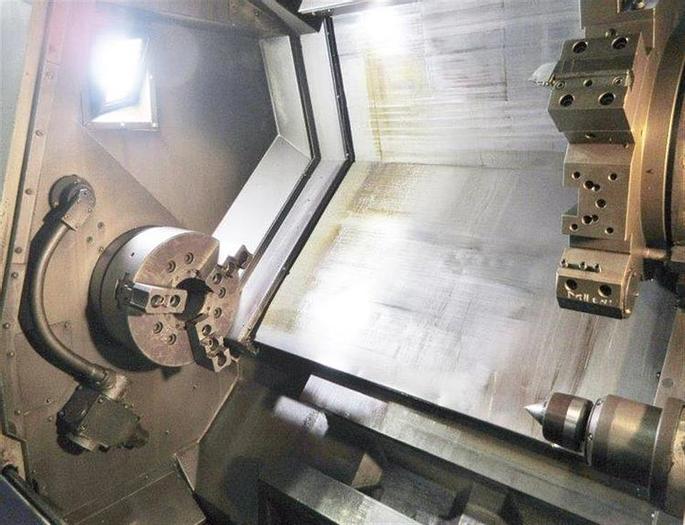

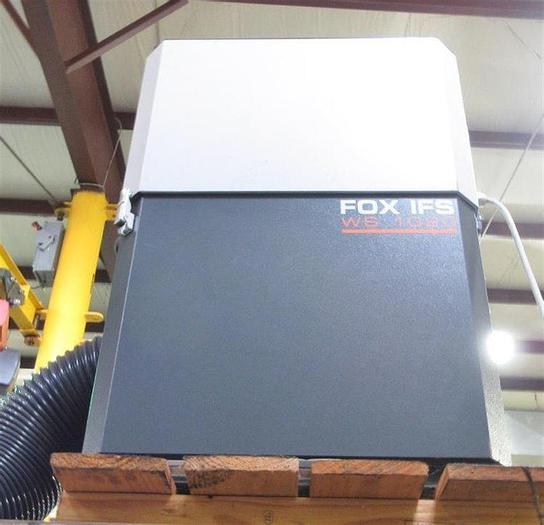

Chip Conveyor 15" 3 Jaw Hydraulic Chuck Programmable Tailstock Body Tool Presetter Chip Conveyor Mist Collector RS 232 Port Interface Complete Coolant System with Tank & Pump All Available Tooling All Available Manuals Primarily Cut 4130 & 4140 Steel 15,508 Cutting Hours when last checked
Specifications
| Manufacturer | Doosan/Daewoo |
| Model | Puma 400B |
| Year | 1999 |
| Condition | Used |
| Stock Number | 117276 |
| Quantity | 1 |

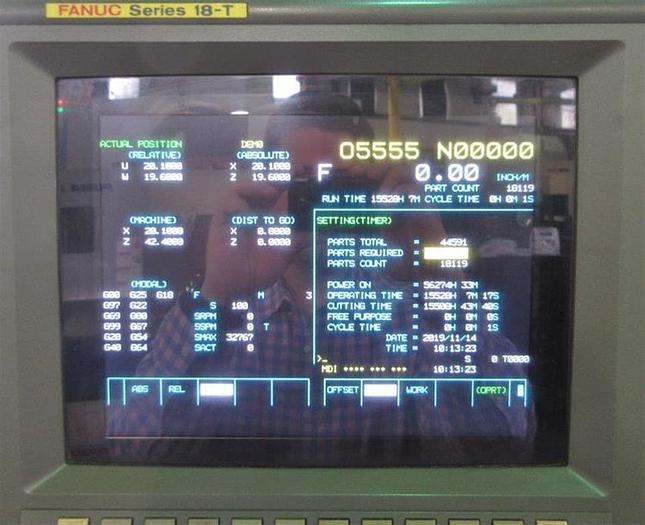

| Control | Fanuc 18T |
| Chuck Size | 15" Hydraulic Chuck |
| Maximum Swing | 30.3" |
| Maximum Turning Diameter | 22.4" |
| Maximum Turning Length | 41.1" |
| Maximum Bar Capacity | 4.5" |
| X-Axis Travel | 14.3" |
| Z-Axis Travel | 43.5" |
| Spindle Nose / Spindle Bore | A2-11" / 5.2" |
| Spindle Speeds | 20 2,000 RPM |
| Spindle Motor | 50 HP |
| Transmission | 2 Speed Geared |
| Number of Turret Positions | 10 Station Turret |
| Rapid Traverse Rates X/Z | 630 IPM / 710 IPM |
| Tailstock Quill Diameter / Center | 4.7" / MT #5 |
| Tailstock Quill Travel | 4.7" |
| Machine Dimensions LxWxH | n/a |
| Machine Weight | 20,800 lbs. |
