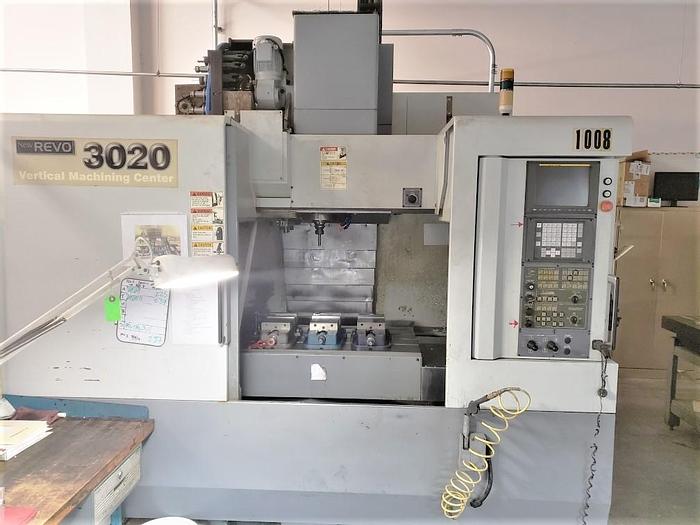

2004 Doosan REVO 3020
No longer available
2004 Doosan REVO 3020
$24,500 (USD)
Dundee, FL
Description
30 Station Side Mounted Tool Changer Chip Conveyor w/ Dual Augers 10,000 RPM Spindle Spindle Chiller Unit Air Blow on Spindle Flood Coolant with Enclosure Hand Held MPG Rigid Tapping RS 232 Port Interface All Available Manuals 3 Color Operation Lights Tool Path Graphics Display Dual Coolant Pumps Wired 200/220V 3 Phase 15,030 Spindle Run Hours
Specifications
| Manufacturer | Doosan |
| Model | REVO 3020 |
| Year | 2004 |
| Condition | Used |
| Stock Number | 114722 |

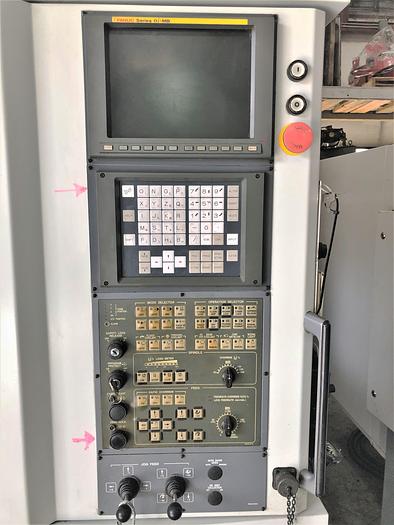

| Control | Fanuc 0iMB |

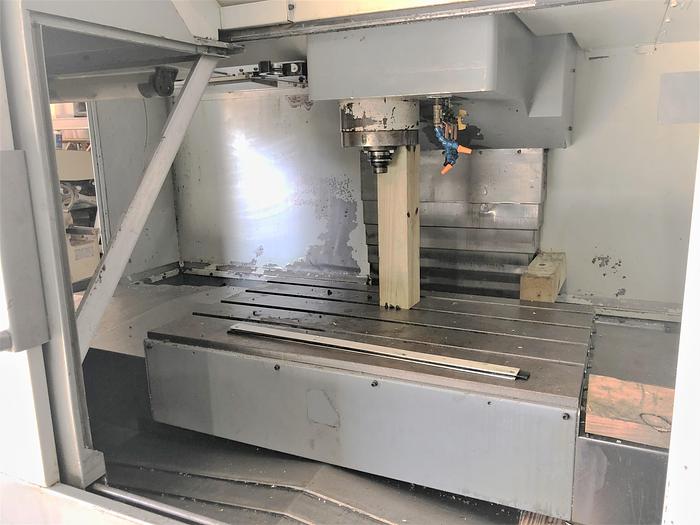

| Table Size | 40.2" x 24" |
| Maximum Table Load | 2,204 lbs. |
| Distance Spindle Nose to Table Top | 5.9" - 25.9" |
| Distance Spindle Center to Column | 24.6" |
| X-Axis Travel | 32.3" |
| Y-Axis Travel | 20.1" |
| Z-Axis Travel | 20.1" |

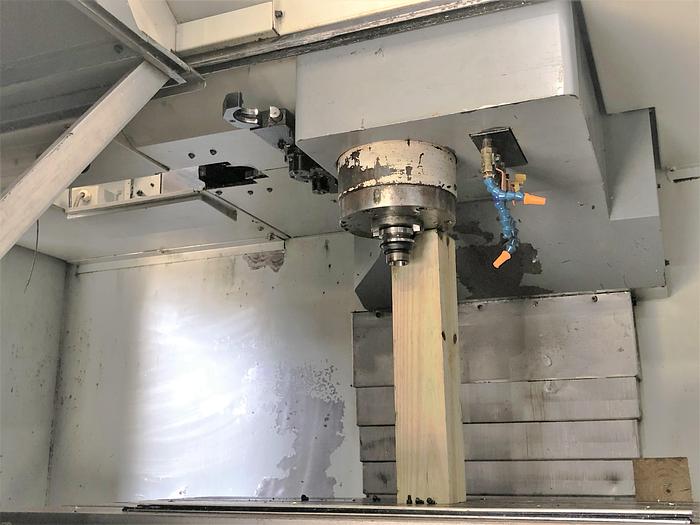

| Spindle Taper | BT #40 |
| Spindle Speeds | 10,000 RPM - Direct Drive |
| Spindle Motor | 25 HP |
| Number of Tool Positions | 30 Station Tool Changer - Side Mounted |
| Maximum Tool Diameter / Length / Weight | 4.92" / 13.78" / 18.74 lbs. |
| Tool Change Time Tool to Tool | 1.2 Seconds |
| Tool Change Time Chip to Chip | 2.86 seconds |
| Rapid Traverse Rates X, Y / Z | 1574 IPM / 1417 IPM |
| Cutting Feedrates | 394 IPM |
| Machine Dimensions LxWxH | 104.1" x 110.7" x 112.4" |
| Machine Weight | 14,320 lbs. |
