2007 Doosan/Daewoo Puma 400LC
No longer available
2007 Doosan/Daewoo Puma 400LC
$64,500 (USD)
Location:Alberta, Canada
Description
Hydraulic Steady Rest 21" 3-Jaw Samchully HCH-21 Hydraulic Chuck Tool Presetter Tailstock Chip Conveyor LNS Fox WS1020 Mist Collector Gearbox Boxed Ways Complete Coolant System with Tank & Pump All Available Manuals
Specifications
| Manufacturer | Doosan/Daewoo |
| Model | Puma 400LC |
| Year | 2007 |
| Condition | Used |
| Stock Number | 116235 |
| Quantity | 1 |

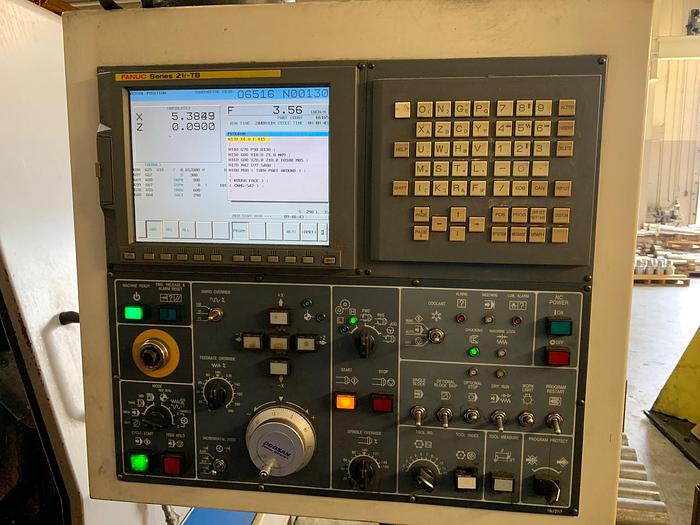

| Control | Fanuc 21i-TB |
| Chuck Size | 21" 3-Jaw Hydraulic |
| Maximum Turning Diameter | 21.7" |
| Maximum Turning Length | 81.65" |
| X-Axis Travel | 14.25" |
| Z-Axis Travel | 84.84" |
| Maximum Swing | 30.31" |
| Spindle Nose / Bore / Bar Capacity | A2-11 / 6.51" / 6" |
| Spindle Speed | 1,500 rpm |
| Spindle Motor | 50 hp |
| Number of Turret Positions | 12 |
| Rapid Traverse Rates X/Z | 630 ipm / 710 ipm |
| Tailstock Quill Diameter / Center | 4.7" / #5 MT |
| Tailstock Body Travel / Quill Travel | NA / 4.7" |
| Machine Dimensions LxWxH | 211"x86"x92" |
| Machine Weight | 28,100 lbs |
