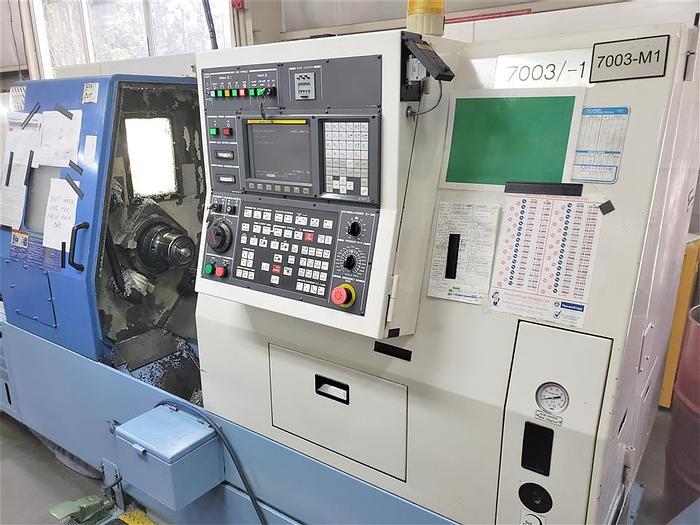

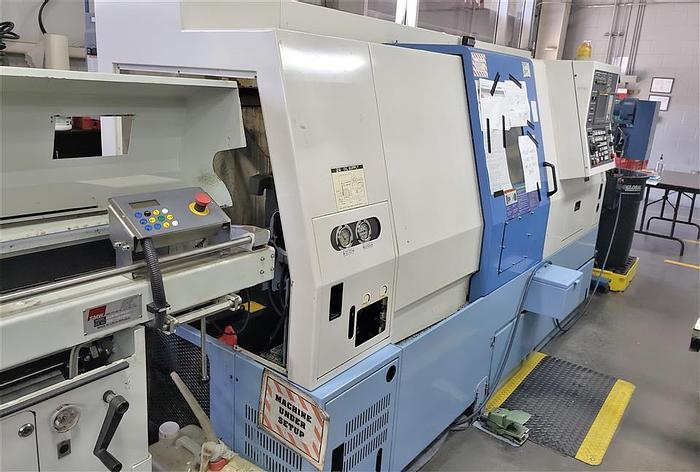

2004 Kia Super Kia Turn 21LMS Fanuc 0iTB

Sold

2004 Kia Super Kia Turn 21LMS Fanuc 0iTB

$39,500 (USD)

Dundee, FL

Description

Full C Axis Spindle Rotation

Live Milling/Drilling Capability

Subspindle

SMW Spacesaver 2100 Short Bar Feeder

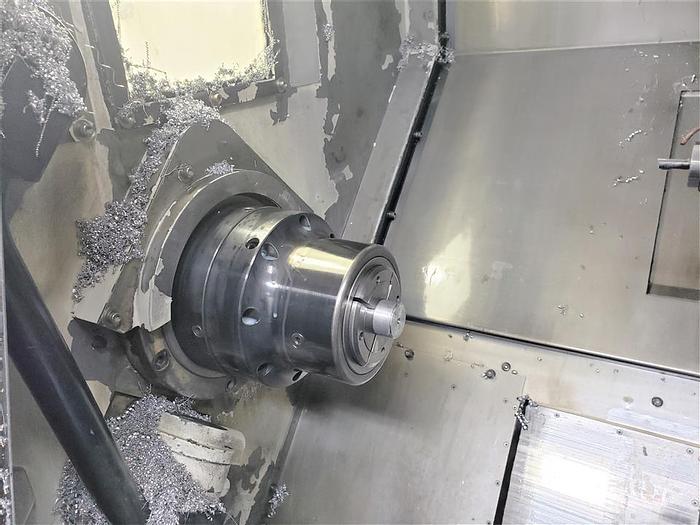

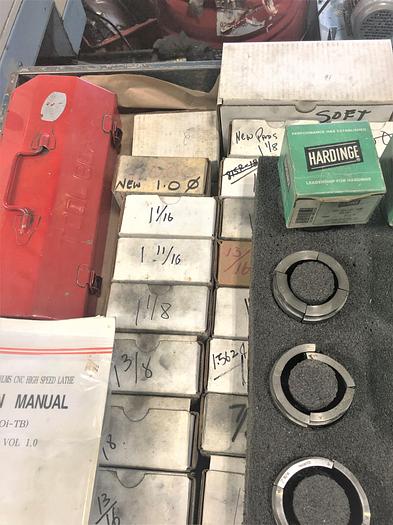

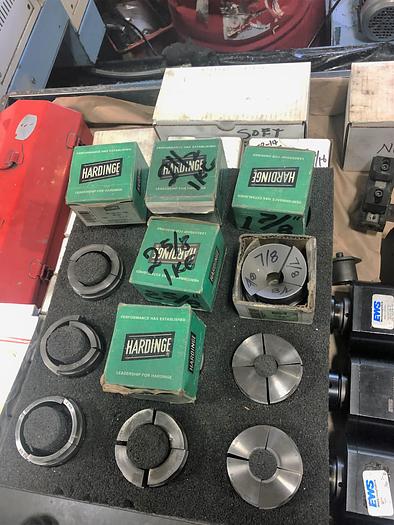

ATS S26 TLS Collet Chuck on Main Spindle

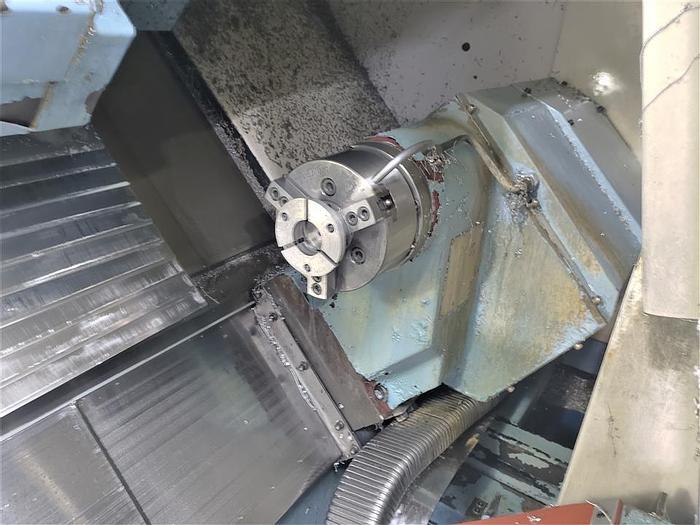

Samchully HS-05 5" 3 Jaw Hyd. Chk on Subspdl

Parts Catcher

Chip Conveyor

Automatic Tool Eye

RS 232 Port Interface

Coolant System with Tank & Pump

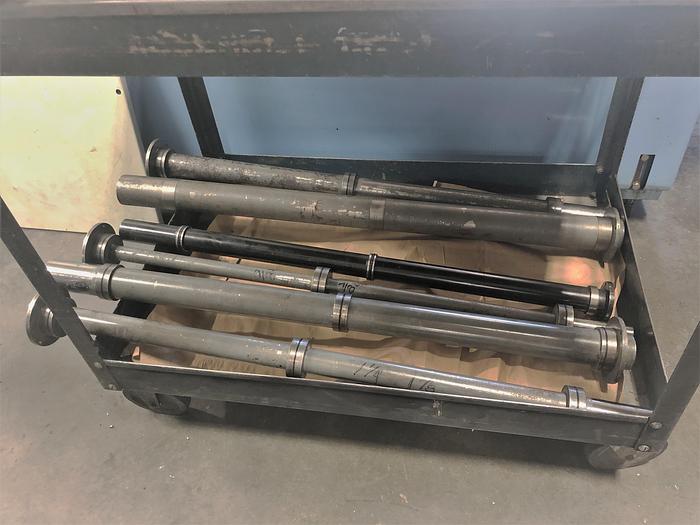

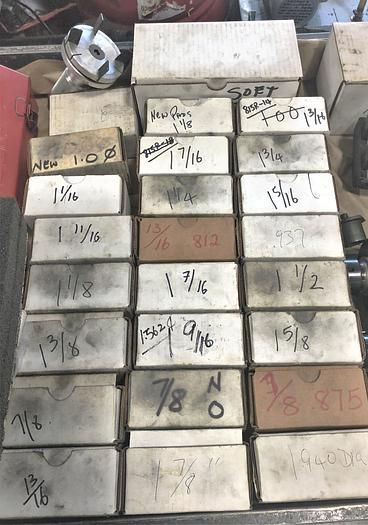

All Available Static Tooling

(4) Live Tool Holders-(2 Axial & 2 Radial)

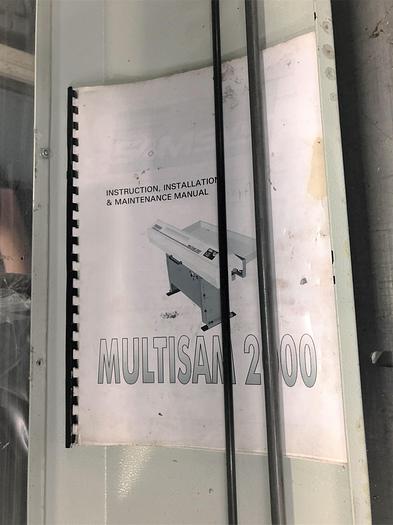

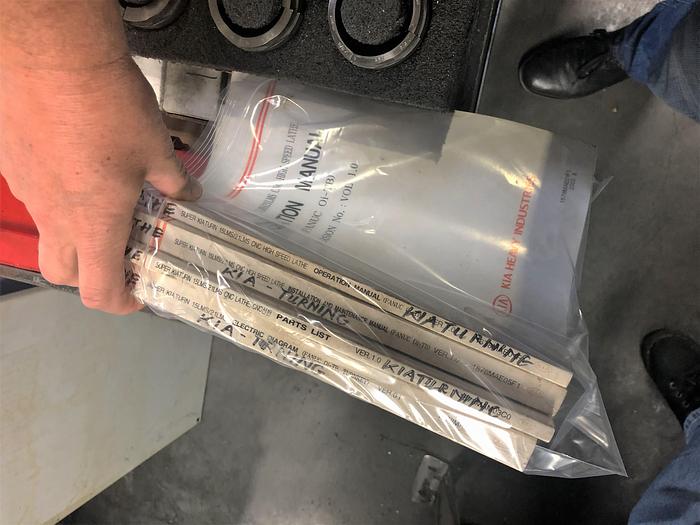

All Available Manuals

Extremely Well Maintained

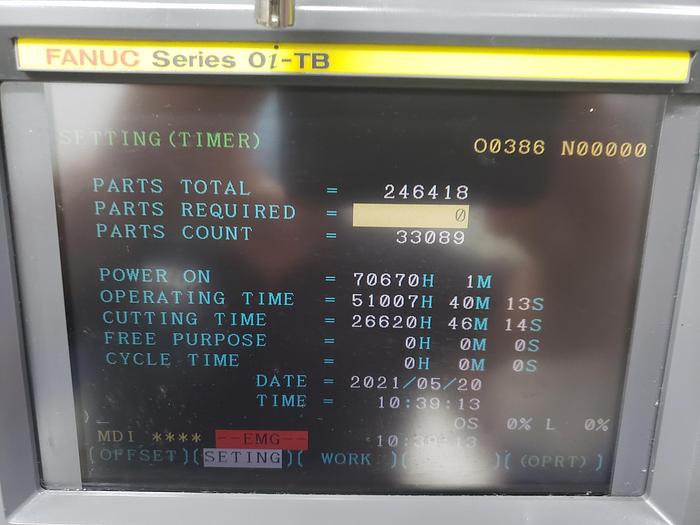

26,620 Cutting Hours

Specifications

ManufacturerKia
ModelSuper Kia Turn 21LMS Fanuc 0iTB
Year2004
ConditionUsed
Stock Number117504
Chuck sizeCollet / 6" Hydr.
Max. swing over bed/over cross slide21.6" / 13.8"
Maximum cutting diameter10"
Maximum machining length16.1"
X axis travel8.7"
Z axis travel16.9"
C axis indexing main0.001 Degree
Spindle nose/spindle bore/bar cap.A2-6"/3.54"/2.0"
Spindle speeds4,000 RPM
Spindle motor 30 min. / cont.20 / 15 HP
Subspindle speeds / motor5,000 RPM / 5 HP
Milling tool speeds4,000 RPM

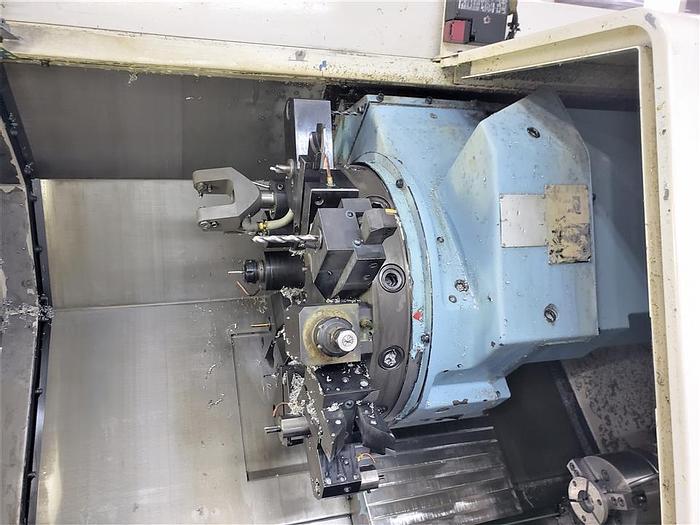

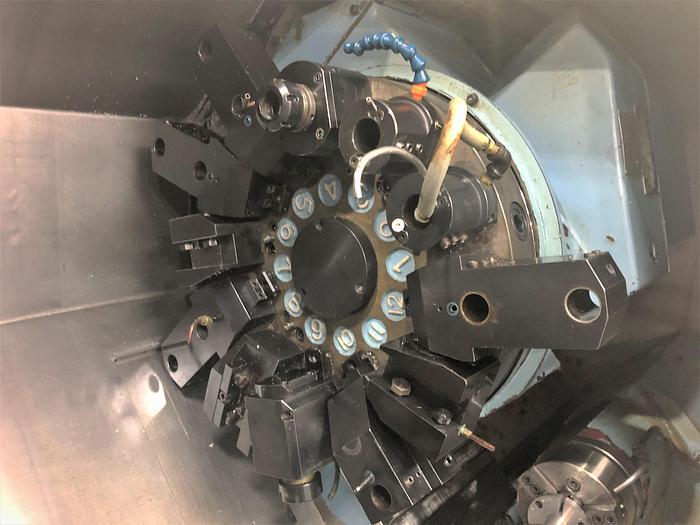

Number of turret positions12 Position Turret
Rapid traverse rates x, z / b1417 IPM/1181 IPM
Machine weight9,500 lbs.
