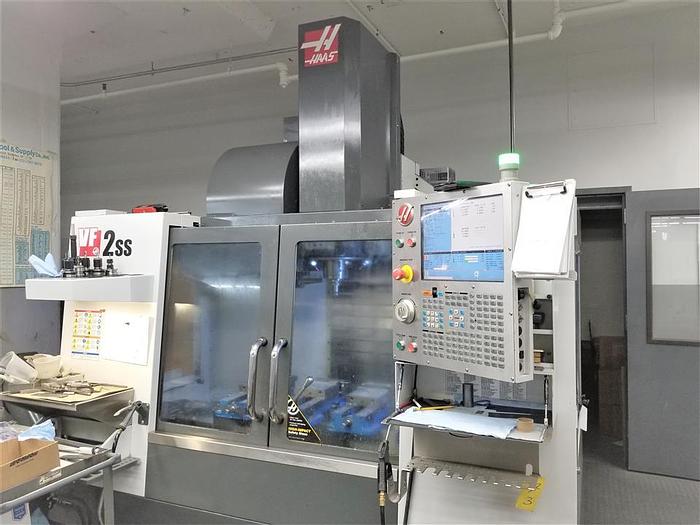

2014 Haas VF2SS 32 Bit CNC Control
No longer available
2014 Haas VF2SS 32 Bit CNC Control
$47,500 (USD)
New York, NY
Description
4th Axis Drive & Wiring
Coolant Through the Spindle - 300 PSI
24+1 Position Side Mounted Tool Changer
BT 40 Spindle Taper Option
Auger Style Chip Conveyor
Programmable Coolant Nozzle
Spindle Orientation
RS 232C Port Interface for DNC Operation
USB Port Interface
Rigid Tapping (Synchronous/Solid Tapping)
All Available Manuals
Expected Release Date at end July 2021
Specifications
| Manufacturer | Haas |
| Model | VF2SS 32 Bit CNC Control |
| Year | 2014 |
| Condition | Used |
| Stock Number | 117481 |
| Table size | 36"x14" |
| Max table load | 1,500 lbs |
| X axis travel | 30" |
| Y axis travel | 16" |
| Z axis travel | 20" |
| Spindle taper | BT #40 |
| Spindle speed | 12,000 RPM |
| Spindle motor | 30 HP - Direct Drive |
| Spindle nose to table top | 4" - 24" |
| Number of tool positions | 24 + 1 Position Side Mount |
| Max tool weight | 12 lbs. |
| Rapid feed rate (x,y,z) | 1,400 IPM |
| Cutting feed rate | 0.1 - 833 IPM |
| Machine dimensions | 88" x 93" x 106"H |
| Machine weight (approximately) | 9,000 lbs. |
