2014 DMG Mori NHX4000 with 1 Degree, Chip Blaster Hi Press CTS, 12,000 RPM, 60 Station ATC, 12,000 RPM, Tool Probe, Chip Conveyor

2 Pallet Changer System

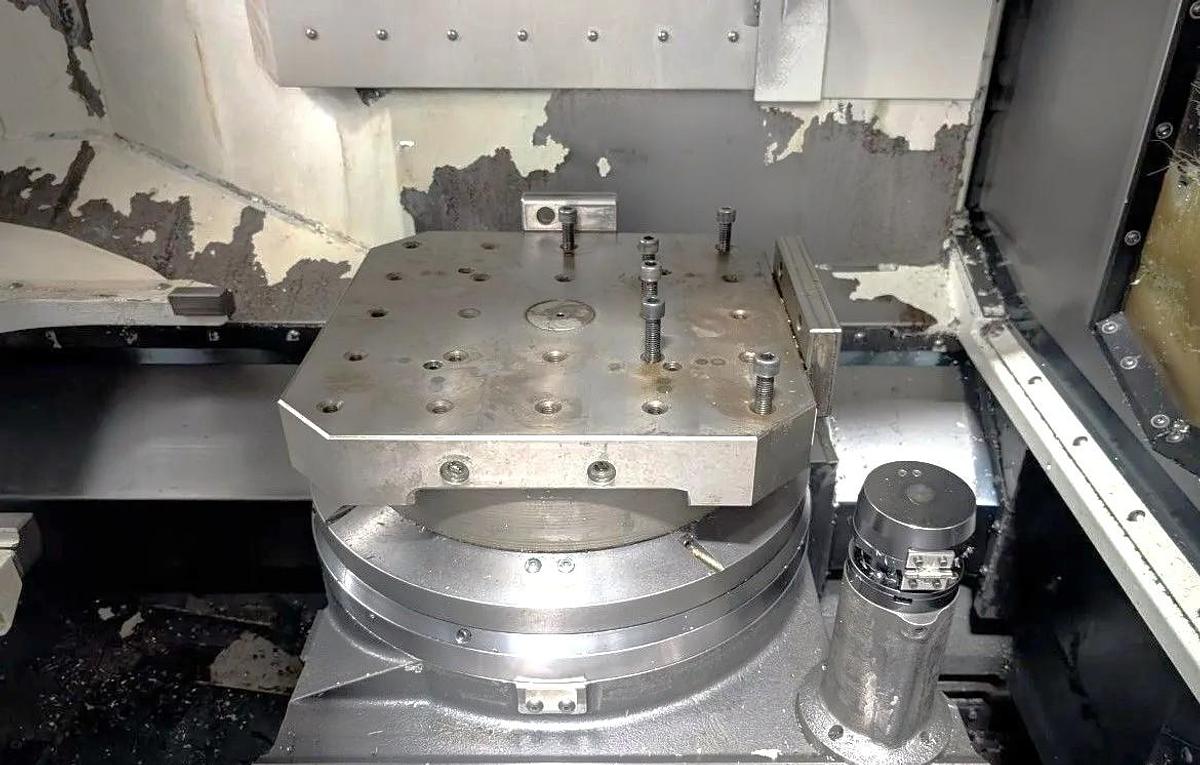

1 Degree Pallet Indexing

Chip Blaster High Pressure Coolant Through the Spindle System

Tool Setting Probe

60 Station Tool Changer

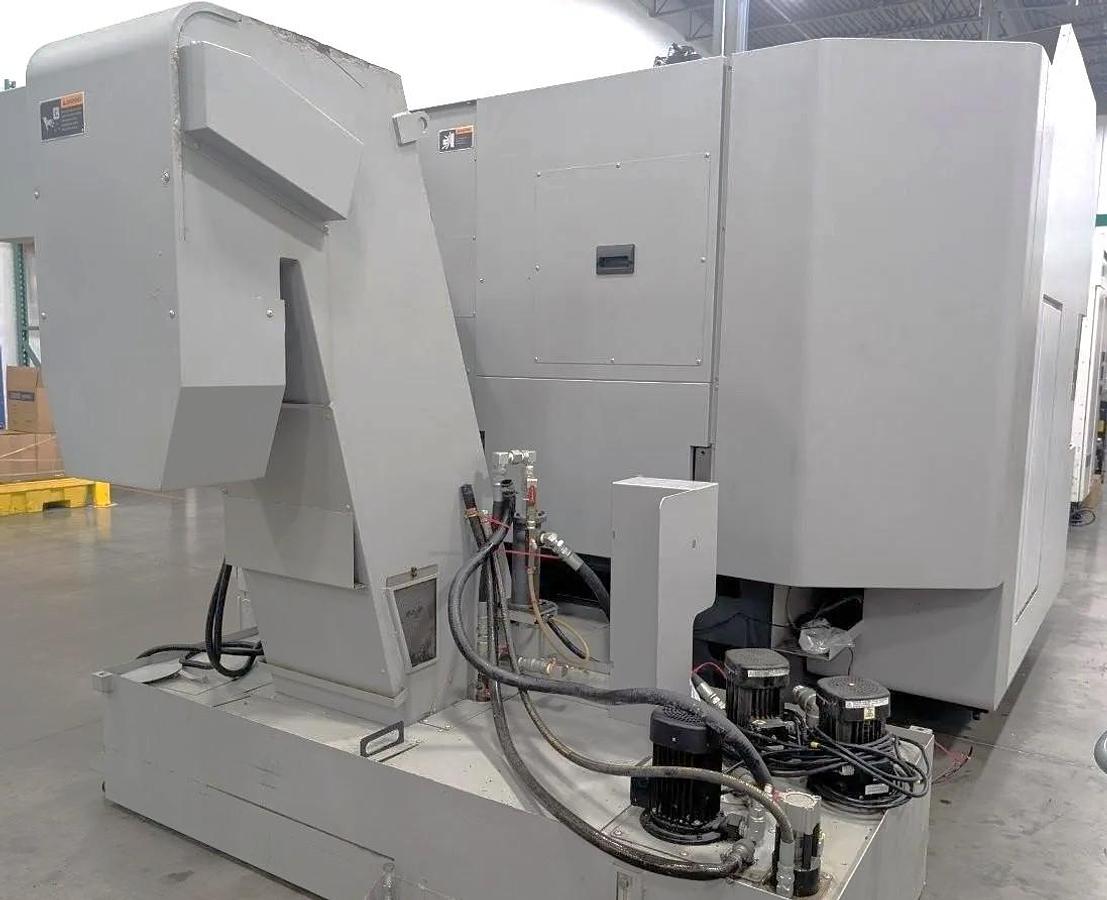

Chip Conveyor

Flood Coolant

Rigid Tapping

Helical Interpolation

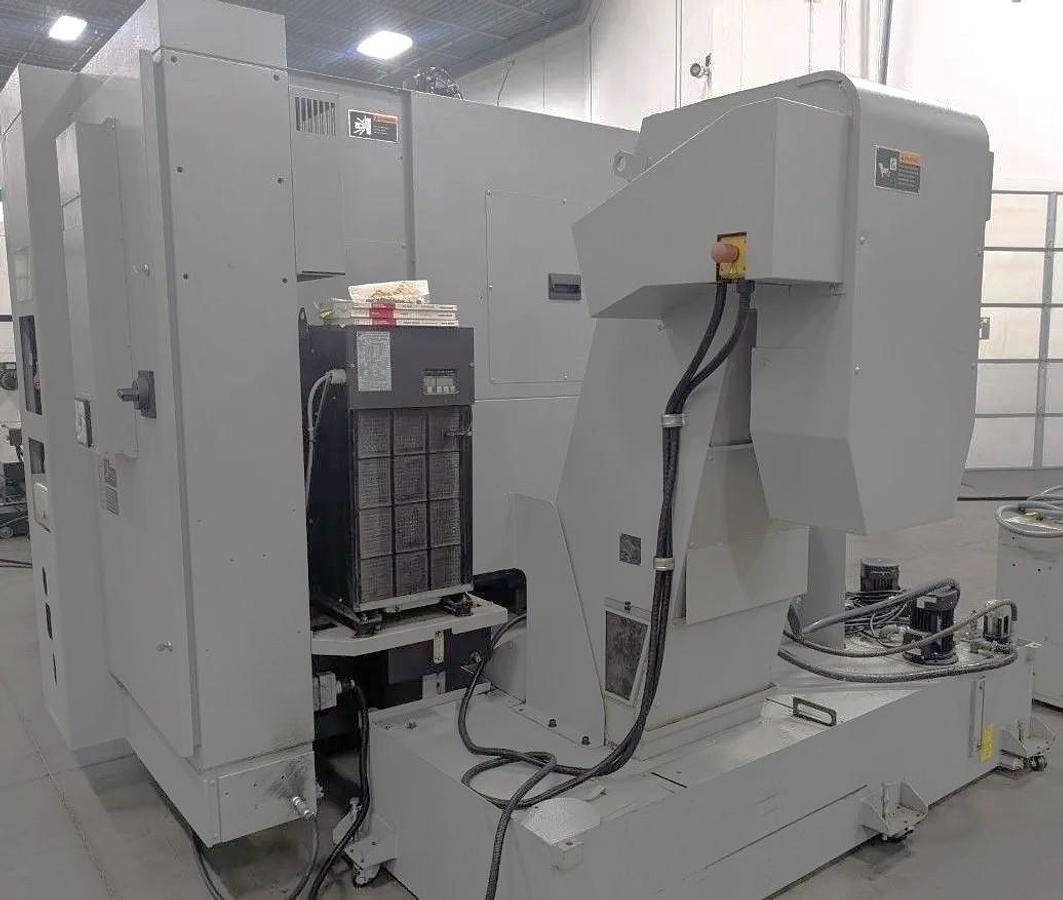

Spindle Oil Chiller Unit

Coolant System with Tank & Pump

Card Interface

RS 232 Port Interface

All Available Manuals

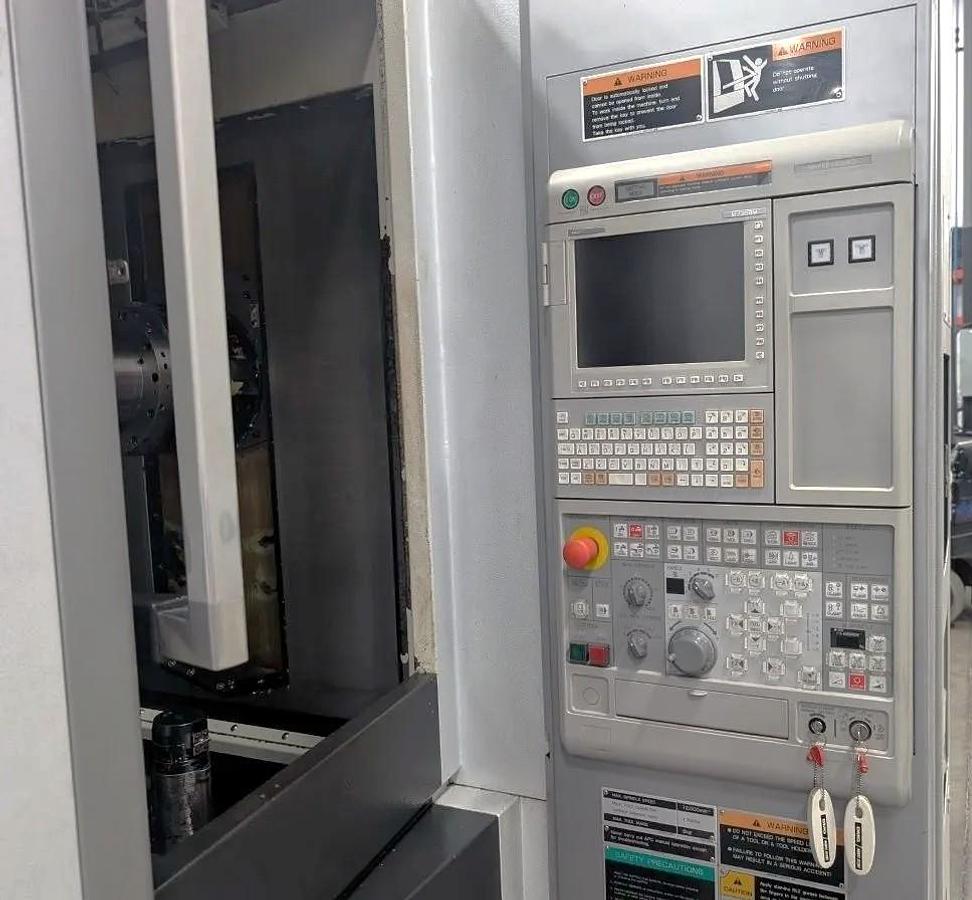

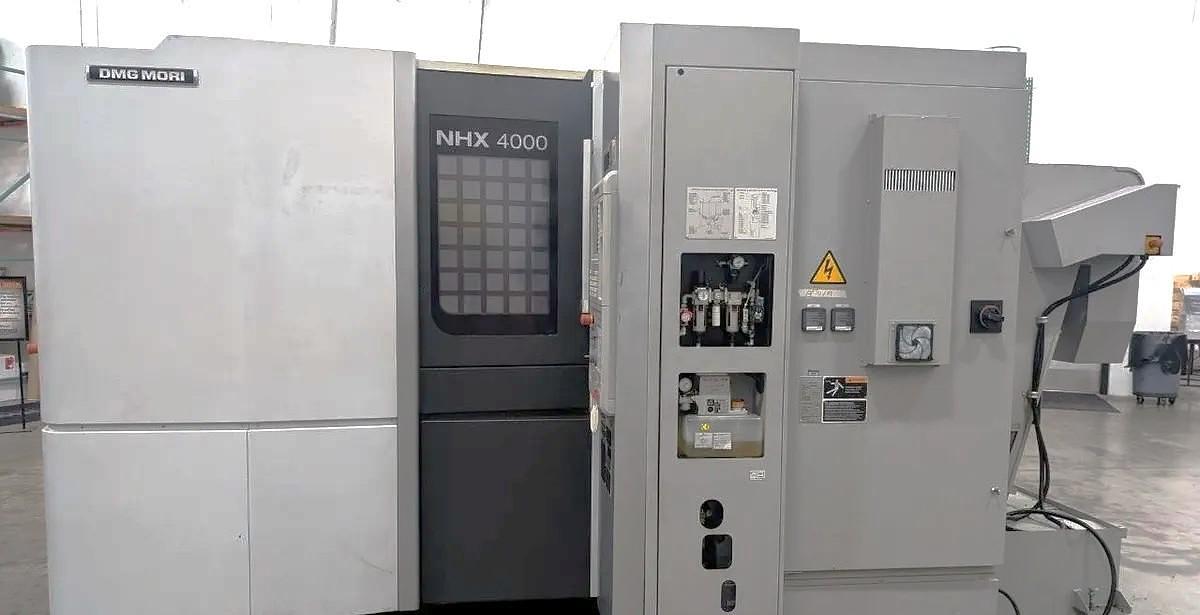

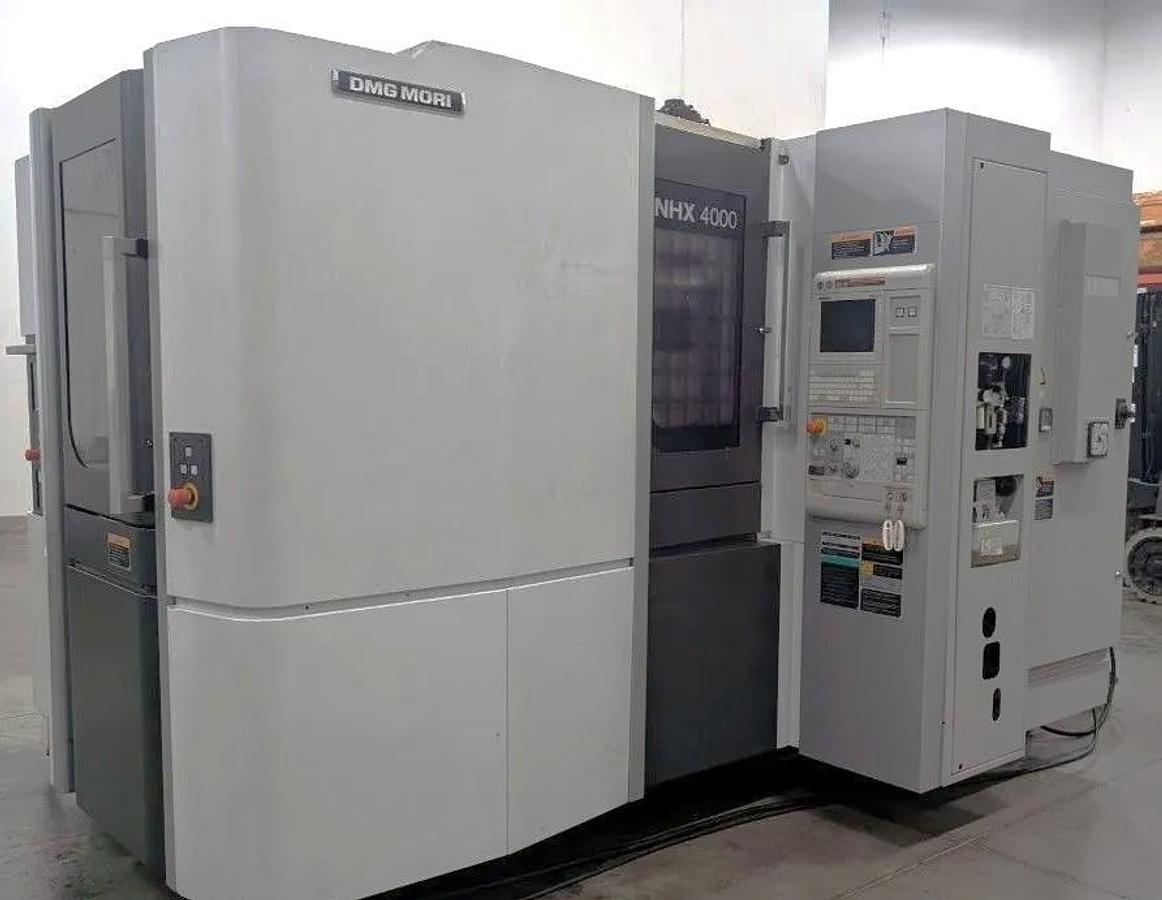

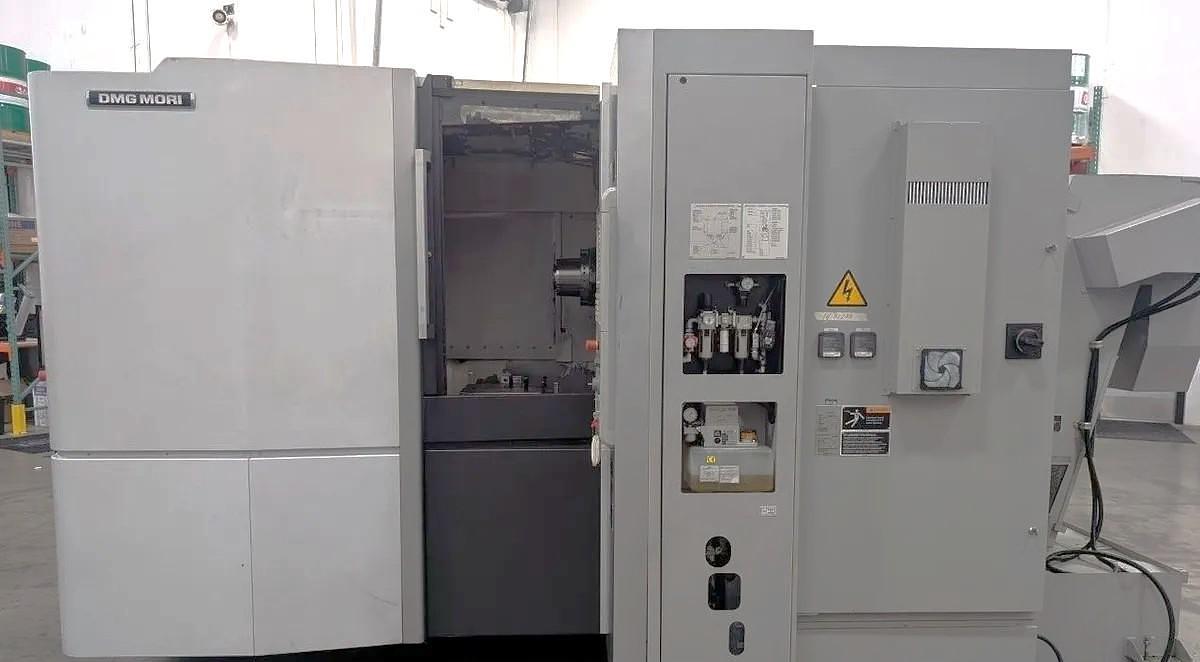

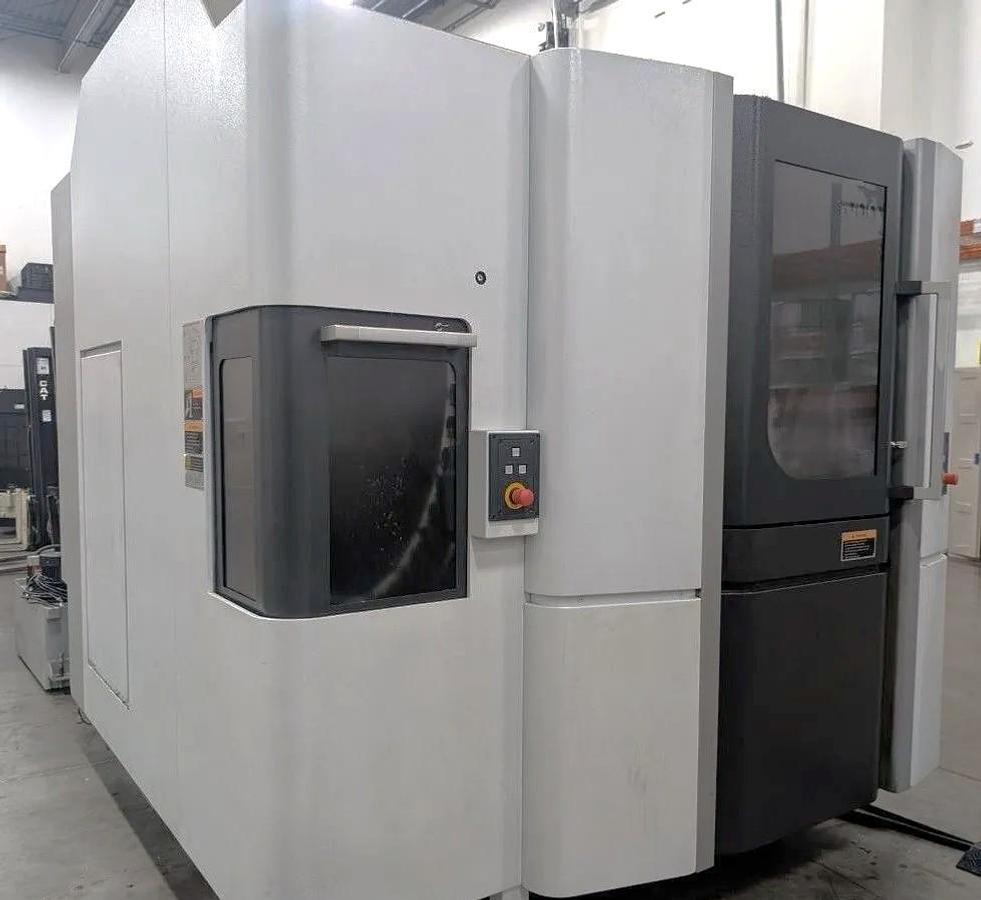

The 2014 DMG Mori NHX4000 is a robust CNC horizontal machining center designed for efficiency and precision. Equipped with a Mitsubishi M730BM with MAPPS IV control system, it ensures smooth and reliable operation. The machine features a two-pallet system, each measuring 15.7" x 15.7", allowing for seamless production transitions with 1-degree indexing capability. With X, Y, and Z-axis travels of 22", 22", and 26" respectively, it accommodates parts up to 24.8" in diameter and 35.4" in height, with a maximum table load of 880 lbs. The high-performance spindle reaches speeds of 12,000 RPM, driven by a powerful 40 HP motor, ensuring optimal machining capabilities. The machine includes a 60-station automatic tool changer, facilitating fast and versatile tooling options. Rapid traverse rates of 2,362 IPM enhance productivity, while the included tool probe and chip conveyor streamline operations and maintain clean working conditions. Compact yet substantial, the NHX4000 measures 107.1" in length, 165.9" in width, and 108" in height, with a total weight of 18,000 lbs. Its efficient design and advanced features make it an ideal choice for demanding machining tasks, ensuring quality and precision in various manufacturing environments.
