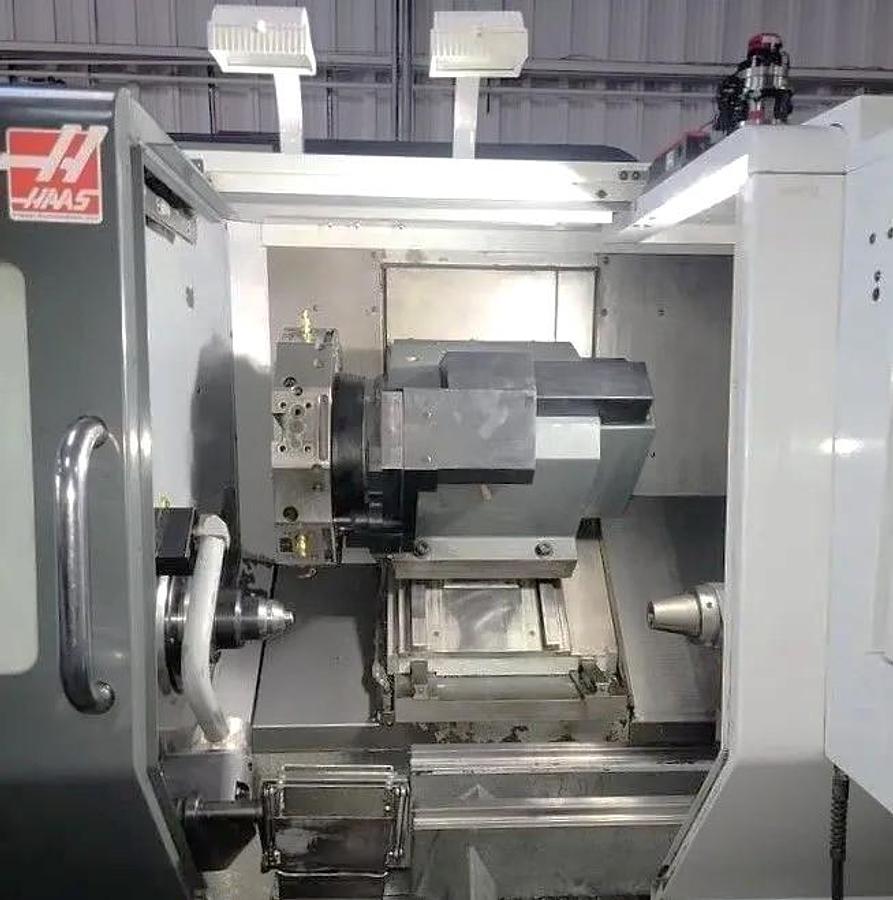

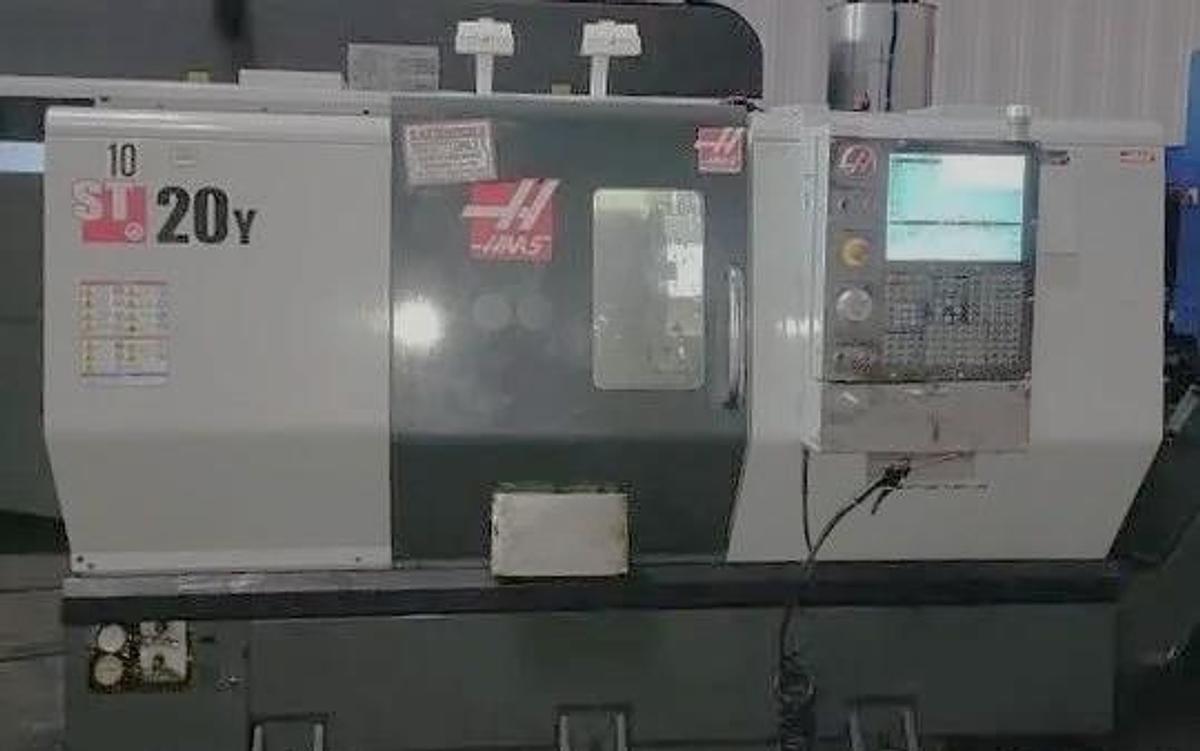

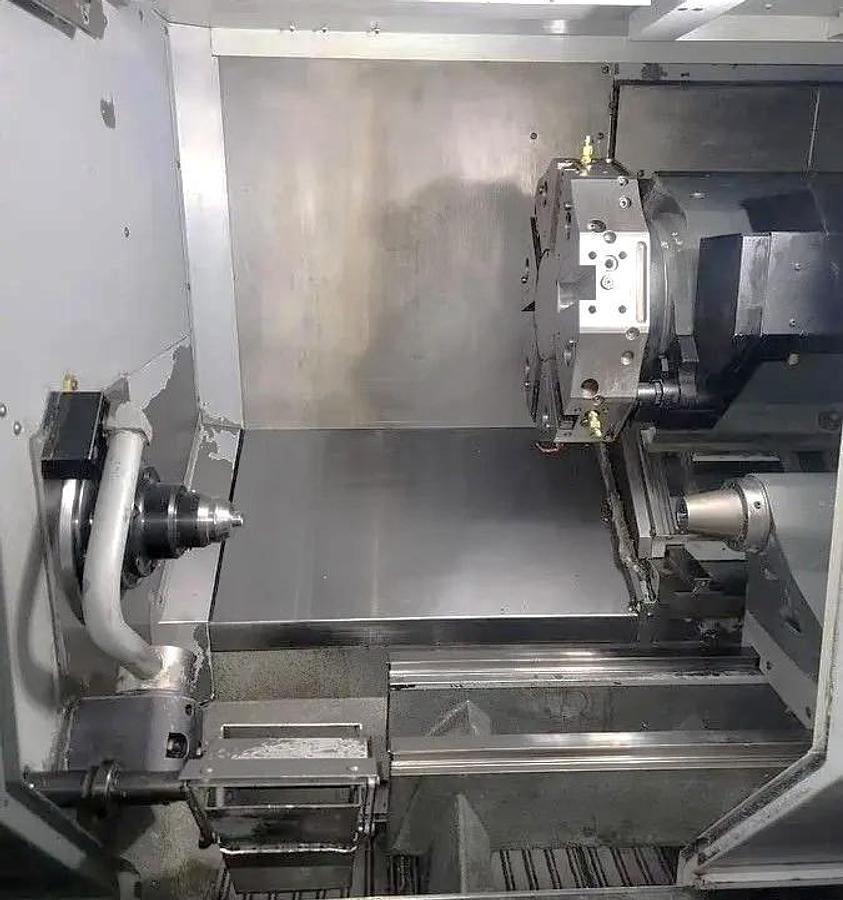

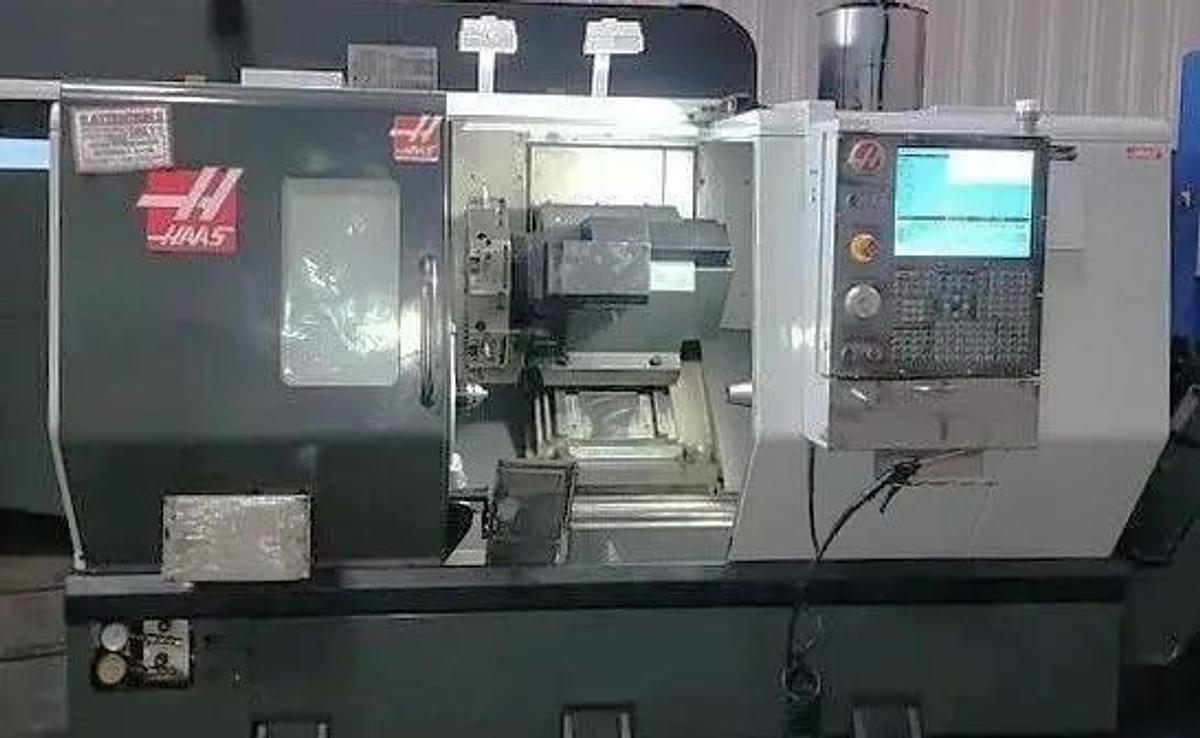

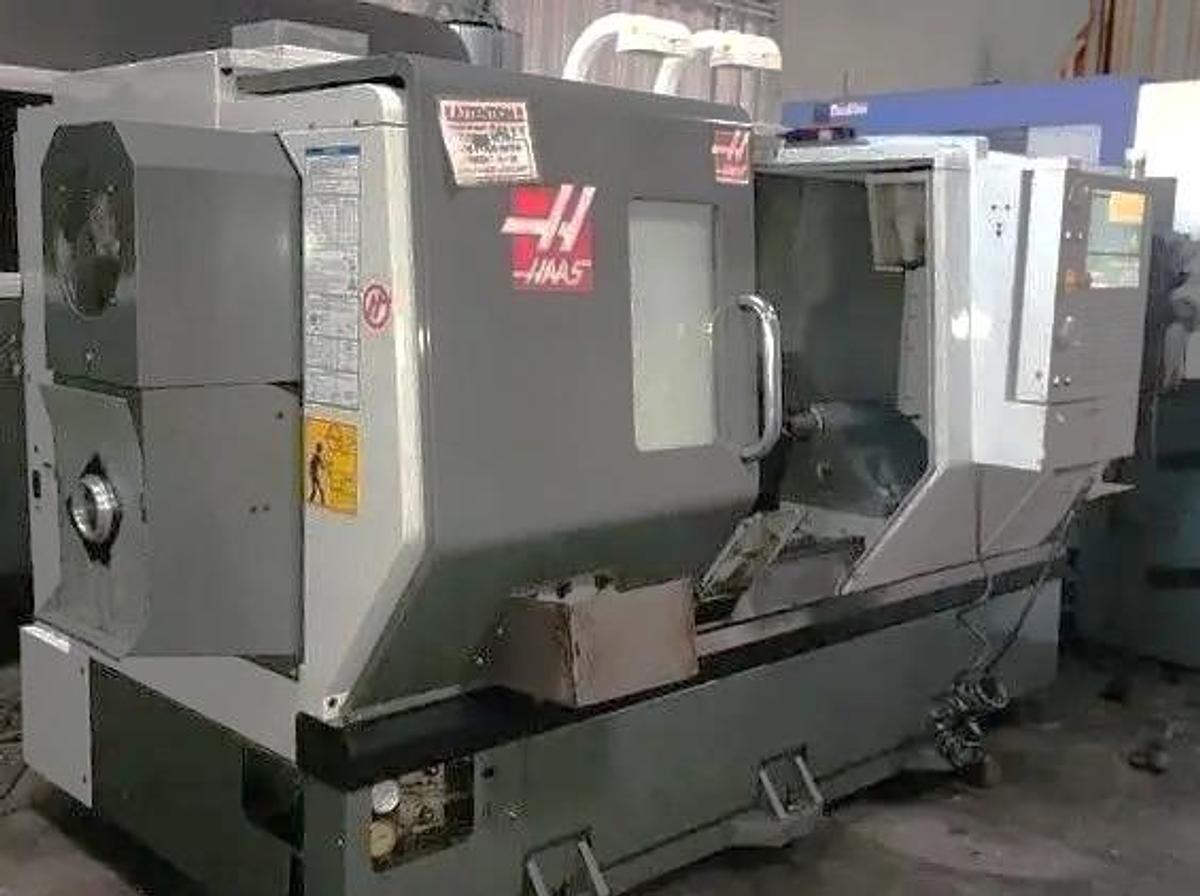

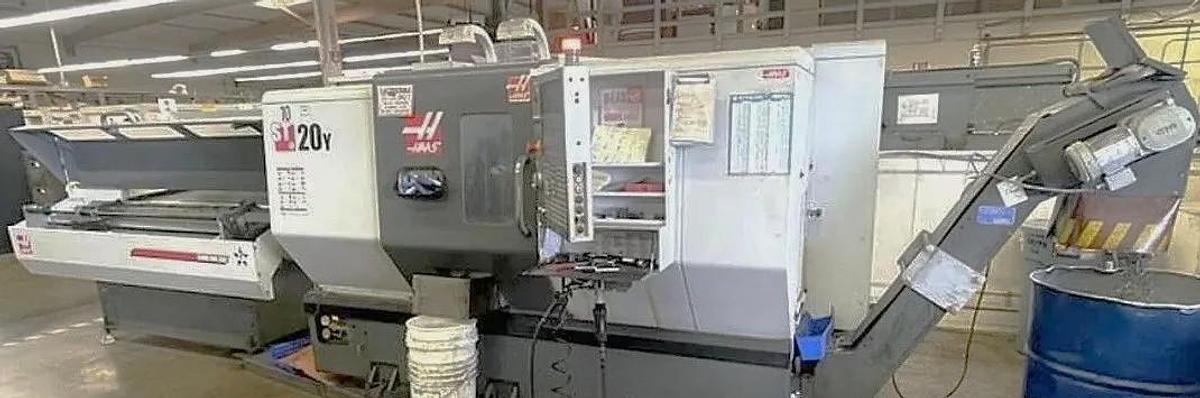

2013 Haas ST-20Y with Y Axis, Live Milling, Parts Catcher, Chip Conveyor, Haas Barfeeder with Spindle Liners, Tailstock, 4800 Cut Hours

C Axis Spindle Rotation

Live Milling/Drilling Capability

Y-Axis Capability

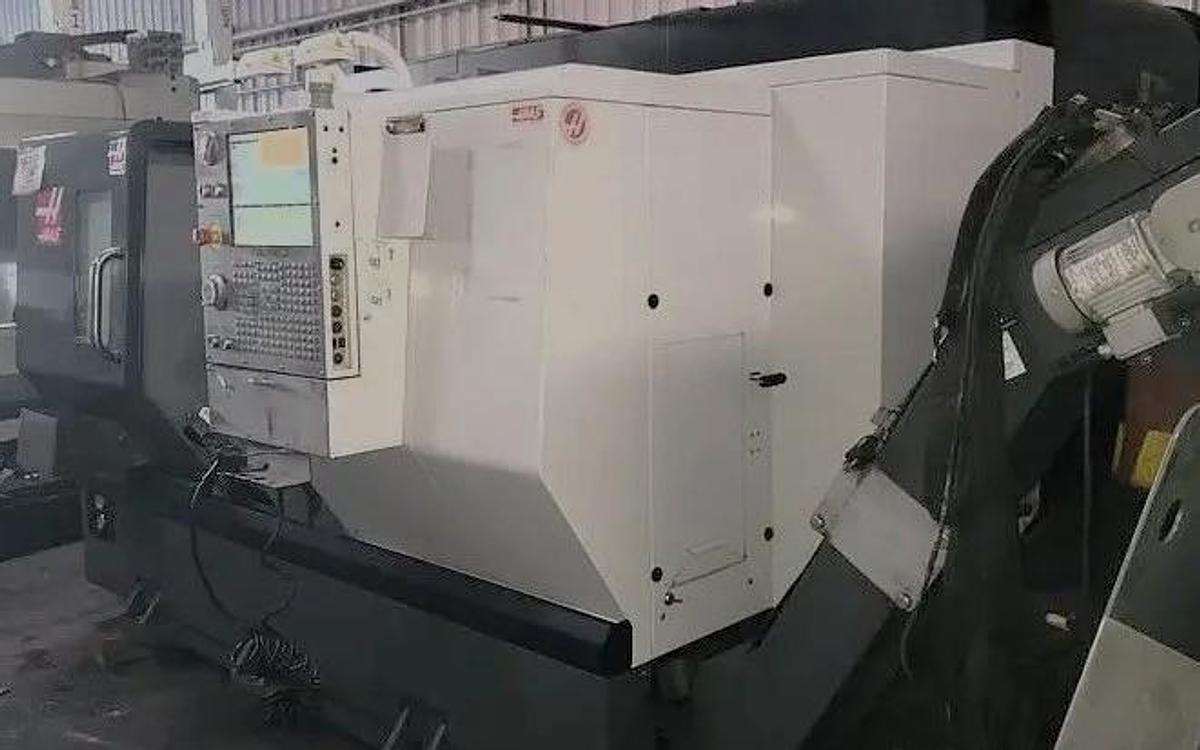

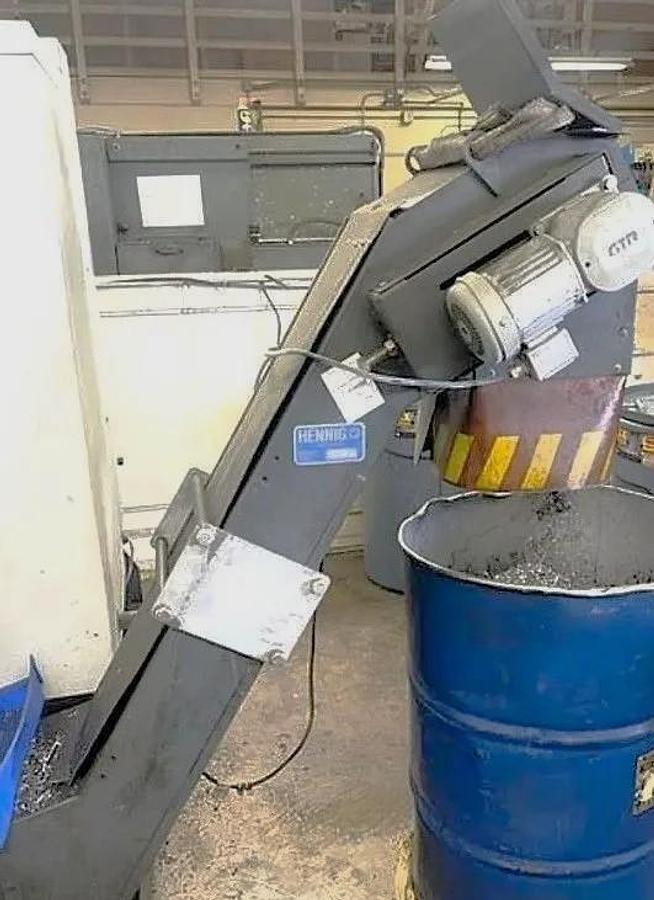

Belt Type Chip Conveyor

Parts Catcher

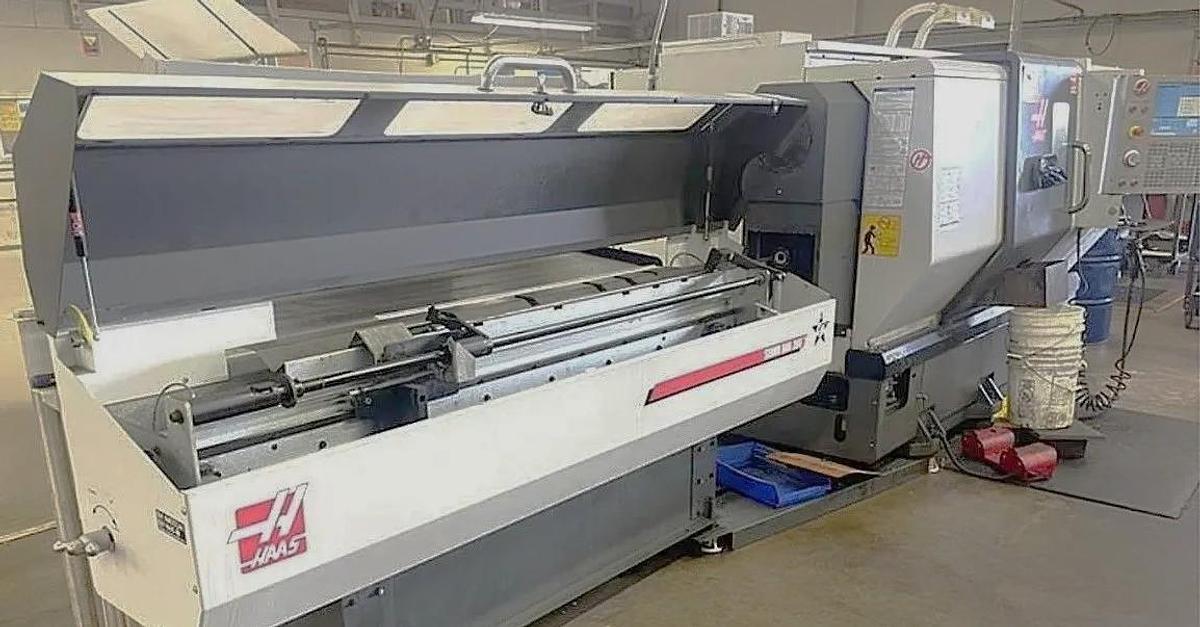

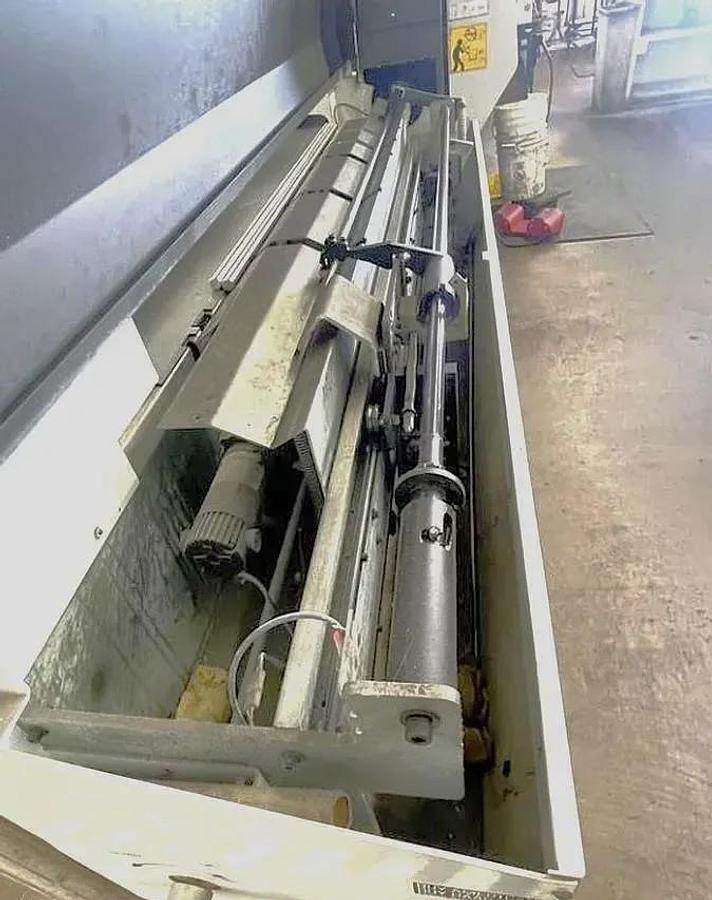

Haas Model 48A Barfeeder with Spindle Liners

Automatic Tool Presetter

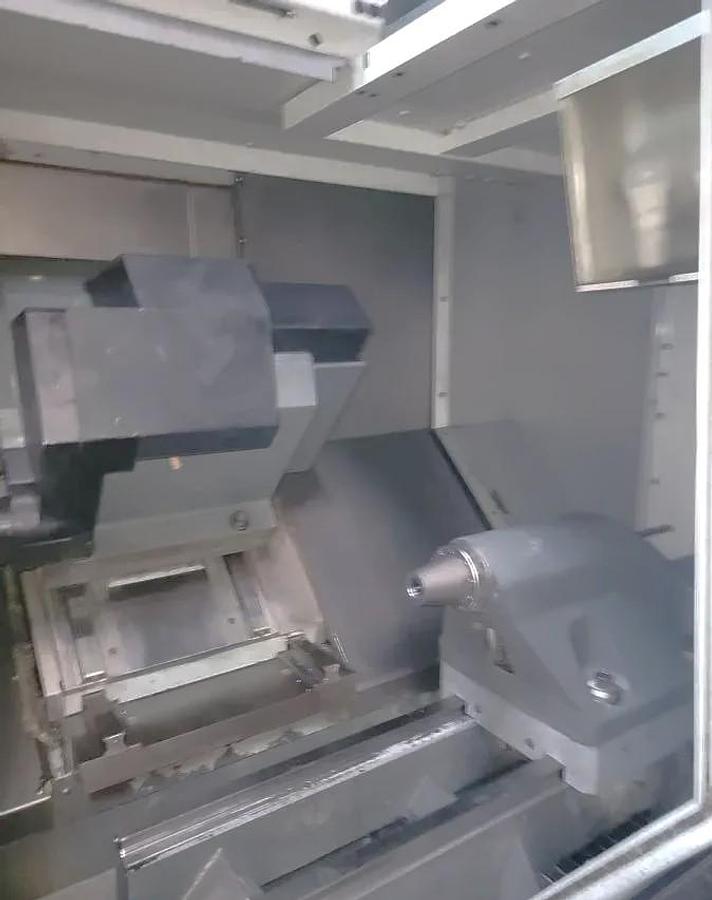

Programmable Tailstock

High Intensity Lighting

High Pressure Coolant System - 300 PSI

Rigid Tapping

Spindle Orientation

Collet Chuck

Internal High Voltage Transformer

Coolant System with 48 Gallon Tank & Pump

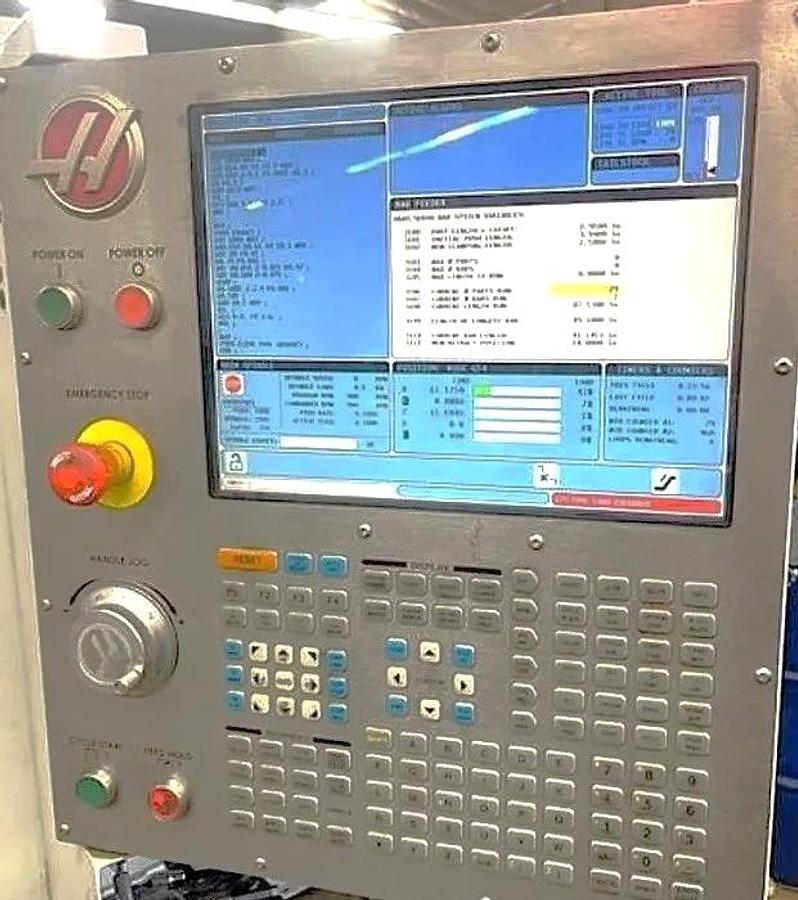

Haas Intuitive Programming System

Media Display by M-Code

User Definable Macros

1 GB Programming Memory

Memory Lock Key Switch

USB Port Interface

RS 232 Port Interface

(1) Radial & (1) Axial Live Tool Holders

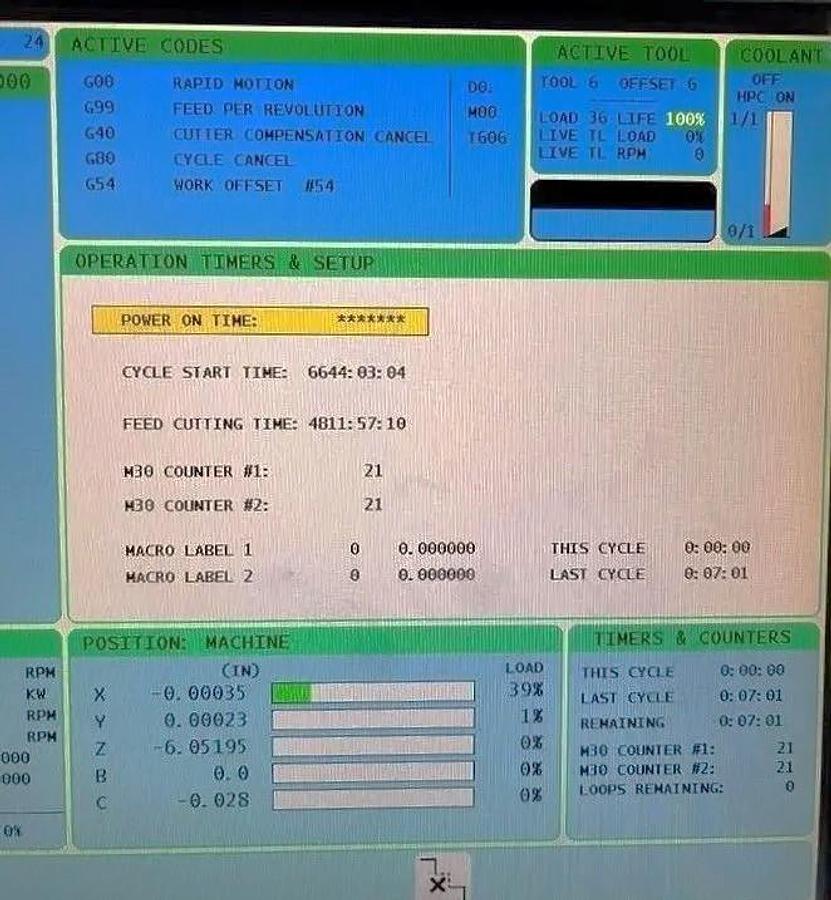

**Feed Cutting Hours 4,800**

The 2013 Haas ST-20Y CNC lathe offers enhanced functionality with its Y-axis, live milling, and a range of additional features suitable for precision machining tasks. Engineered with a Haas CNC Control system, this machine ensures precise operations, further supported by a collet chuck capable of handling materials with a maximum swing over the cross slide of 21 inches. It accommodates materials with a maximum machining diameter of 11.75 inches and a machining length of up to 22.5 inches. The advanced Y-axis travel is +/- 2.0 inches, enhancing the machine’s versatility. This CNC lathe is equipped with a 20 HP spindle motor, achieving speeds up to 4,000 RPM and supporting a spindle bore of 3.5 inches. The bar capacity available is 2.5 inches, and the machine incorporates 12 VDI/BOT type turret positions for tool accommodation. For additional operational efficiency, it features rapid traverse rates of 472 IPM in the X and Y axes and 945 IPM in the Z axis. The machine's integral components include a tailstock with an MT #4 taper, further increasing its range of applications. Additional features such as a parts catcher, chip conveyor, and a Haas barfeeder with spindle liners provide operational conveniences that improve productivity. The setup is compact with dimensions of 142" L x 90" W x 92" H, and it weighs approximately 10,480 lbs. With only 4,800 cut hours, this ST-20Y is a reliable solution for enhancing your precision machining capabilities.
