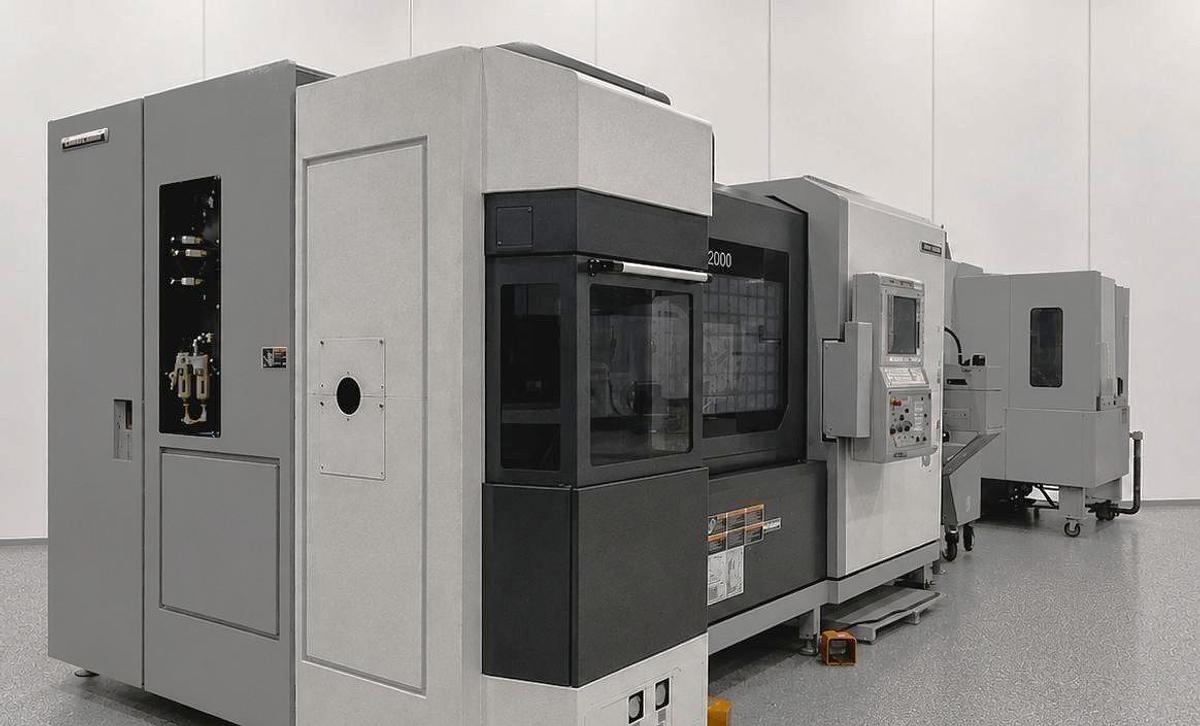

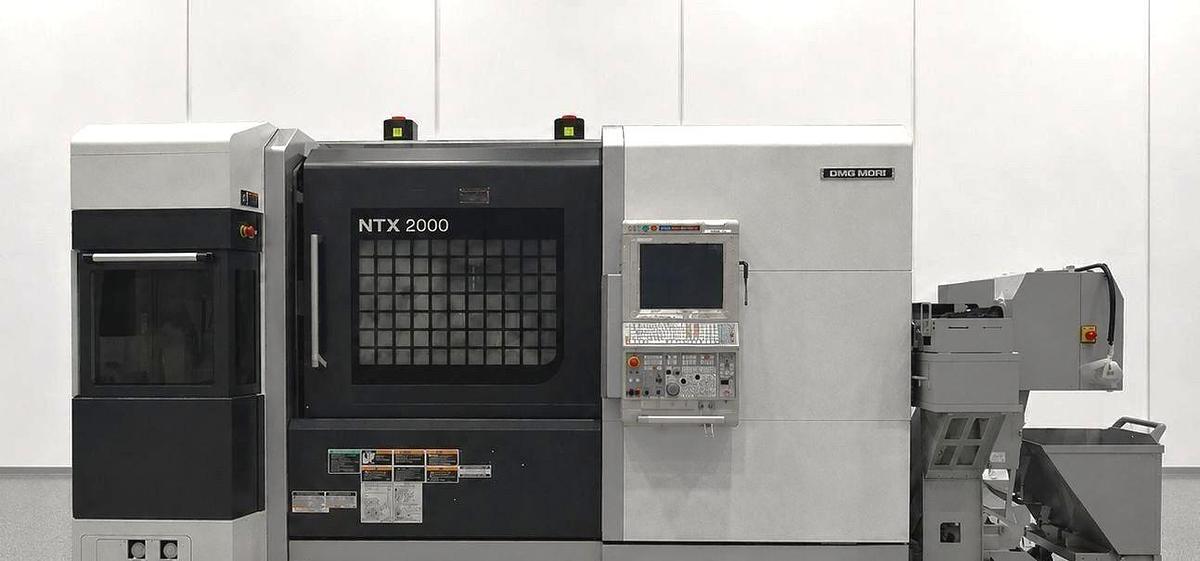

2014 DMG Mori NTX2000-1500S Mill/Turn Center, Pendulum B Axis, Y Axis, Lower Turret, 8" Chucks Both Spindles, 76 Station ATC

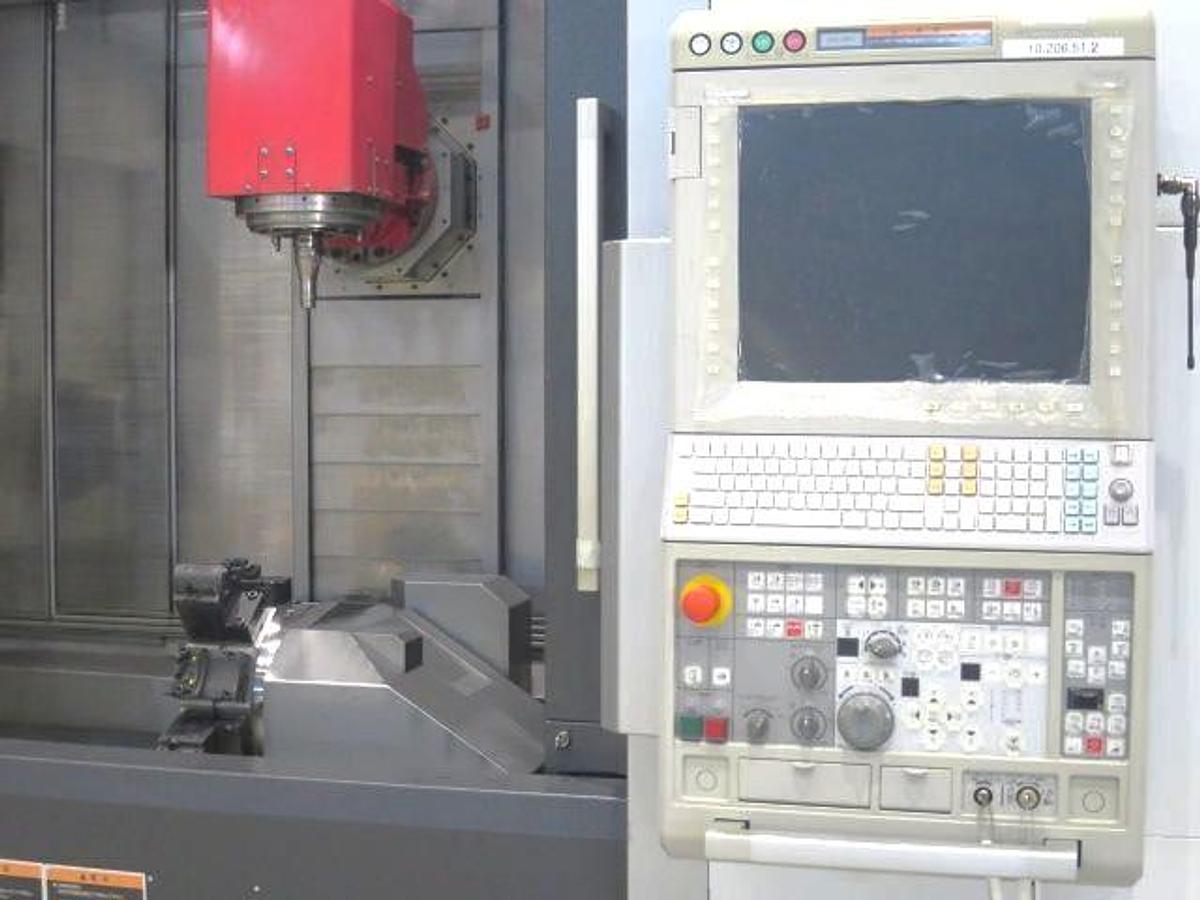

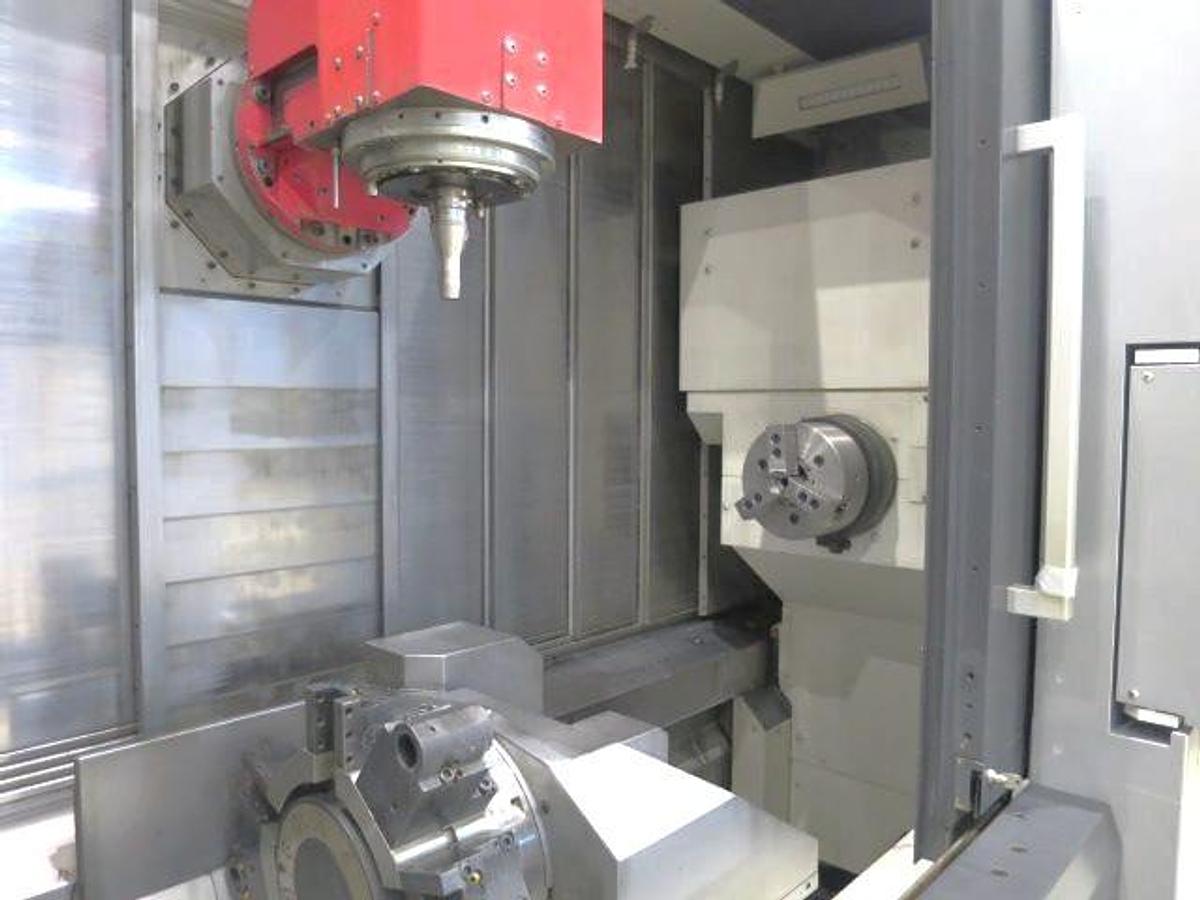

Pendulum Style B Axis Head

Full C Axis Spindle Rotation - Both Spindles

Milling/Drilling Capability

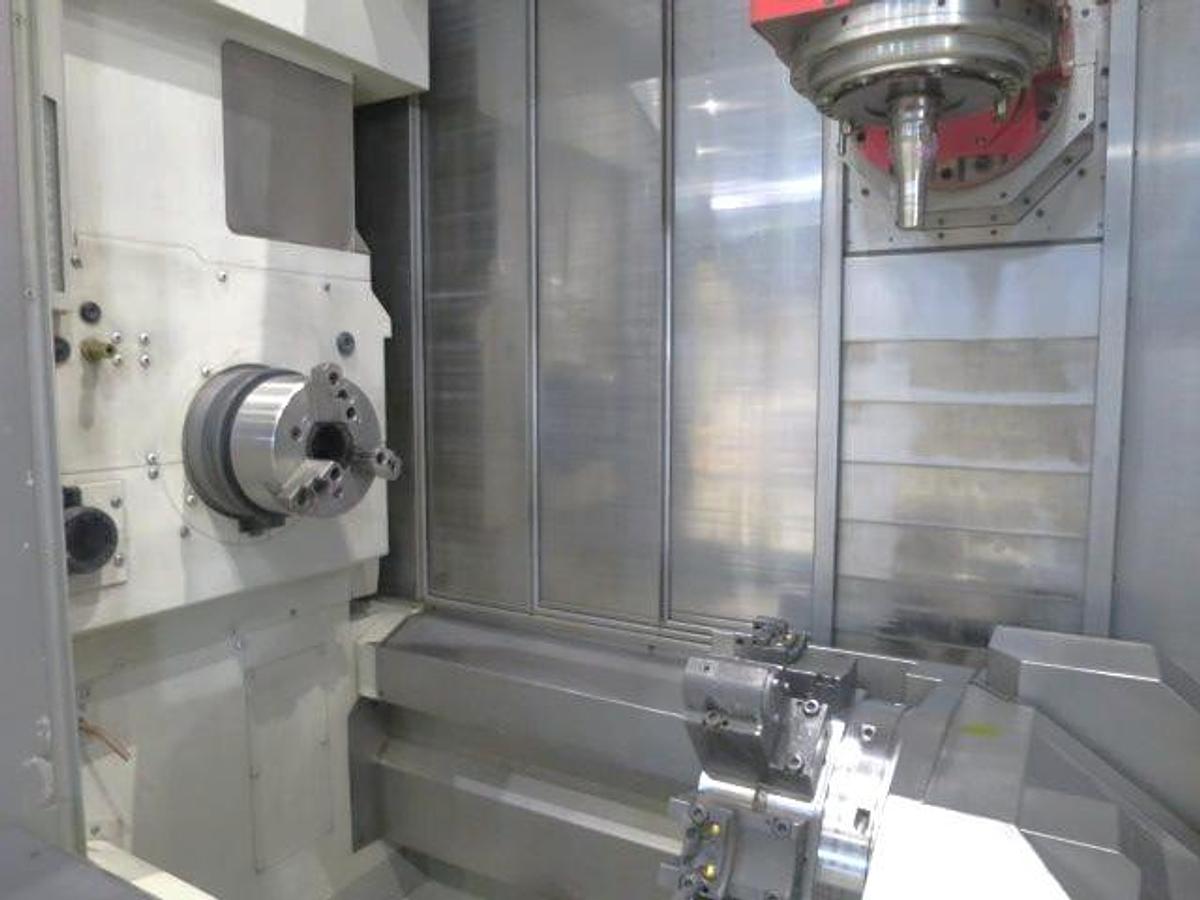

Subspindle

Y Axis Capability

76 Station Tool Changer

10 Station Lower Turret Option

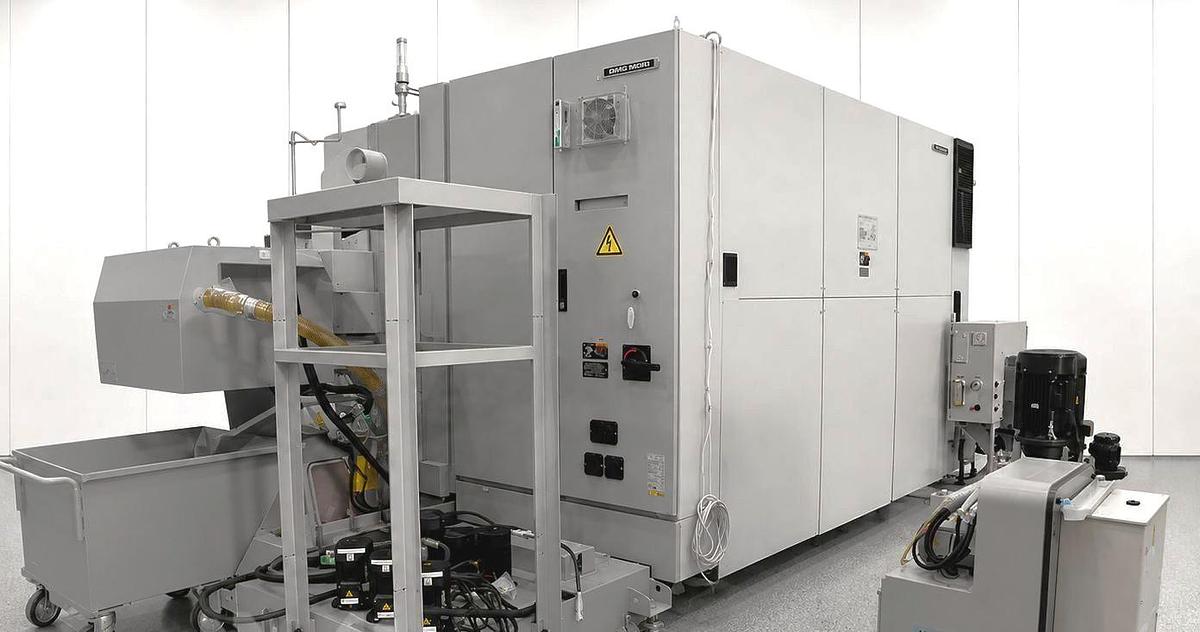

Chip Conveyor

8" 3 Jaw Kitagawa Hydraulic Chucks on Both Main & Subspindle

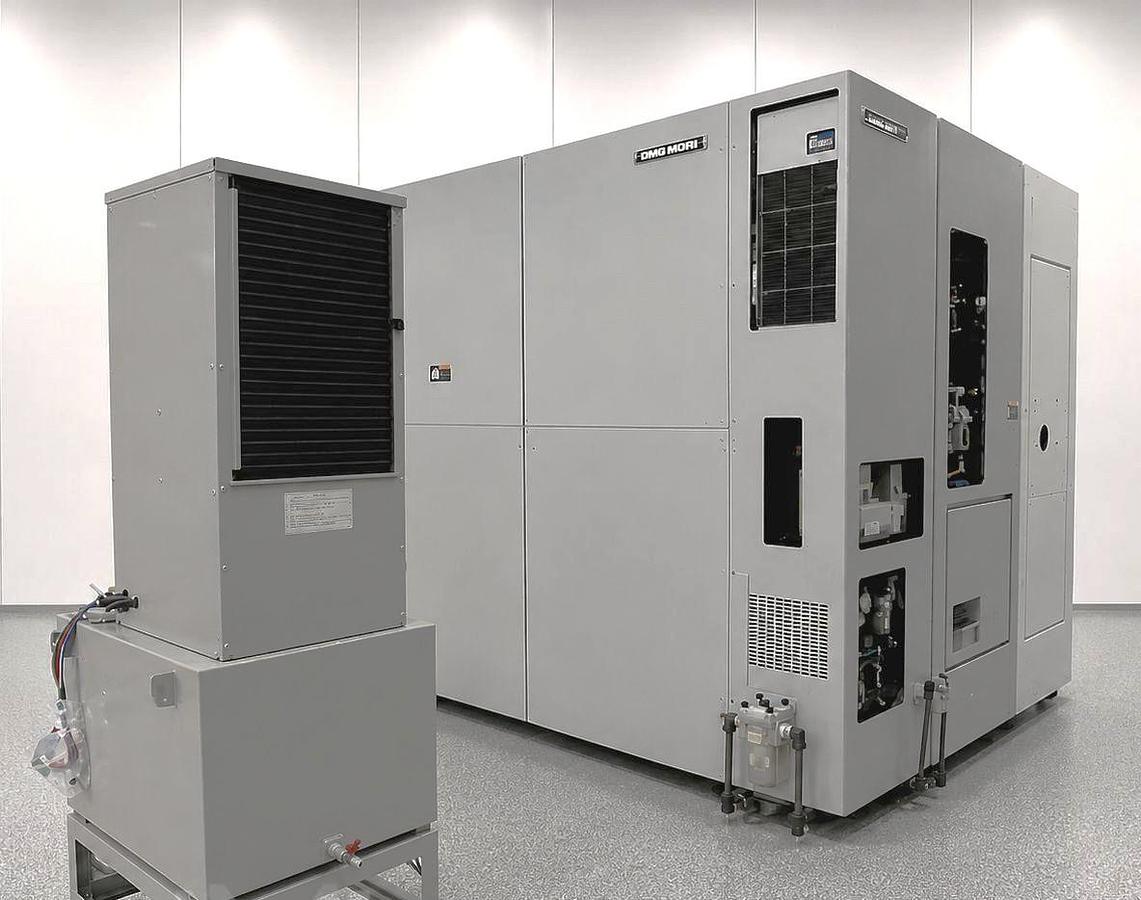

Spindle Chiller Unit

High Pressure Coolant

Coolant System with Tank & Pump

Wired 220V Electrics

RS 232 Port Interface

The 2014 DMG Mori NTX2000-1500S is a versatile mill/turn center designed for precision machining. With a Fanuc Series 31i-B5 Control, it offers robust operational capabilities. Both spindles are equipped with 8-inch hydraulic chucks, supporting a maximum turning diameter of 25.9 inches on the upper turret and 10.7 inches on the lower turret. The machine can handle a maximum turning length of 60.6 inches and features a bar capacity of 2.5 inches, making it suitable for various applications. Travel capabilities include X-axis travel of 19.5 inches, Y-axis travel of ±4.9 inches, and Z-axis travel stretching to 61.4 inches. The B-axis allows for pendulum movement of ±120 degrees, complemented by .0001-degree resolution on the C axis spindles. The main and sub spindles operate at a max speed of 5,000 RPM, driven by a 30 HP motor. A Capto C6 taper mill spindle reaches speeds up to 12,000 RPM with a 24.7 HP motor. This unit is further enhanced by a 76-station automatic tool changer and a 10-station lower turret, providing comprehensive tooling options. Rapid traverse rates reach impressive speeds of 1,574 IPM across several axes. Measuring 161 x 118 x 104 inches and weighing 33,594 lbs, this machine is a substantial asset for high-demand production environments.
