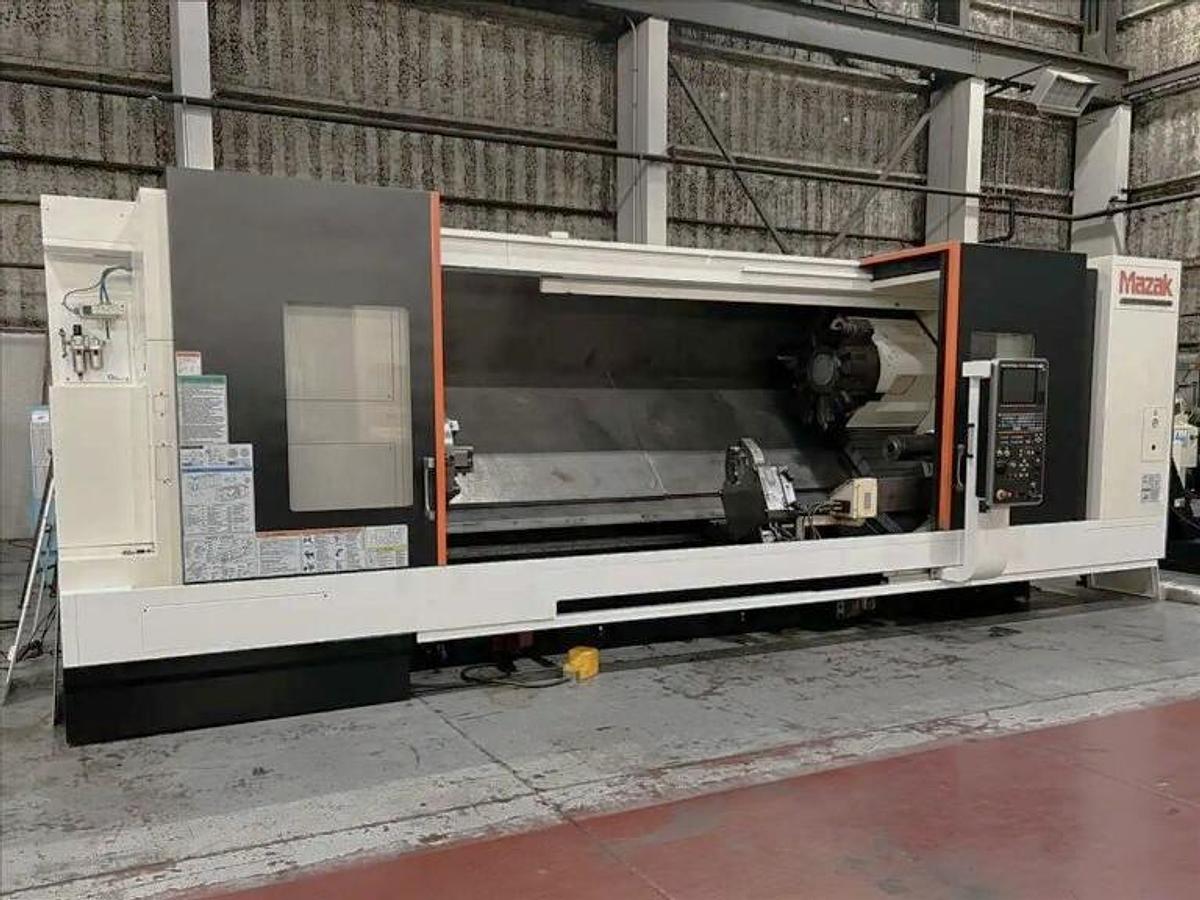

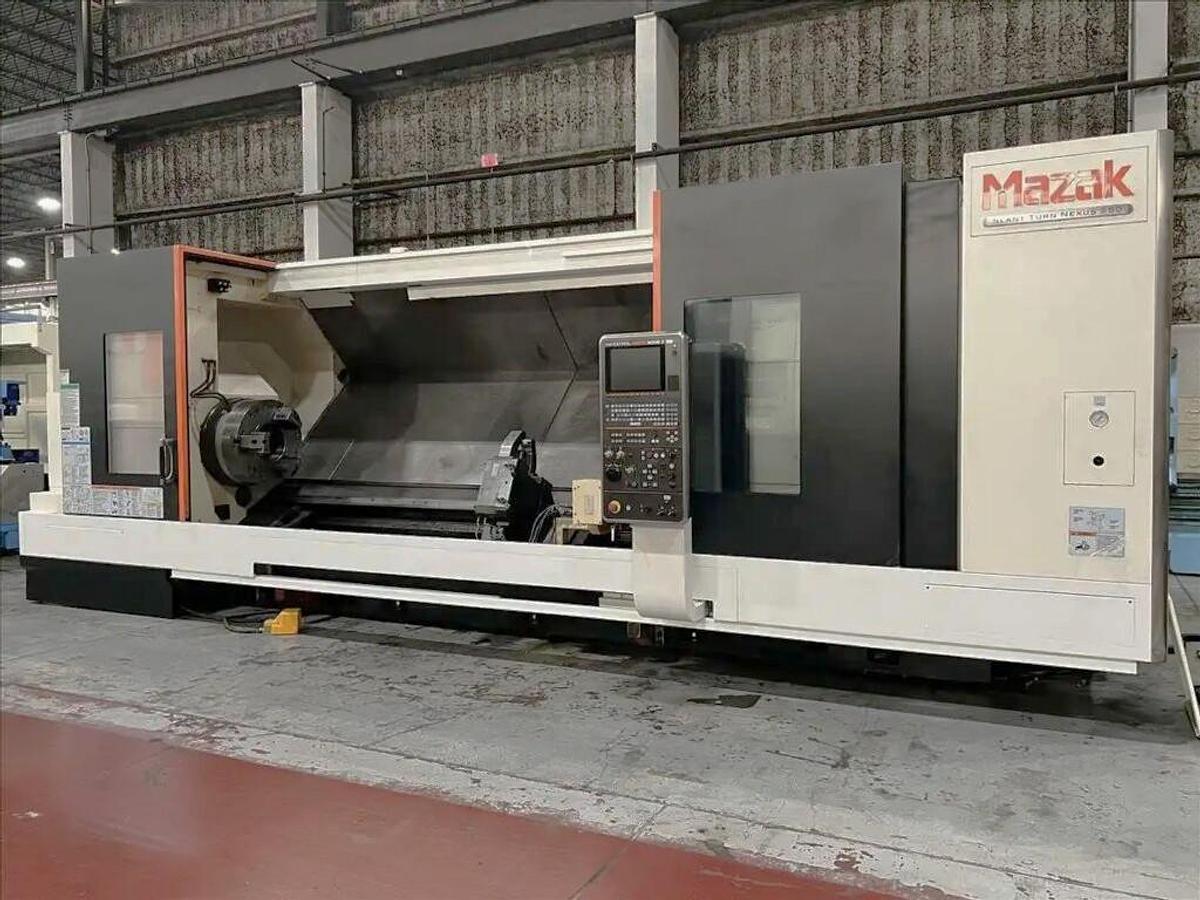

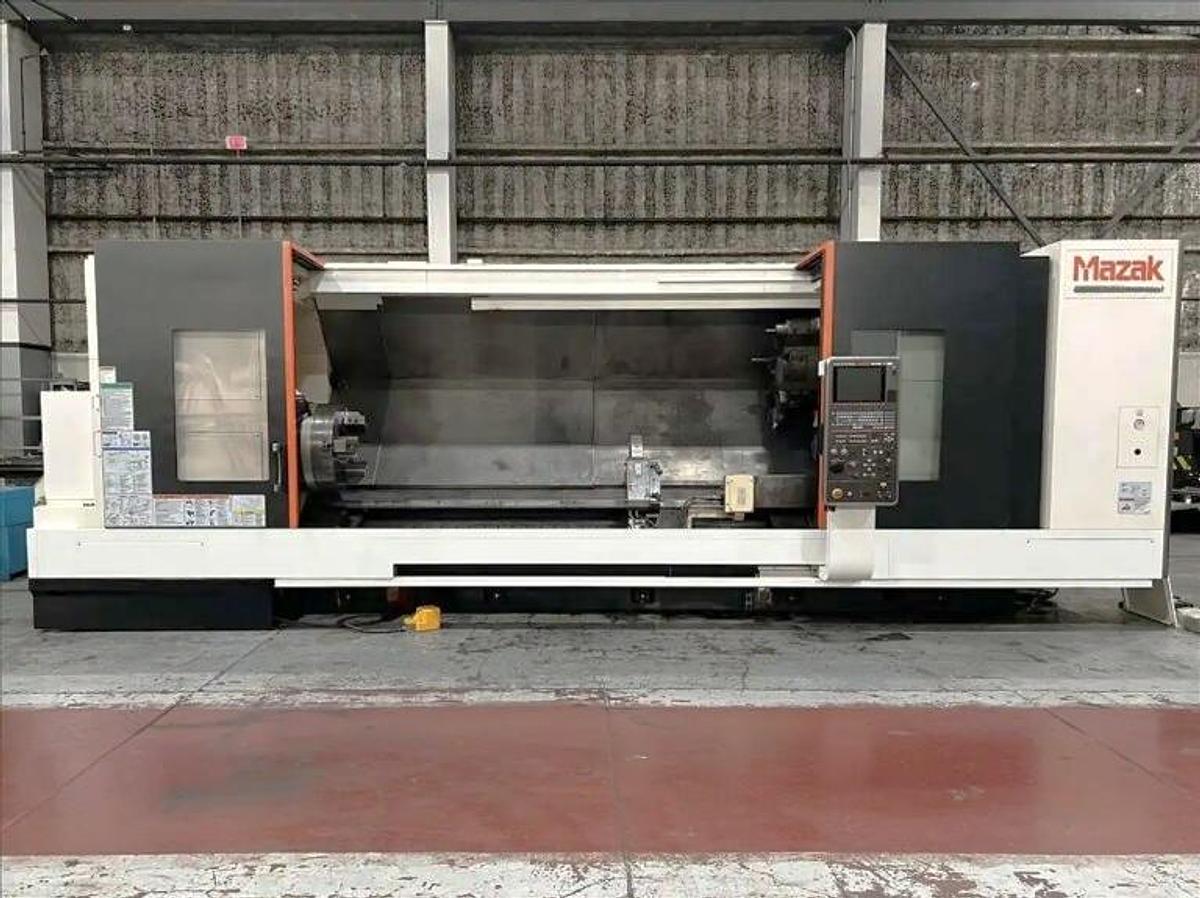

2013 Mazak Slant Turn Nexus 550/3000 with 24" Air Chuck, 10.8" Bar Capacity, 120" Centers, Hyd Steady Rest, Tailstock, Conveyor

10.8" Spindle Bore Option

Prepped for Hydraulic Steady Rest

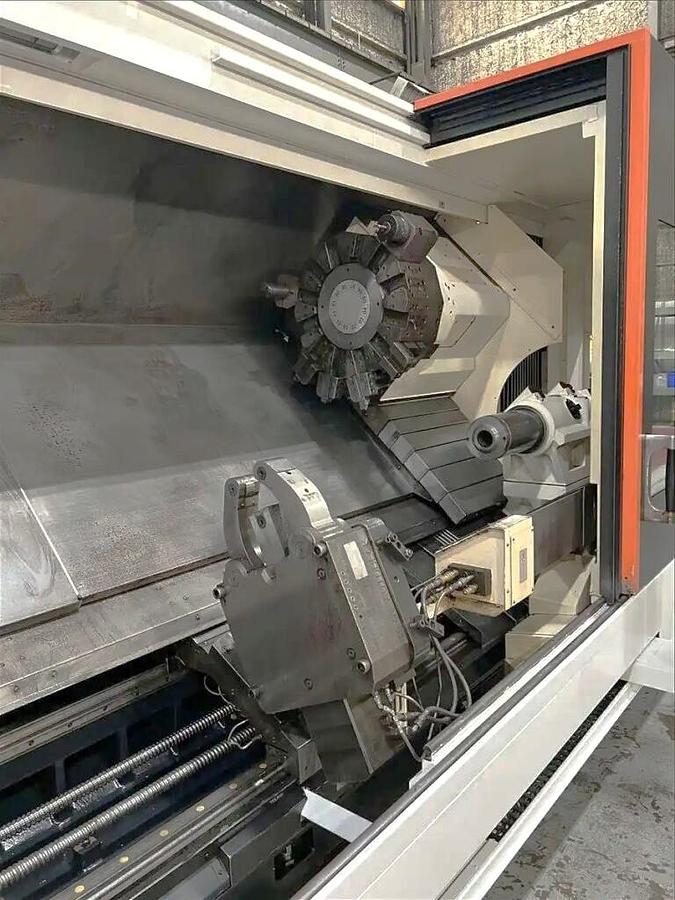

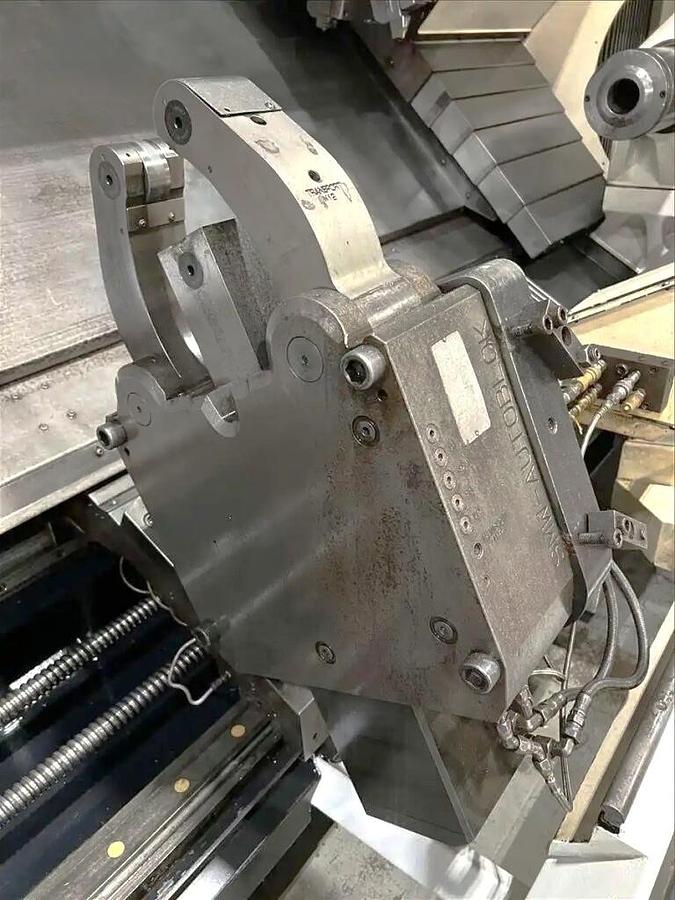

SMW Autoblock Hydraulic Steady Rest

120" Center Distance

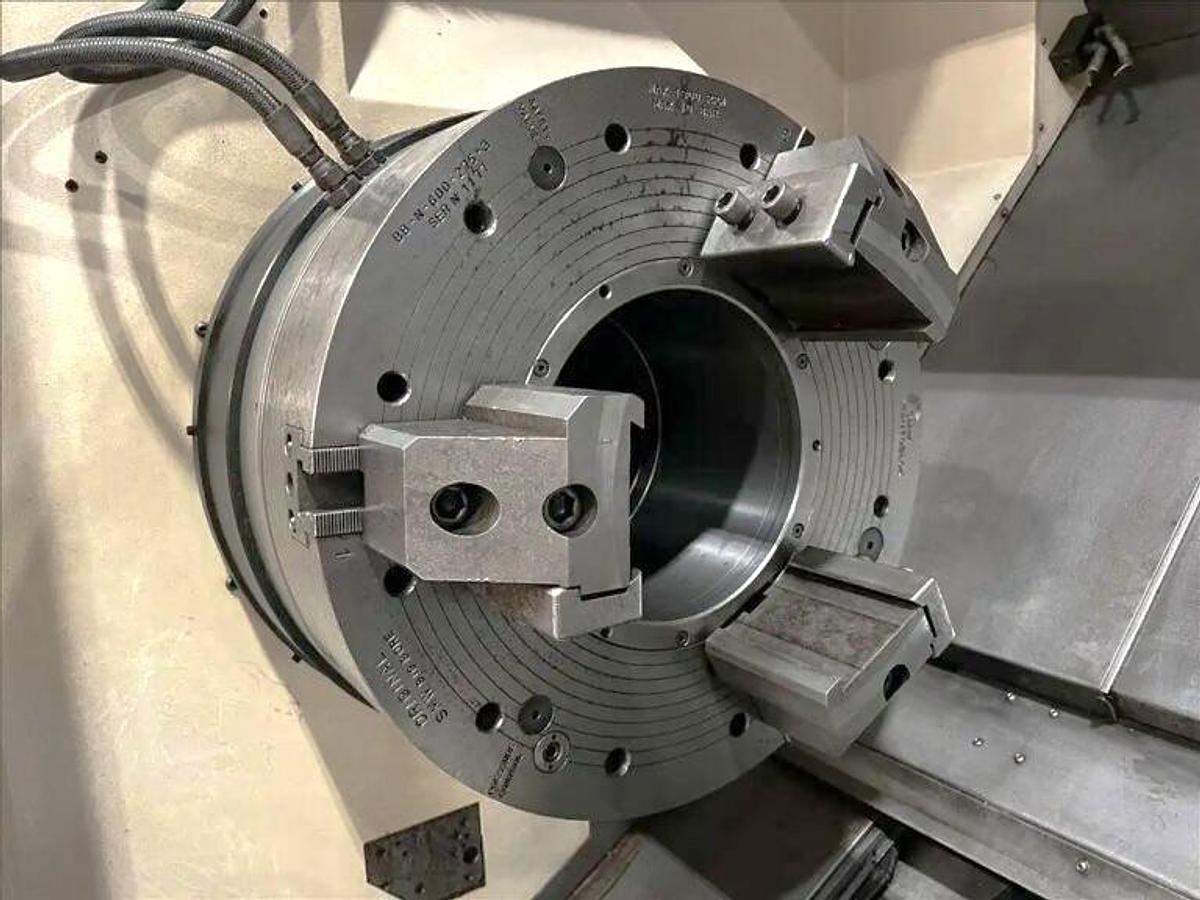

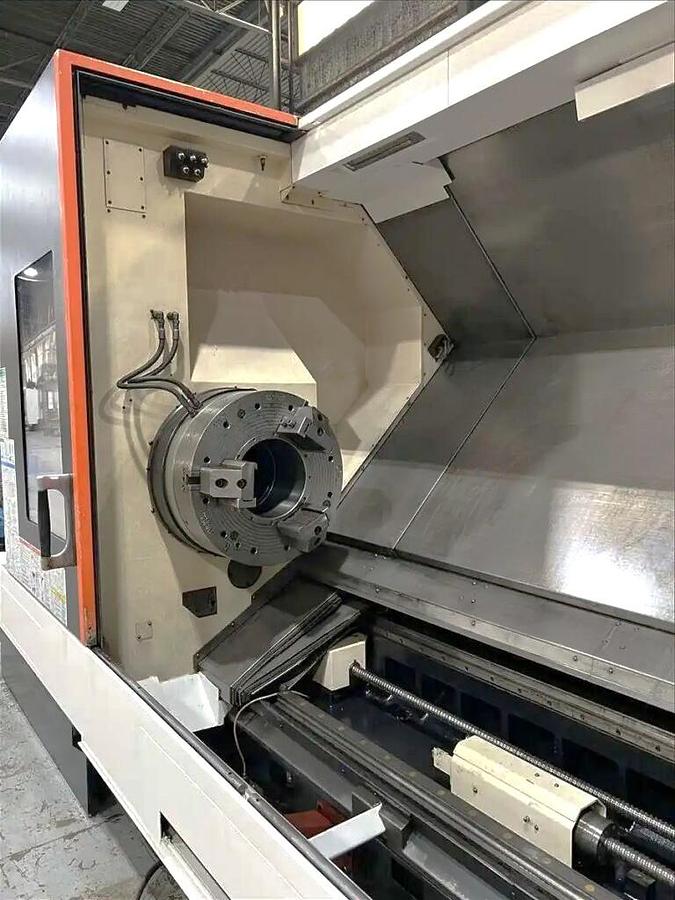

24" 3 Jaw SMW BB-N-600-275-3 Air Chuck with 10.835" Through Hole

Chip Conveyor

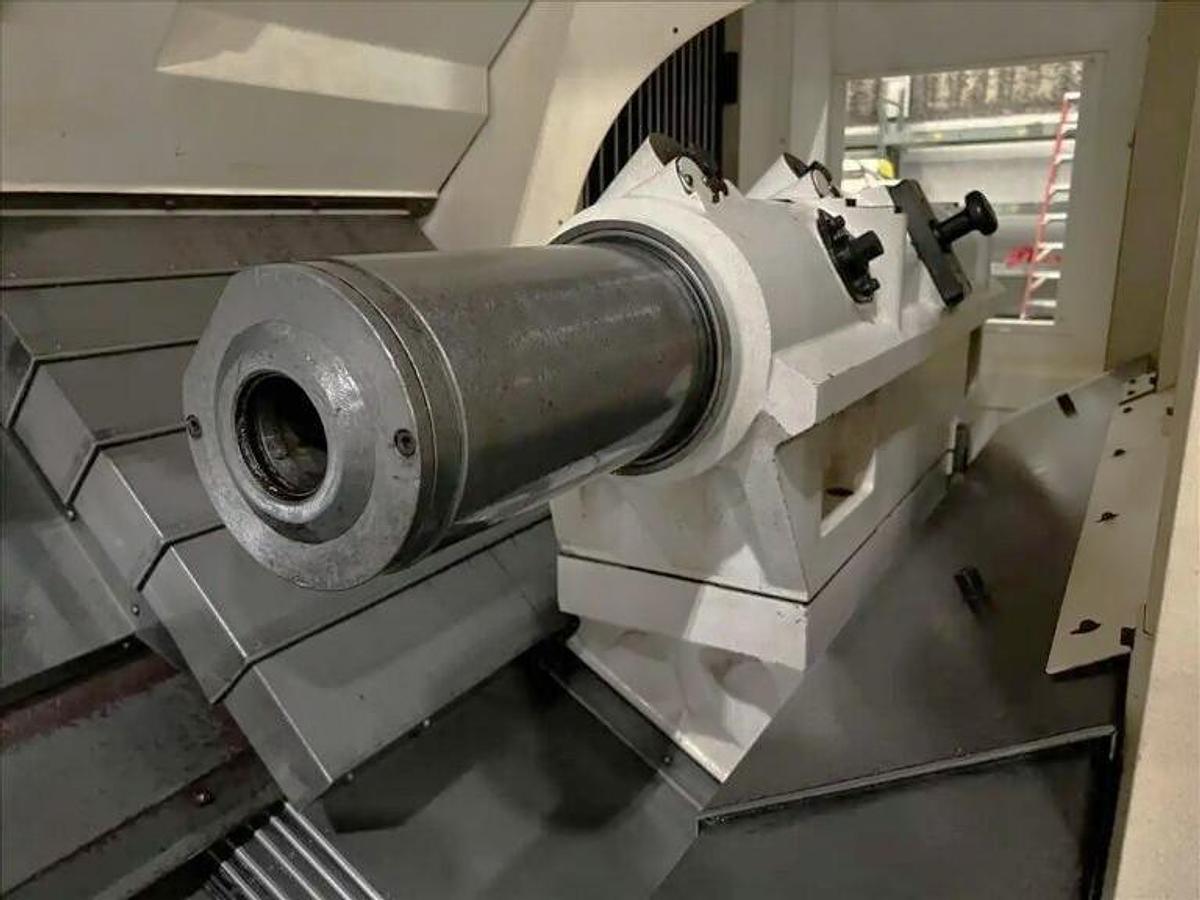

Tailstock

Coolant System with Tank & Pump

EIA/ISO Input Function

USB Port Interface

RS 232 Port Interface

Inch/Metric Conversion

All Available Tooling

All Available Manuals

Wired 230/460 Electrics with Multi Tap Transformer

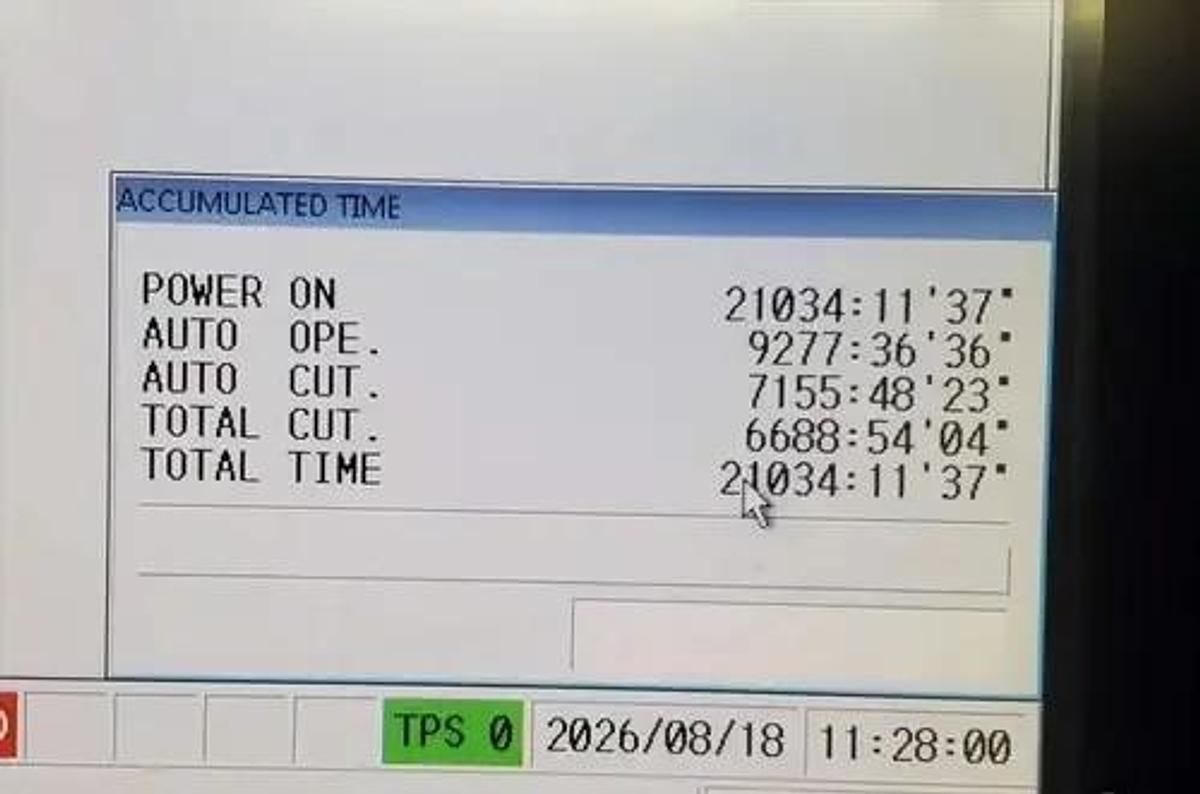

**Power On Hours 21,034**

**Total Cutting Hours 6,688**

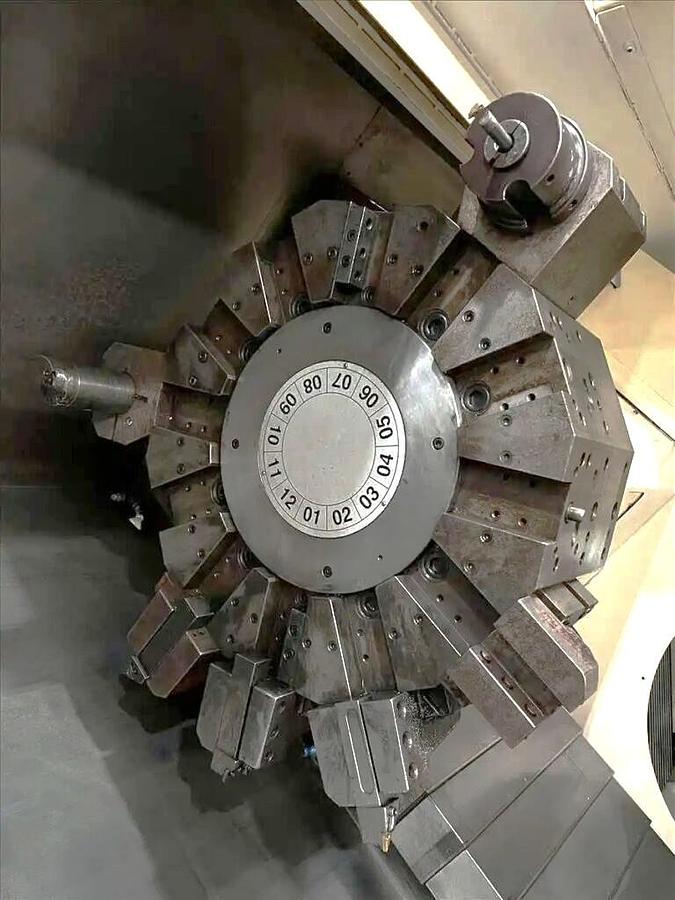

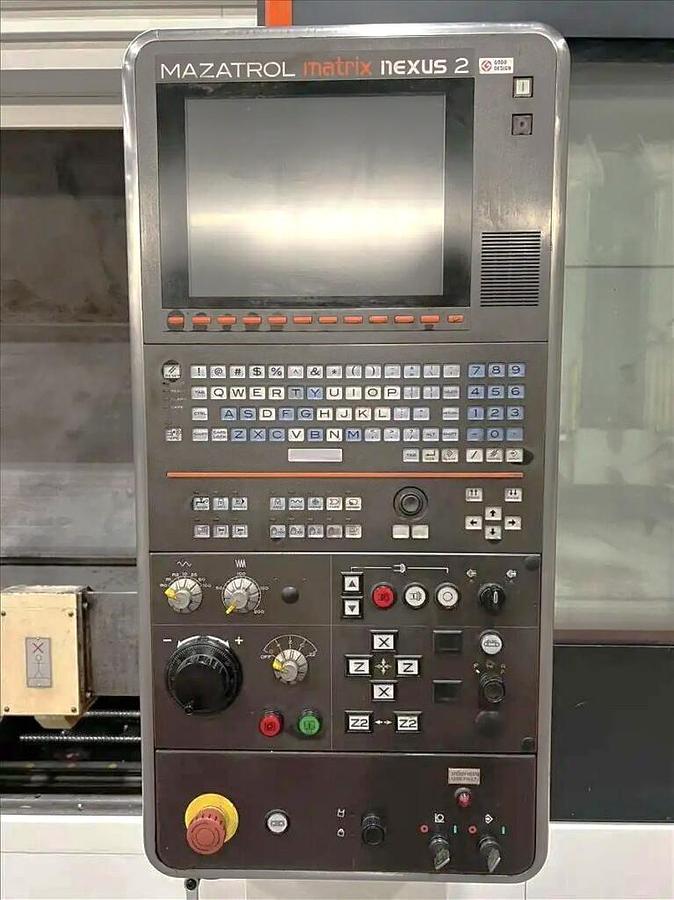

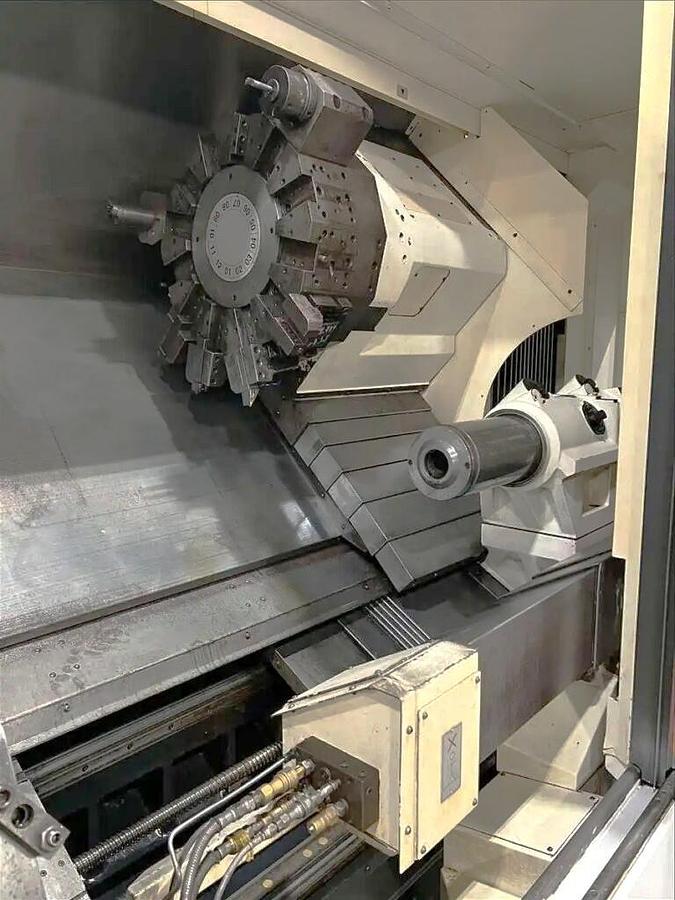

The 2013 Mazak Slant Turn Nexus 550/3000 is a robust CNC lathe suitable for heavy-duty machining tasks, offering a significant machining length and a large bar capacity. This model features a 23.64-inch 3-jaw air chuck and a generous maximum swing over bed of 40.94 inches, facilitating a maximum turning diameter of 36 inches. The machine allows extensive distance between centers, measuring up to 126.75 inches, and supports a substantial machining length of 123.7 inches. Its spindle configuration includes a robust A2-15 spindle nose with a bore capacity of 10.8 inches, powered by a substantial 60 HP motor, achieving speeds up to 1,000 RPM and generating a torque of 5163 ft./lbs. Equipped with the Mazatrol Matrix Nexus 2 Control, this lathe ensures precise operations across its 18.25-inch X-axis and 129.87-inch Z-axis travels. The rapid traverse rates of 787 IPM on the X-axis and 945 IPM on the Z-axis enable efficient setup and reduced cycle times. The 12-station turret further enhances its versatility, allowing quick tool changes for various machining operations. Additional features include a hydraulic steady rest, a tailstock with MT #6 taper, and a chip conveyor, making it an excellent choice for large-scale production jobs. With dimensions measuring 290 inches by 96.1 inches by 96.9 inches and a substantial weight of 42,108 lbs., this CNC lathe demands a spacious and sturdy setup. Its robust construction and advanced features make it suitable for industries requiring heavy-duty precision and reliability in their machining processes.
