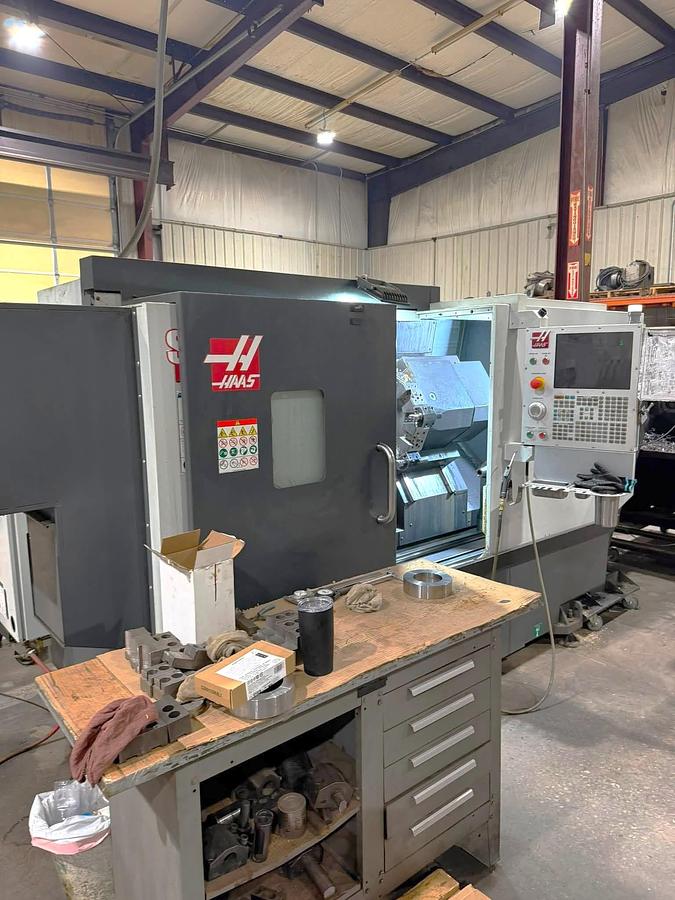

2022 Haas ST-35 (2) Available with 12" Chuck, 4" Bar Cap., Tailstock, Chip Conveyor, Tool Presetter, 21" Turn Diameter x 24" Turn Length

4" Bar Capacity

Programmable Tailstock

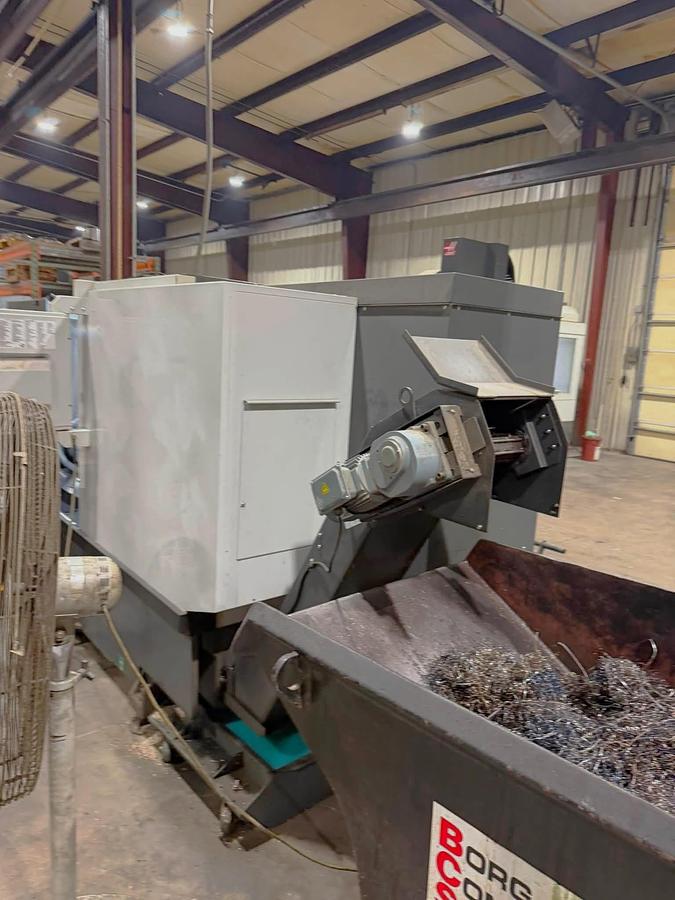

Chip Conveyor

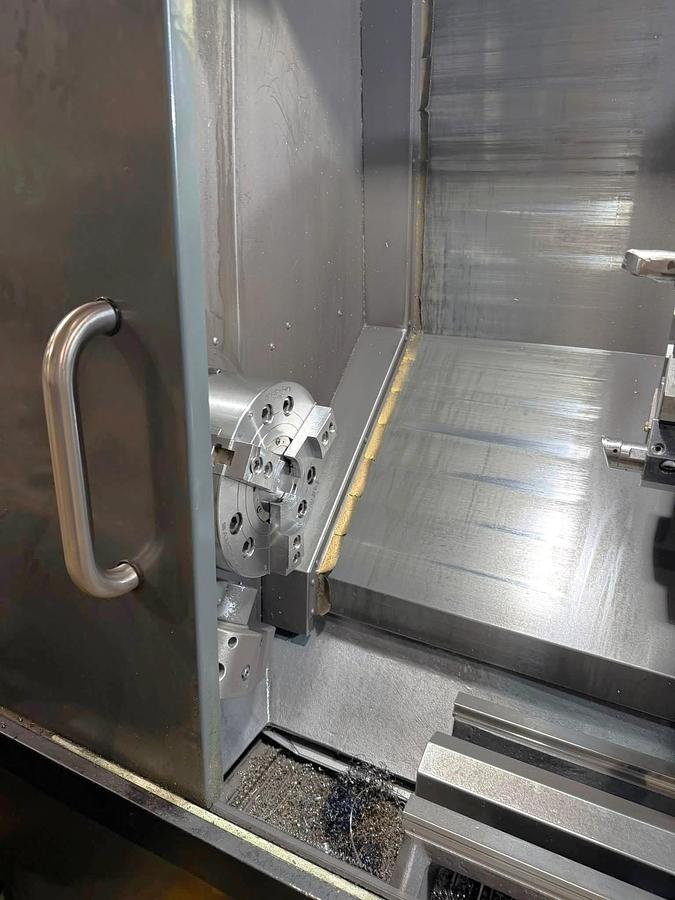

12" 3 Jaw Hydraulic Chuck

Tool Presetter

Rigid Tapping

USB Port Interface

RS 232 Port Interface

Coolant System with Tank & Pump

**(2) Identical Units Available**

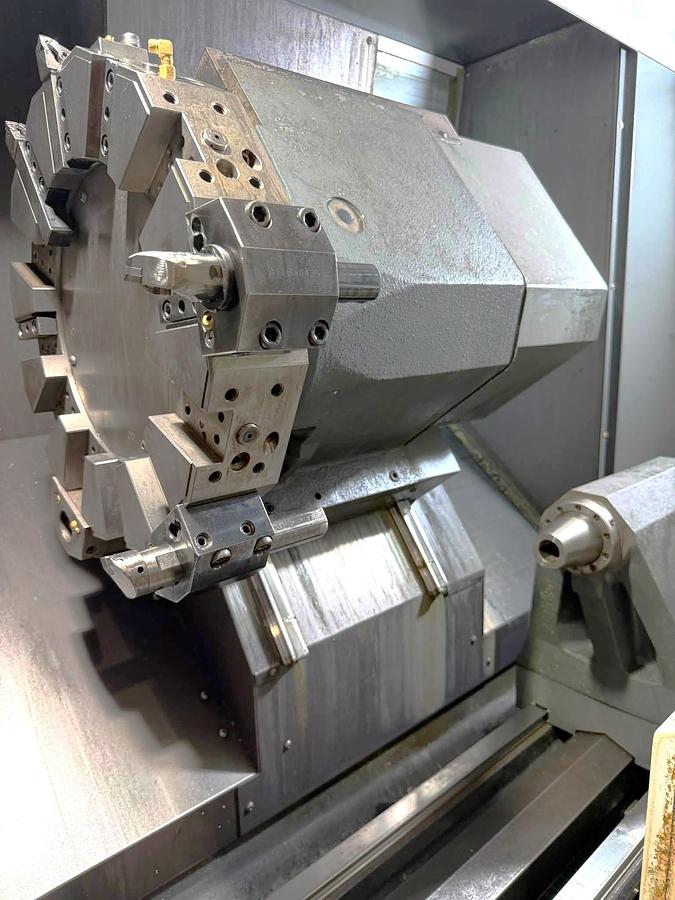

The 2022 Haas ST-35 CNC lathe is a high-performance machine ideal for precision machining tasks. Equipped with a 12-inch 3-jaw hydraulic chuck, the lathe can handle a maximum swing of 31.75 inches and a turning diameter of 21 inches. It accommodates a machining length of up to 26 inches and bar capacity of 4 inches. The machine includes a tailstock, tool presetter, and chip conveyor to enhance operational efficiency. Operated by a 40 HP spindle motor, the ST-35 offers spindle speeds of up to 3,200 RPM, supported by a 2-speed gearbox for versatile performance. With X-axis and Z-axis travel distances of 12.75 inches and 26 inches respectively, it ensures precise and extended machining capabilities. The lathe's rapid traverse rate reaches 945 IPM for quick repositioning, and it features a 12-station bolt-on type turret for flexibility in tooling. This used lathe, weighing 14,300 pounds, is compactly designed with dimensions of 121 inches by 79 inches by 83 inches, fitting suitably into various industrial settings. The sturdy build and advanced features make it a reliable choice for heavy-duty applications, providing both durability and precision in machining operations.
