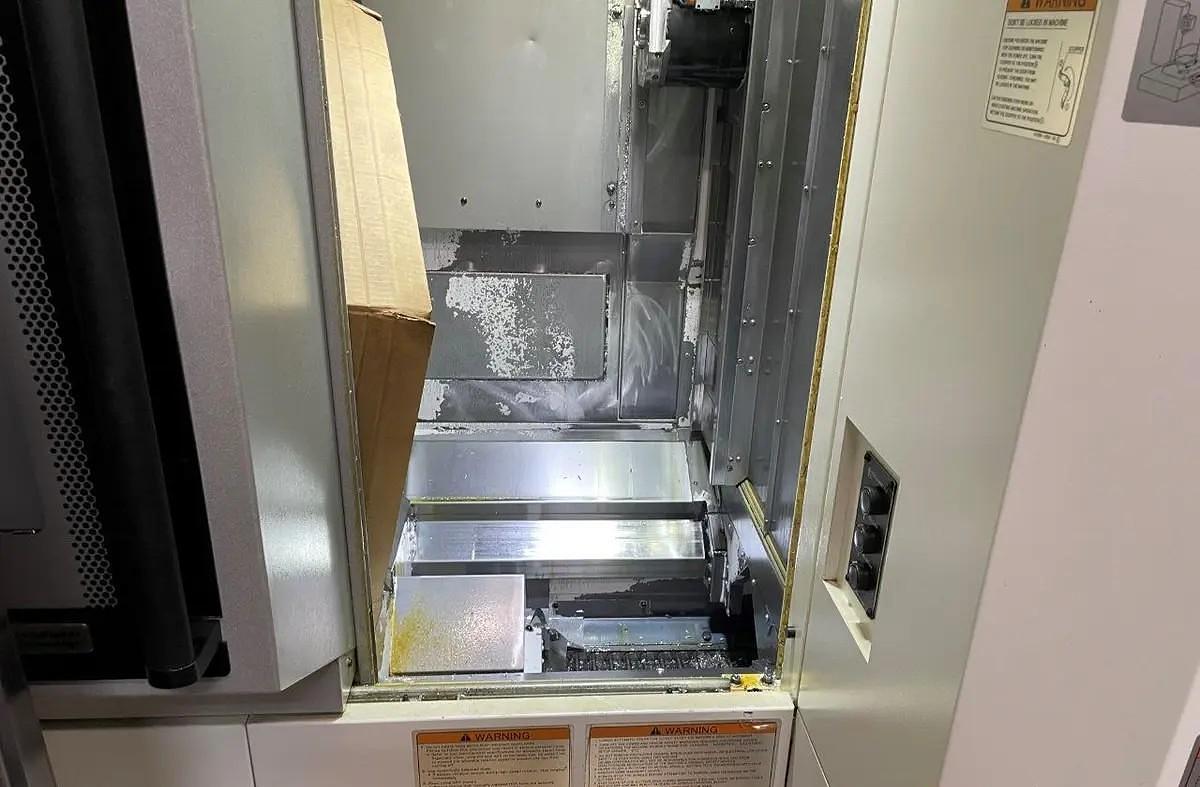

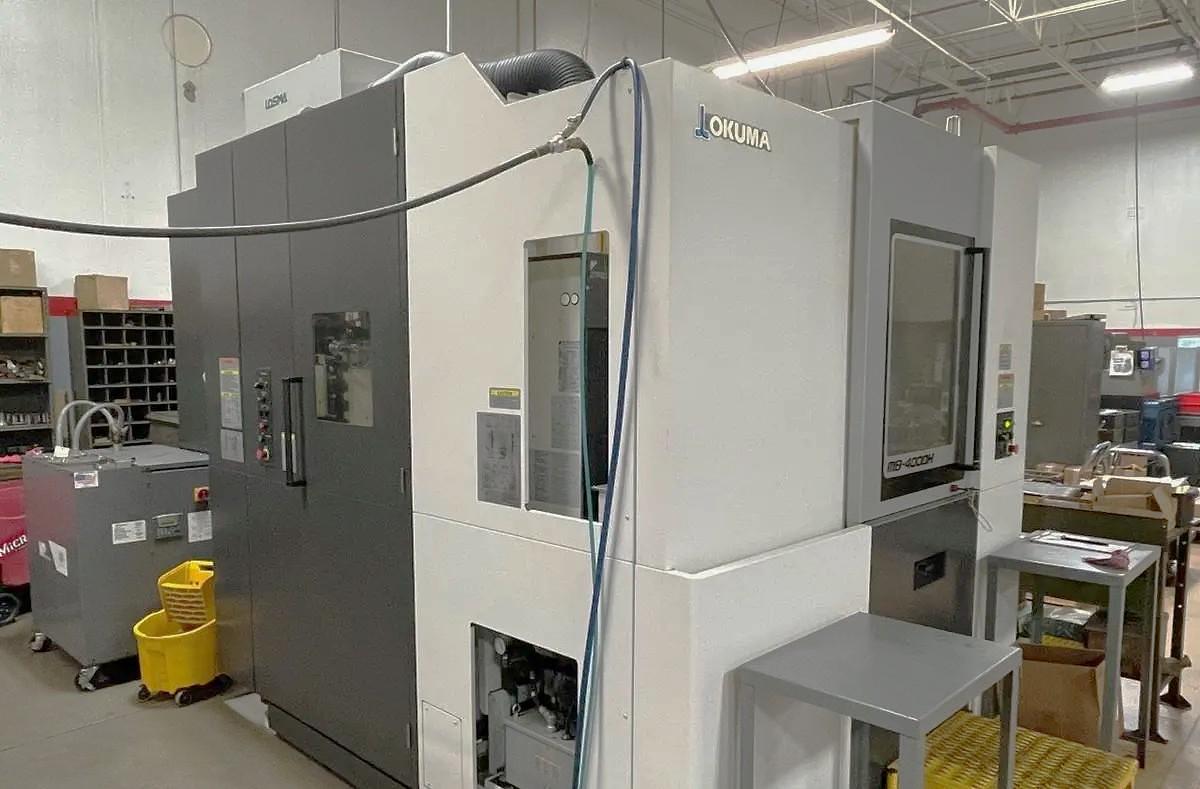

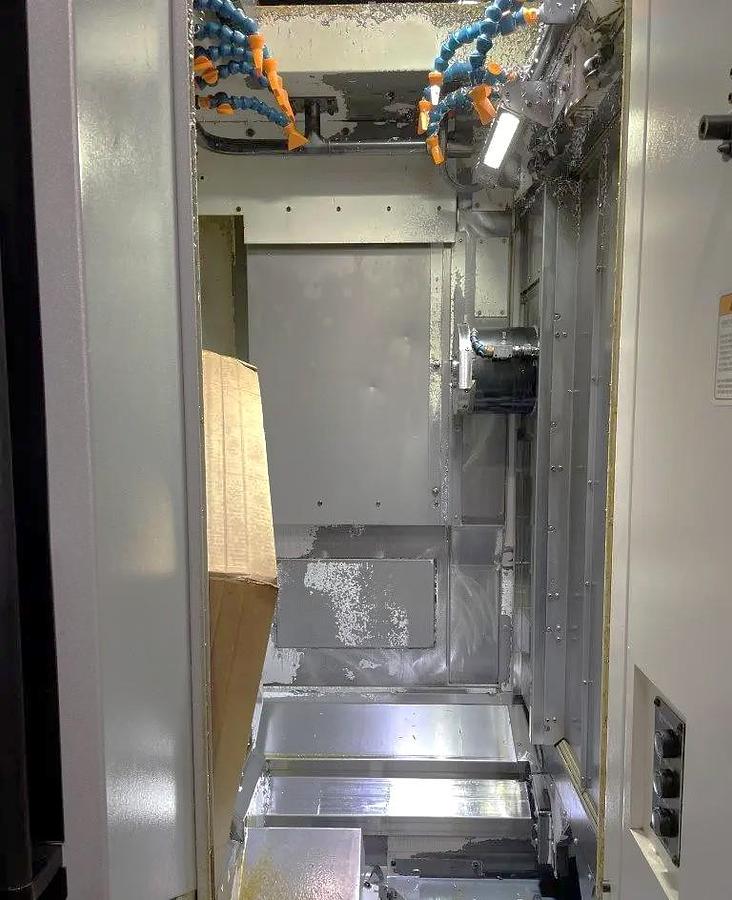

2018 Okuma MB-4000H with Full 4th Axis Rotary Tbl., Part Probing, High Press. Coolant Thru Spindle, Chip Conveyor, 60 Pos. ATC

2 Pallet Changer System

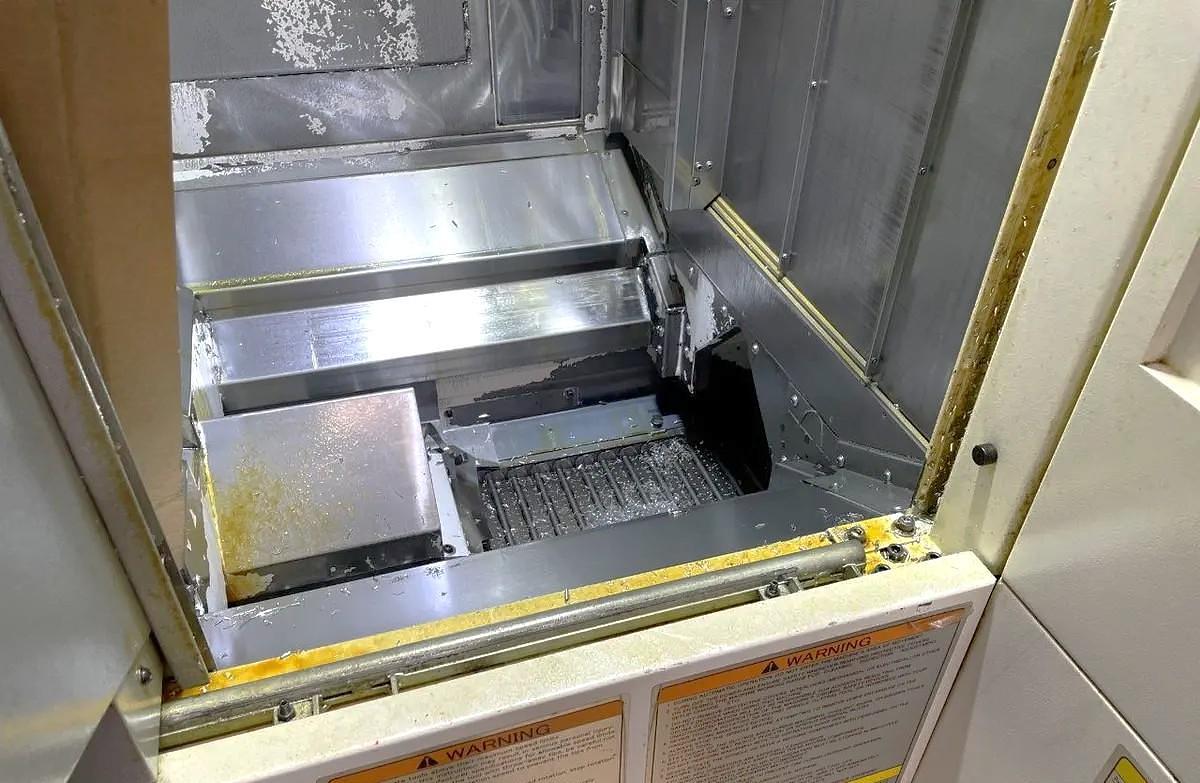

Full 4th Axis Rotary Table

60 Station Tool Changer

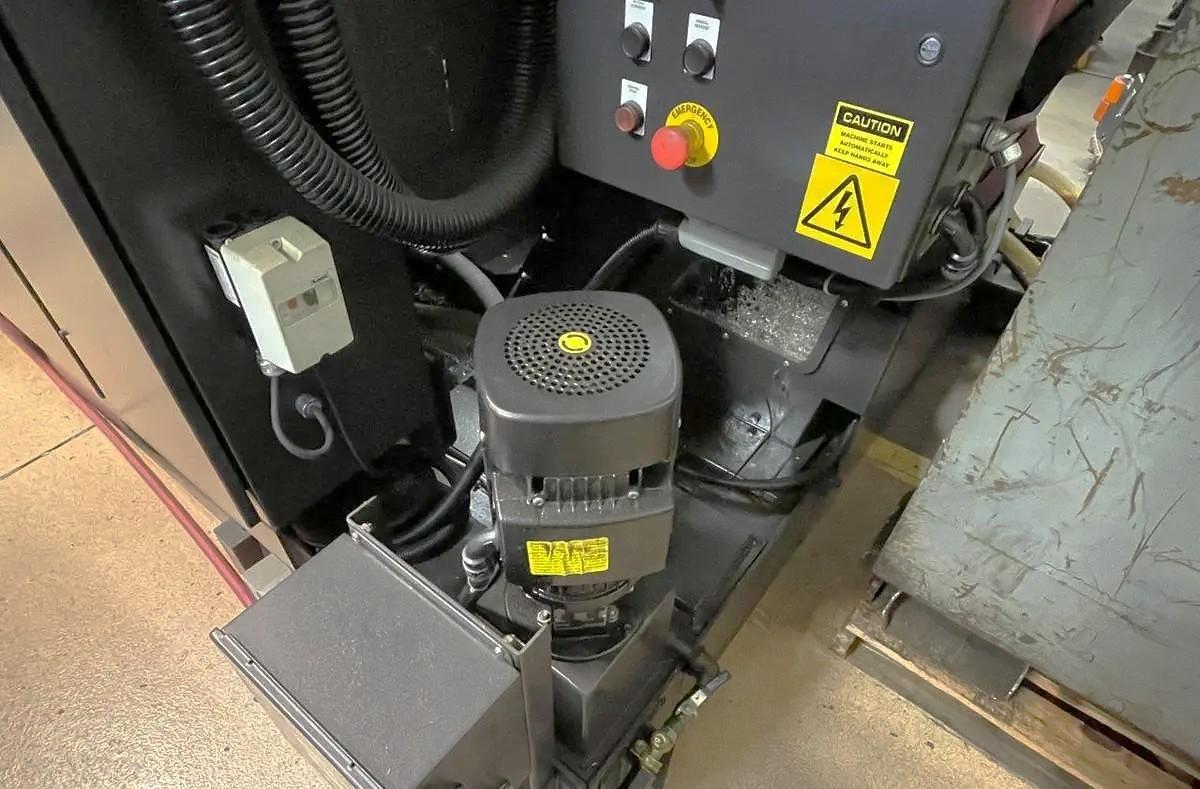

MP Systems 1000 PSI High Pressure Coolant Through the Spindle

15,000 RPM Spindle

Renishaw OMP 400 Spindle Mounted Part Probing

Chip Conveyor

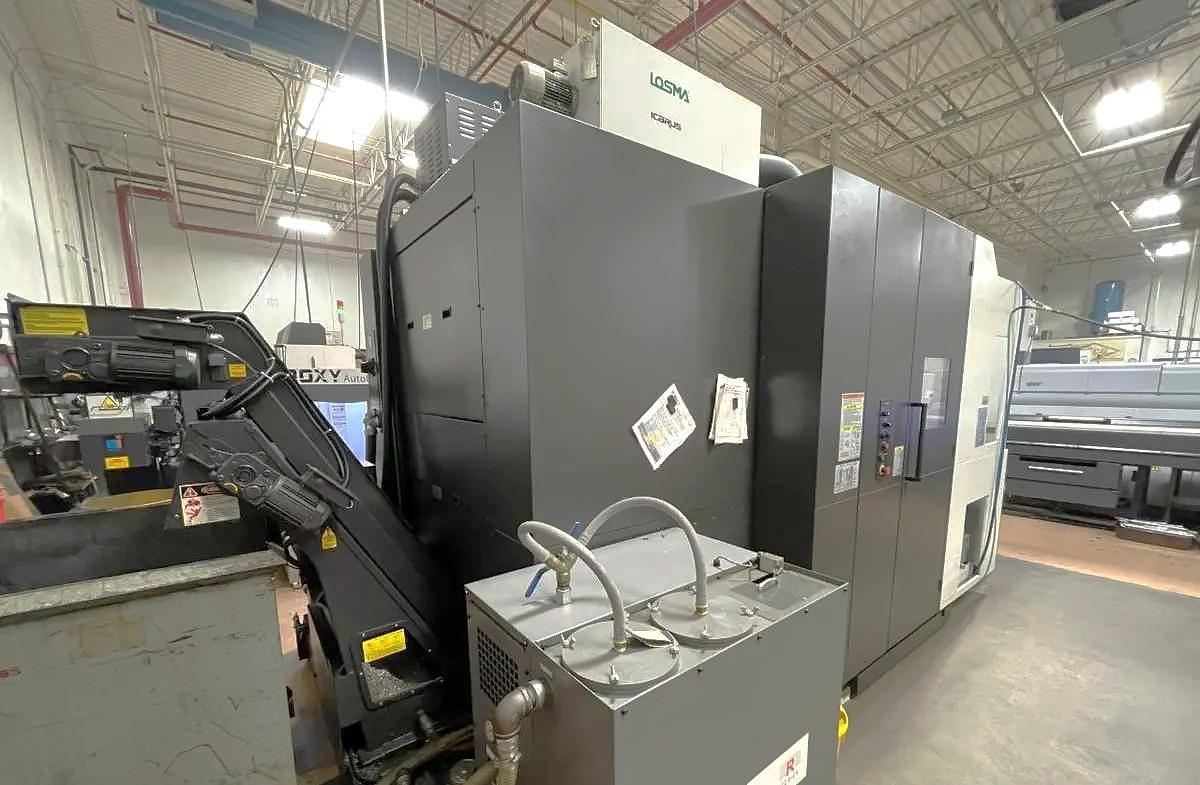

Losma Mist Collector System

Flood Coolant

Rigid Tapping

Spindle Chiller Unit

Remote Jog Handle

USB Port Interface

RS 232 Port Interface

Wired 220/480V Electrics

Transformer

Linear Guide Rail Design

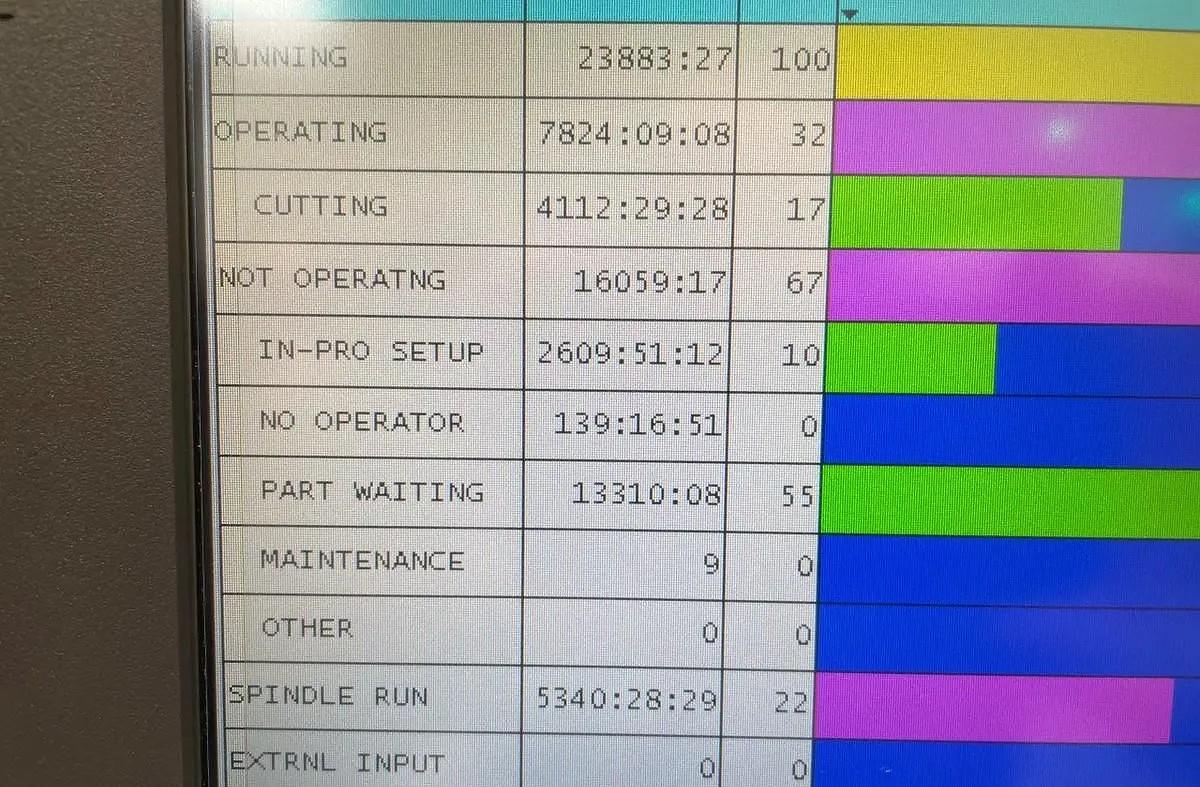

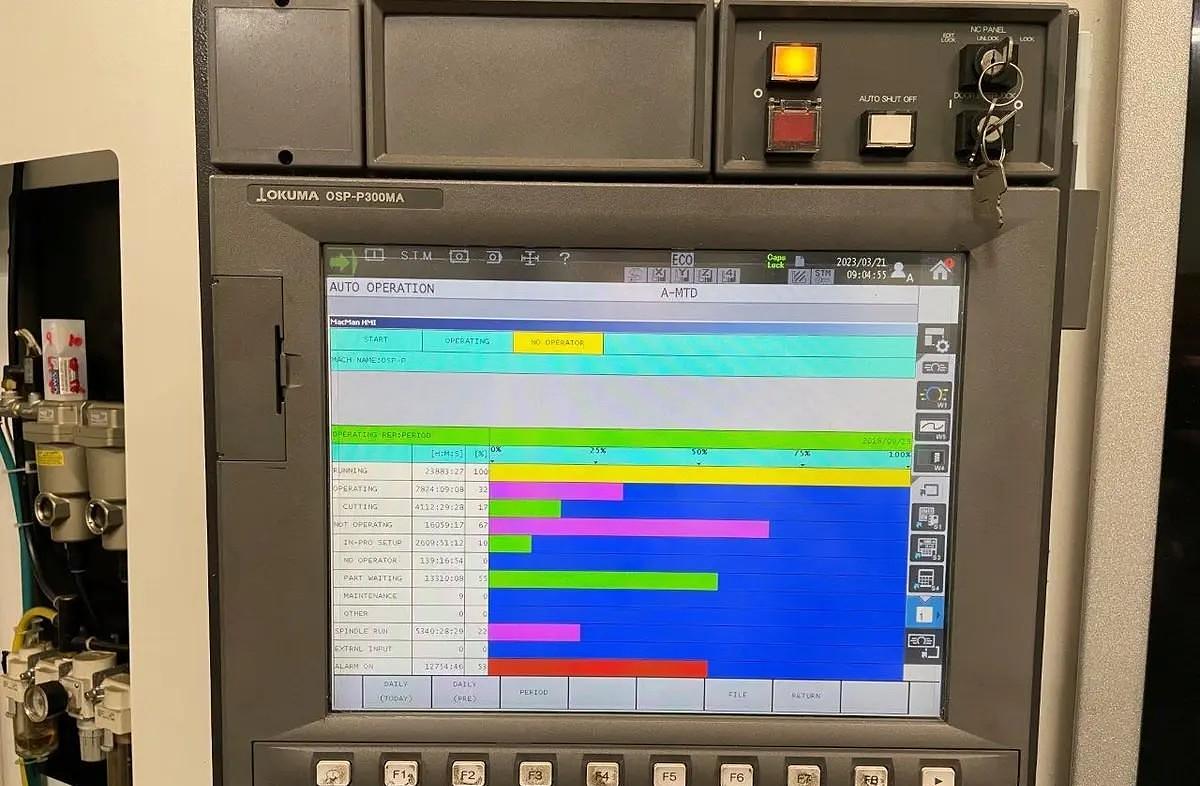

**Operating Hours 7,824**

**Spindle Run Hours 5,340**

**Cutting Hours 4,112**

**Installed new in 2019**

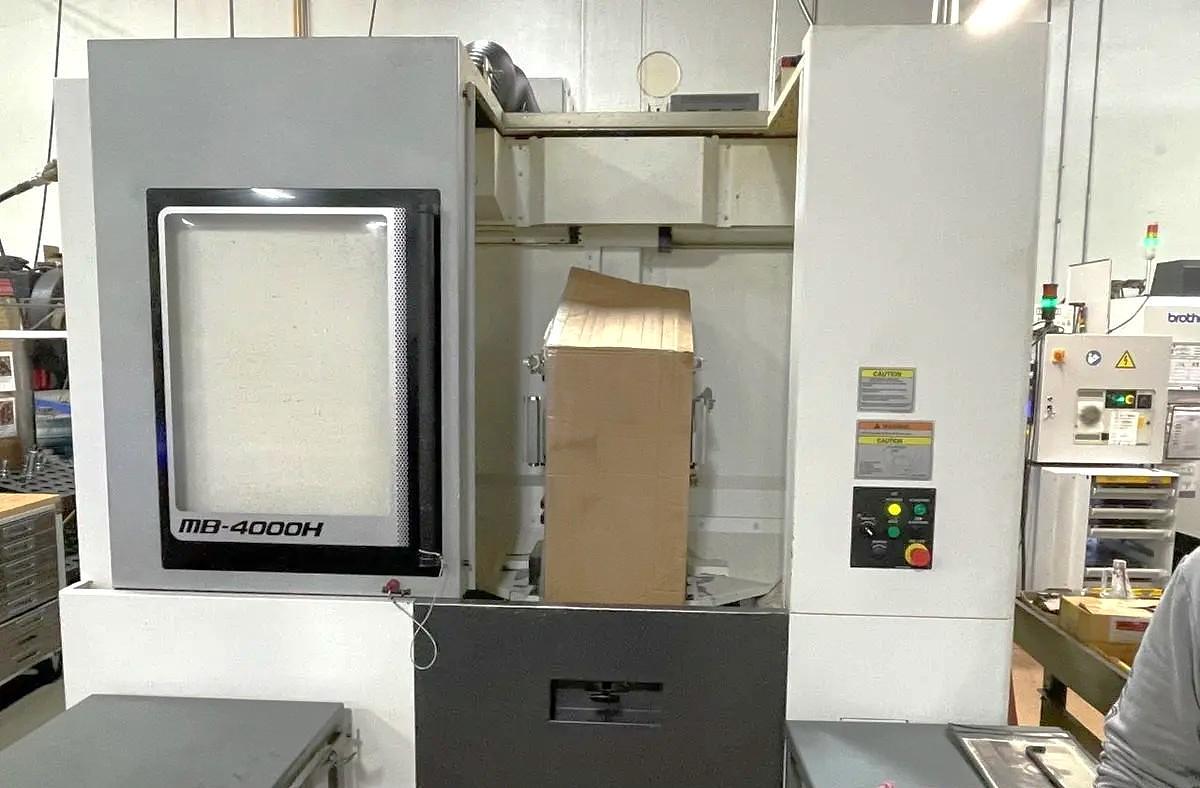

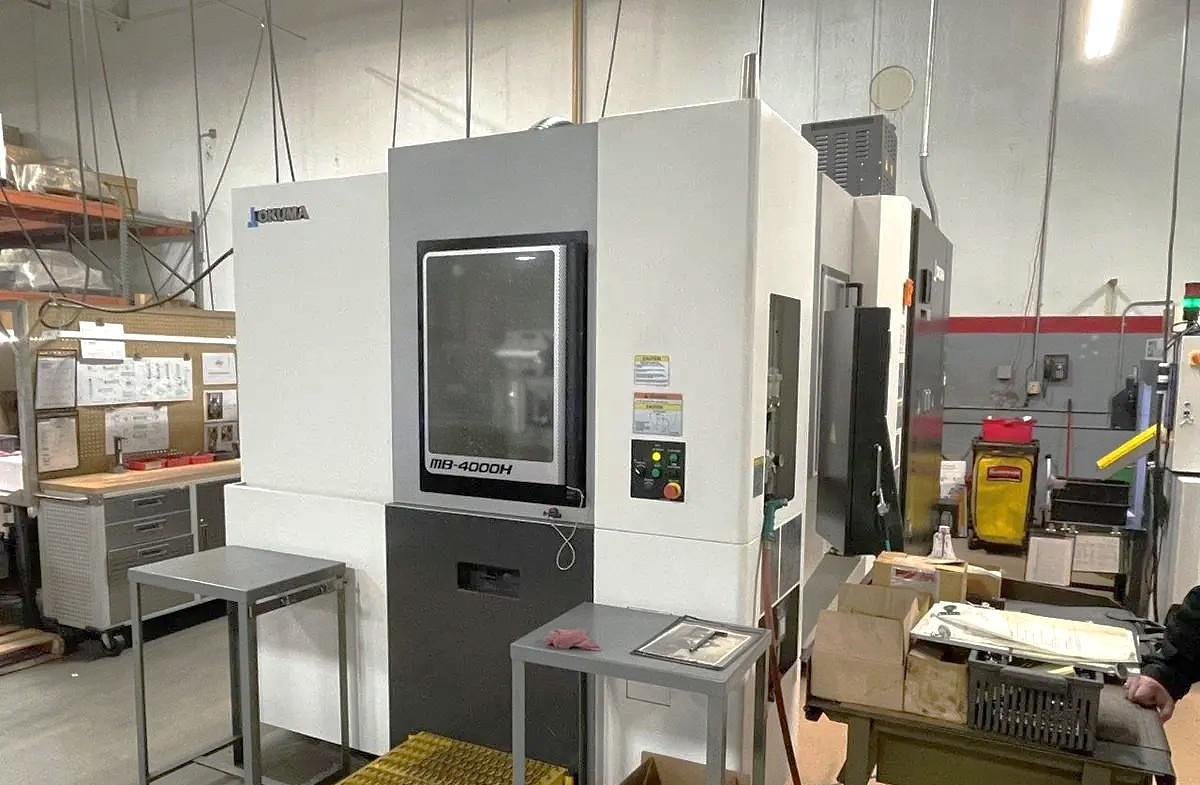

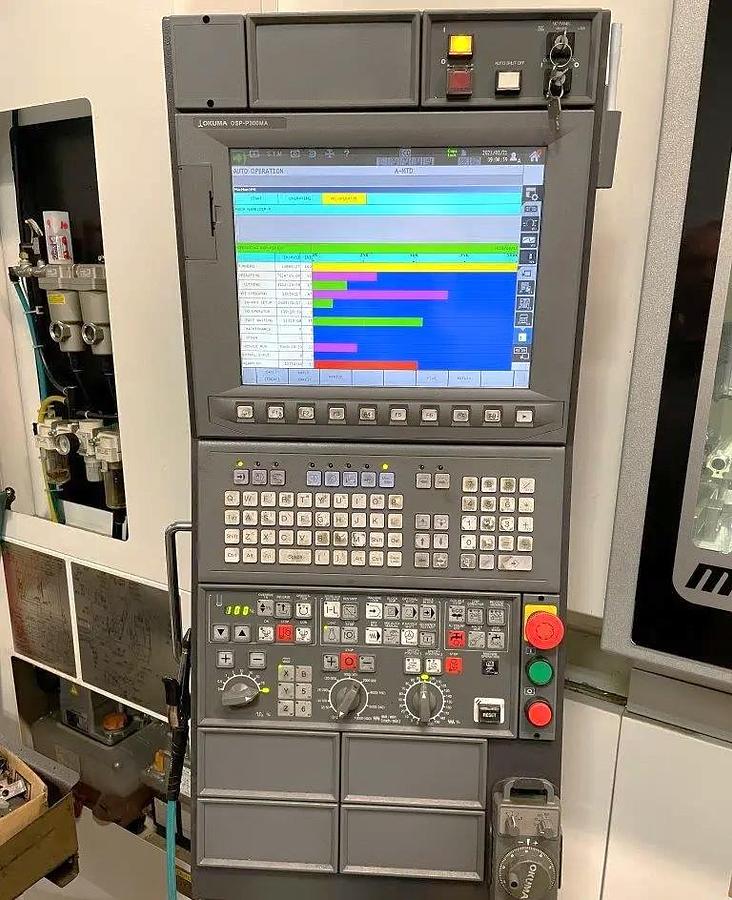

The 2018 Okuma MB-4000H is a robust CNC horizontal machining center ideal for complex and precision-driven tasks. It features an Okuma OSP P-300MA Control, enhancing its operational efficiency. Equipped with a full 4th axis rotary table, the machine offers fine pallet indexing of .001 degrees, accommodating two pallets of size 15.75" x 15.75". Designed to handle a maximum workpiece dimension of 23.62" x 35.43" and table load of up to 880 lbs, it supports versatile machining operations. This machine model boasts impressive axis travels of 22.05" in X and Y directions and 24.61" in the Z direction. The spindle, a CAT 40 Taper, delivers speeds ranging from 50 to 15,000 RPM, powered by a 35 HP motor. Enhancing its capabilities, the machine comes with a part probing system, high-pressure coolant through the spindle, and a chip conveyor. The spindle center adjusts from 1.97" to 24.02" above the table top, and the spindle nose extends 3.35" to 27.95" to the pallet center, allowing for versatility in tooling and machining applications. Situated within a compact footprint of 186" x 96" x 106", the MB-4000H includes a 60-position Automatic Tool Changer, supporting up to 60 tools with a maximum tool diameter of 5.91", length of 11.81", and weight up to 22 lbs. Rapid traverse and cutting feed rates reach 2,362 IPM, ensuring high productivity and efficiency. Weighing 21,000 lbs, this used, high-performing machine is an excellent choice for businesses focused on precision and speed in manufacturing operations.
