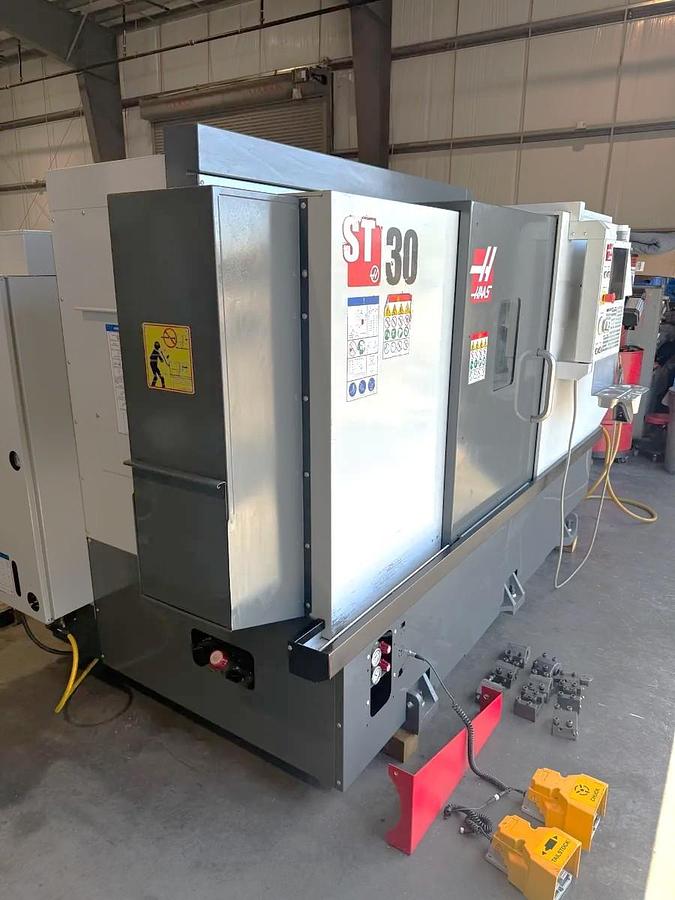

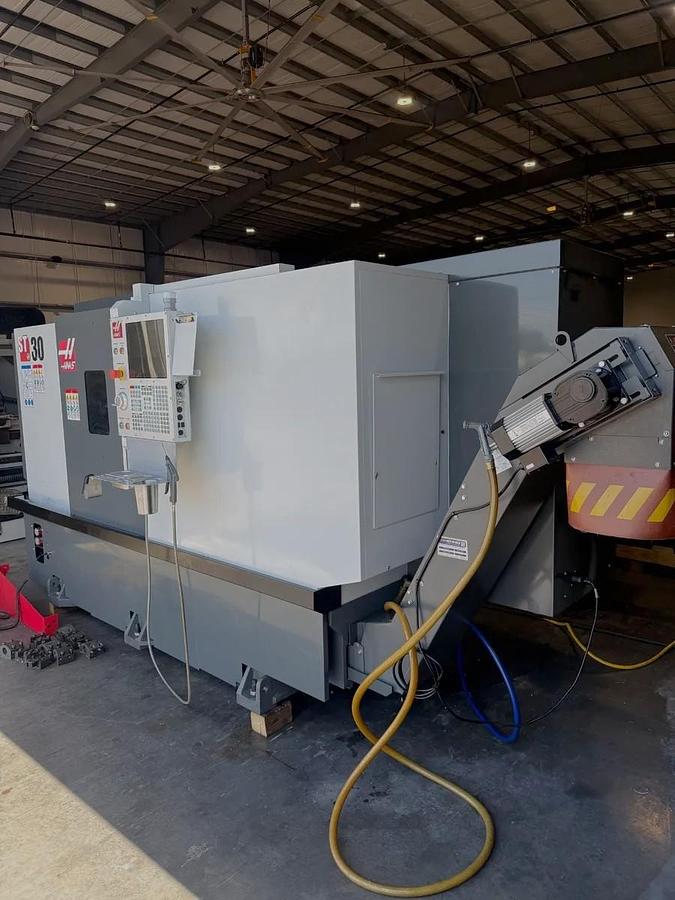

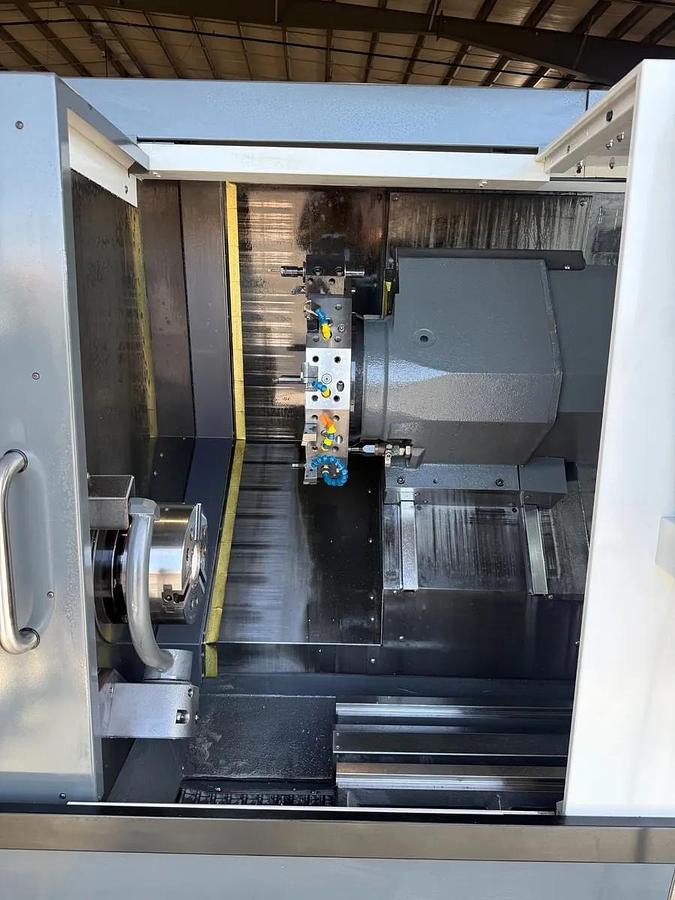

2021 Haas ST-30 with 10" Chuck, 3" Bar Cap., Chip Conveyor, Tailstock, Tool Presetter, 21" x 32.5" Capacity, ONLY 1,516 Spindle Hours

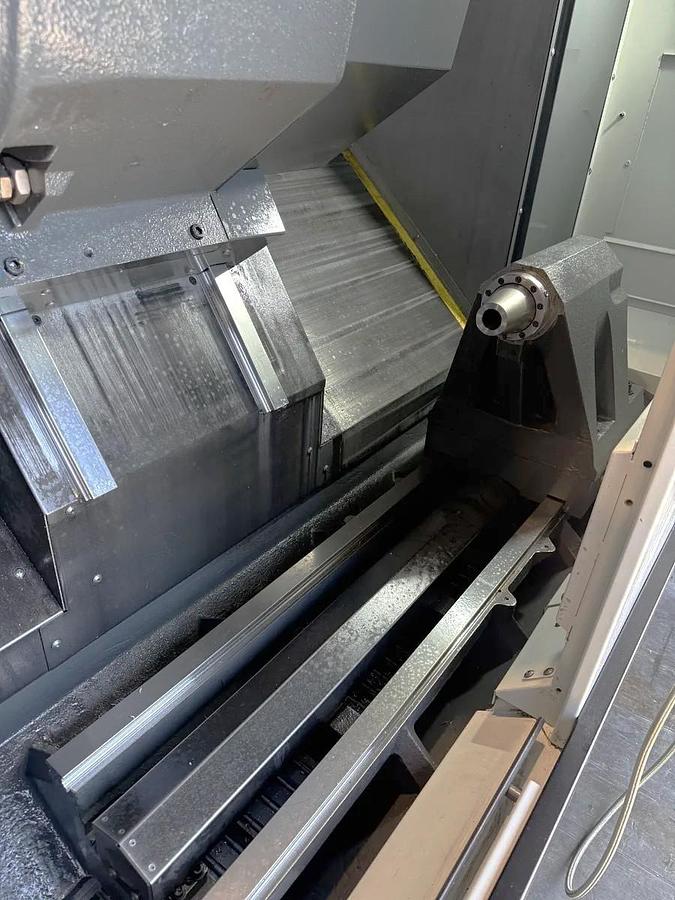

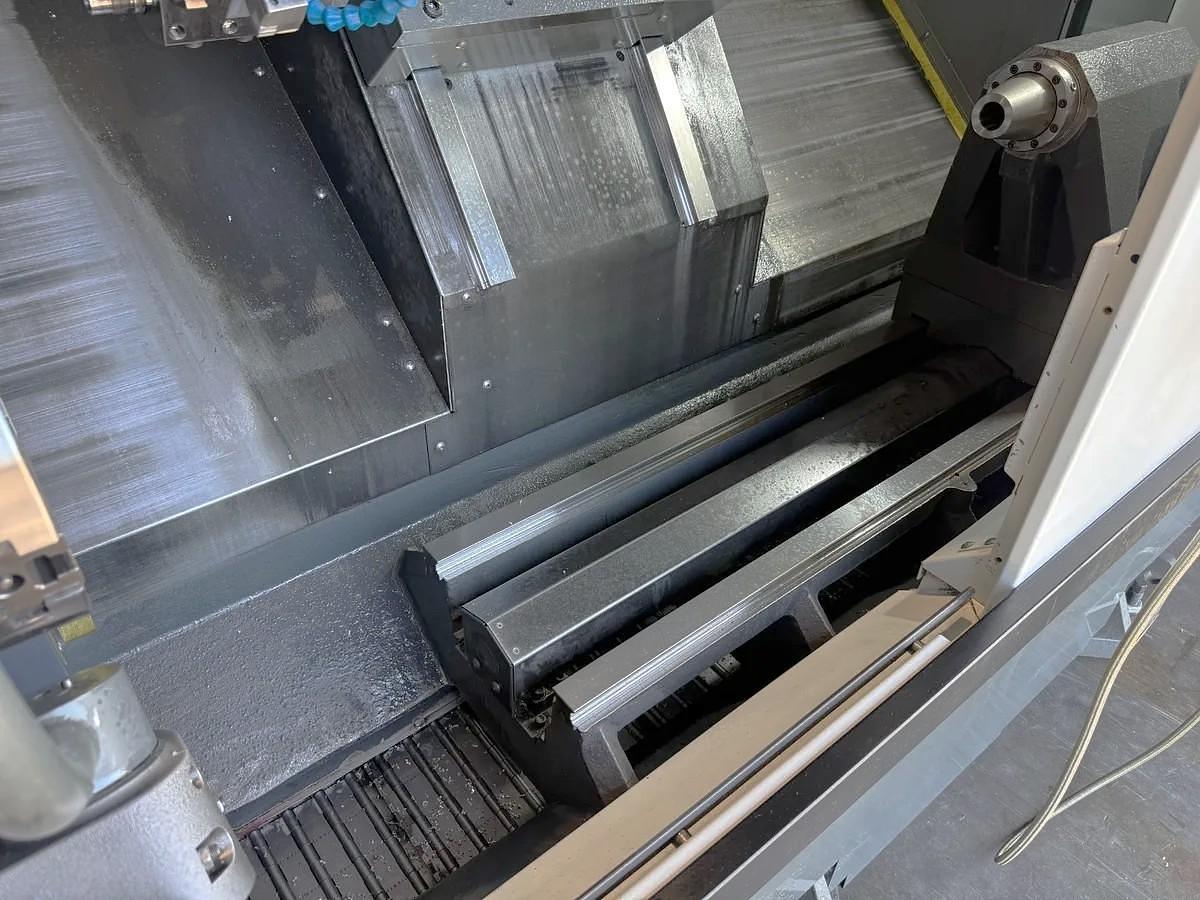

Programmable Tailstock

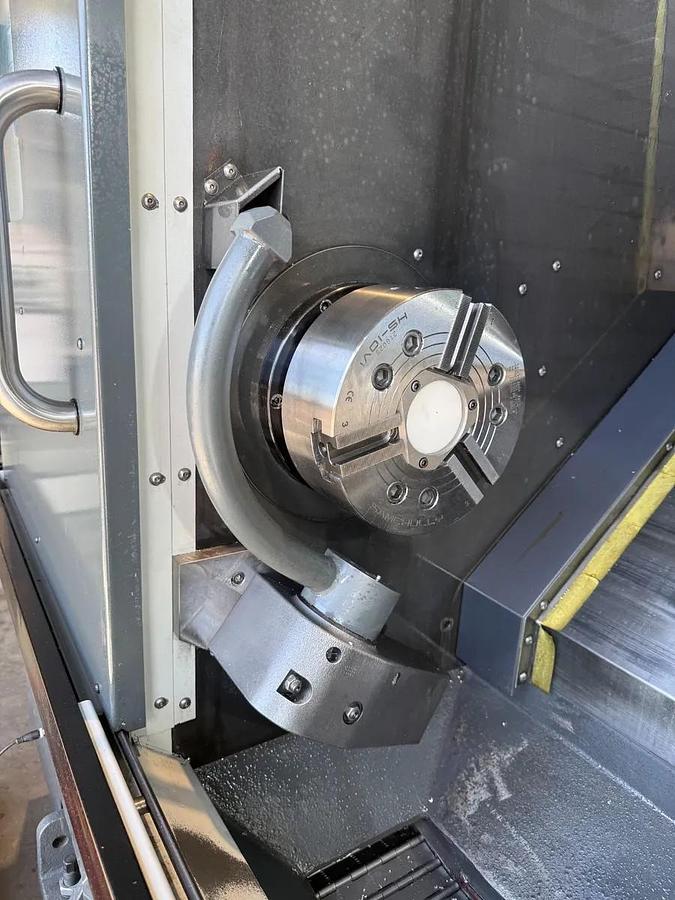

10" 3 Jaw Hydraulic Chuck

Tool Presetter

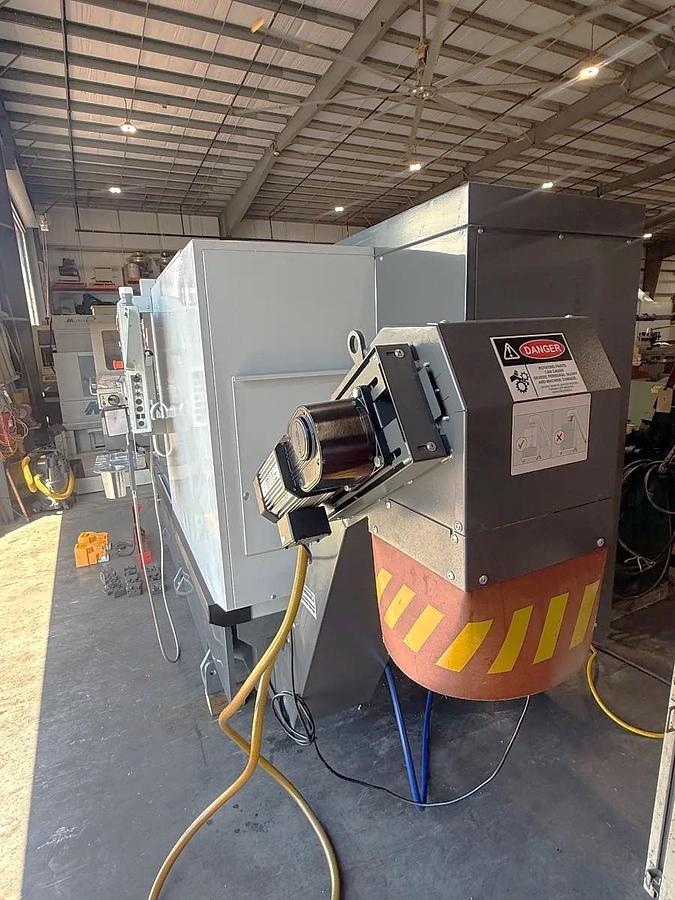

Chip Conveyor

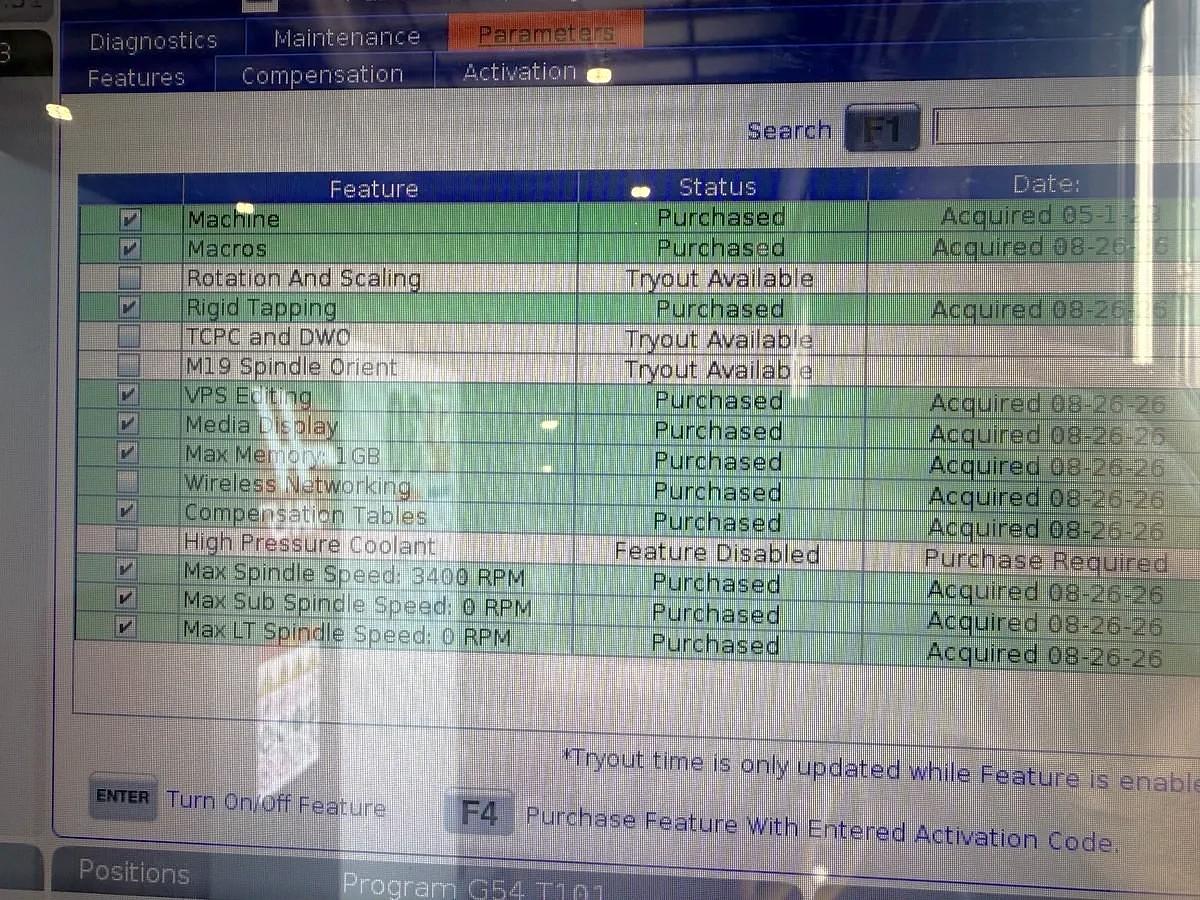

User Definable Macros

Rigid Tapping

Haas VPS Editing

1 GB Programming Memory

Wireless Networking

Compensation Tables

USB Port Interface

RS 232 Port Interface

Coolant System with Tank & Pump

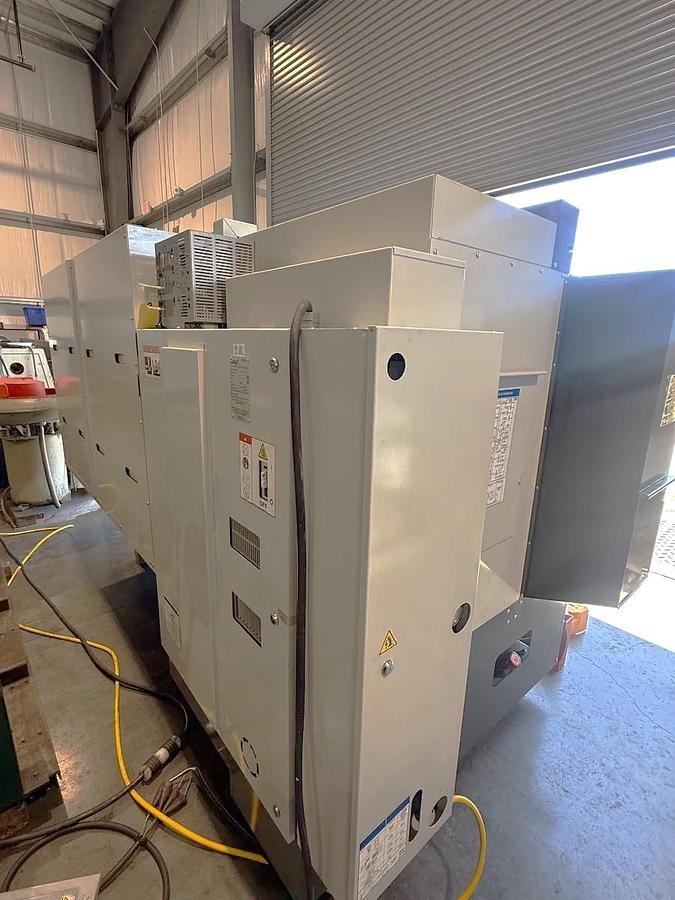

230V Electrics

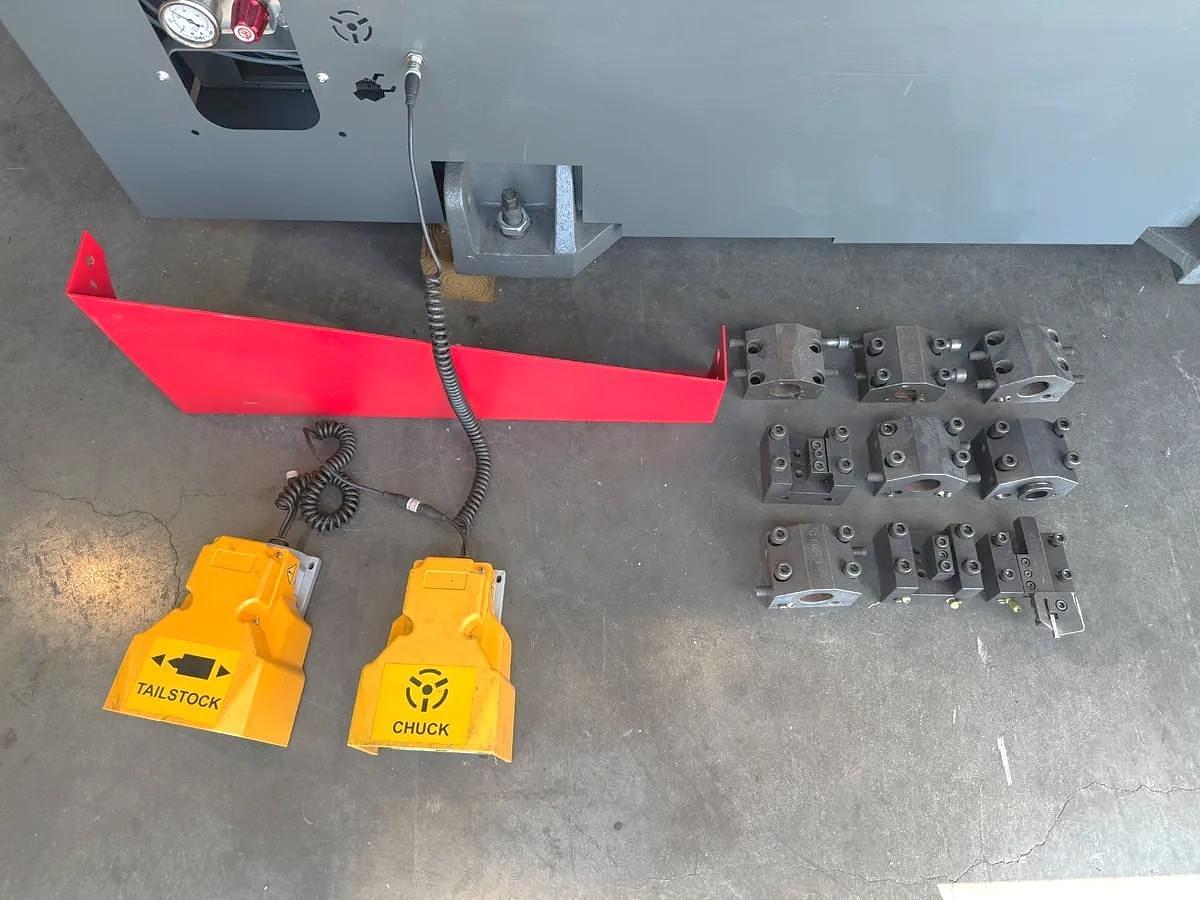

All Available Tool Blocks

**Power On Hours 3,713**

**Spindle Run Hours 1,516**

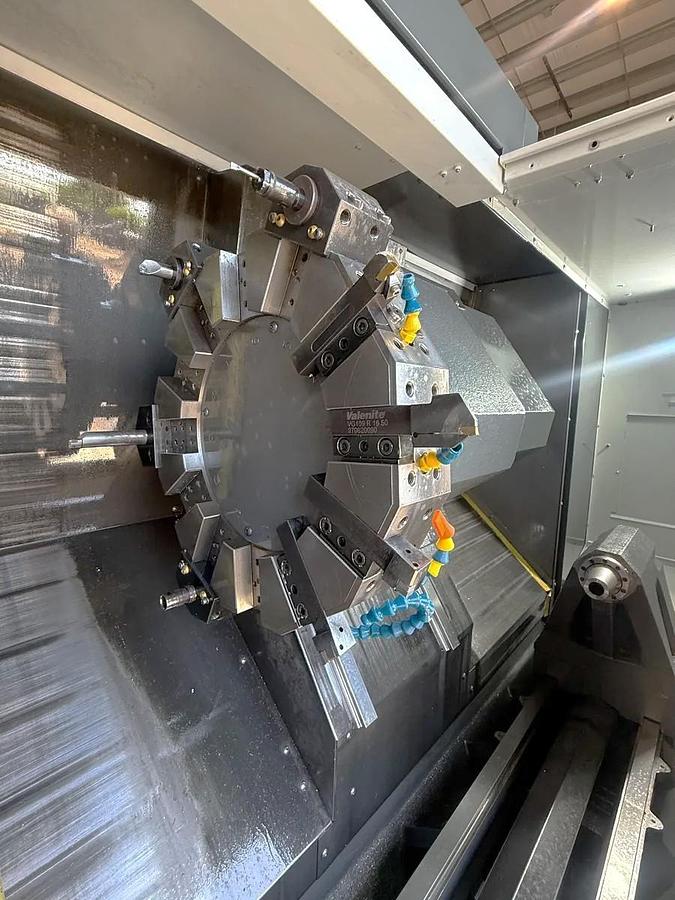

The 2021 Haas ST-30 offers precision and efficiency in machining operations with a 10" 3-jaw hydraulic chuck and a substantial 3" bar capacity. Its Haas NextGen Control system ensures user-friendly operation, while the machine's capability to handle a 31.75" maximum swing and machine parts with a maximum turning diameter of 15" makes it versatile across various applications. This CNC lathe boasts a robust 30 HP spindle motor capable of speeds ranging from 30 to 3,400 RPM, while the machine's 32.5" maximum machining length and 3" spindle bore support versatility in project dimensions. Furthermore, its rapid traverse rates of 945 ipm in both X and Z axes enhance productivity, complemented by a 12-position turret for tool management. Key additional features include a chip conveyor and tool presetter for optimized workflow, and the tailstock with a 20" travel range and MT #4 taper adds to the setup's functionality. With only 1,516 spindle hours and compact dimensions of 171" x 90" x 98", this machine is well-suited for shops seeking high-performance equipment within a reasonable footprint, weighing in at 12,540 lbs.
