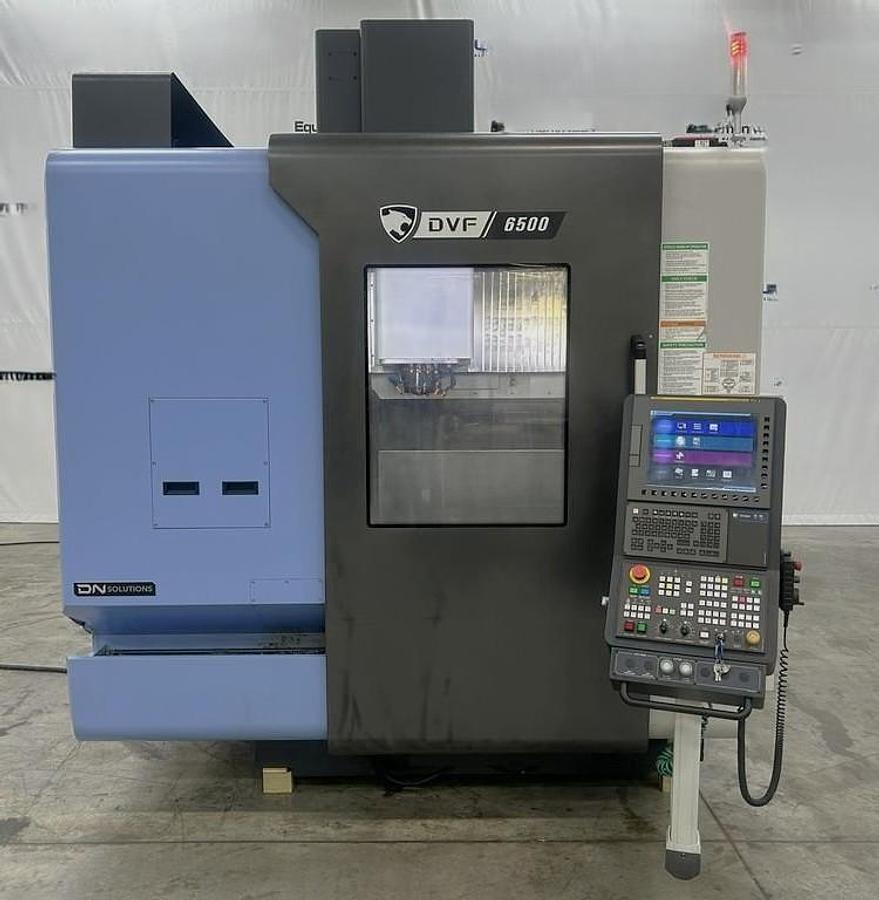

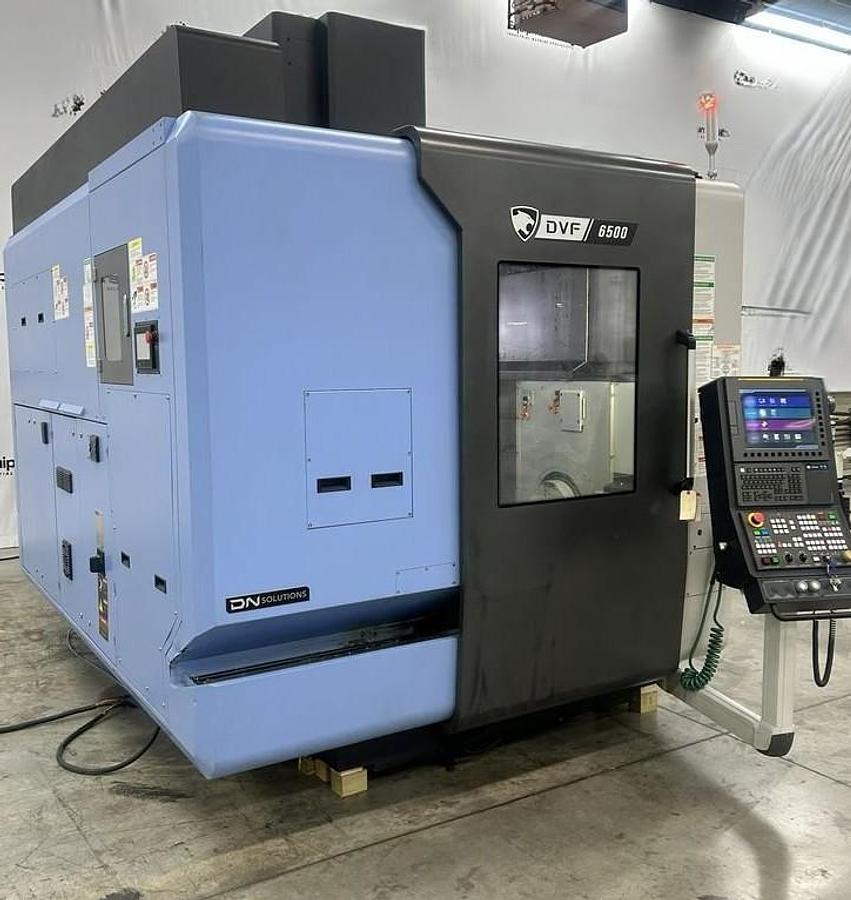

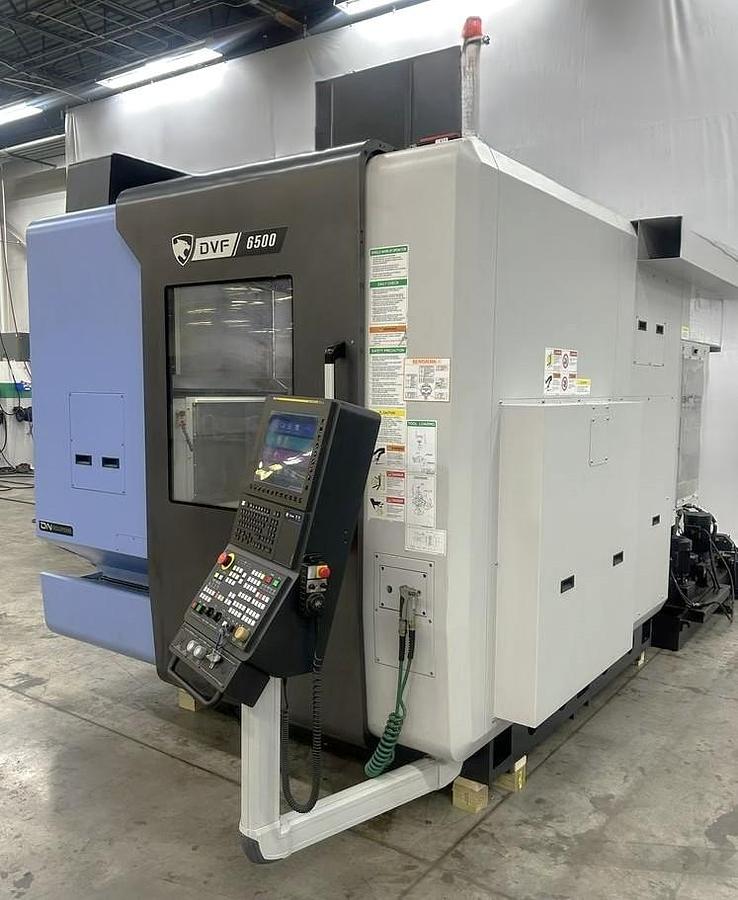

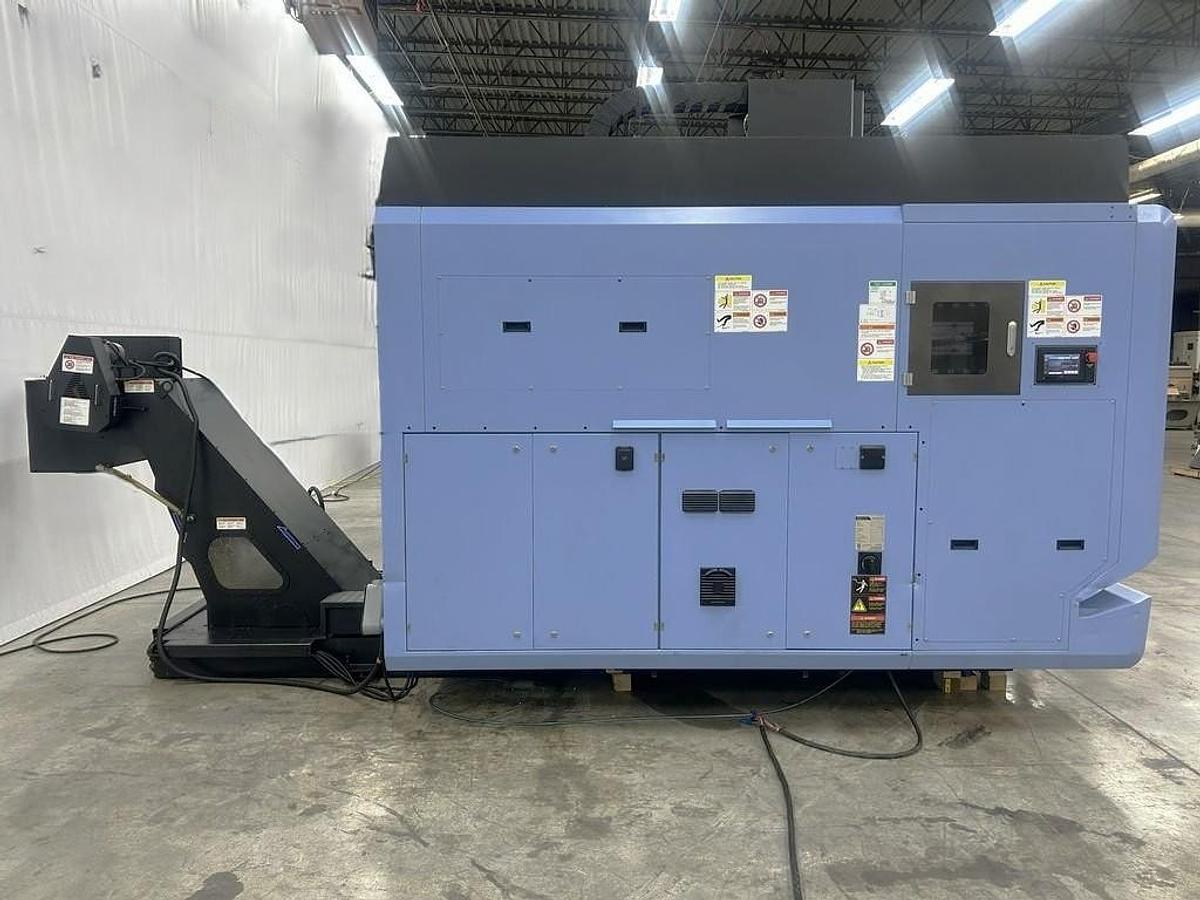

2022 DN Solutions DVF 6500 5 Axis Trunnion VMC with 18,000 RPM, 60 ATC, Coolant Thru Spindle, Probing, Chip Conveyor

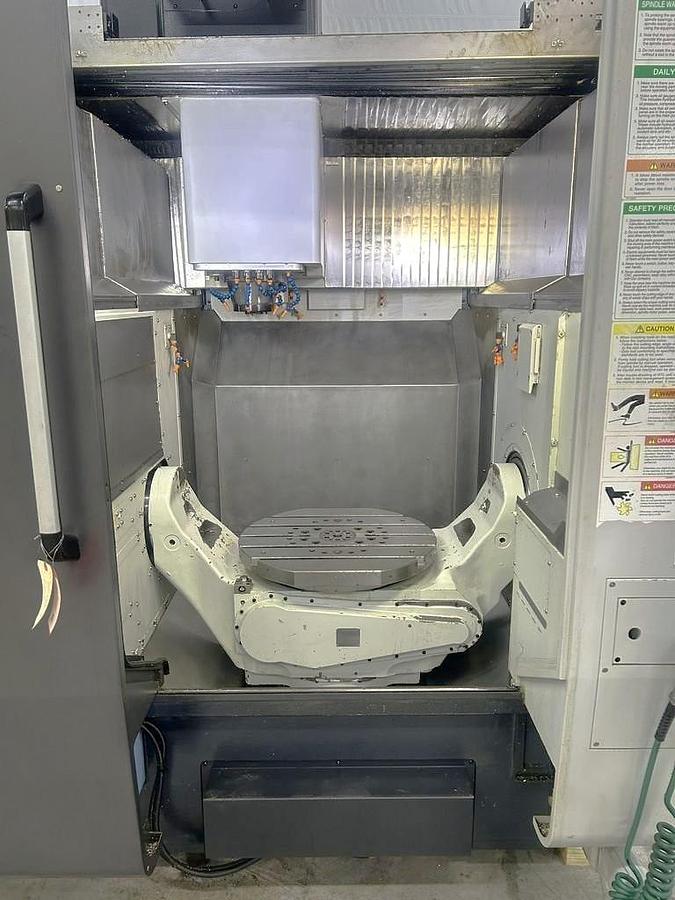

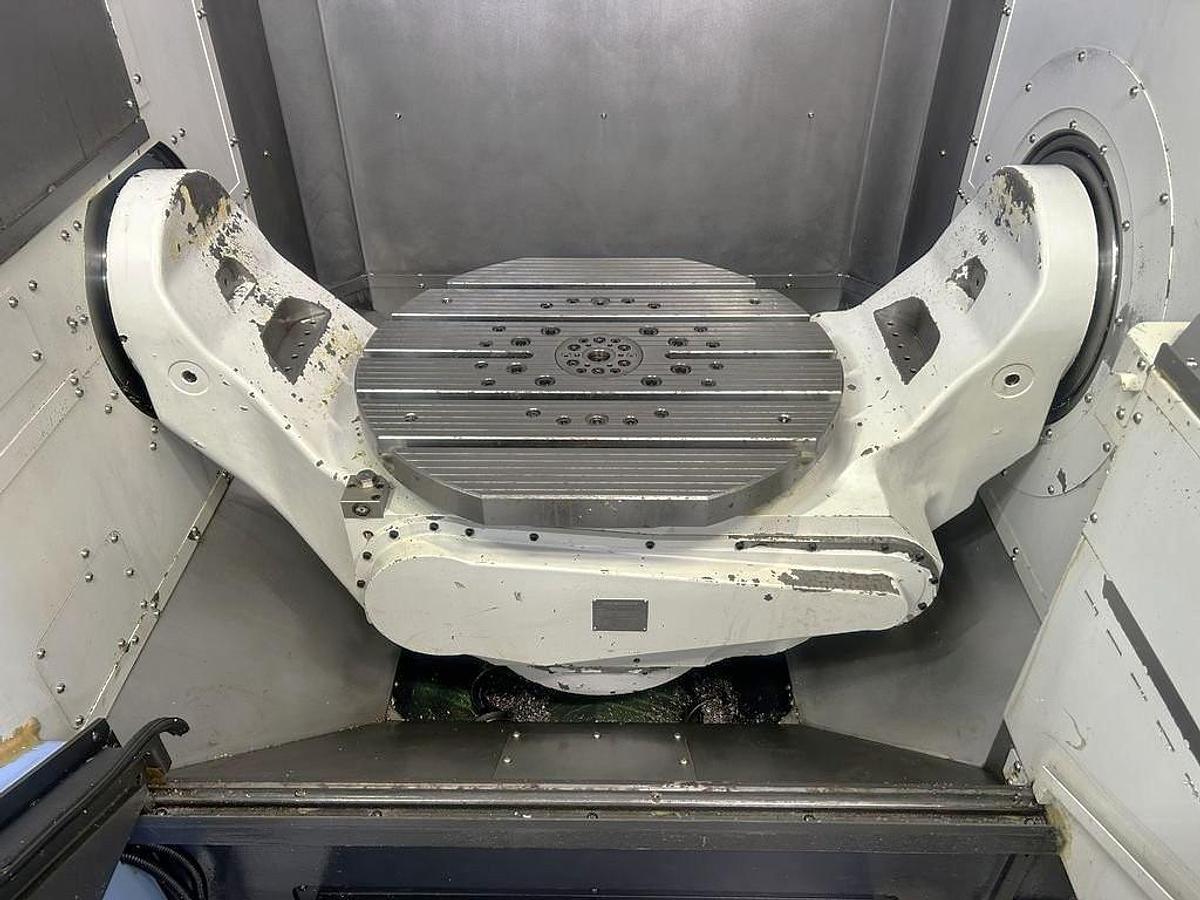

Simultaneous 5 Axis Capability with Trunnion Style Table

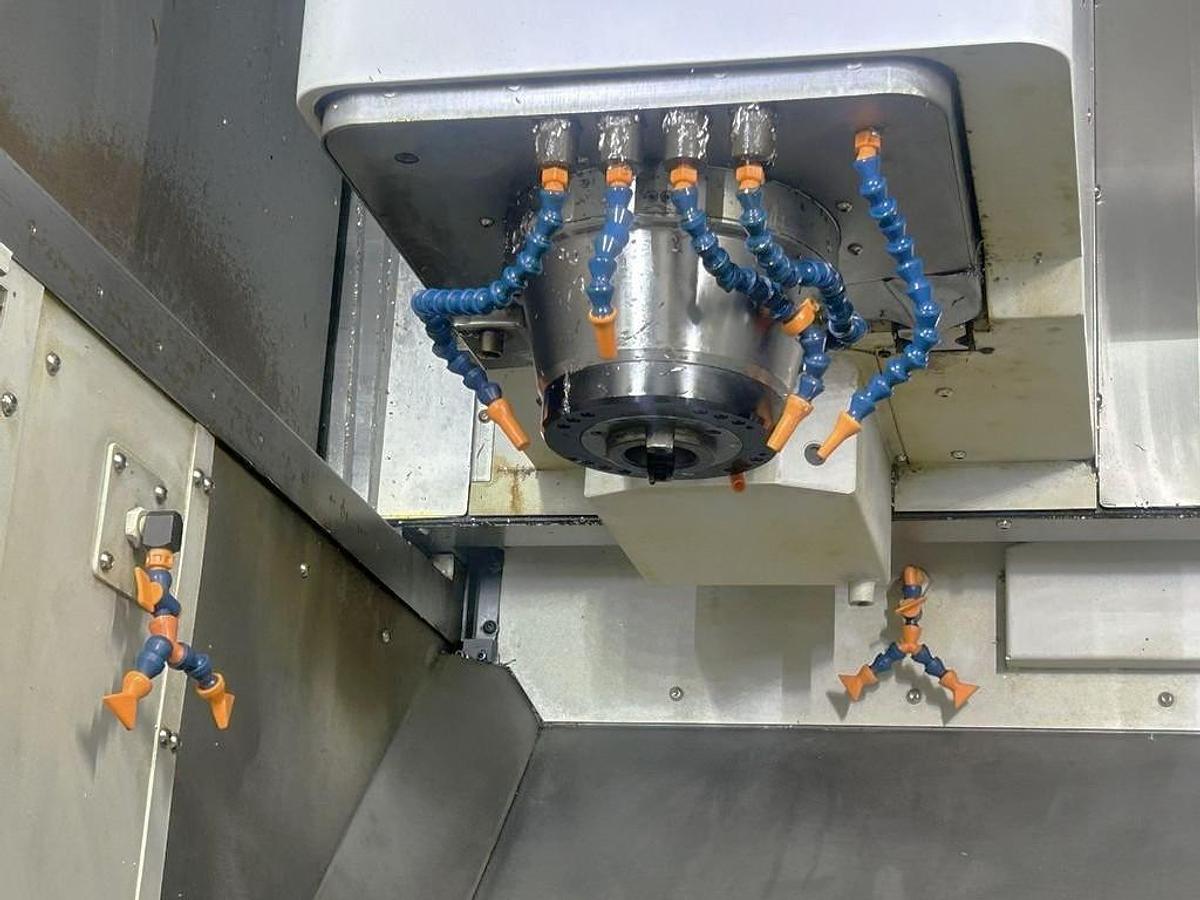

Coolant thru the Spindle

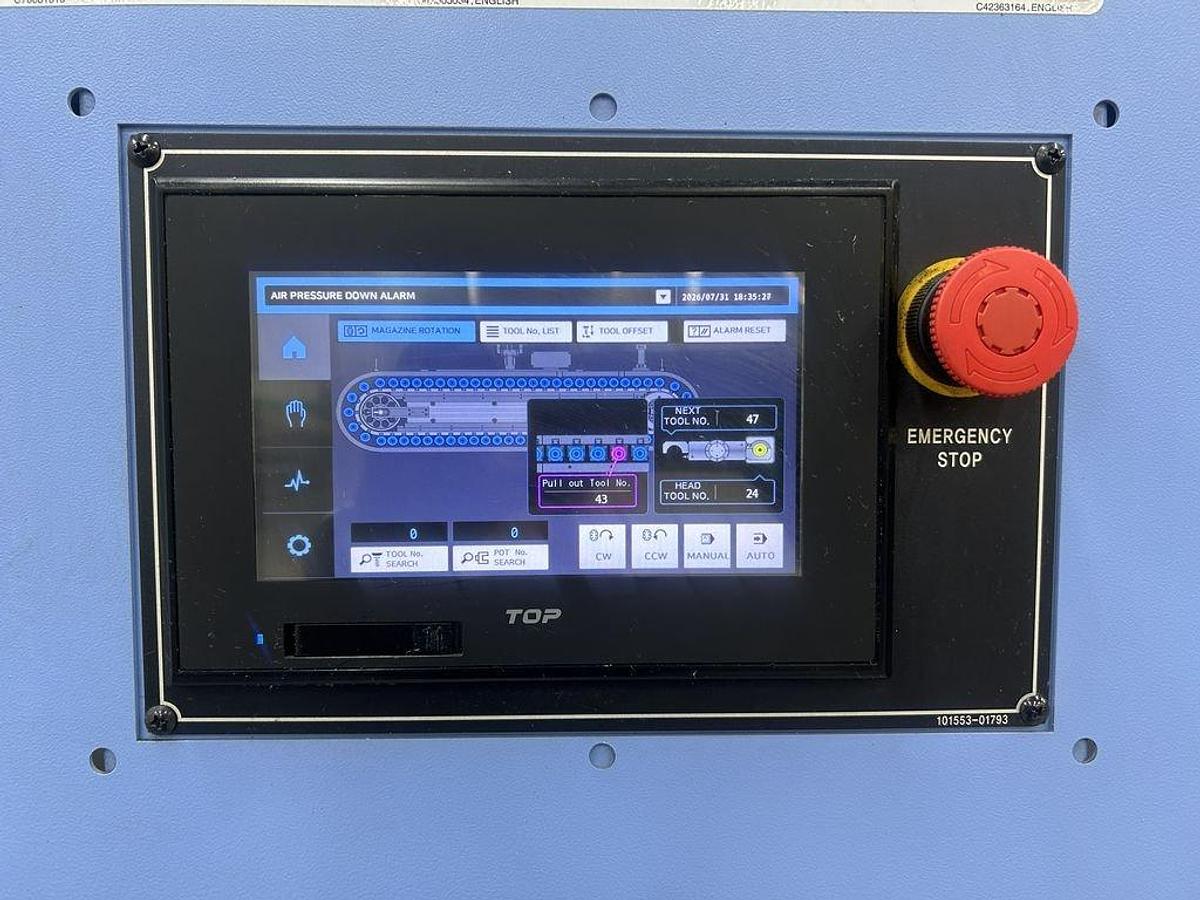

60 Station Tool Changer with CAT #40 Big Plus

18,000 RPM Spindle

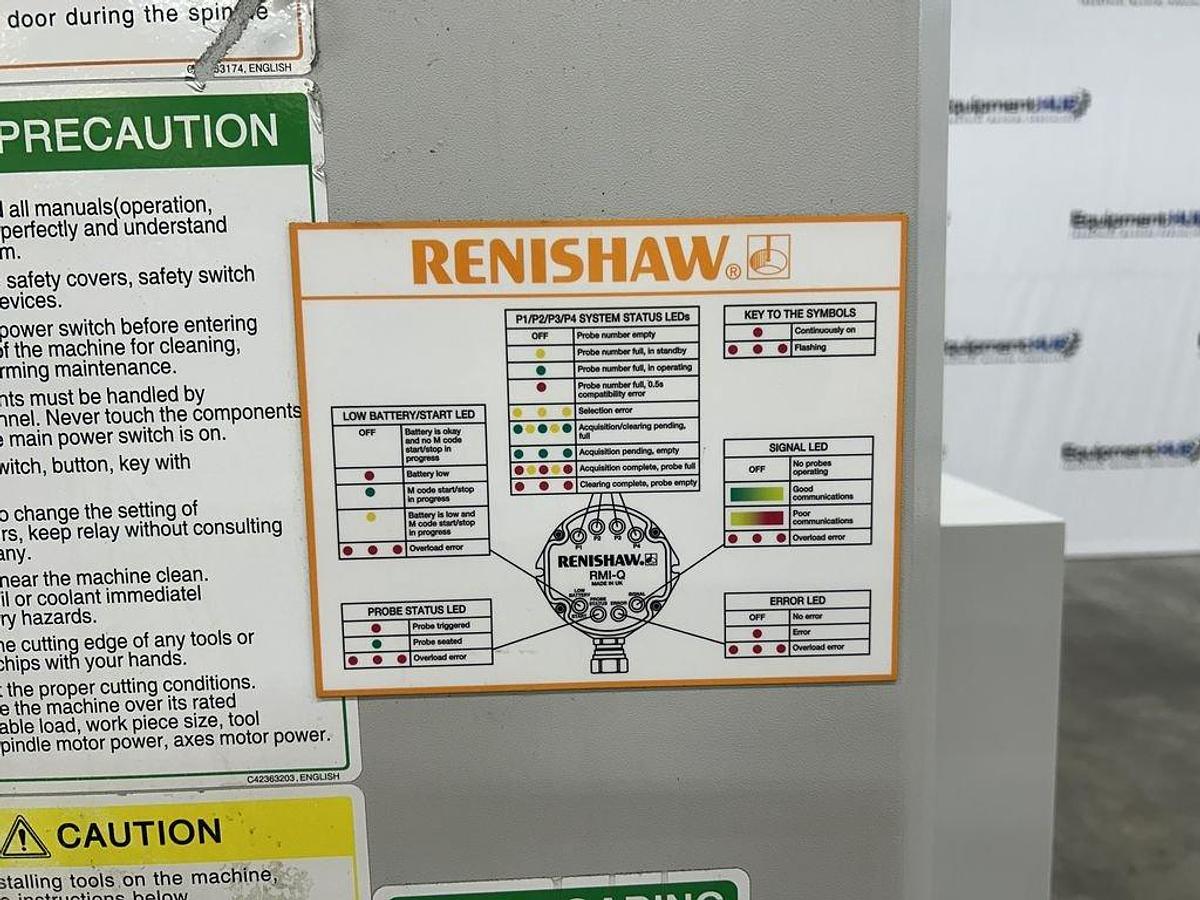

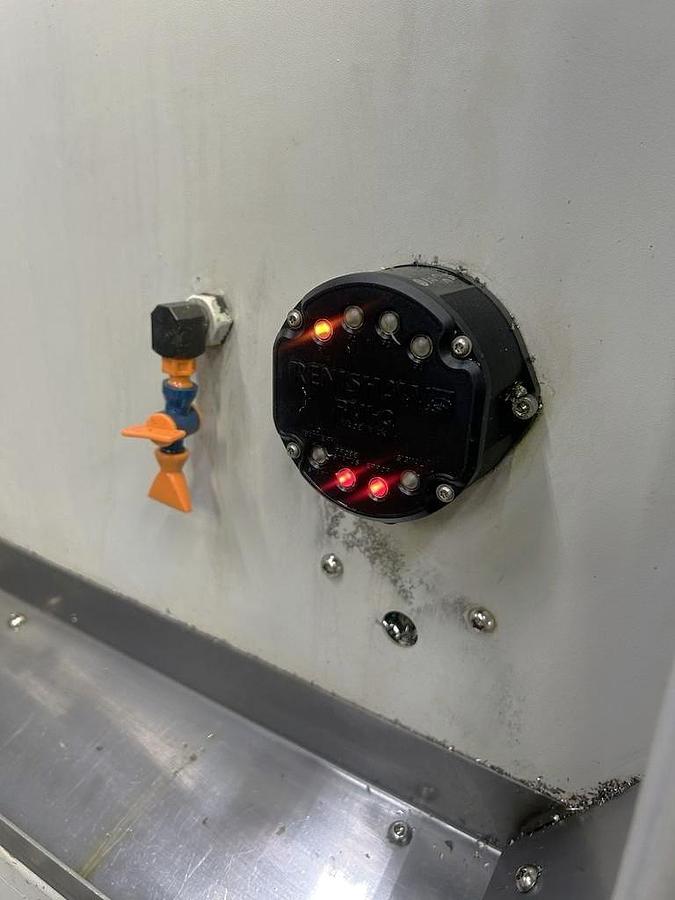

Renishaw Tool & Part Probing

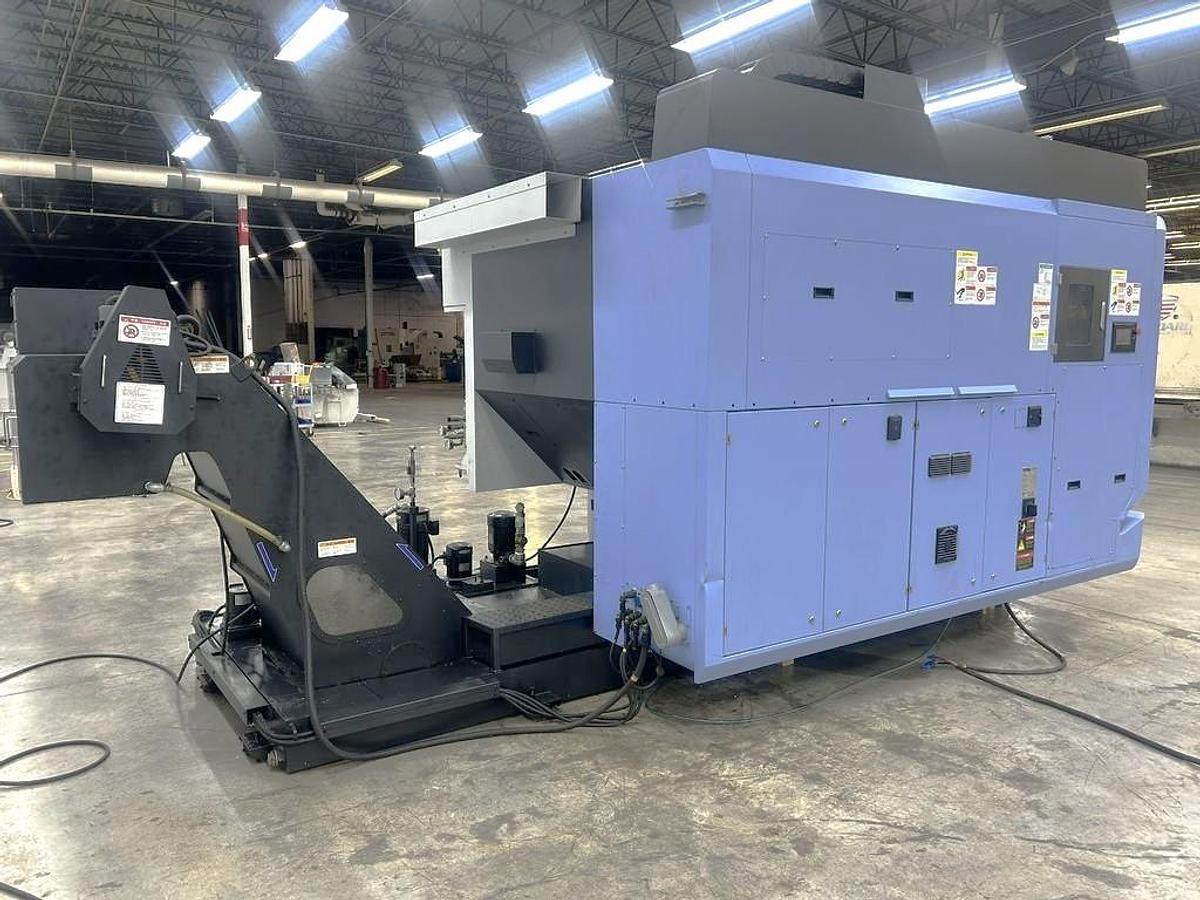

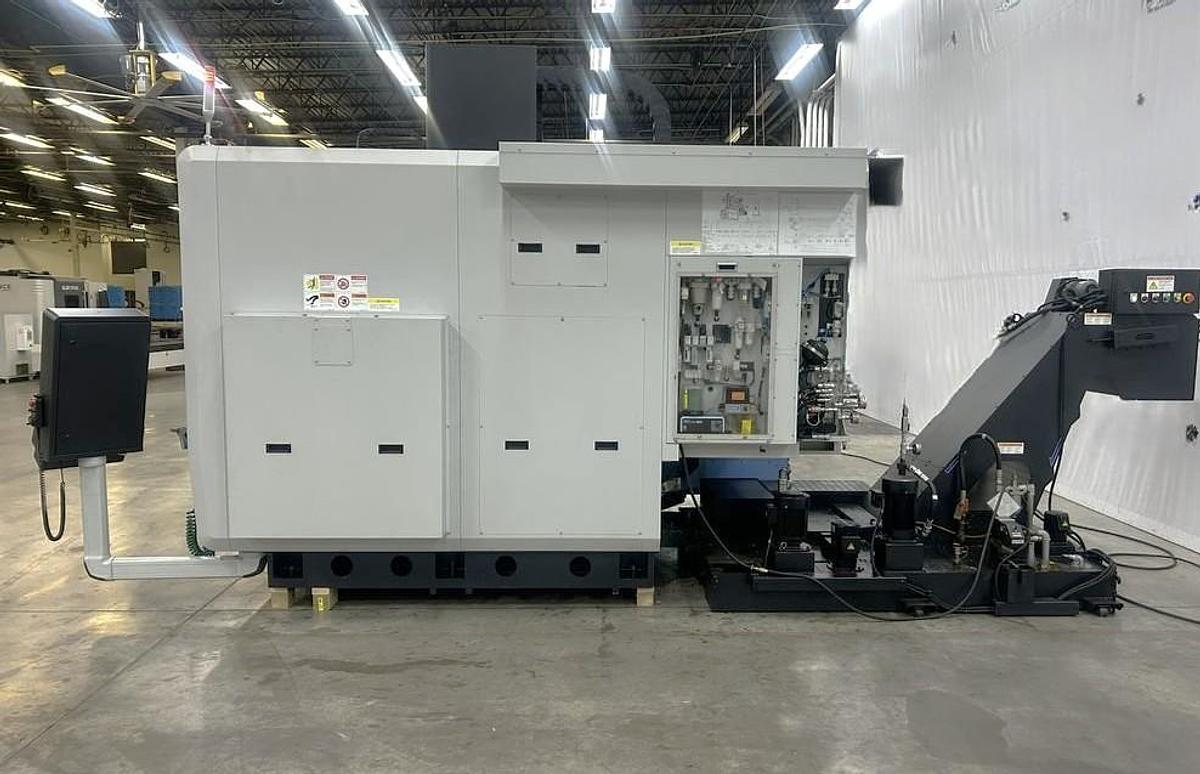

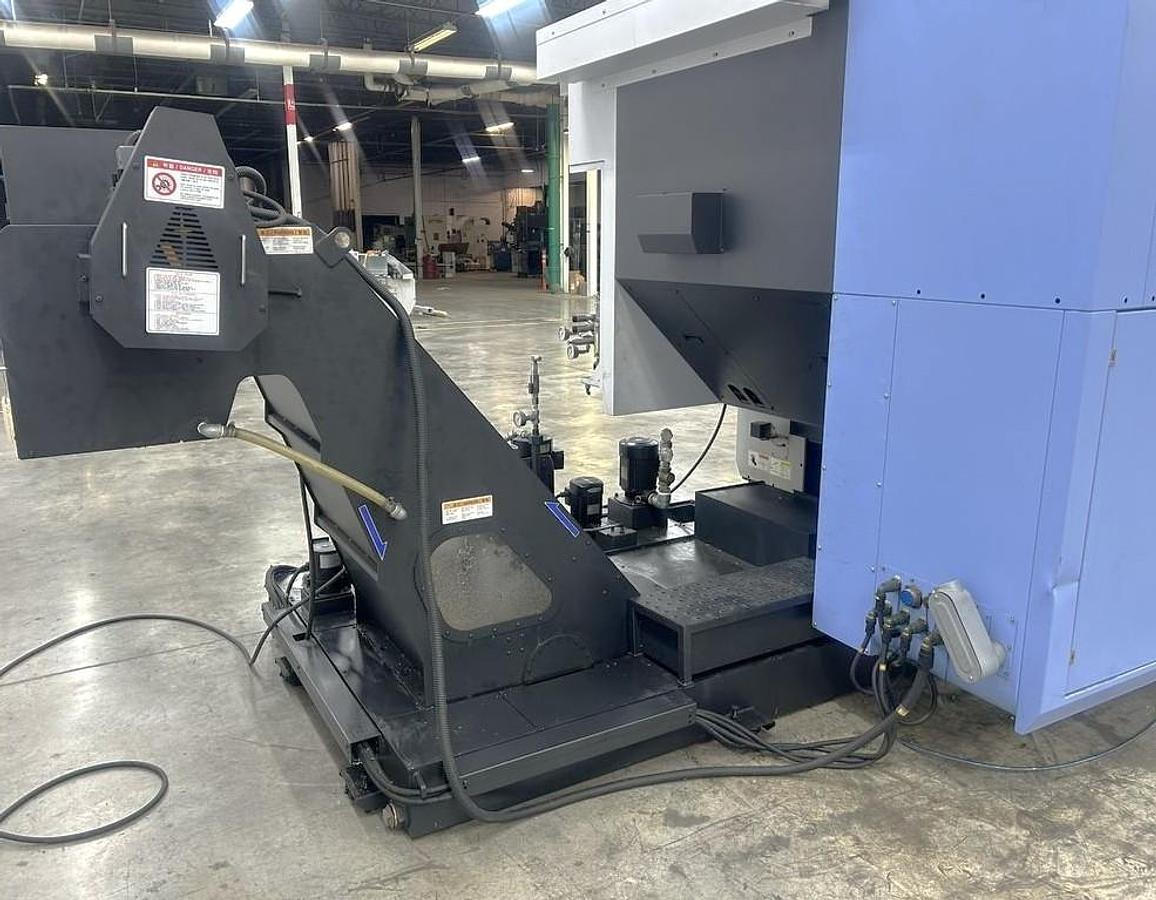

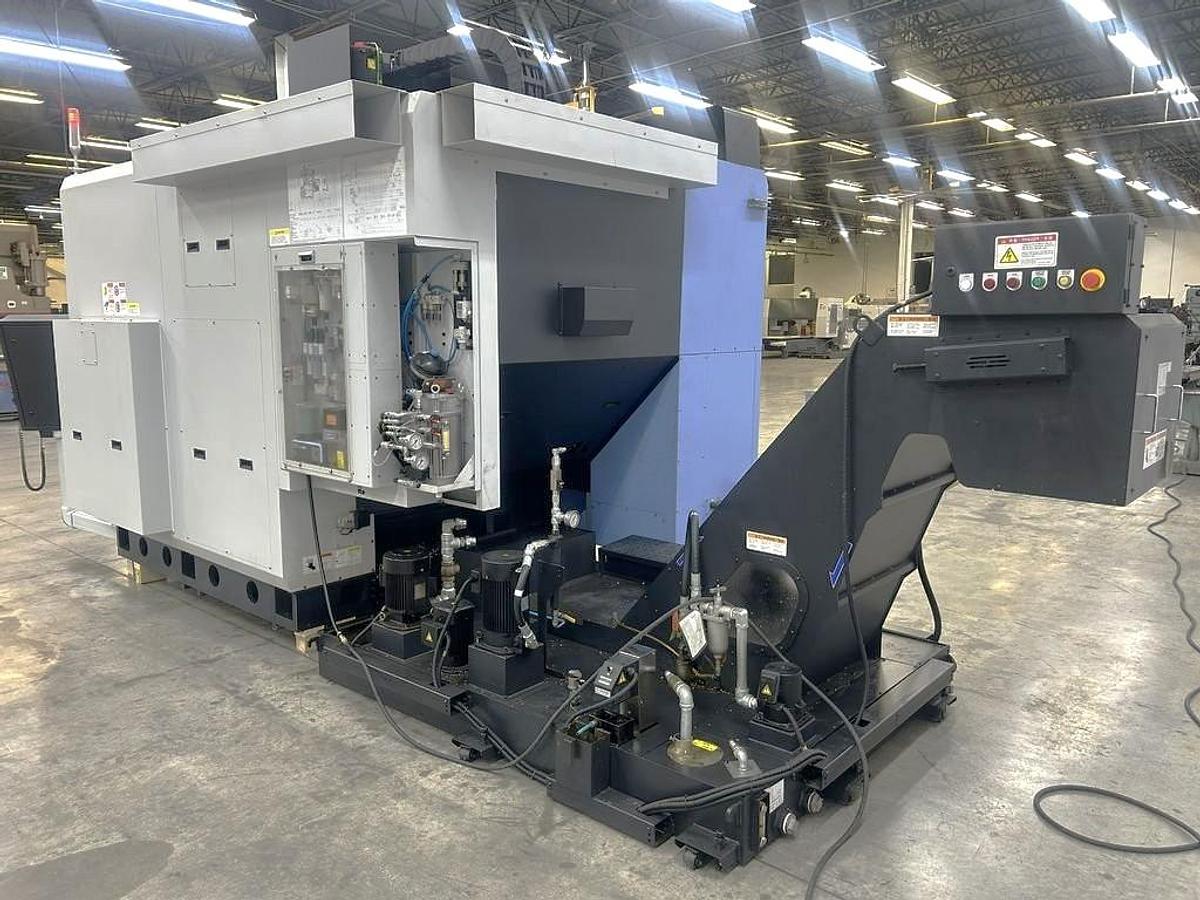

Chip Conveyor

Dual Chip Augers

DN Solutions EZ Work Software

Fixture Clamp/Unclamp - 2 Stations

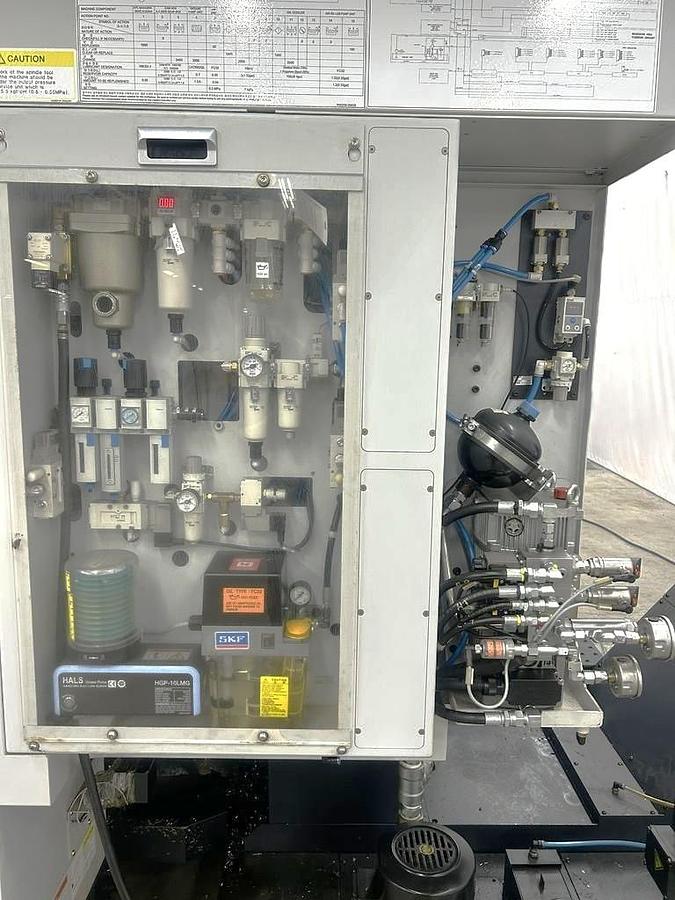

SKF Centralized Lubrication

Spindle Chiller Unit

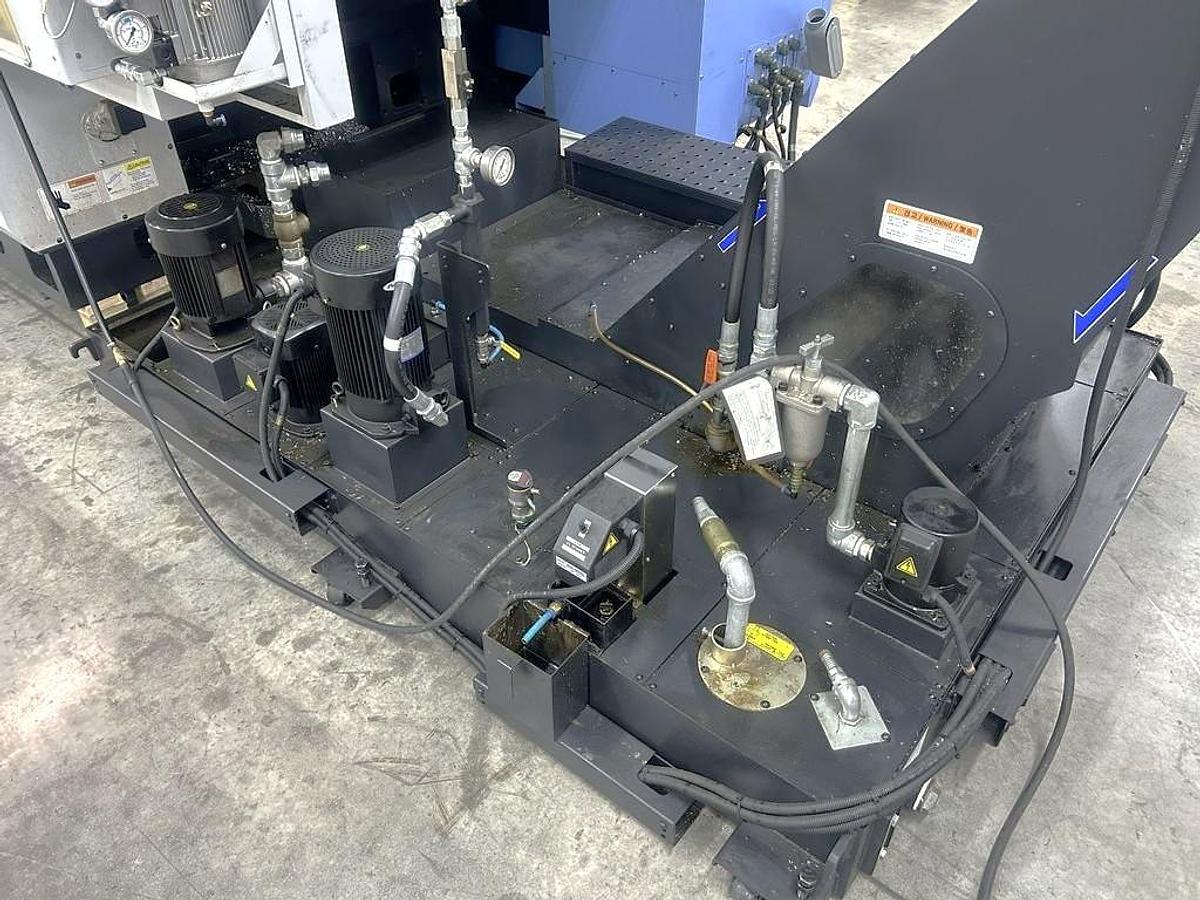

Flood Coolant

Bed Flushing Coolant

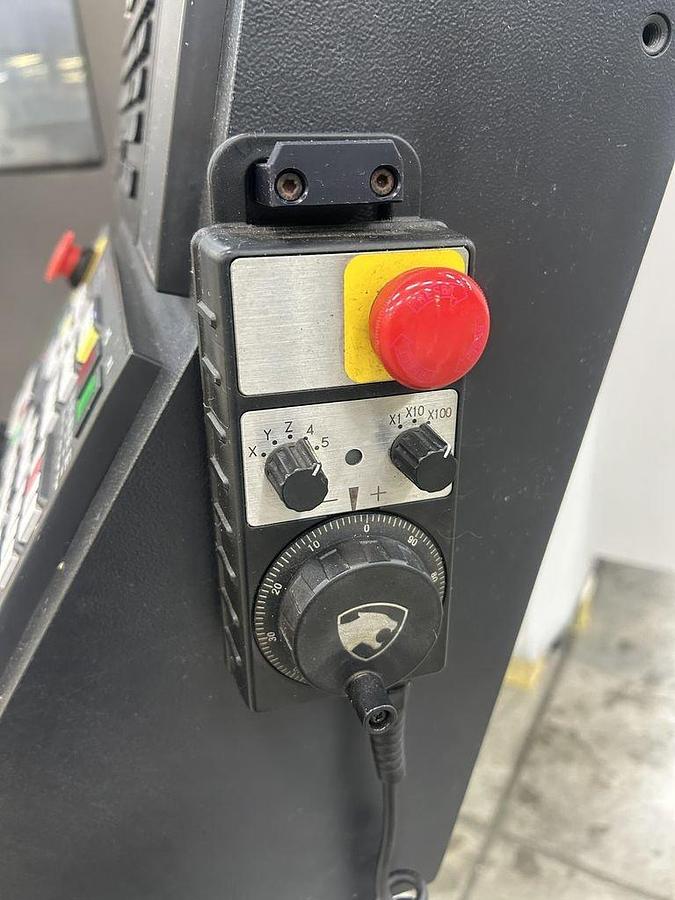

Remote Jog Handle

USB Port Interface

RS 232 Port Interface

15" Touch Screen Control

All Available Manuals

Wired 220V Electrics

**Total Cutting Time, (as shown in photo expressed in minutes) 2,867 Hours**

**Machine Manufactured New in Octorber of 2022, Price New As Equipped at well over $400,000

The 2022 DN Solutions DVF 6500 is a sophisticated 5-axis trunnion vertical machining center, perfect for complex and precise machining tasks. Equipped with a powerful Fanuc 31i-B5 Plus control, it offers a spindle speed of 18,000 RPM and features a CAT 40 - Big Plus spindle taper. The tool magazine holds 60 tools, which ensures efficient, uninterrupted operation with a tool-to-tool change time of just 1.3 seconds. Featuring substantial work area dimensions, the DVF 6500 can handle a maximum workpiece diameter of 33.1 inches and a height of 19.7 inches, with X, Y, and Z-axis travels of 29.5, 30.9, and 23.6 inches respectively. The B-axis allows a tilt movement of +110 to -30 degrees, and the C-axis offers precise rotation with 0.0001-degree increments, both allowing for comprehensive angular machining. With a robust 30 HP spindle motor and a maximum table load of 1,323 lbs, this machining center is built for heavy-duty applications. It includes vital features like coolant through the spindle, probing, and a chip conveyor to ensure efficient operation. Measuring 25' x 8' 11" x 10' 4", and weighing 33,000 lbs, the DVF 6500 combines power and efficiency in a compact footprint suitable for varied industrial environments.
