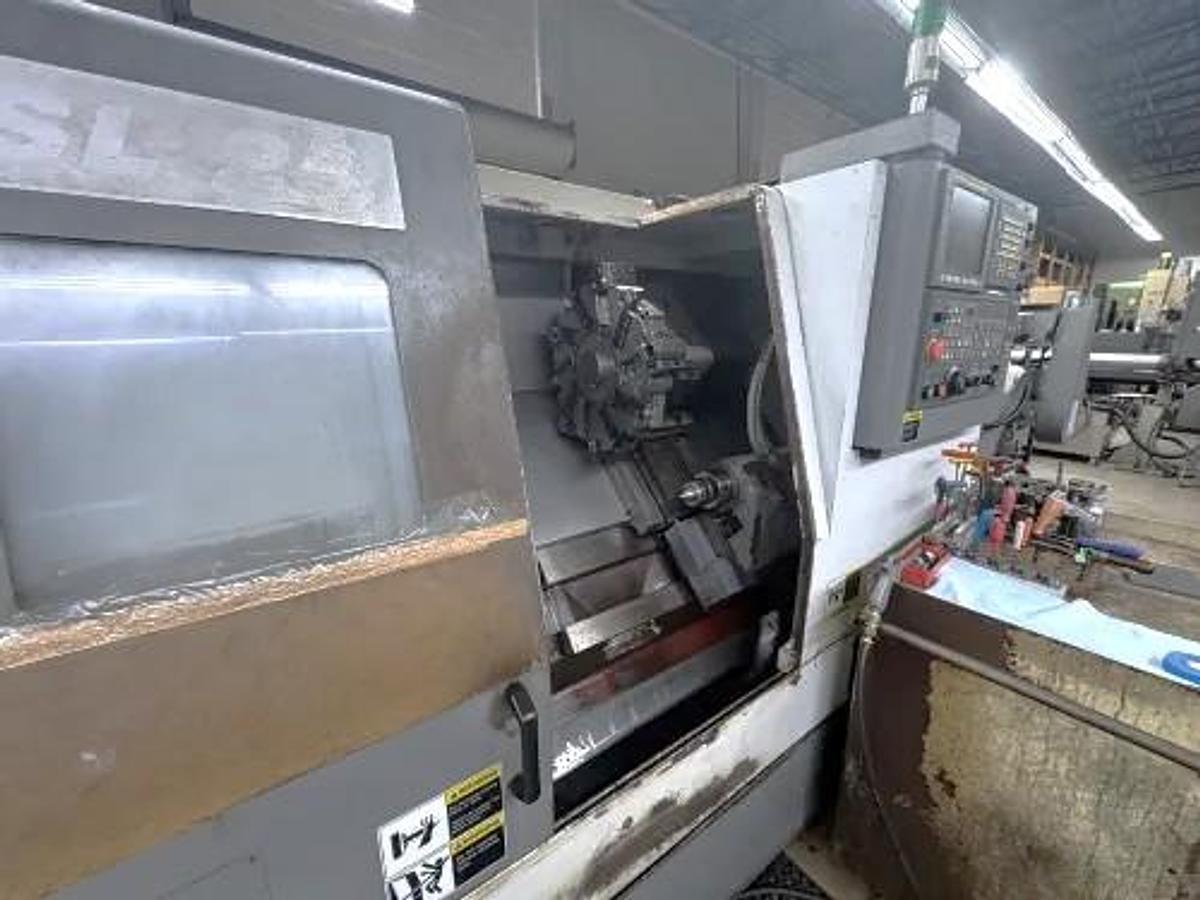

2012 Samsung SL-25/500 with 10" Chuck, 3" Bar Capacity, Tailstock, Chip Conveyor, Fanuc 0i-TD Control

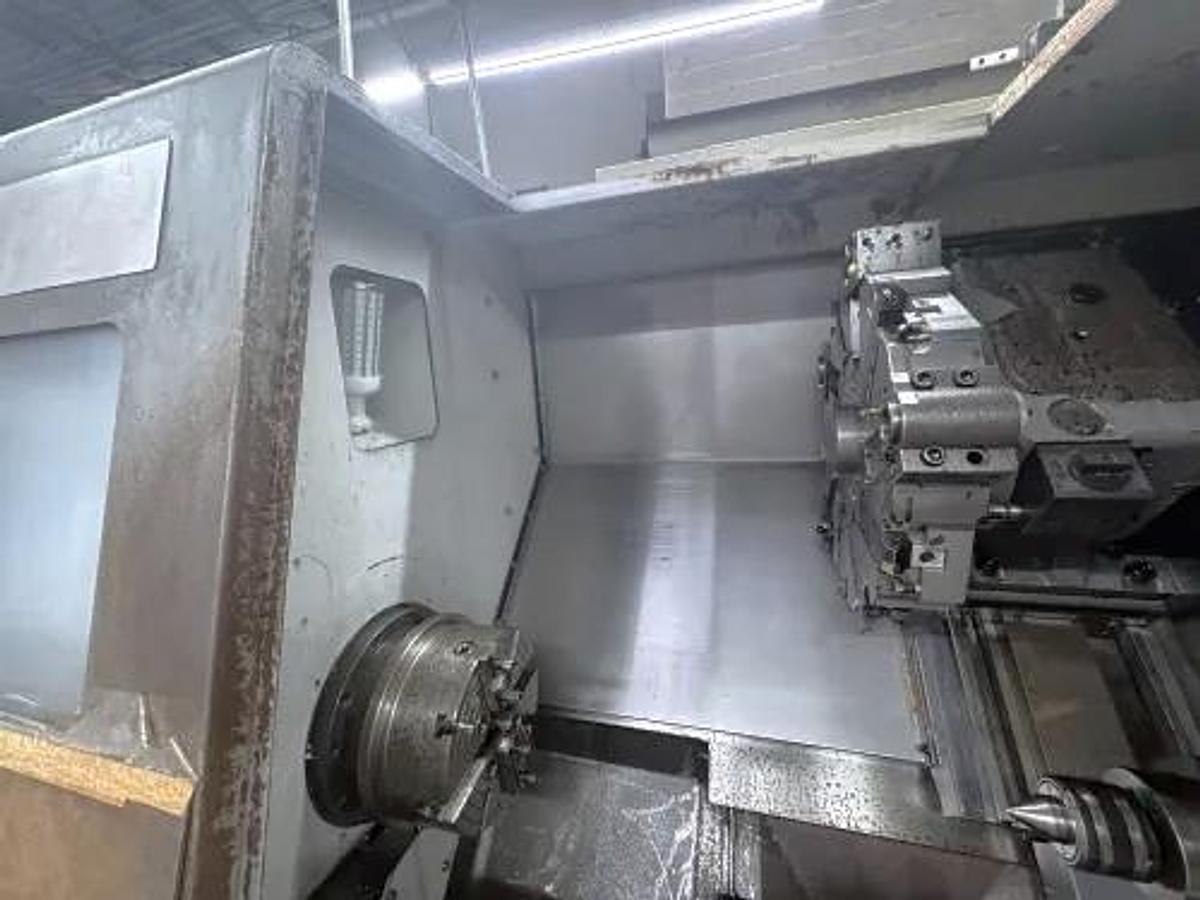

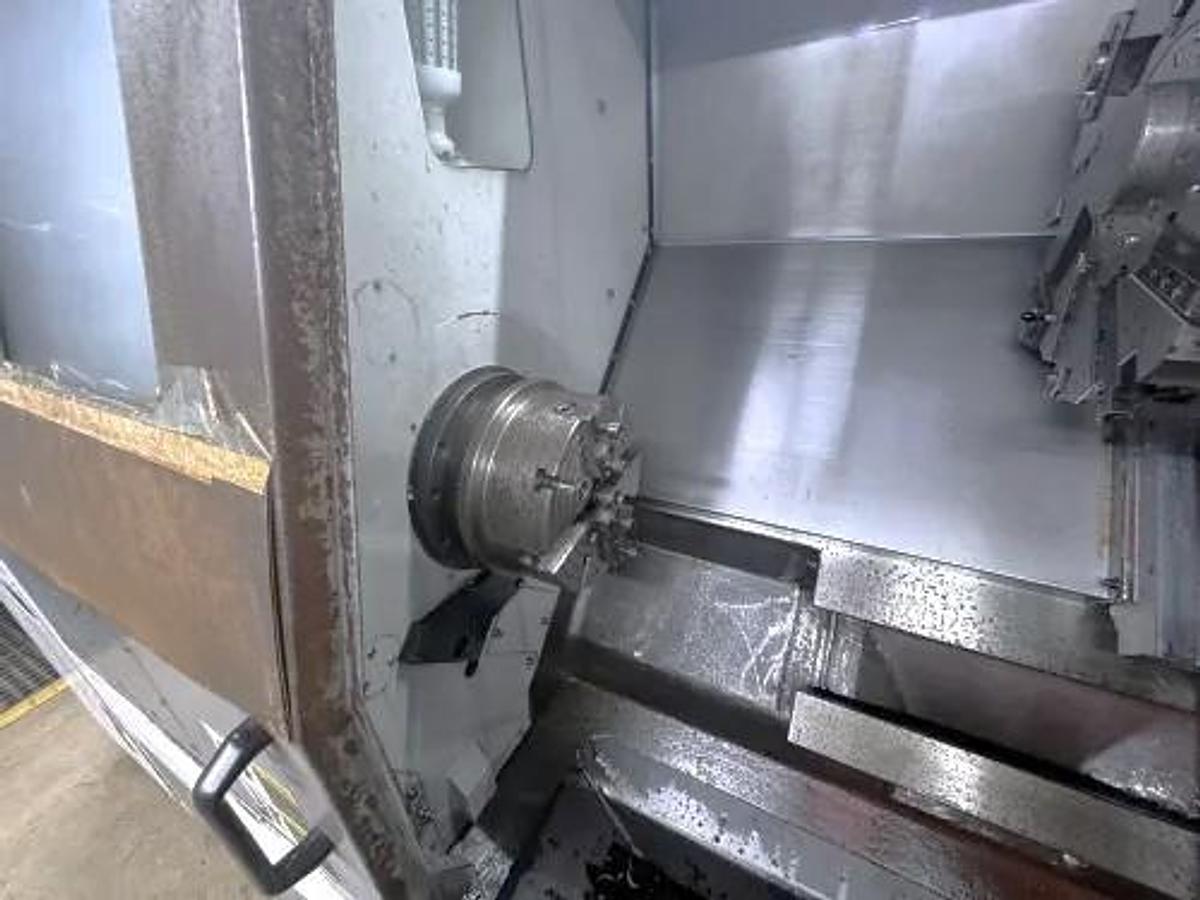

10" Hydraulic Chuck

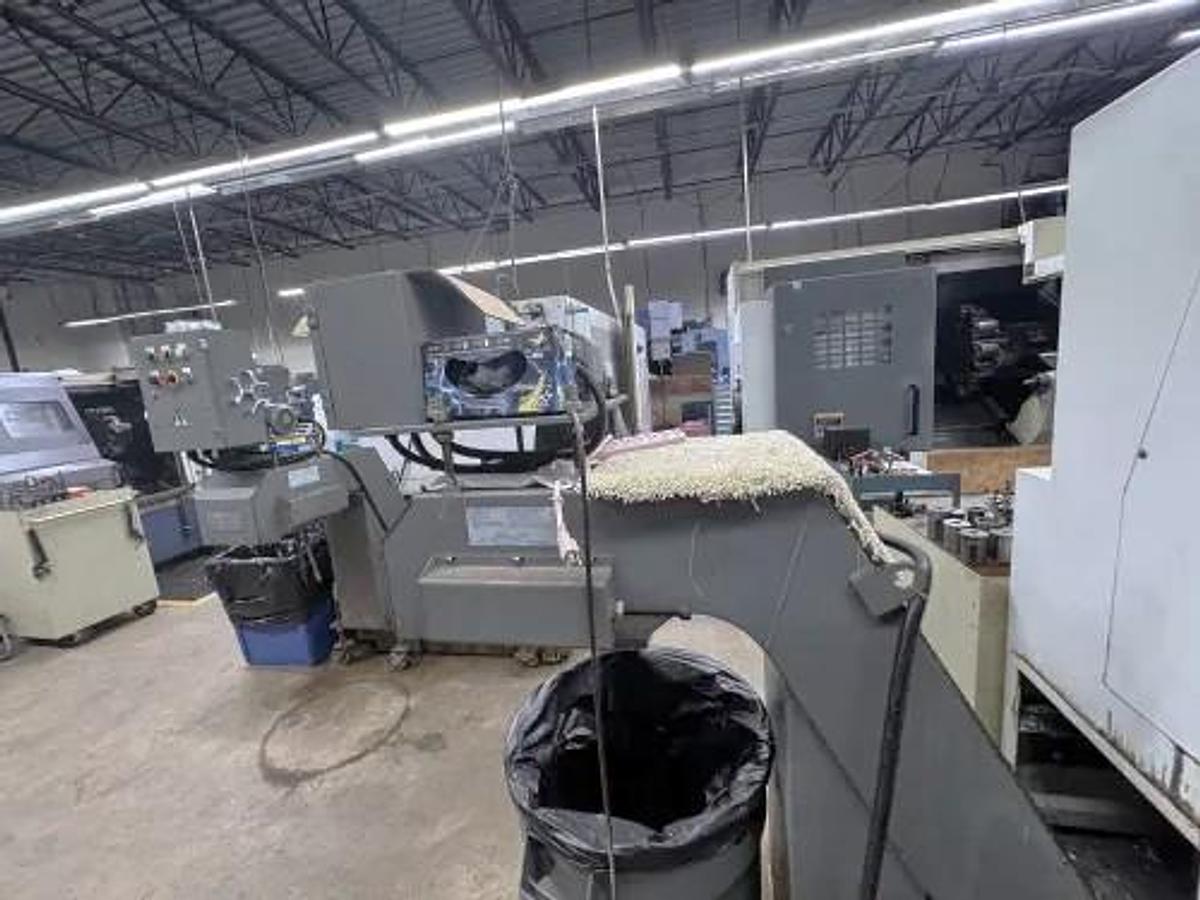

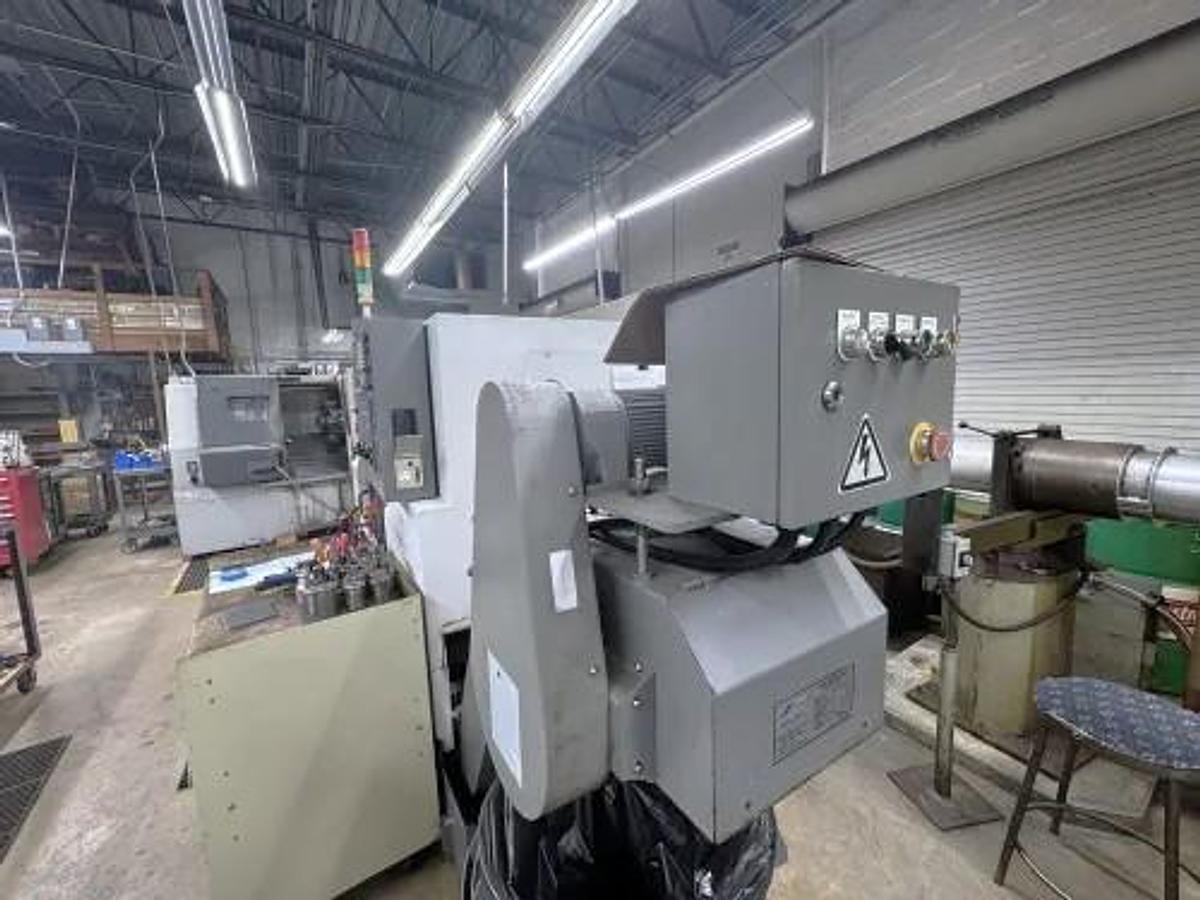

Chip Conveyor

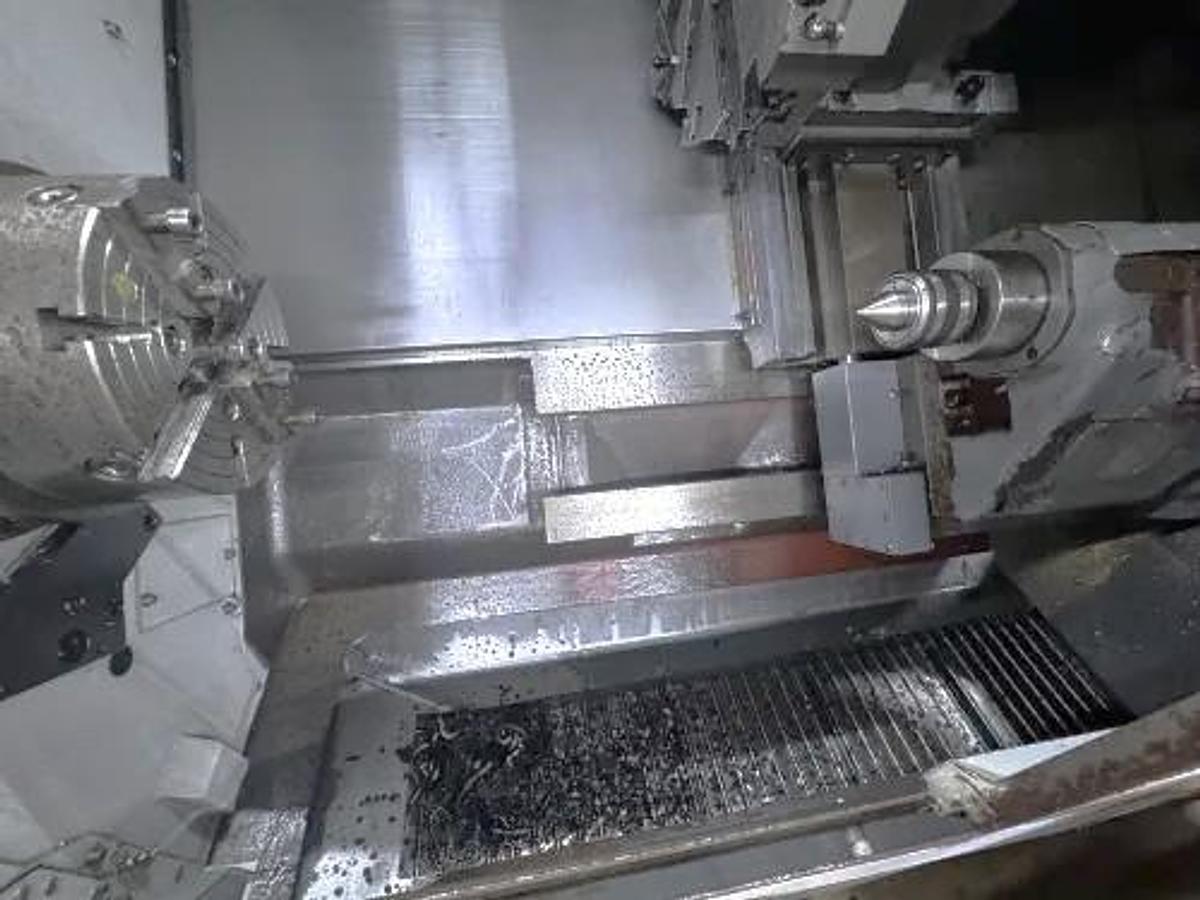

Programmable Tailstock

3 Color Machine Status Lights

Card Interface

RS 232 Port Interface

Coolant System with Tank & Pump

All Available Manuals

All Available Tooling

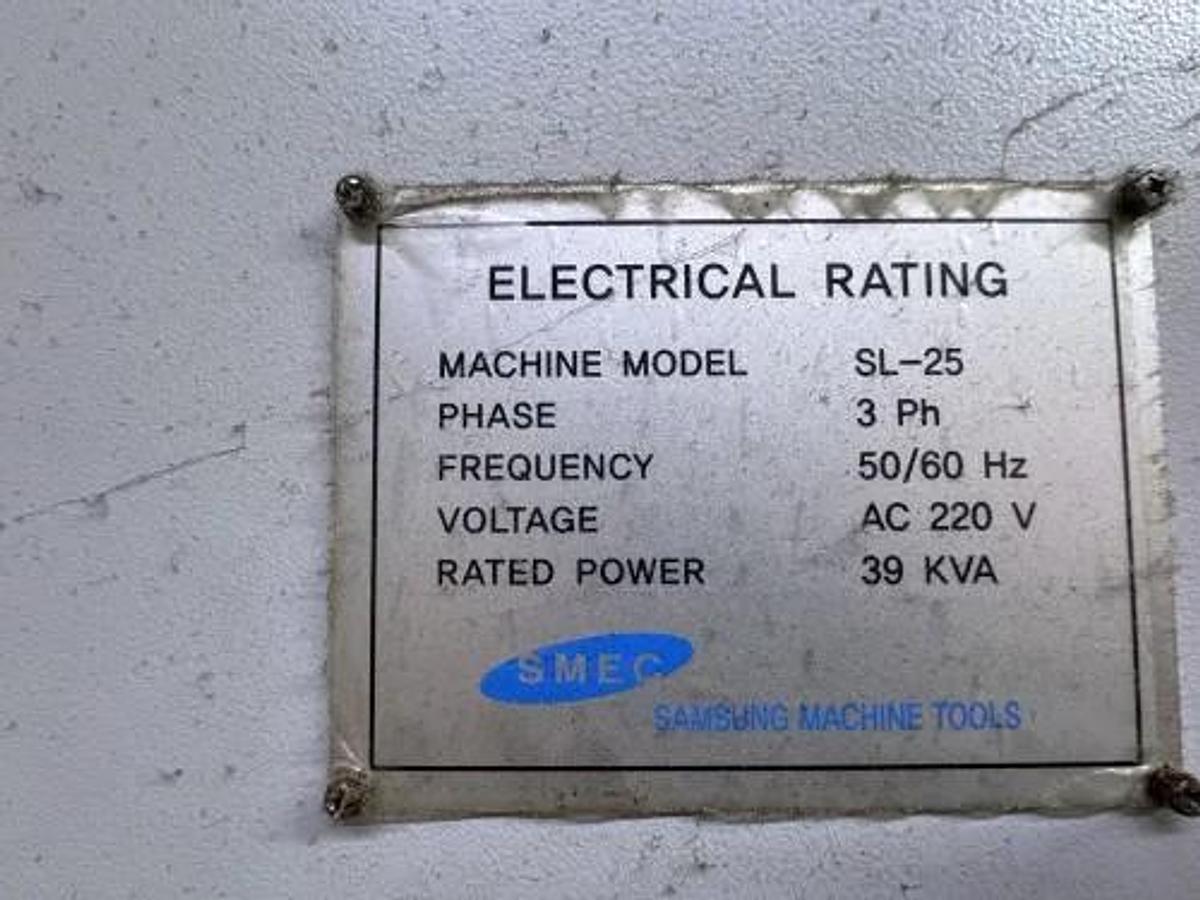

Wired 220V Electrics

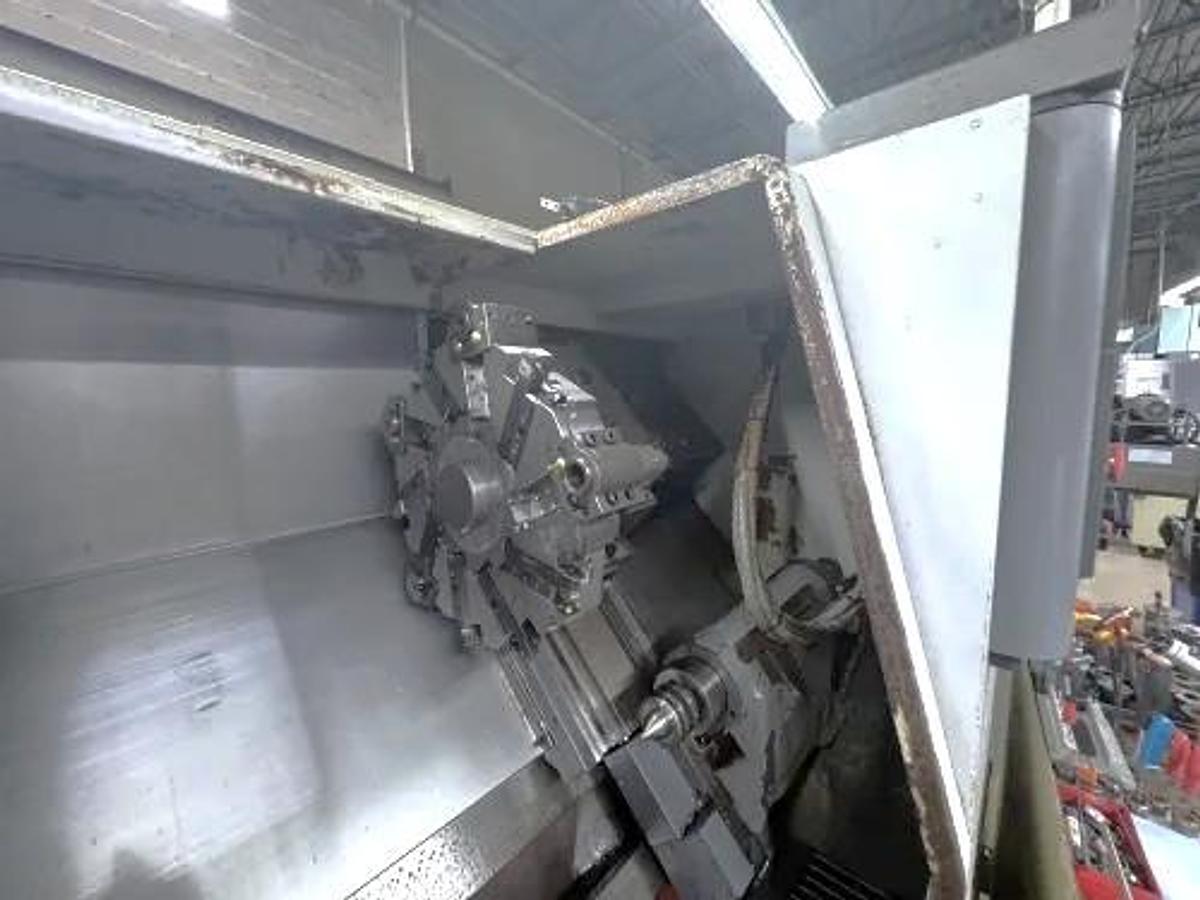

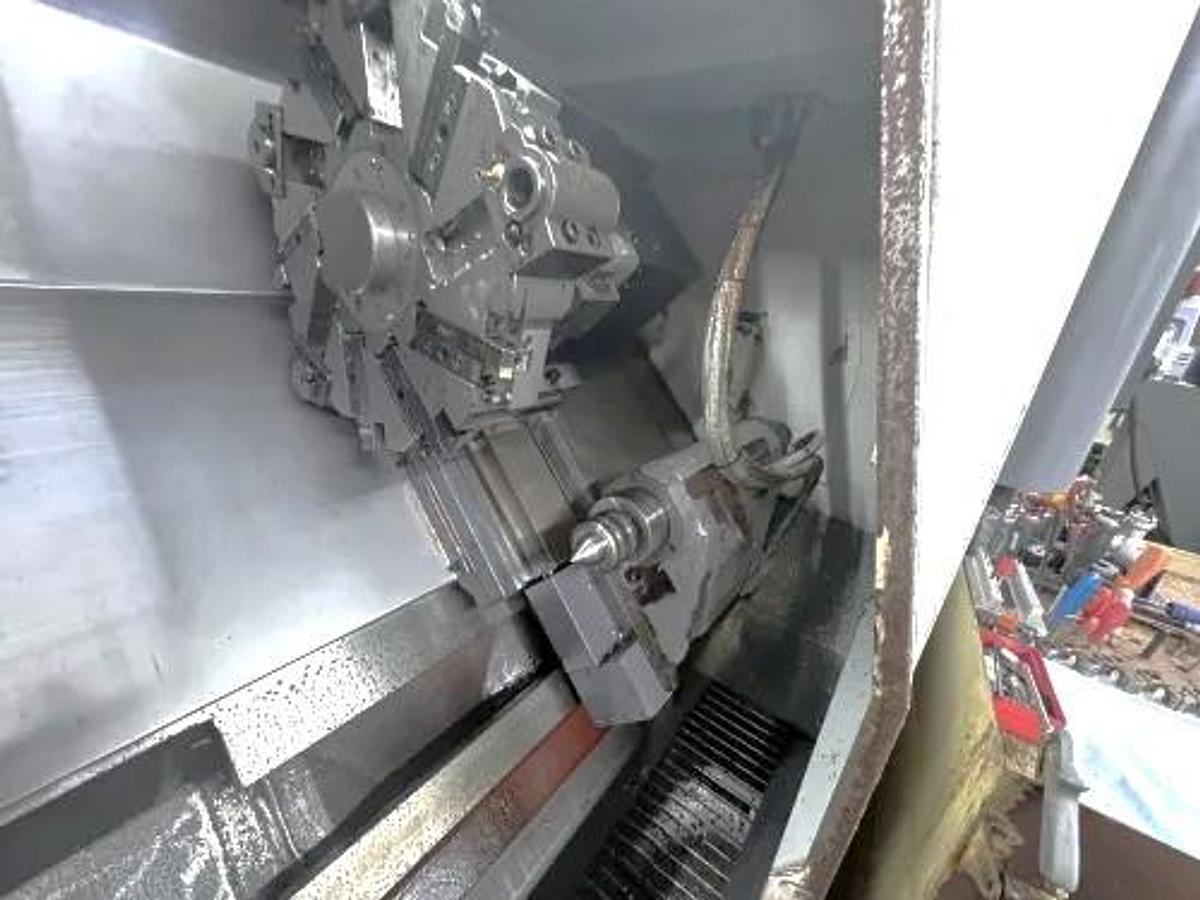

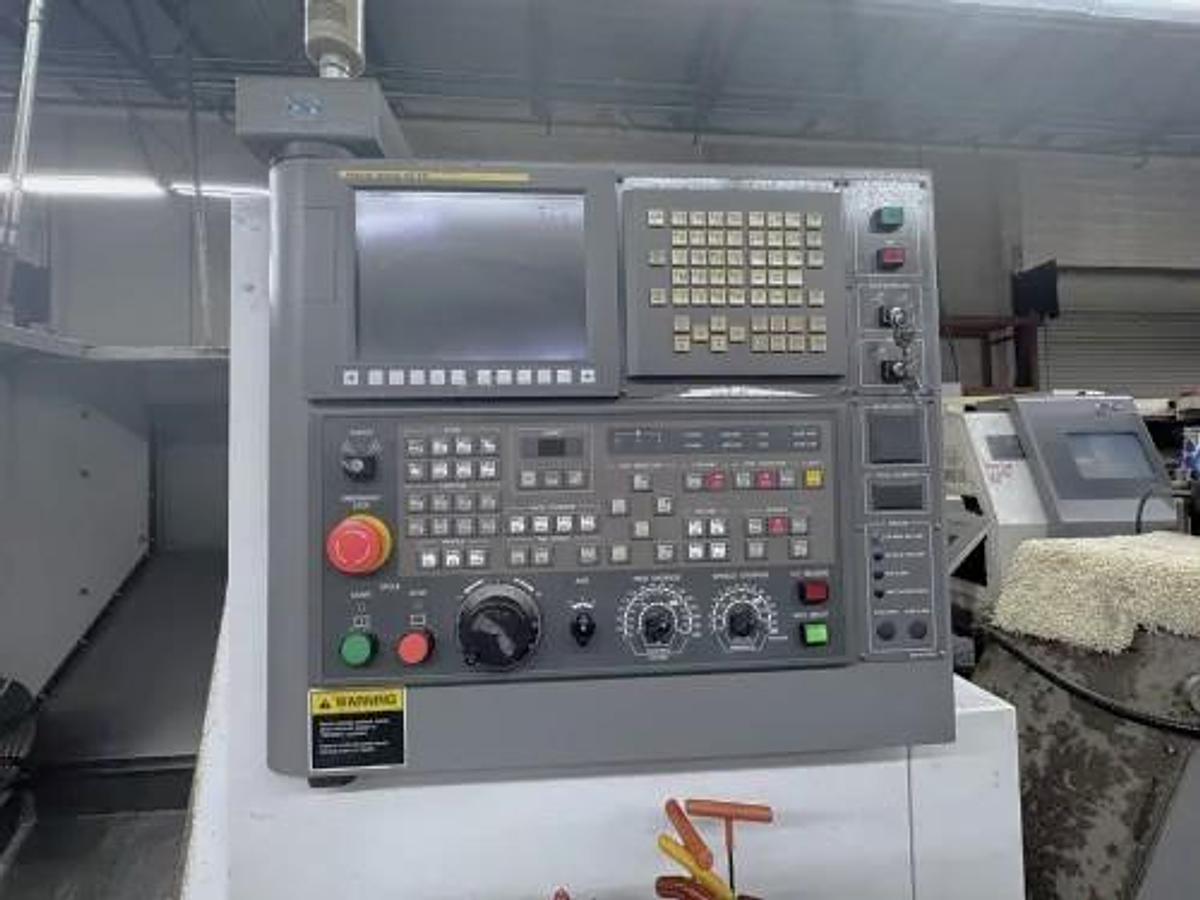

The 2012 Samsung SL-25/500 CNC lathe is a reliable option for various machining tasks, featuring a Fanuc 0i-TD control system for precision operation. This model is equipped with a 10-inch hydraulic chuck and accommodates a sizable 3-inch bar capacity, making it suitable for handling substantial workpieces. The machine's design includes a maximum swing over bed of 25.6 inches and a maximum machining diameter of 13.78 inches, allowing for diverse application possibilities. Its capabilities are further demonstrated by a maximum machining length of 20.5 inches and travel capacities of 8.66 inches on the X-axis and 20.9 inches on the Z-axis. The SL-25/500 is also equipped with a powerful 25 HP spindle motor capable of reaching speeds up to 3,500 RPM. This is complemented by a 10-position turret, enhancing the machine's versatility. The rapid traverse rates of 708 IPM on the X-axis and 944 IPM on the Z-axis ensure efficient operations. Additional features include a tailstock for enhanced support, a chip conveyor for efficient waste management, and a sturdy construction weighing in at 12,000 lbs. This lathe presents a well-rounded option for anyone seeking robust performance and reliability in a used CNC machine.
