2020 Haas TM-1P with Haas TRT100 5th Axis Table, Haas Probing, Prog. Coolant, 10 ATC, High Spd Machining, ONLY 1,351 Feed Cut Hrs.

Haas TRT100 2 Axis Rotary/Tilt Table with Version P14 Connection

4th Axis Drive & Wiring

5th Axis Drive & Wiring

WIPS-R Intuitive Probing-Renishaw Tool & Part Probing

Programmable Coolant Nozzle

10 Station Umbrella Style Tool Changer

Haas WiFi Camera

Dynamic Work Offsets and Tool Center Point Control

High Speed Machining

Rigid Tapping

Spindle Orientation

User Definable Macros

Coordinate Rotation & Scaling

Visual Part Programming System

Coolant Pump Kit

Ethernet Interface

Haas Connect-Remote Monitoring

Haas Drop

Safe Run

Media Display M-Code M130

WiFi Connection for Haas Control

1 GB Programming Memory

Work Light

Early Power Failure Detection Module

USB Port Interface

RS 232 Port Interface

Wired 220V Electrics / 3 Phase ONLY

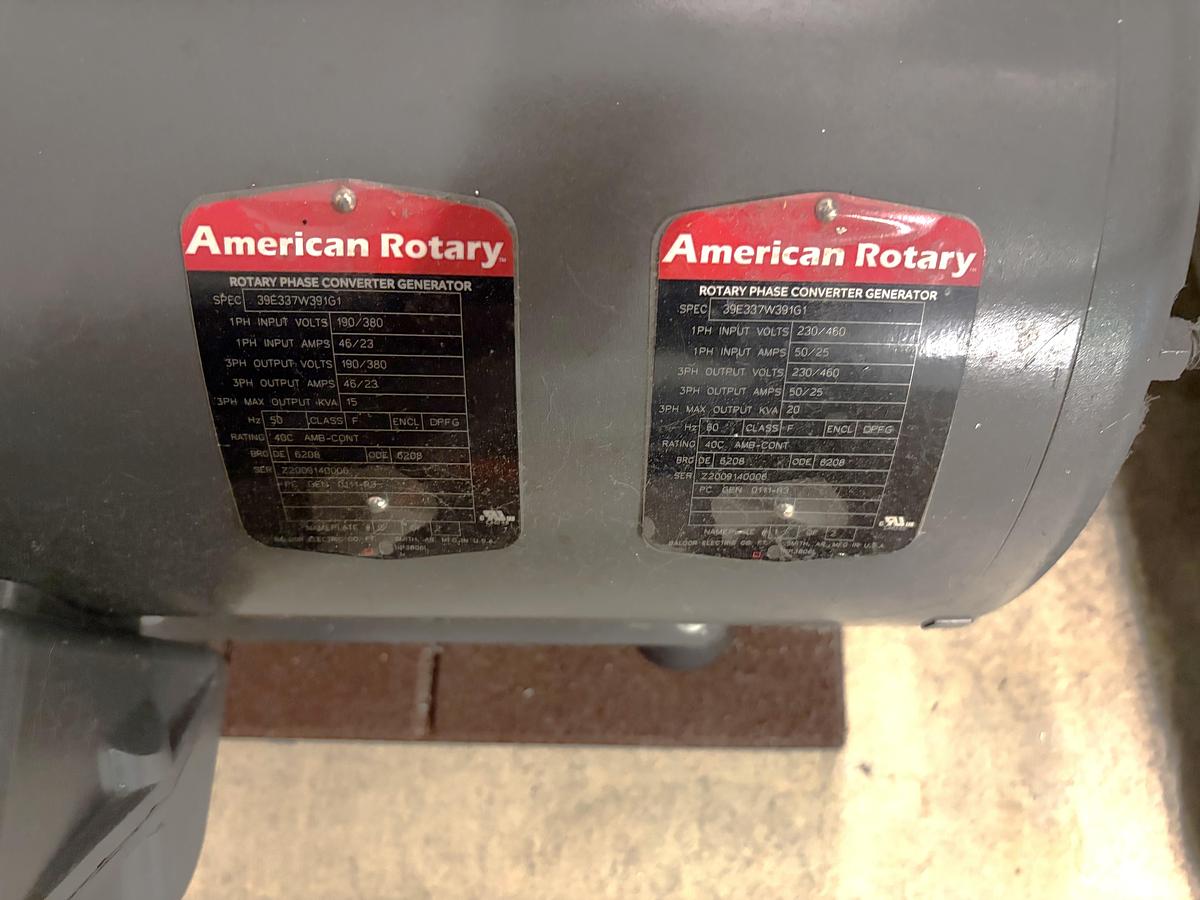

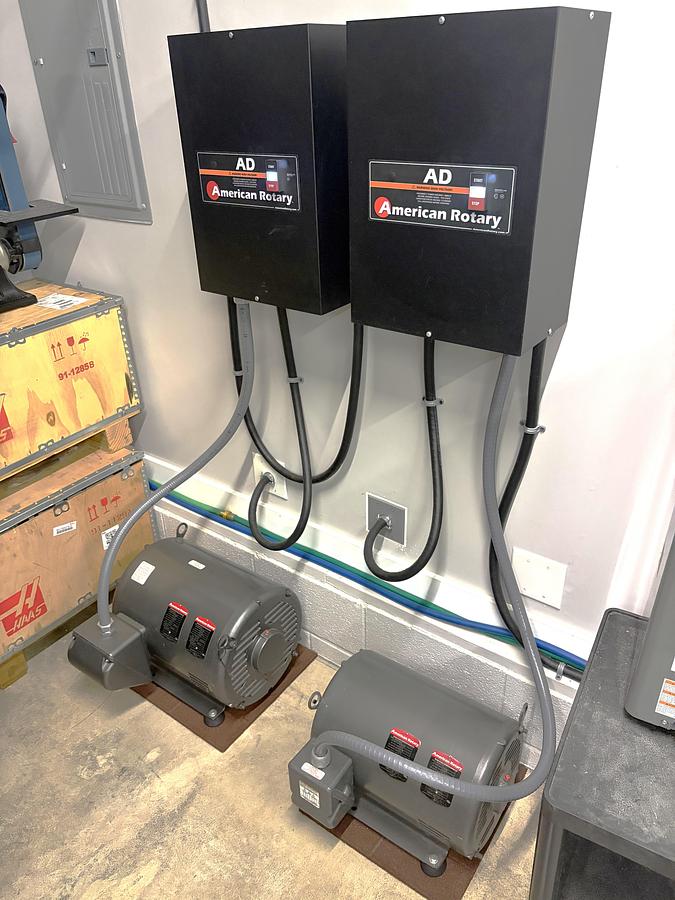

American Rotary Phase Converter System allowing machine to run on single phase power

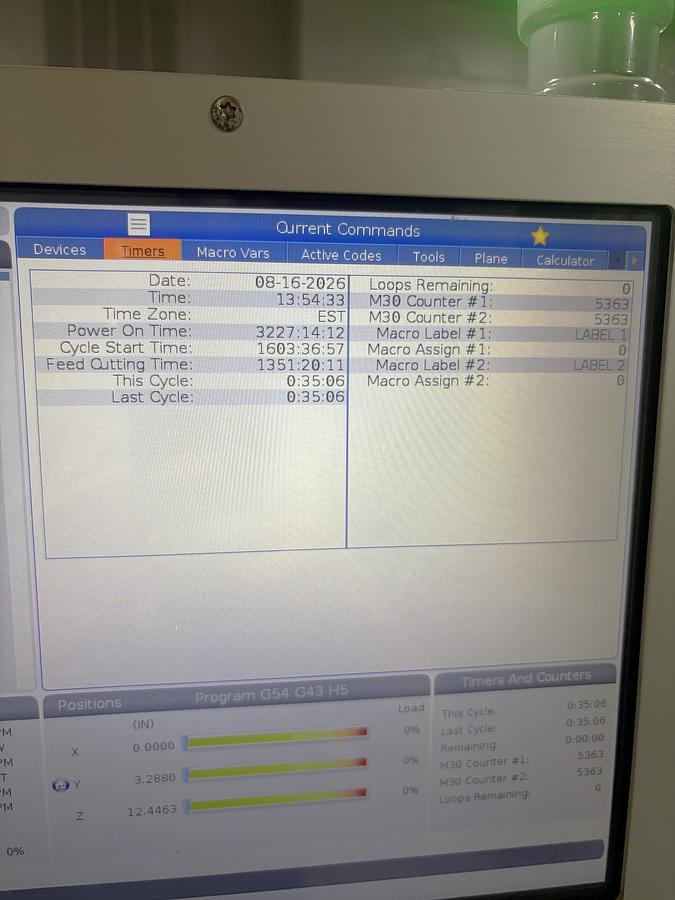

**Power On Time: 3,227 Hours**

**Cycle Start Time:1,603 Hours**

**Feed Cutting Time: 1,351 Hours**

**Machine is manufactured new in December of 2020**

**Compare to new as equipped at $107,660 with current Haas discounting offers**

**Under Power and able to be inspected**

**Machine is available for release upon arrival of replacement machine**

The 2020 Haas TM-1P Vertical Machining Center, enhanced with the Haas TRT100 5th Axis Table, offers a robust solution for precision engineering tasks. Operating under the Haas NextGen Control system, this used but well-maintained machine boasts just 1,351 feed cut hours. It features a generous table size of 47.8" x 10.5" and can accommodate up to 1,000 lbs of workpiece weight, ensuring versatility for various applications. Equipped with a 7.5 HP spindle motor, the TM-1P achieves speeds up to 6,000 RPM, supported by a CAT 40 spindle taper. The machine provides significant travel with 30" on the X-axis, 12" on the Y-axis, and 16" on the Z-axis to handle larger components efficiently. It includes a tool magazine capacity of 10 stations (ATC) and features high-speed machining capabilities for enhanced productivity. For additional complexity, the Haas TRT100 enables rotary A and B axis movements with up to 360 degrees in .001 increments, catering to intricate multi-angle machining needs. The TRT100 accommodates a platter diameter of 3.94" and can support parts weighing up to 15 lbs, with a maximum part swing of 8.4". The machine's dimensions are 100"x78"x101", with a total weight of 4,500 lbs, ensuring a stable and durable setup for industrial environments.
