2011 Doosan Puma 300C - 4" Bar Capacity !!, 12" Hyd Chuck, Tailstock, Chip Conveyor, Tool Presetter, 15.7" x 24.8" Capacity, Fanuc

12" 3 Jaw Hydraulic Chuck

4.05" Bar Capacity

Programmable Tailstock

Tool Presetter

Chip Conveyor

Coolant System with Tank & Pump

3.5" Floppy Disk Drive Interface

RS 232 Port Interface

Wired 200/220V Electrics

All Available Tooling

All Available Manuals

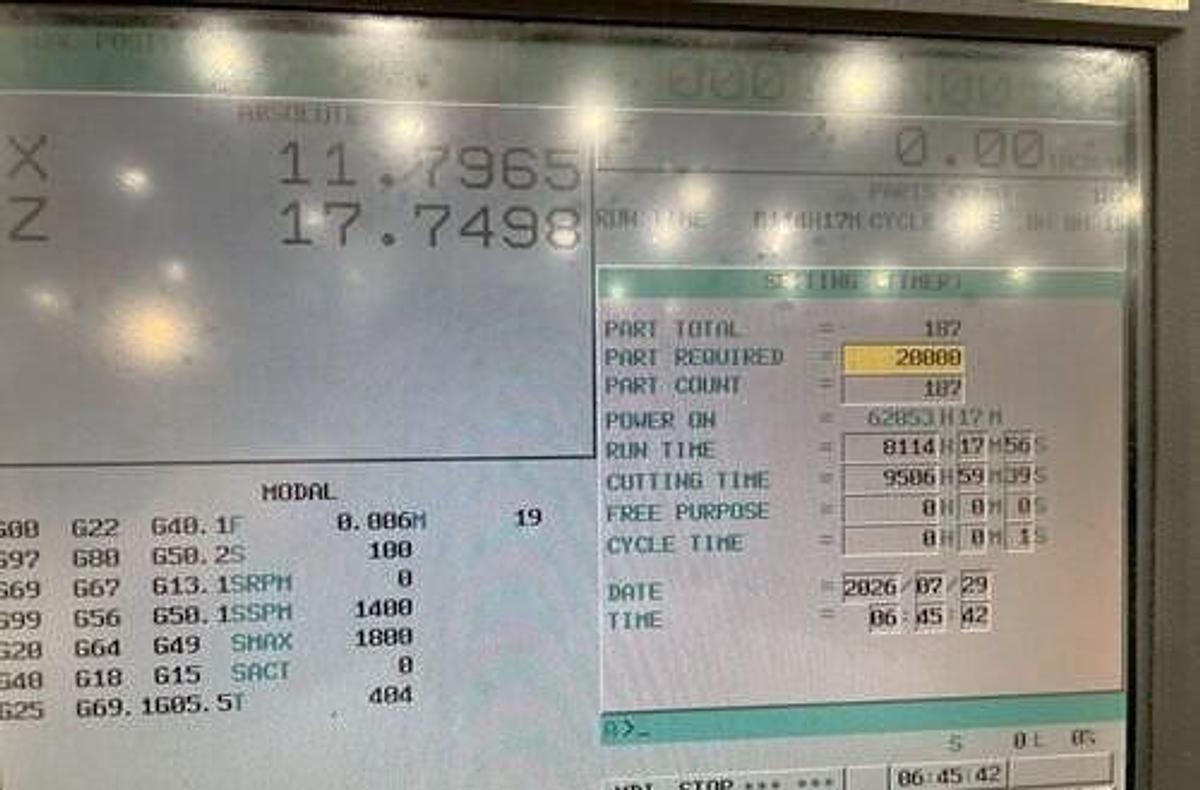

**Total Cutting Hours 9,506**

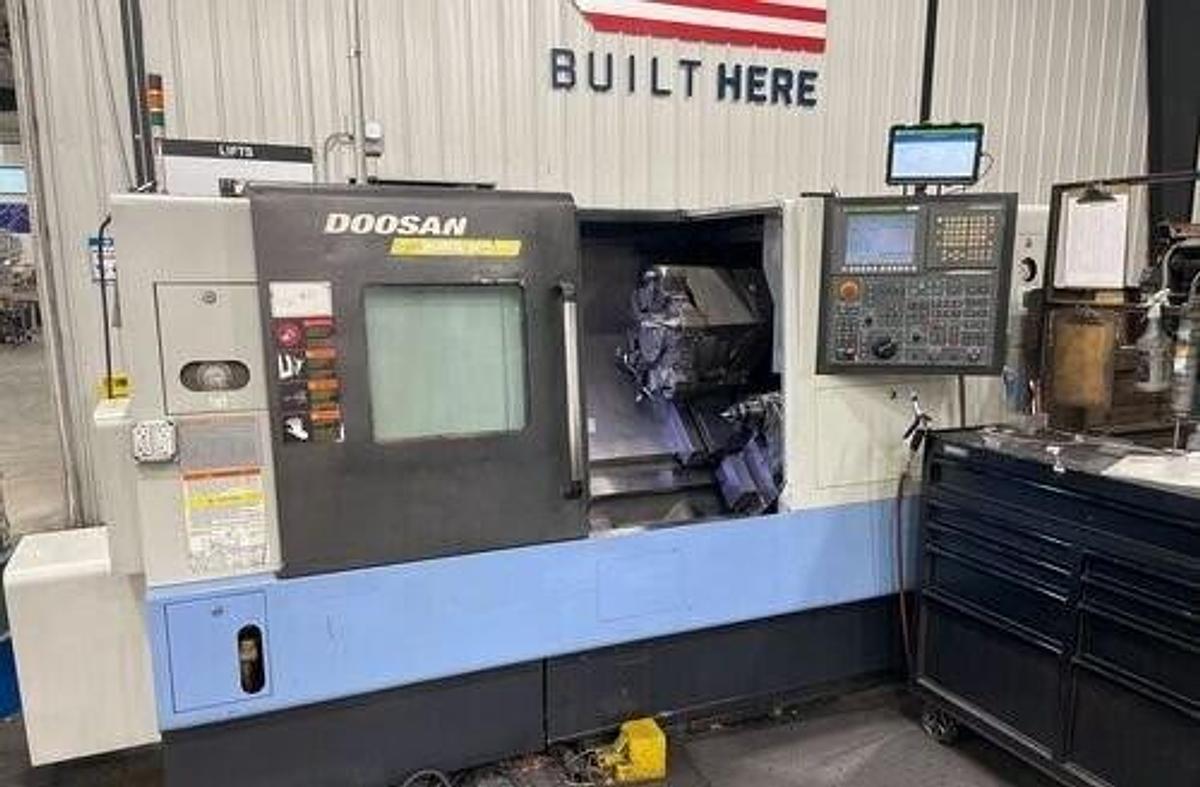

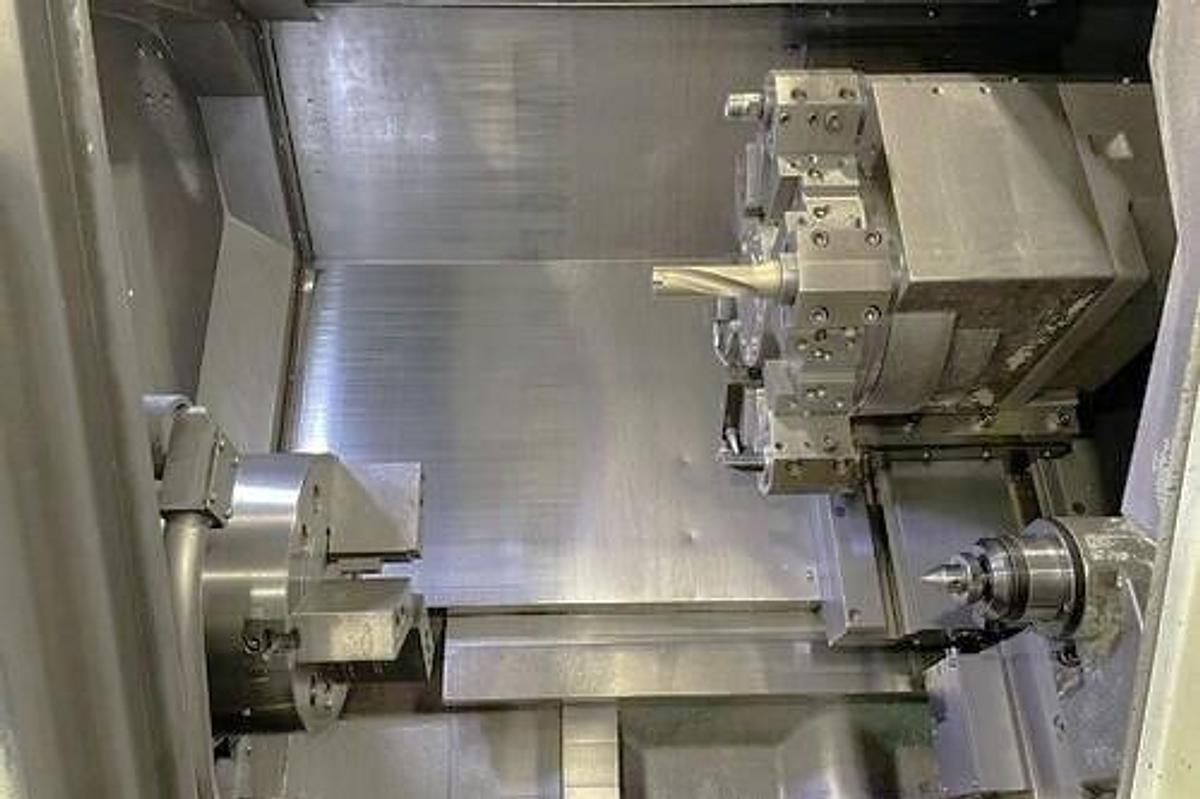

The 2011 Doosan Puma 300C CNC lathe is a durable and efficient machine designed for precision in metalworking. Equipped with a Fanuc 21i-TB control system, it boasts a 12" hydraulic 3-jaw chuck and features a 4.05" bar capacity, making it ideal for various machining tasks. The machine offers a maximum turning diameter of 15.7" and a turning length of 24.8", providing ample space for complex projects. With its spindle speeds ranging from 28 to 2,800 RPM and a powerful 35 HP motor, the Puma 300C is capable of handling heavy-duty work with ease. The lathe is equipped with a 2-speed gearbox and a 12-position turret, allowing for efficient and versatile operations. Its rapid traverse rates are 787 IPM on the X-axis and 945 IPM on the Z-axis, ensuring swift movement and increased productivity. Additional features include a tailstock with a quill diameter and travel of 3.94", a tool presetting device, and a chip conveyor for ease of operation and maintenance. With overall dimensions of 135" x 77" x 80" and a weight of 13,892 lbs., the Doosan Puma 300C is a robust machine suitable for a variety of industrial settings.
