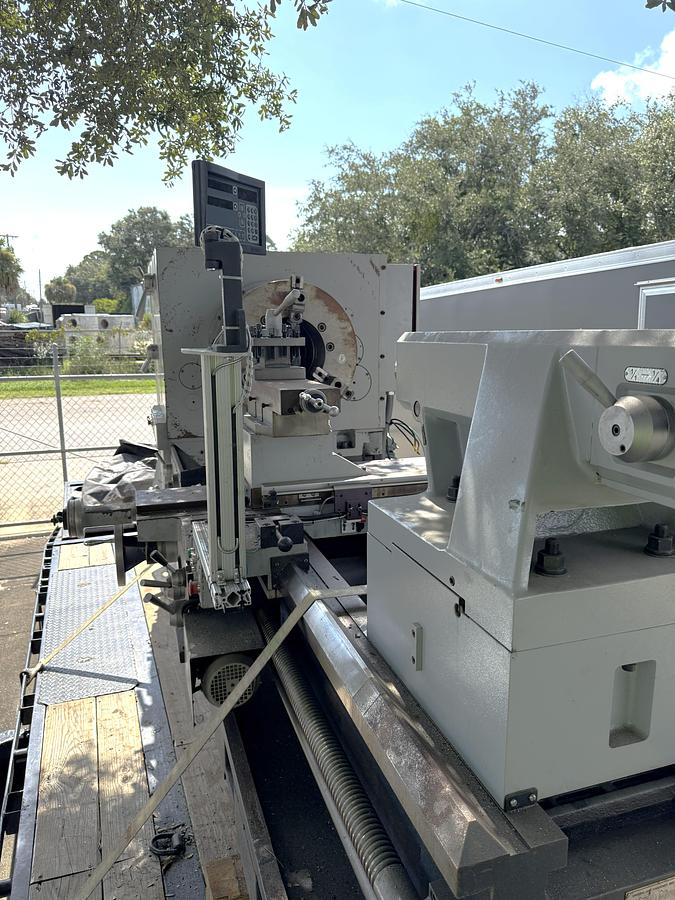

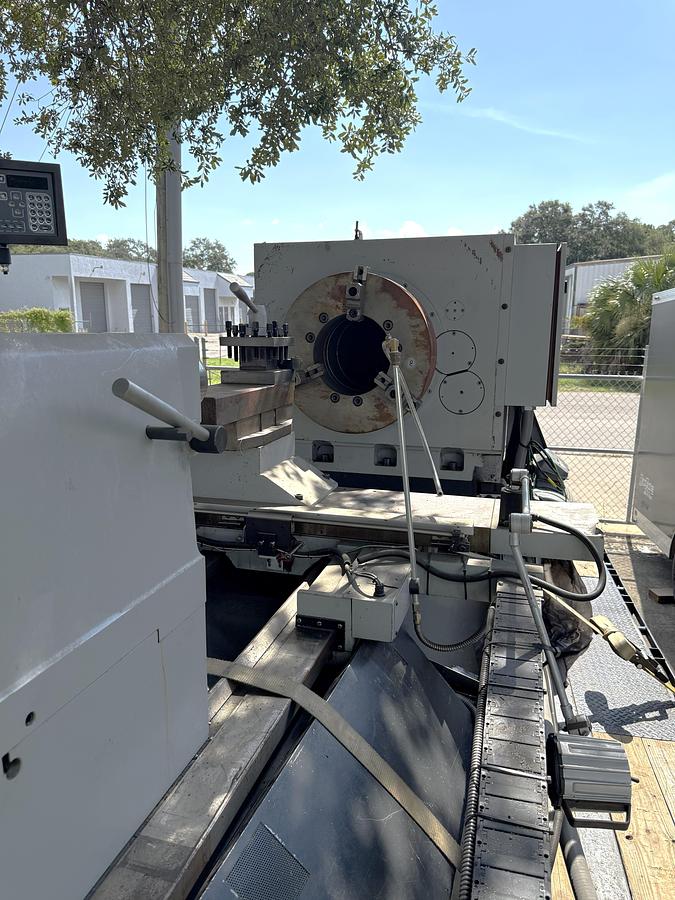

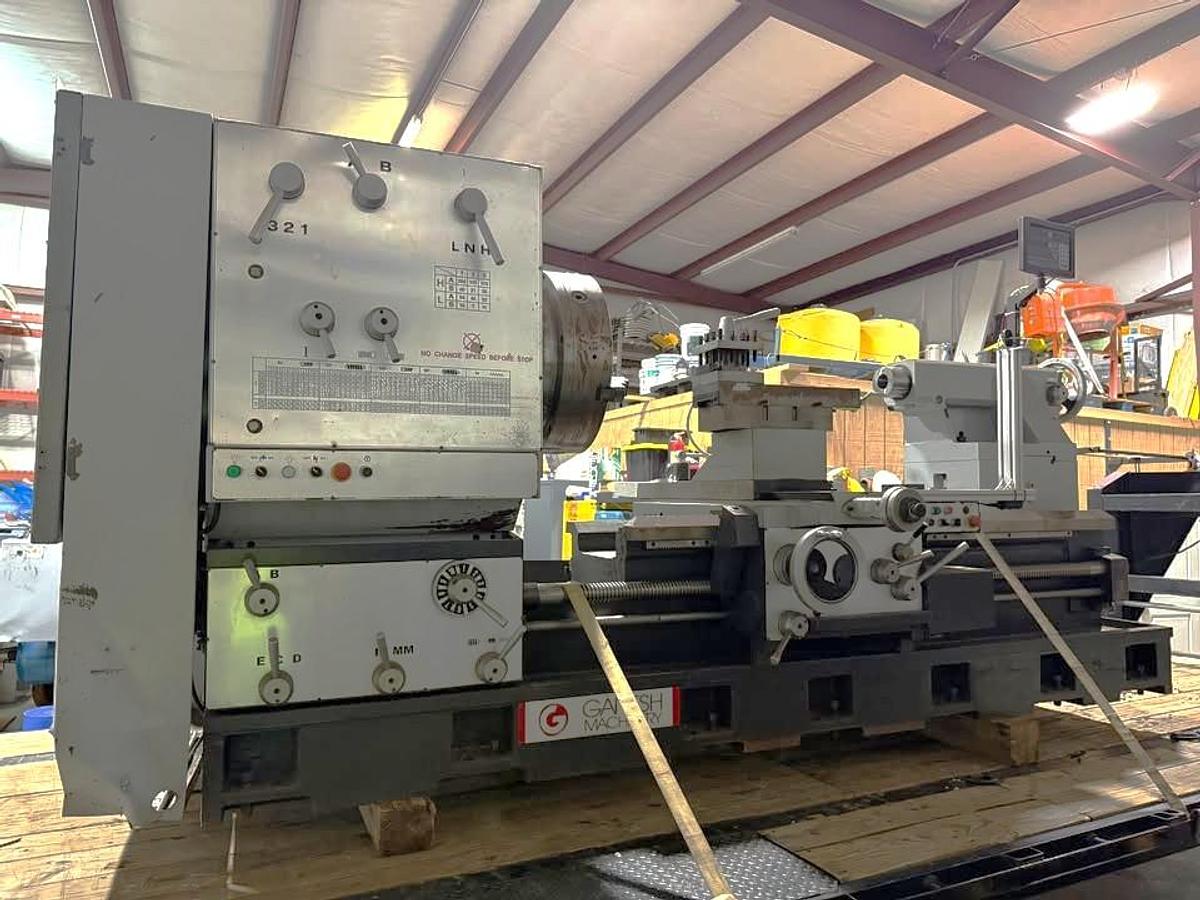

Ganesh GTD 4460 Heavy Duty Oil Country Engine Lathe with 44" sw, 55.11" in Gap, 27.95" Swing Over Cross Slide, 60" CC, 12" Bar Cap.

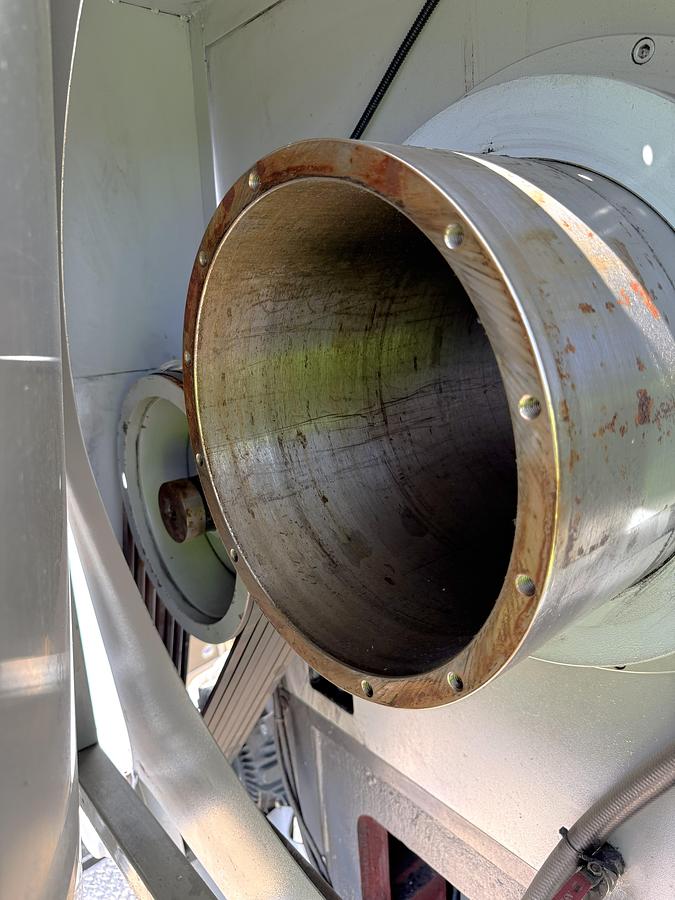

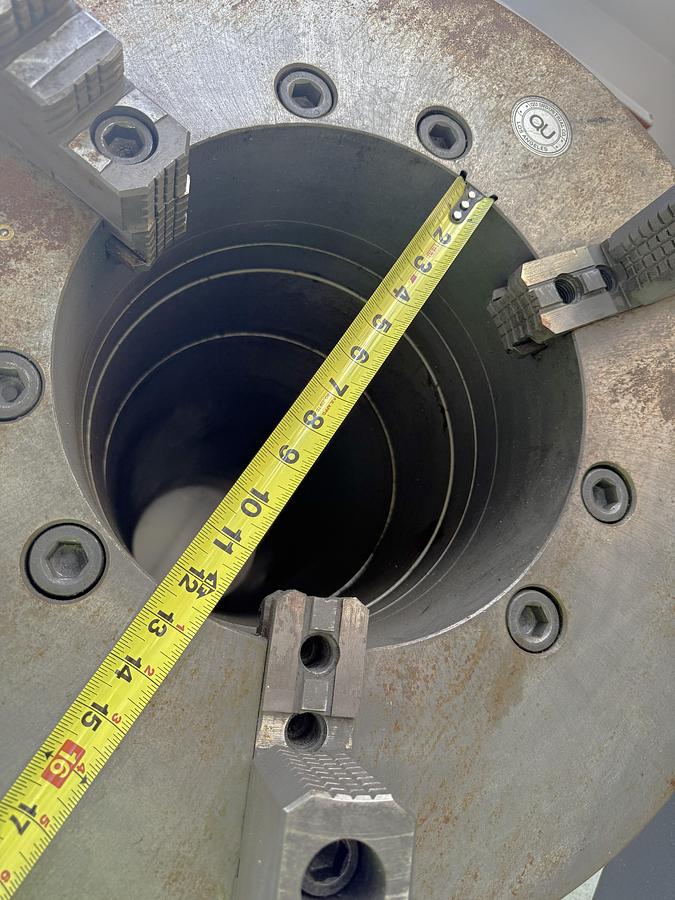

Large 12" Spindle Bore

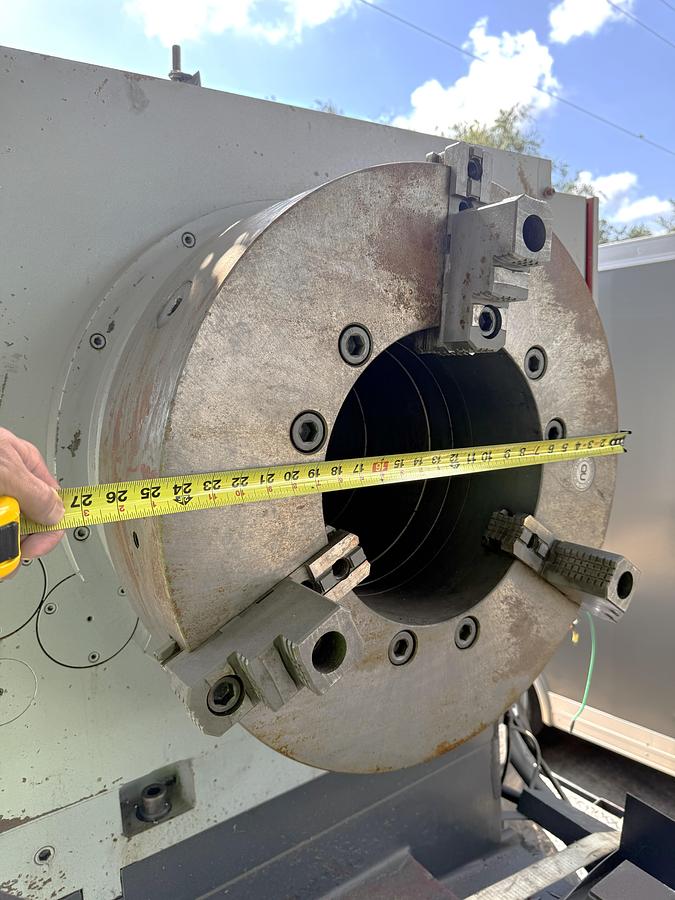

24.5" QU Industrial 3 Jaw Manual Chuck

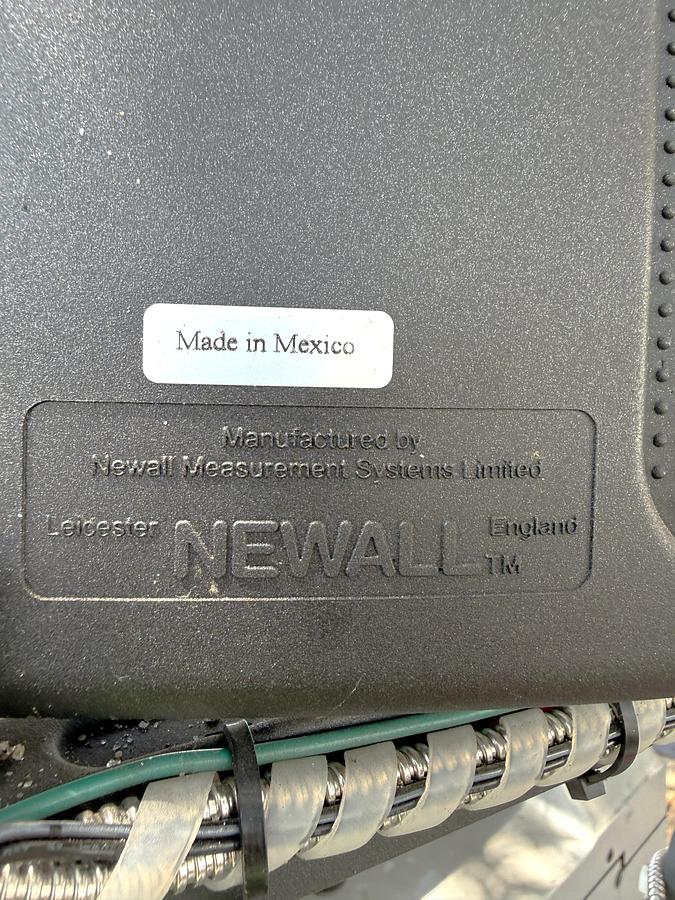

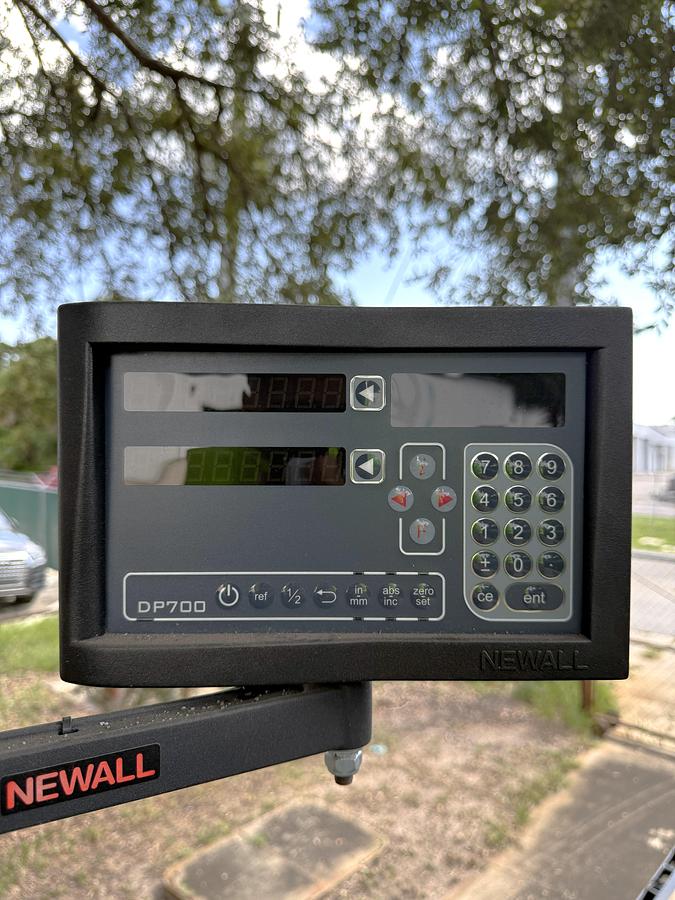

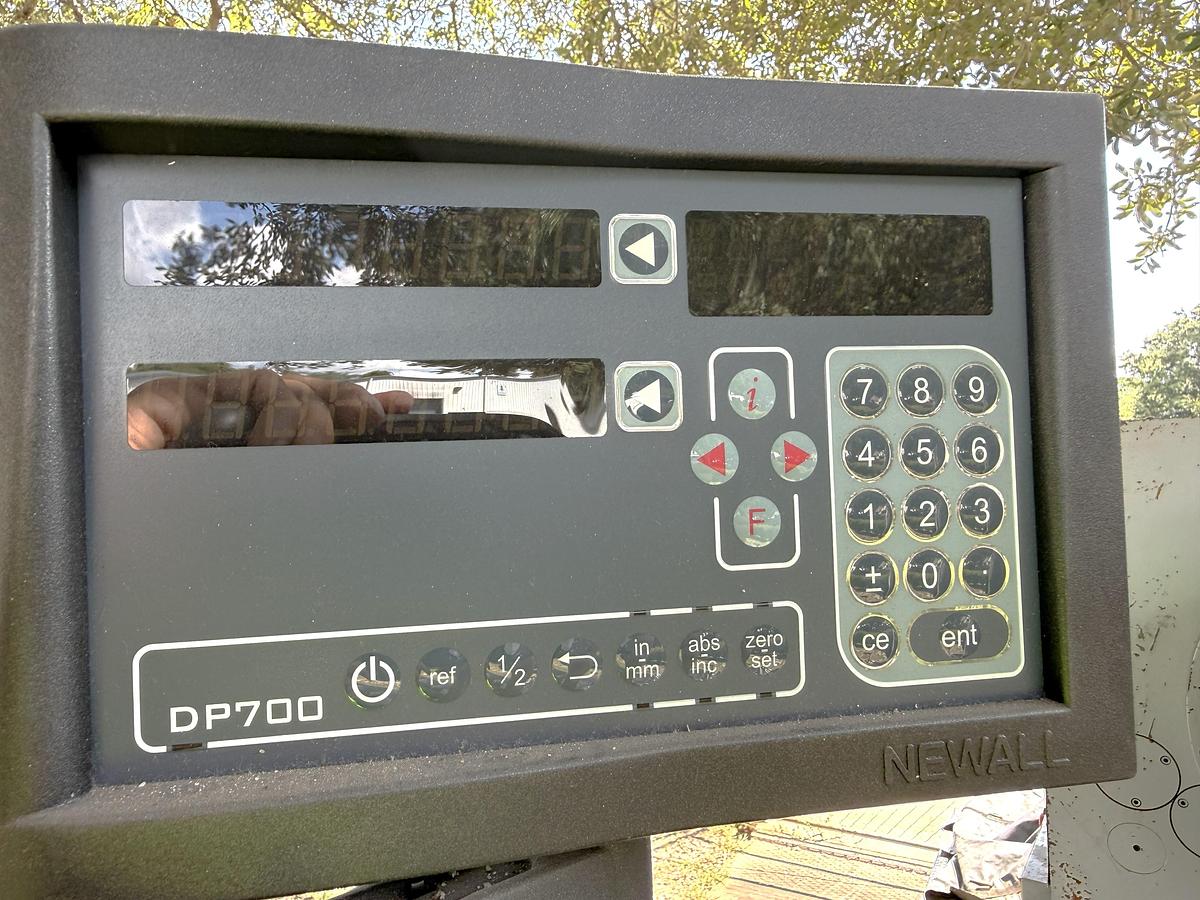

Newall DP700 Digital Readout

4 Way Dorian Tool Post

Heavy Duty Tailstock

Taper Attachment

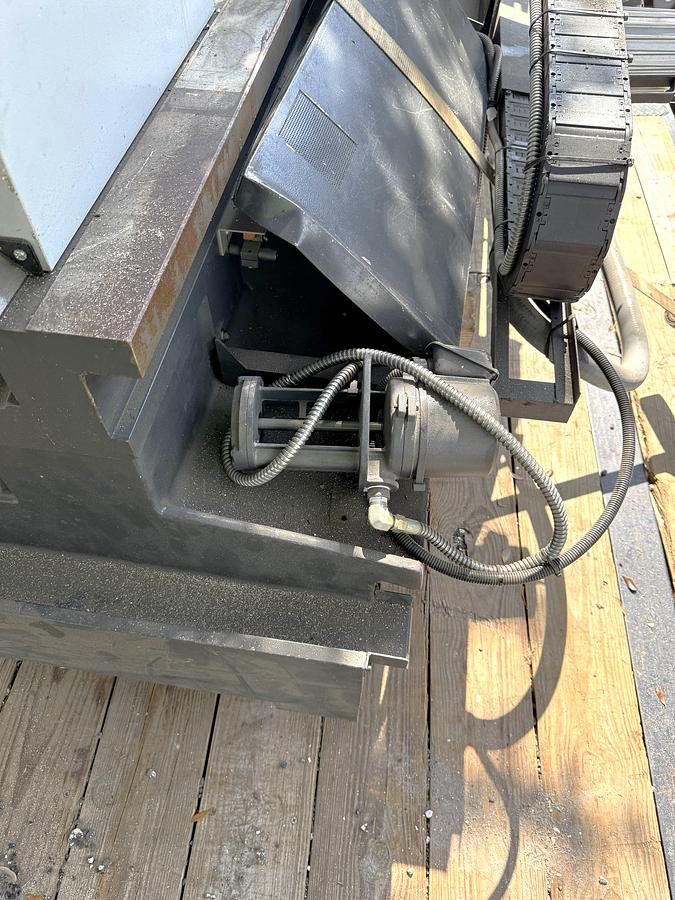

Flood Coolant System w/ Coolant Pump

Work Light

Hardened & Ground Bedways with Turcite B Coating

Rapid Traverse

Electromagnetic Spindle Brake

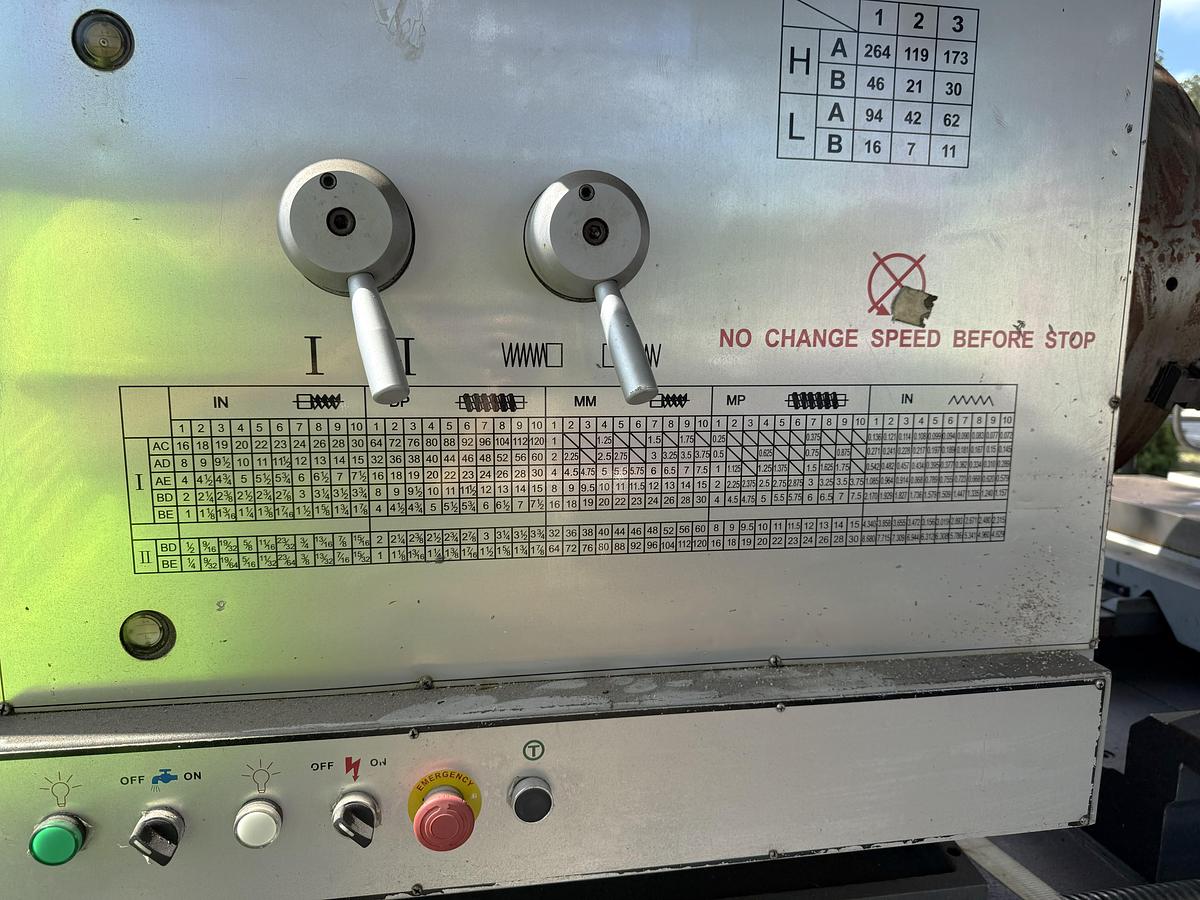

Thread Dial Indicator for Inch/Metric Threading

Automatic Way Lubrication

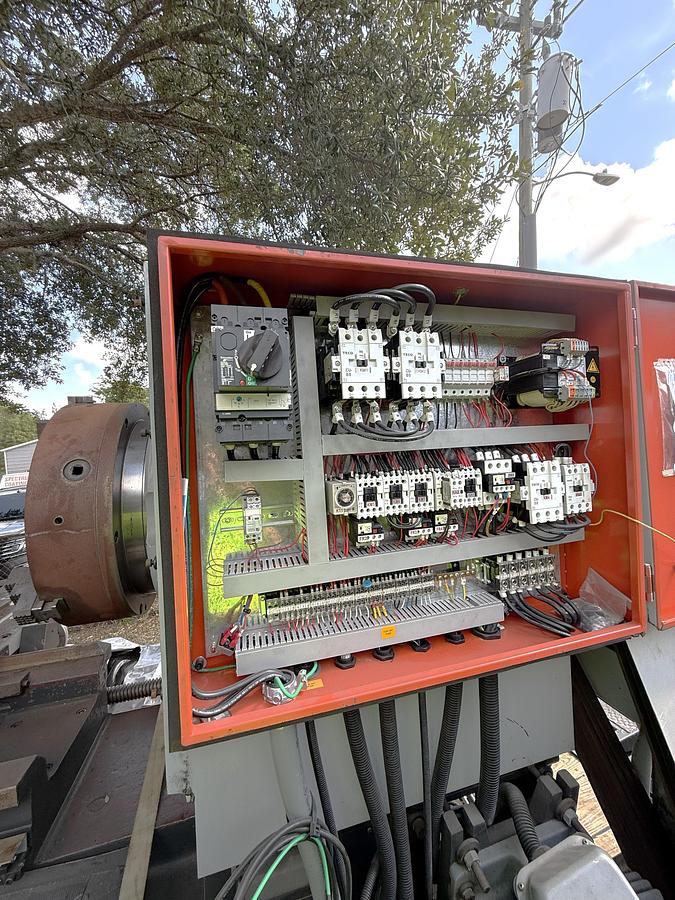

480V / 3 Phase

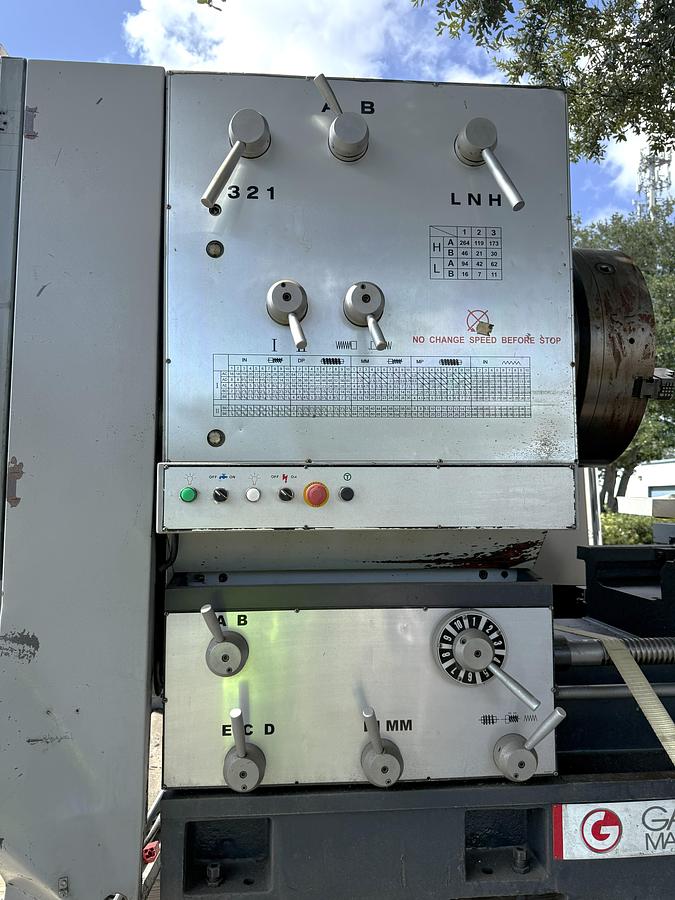

The Ganesh GTD 4460 Heavy Duty Oil Country Engine Lathe is a robust and reliable machine, ideal for handling substantial workpieces. This used lathe offers a maximum swing over bed of 44 inches, with an impressive swing over gap of 55.11 inches and a swing over cross slide of 27.95 inches. The distance between centers reached up to 60 inches, making it versatile for various lengths of material. A 24-inch 3-jaw manual chuck facilitates secure handling of workpieces. Equipped with a powerful 40 HP spindle motor, the lathe offers 12 manually changed speeds ranging from 7 to 264 RPM, allowing for precise and efficient machining. The spindle features a generous bore and bar capacity of 12 inches, with an A2-20" spindle nose and MT #7 spindle nose taper. The machine supports a maximum workpiece weight of up to 26,800 lbs with chuck, tailstock, and steady rest. Additional features include a 32-inch bed width, 27.56-inch cross slide travel, and a compound slide travel of 15.75 inches, allowing for comprehensive control over operational precision. The tailstock is equipped with an MT #6 center and offers a quill stroke of 20.87 inches. Weighing 14,700 lbs, this lathe is built to endure rigorous use in industrial settings.
