2009 Haas ES-5-4T with HRT 4th Axis Rotary Table, Tool Probing, Remote Jog Handle, Chip Auger

4th Axis Drive & Wiring

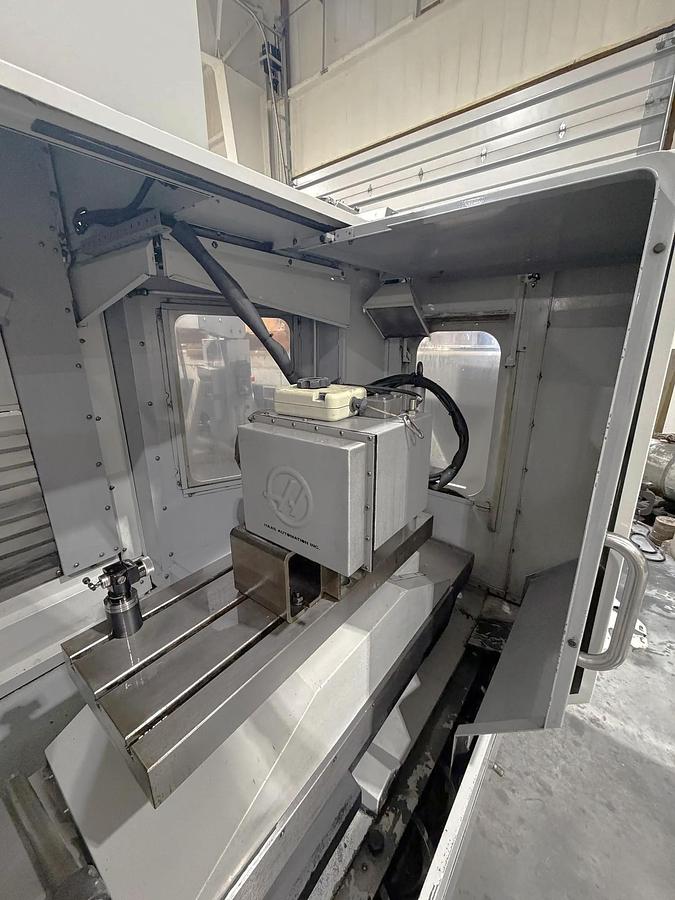

Haas HRT 4th Axis Rotary Table

Haas Tool Length Measurement Probing

12,000 RPM Spindle

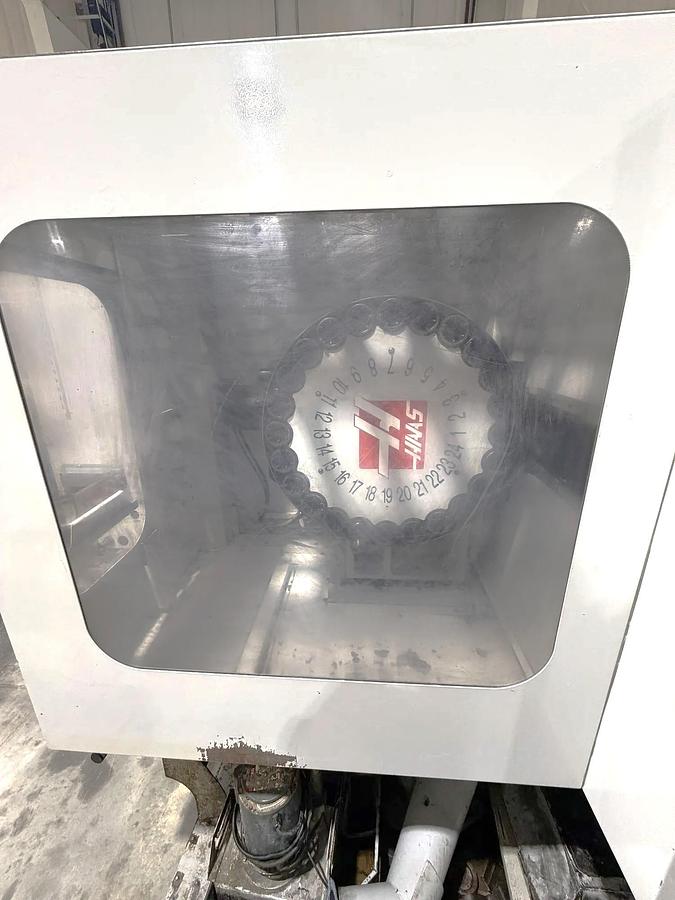

24 Station Tool Changer

Spindle Orientation

User Definable Macros

Coordinate Rotation & Scaling

Visual Quick Code Programming

Programmable Coolant Nozzle

30 HP Spindle Motor

Early Power Failure Detection Module

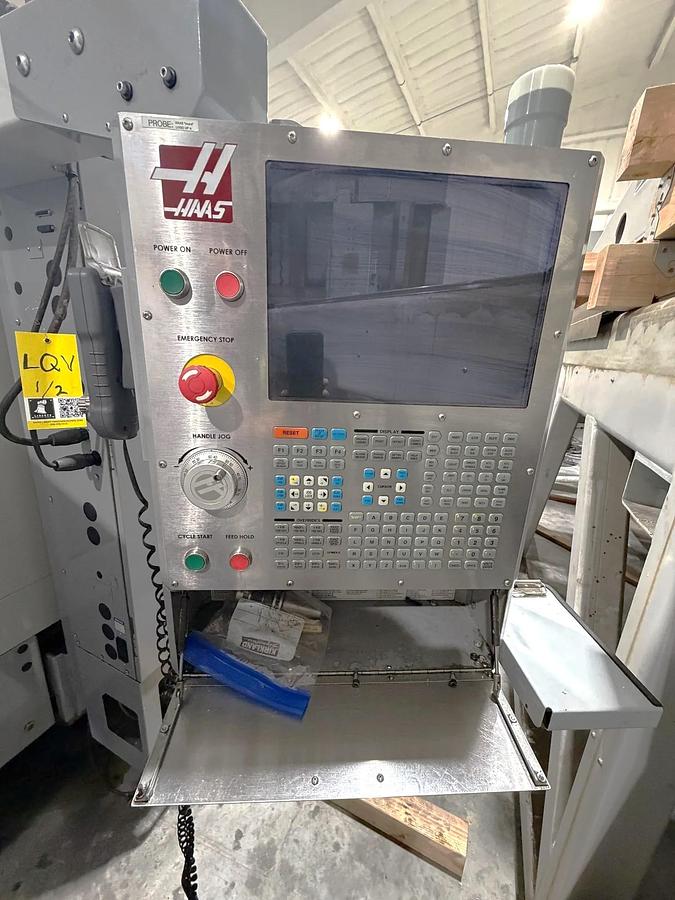

Remote Jog Handle

Rigid Tapping

Coolant System with Tank & Pump

Wired 195/260V Electrics

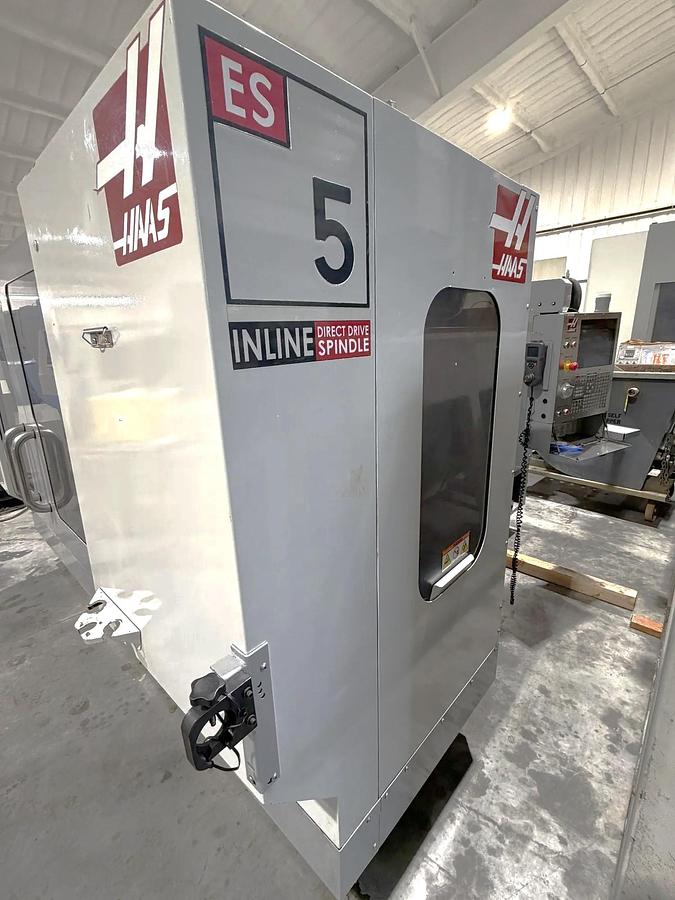

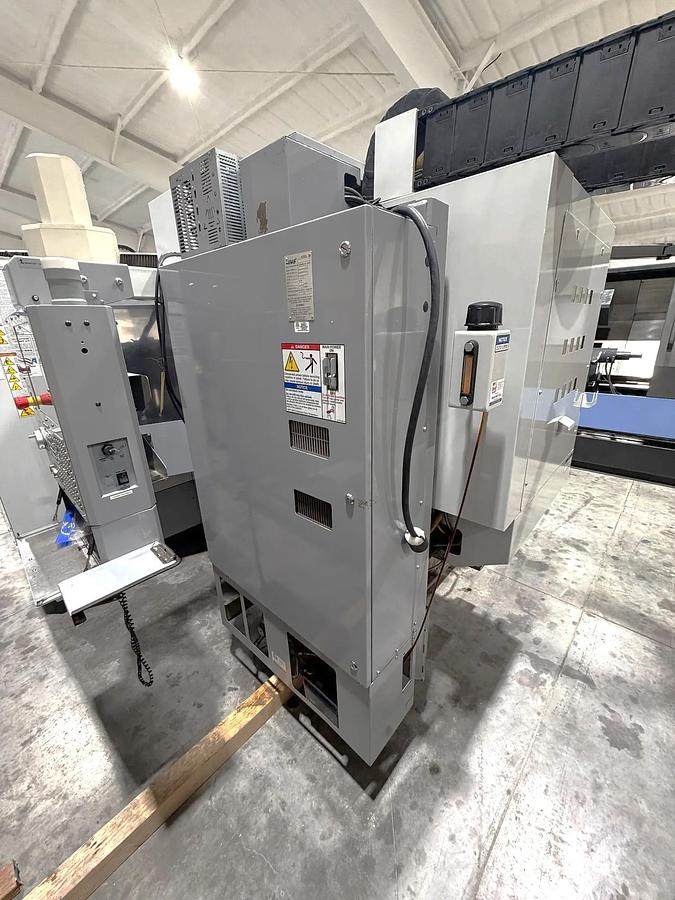

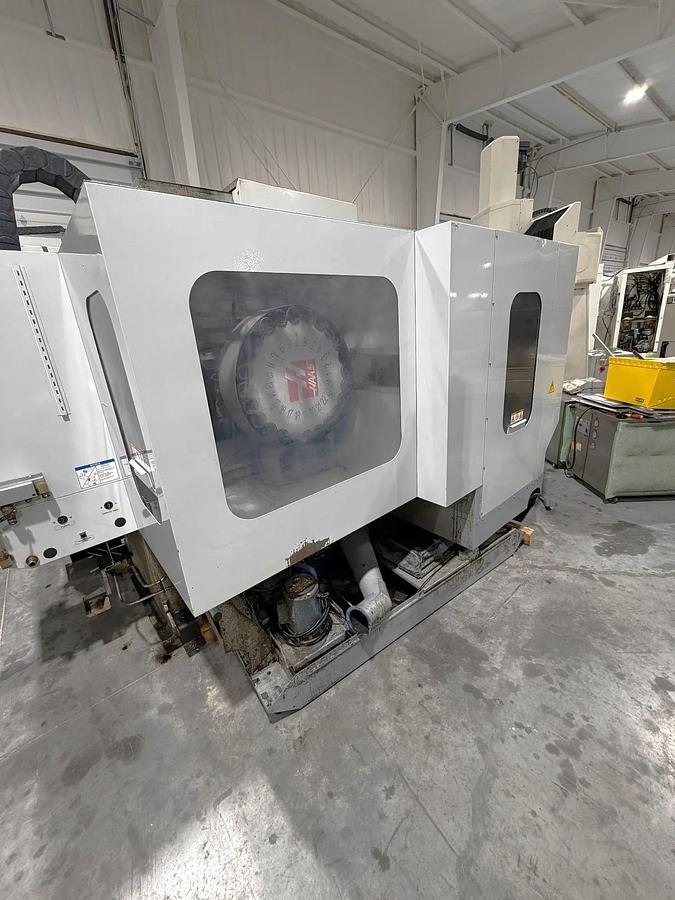

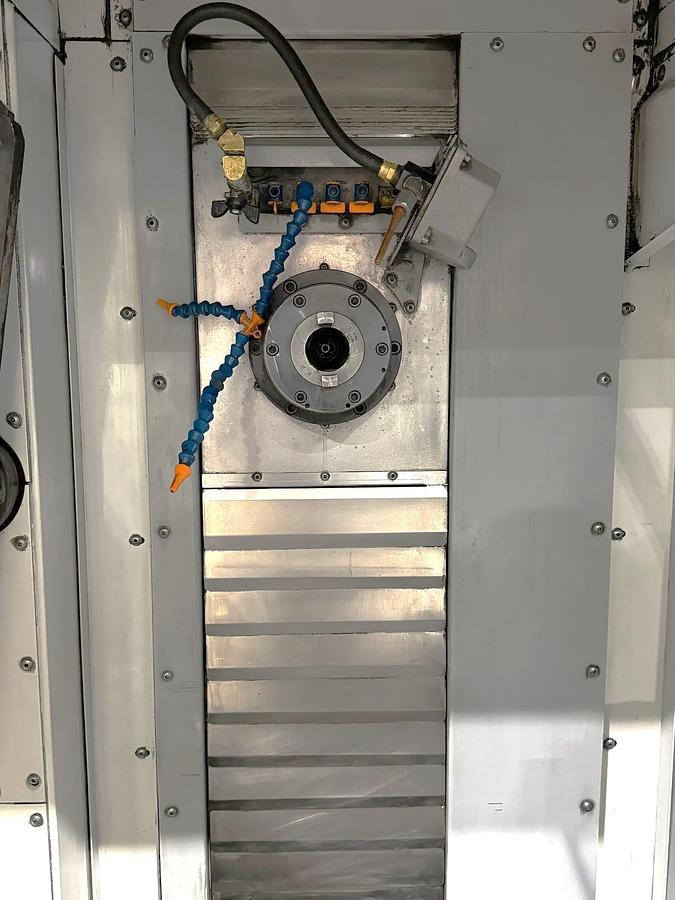

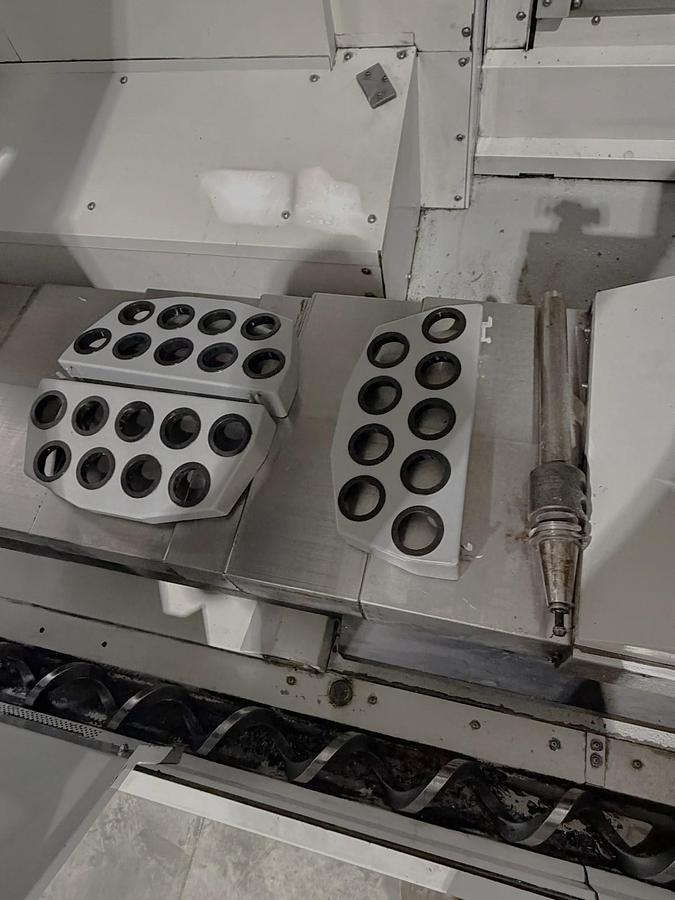

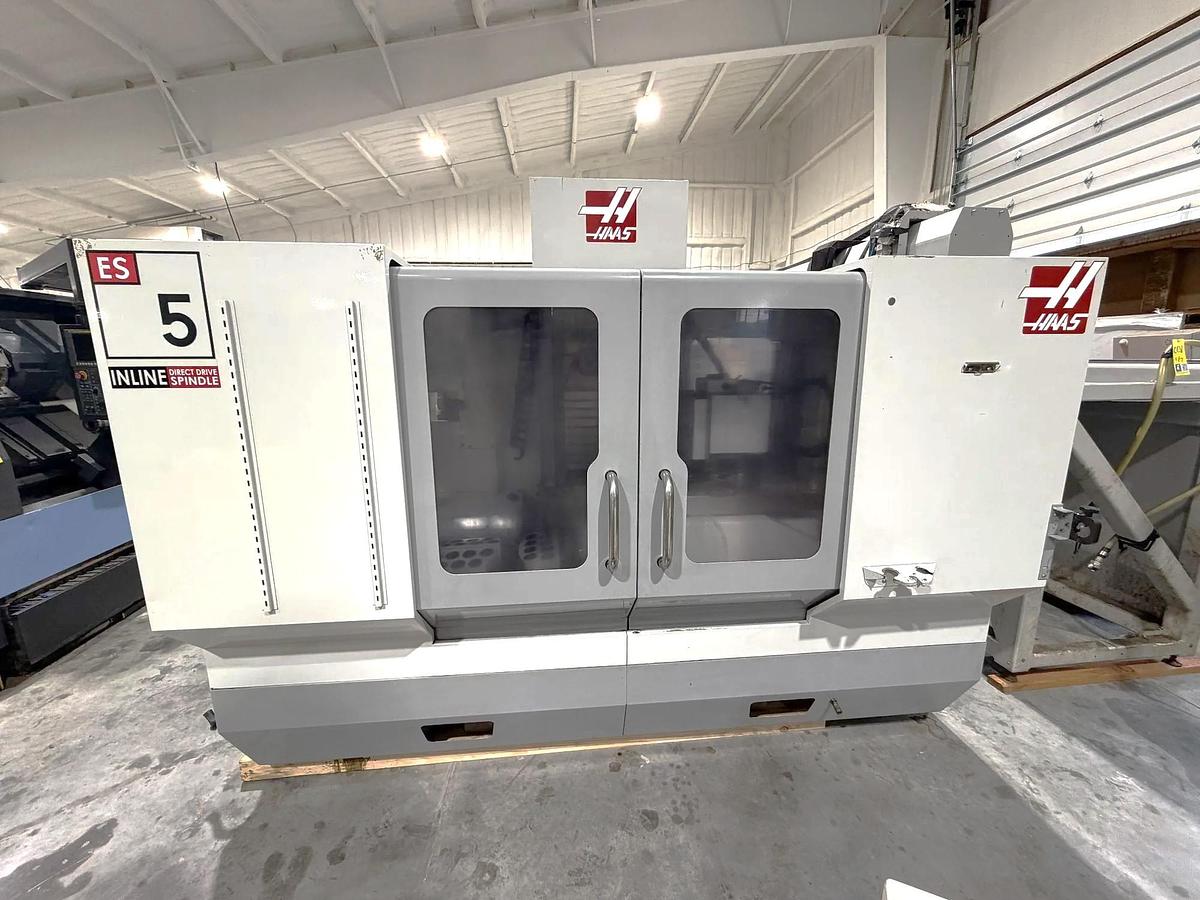

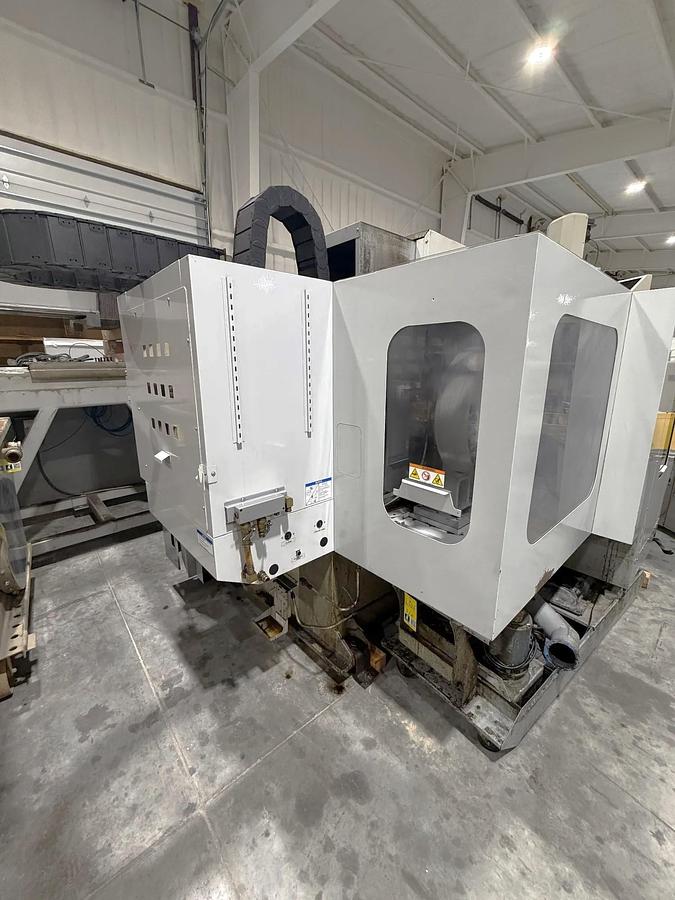

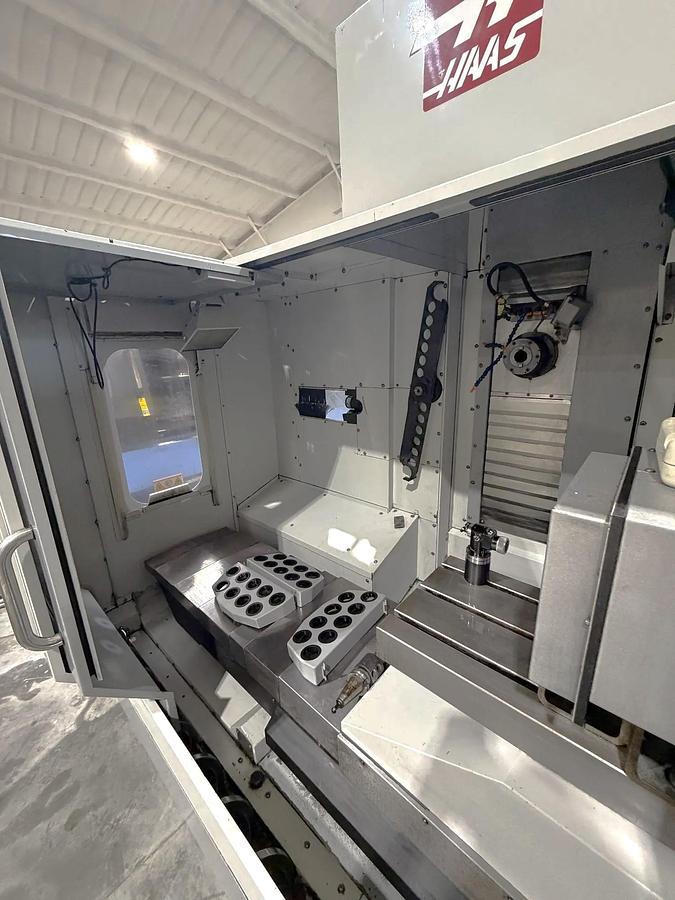

The 2009 Haas ES-5-4T is a robust CNC Horizontal Machining Center, equipped with a high-performance HRT 4th Axis Rotary Table. It features a spacious 40" x 15" table capable of handling workpieces up to 625 lbs. The machine offers significant travel capacities with 40" on the X-axis, 18" on the Y-axis, and 22" on the Z-axis, supporting a wide range of machining applications. This model comes with a 24-station side-mounted tool changer, ensuring efficient tool management and quick changeovers. The spindle, suited with a CAT 40 taper and a speed of up to 12,000 RPM, is powered by a 30 HP motor, delivering excellent machining performance. Rapid traverse rates are impressive, at 1,000 IPM for X and Y axes, and 500 IPM for the Z-axis, which enhances productivity on demanding jobs. Additional features include a tool probing system, a remote jog handle, and a chip auger to maintain optimal operational conditions. With dimensions of 125"x118"x98" and a weight of 14,000 lbs, this machine is a substantial addition to any workshop, offering reliable performance and precision for intricate manufacturing tasks.
