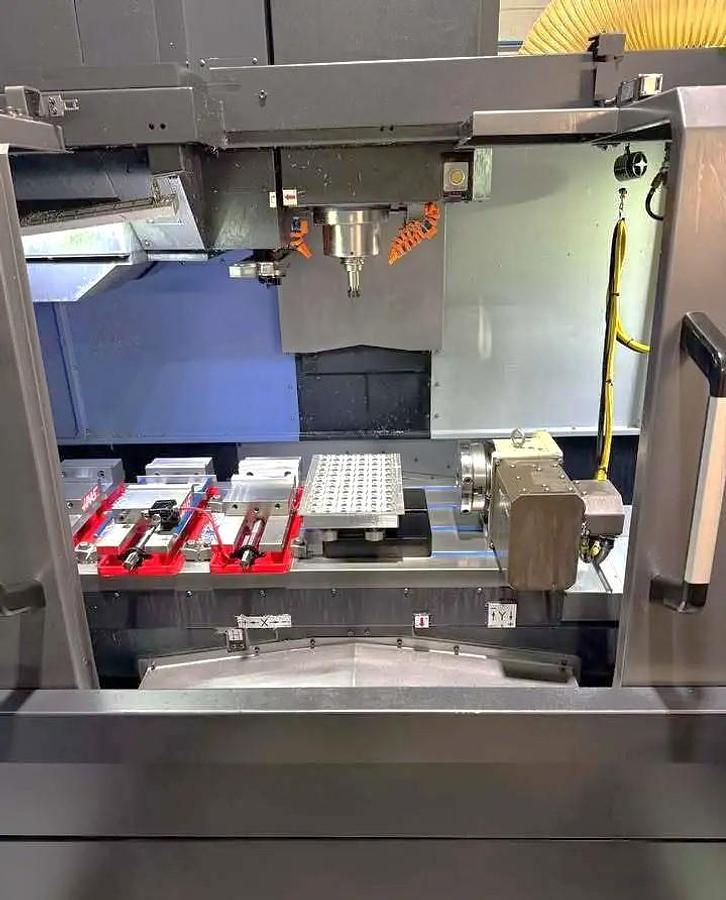

2024 DN Solutions SVM 5100L with Tsudakoma 4th Axis Table, Thru Spindle Coolant, Tool & Part Probing

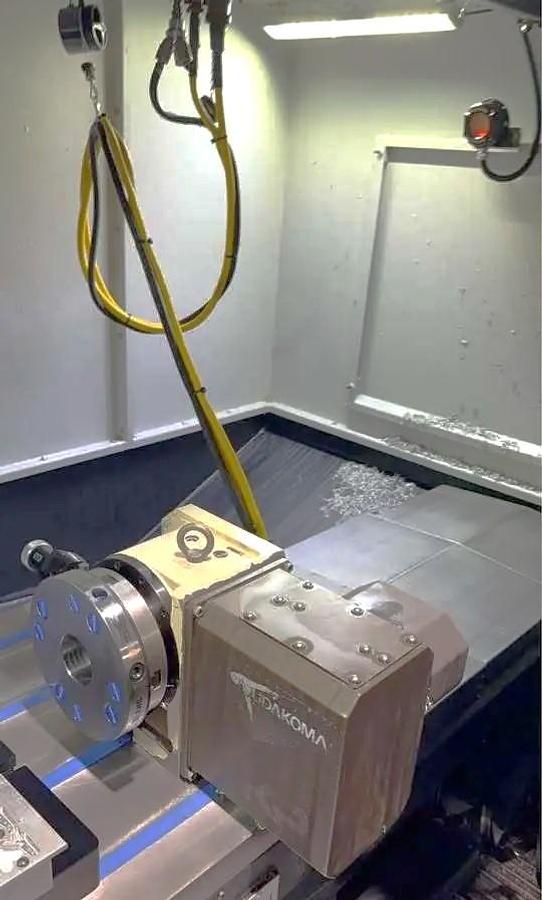

Tsudakoma RWE 160 4th Axis Rotary Table

Coolant Through the Spindle

Renishaw Probing with OMP-60 Spindle Probe

OTS-AA Tool Presetter Probe

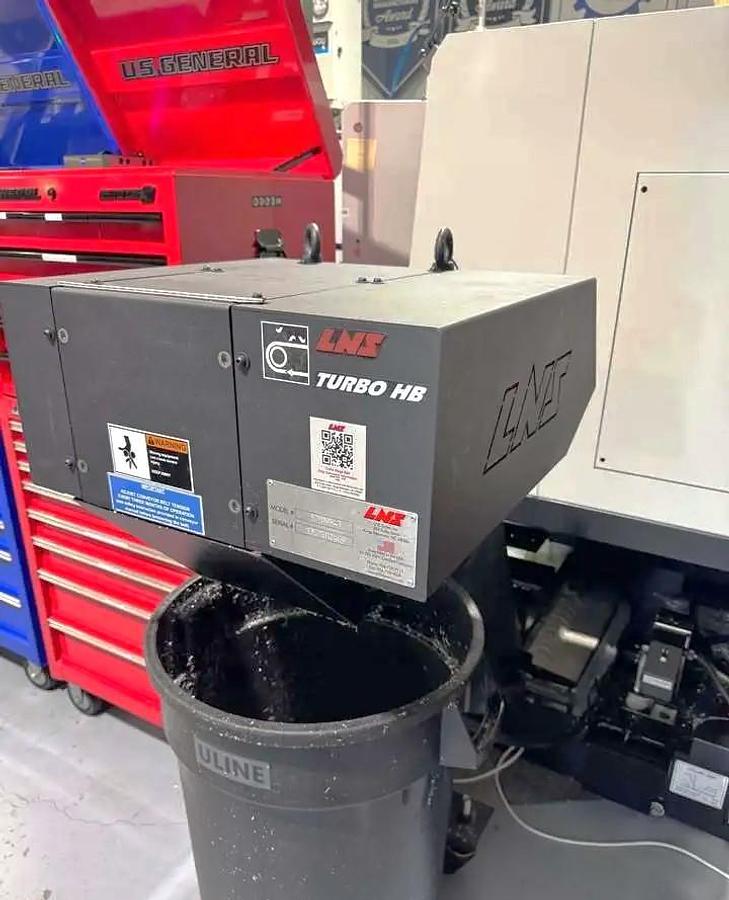

Chip Conveyor

30 Station Side Mounted Tool Changer

Mist Away Mist Collector

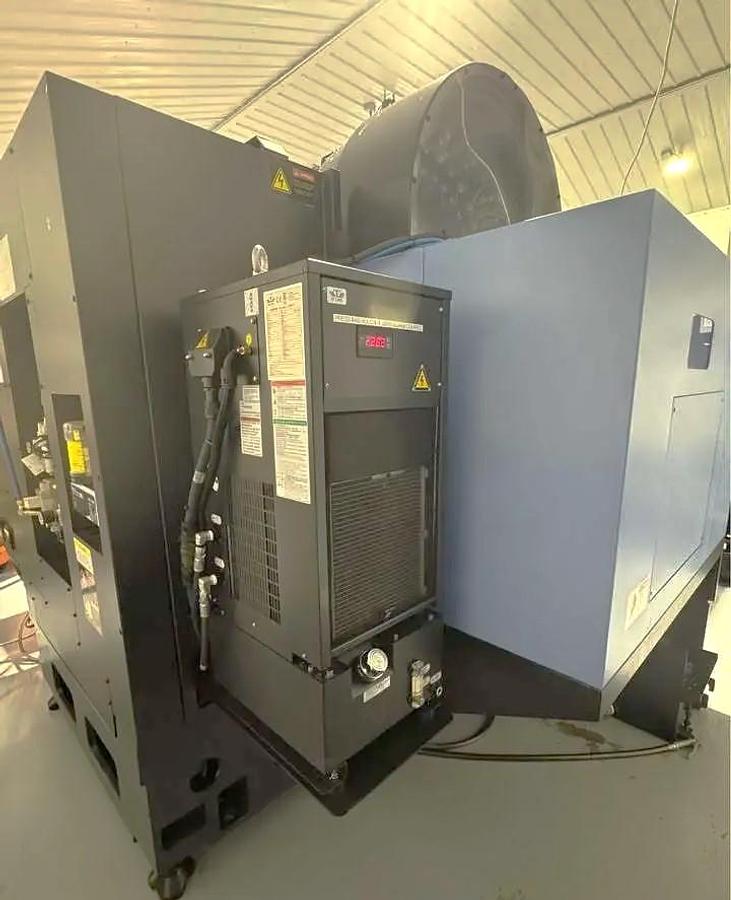

Spindle Chiller unit

Rigid Tapping

Work Light

USB Port Interface

RS 232 Port Interface

Coolant System with Tank & Pump

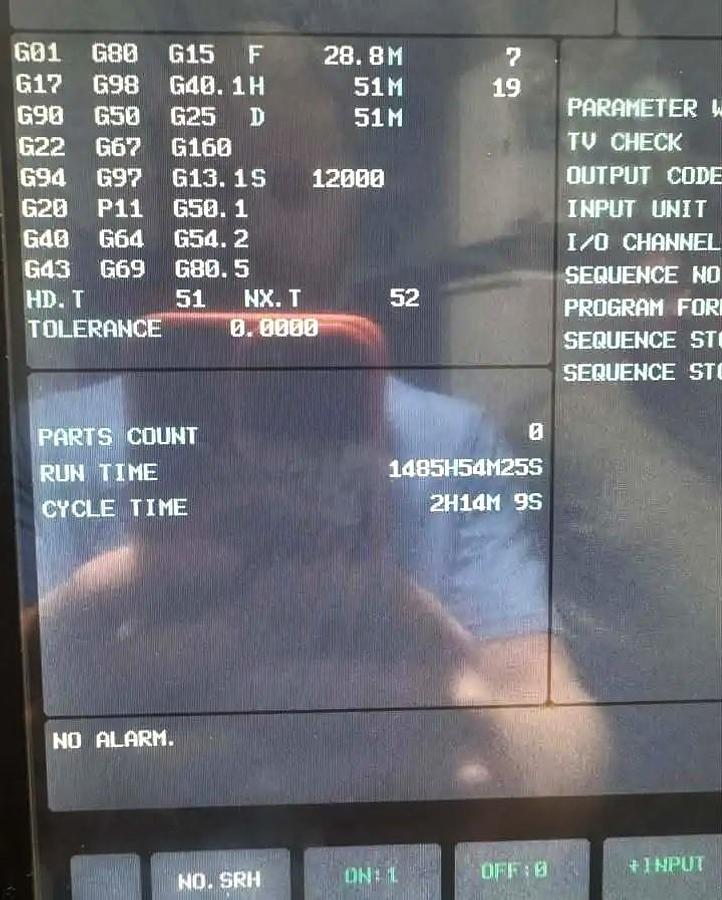

**ONLY 1,485 Run Time Hours**

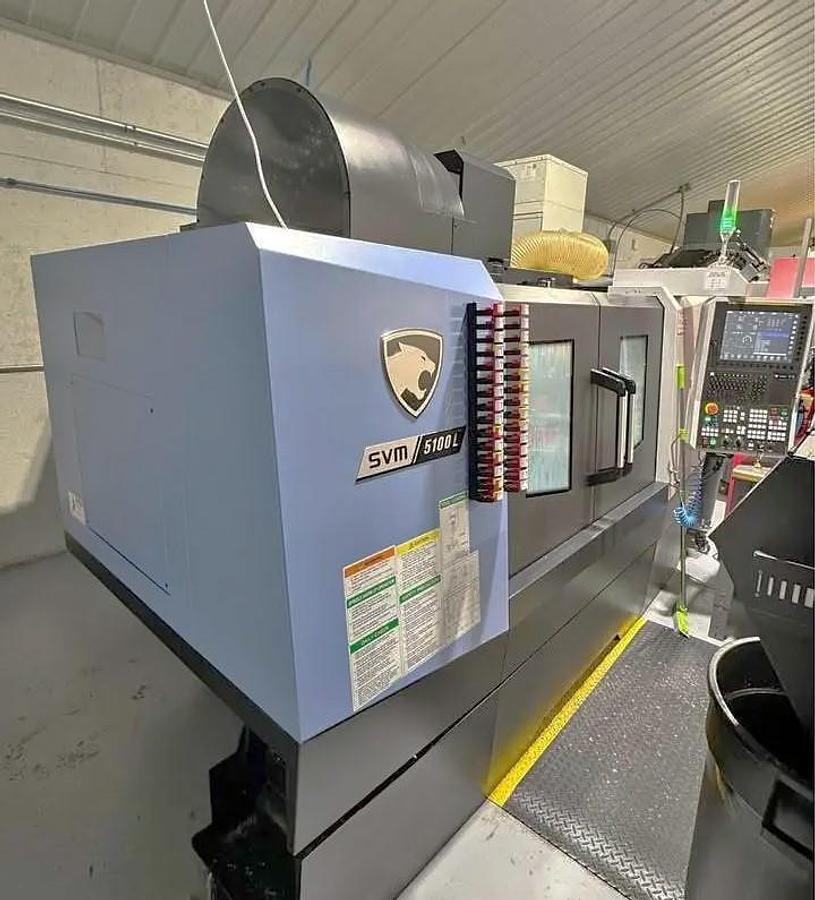

The 2024 DN Solutions SVM 5100L is a high-performance CNC vertical machining center, equipped with a Tsudakoma 4th Axis Table, offering enhanced versatility for complex machining tasks. Controlled by the Fanuc 0i Series Plus, it provides reliable and precise operations. The machine features a spacious table size of 55.12" x 20.47" and accommodates a maximum load of 1,760 lbs., making it suitable for heavy-duty applications. With a CAT #40 Big Plus spindle taper, the machine reaches spindle speeds of up to 12,000 RPM powered by a robust 25 HP motor. It offers extensive travel with an X-axis of 51.18", and Y and Z axes both measuring 20.08". The tool handling is efficient with a 30-station side-mounted automatic tool changer, capable of a 1.3-second tool-to-tool change time. The rapid traverse rates are impressive, at 1417 IPM for the X and Y axes and 1181 IPM for the Z-axis, with cutting feedrates at 590 IPM. Designed for optimal performance, the SVM 5100L includes thru spindle coolant and tool and part probing capabilities, enhancing precision and efficiency. Despite its powerful capabilities, the machine maintains a relatively compact footprint of 130.7" x 90" x 112.2" and weighs 10,141 lbs., aligning power with practicality for workshop environments.
