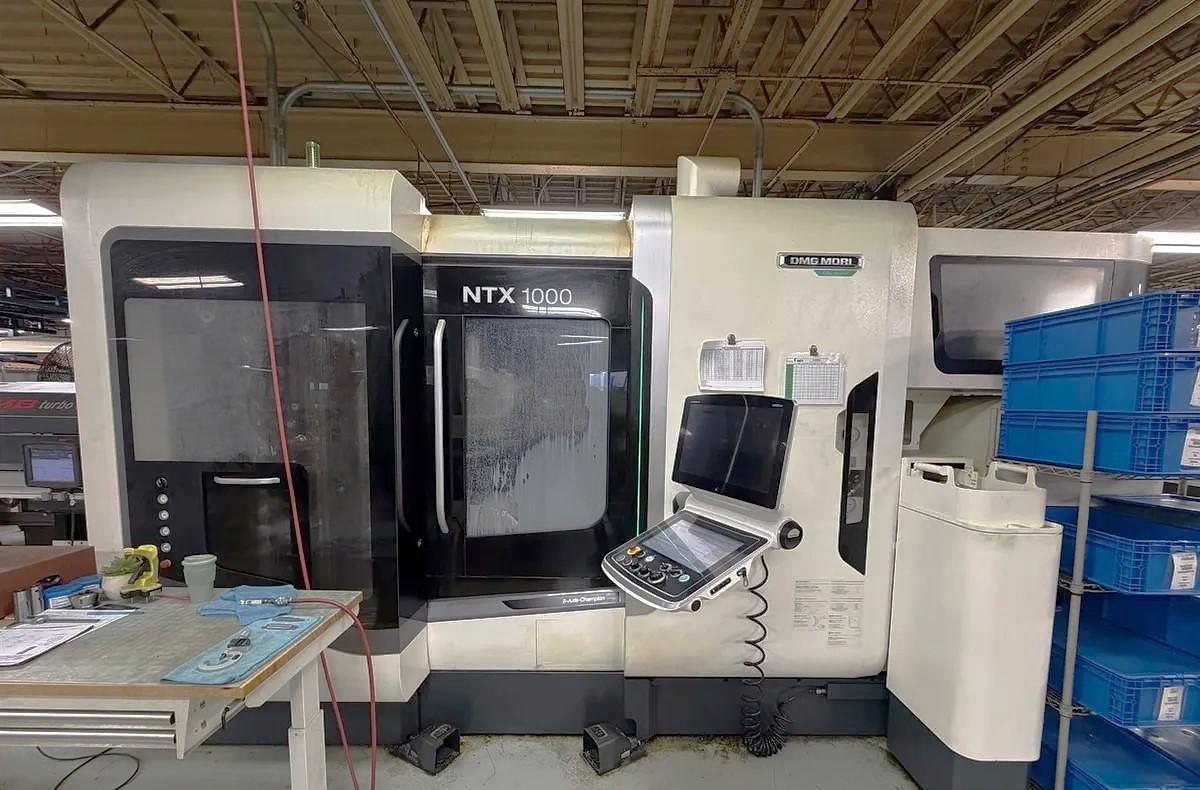

2020 DMG Mori NTX 1000 SZM 2nd Gen with B Axis Head, Subspindle, Milling, Y Axis, Lower Trt, Barfeed, Load/Unload, 76 ATC

5-Axis Simultaneous Capability with Direct Drive Motor in B Axis

Pendulum Style B-Axis - 240 Degree Movement with Live Milling/Drilling Capability

Y Axis Capability on Upper B Axis Turret Only

Full C Axis Spindle Rotation

Lower 10 Station Turret with Live Milling/Drilling Capability

Subspindle

Right Spindle Parts Ejector

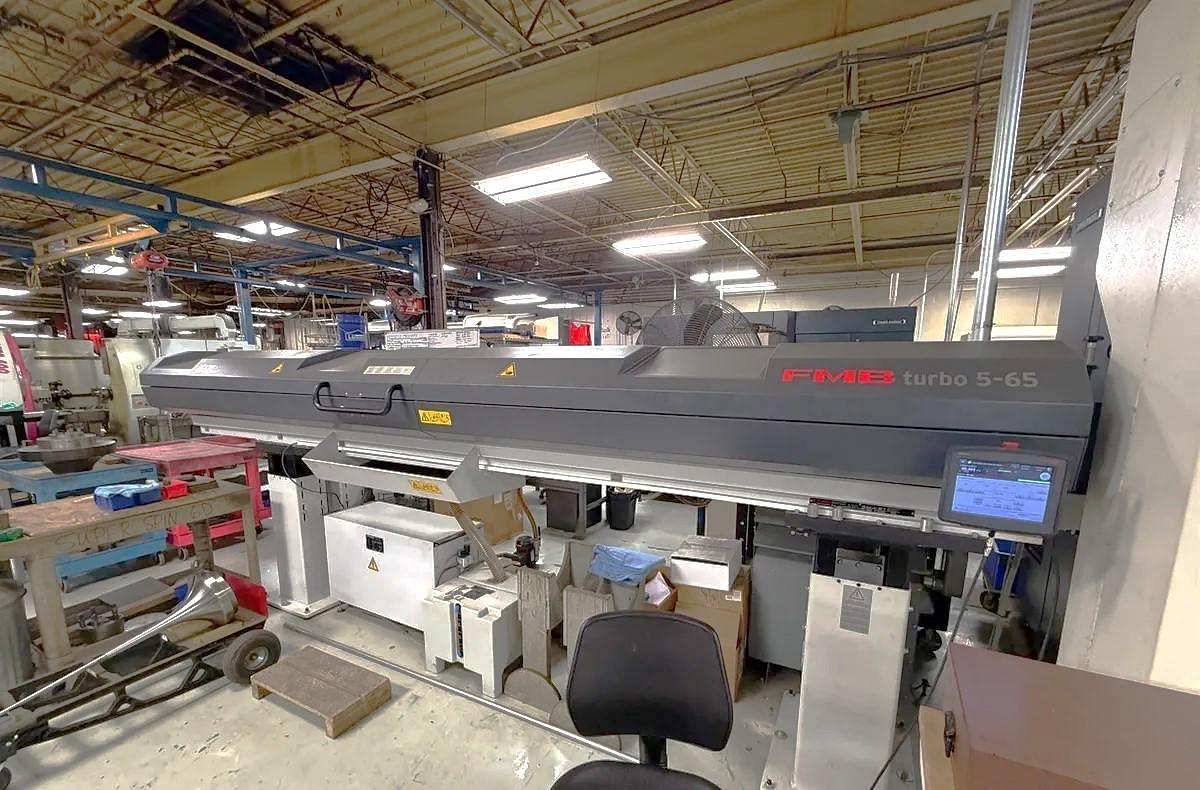

FMB Turbo 5-65 Barfeeder System

Parts Unloader

Parts Stacker

Kitagawa 8" 3 Jaw Hydra. Chuck w/ Hollow Chk & Hollow Cylinder for Main Spindle

Kitagawa 6" 3 Jaw Hydra. Chuck w/ Hollow Chk & Hollow Cylinder for Subspindle-2.04" Bar Capacity

76 Station Tool Changer

High Speed 20,000 RPM Live Milling Capability on B Axis

Interface for Barfeed

Interface for Mist Collector

In Machine Work Piece Measuring System Radio Signal Transmission Type Sensor 9 (Renishaw RMP600)

Manual In Machine Blum Laser Tool Setter with Tool Breakage Detection (Contact Type / BLUM Z-Pico) (Removable Type)

Chip Conveyor - Right Side

10 Station Bolt On Type Turret with 10,000 RPM Milling Capability

Tailstock for Turret

Automation Support Workpiece Unloader - Right Side

Air Blow for both Right and Left Chucks

Coolant Gun

Coolant Chiller Unit

Interface ONLY for Super-High Pressure Coolant System

Keyway Broaching Software

Addition of Optional Block Skip

3D Quickset

Ethernet Interface

**Price New As Equipped at $573,025**
