2010 Haas SL-20TB Big Bore, Chip Conveyor

Big Bore Spindle with 2.5" Bar Capacity

10" Kitagawa B-210 3 Jaw Hydraulic Chuck

Programmable Tailstock

Chip Conveyor - Side Exit, Belt Type

Dual Foot Pedals

Floppy Disk

208/230V 3 Phase Power

All Available Manuals

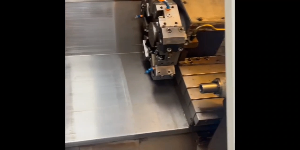

The 2010 Haas SL-20TB Big Bore is a used CNC lathe designed for precision and heavy-duty machining tasks. This machine features a robust big bore spindle with a 2.5-inch bar capacity and a 10-inch Kitagawa B-210 3-jaw hydraulic chuck. It offers a programmable tailstock and tool presetter, enhancing flexibility and accuracy for various projects. Additionally, it includes a chip conveyor with a side exit, a belt-type removal system, and dual foot pedals for convenient operation. Equipped with a Haas CNC control, the SL-20TB provides a maximum swing of 20 inches and a swing over the cross slide of 10 inches. The lathe possesses an X-axis travel of 8.45 inches and a Z-axis travel of 20 inches, enabling comprehensive part handling capabilities. It operates with a 30 HP spindle motor, achieving speeds up to 3,400 RPM with 120 ft/lbs of torque. The machine features a 10-station block turret and rapid traverse rates of 710 inches per minute. The SL-20TB offers a maximum distance of 20 inches between centers and incorporates a tailstock quill with a 3.9-inch diameter, 4.7-inch travel, and #4 MT taper. It requires a 208/230V three-phase power connection and includes all available manuals for operation. Dimensions are 126.5 inches in length, 62 inches in width, and 72 inches in height, with a total weight of 9,000 lbs.
