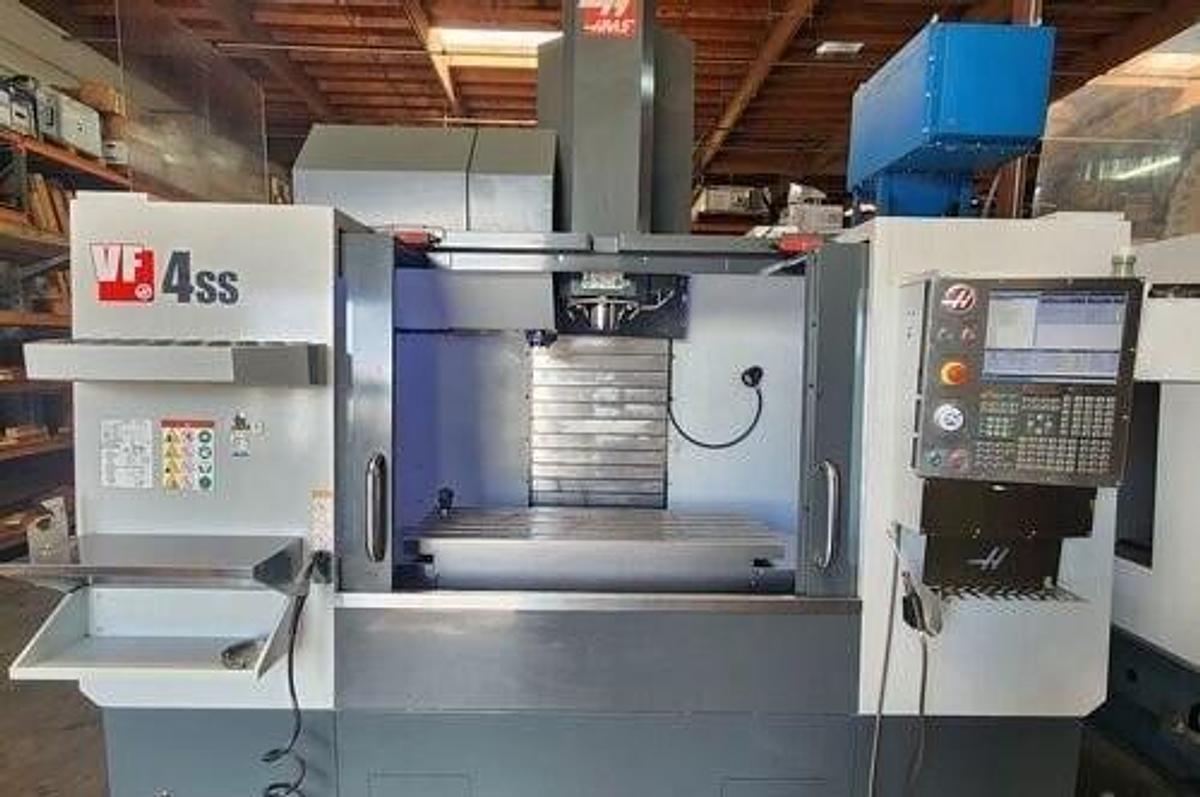

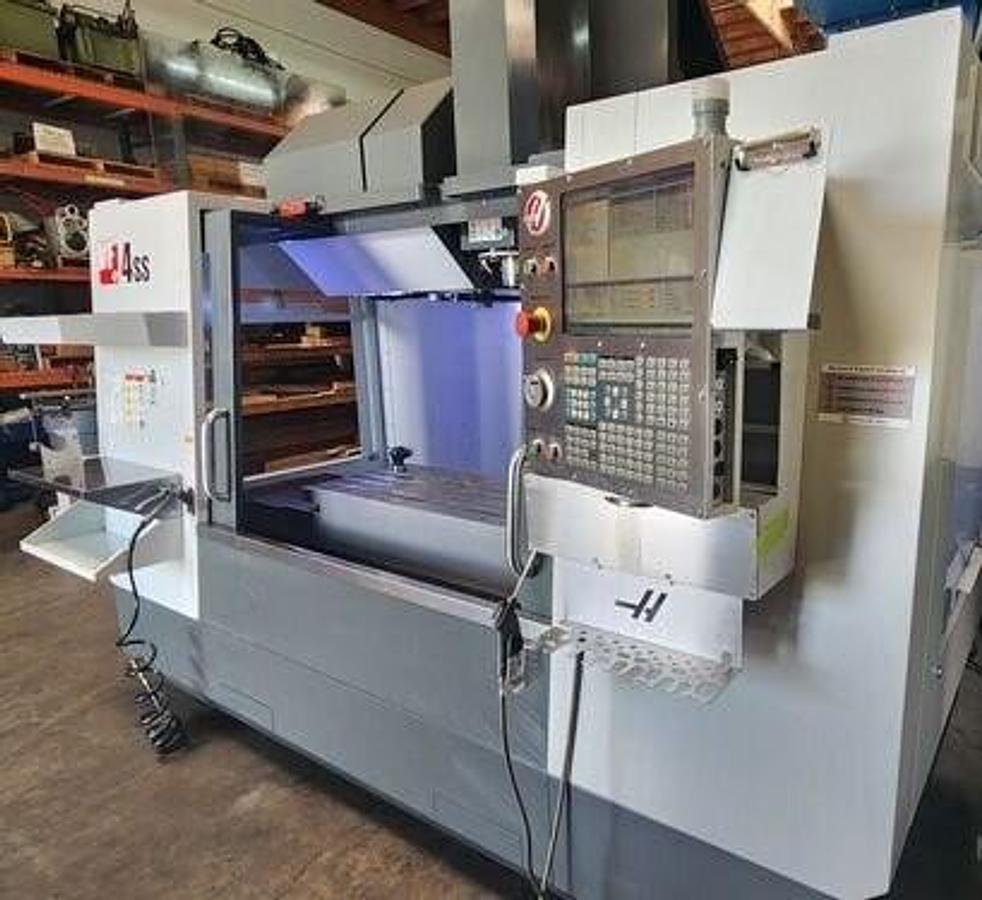

2018 Haas VF4SS, 4th Axis Drive (only), Coolant Thru Spindle, Haas Probing, 30 Station ATC, HSM

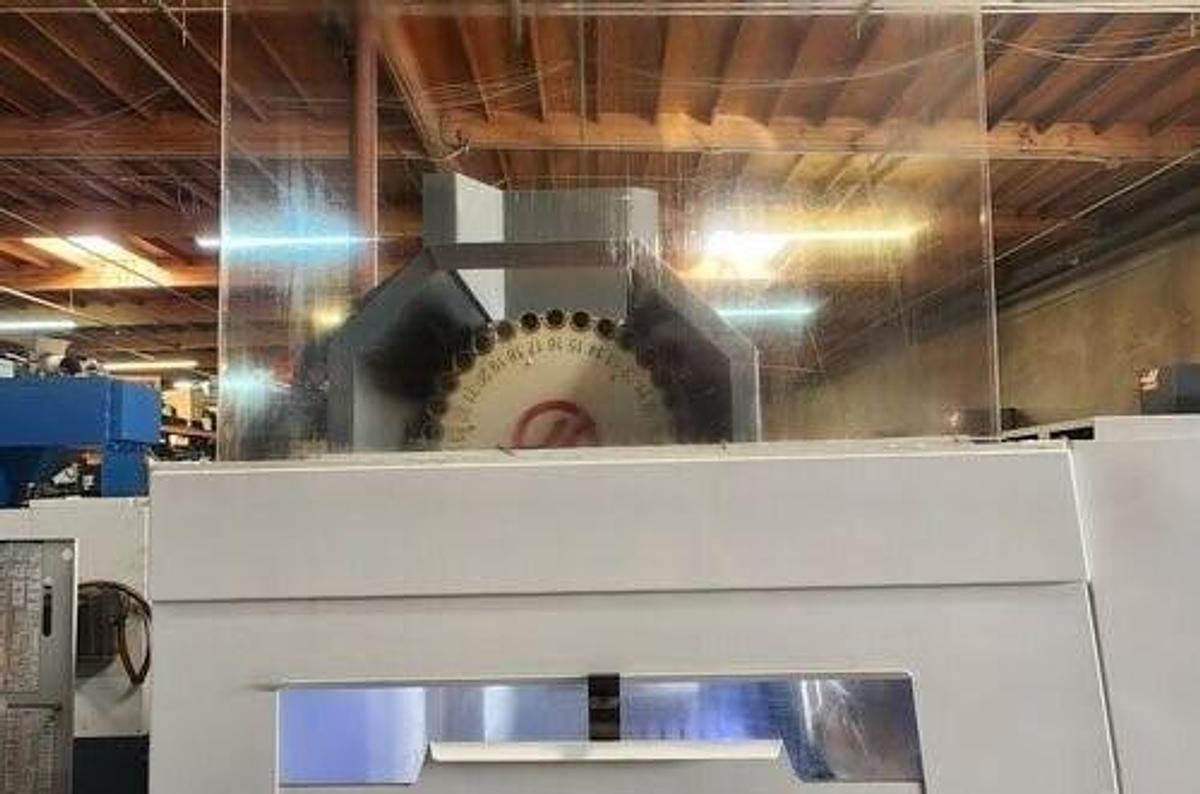

30+1 Position Side Mounted Tool Changer

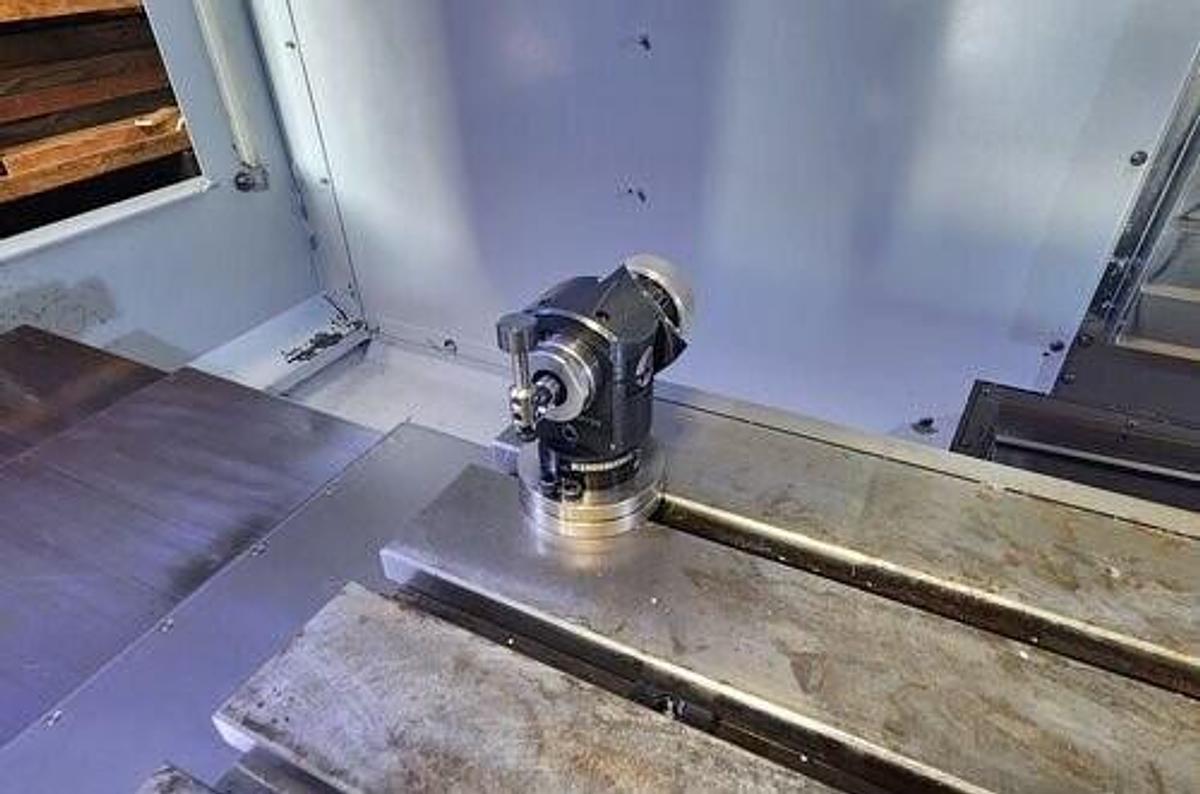

Haas Wireless Intuitive Probing Package - Renishaw

Coolant Through the Spindle

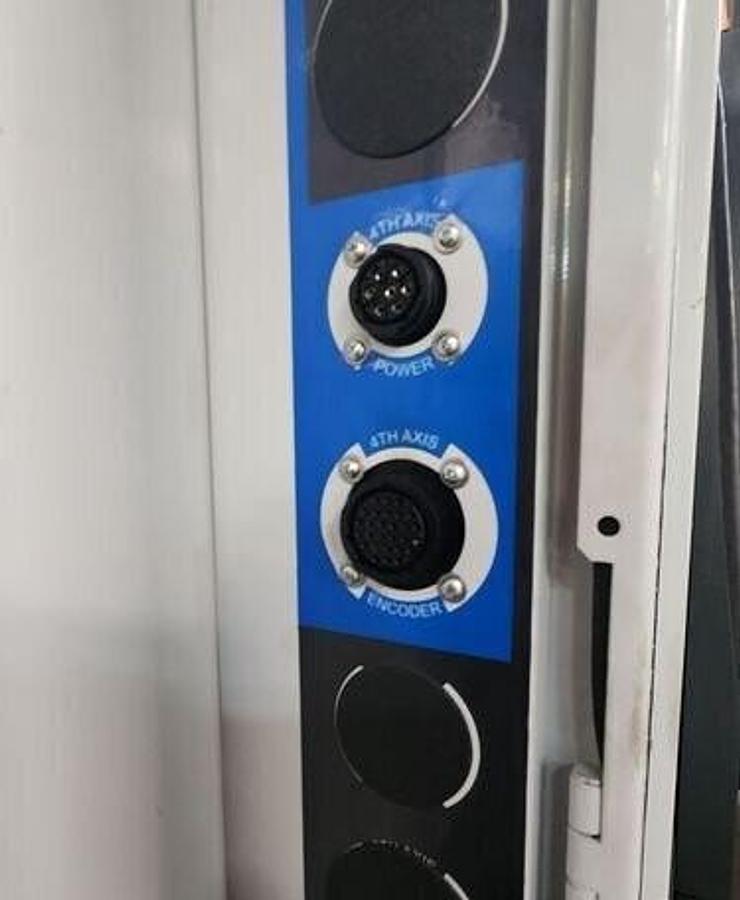

4th Axis Drive & Wiring

Auger Style Chip Conveyor

High Speed Machining

Spindle Orientation

Coordinate Rotation & Scaling

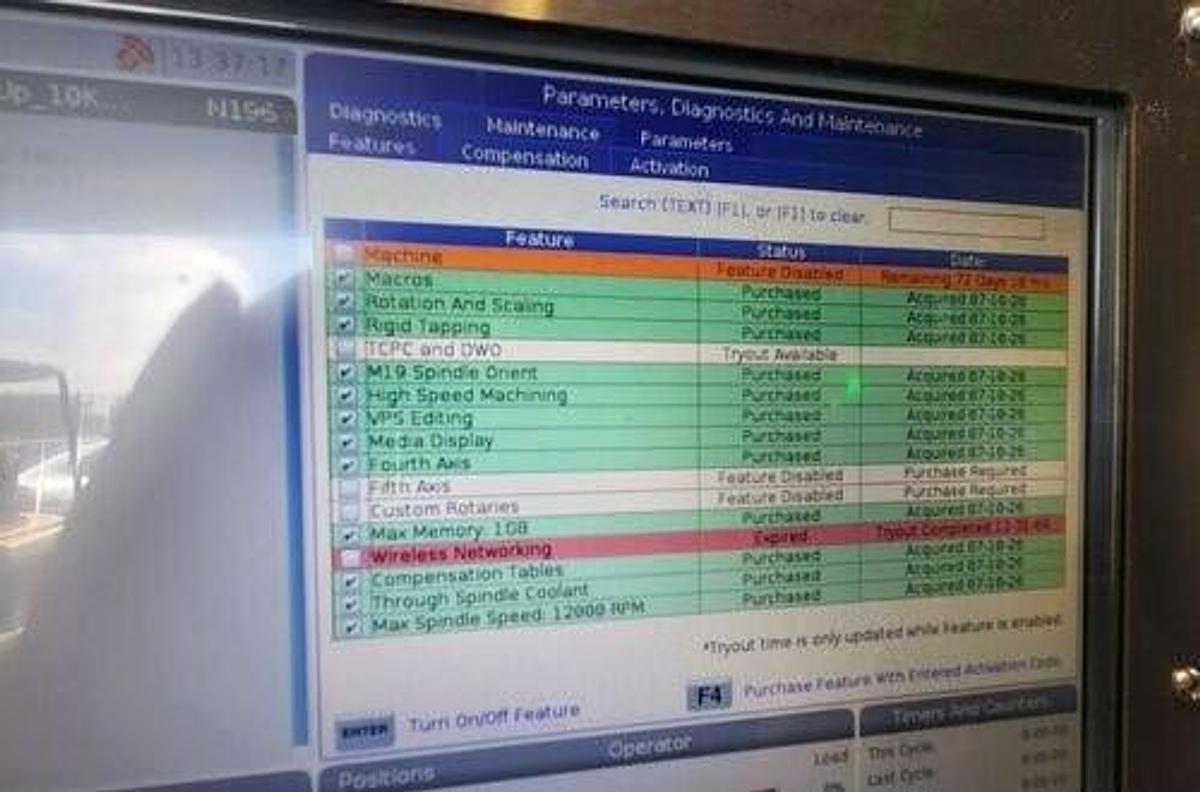

User Definable Macros

Haas Visual Part Programming System

1 GB Programming Memory

Compensation Tables

Flood Coolant System

Coolant Tank Oil Skimmer System

Rigid Tapping

Coolant Tank with Pump

Inline Direct Drive 12,000 RPM Spindle

WiFi Connection

Wired 220V Electrics

USB Port Interface

RS 232C Port Interface for DNC Operation

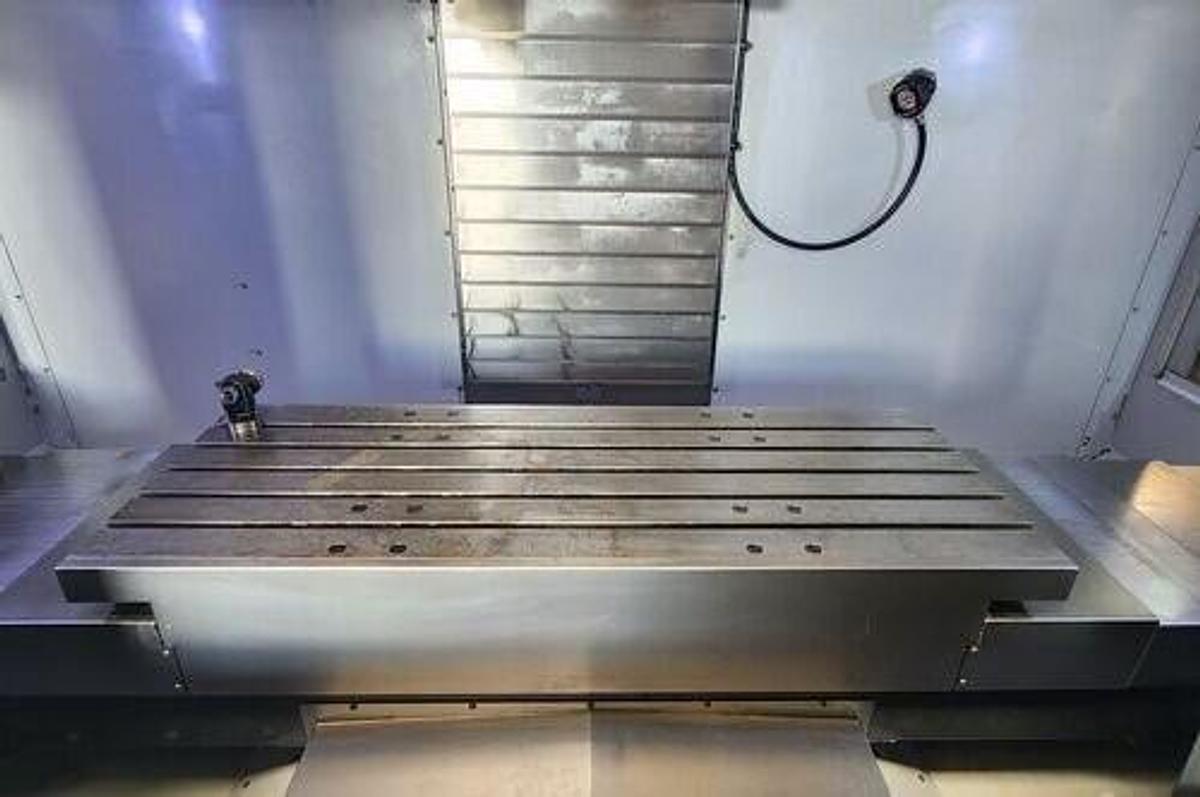

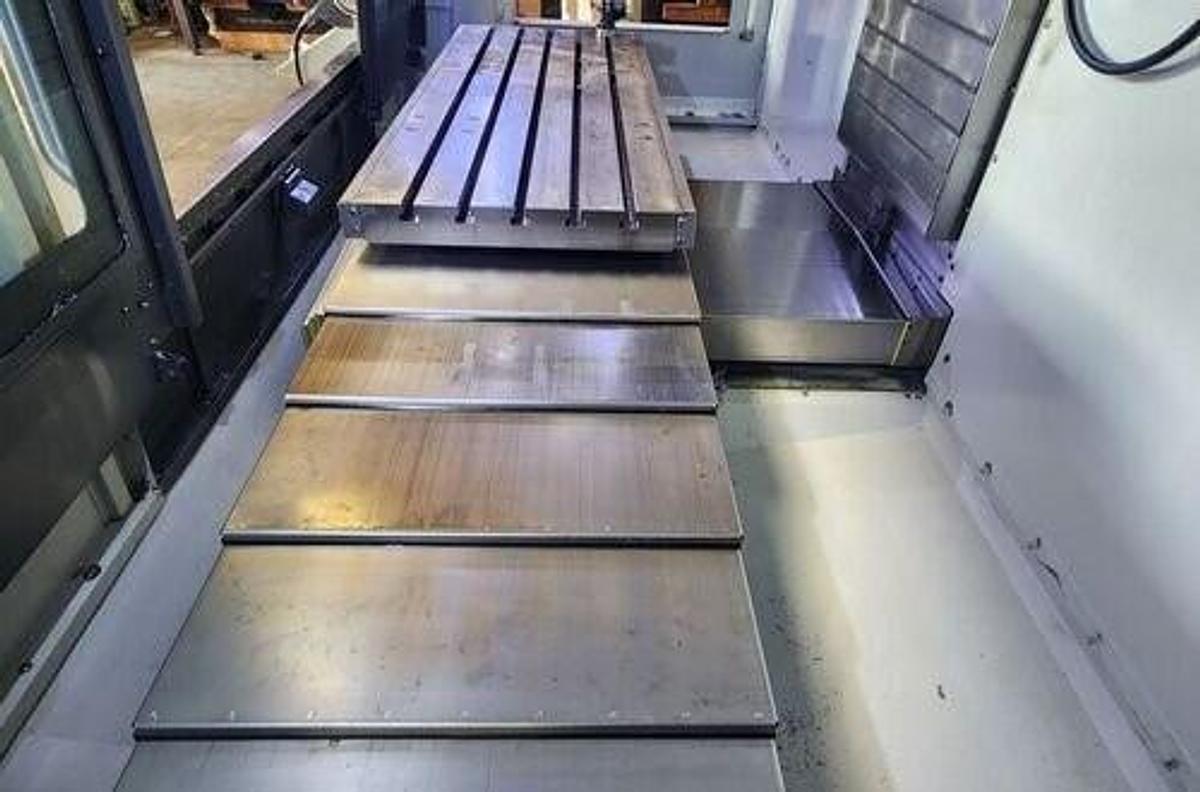

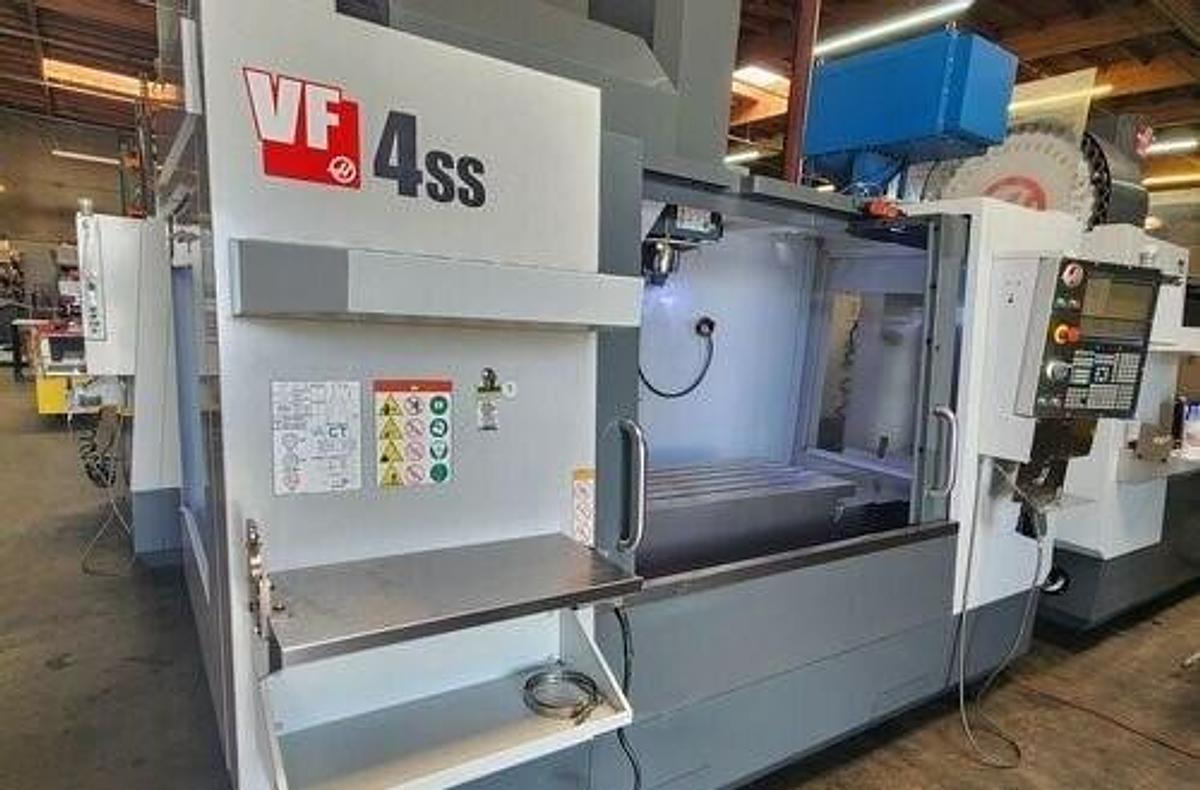

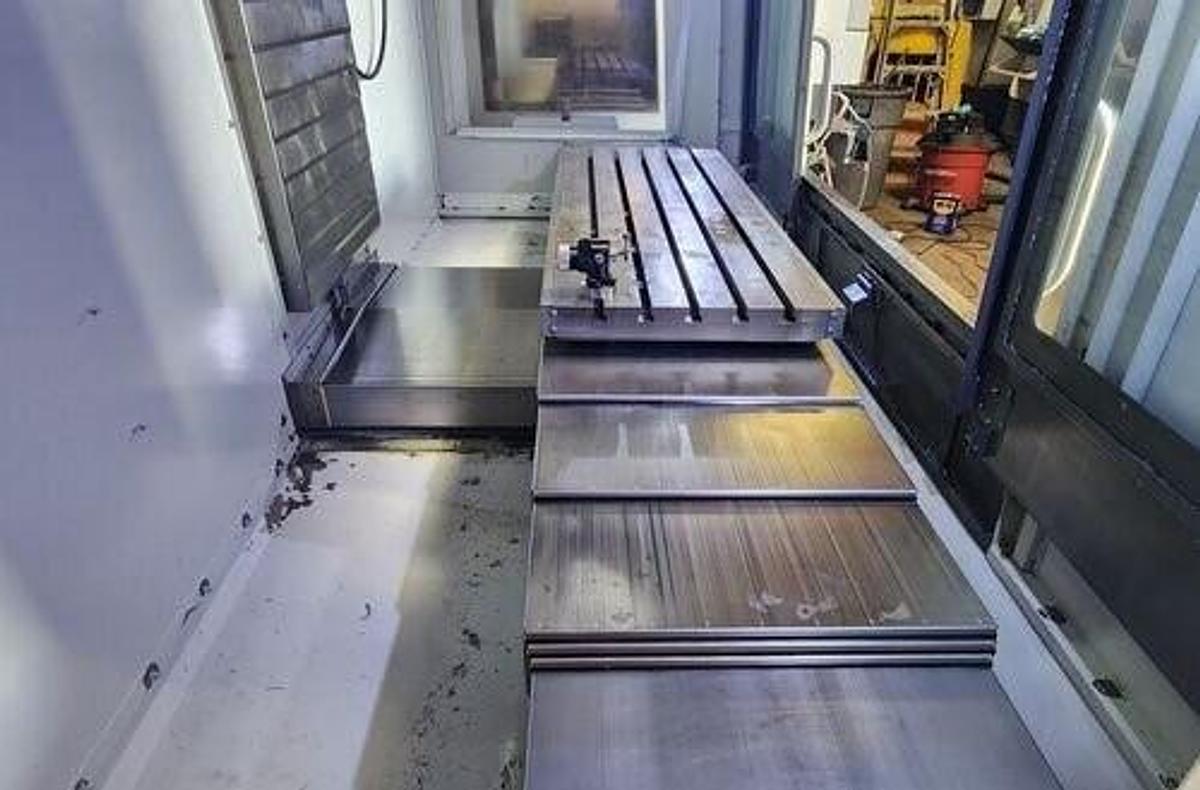

The 2018 Haas VF4SS is a dependable CNC vertical machining center ideal for various machining applications. This used model features a 4th axis drive setup, although the fourth axis itself is not included, enhancing its versatility for complex operations. With a 52" x 18" table capable of handling up to 1,750 lbs, it accommodates a wide range of workpieces. The machine offers a spacious working envelope with X, Y, and Z axis travels of 50", 20", and 25" respectively. This VF4SS is equipped with a 30 HP direct drive spindle motor that reaches speeds up to 12,000 RPM, supported by a CAT #40 spindle taper. The machine's capabilities are further bolstered with coolant through spindle functionality and Haas probing for precision. With a high-speed machining feature and a 30+1 position side mount automatic tool changer, it ensures efficient and swift operations with a cutting feed rate ranging from 0.1 to 833 IPM and a rapid feed rate of 1,400 IPM. This machining center, measuring 152" x 99" x 106" and weighing approximately 13,800 lbs, is designed for stability and performance. It's equipped with essential modern machining capabilities, making it a solid, efficient, and productive choice for your manufacturing needs.
