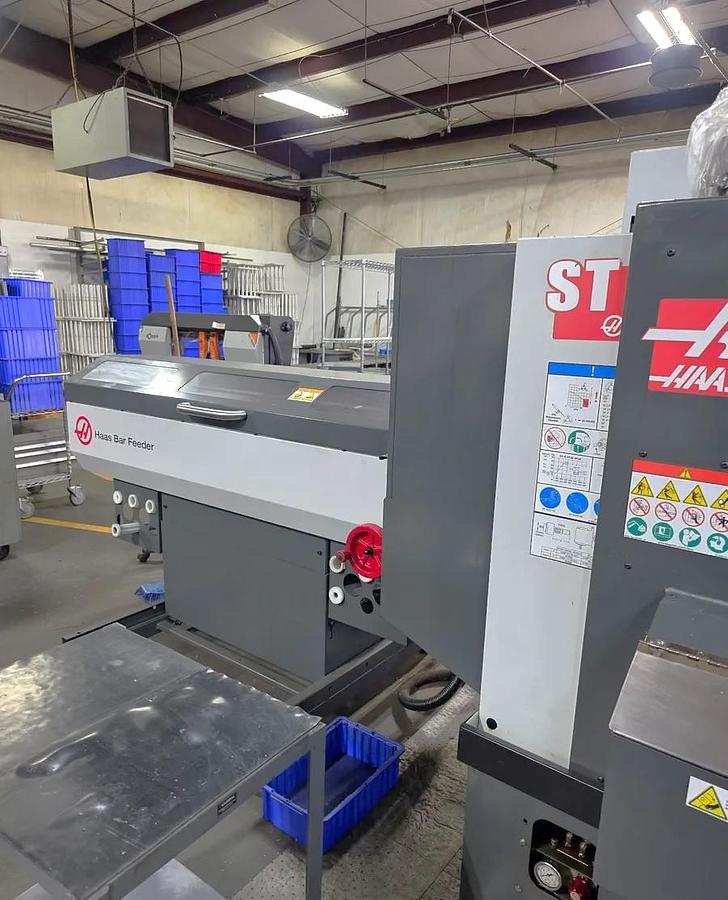

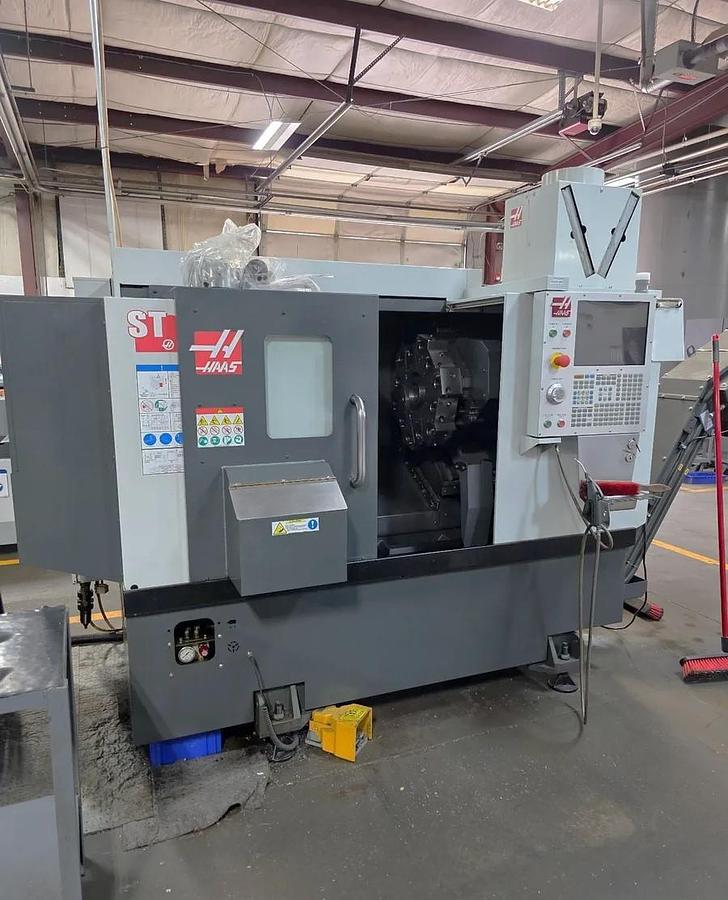

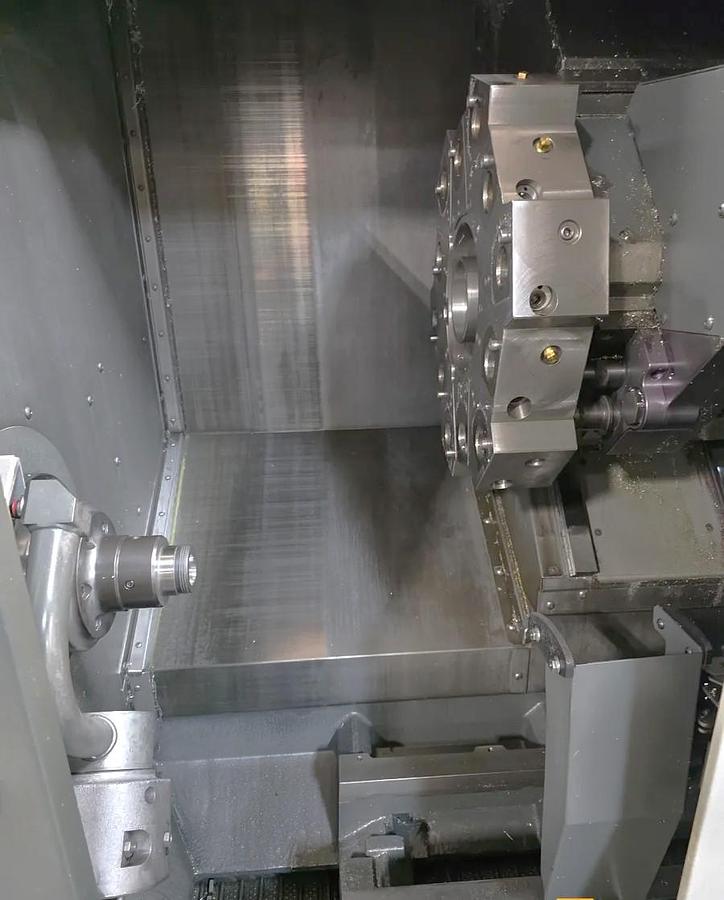

2021 Haas ST-10M Chucker with C Axis Live Milling, Haas Barfeed, Tool Presetter, Parts Catcher, Chip Conveyor

Milling / Drilling Capability

C Axis Spindle Rotation

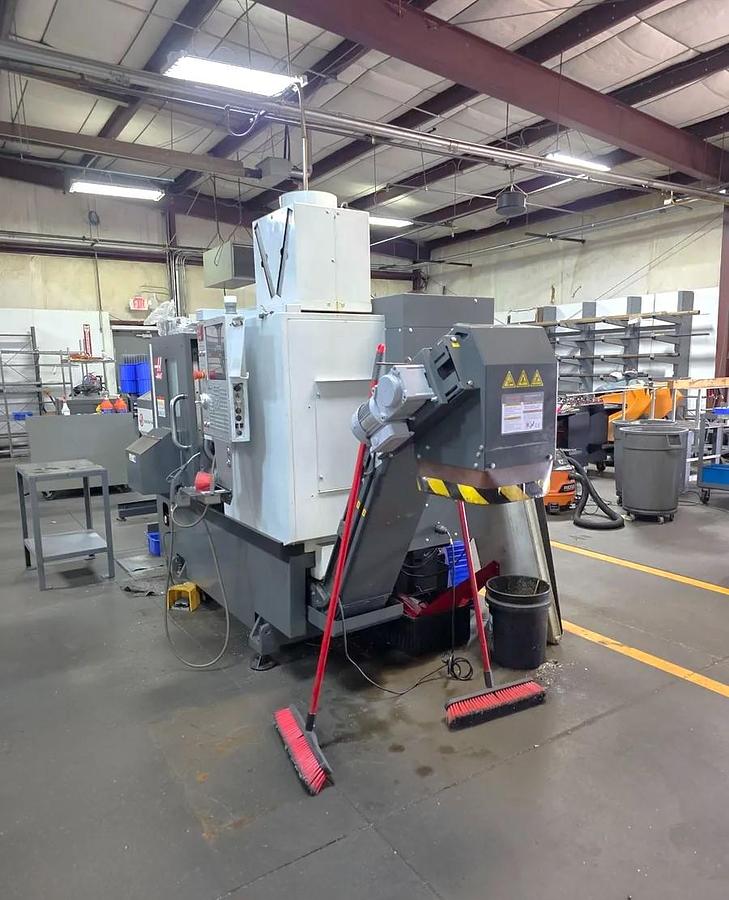

Chip Conveyor

Parts Catcher

Tool Presetter

Mist Collector Unit

6.5" 3 Jaw Hydraulic Chuck

Spindle Orientation

Visual Part Programming System

User Definable Macros

Rigid Tapping

15" LCD Color Monitor

Memory Lock Keyswitch

USB Port Interface

RS 232 Port Interface

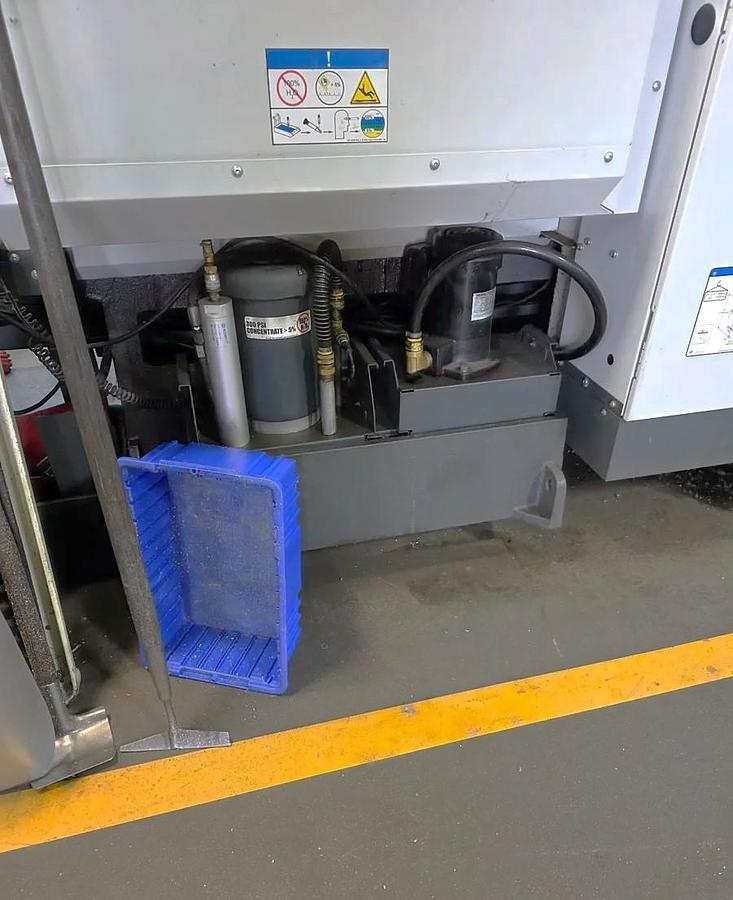

Complete Coolant System with Tank & Pump

All Available Static and Live Tool Holders

**Price New as Equipped at $119,500**

The 2021 Haas ST-10M Chucker is a reliable CNC lathe designed for precision machining tasks. It features the Haas NextGen Control system, providing user-friendly operation and efficient programming. The machine is equipped with a 6.5" 3-jaw hydraulic chuck, a maximum swing of 25.25", and allows for a maximum machining diameter of 11" and a machining length of 16". The X-axis and Z-axis travels are 7.88" and 16" respectively, ensuring versatility in handling diverse projects. This model includes live milling capabilities, offering live tooling speeds up to 5,000 RPM, and houses a 12-station turret for increased productivity. The spindle nose is an A2-5" with a bore of 2.31" and bar capacity of 1.75", powered by a 15 HP motor, capable of speeds up to 6,000 RPM. Additionally, the machine features rapid traverse rates of 472 IPM on X and Y axes, and 1200 IPM on the Z-axis, enhancing efficiency. The setup comes with a Haas barfeed and other useful components like a tool presetter, parts catcher, and chip conveyor. Weighing 7,900 lbs, and with dimensions of 126"x70"x81", the ST-10M is a robust machine ideally suited for workshops dealing with complex and variable demands.
