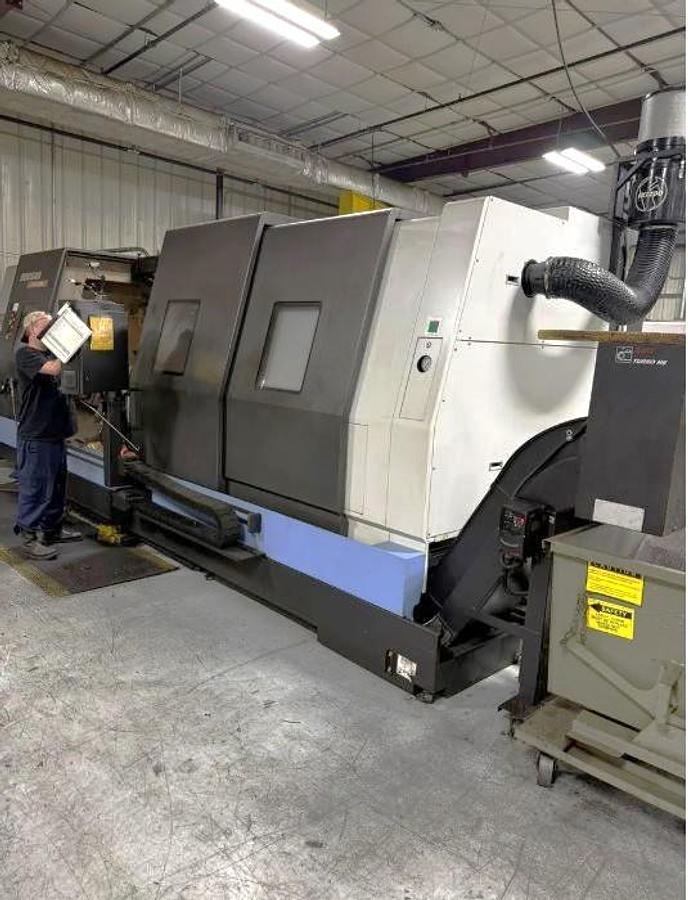

2012 Doosan Puma 800L with, 24" 4 Jaw Man. Chk, 12.6" Bar Cap., 35.4" x 126" Capacity, Steady Rest, Tailstock, Conveyor

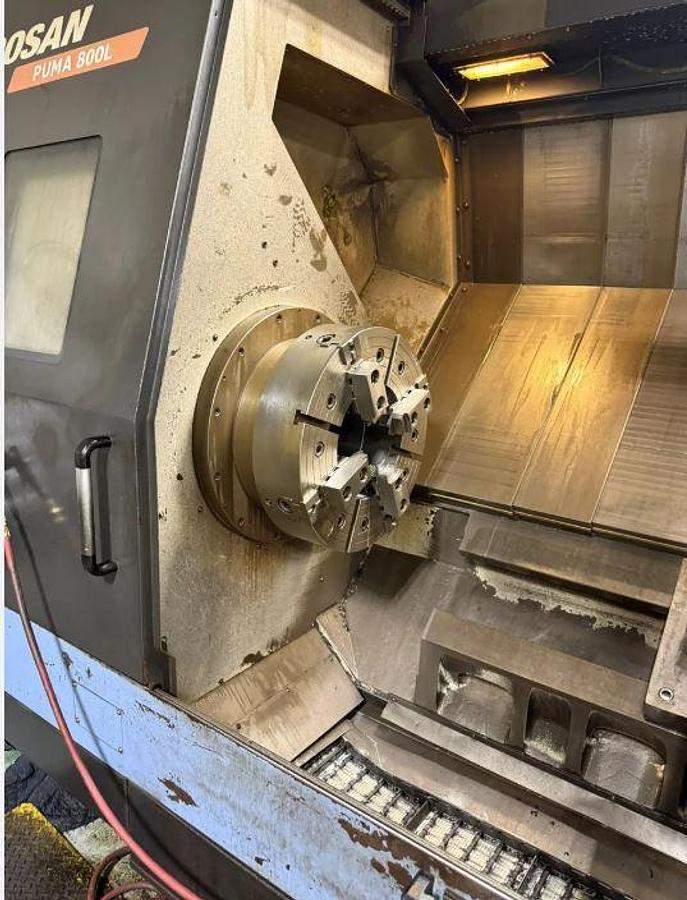

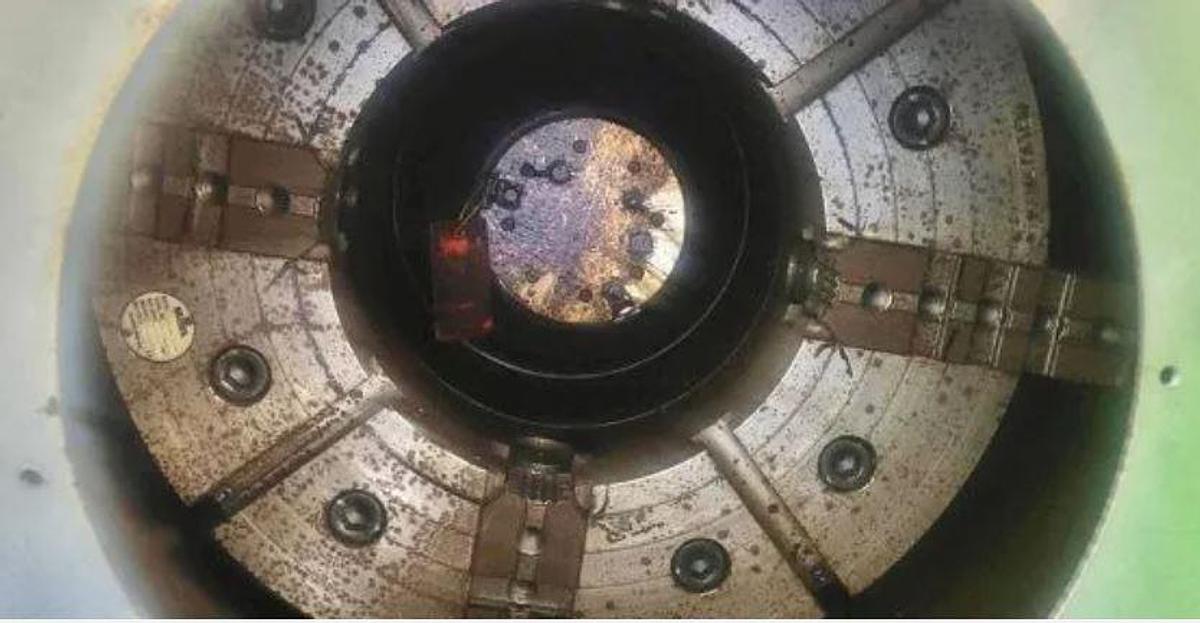

24" 4 Jaw Manual Chuck on Front of Spindle

24" 4 Jaw Manual Chuck on Rear of Spindle

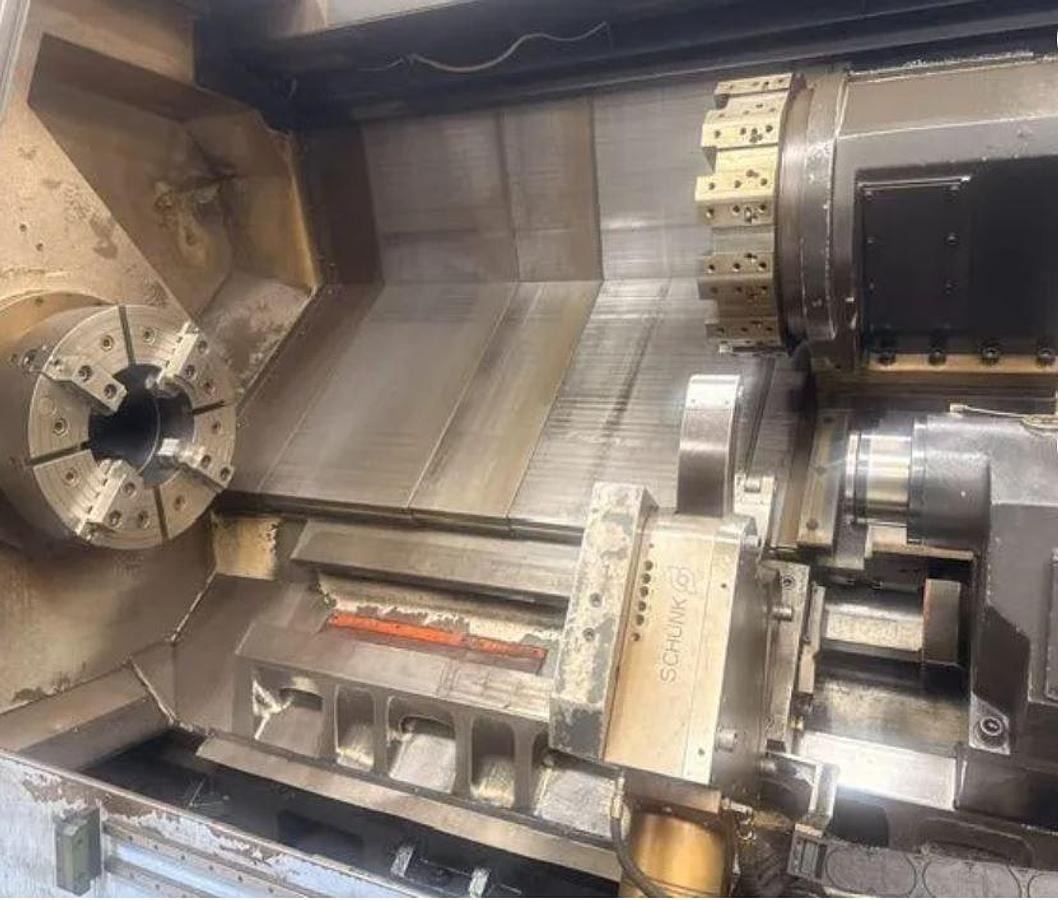

Schunk Hydraulic Open/Close Steady Rest with 12.2" Capacity

12.6" Bar Capacity

Tailstock

Chip Conveyor

Manual Guide i Conversational Programming

FX 1200 Mist Collector

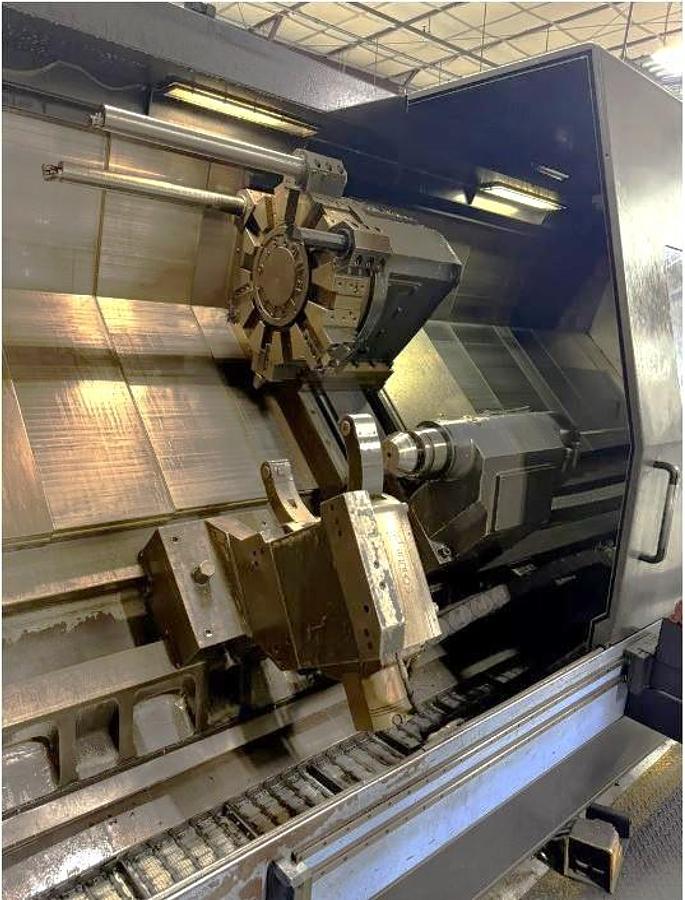

12 Station Turret

Coolant System with Tank & Pump

Graphics Function

Thread Cutting Retract

Variable Lead Thread Cutting

64 Tool Offsets

8 Pairs of Work Coordinates

Doosan Tool Load Monitoring

Dual Pressure Chucking

640M of Programming Memory

Embedded Ethernet Capable

USB Port Interface

RS 232 Port Interface

Card Interface

Wired 200/220V Electrics

All Available Manuals

All Available Static Tooling

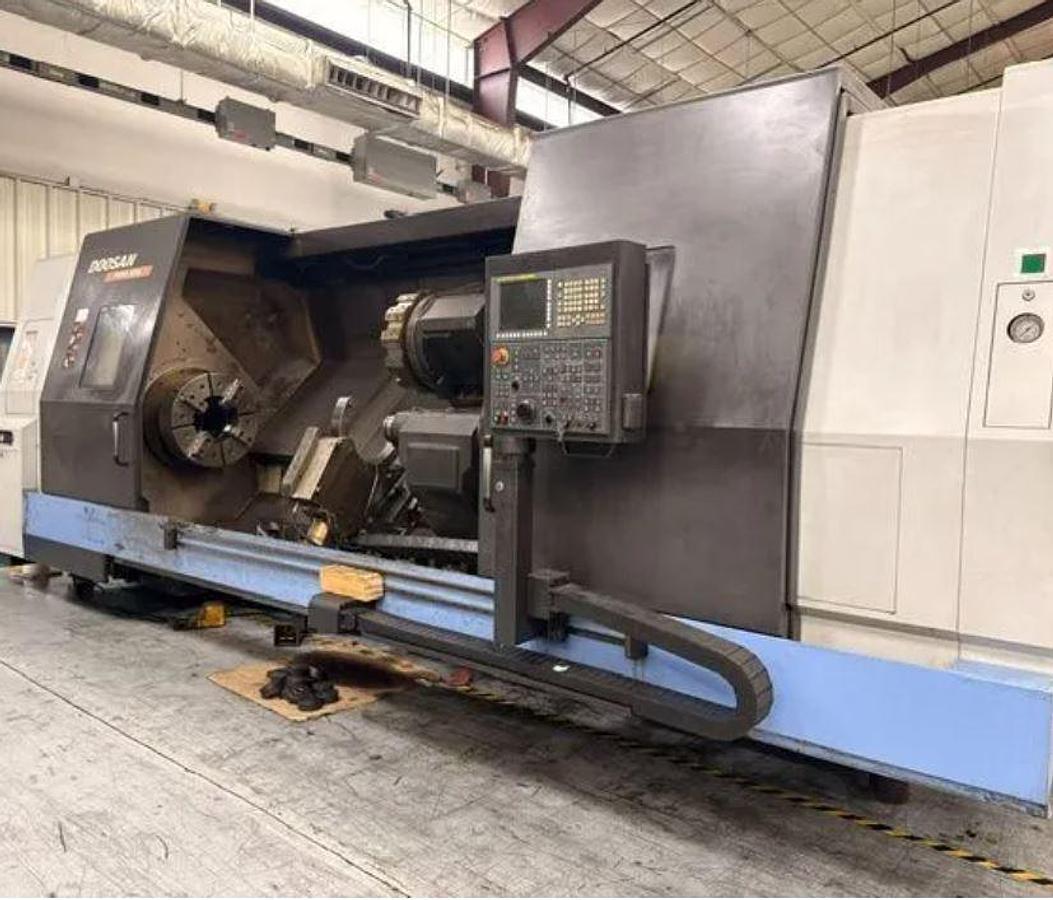

The 2012 Doosan Puma 800L CNC Lathe is a robust and reliable machine suitable for large workpieces, offering a maximum turning diameter of 35.4 inches and a length capacity between centers of 126 inches. Equipped with a 24-inch 4 Jaw Manual Chuck both at the front and rear of the spindle, it ensures versatile clamping options. Additionally, the machine includes a Schunk Hydraulic Steady Rest with a 12.2-inch capacity for enhanced stability during machining operations. This used lathe features the Fanuc Series 32i-A Control system, ensuring precise and efficient programming capabilities. The machine's spindle delivers a speed range from 3 to 750 RPM, powered by a robust 60 HP motor (30-minute rating), with a continuous rating of 50 HP. The turret is a 12-position bolt-on style, enabling efficient tool changes for varied machining tasks. Tailstock operations are supported by a quill with a diameter of 6.3 inches and a travel distance of 5.9 inches, utilizing a #5 MT taper. The machine exhibits substantial dimensions, measuring 290 inches by 110 inches by 102 inches, and extends to 355 inches in length with the chip conveyor in place. The unit weighs 48,500 lbs, indicating its sturdy build and ability to handle heavy-duty tasks. With rapid traverse rates of 472 IPM in the X-axis and 397 IPM in the Z-axis, this CNC Lathe ensures swift and efficient positioning, ideal for high-volume production environments.
