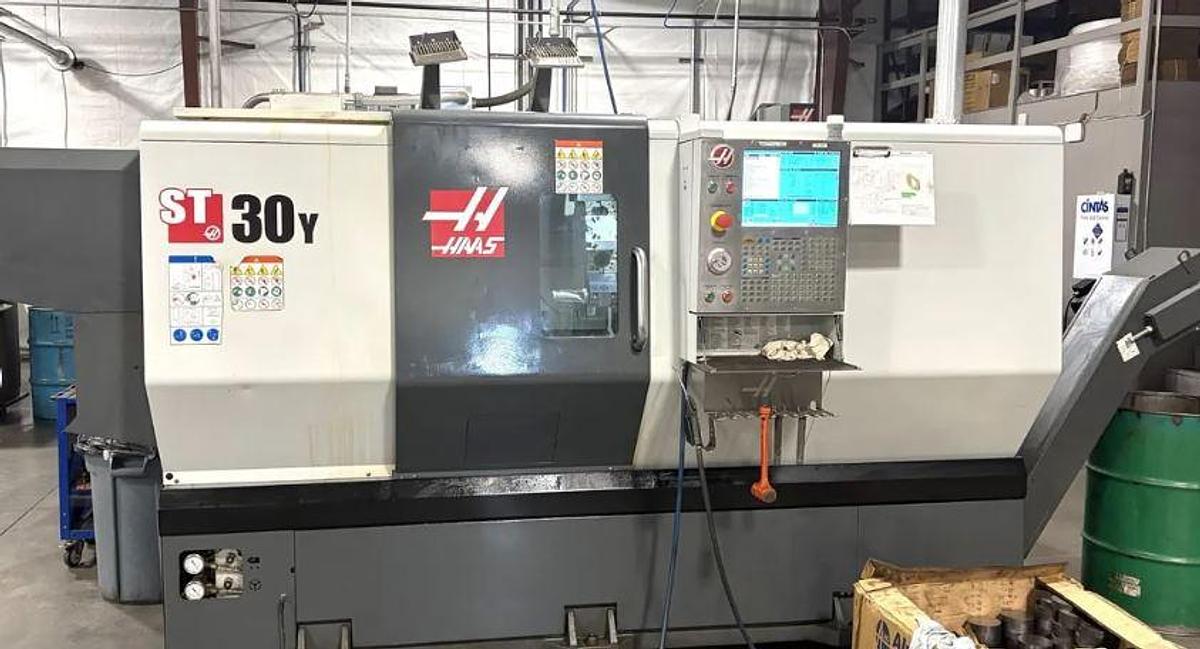

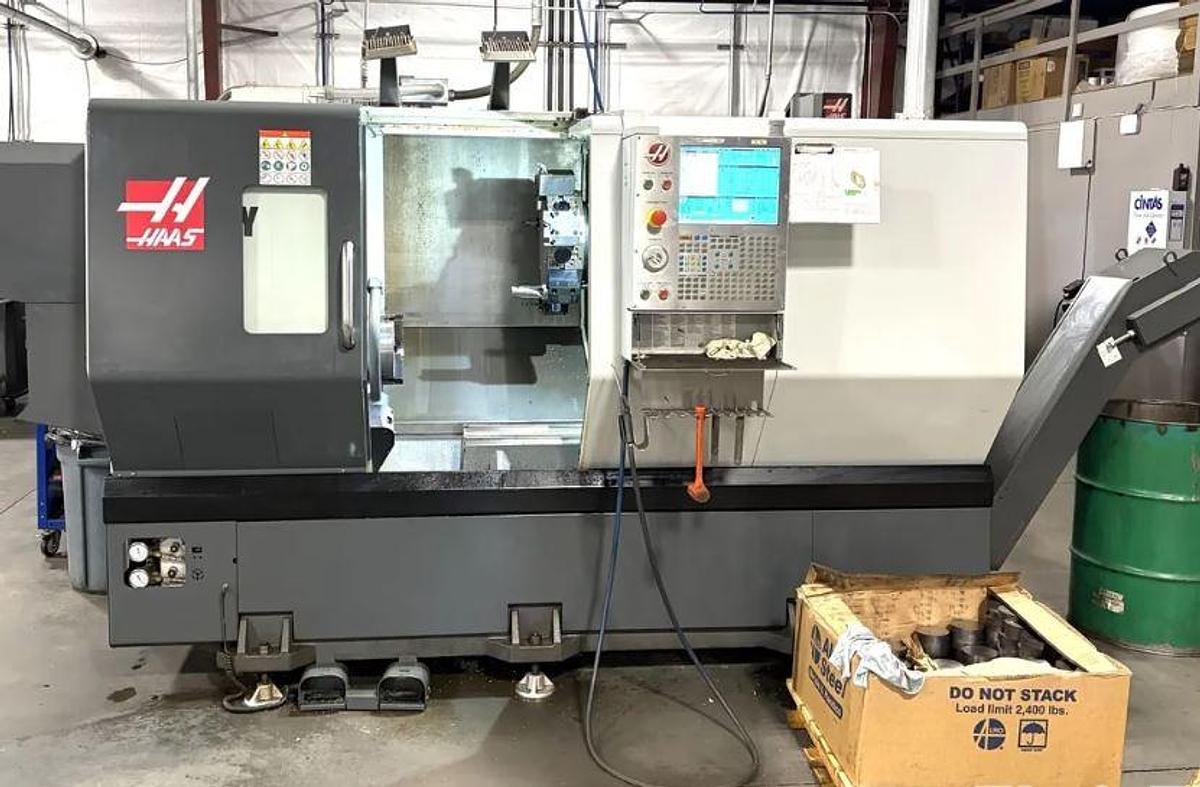

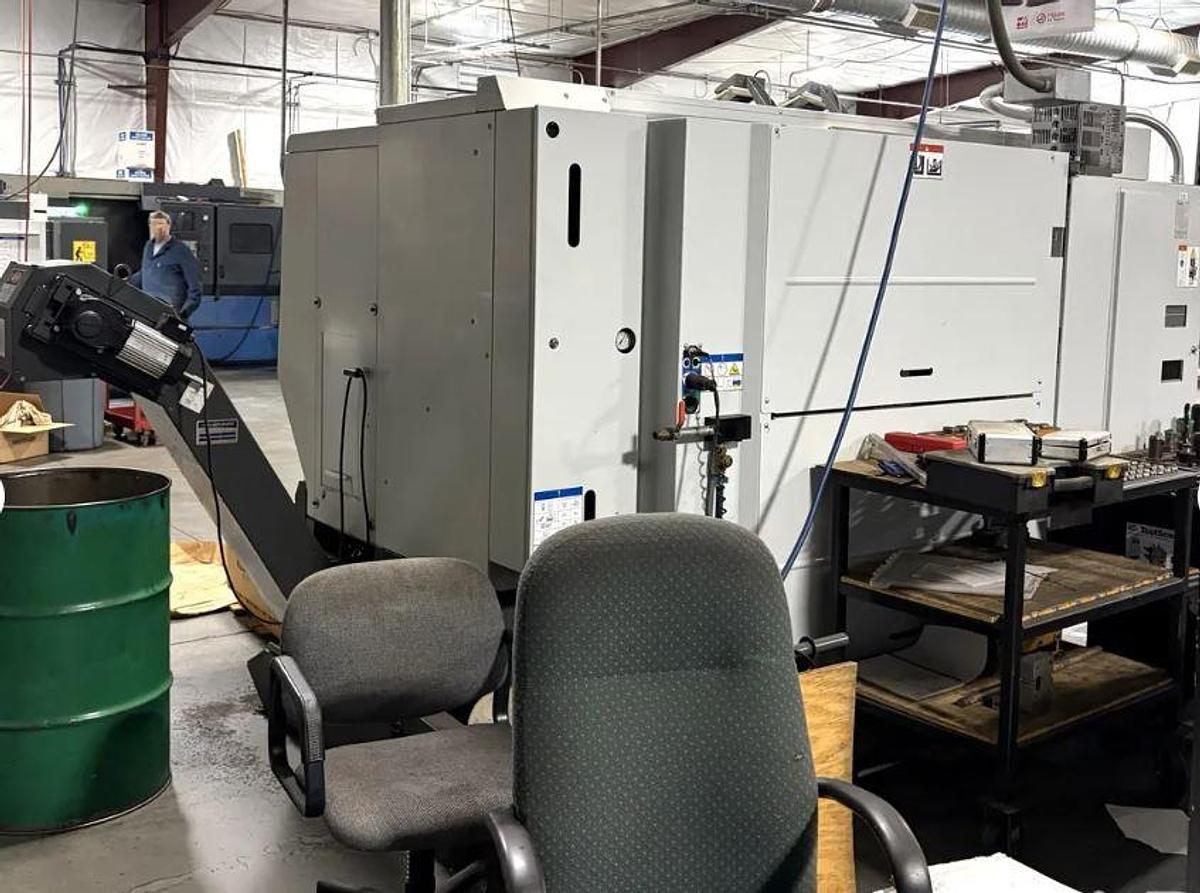

2017 Haas ST-30Y with C Axis Milling Cap., Y Axis, Chip Conv., Tailstock, 10" Chuck, Tool Eye, 3" Bar Cap.

Full C Axis Spindle Rotation

Live Milling/Drilling Capability

Y Axis Capability

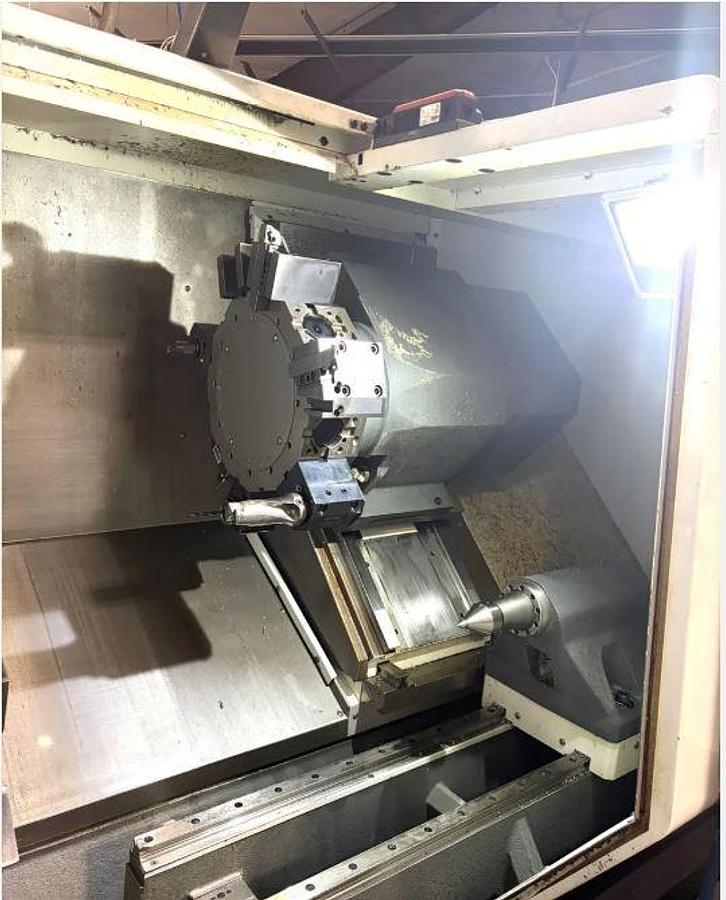

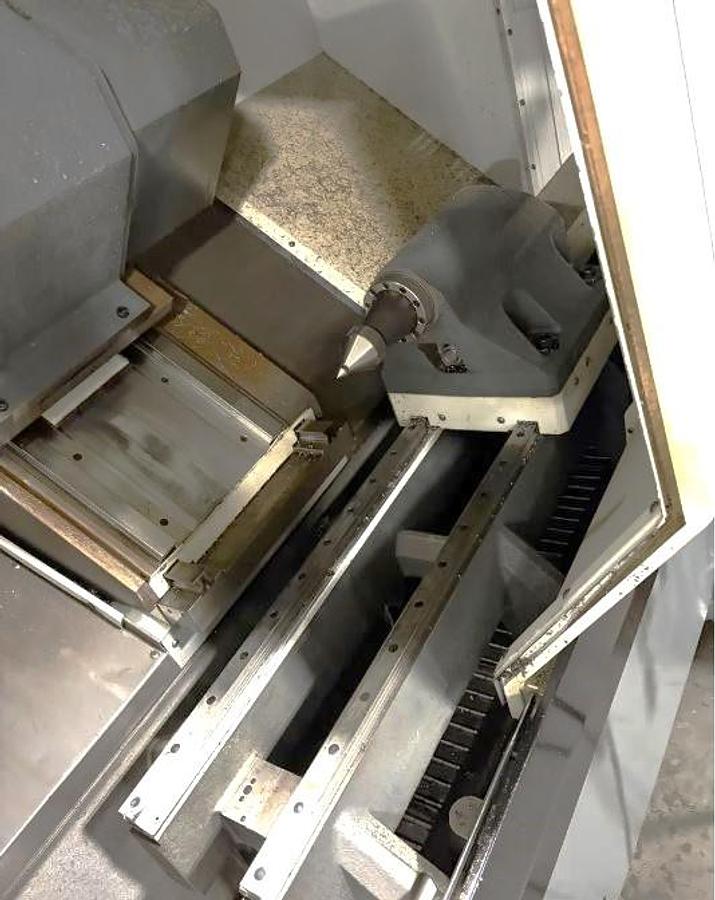

Programmable Tailstock

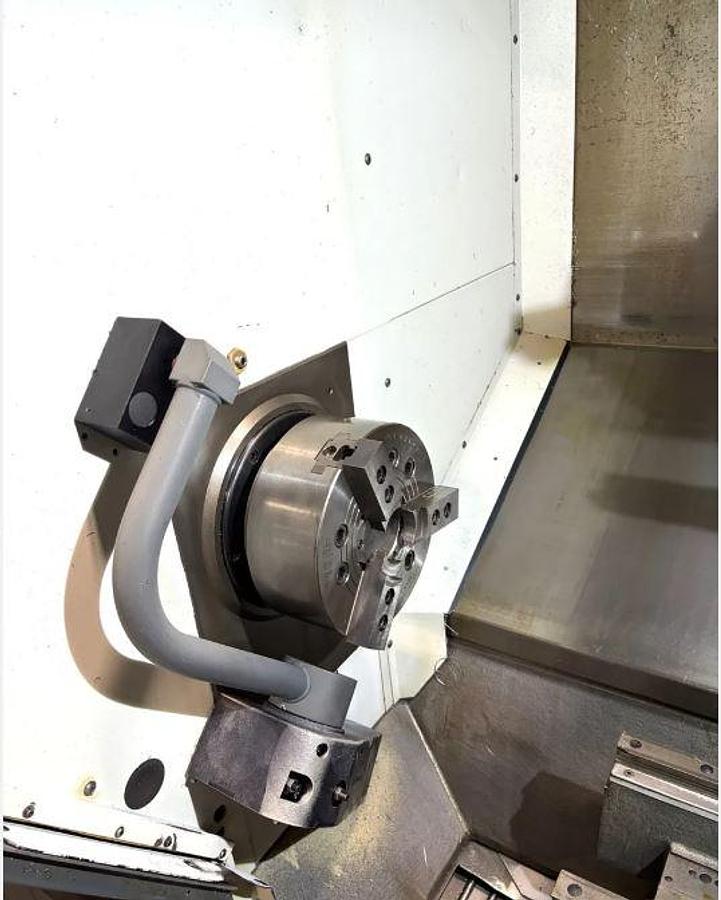

10" 3 Jaw Hydraulic Chuck

Chip Conveyor

Tool Presetter

4,000 RPM Milling Capability

2 Speed Gearbox

High Intensity Lighting

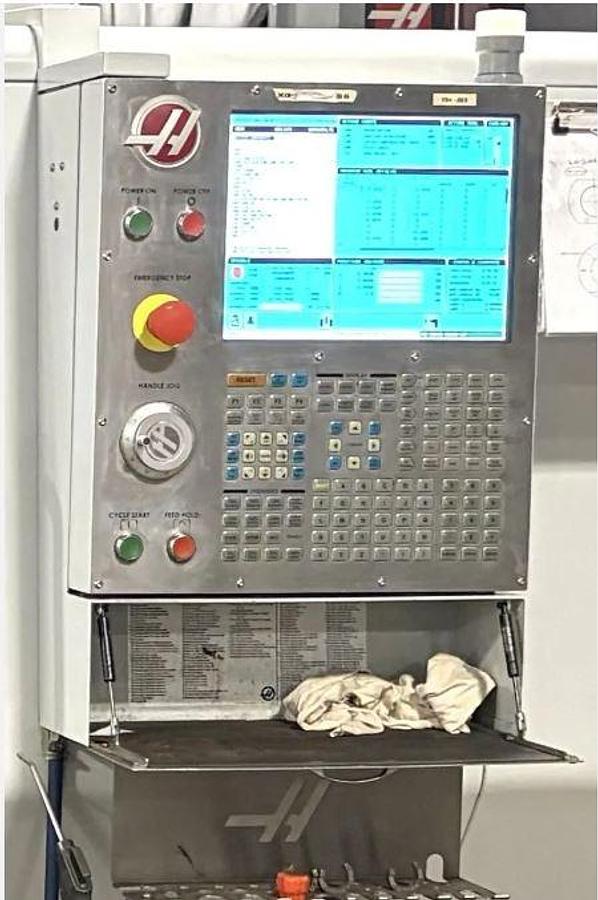

Visual Quick Code Programming

Spindle Orientation

Rigid Tapping

Early Power Failure Detection Module

Ethernet Interface

USB Port Interface

Coolant System with Tank & Pump

Chip Tray Filter Kit

Wired 220V Electrics

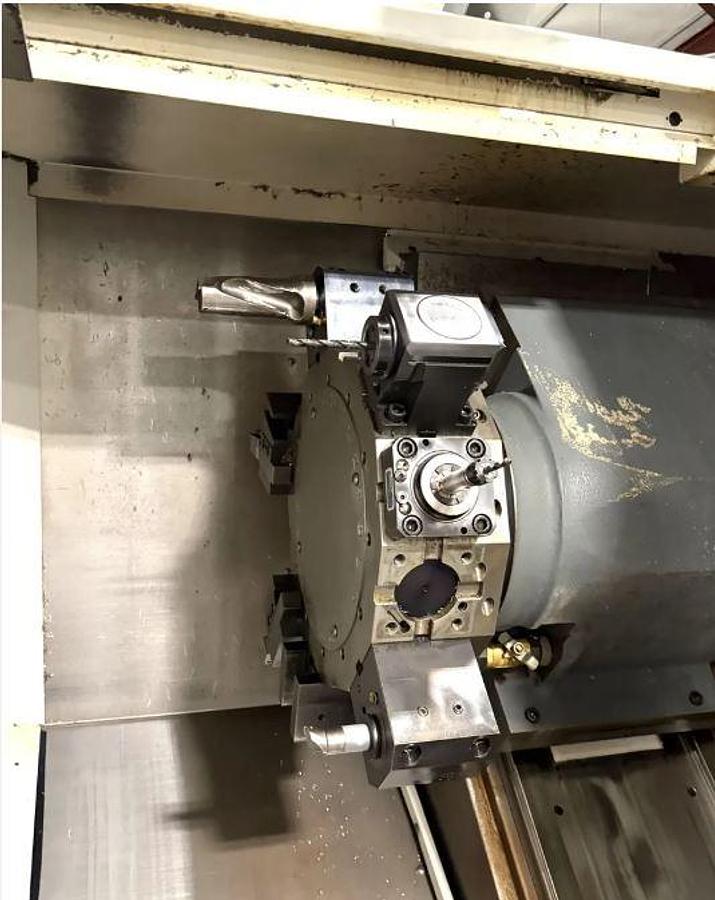

Includes (1) Axial Live Holder and (1) Radial Live Holder

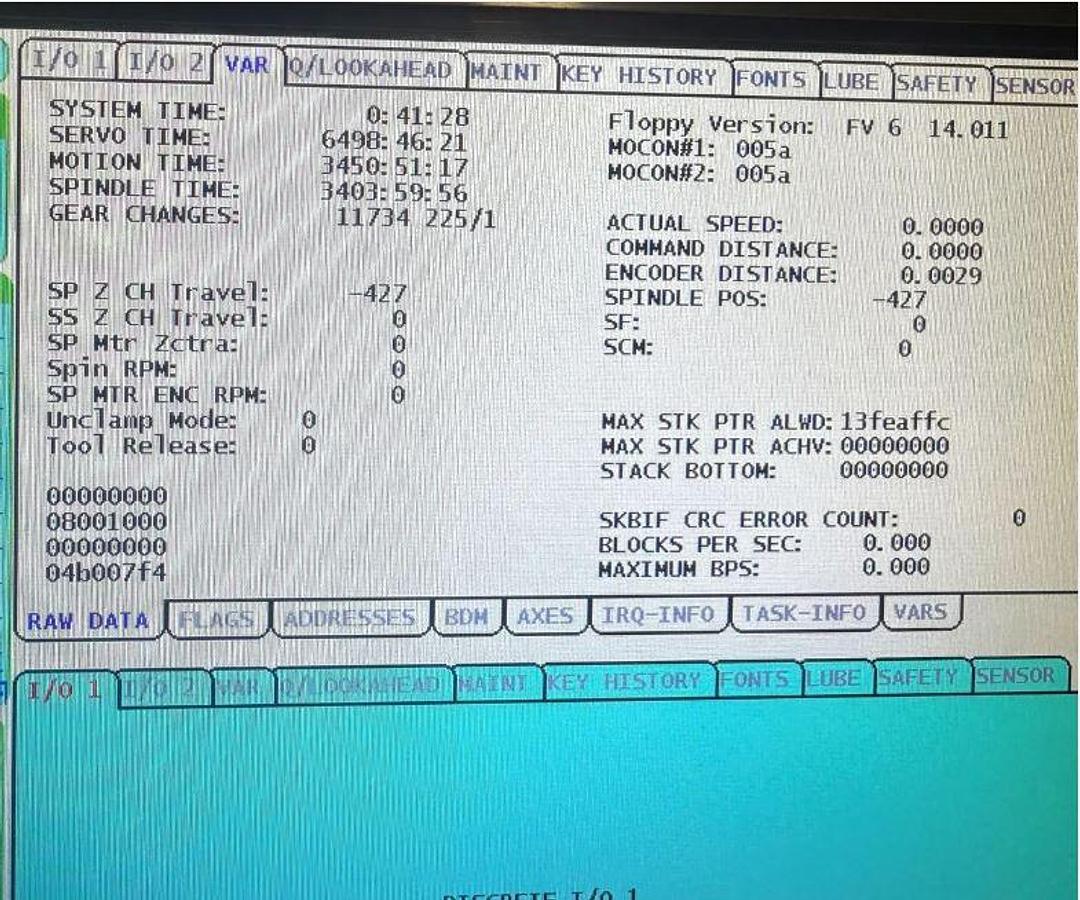

**Spindle Run Hours 3,403**

**Price new today as equipped at $178,000**

The 2017 Haas ST-30Y is a versatile used CNC lathe offering C axis milling and Y axis capabilities, making it ideal for complex manufacturing tasks. It features a 10-inch 3-jaw hydraulic chuck and a substantial 3-inch bar capacity, which facilitates handling of larger workpieces. With a maximum swing of 31.75 inches, a turning diameter of 18 inches, and a machining length of 23 inches, this machine provides significant flexibility in operations. The Y-axis travel is +/- 2.0 inches, while the X and Z axes offer 12.5 inches and 26 inches of travel respectively, accommodating various production needs. Equipped with a Haas NextGen Control, the machine allows for precise operation and ease of use. The ST-30Y has a spindle speed range of 30 to 3,400 RPM powered by a robust 30 HP motor. For tasks requiring rotational tools, it includes a rotary tool speed of 4,000 RPM driven by a 5 HP motor. The turret consists of 12 positions using a BMT 65 system, optimizing tool changes and reducing downtime. Additional features include a chip conveyor, tailstock, and a tool eye for tool measuring, enhancing productivity and accuracy in machining. With dimensions of 171 inches by 90 inches and a weight of 14,300 pounds, this machine is substantial yet manageable for most industrial settings. The rapid traverse rates are 472 inches per minute for the X and Y axes and 945 inches per minute for the Z axis, supporting high-speed operation and efficiency.
