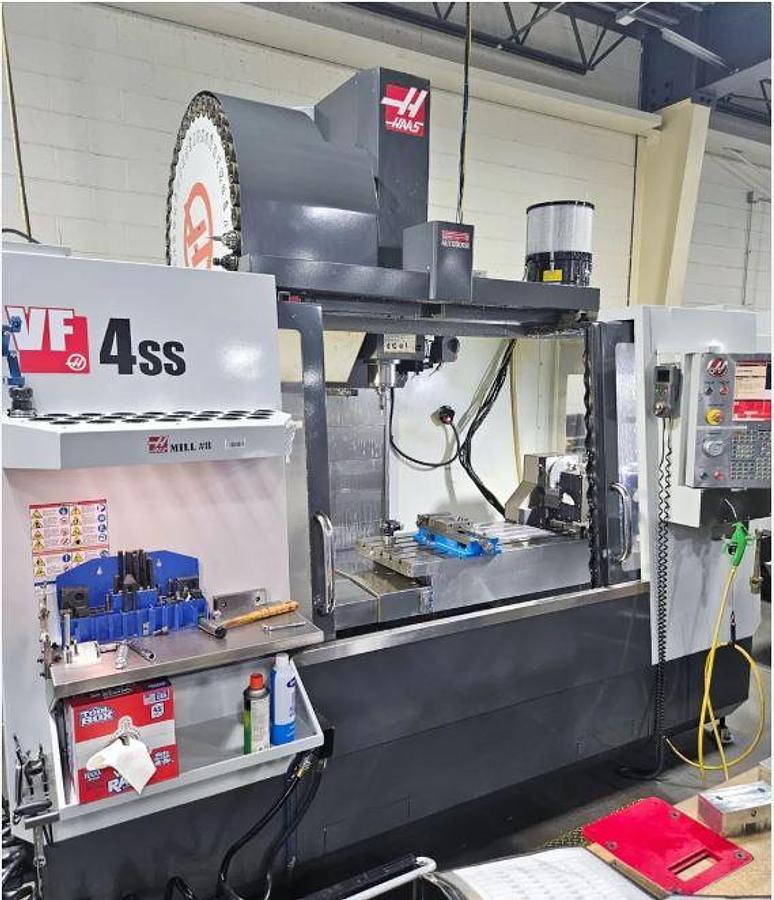

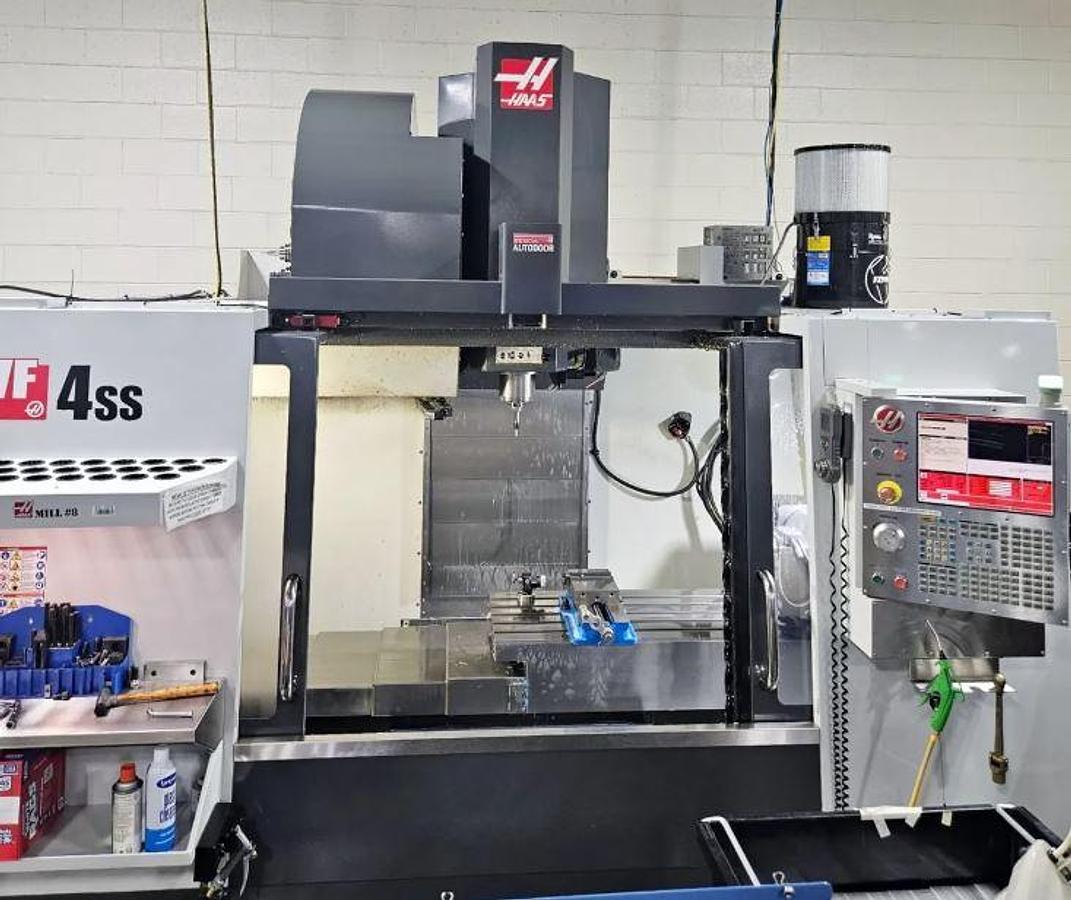

2012 Haas VF4SS with Haas TR-160Y Trunnion Style 4th/5th Axis Table, Probing, 40 ATC, Conveyor

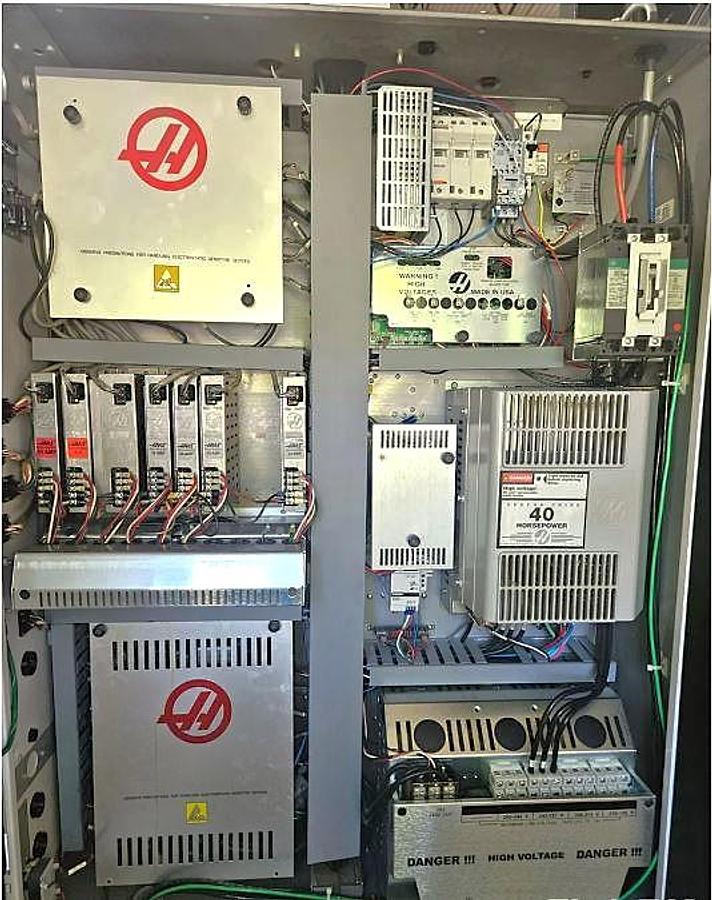

4th Axis Drive & Wiring

5th Axis Drive & Wiring

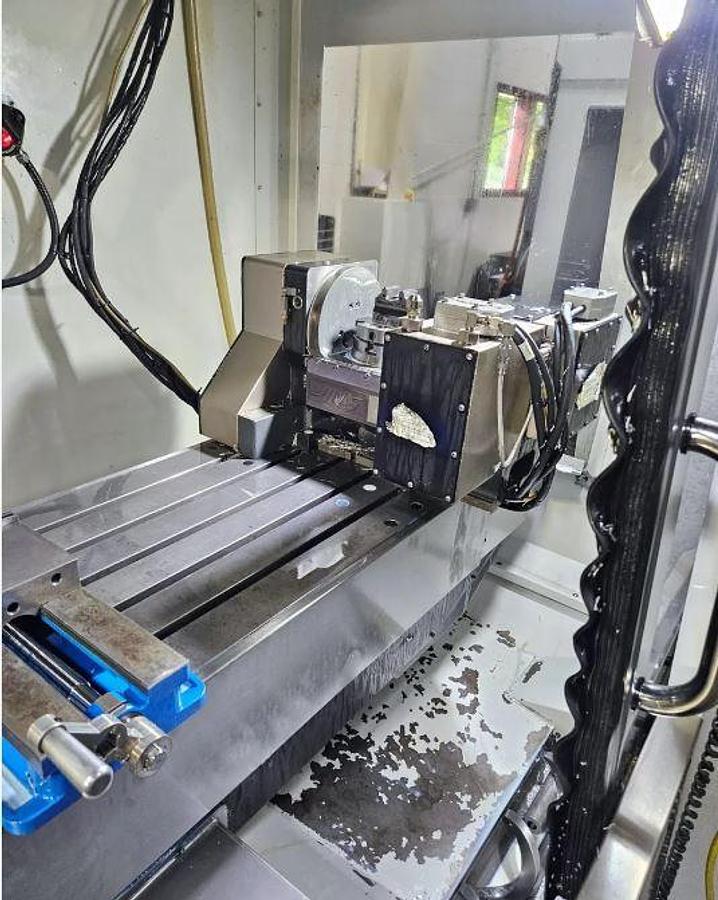

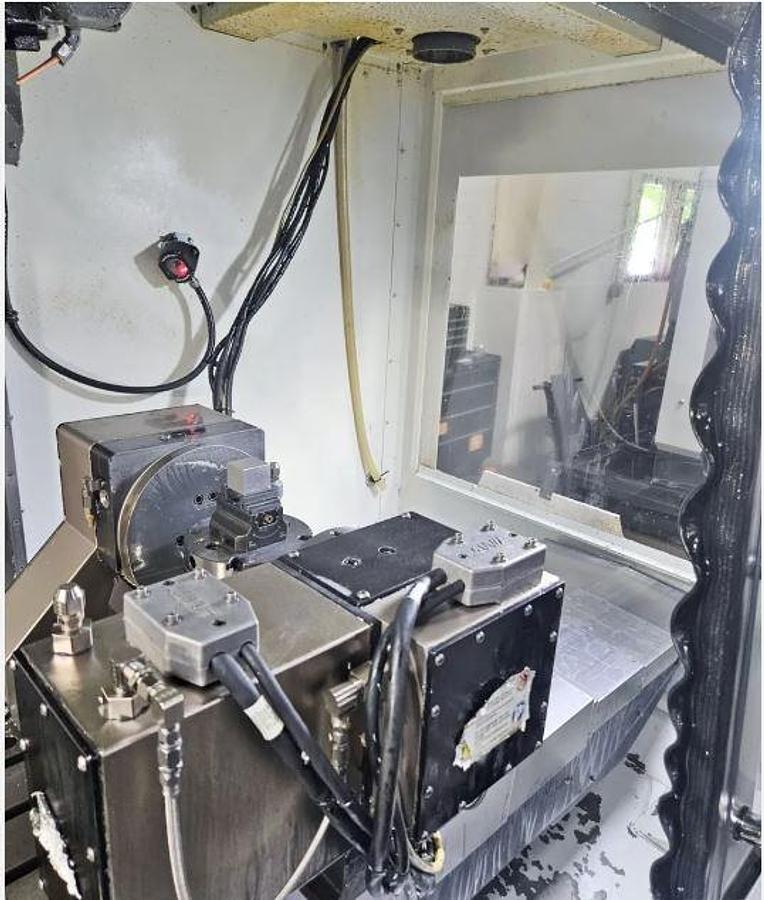

Haas TR-160Y Trunnion Style 4th/5th Axis Table

40+1 Position Side Mounted Tool Changer

Haas Wireless Intuitive Probing Package

Auger Style Chip Removal

High Speed Machining

Royal Mist Collector

Auto Door

Spindle Orientation

Coordinate Rotation & Scaling

User Definable Macros

Haas Visual Part Programming System

Programmable Coolant Nozzle

Remote Jog Handle

Rigid Tapping

Coolant Tank with Pump

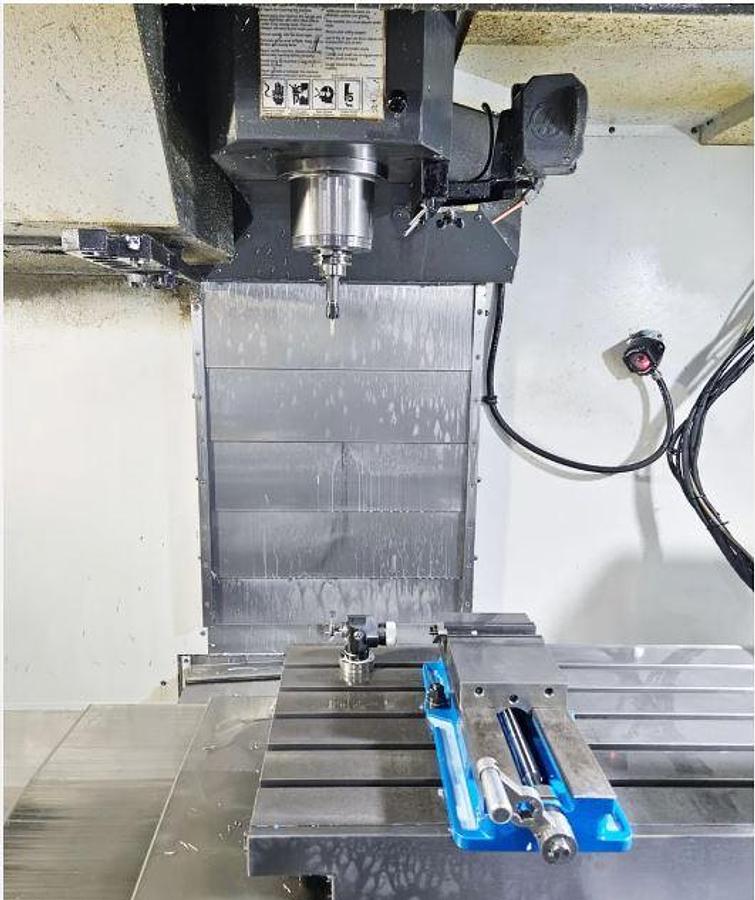

Inline Direct Drive 12,000 RPM Spindle

WiFi Connection

USB Port Interface

RS 232C Port Interface for DNC Operation

**Almost exclusively used on aluminum, being replaced by new machine in July**

**Machine had hours reset at some point in lifespan and are not accurate**

The 2012 Haas VF4SS is a robust used CNC Vertical Machining Center equipped with a Haas TR-160Y trunnion-style 4th/5th axis table, enhancing its versatility. With a table size of 52" x 18" and a maximum table load of 1,750 lbs, it offers ample capacity for various workpieces. The machine provides extensive X, Y, and Z axis travels of 50", 20", and 25" respectively, suitable for handling larger components. Incorporating a powerful 30 HP direct-drive spindle motor, the VF4SS delivers a maximum spindle speed of 12,000 RPM, ideal for high-speed machining applications. The tool changer accommodates 40 tools, plus an additional position in the side mount, optimizing productivity with fast tool changes. This model supports rapid feed rates of up to 1,400 IPM and can handle cutting feed rates between 0.1 - 833 IPM, ensuring efficient operation. With dimensions of 152" x 99" x 106" and an approximate weight of 13,800 lbs, the VF4SS is a substantial machine, suitable for demanding machining environments. The inclusion of probing capabilities and a conveyor system further enhances its functionality, making it a comprehensive solution for modern manufacturing needs.
