2020 Haas VF-2 with Haas HRT-210 4th Axis Tbl., WIPS Probing Package, CTS, PCool, HSM, Tooling

Haas HRT-210 4th Axis Rotary Table

New 4.5" x 4.5" x 20" Aluminum Tombstone

A Frame Support for Rotary Table/Tombstone Support

Quick Change Plate

4th Drive & Wiring

10,000 RPM Spindle

WIPS Renishaw Tool & Part Probe

300 PSI Coolant Thru the Spindle

30 Station Side Mounted Tool Changer

High Speed Machining

Auger Style Chip Conveyor

Phase Perfect PTO20 Digital Phase Converter

(The PTO20 generates utility-grade three-phase power with an ultra-clean sinusoidal wave output to seamlessly safeguard the machines sensitive electronics, digital vector drives, and high-performance spindle)

Visual Quick Code Programming

Programmable Coolant Nozzle

Haas Intuitive Programming System

Rigid Tapping

Coordinate Rotation & Scaling

Spindle Orientation

User Definable Macros

2 Speed Gearbox

Chip Tray Filter Kit

Probe Riser Block

WIFI Camera

1 GB Programming Memory

15" LCD Color Monitor

Memory Lock Keyswitch

USB Port Interface

Ethernet Interface

RS 232 Port Interface

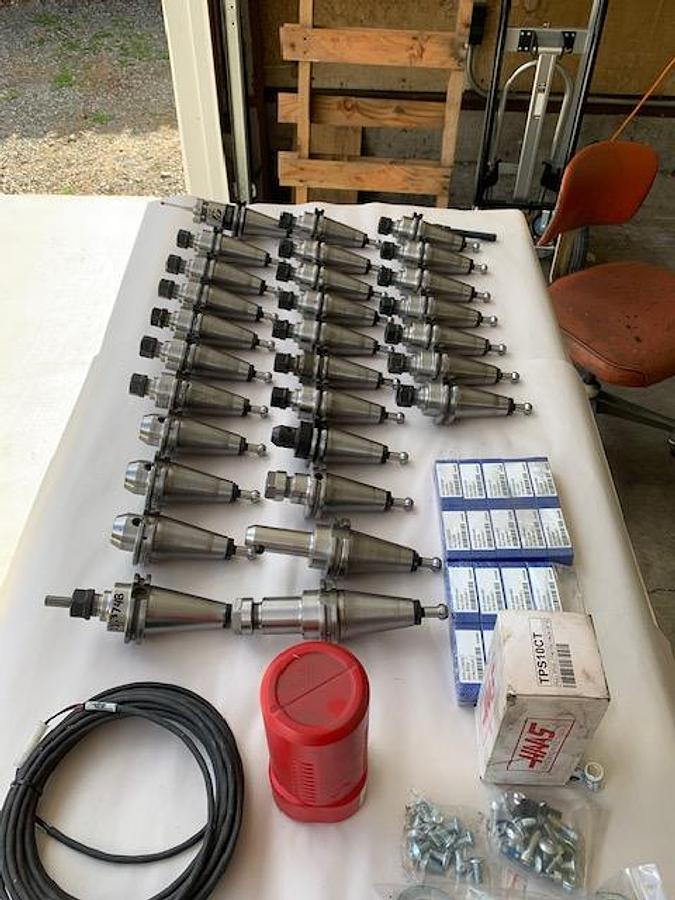

Approximiately (29) CAT 40 Tool Holders

Pull Studs

Shipping Brackets

**Approximately 4300 Run Time Hours**

**Used in a clean environment and fully optimized for heavy material removal. Was used for aluminum, precision finishing, and high density multi-axis production**

**Replacement cost of $148,935 as equipped**

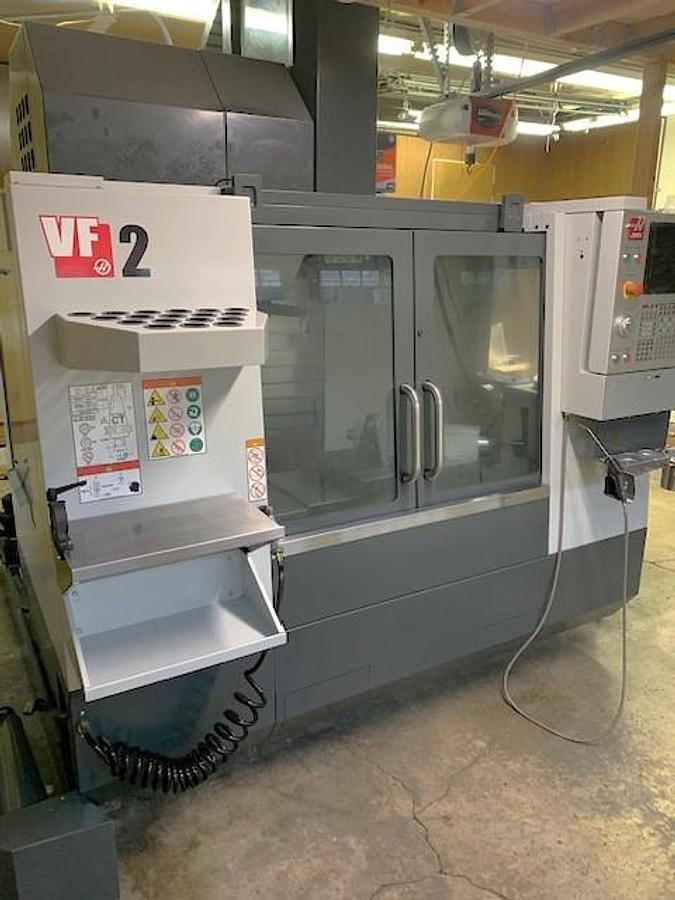

The 2020 Haas VF-2 is a reliable and versatile CNC vertical machining center, designed with advanced features to enhance precision and efficiency in manufacturing. Equipped with the Haas NextGen Control, it offers user-friendly operation and robust performance. This machine boasts a table size of 36" x 14", capable of handling a maximum load of 3,000 lbs, making it suitable for a range of medium-duty machining tasks. With travels of 30" on the X-axis, 16" on the Y-axis, and 20" on the Z-axis, the VF-2 provides ample space for complex workpieces. Its spindle, featuring a CAT 40 taper and reaching speeds of up to 10,000 RPM, is powered by a 30 HP motor to ensure efficient material removal. The included Haas HRT-210 4th axis table expands capabilities for advanced machining operations, aided by the WIPS probing package for precise measurements. Additional features include a 30-position side-mounted automatic tool changer (ATC) for enhanced productivity and 1,000 inches per minute (IPM) rapid traverse rates for quick positioning. The VF-2's compact footprint, with dimensions of 88"x93"x106", along with a machine weight of 8,500 lbs, allows it to fit neatly into most manufacturing environments without compromising on performance. The inclusion of a Probing Package, Coolant Through Spindle (CTS), Programmable Coolant (PCool), and High-Speed Machining (HSM) further add to its appeal for those seeking efficiency and precision in their machining processes.
