2022 Quicktech T8 Hybrid 9 Axis Lathe with Milling/Drilling, Subspindle, Turret and Gang Slide, Barfeed, Parts Exit Conveyor, Chip Conveyor

Live Milling/Drilling Capability

BMT Style Turret Tooling

Subspindle

Gang Tooling Slide - 360 Degree B Axis

C Axis Spindle Rotation Both Spindles

Y Axis Capability

Collet Chuck on Main Spindle

Collet Chuck on Subspindle

Automatic Parts Catcher

Parts Exit Conveyor

Chip Conveyor

Rigid Tapping

Remote Jog Handle

USB Port Interface

RS 232 Port Interface

Complete Coolant System with Tank & Pump

All Available Tooling

All Available Manuals

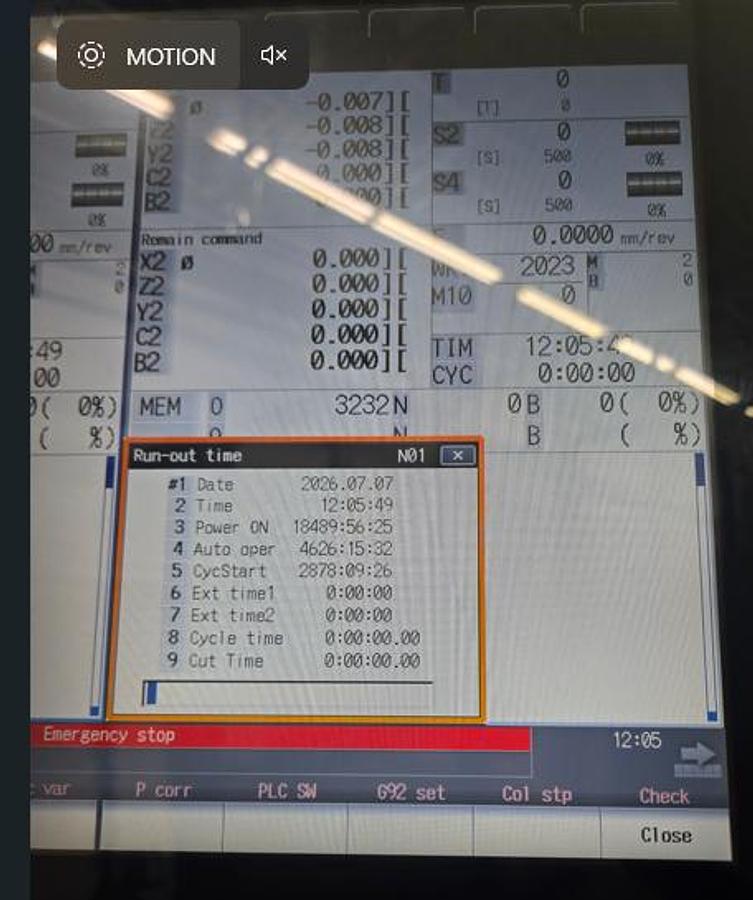

**Machine Operation Hours 4,626**

**Machine Cycle Start Hours 2,878**

**Machine is in excellent condition and can be inspected under power**

**Price new today at between $220,000-$260,000 depending on how equipped**

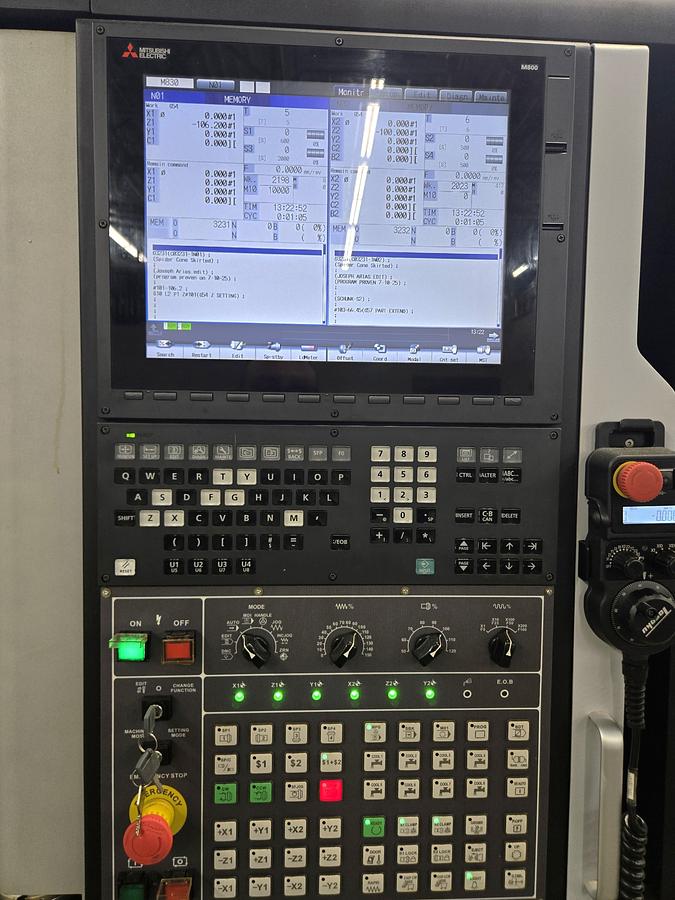

The 2022 Quicktech T8 Hybrid Lathe offers advanced performance with its 9-axis capability, integrating milling, drilling, back-working, cross drilling, angular milling and off center capabilities. Equipped with a Fanuc 0i-TF control, it is ideal for complex machining tasks, featuring a main and subspindle with collet chuck types. The machine offers a generous maximum swing over the bed of 19.7 inches and a machining length of 13.8 inches, suitable for various industrial applications. The lathe's primary spindle supports up to 2.56 inches of bar capacity and achieves a speed of 4,000 RPM, while the subspindle handles 1.26 inches also at 4,000 RPM. It's powered by a robust 15 HP main spindle motor and a 7.5 HP subspindle motor, ensuring reliable performance. The tool turret holds up to 12 positions all capable of live tooling and offering Y axis capability. The rotating gang slide provides up to 26 tool positions, offering versatility in machining operations. Designed for efficiency, the machine features a parts catcher, parts exit conveyor, and chip conveyor, enhancing workflow and productivity. With dimensions of 110" x 81" x 86" and weighing 13,420 lbs, this used unit remains a substantial asset for businesses seeking to upgrade their machining capabilities.
