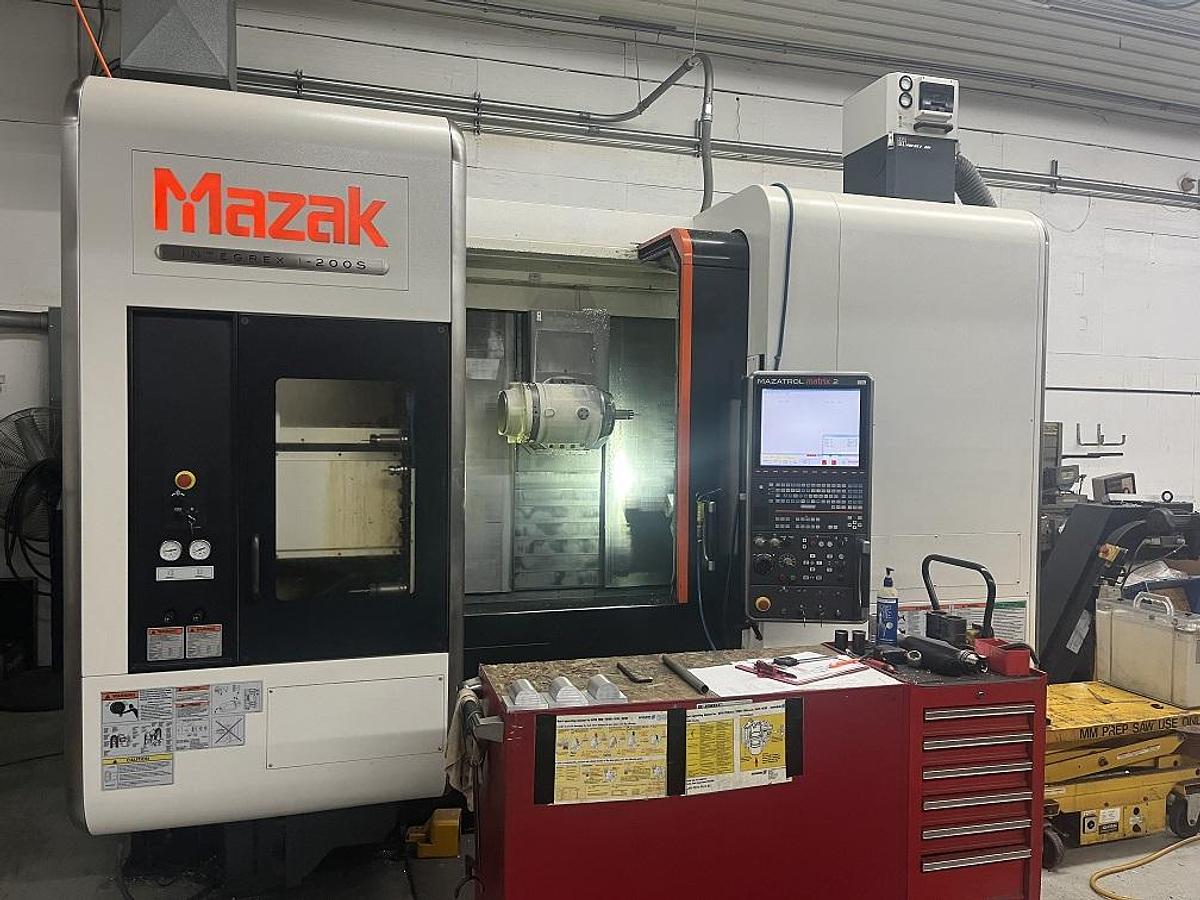

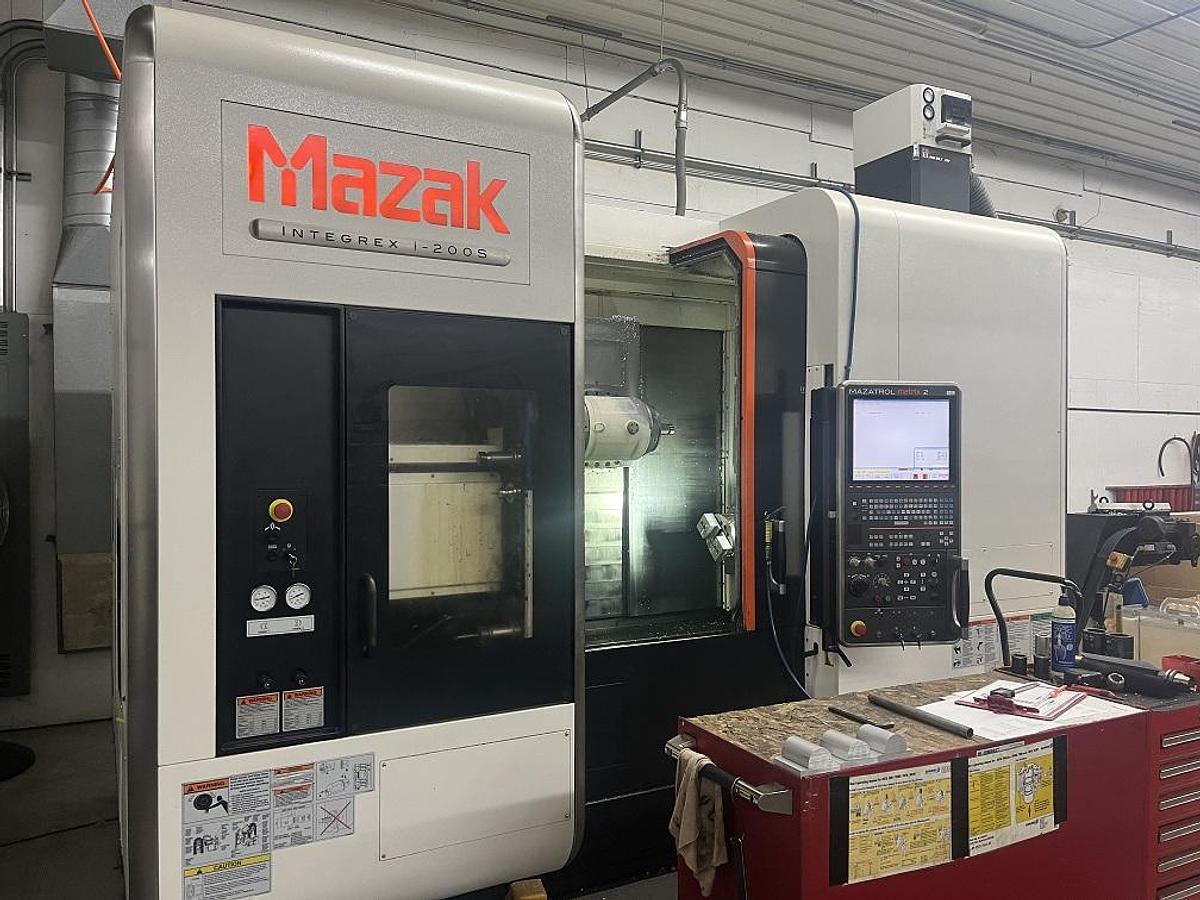

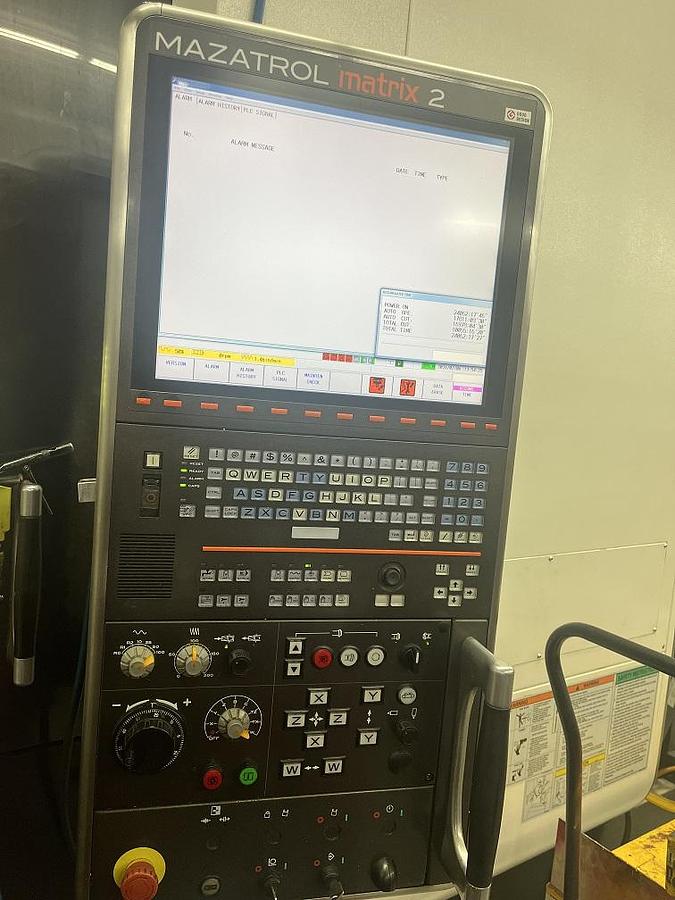

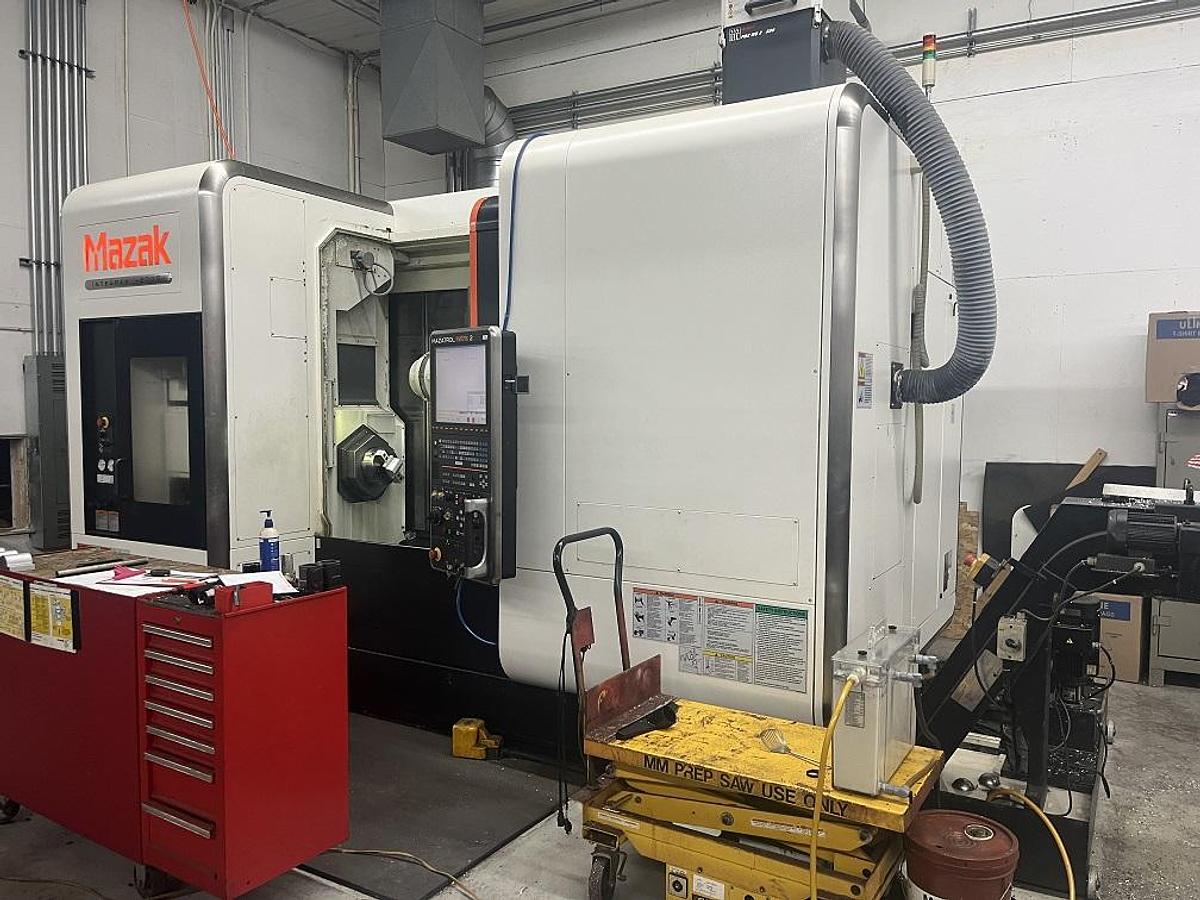

2012 Mazak Integrex i-200S Mazatrol Matrix Nexus 2 with Subspindle, Simultaneous 5-Axes Tool Tip Point Control
2012 Mazak Integrex i-200S Mazatrol Matrix Nexus 2 with Subspindle, Simultaneous 5-Axes Tool Tip Point Control
Contact us for price
Location:Illinois
or
Call (863) 439-6066
Description

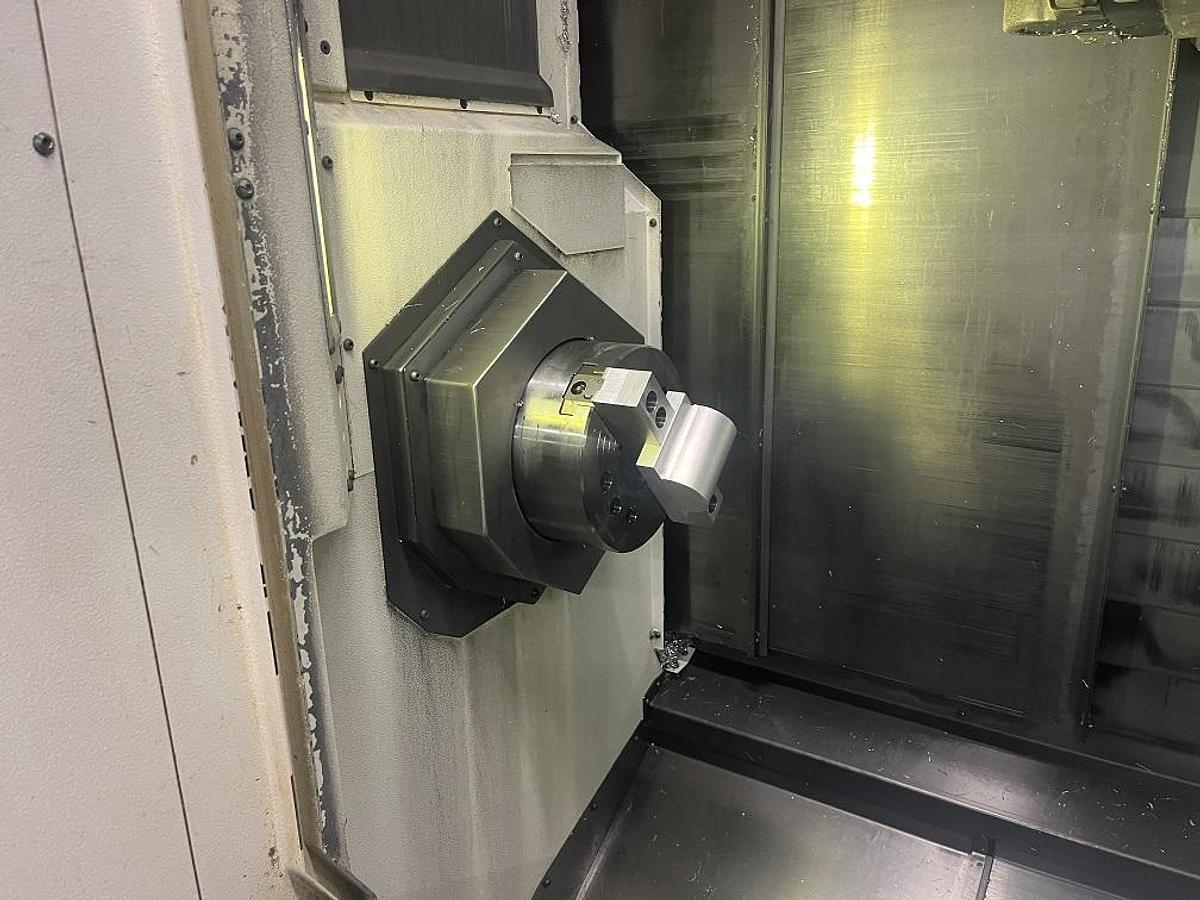

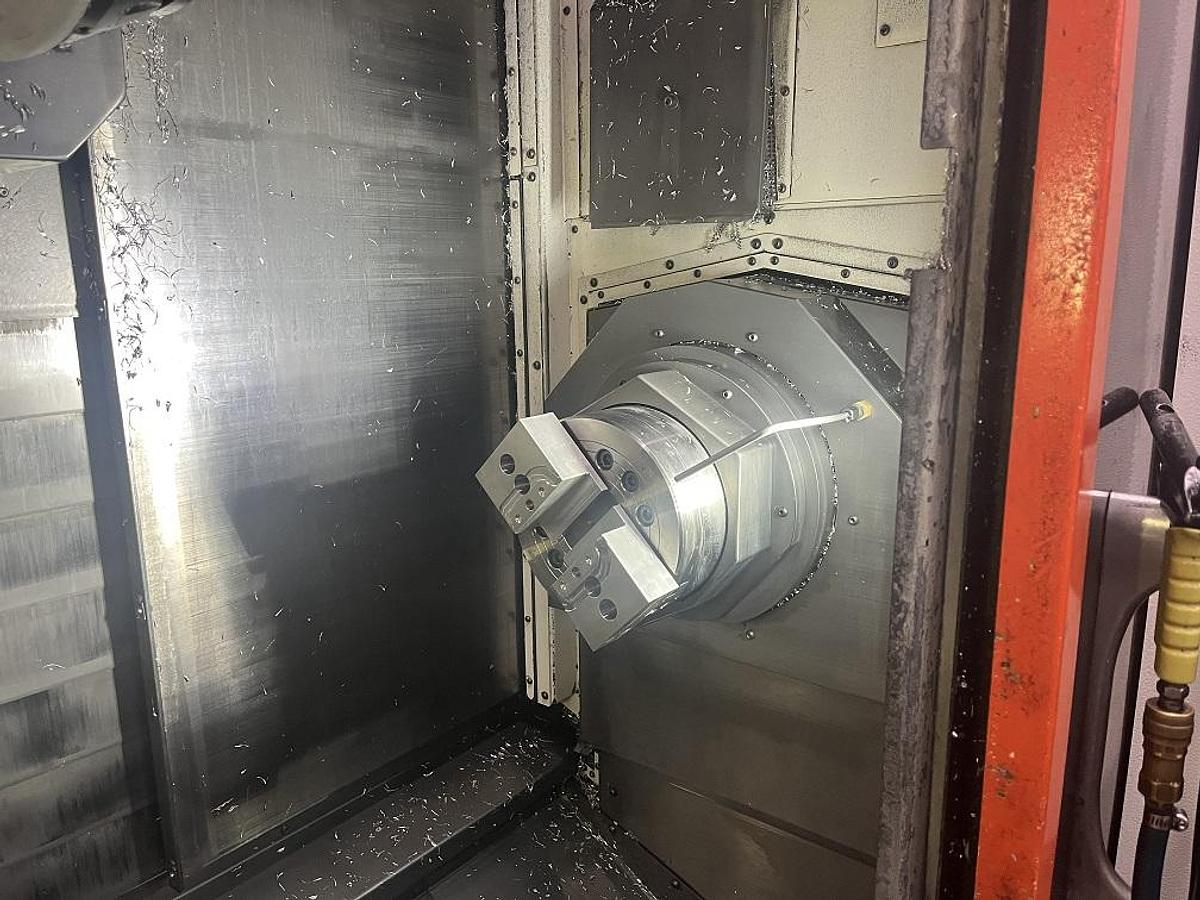

8" Hydraulic Chucks Subspindle
213 PSI Coolant thru the Spindle
Work Measuring System
RMP 60 Probe
Hobbing Function W/O Tooling
Tool Tip Point Control
Simultaneous 5-Axis
Tool Radius Compensation 5-Axis
EIA Dynamic Compensation
Mazac 3D High Speed Software Package
High Smoothing Control
Y Axis Capable
Full C Axis Spindle

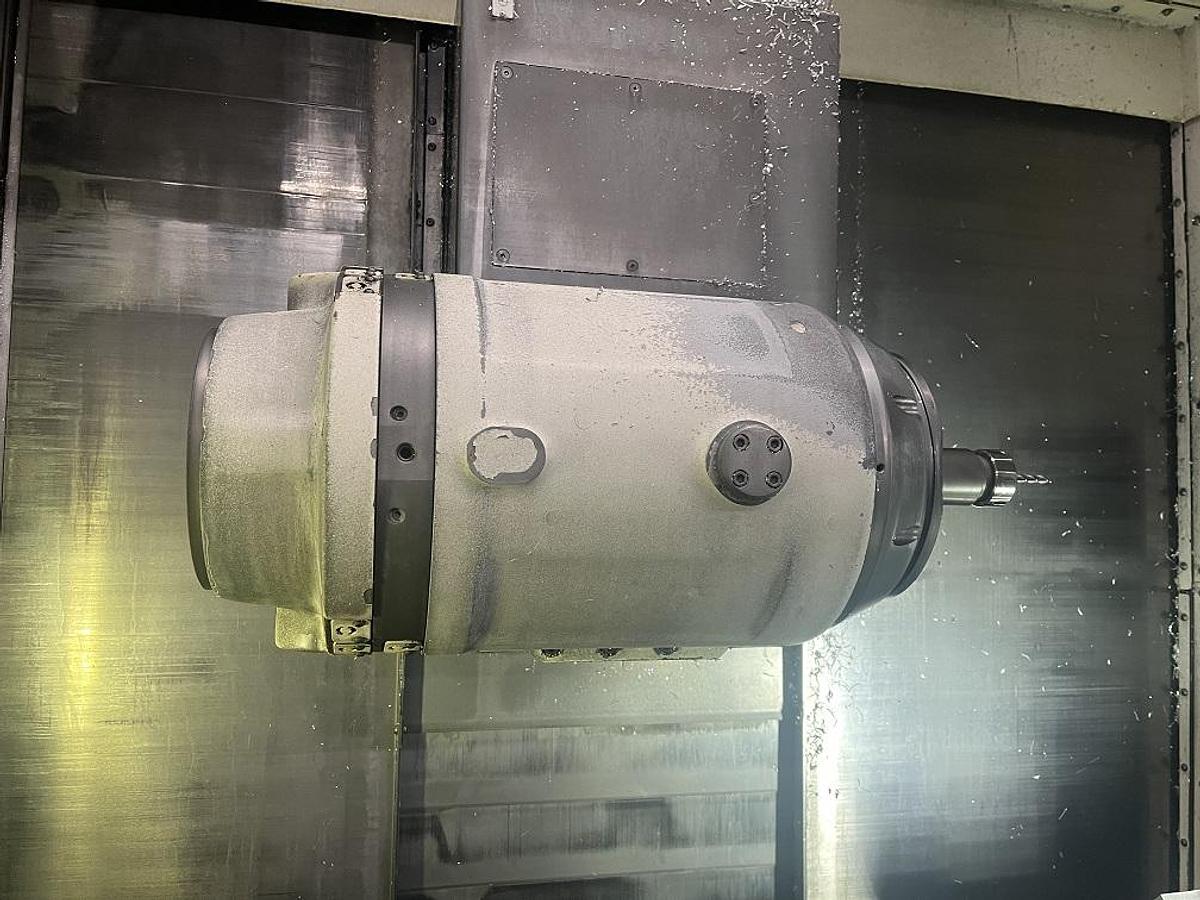

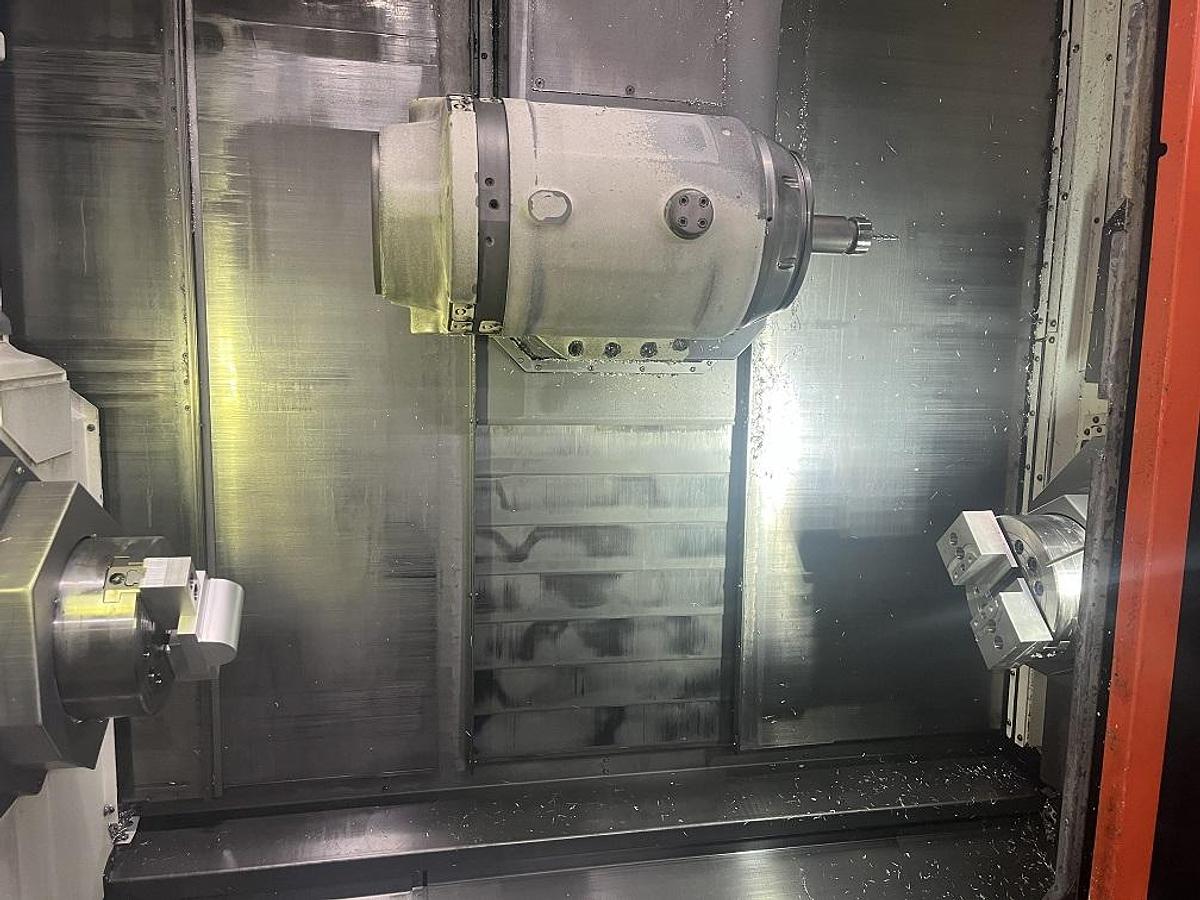

Indexing Pendulum Type B Axis Head
1 Degree Index on B Axis
3.5" Floppy Disk Drive
RS 232 Port Interface
Chip Conveyor
Tool Eye
EIA/ISO Input Function
All Available Tooling
All Available Manuals
.
Specifications
| Manufacturer | Mazak |
| Model | Integrex i-200S Mazatrol Matrix Nexus 2 |
| Year | 2012 |
| Condition | Used |
| Stock Number | 120951 |
| Chuck size | (2) 8" Hyd Chks |
| Maximum swing | 25.91" |
| Maximum cutting diameter | 25.91" |
| Maximum cutting length | 39.8" |
| X-axis travel | 24.21 |
| Y-axis travel | 10.24" |
| Z-axis travel | 42.4" |
| C-axis spindle index | 0.001 Deg |
| B-axis travel | 210 Degrees -30 Degrees |
| Spindle nose / spindle bore | A2-6"/2.99" Both Spindles |
| Main & Subspindle Speeds | 5,000 RPM / 5,000 RPM |
| Spindle motor | 30 HP |
| Subspindle Motor | 25 HP |
| Rotary tool spindle speed | 12,000 RPM |
| Rotary tool spindle hp | 30 HP |
| Magazine capacity | 36 Capto C6 ATC |
| Maximum tool diameter/length/weight | 3.54"/8.27"/11lbs. |
| Rapid Traverse Rates X / Y / Z | 1,968 IPM / 1,574 IPM / 1,968 IPM |
| Machine dimensions | 118" x 96" |
| Machine Weight | 28,820 lbs |
