2001 Niigata MPN80 HMC with (2) 32" Plts, 12,000 RPM, 50 Taper, Full 4th Axis Table, Coolant Thru Spindle, 60 ATC

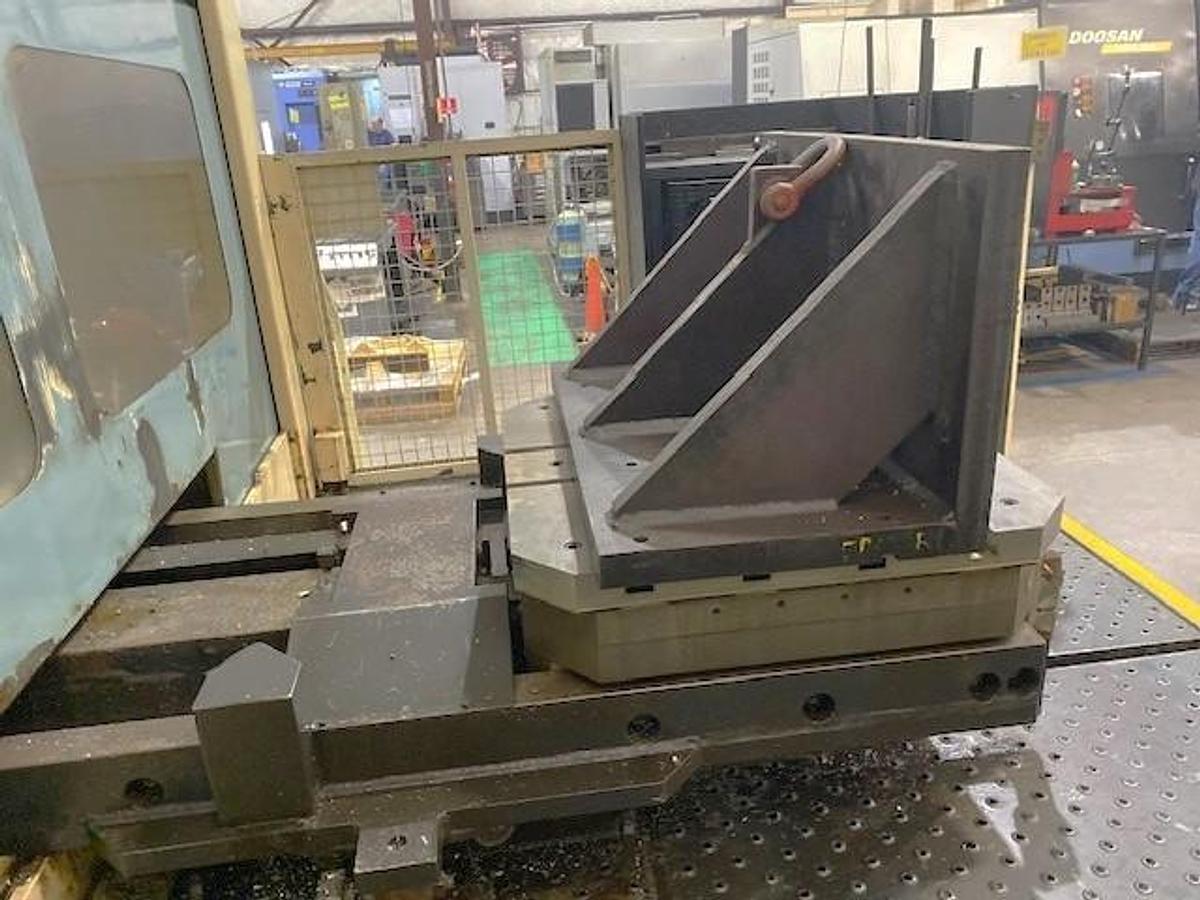

(2) Pallet Changer with 32" Square Pallets

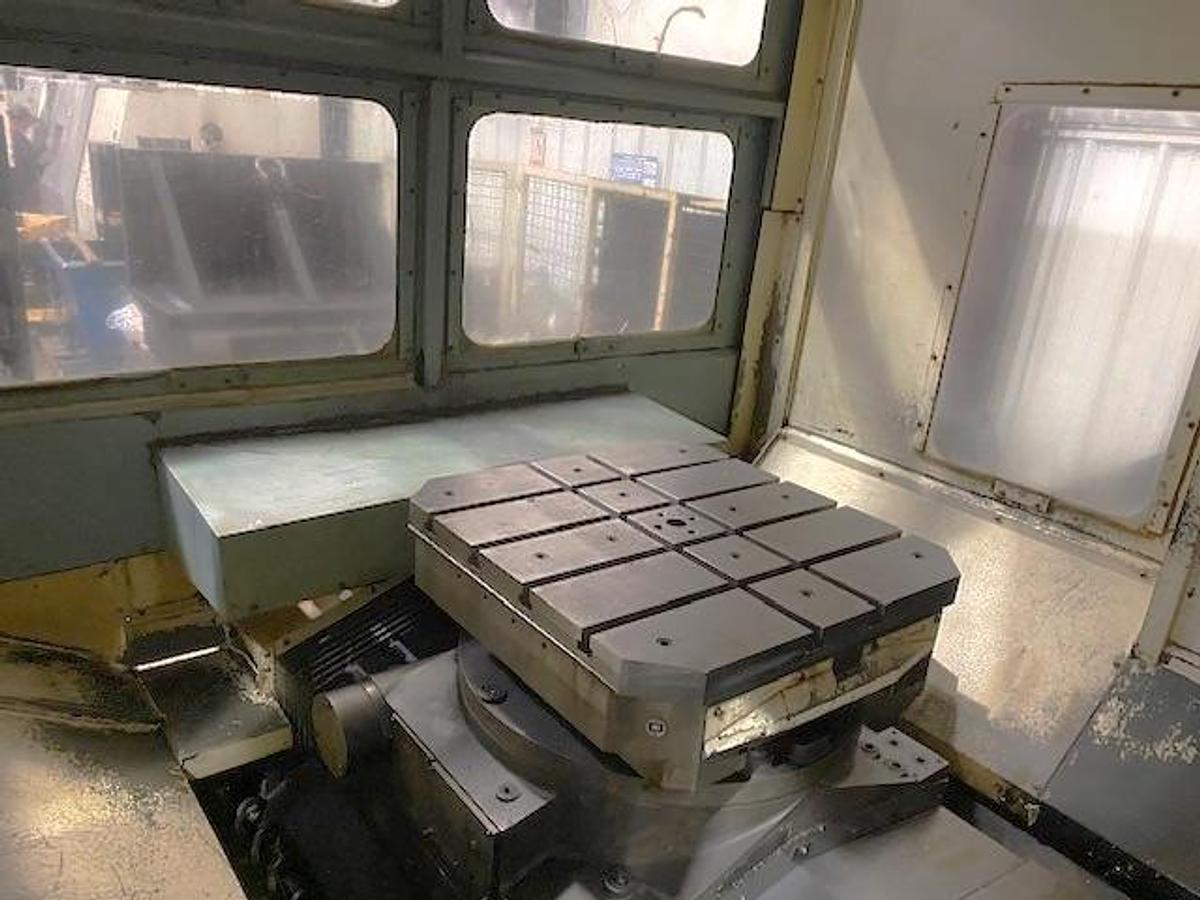

Full 4th Axis Rotary Table

Coolant Thru the Spindle

60 Station Tool Changer

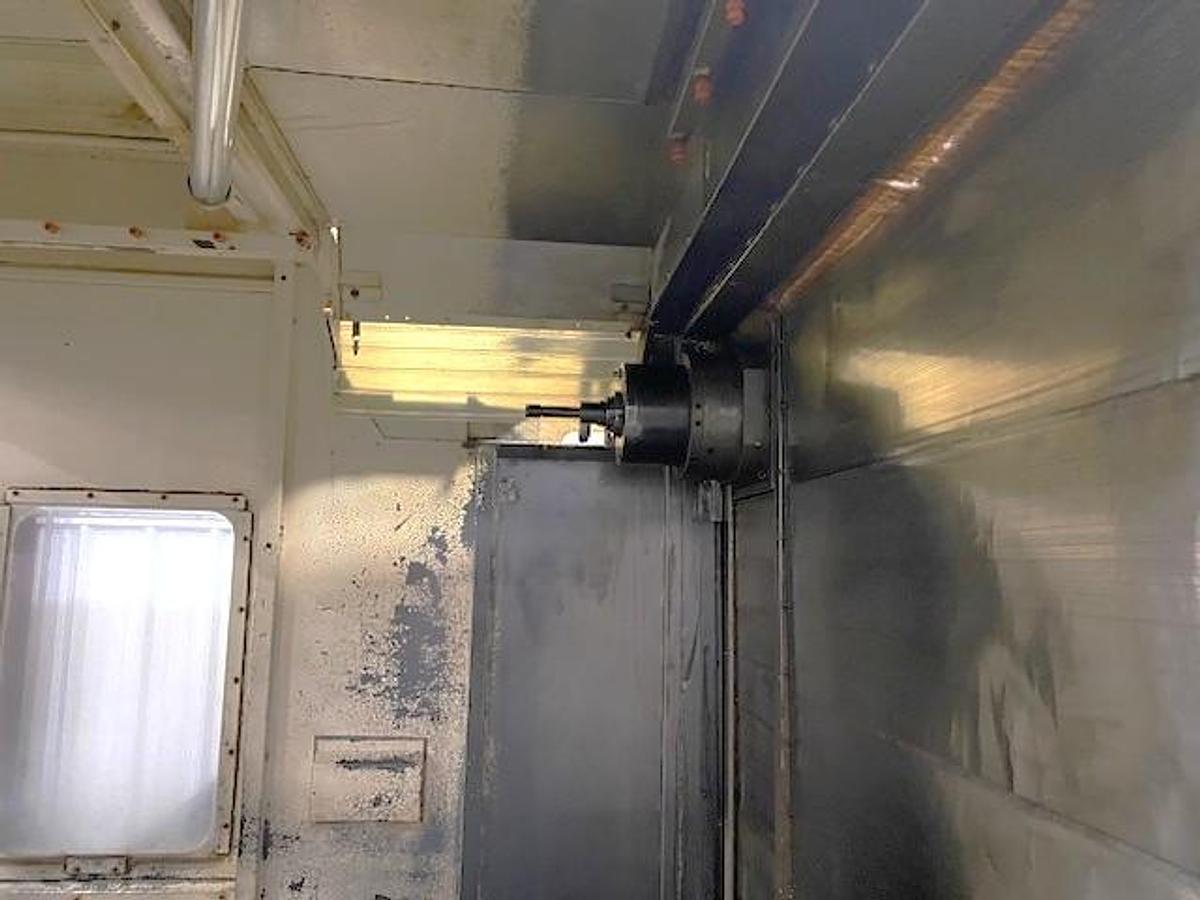

12,000 RPM Spindle

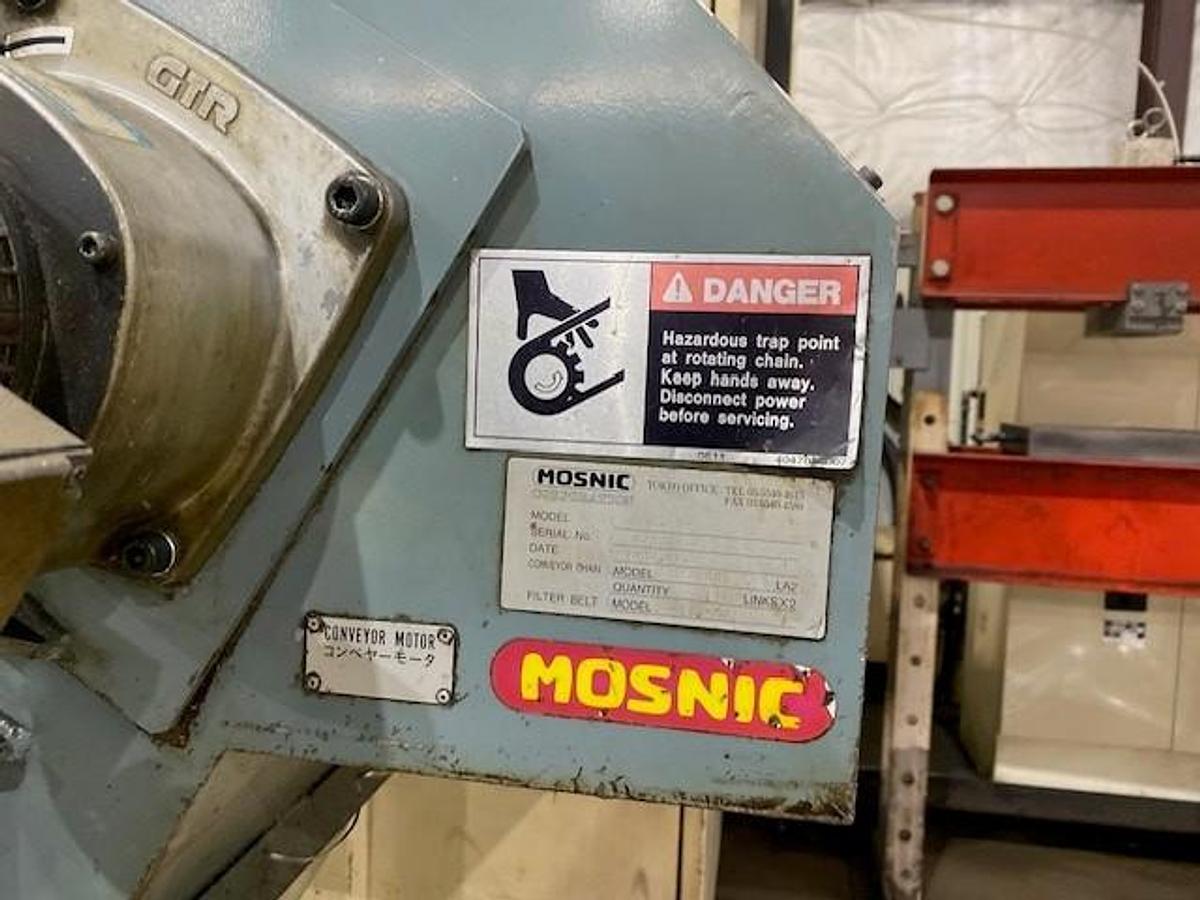

Chip Conveyor

Flood Coolant

Overhead Shower Coolant

Remote Jog Handle

Helical Interpolation

Rigid Tapping

Coolant System with Tank & Pump

RS 232 Port Interface

All Available Manuals

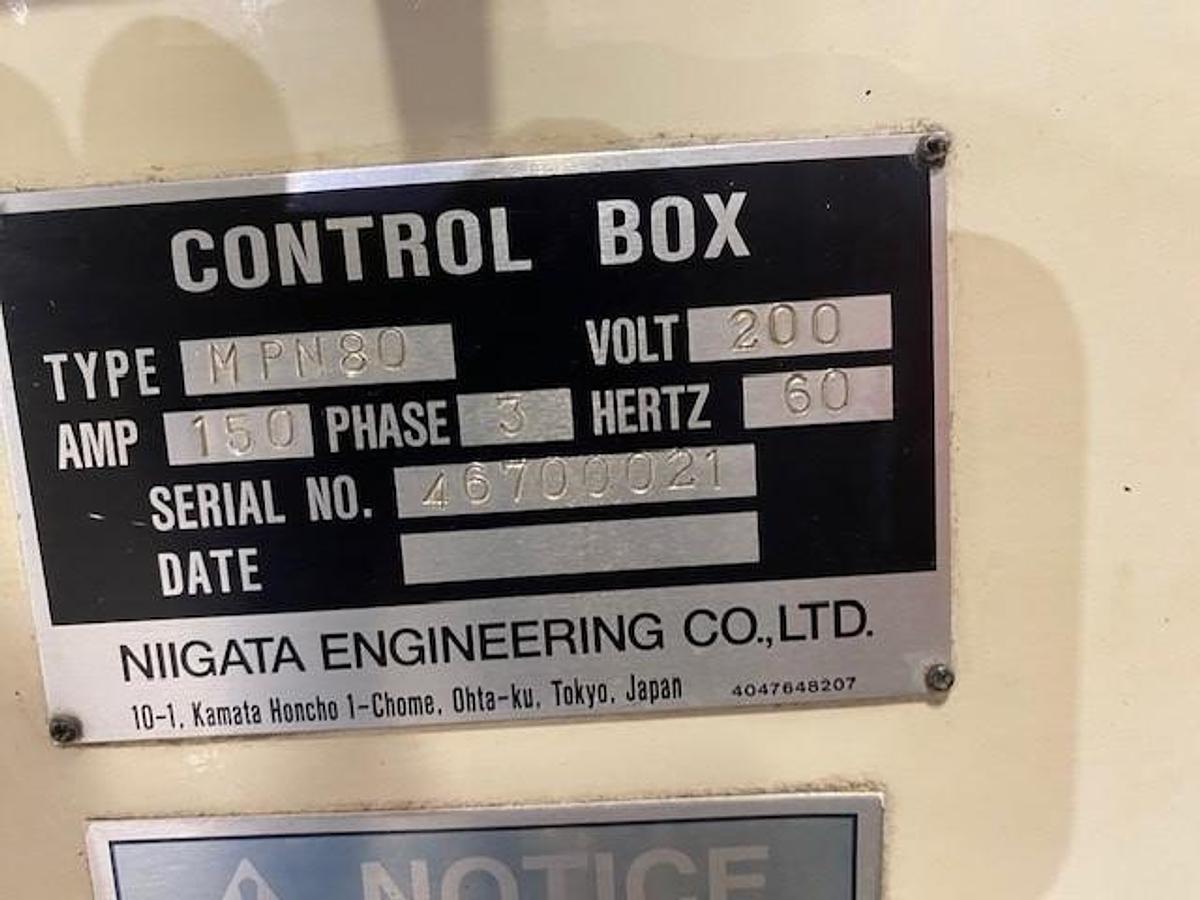

Wired 200V Electrics

The 2001 Niigata MPN80 HMC is a highly efficient, used CNC horizontal machining center, recognized for its robust capabilities. Featuring two 31.5"x31.5" pallets and a 12,000 RPM spindle with #50 taper, this machine is designed for high productivity. It also includes a full 4th axis table for versatile operation and coolant through spindle functionality to enhance machining precision and extend tool life. Controlled by a Fanuc 16i-M CNC system, this machine offers extensive travel capacities of 55.5" in the X-axis, 44" in the Y-axis, and 48" in the Z-axis, accommodating a range of workpieces with a maximum table load of 4,400 lbs. Its rapid traverse rate of 1,575 IPM ensures quick positioning, and the 60 HP spindle motor provides substantial power for various materials and applications. Additionally, the machine is equipped with a 60-station tool changer, supporting a maximum tool diameter of 9.45", a tool length of up to 24", and a weight limit of 66 lbs per tool. With a substantial machine weight of 48,700 lbs, this machining center promises stability and precision, making it an excellent choice for demanding industrial tasks.
