2000 Anayak HVM-T-11000 3 + 2 Axis Bed Mill with B Axis Head with 2.5 Deg Increment, 40 HP, 3000 RPM, Heidenhain Control

3 + 2 Automatic Indexing Universal Head

Bira Spindle Head

Chip Conveyor

Magnetic Fixture Holder

RS 232 Port Interface

All Available Manuals

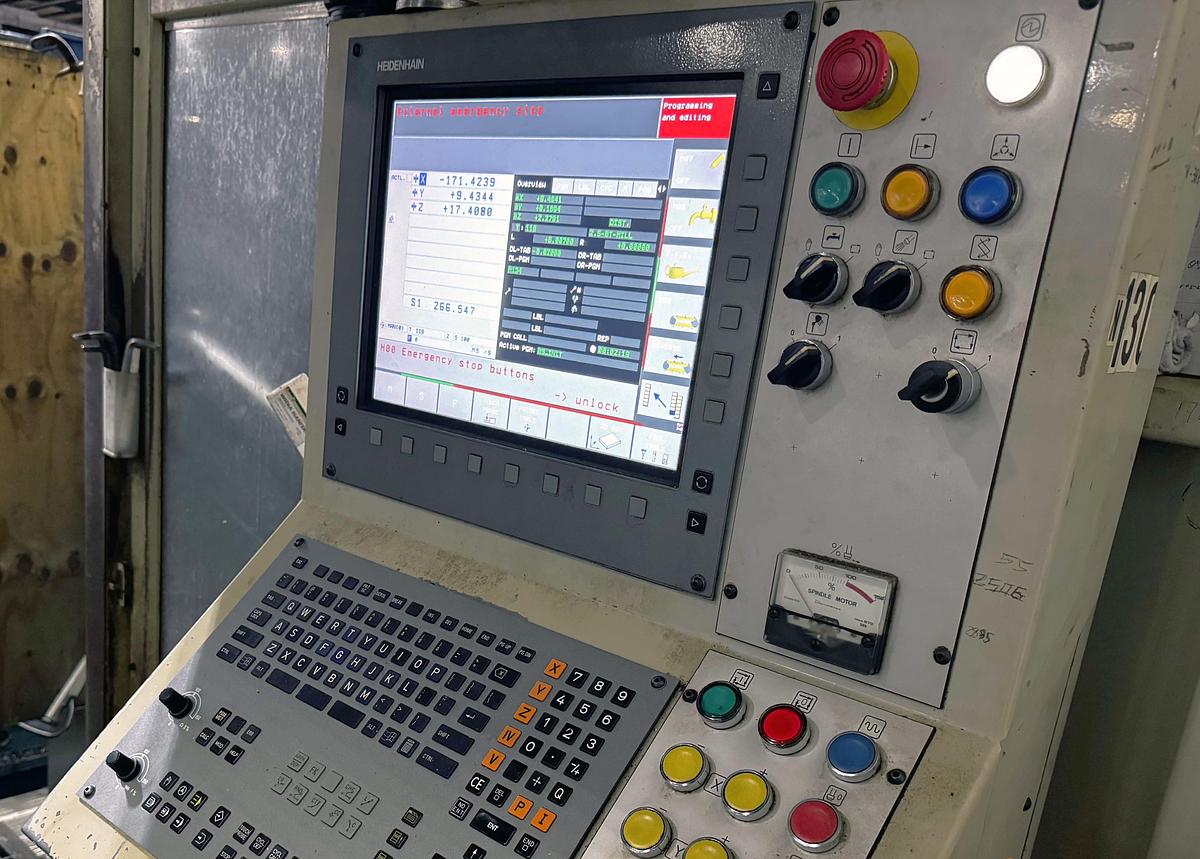

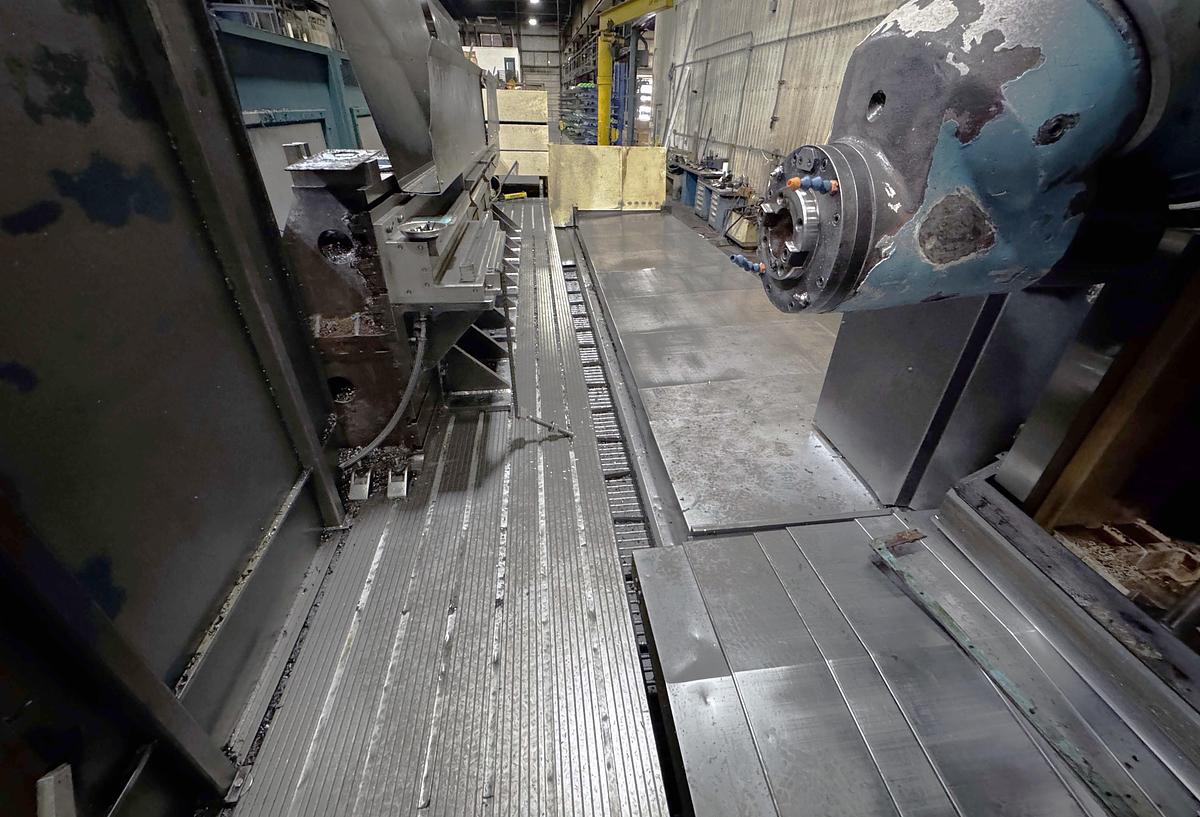

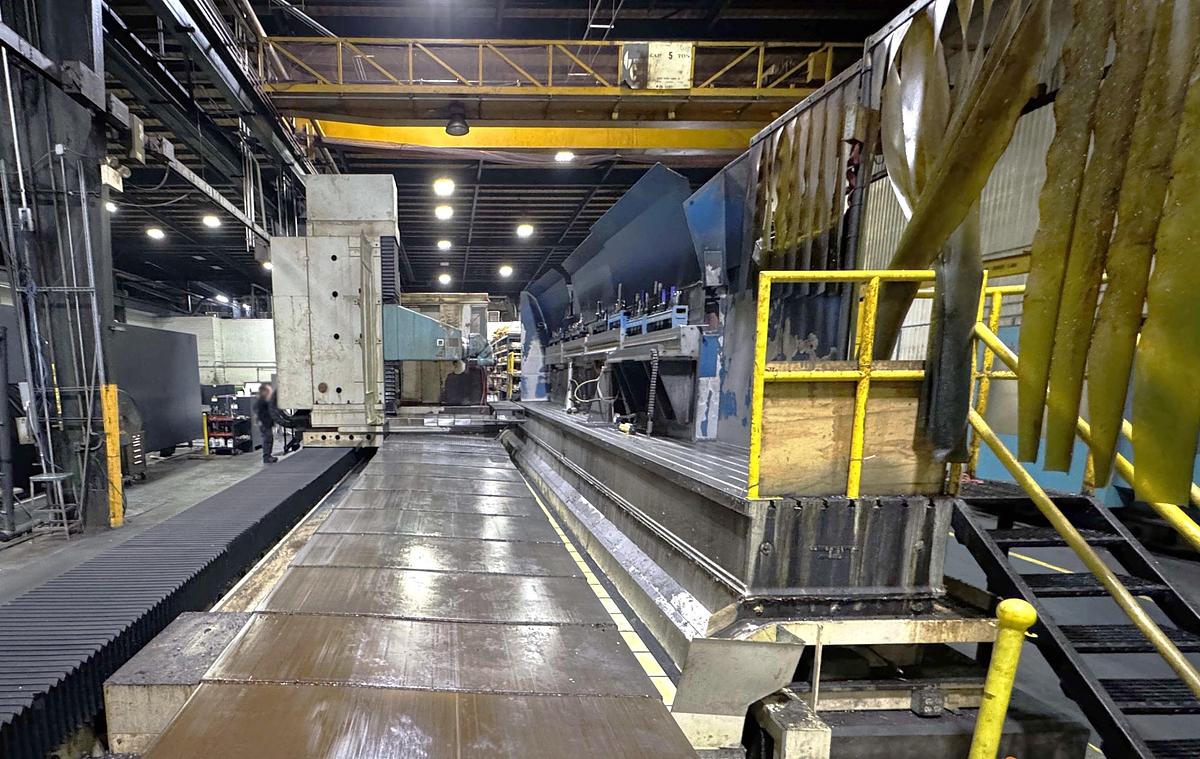

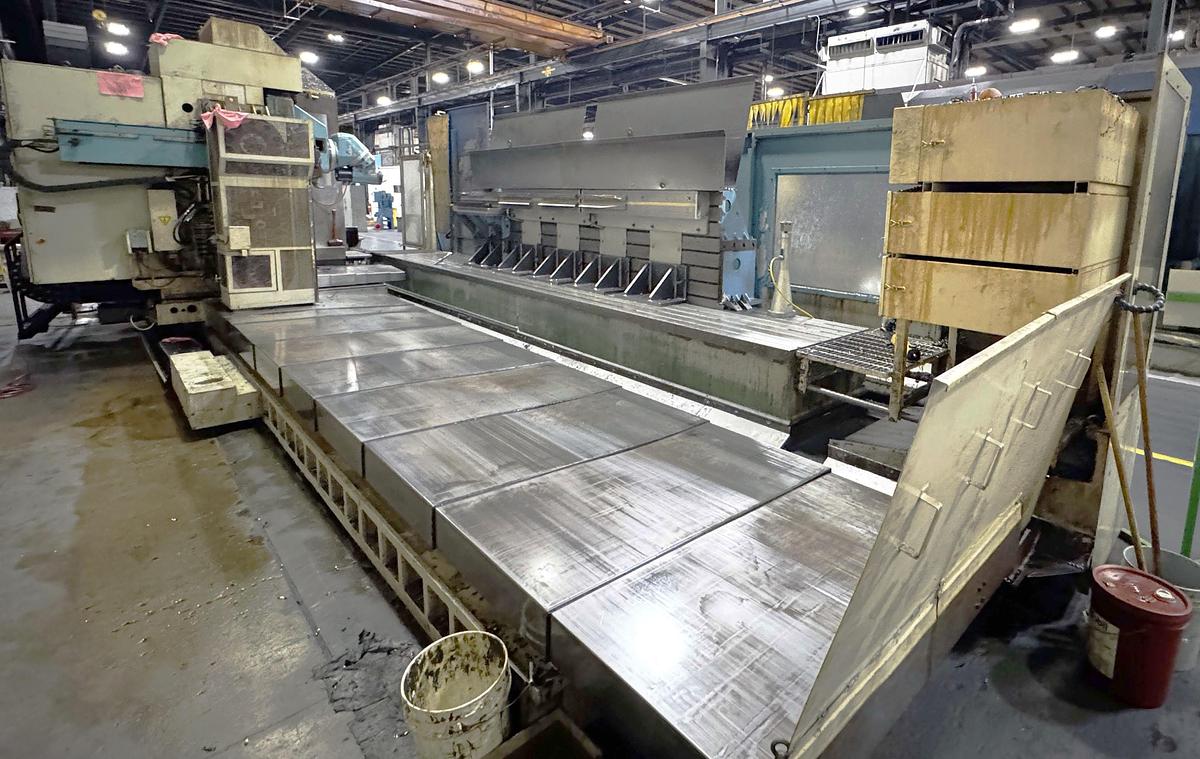

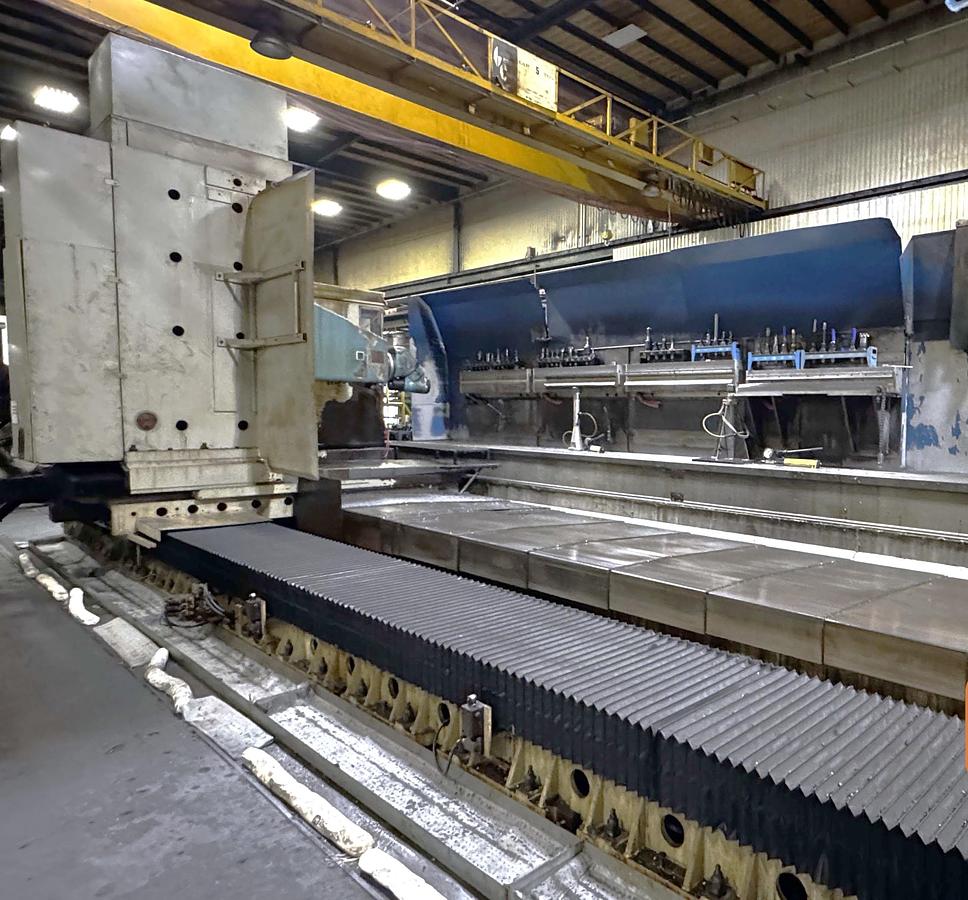

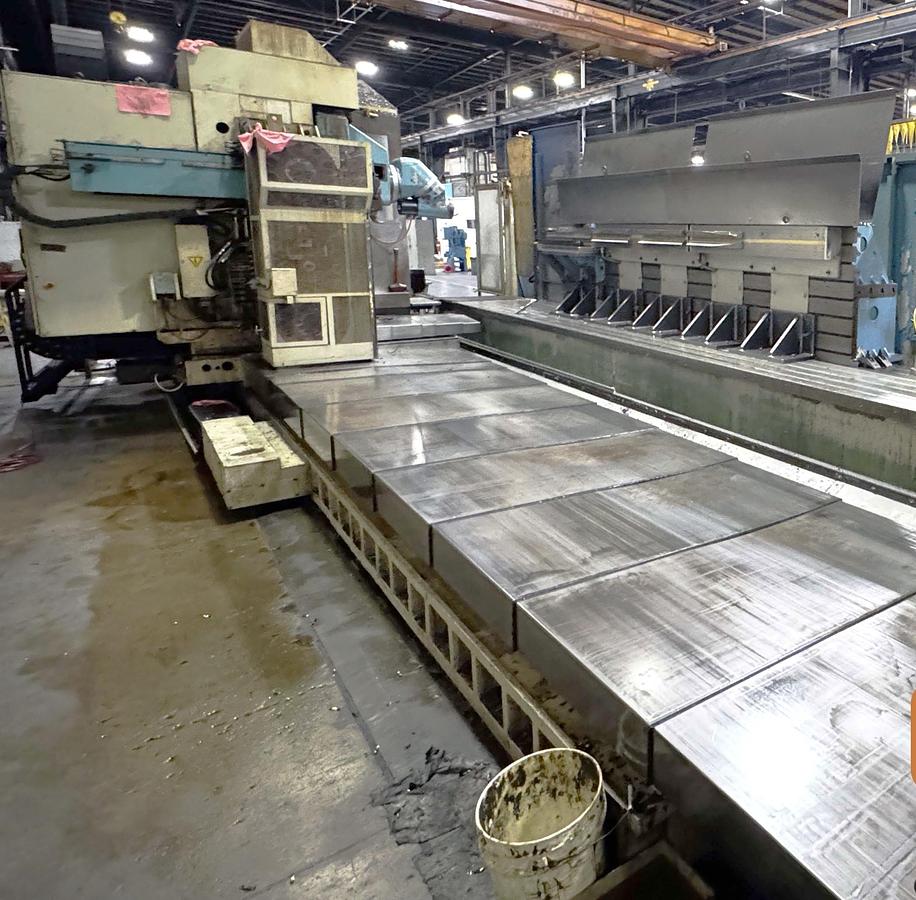

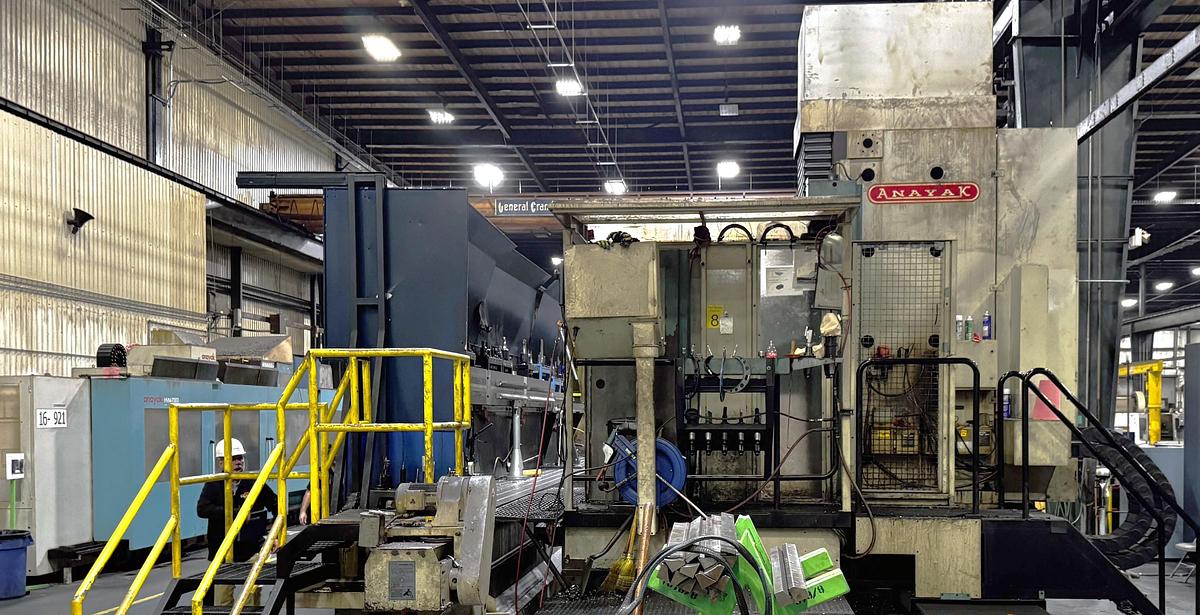

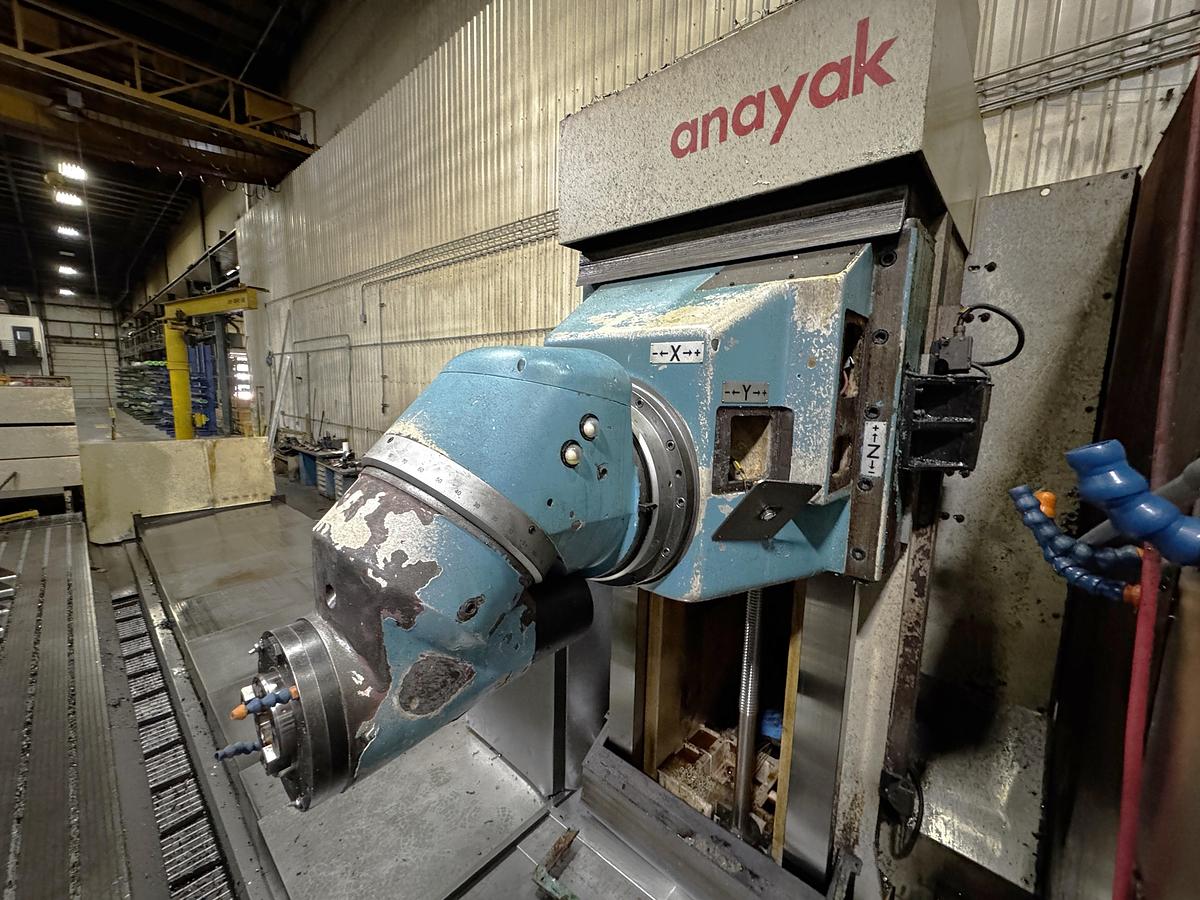

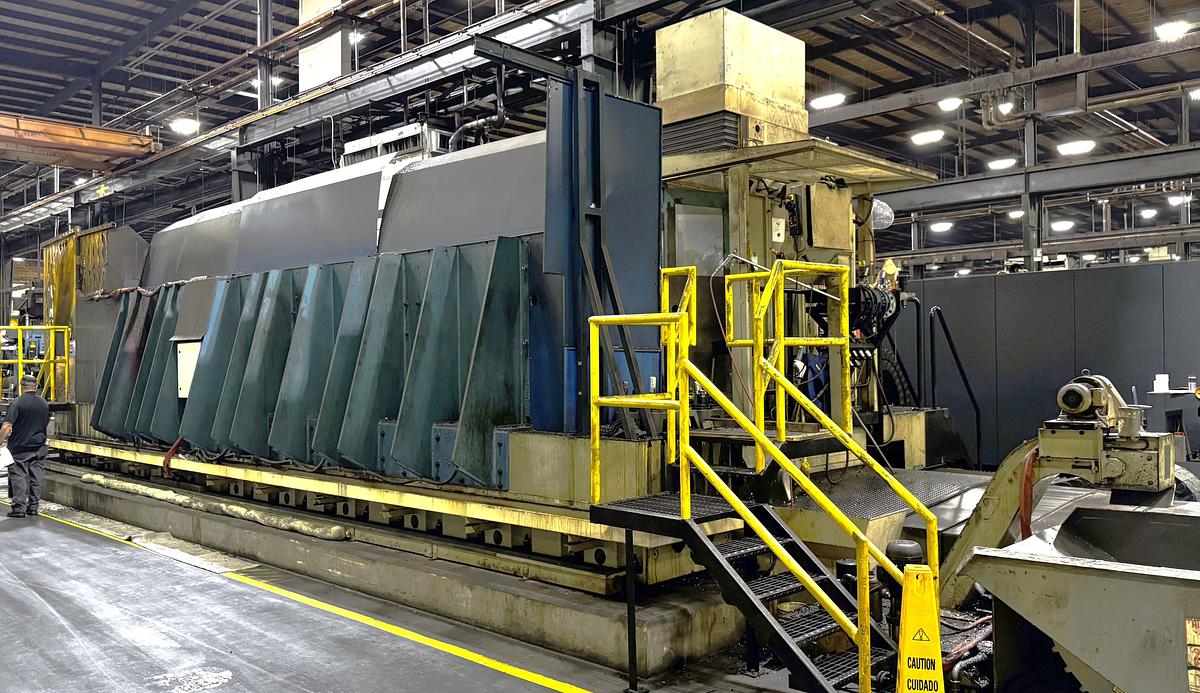

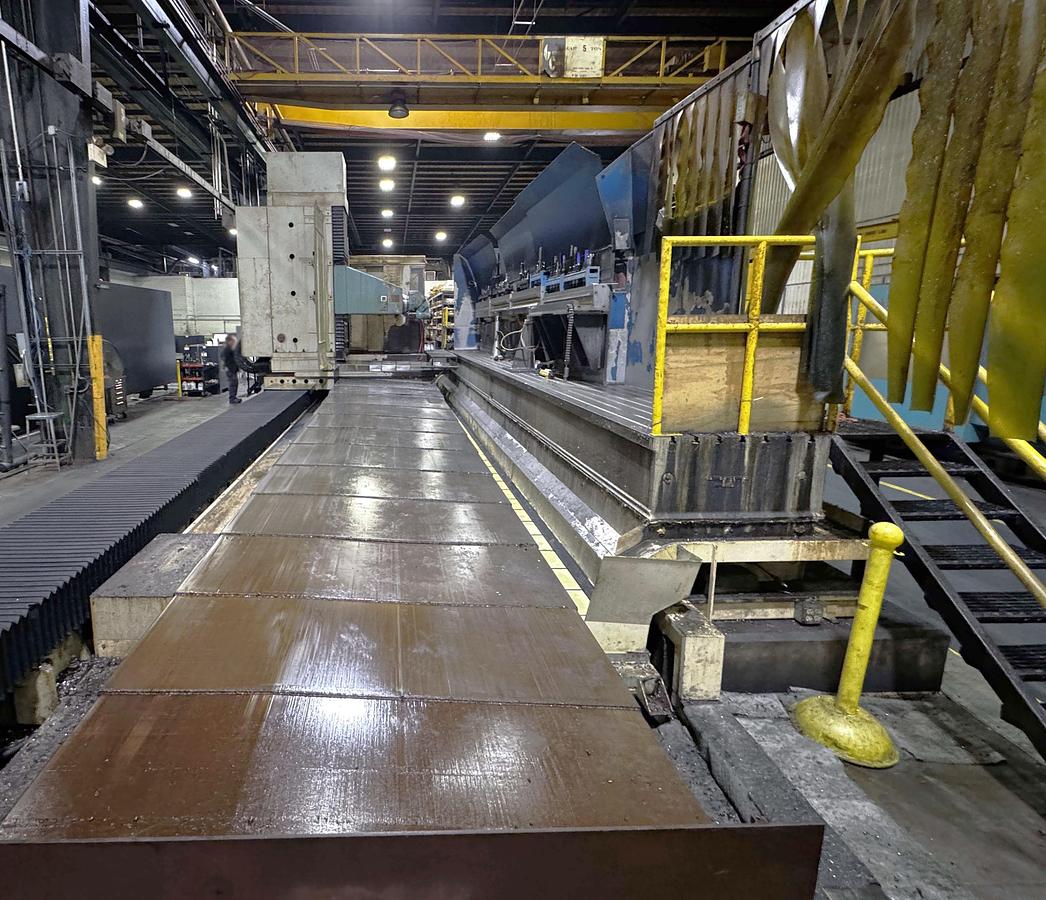

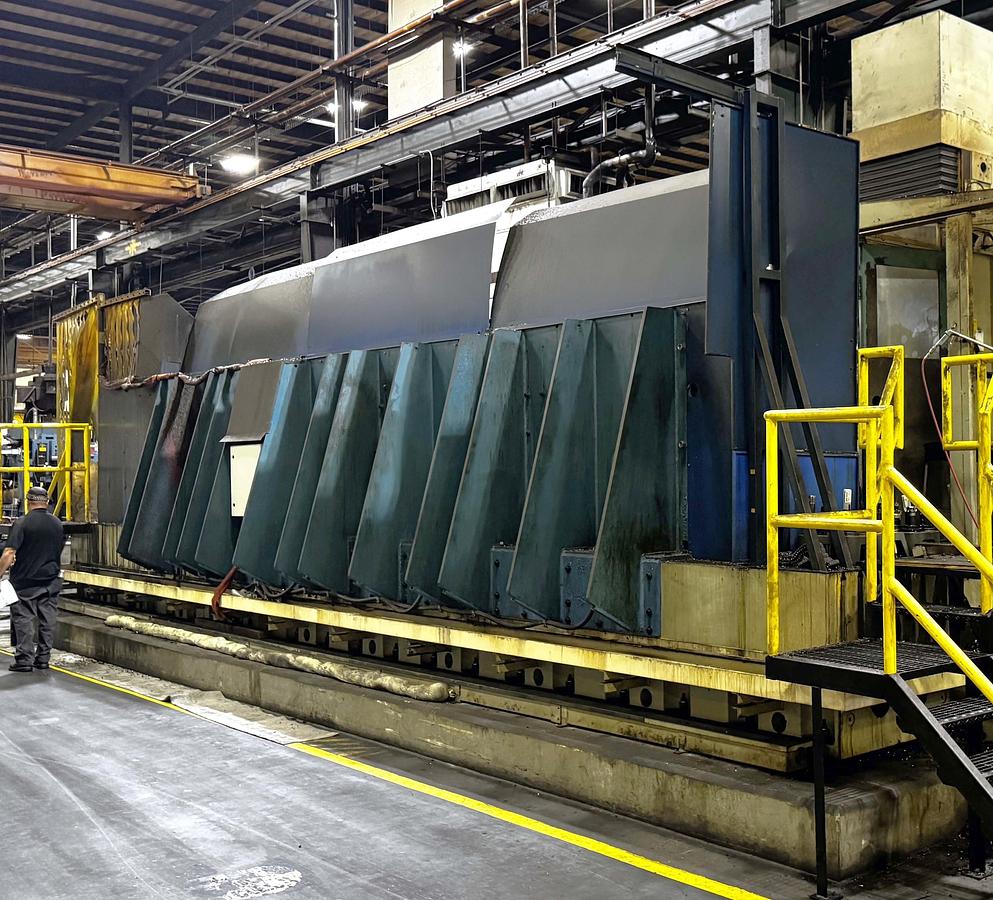

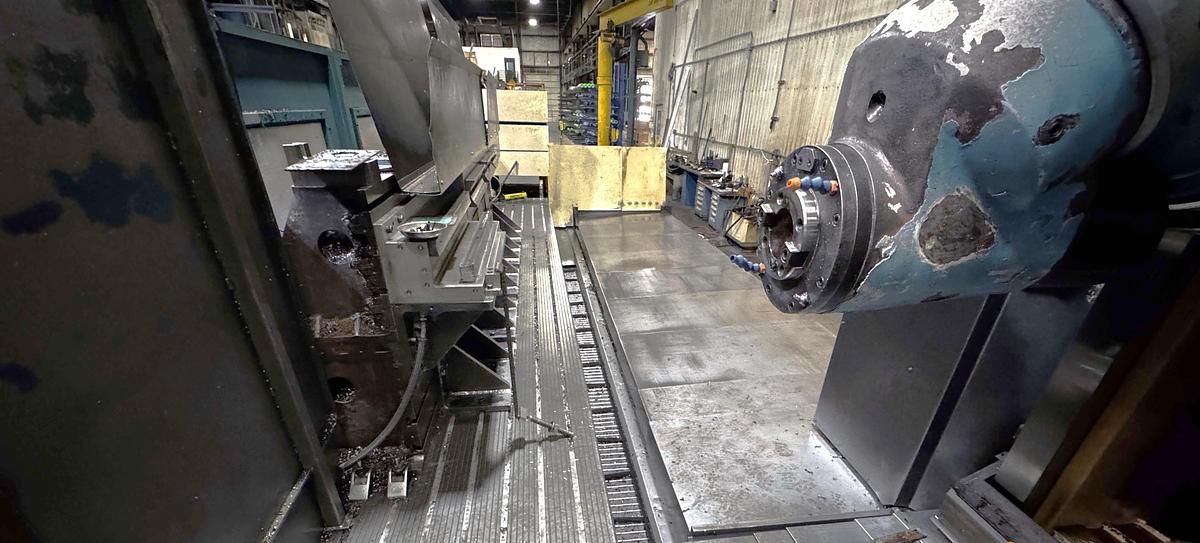

The 2000 Anayak HVM-T-11000 is a versatile and robust 3+2 axis bed mill designed for heavy-duty machining tasks. This used model features a Heidenhain TNC430 control system, ensuring precision and ease of operation. Its table size measures an expansive 472 inches by 65 inches, capable of supporting a maximum load of up to 110,000 lbs., making it ideal for large and heavy workpieces. The machine offers extensive travel capabilities with 406 inches on the X-axis, 78.8 inches on the Y-axis, and 59.06 inches on the Z-axis. The B-axis head provides rotation up to 180 degrees with 2.5-degree incremental movement, while the C-axis offers continuous 360-degree rotation. Equipped with a powerful 40 HP spindle motor, it operates within a speed range of 60 to 3,000 RPM and features a 5-inch diameter spindle with an ISO 50 taper. Overall, the Anayak HVM-T-11000 stands out with its formidable size and capabilities, marked by its significant machine dimensions of 837 inches in length, 197 inches in width, and 192 inches in height, and weighing 143,000 lbs. This makes it a formidable presence in any industrial setup, offering both precision and strength for complex machining applications.
