2020 Brother Speedio S700X1, 27,000 rpm Spindle

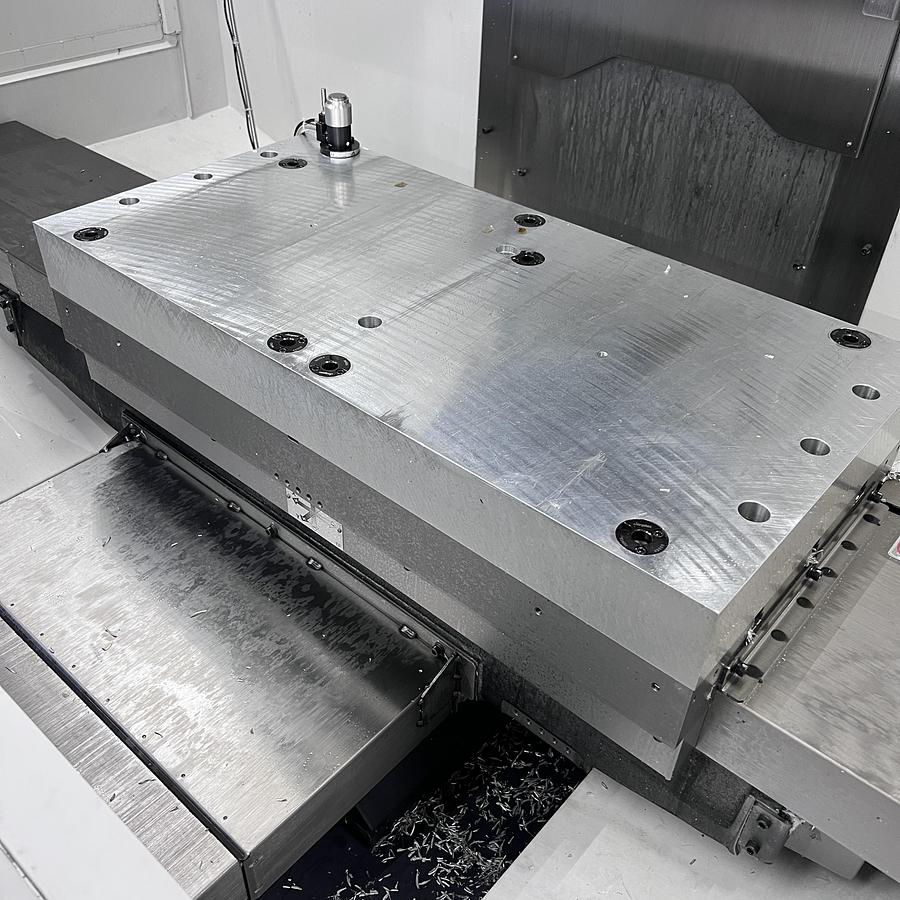

Metrol TM26D-01 Tool Setter w/60mm Riser

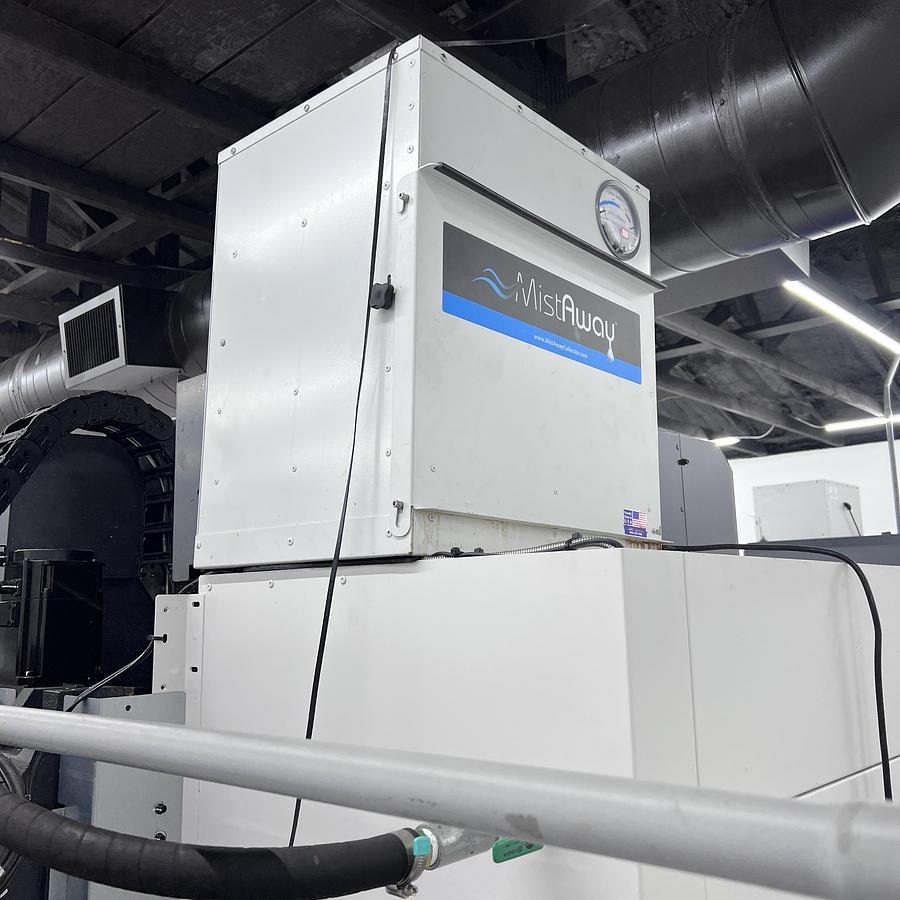

Mistaway MA700C Coolant Mist Collector

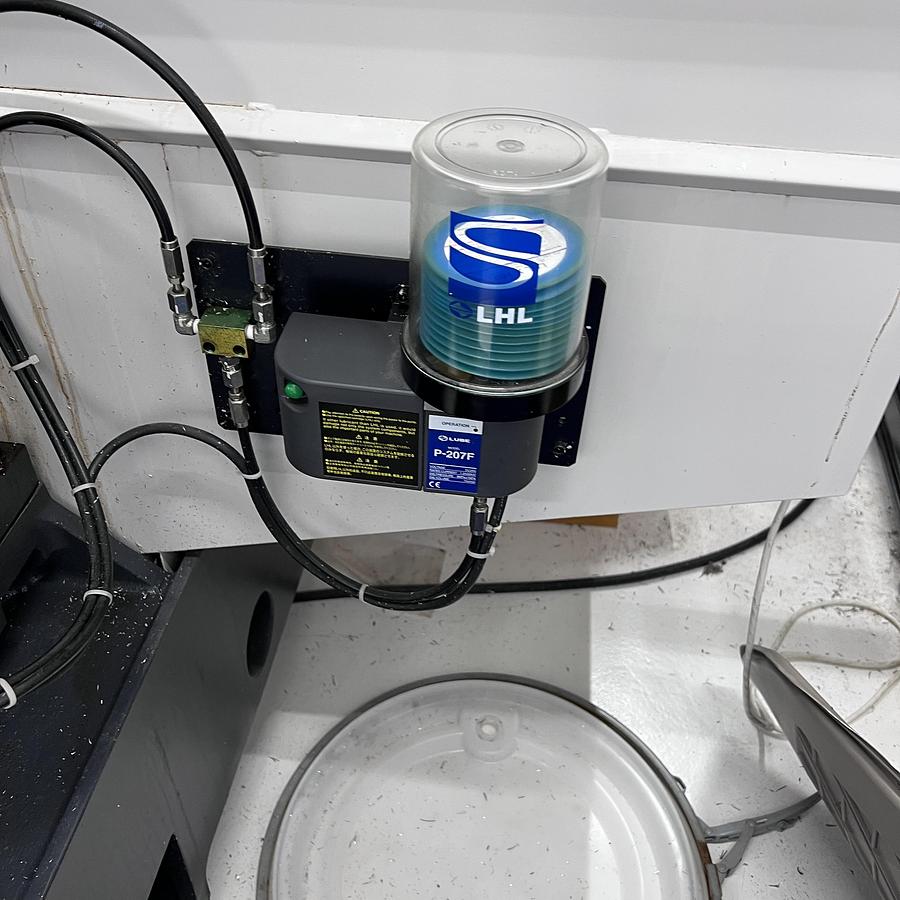

Auto Grease Lubrication System

Spindle Air Blast

27,000 RPM Spindle

Remote Jog Handle

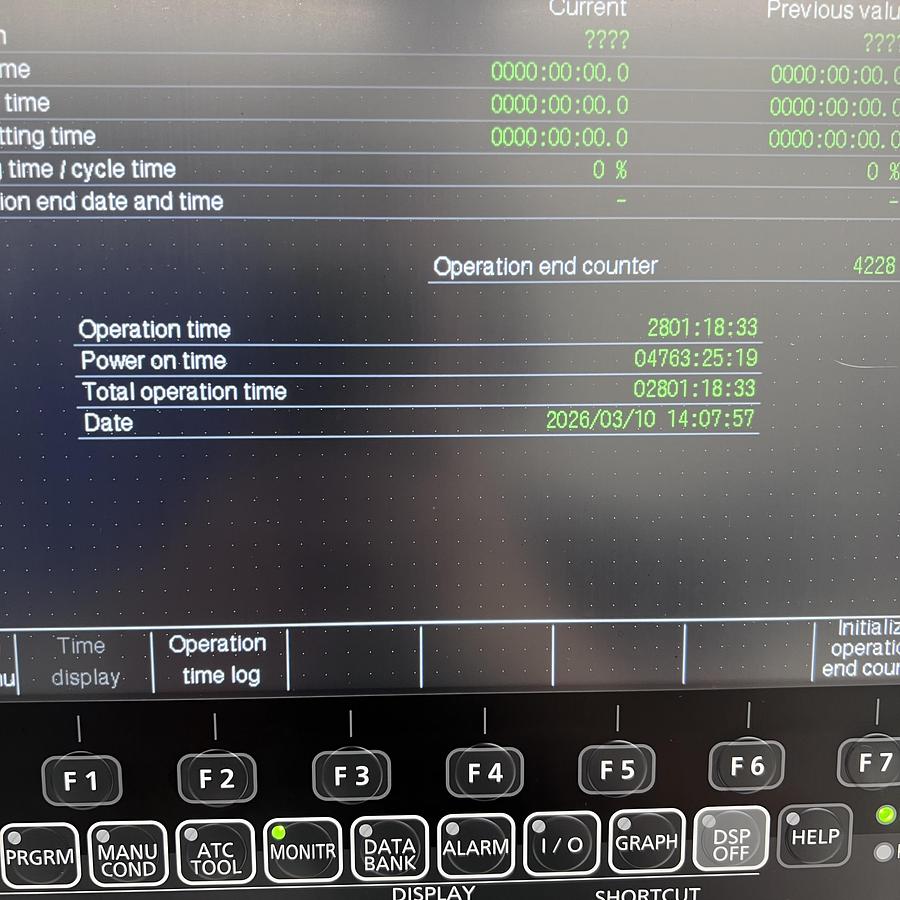

2,800 Run Time Hours

Cut Aluminum and Plastic only

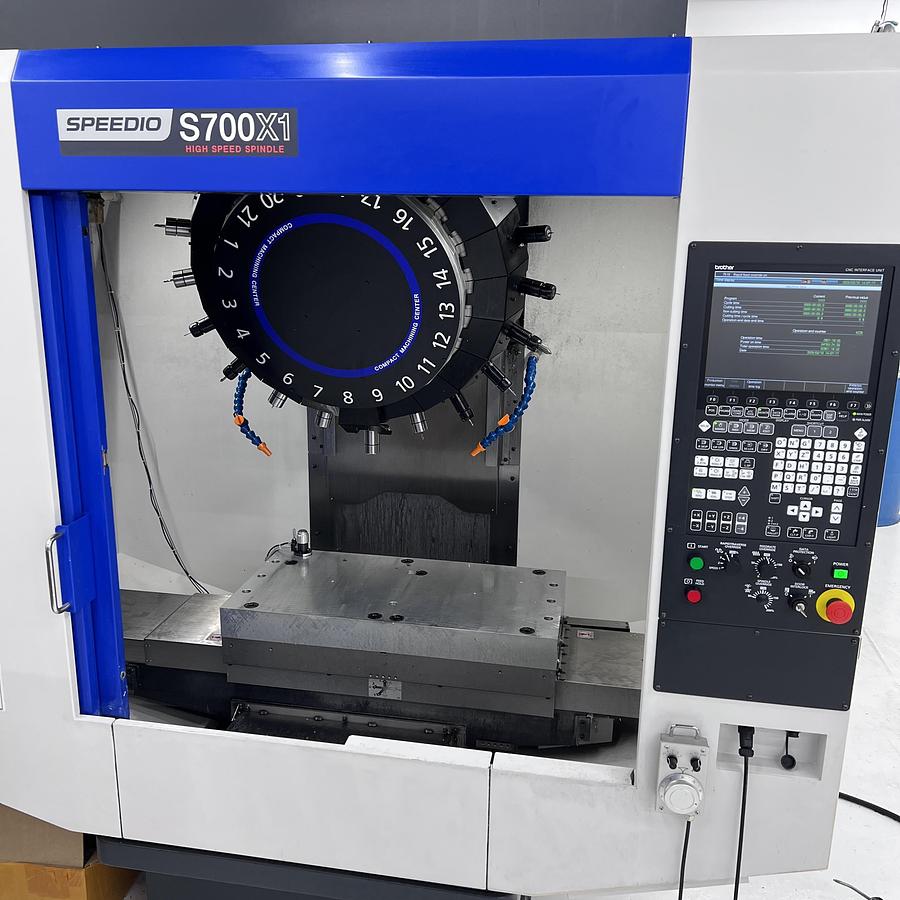

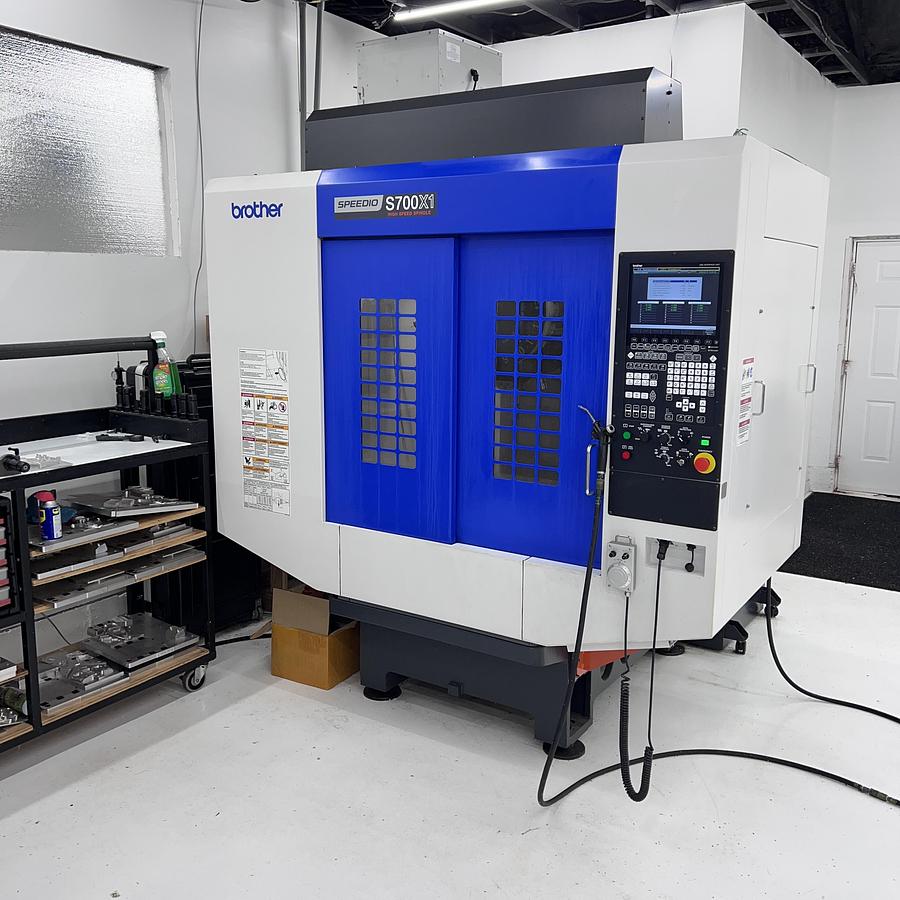

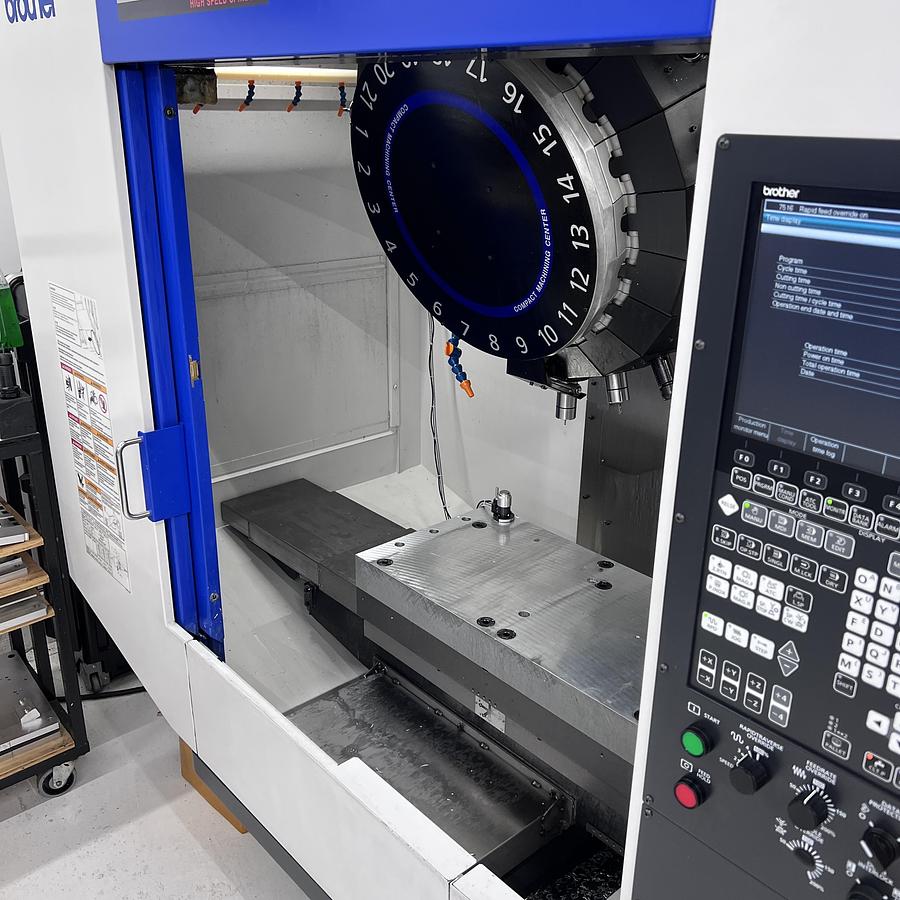

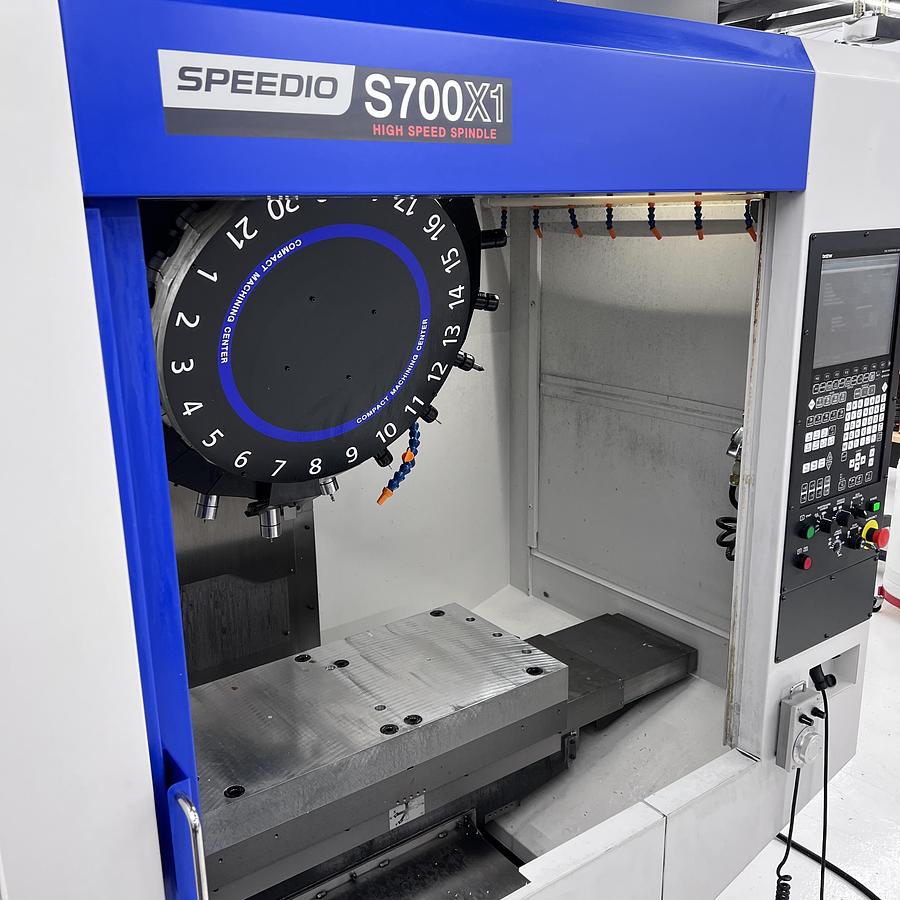

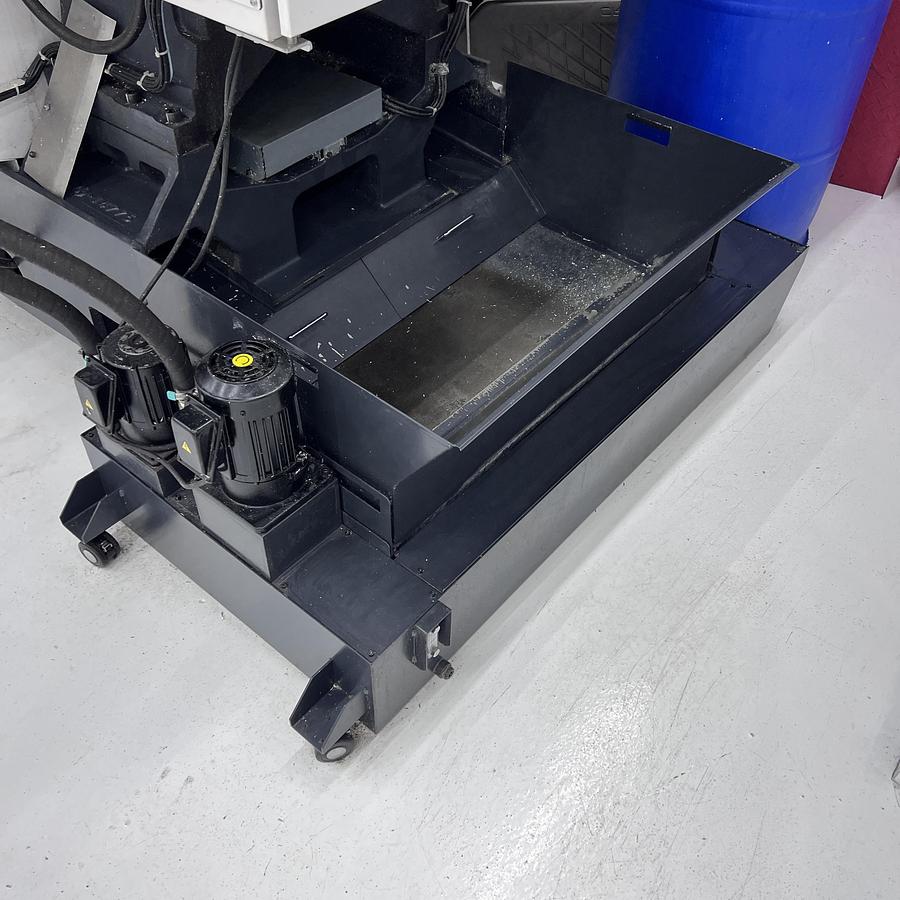

The 2020 Brother Speedio S700X1 is a versatile CNC vertical machining center, primarily built for precision drilling and tapping tasks. This used machine boasts a high-speed 27,000 rpm spindle, making it an ideal choice for high-efficiency operations on aluminum and plastic materials. With 2,800 run time hours, it includes features like a Metrol TM26D-01 tool setter with a 60mm riser, a Mistaway MA700C coolant mist collector, an auto grease lubrication system, and a spindle air blast for enhanced performance. The machine operates under a CNC-C00 control system, with an ample table size of 31.5" x 15.75" and a maximum table load of 300 lbs. It provides a robust machining envelope with X-axis travel of 27.6", Y-axis travel of 15.7", and Z-axis travel of 11.8". The spindle uses a BT30 taper supported by an 11.8/8.4 hp motor, and the tool magazine has the capacity for 21 tools. Accommodating tools up to 4.3" in diameter, 9.8" in length, and 6.6 lbs in weight, it is designed to meet demanding production needs. The machine, featuring a compact footprint with dimensions of 81" x 87" x 98" and weighing 5,300 lbs, includes a remote jog handle for ease of operation. This machine stands out for companies needing speed and reliability, equipped to handle precision tasks with excellent repeatability. It is an efficient solution for modern machining operations.
