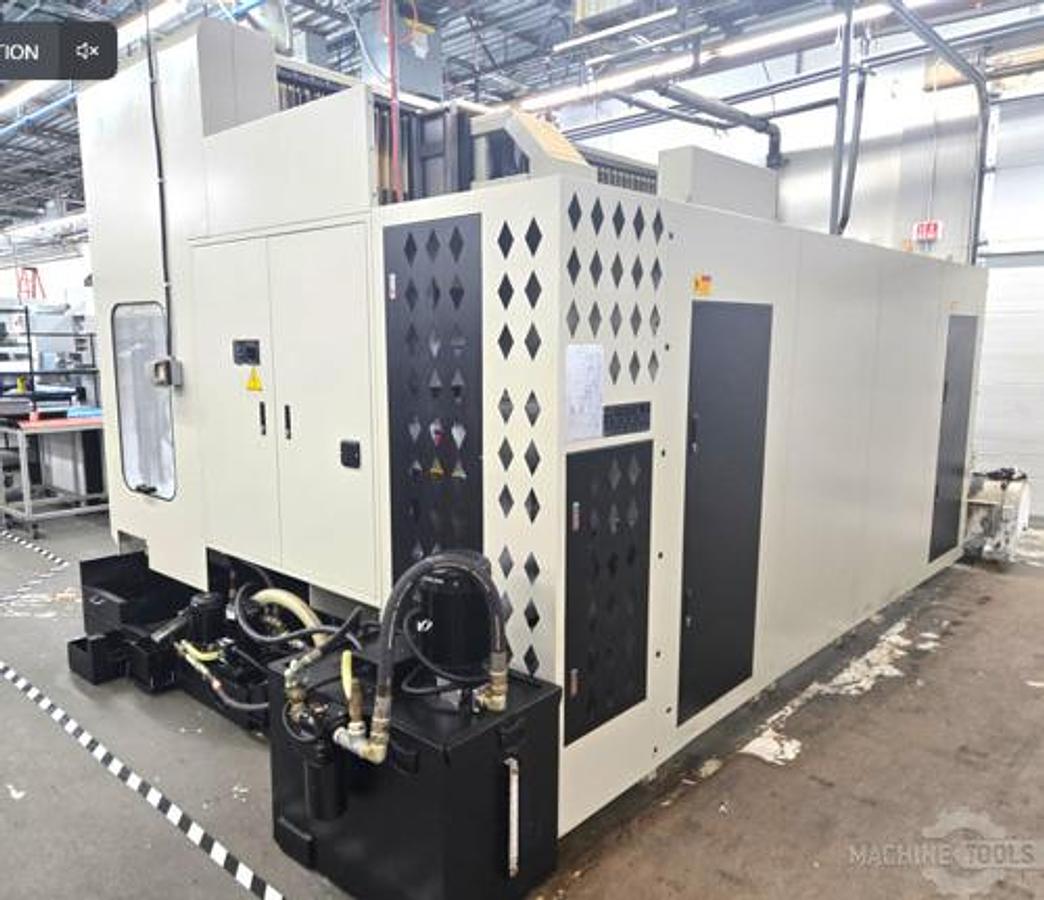

2022 Amera Seiki VTC-5 Vertical Machining Center with Traveling Column, 32 Pos. Side Mount ATC, 86.6" X Axis Travel

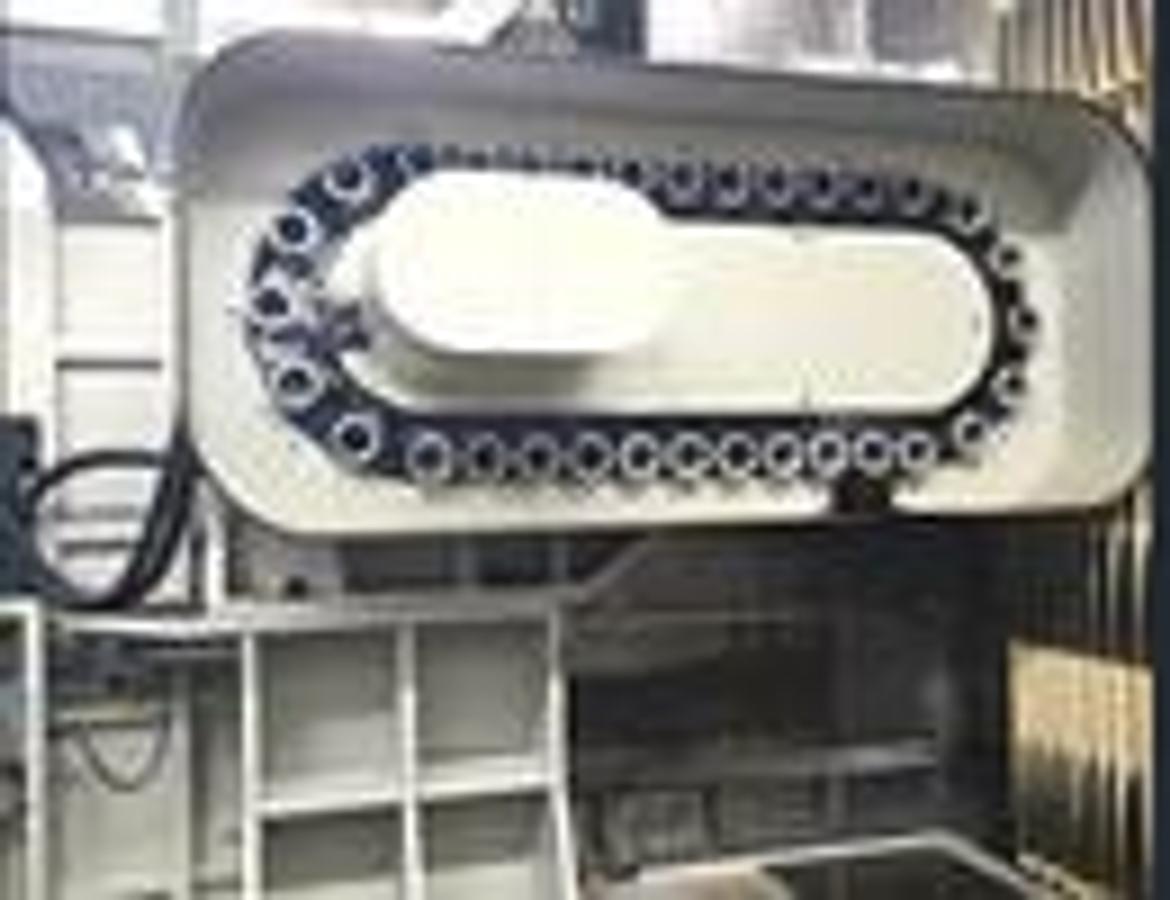

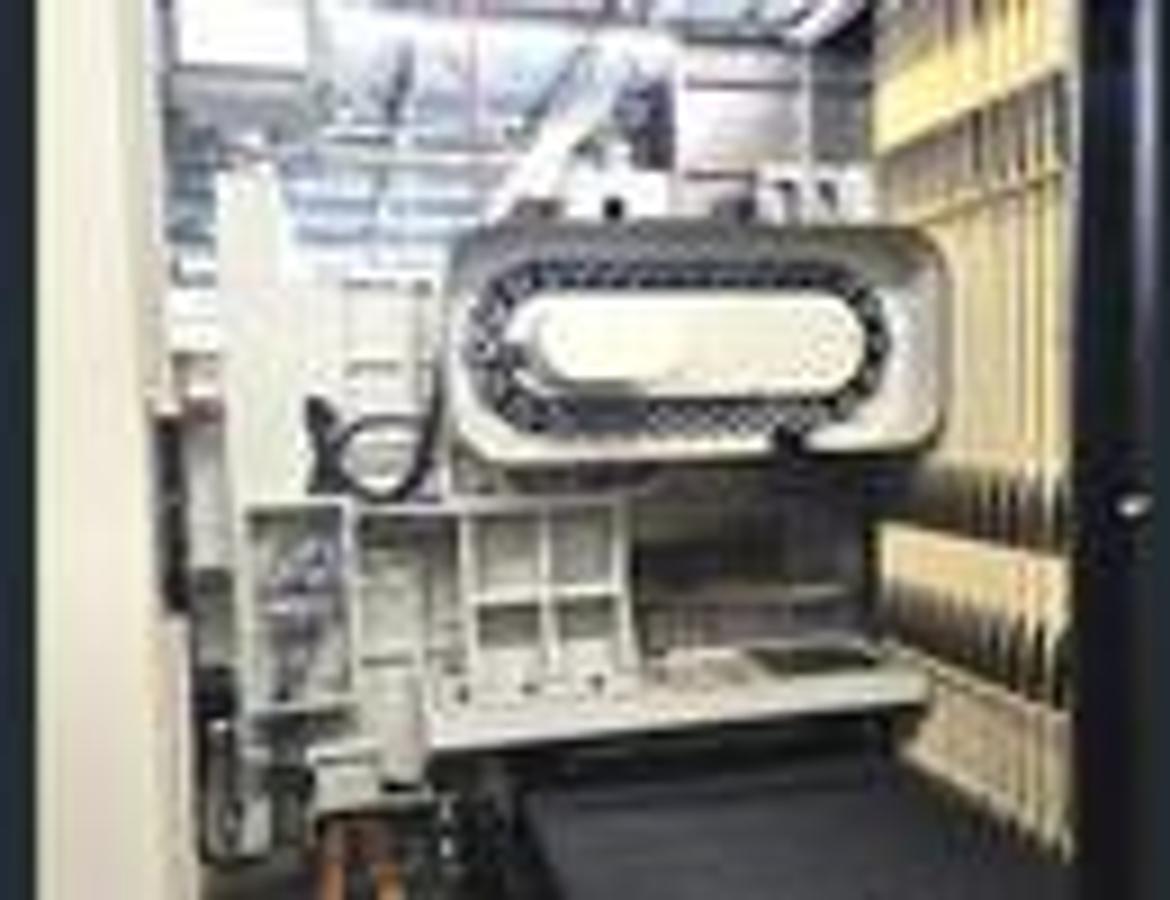

32 Station Side Mounted Tool Changer

10,000 RPM Spindle

Rigid Tapping

Remote Jog Handle

Auger Style Chip Conveyor

Spindle Air Blow

Heat Exchanger for Electrical Cabinet

Flood Coolant

USB Port Interface

RS 232 Port Interface

Traveling Column Design

Chiller Unit

Coolant System with Tank & Pump

Work Light

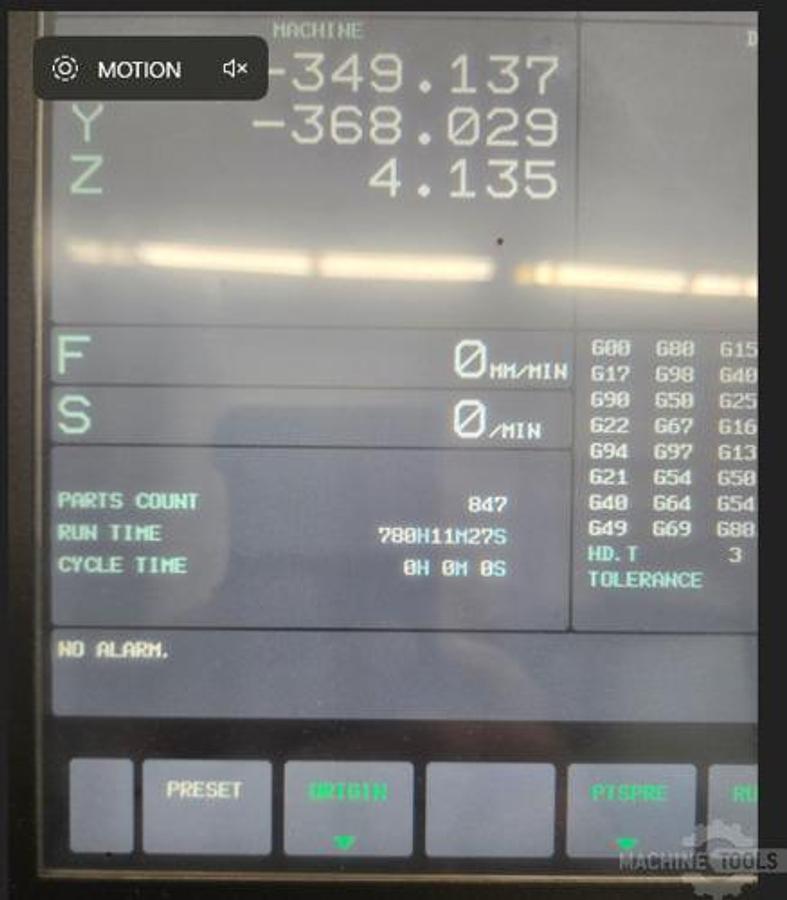

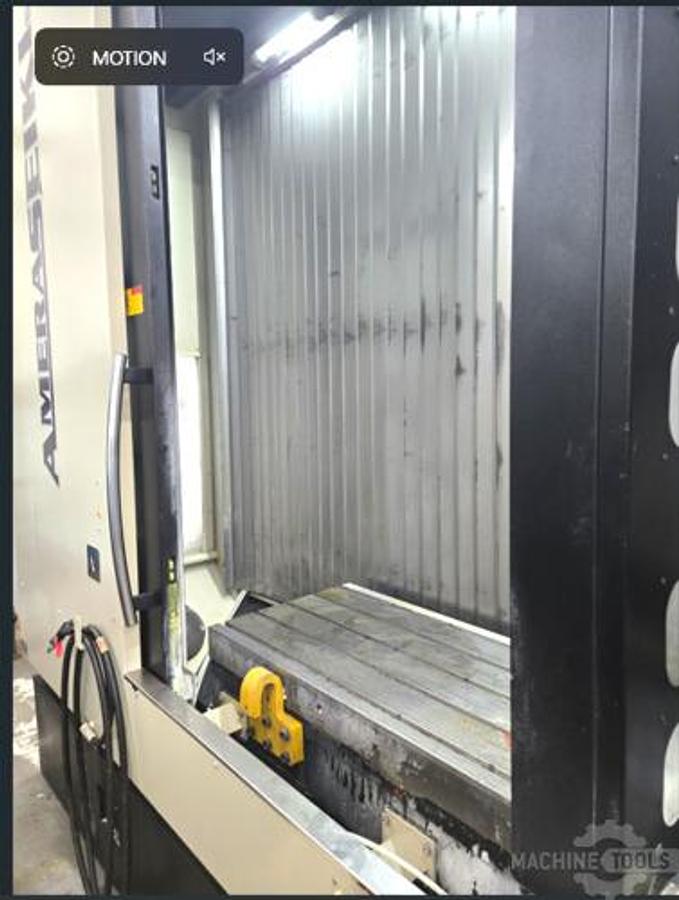

The 2022 Amera Seiki VTC-5 Vertical Machining Center is a precision-engineered machine designed for accuracy and efficiency. It features a traveling column design and is equipped with a Fanuc 0i-MB control system. With an expansive table size of 98.4" x 23.6" and a high maximum table load capacity of 3,960 lbs, this machine is suitable for heavy-duty applications. The VTC-5 provides extensive movement with an X-axis travel of 86.6", and both Y and Z-axis travels of 24.4". The spindle operates at a speed of 10,000 RPM with a powerful 20 HP motor, catering to diverse machining needs. The spindle taper is a CAT 40, offering compatibility with a wide range of tooling. Tool changes are efficient, courtesy of a 32-station side-mounted automatic tool changer. This machining center also supports rapid traverse rates of 1260 IPM across all axes, minimizing downtime. Its robust construction is evident in its dimensions, stretching to 161" x 229" x 119" and a weight of 31,500 lbs, ensuring stability during operations. The spindle nose to table top distance ranges from 4.728" to 29.156", providing versatility in handling various workpiece sizes. The Amera Seiki VTC-5 remains a reliable choice for manufacturers seeking consistent performance in complex machining tasks.
