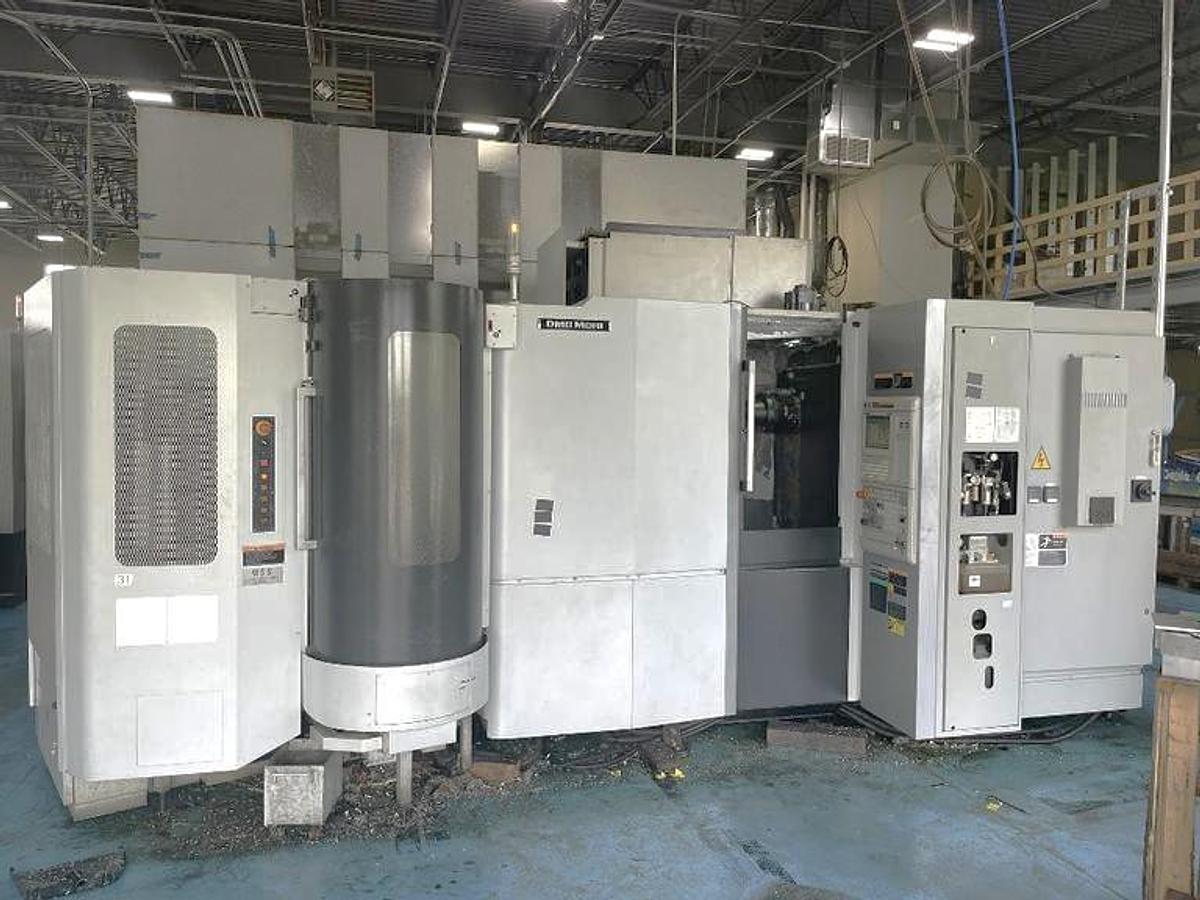

2014 DMG Mori NHX 4000 with 5 Pallet Pool, Full 4th Axis Table, Tool Probe, 1000 PSI Cool Thru Spindle, 120 Station ATC, Conveyor

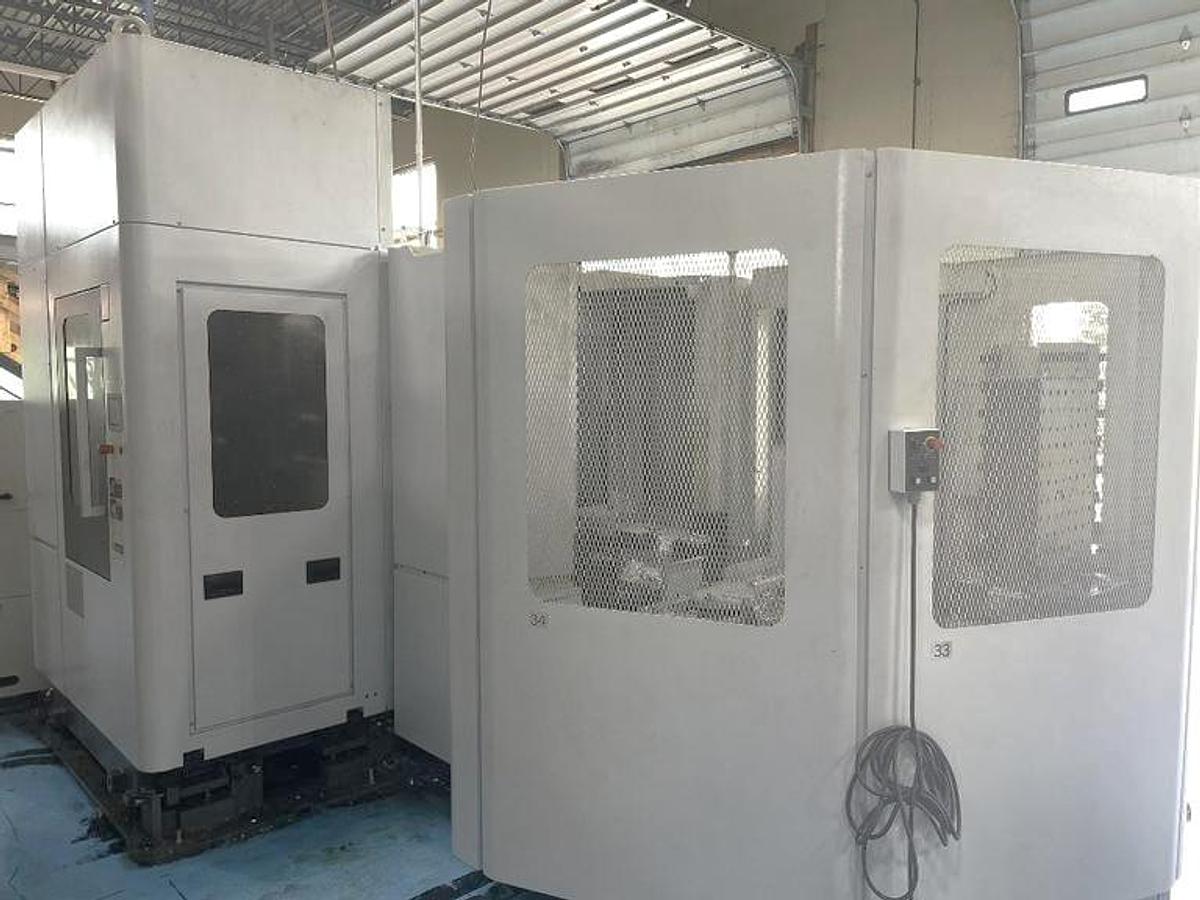

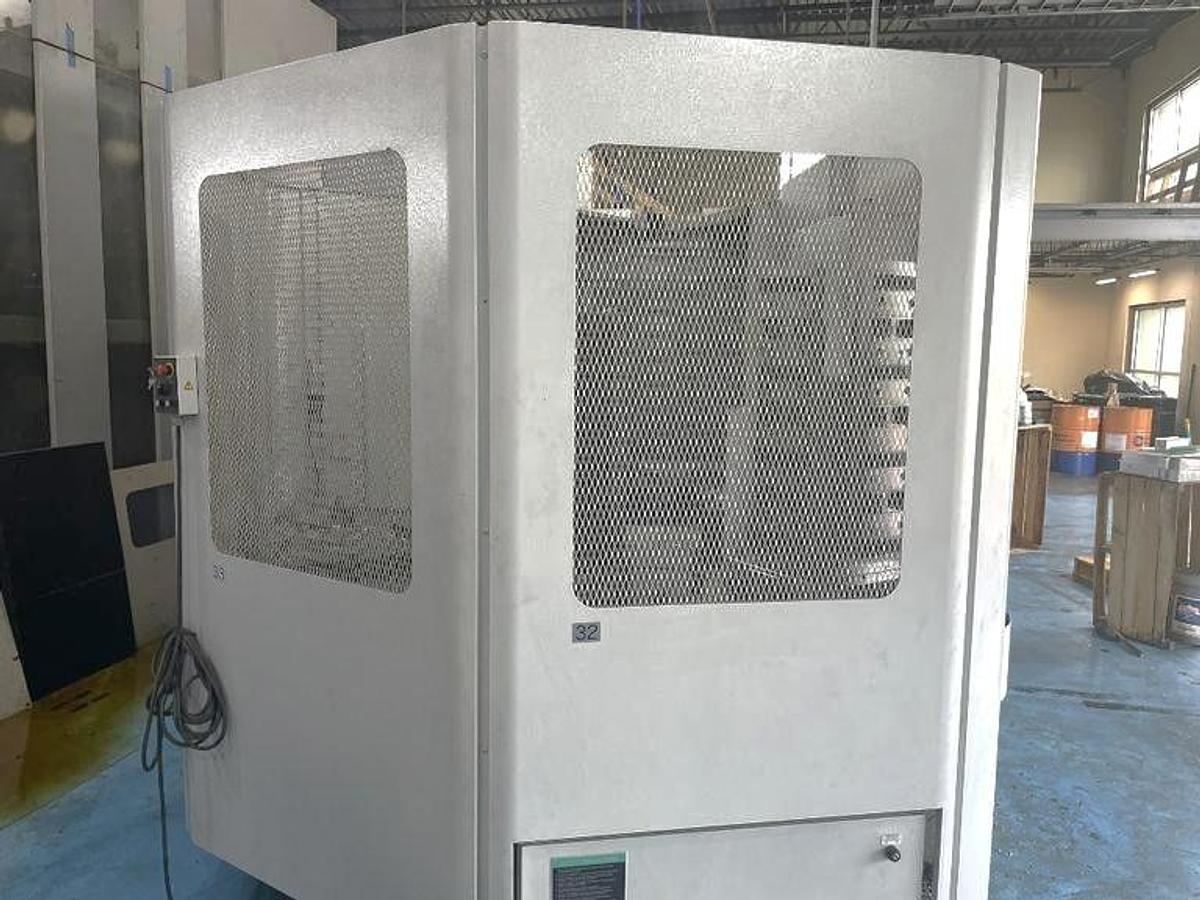

5 Pallet Pool System

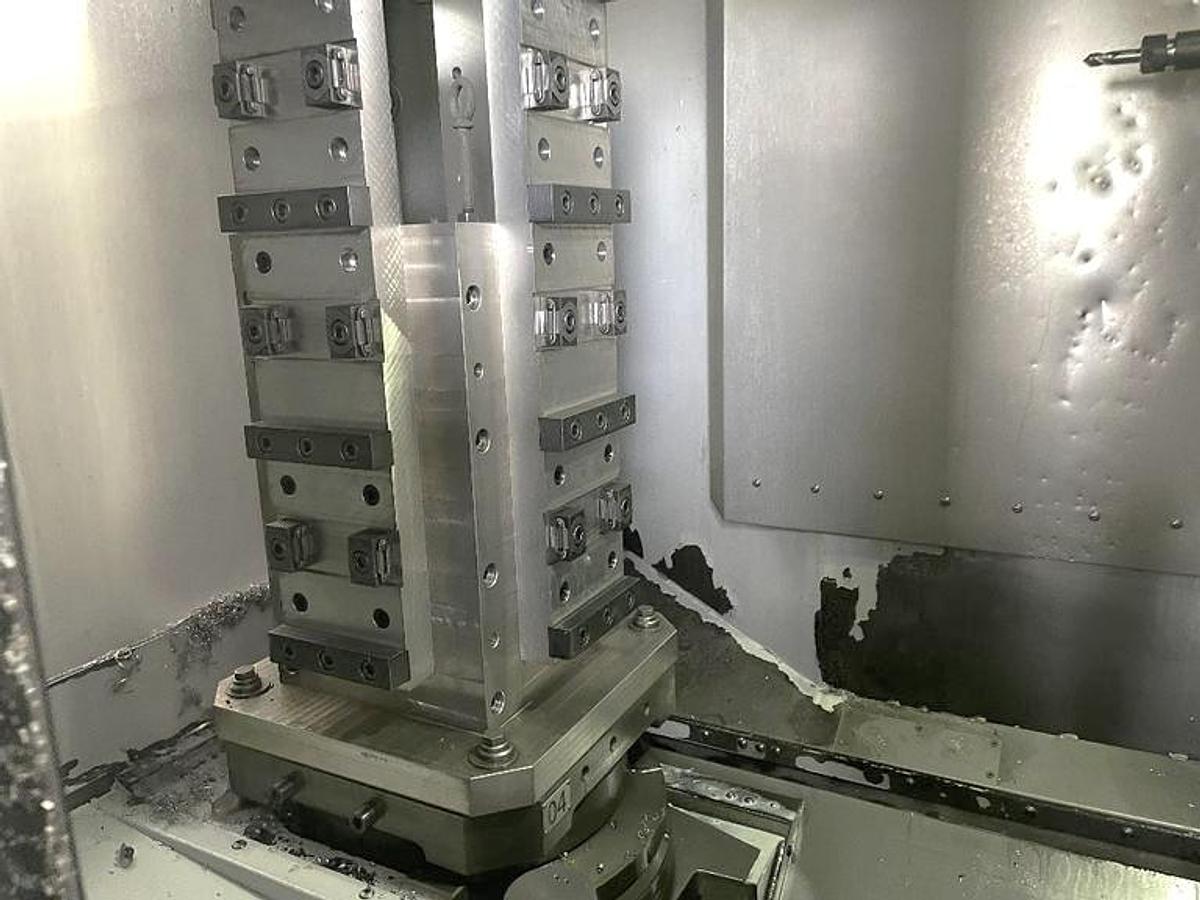

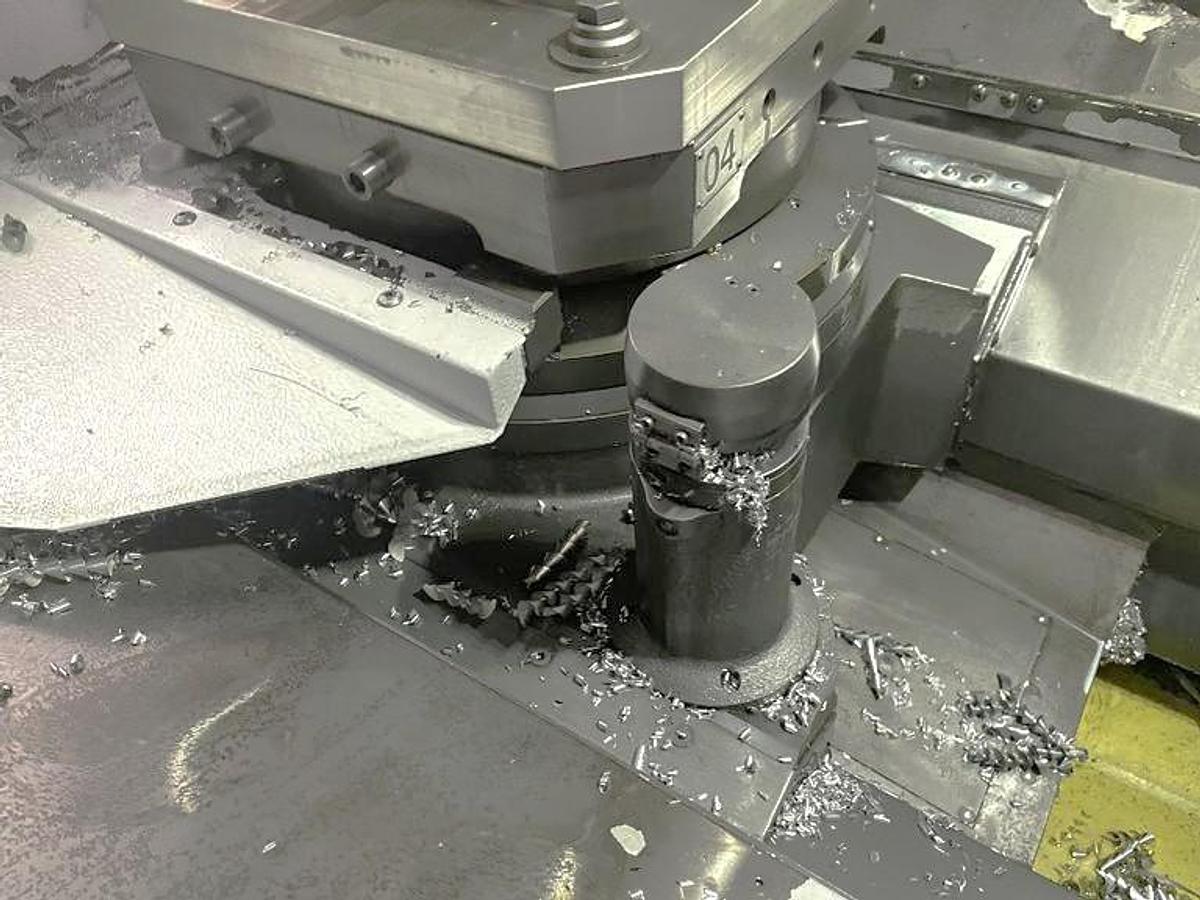

Full 4th Axis Rotary Table

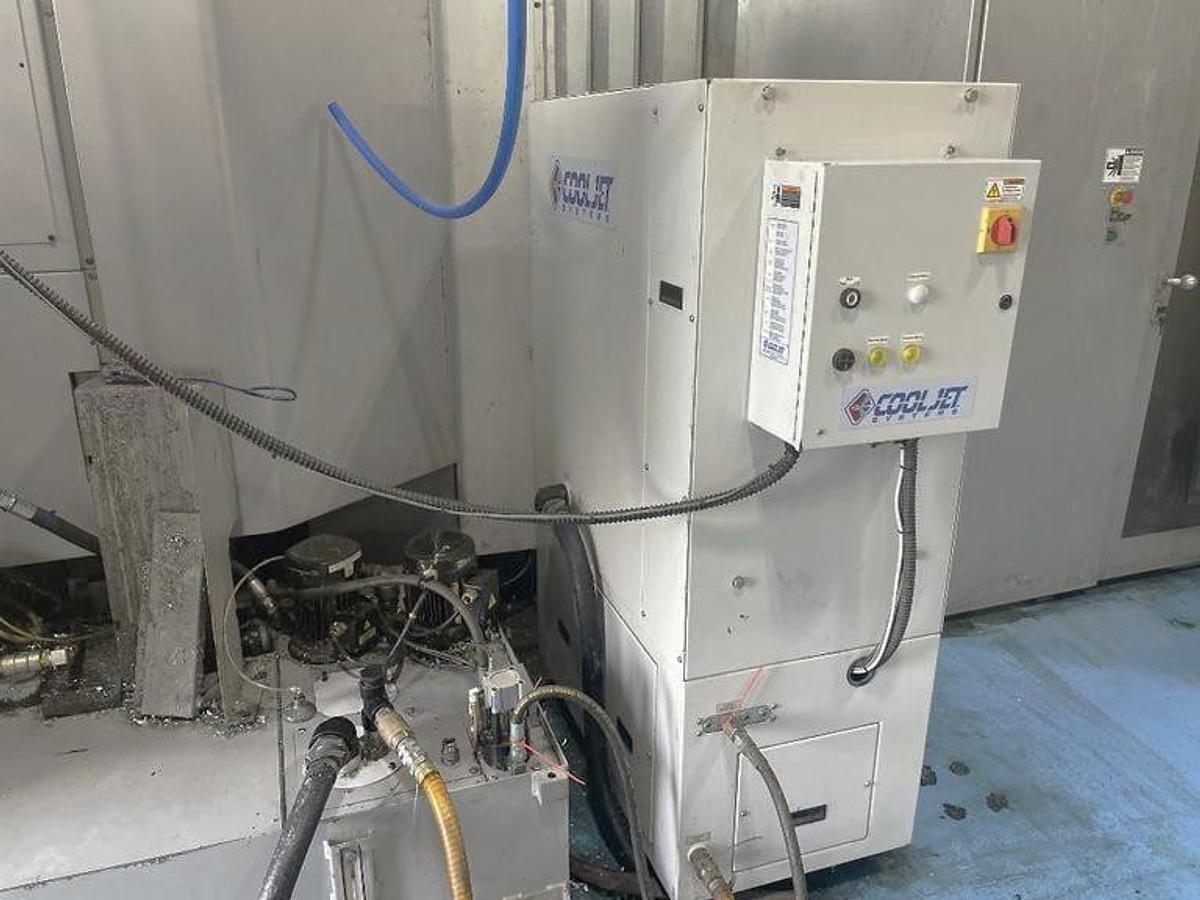

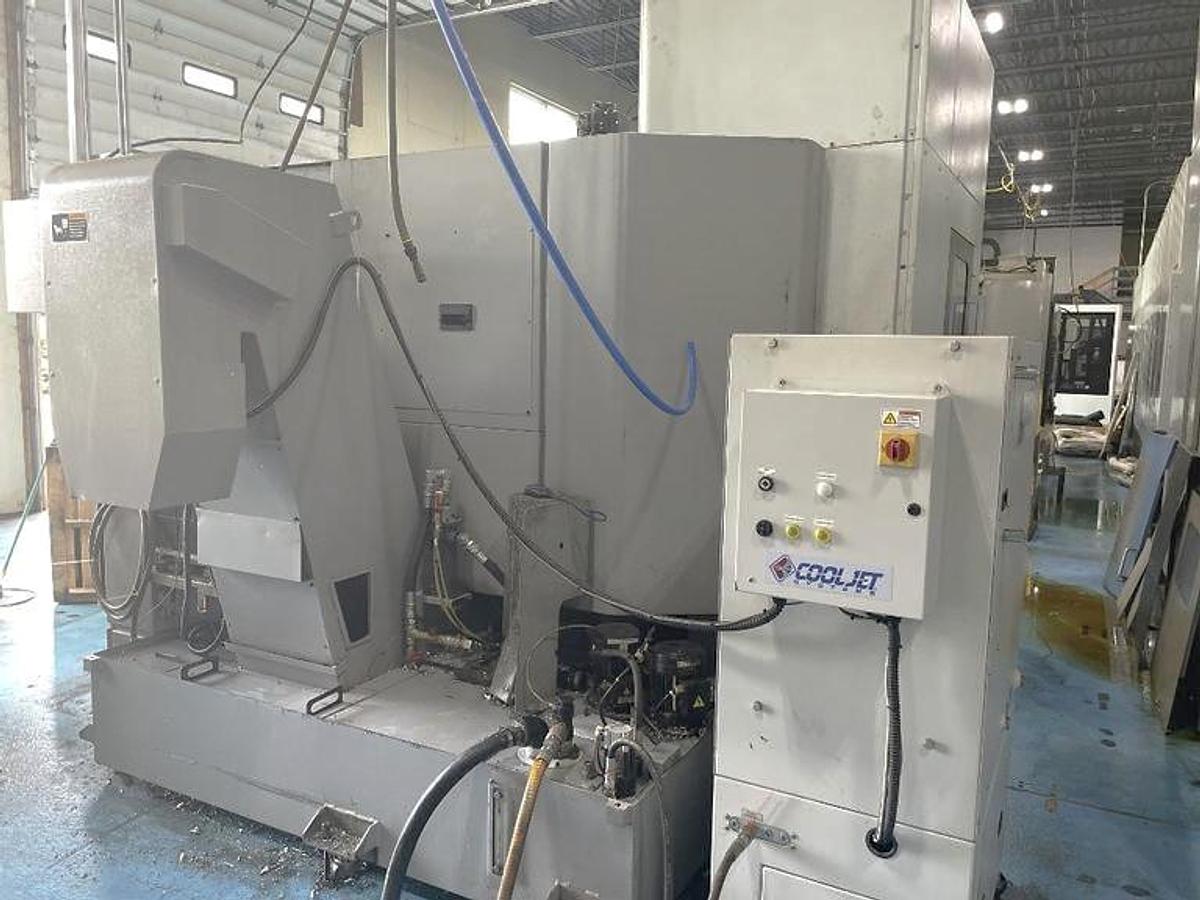

Coolant Through the Spindle - 1000 PSI High Pressure

120 Station Tool Changer

Chip Conveyor

Rigid Tapping

Spindle Chiller Unit

Spindle Orientation

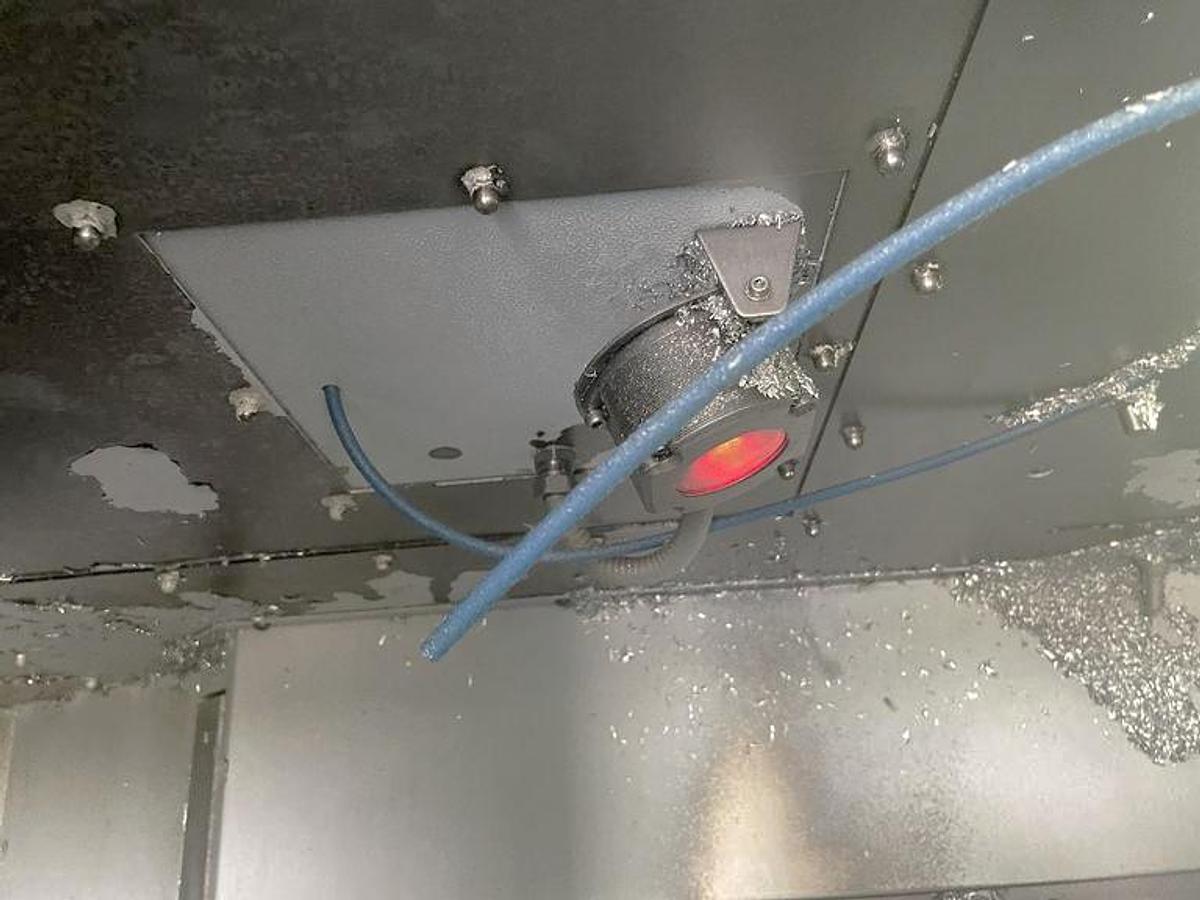

Work Light

Wired 220V Electrics

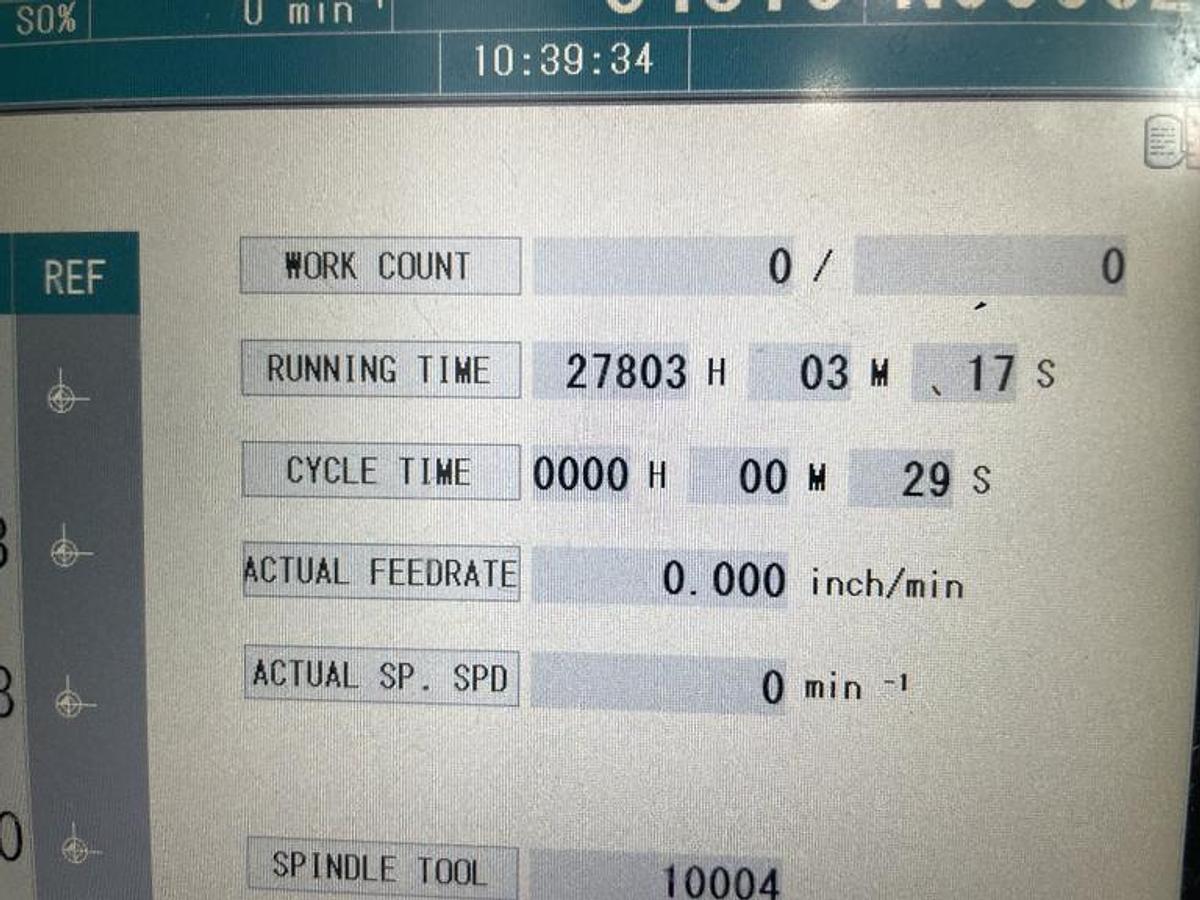

**Machine Power On Time 27,803 Hours**

**Approximate Spindle Running Time 10,000 Hours**

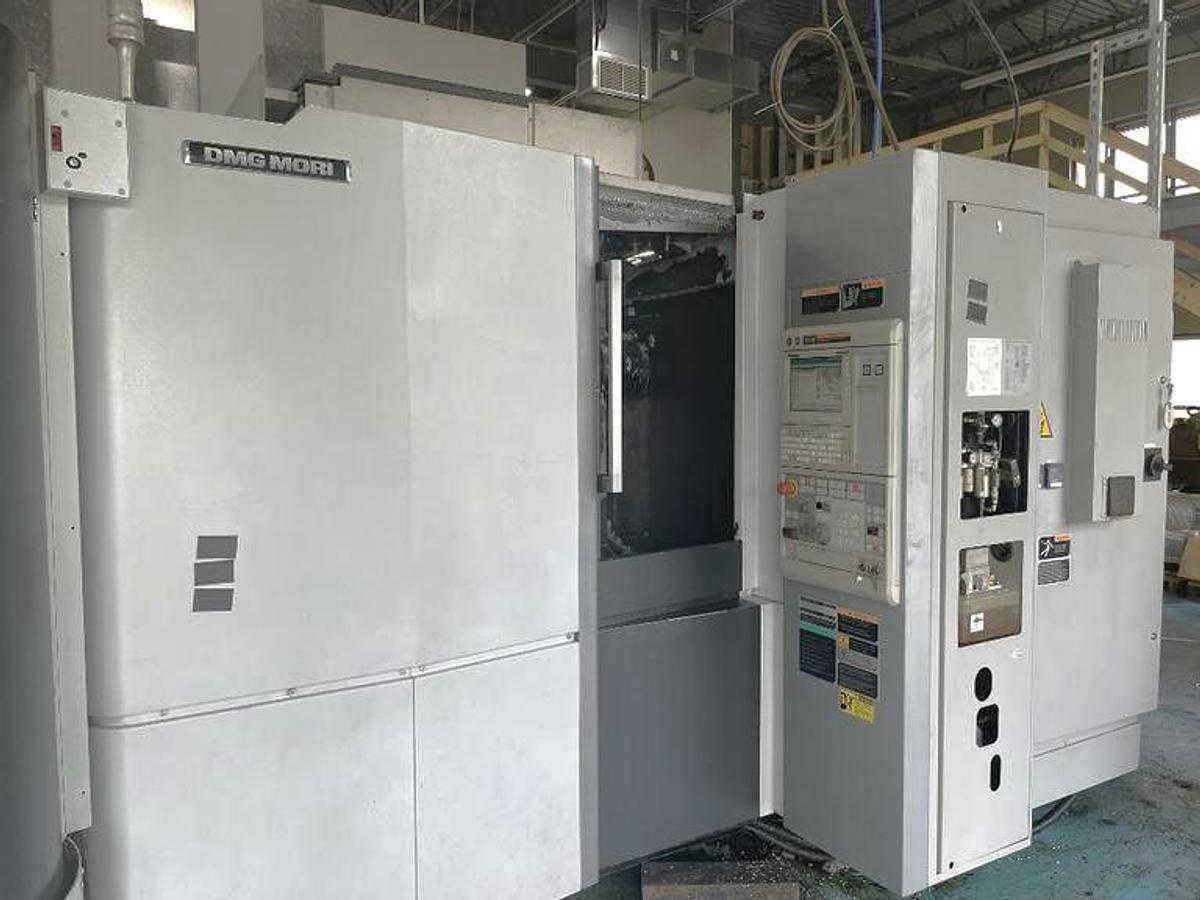

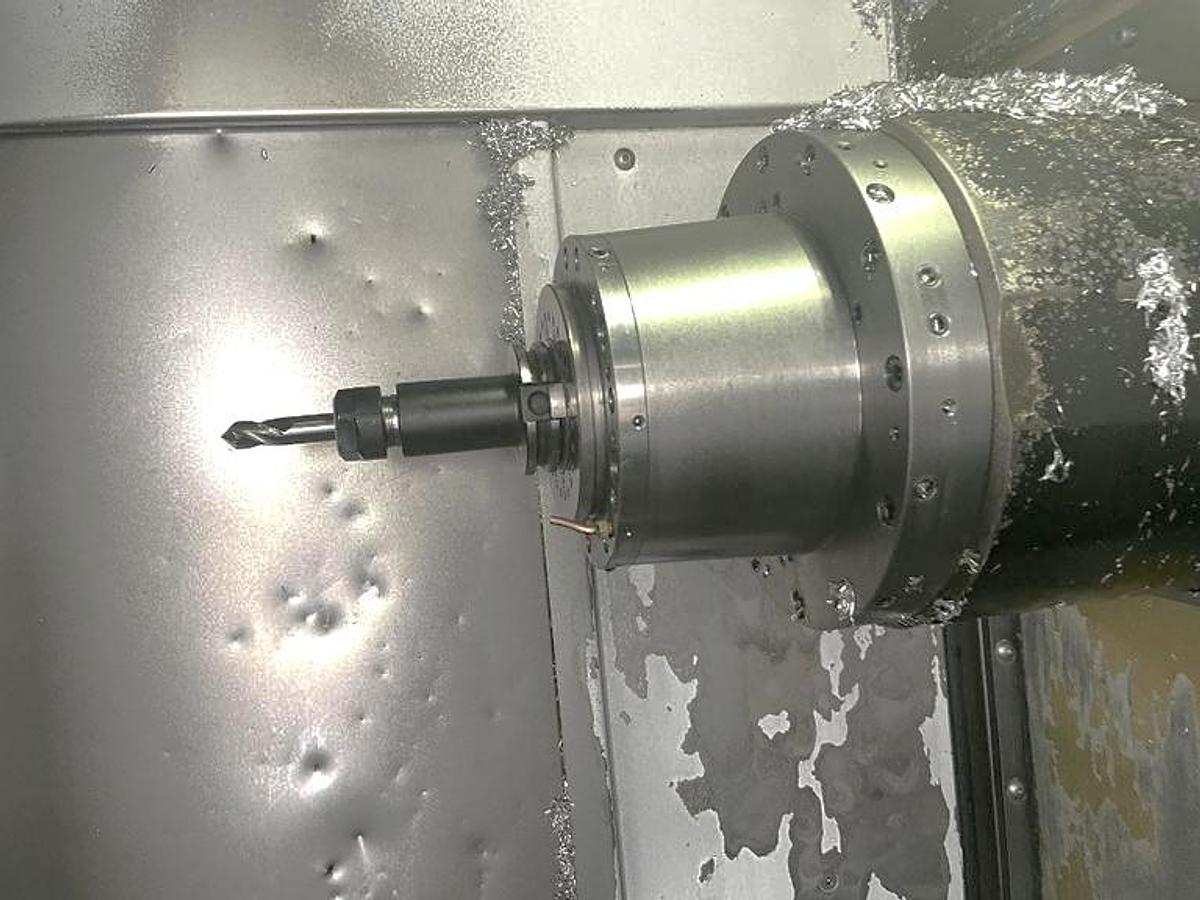

The 2014 DMG Mori NHX 4000 is a robust CNC horizontal machining center designed for precision and efficiency. It includes an advanced Mitsubishi M730BM Series Control, facilitating easy operation and optimizing performance. Notable features include a 15.7" x 15.7" pallet equipped with a full 4th axis indexing capability, allowing for complex machining tasks to be executed with precision. With 5 pallets in the pool, it offers enhanced flexibility in production management. This model showcases impressive travel capacities—22" in both X and Y axes, and 26" in the Z-axis, which, along with the full 4th axis table, enables intricate component manufacturing. The spindle, a CAT #40, operates at speeds up to 12,000 RPM powered by a 40 HP motor, ensuring high-efficiency cutting. Added features like the 1000 PSI coolant through the spindle enhance cutting accuracy and tool lifespan. The NHX 4000 is equipped with a 120-position automatic tool changer, supporting tools with a maximum diameter of 2.76", length of 17.72", and weight of 26.4 lbs. Rapid traverse and cutting feed rates reach 2362 IPM, ensuring quick and precise movements. This machine supports a maximum table load of 882 lbs and includes a conveyor for chip management. At 230" x 120" x 124" and weighing approximately 24,000 lbs., it combines significant capacity with the stability required in high-demand machining environments.
