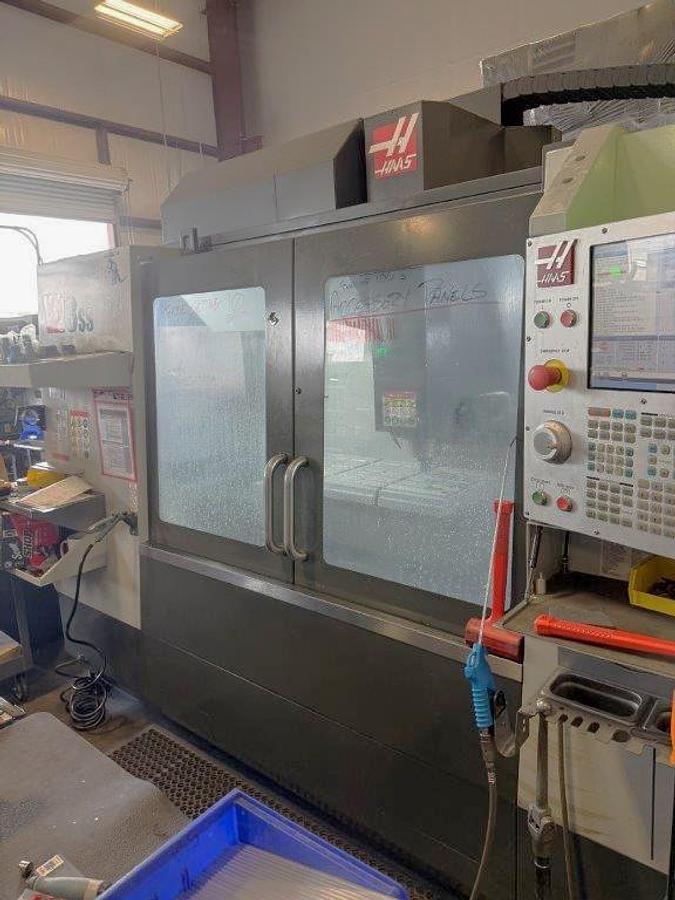

2022 Haas VF3SS with 15,000 RPM, Programmable Coolant Nozzle, Chip Auger

2022 Haas VF3SS with 15,000 RPM, Programmable Coolant Nozzle, Chip Auger

Contact us for price

Location:Texas

or
Call (863) 439-6066

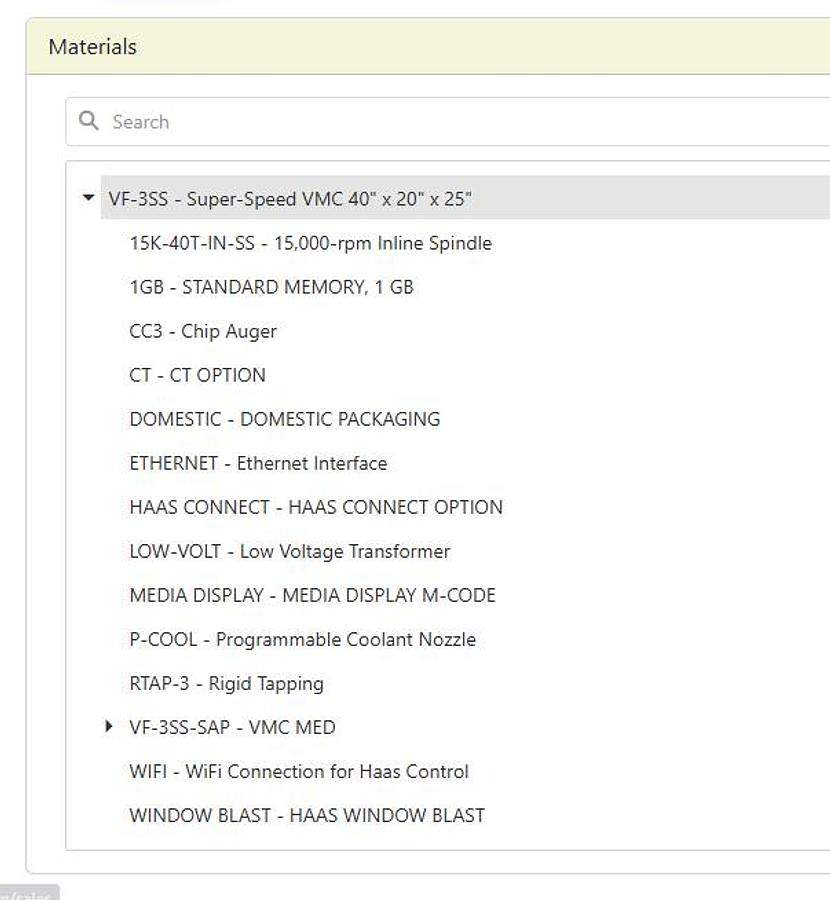

Description

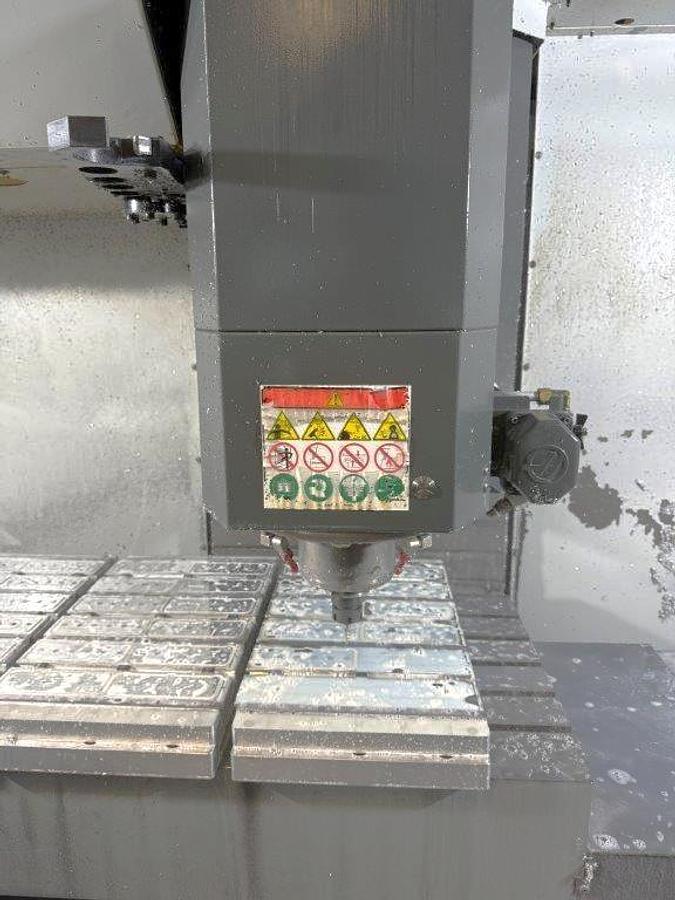

Inline Direct Drive 15,000 RPM Spindle

30+1 Position Side Mounted Tool Changer

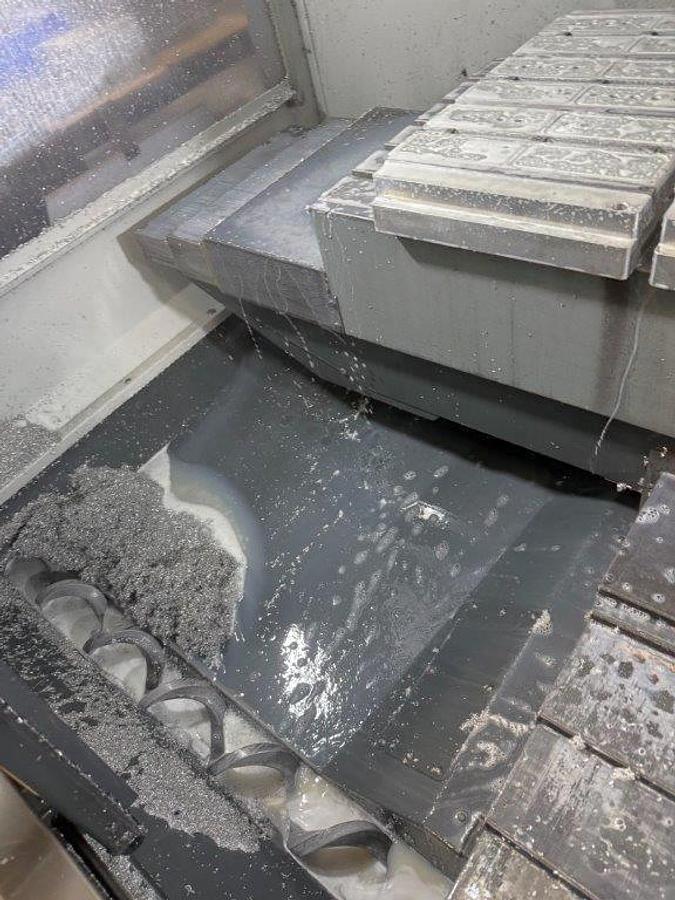

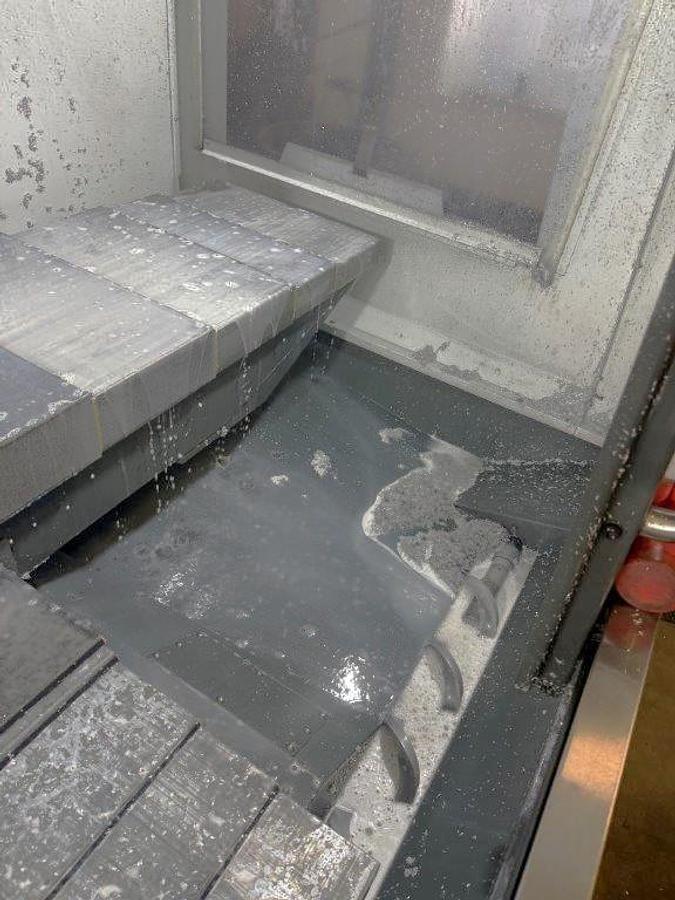

Auger Style Chip Conveyor

Programmable Coolant Nozzle

Rigid Tapping

Coolant System with Tank & Pump

1 GB Programming Memory

Media Display by M-Code

Compensation Tables

Early Power Failure Detection Module

Window Air Blast

Haas Connect

Safe Run

Haas Drop

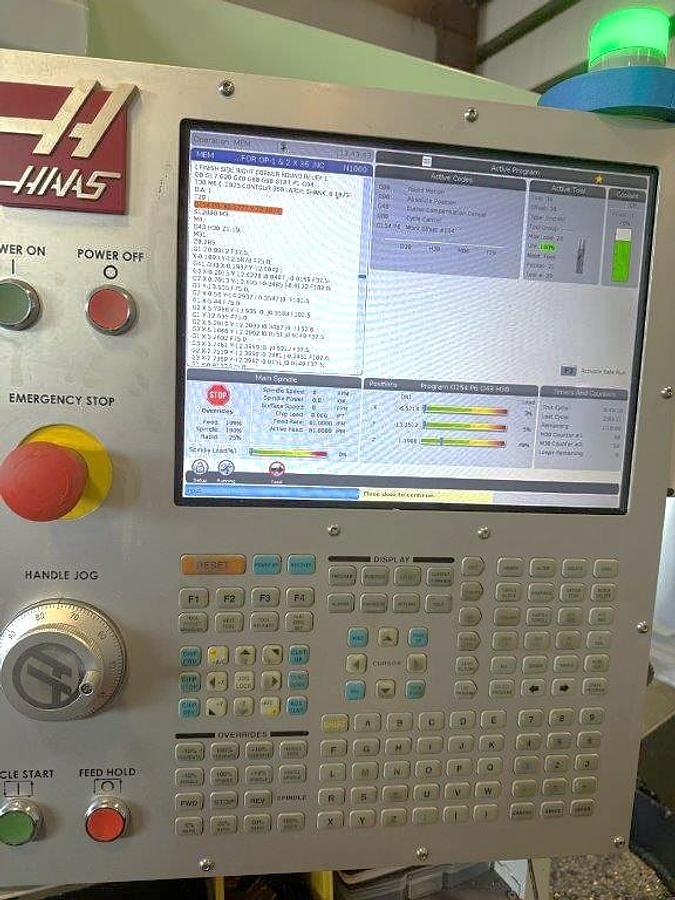

15" Color LCD Monitoring

Ethernet Interface

Wifi Connection for Haas Control

Wireless Networking

USB Port Interface

RS 232C Port Interface for DNC Operation

Low Voltage Transformer

Wired 220V Electrics

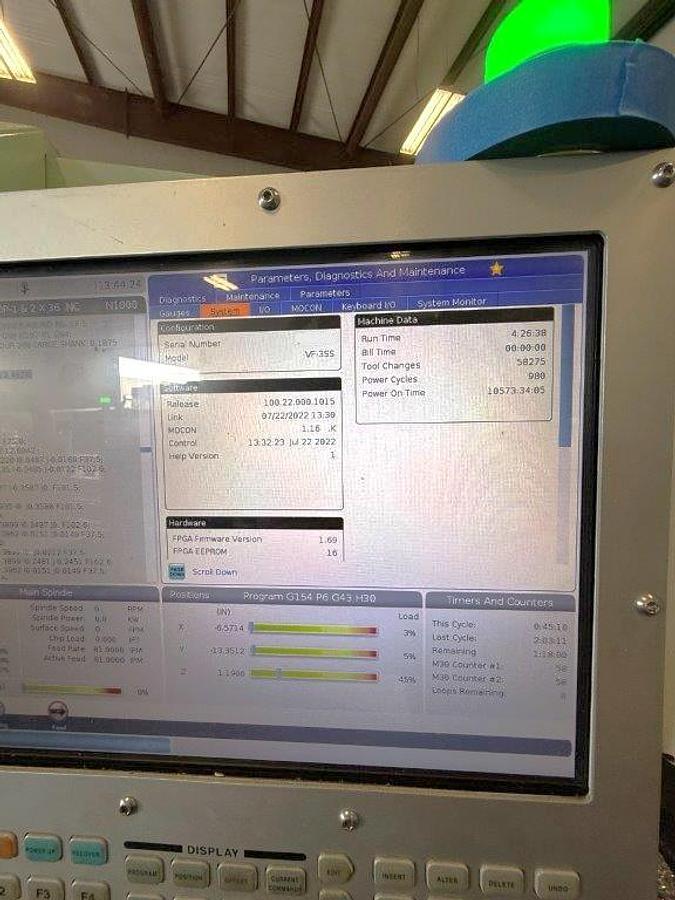

**Power On Hours 10,573**

**Estimated Spindle Hours 3,500**


**Replacement cost today as equipped is $118,280**

Show All

Specifications

ManufacturerHaas
ModelVF3SS
Year2022
ConditionUsed
Stock Number120939
Table size48" x 18"
Max table load1,750 lbs
X axis travel40"
Y axis travel20"
Z axis travel25"
Spindle taperCAT #40
Spindle speed15,000 RPM
Spindle motor30 HP - Direct Drive
Spindle nose to table top4.2" - 29.2"
Number of tool positions30 + 1 Position Side Mount
Max tool weight12 lbs.
Rapid feed rate (x,y,z)1,400 IPM
Cutting feed rate0.1 - 833 IPM
Machine dimensions122" x 98" x 98.5"
Machine weight (approximately)12,500 lbs.
