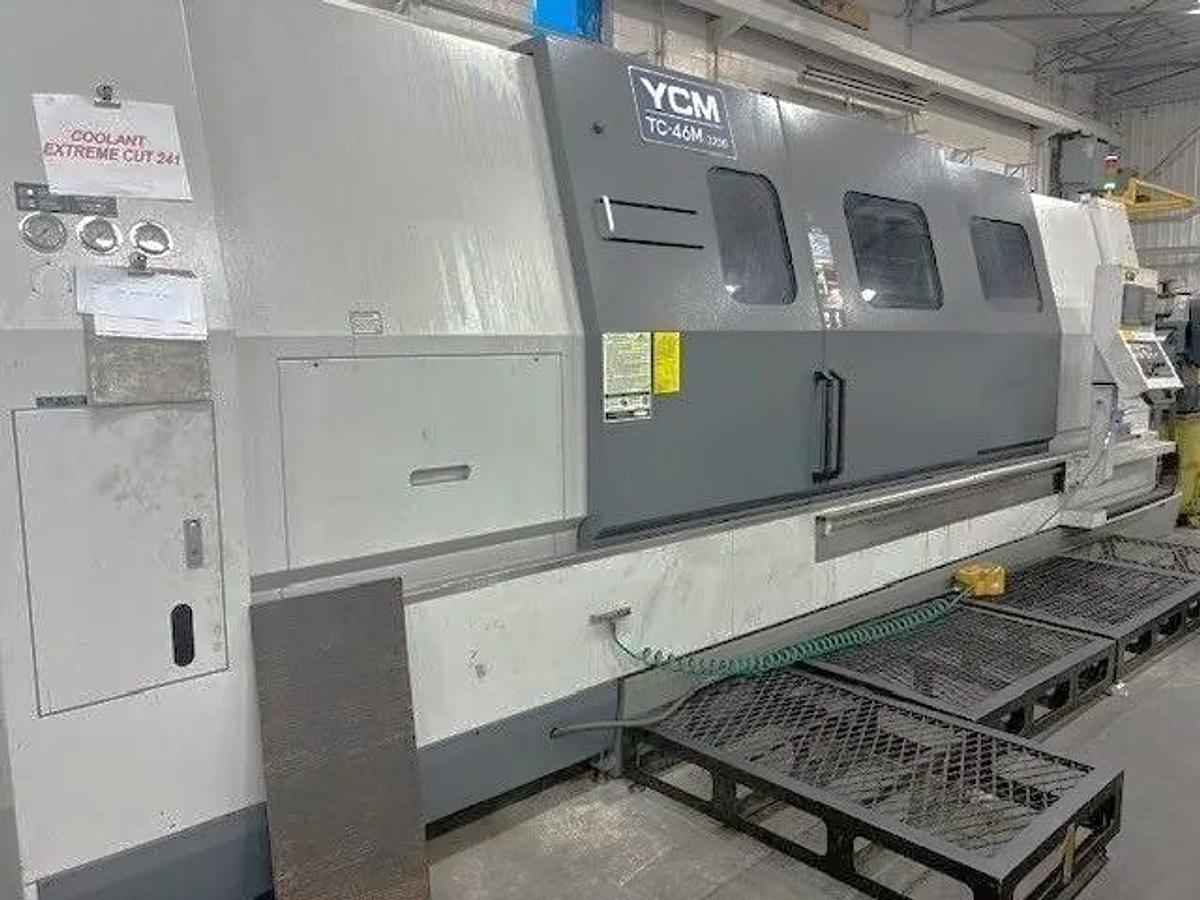

2013 YCM TC-46M/3200 with Milling Capability, 18" Hyd. Chk, 6.5" Bar Cap., 29.55" Max Turn Diam., 134.45" cc, Steady, Conveyor, Tailstock

Live Milling/Drilling Capability

Full C Axis Spindle Rotation - .001 Degree

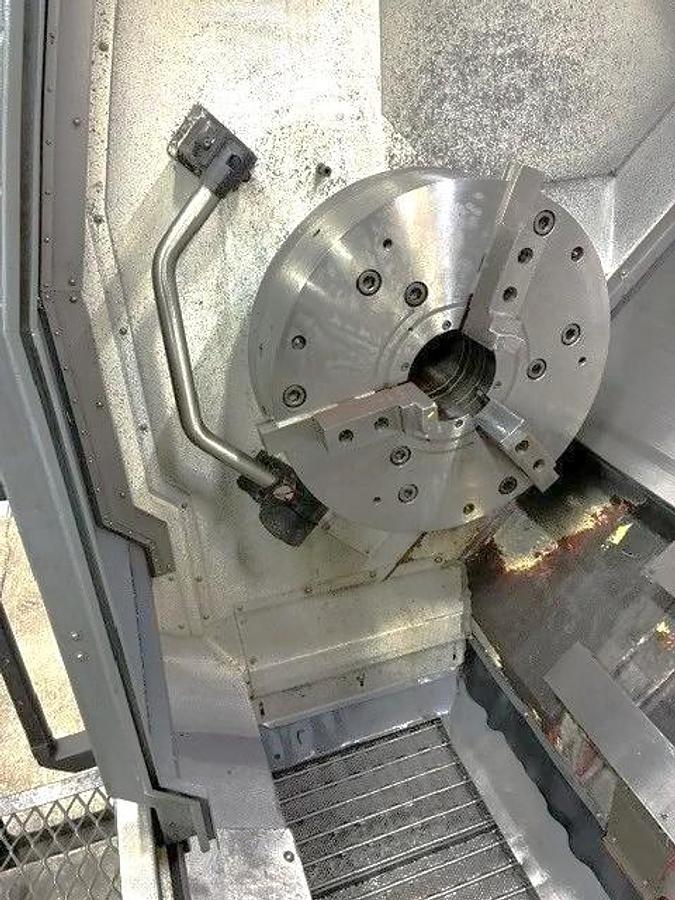

18" 3 Jaw Hydraulic Chuck

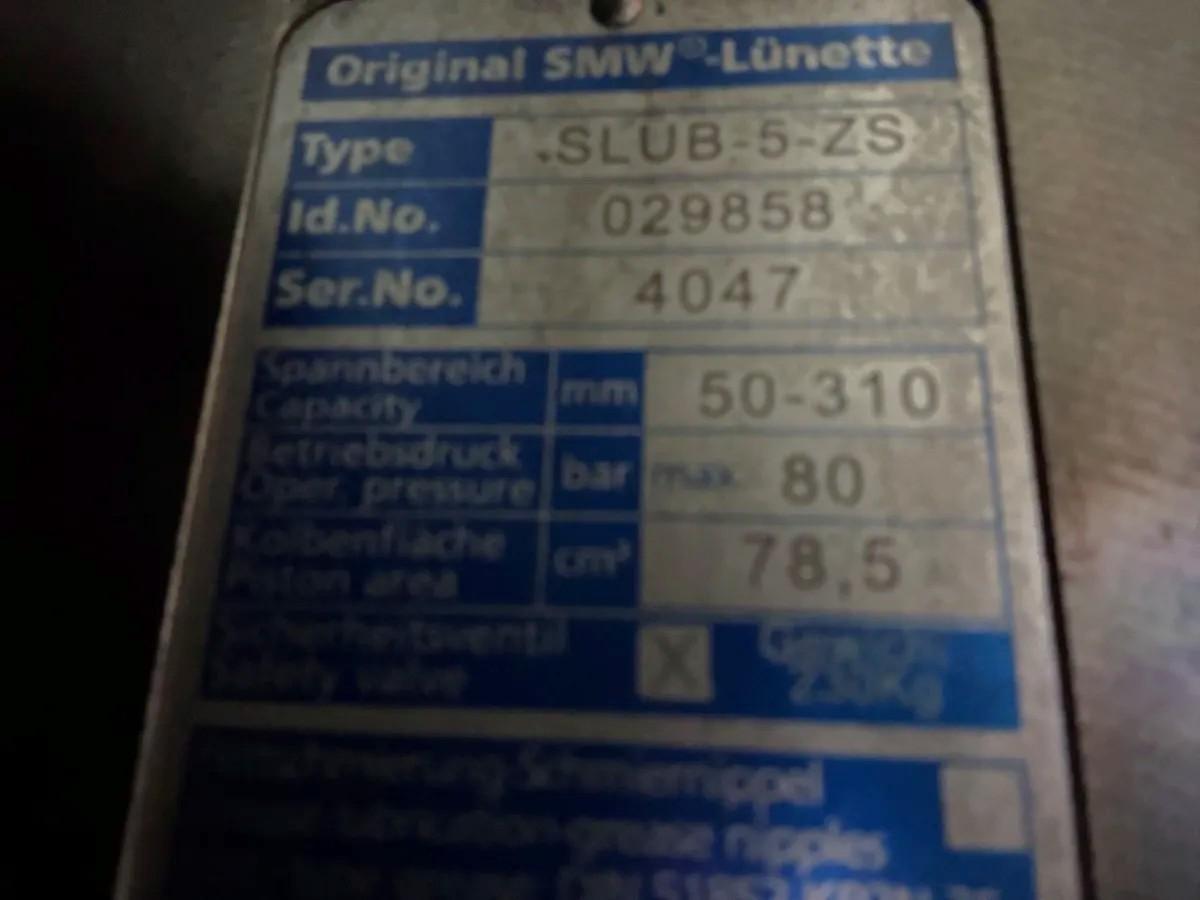

SMW Model SLUB-5-ZS Type Hydraulic Steady Rest with 1.9" - 12.2" Capacity

6.5" Bar Capacity

Tailstock

Chip Conveyor

Tool Presetter

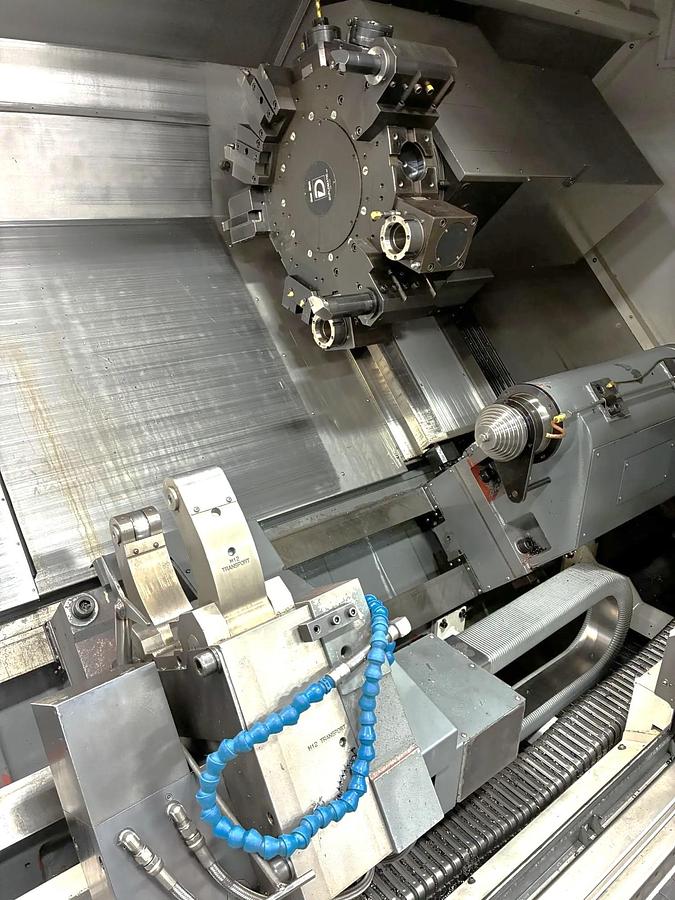

10 Station Turret - BMT85 Type

Coolant System with Tank & Pump

Spindle Chiller Unit

Custom Macro

Card Interface

USB Port Interface

RS 232 Port Interface

45 Degree Slant Bed Design

Heavy Duty Boxed Ways

All Available Manuals

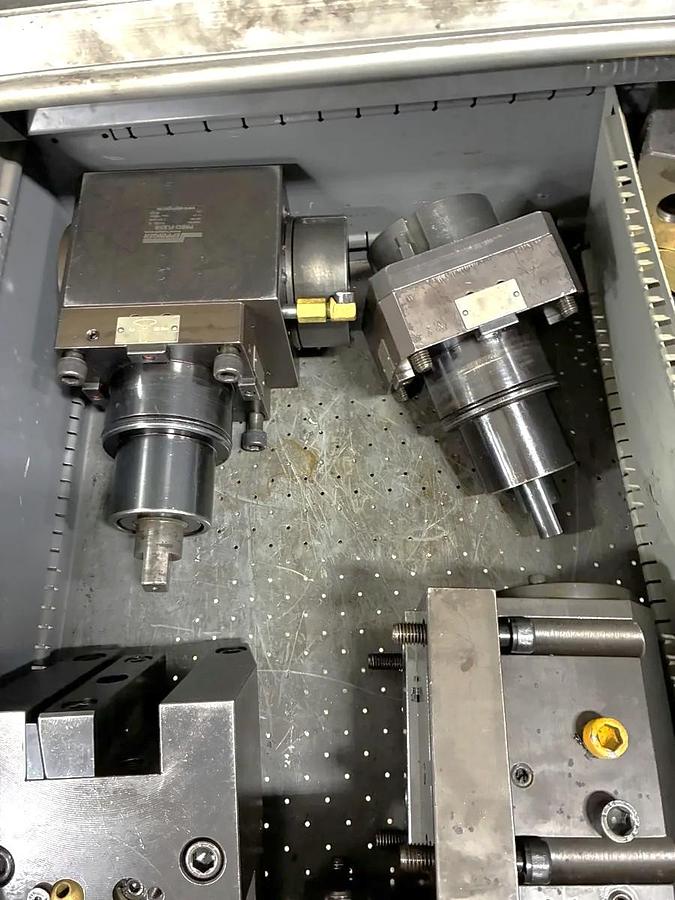

(3) ID Rotary Tools

(3) OD Rotary Tools

**ONLY 1,300 Cutting Hours**

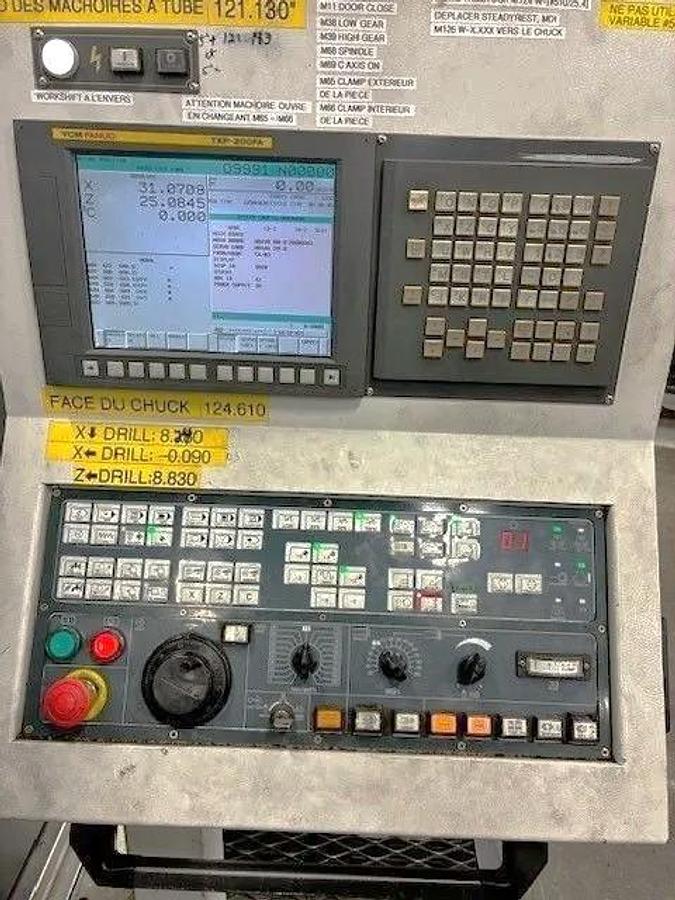

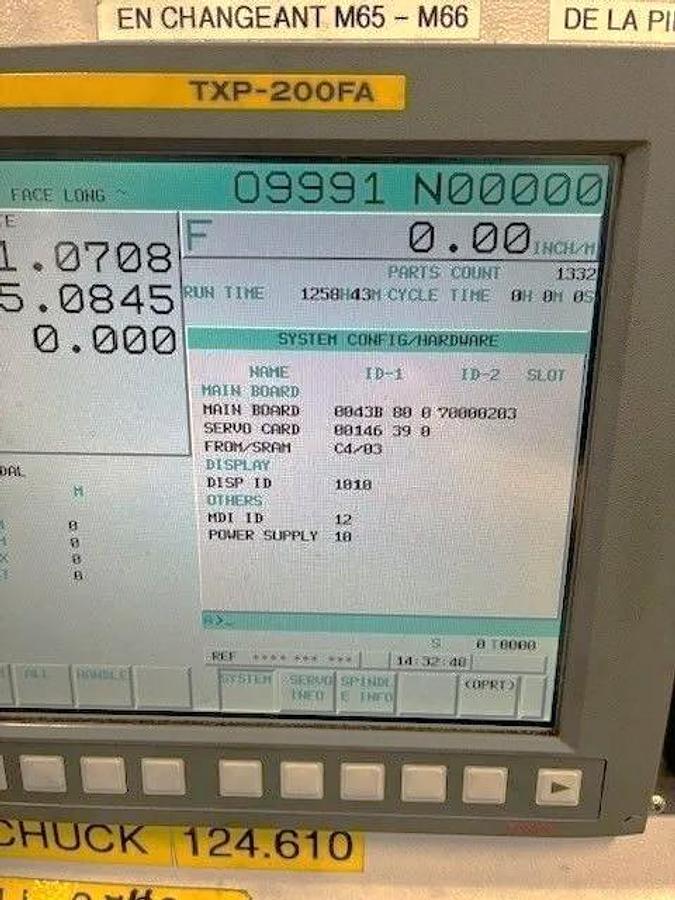

The 2013 YCM TC-46M/3200 is a robust 3 Axis CNC lathe designed for precision and efficiency in production environments. This used machine features a YCM Fanuc Series TXP-200FS Color Control system, providing reliable and user-friendly operation. With an 18-inch 3-jaw hydraulic chuck and a bar capacity of 6.5 inches, it accommodates a wide range of workpieces, making it versatile for various machining tasks. This lathe has full .001 degree C axis spindle rotation and live mill tools capable of rotating at 3000 rpm with a 30 hp drive motor. It has a maximum swing over the bed of 33.46 inches and a maximum turning diameter of 28.53 inches. It supports large projects with a maximum turning length of 126.08 inches and a distance between centers of 134.45 inches. Enhanced flexibility is achieved with a 10-position turret using BMT-85 tools, and the machine is equipped with milling capabilities and a 50 HP spindle motor for powerful performance. For added convenience, it includes a hydraulic steady rest with 1.9" - 12.2" capacity, conveyor, and tailstock with a 5.91-inch quill diameter. The rapid traverse rates are impressive, with 640 IPM on the X axis and 472 IPM on the Z axis. This machine is a solid choice for those in need of a reliable and high-capacity CNC lathe.
