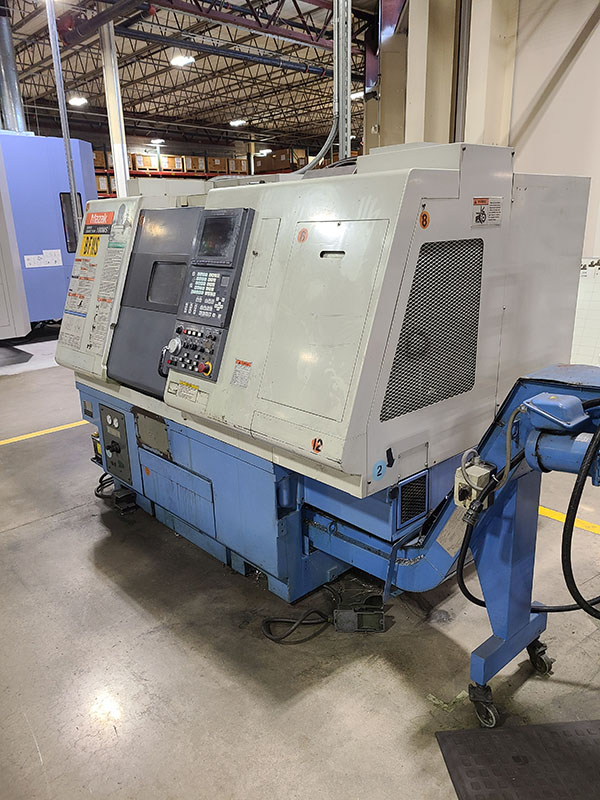

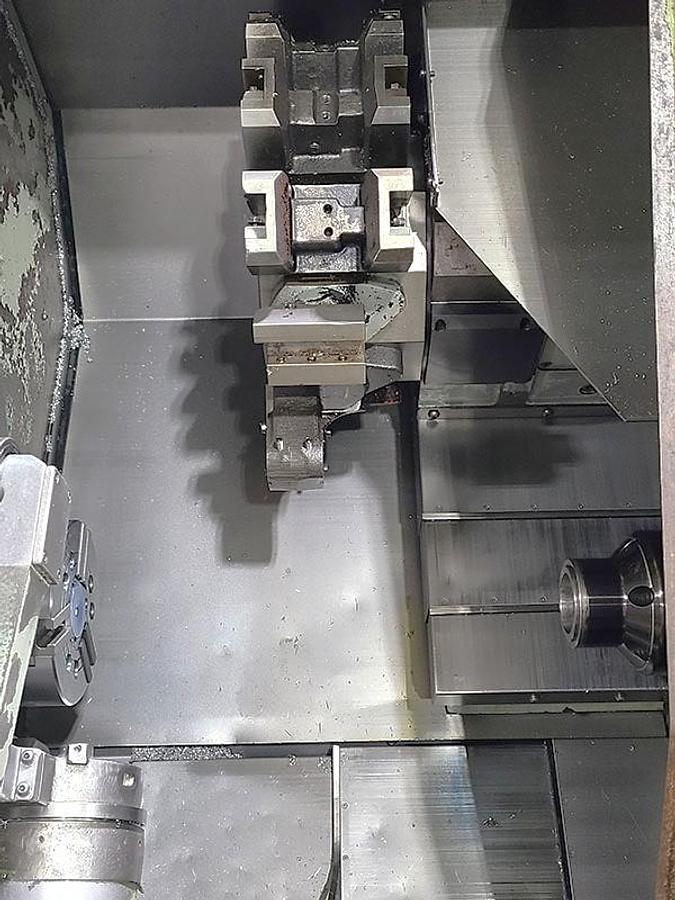

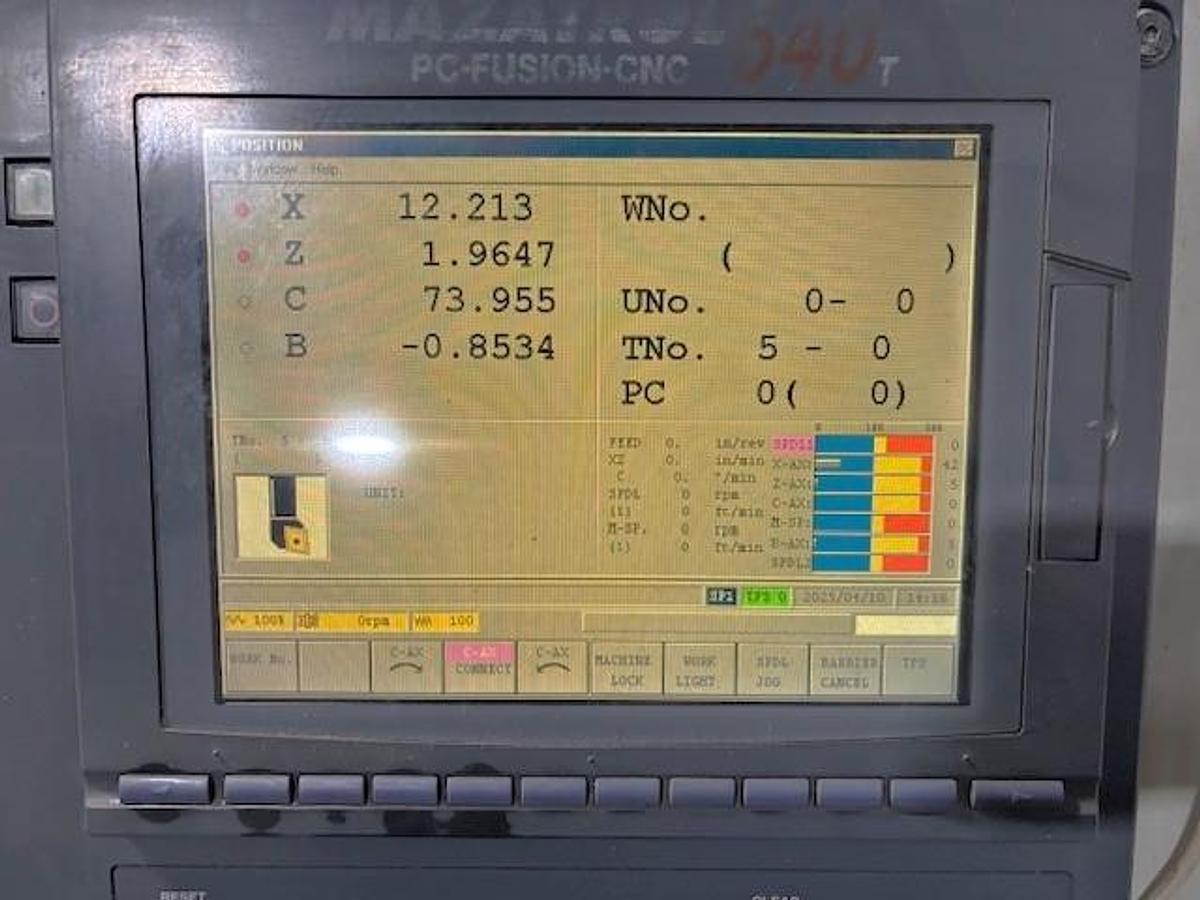

2001 Mazak SQT100MS Mazatrol Fusion 640T with Milling/Drilling Capability, Subspindle, Full C Axis Spindle Rotation, Conveyor
2001 Mazak SQT100MS Mazatrol Fusion 640T with Milling/Drilling Capability, Subspindle, Full C Axis Spindle Rotation, Conveyor
Contact us for price
Location:New Jersey
or
Call (863) 439-6066
Description
Subspindle
Milling/Drilling Capability
Full C Axis Spindle and Subspindle Rotation

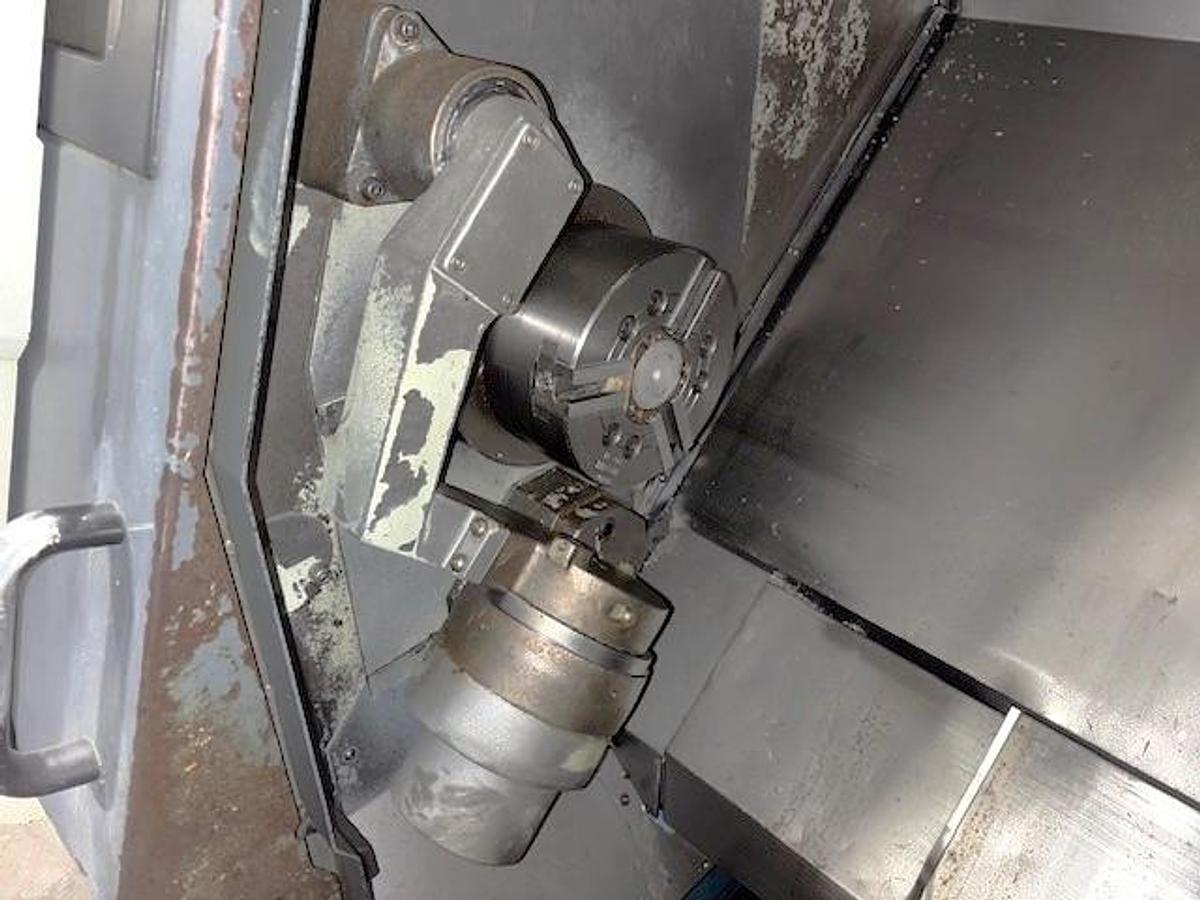

6" 3 Jaw Hydraulic Chuck on Main Spindle

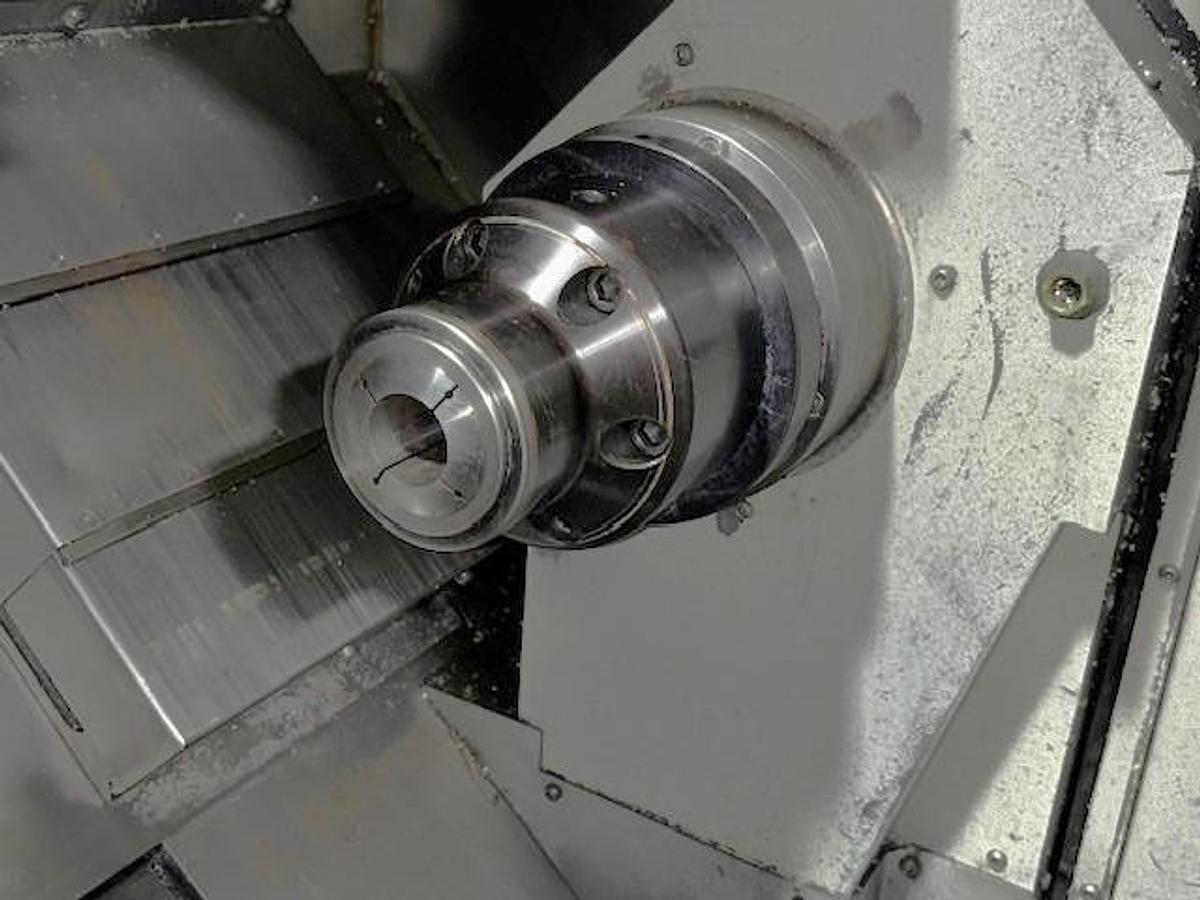

3J Collet Chuck on Subspindle
Tool Presetter
Chip Conveyor

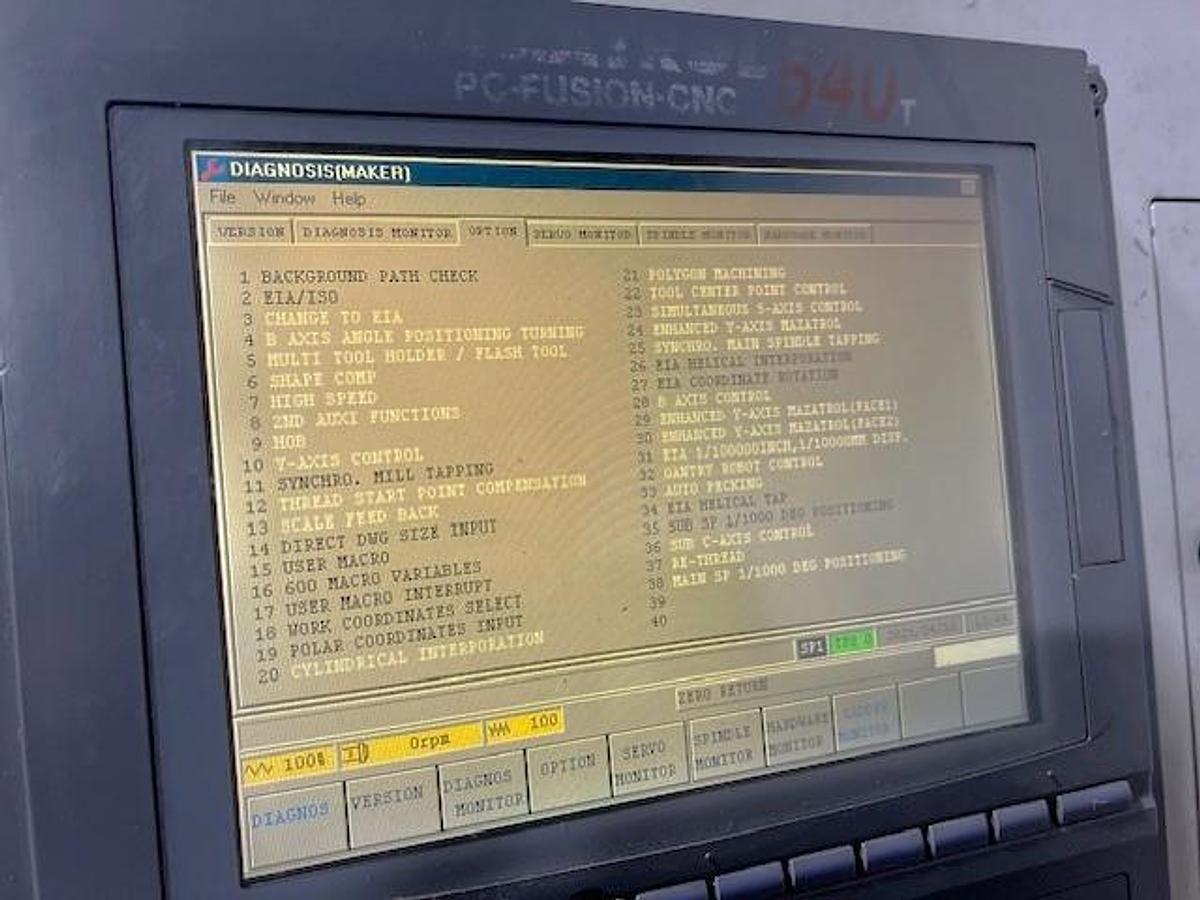

EIA/ISO Input Function
EIA Helical Interpolation
EIA Helical Tapping
EIA Coordinate Rotation
Mill Tool Synchronous Tapping (rigid tapping)
Backround Toolpath Check
Direct DWG Size Input
User Macro
600 Macro Variables
User Macro Interupt
Work Coordinates Select
Polar Coordinates Input
Sub Spindle 1/1000 Degree Positioning
Coolant System with Tank & Pump
Multi Tap Transformer
Good Selection of Static Holders
(1) Live Tool Holder
All Available Manuals
Specifications
| Manufacturer | Mazak |
| Model | SQT100MS |
| Year | 2001 |
| Condition | Used |
| Stock Number | 120936 |
| Chuck sizes | 6" 3 Jaw Hyd. Chuck / 3J Collet Chuck |
| Maximum swing | 21.65" |
| Max. cutting diam./ max. mach. length | 11" / 14.1" |
| X axis travel | 7.25" |
| Z axis travel | 17.9375" |
| B Axis Travel - Subspindle | 10" |
| C-Axis Spindle Rotation Main Spindle / Subspindle | .001 Degree / .001 Degree |
| Spindle nose/spindle bore/bar cap. | A2-5" / 2.4" / 1.65" |
| Spindle speed / motor hp | 6,000 RPM / 10 HP |
| Second spindle nose/spindle bore | A2-5" / 2" |
| Second spindle speed / motor hp | 6,000 RPM / 10 HP |
| Mill spindle speed / motor hp | 3,000 RPM / 5 HP |

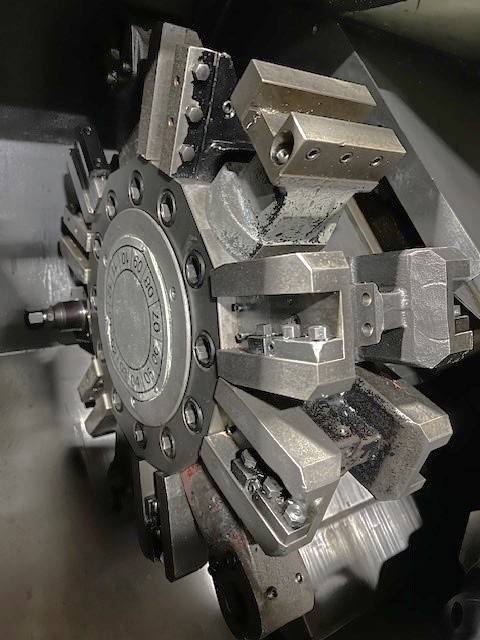

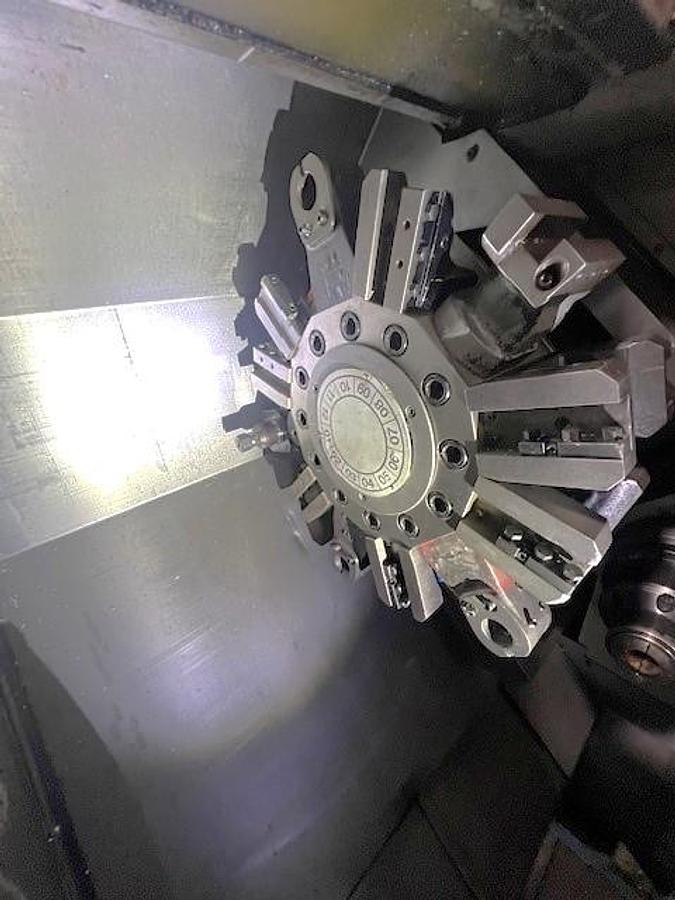

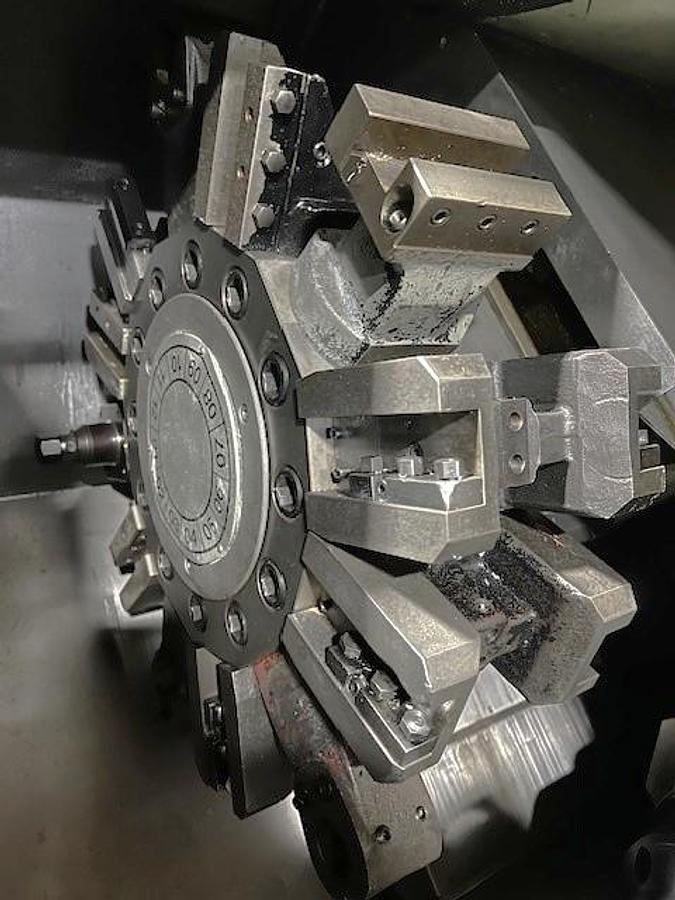

| Number of Turret Positions | 12 Station Turret |
| Rapid Traverse Rates X / Z / C | 1181 IPM / 1299 IPM / 400 RPM |
| Floor space lxwxh | 104"x63"x73" |
| Machine weight | 9,900 lbs. |
