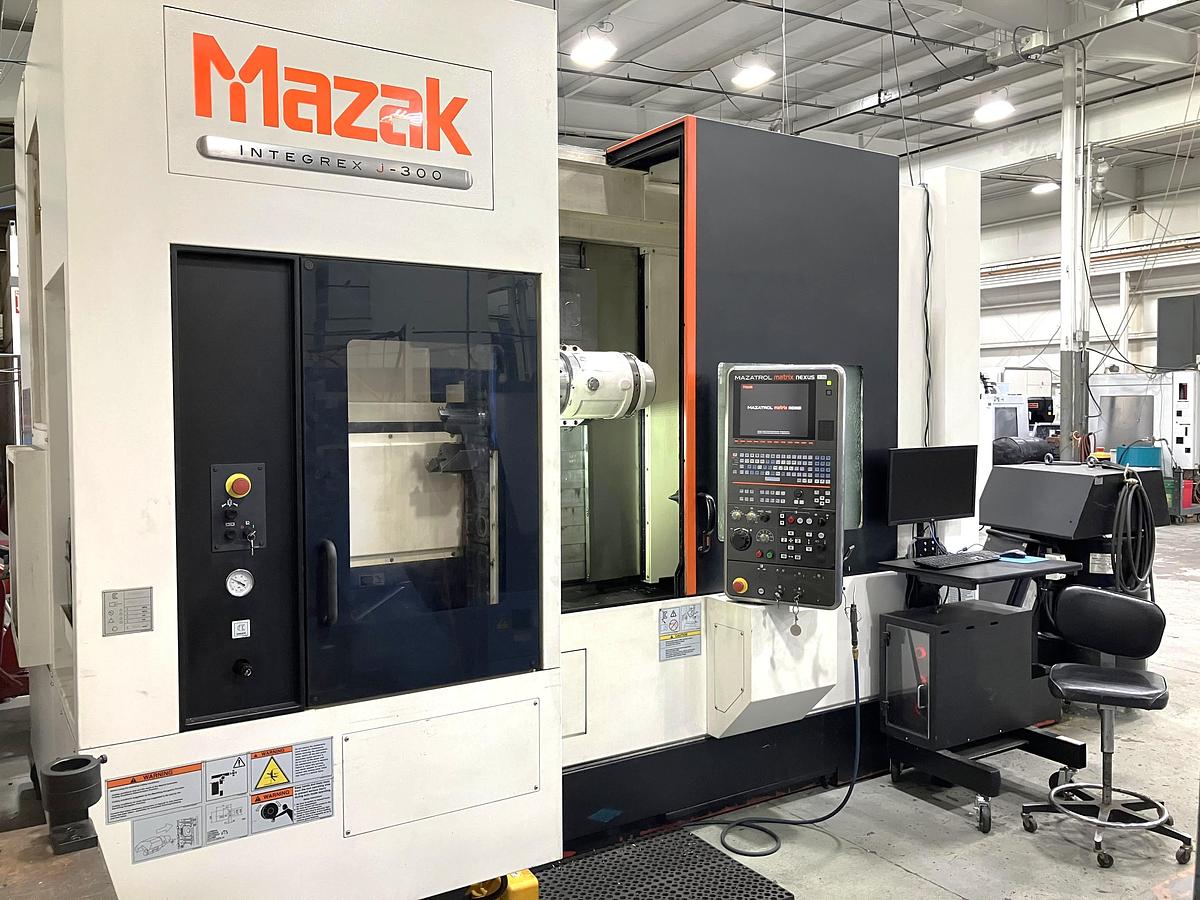

2012 Mazak Integrex J-300 with B Axis Head, Y Axis, C Axis Rotation with Milling, Conveyor, 10" Chuck, Tailstock, 36 ATC, 12,000 RPM Milling

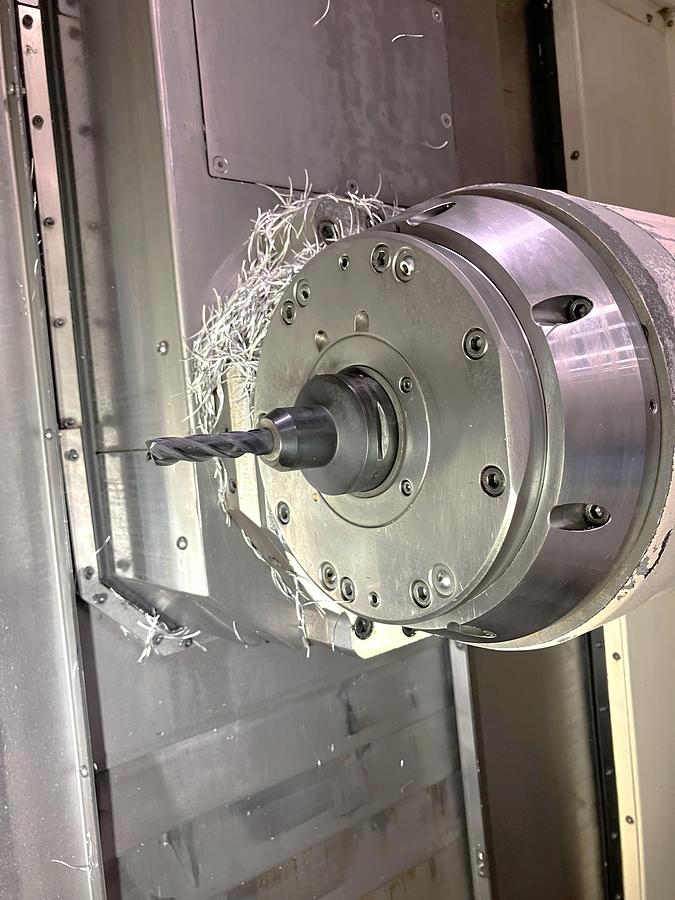

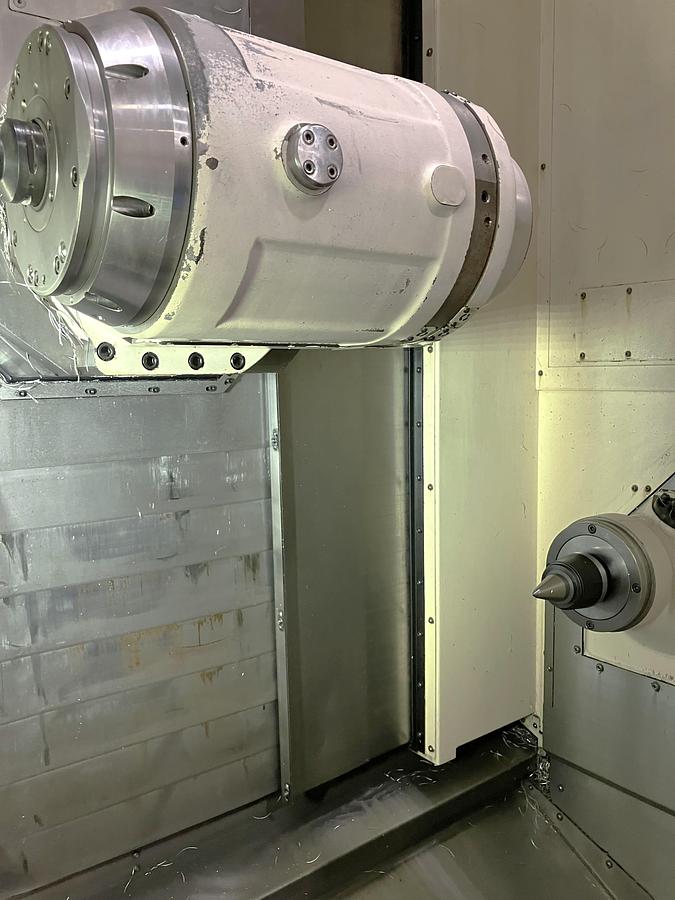

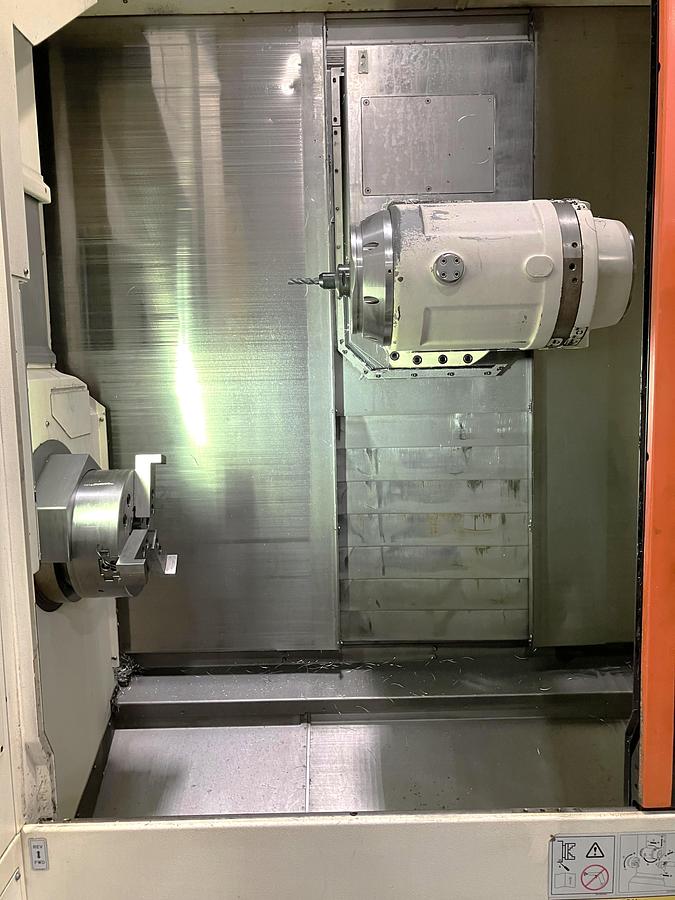

B Axis Pendulum Head with Incremental Movement

Full C Axis Spindle Rotation

Milling/Drilling Capability

Y Axis Capability

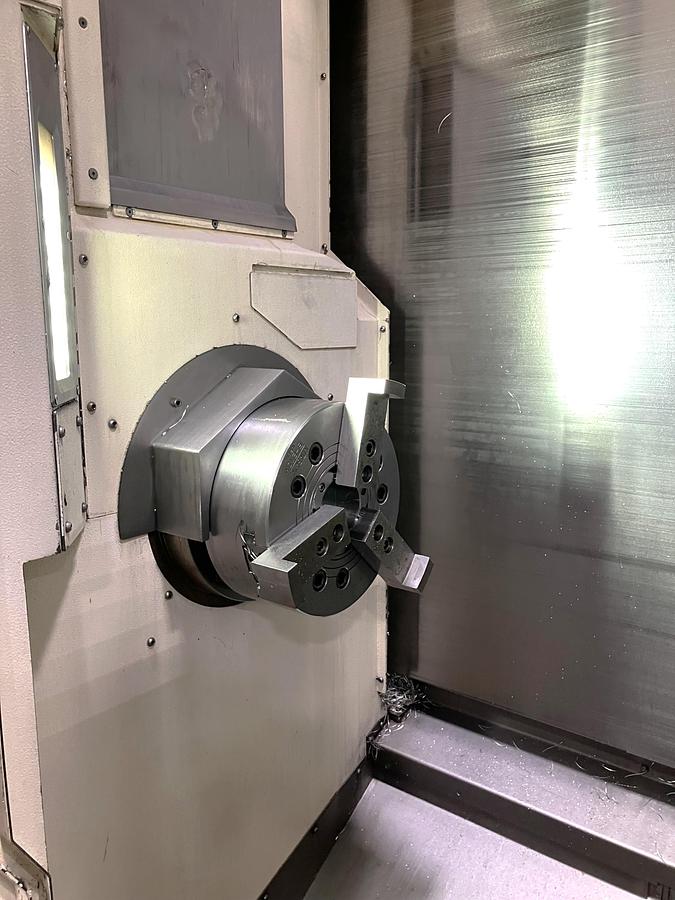

10" 3 Jaw Hydraulic Chuck

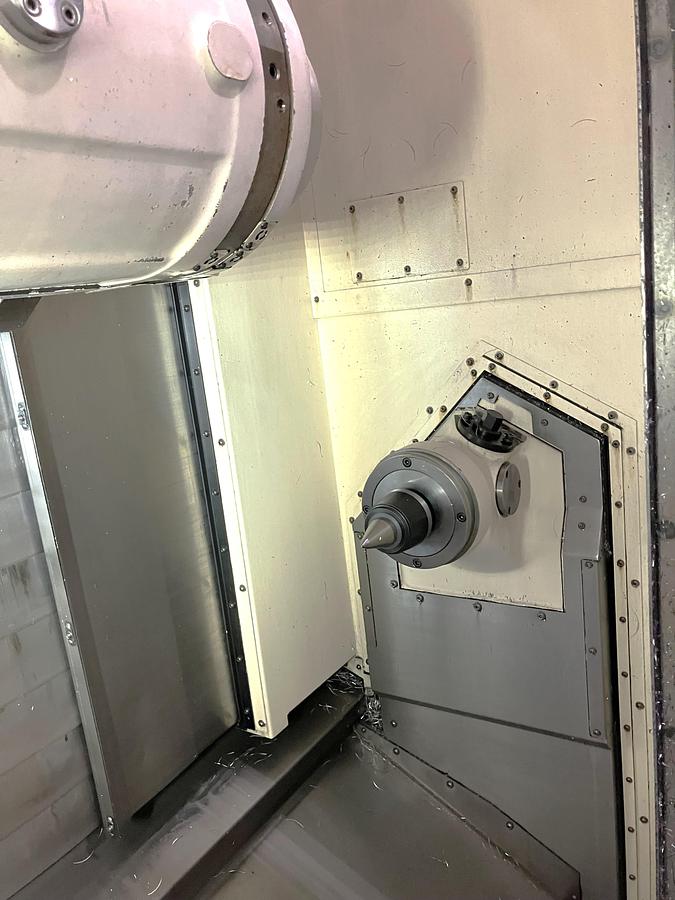

Programmable Tailstock

Chip Conveyor

3.0" Bar Capacity Package

Coolant Through the Mill Head

213 PSI High Pressure Coolant

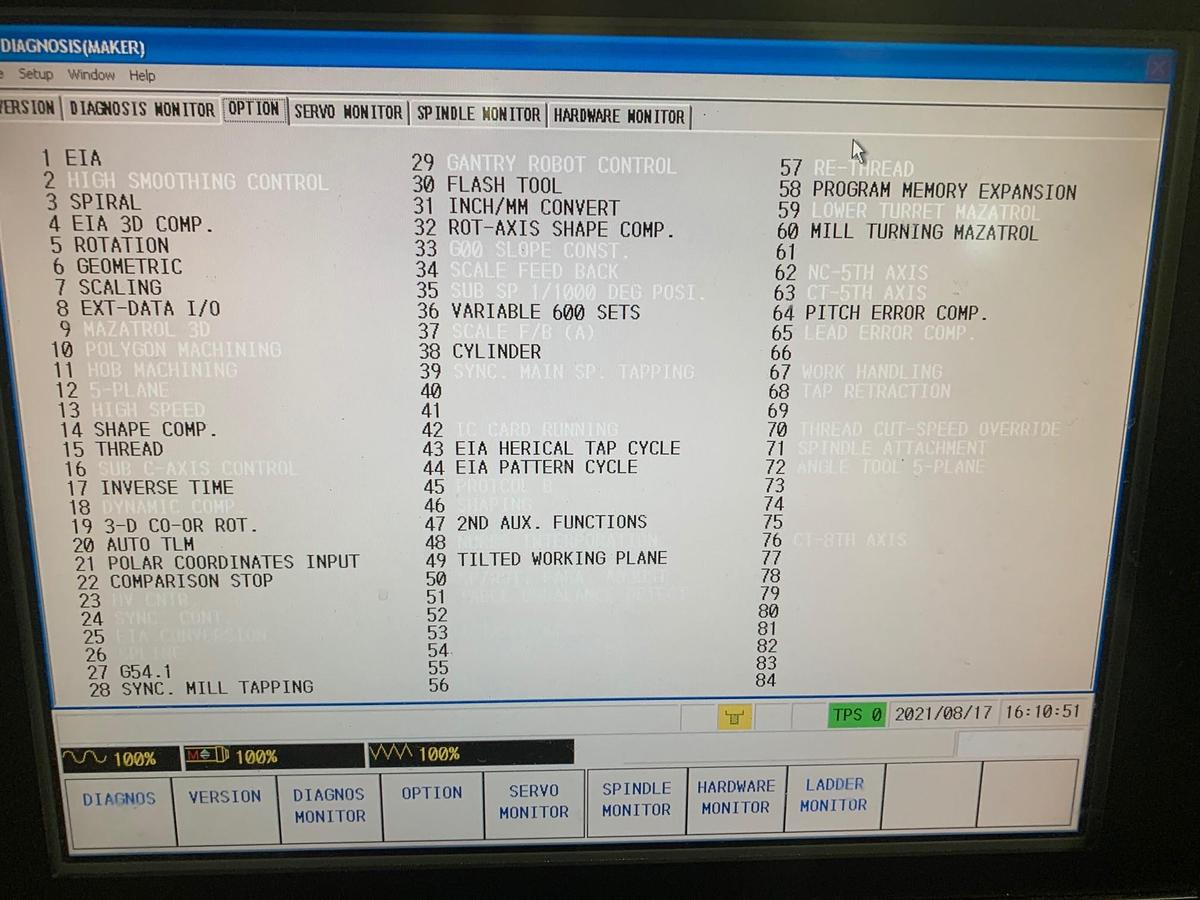

EIA Input Function

EIA 3D Compensation

EIA Helical Tap Cycle

EIA Pattern Cycle

Spiral Interpolation

Flash Tool Software

Absolute Positioning System

Coordinate Rotation & Scaling

Geometric

Extenal Data Input/Output

Shape Compensation

Threading

Inverse Time

3-D Coordinate Rotation

Automatic Tool Length Measurement

Polar Coordinates Input

Comparison Stop

G54.1

Synchronous Tapping

Inch/MM Conversion

Rotation Axis Shape Compensation

Variable 600 Sets

Cylindrical Interpolation

2nd Auxiliary Functions

Tilted Working Plane

Program Memory Expansion

Mill Turning Mazatrol Function

Pitch Error Compensation

Multi Tap Transformer

Wired 400V Electrics Currently

Some CAPTO C6 Toolholders

**Very well maintained**

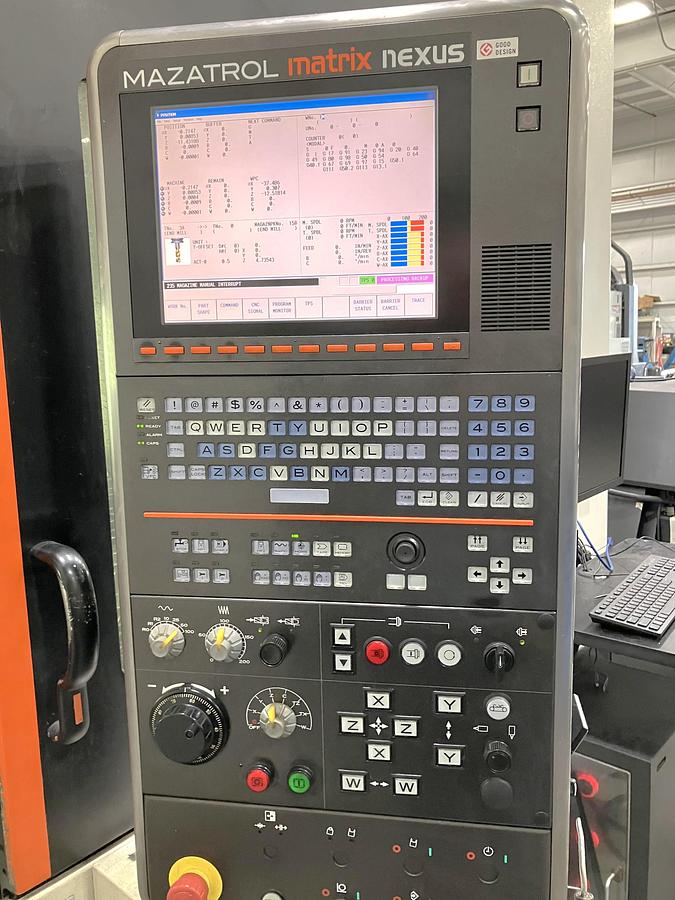

The 2012 Mazak Integrex J-300 is a versatile CNC lathe designed for complex machining tasks, equipped with advanced features like a B axis head, Y axis, and C axis rotation with milling capabilities. It features a Mazatrol Matrix Nexus Control system and a 10" 3-jaw hydraulic chuck, offering a maximum swing and machining diameter of 25.91 inches. The machine's maximum machining length extends to 39.80 inches, supported by substantial axis travels, including 24.21 inches on the X, 10.24 inches on the Y, and 48.4 inches on the Z axis. This used CNC lathe is powered by a 40 HP spindle motor, providing speeds up to 4,000 RPM, accommodated by a sturdy spindle nose and bore, allowing for efficient bar capacity. Milling operations are enhanced by a dedicated spindle achieving speeds of up to 12,000 RPM with a 30 HP motor. The B axis offers 220 degrees of incremental head indexing, and the C axis allows for precise 0.001-degree spindle rotation, ensuring flexibility and accuracy in complex machining operations. The Integrex J-300 is built with efficiency in mind, featuring rapid traverse rates of 1970 IPM on X and Z axes, and 1576 IPM on the Y axis, complemented by a 36-station tool changer to enhance productivity. With a robust machine weight of 27,800 lbs., this lathe provides stability and reliability for demanding industrial applications.
