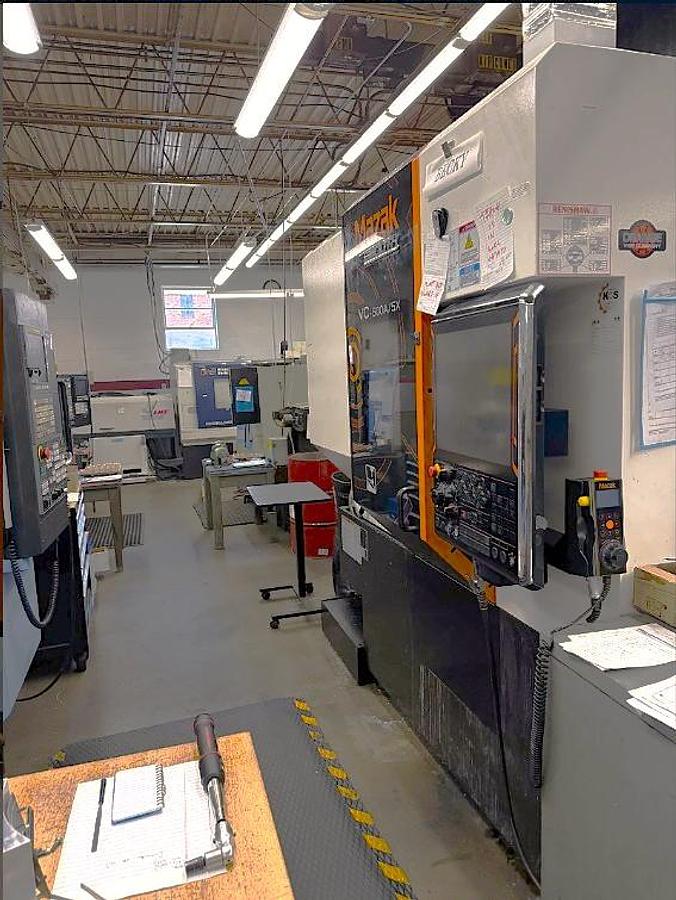

2019 Mazak VC-500A-5X with Simultaneous 5 Axis, High Press. Coolant, Tool Probe, Chip Conveyor, 2000 Cutting Hours
2019 Mazak VC-500A-5X with Simultaneous 5 Axis, High Press. Coolant, Tool Probe, Chip Conveyor, 2000 Cutting Hours
Contact us for price
Location:Illinois
or
Call (863) 439-6066
Description
Simultaneous 5 Axis Capability

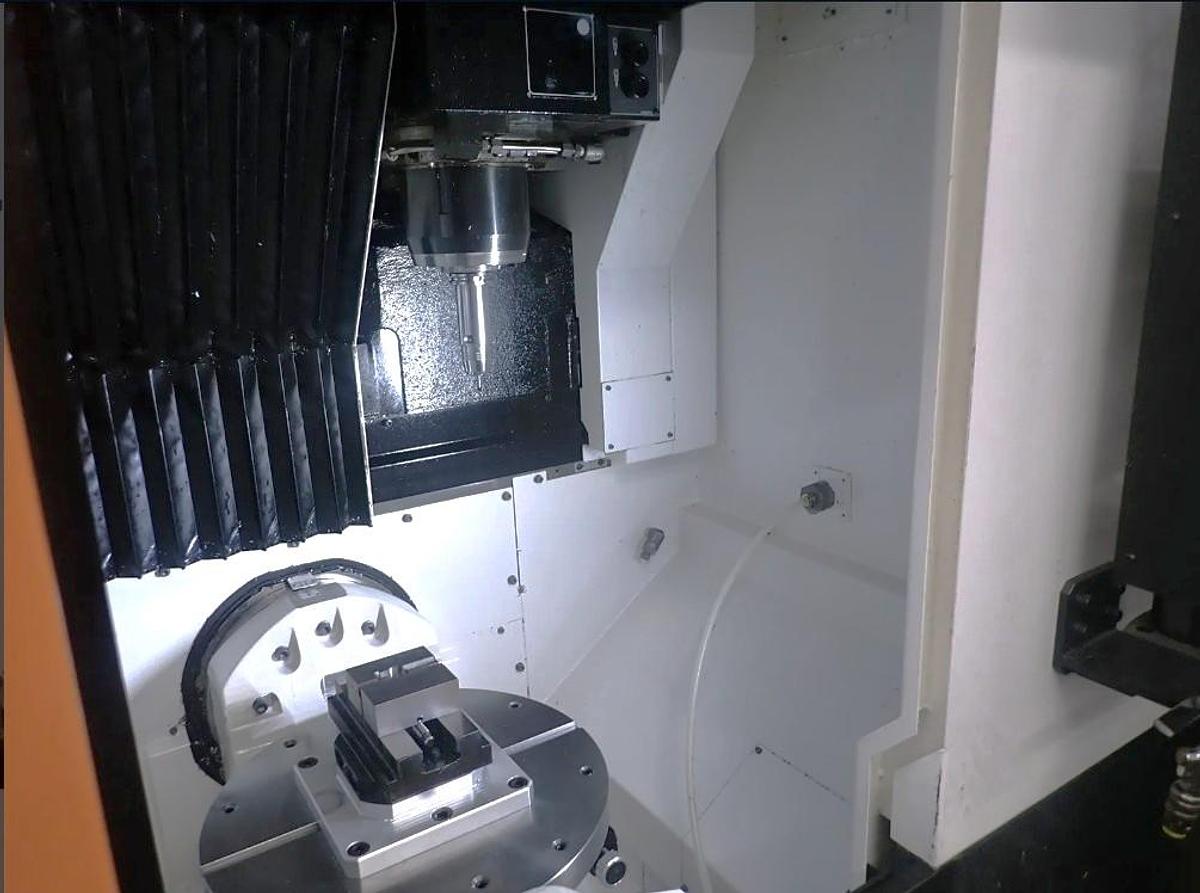

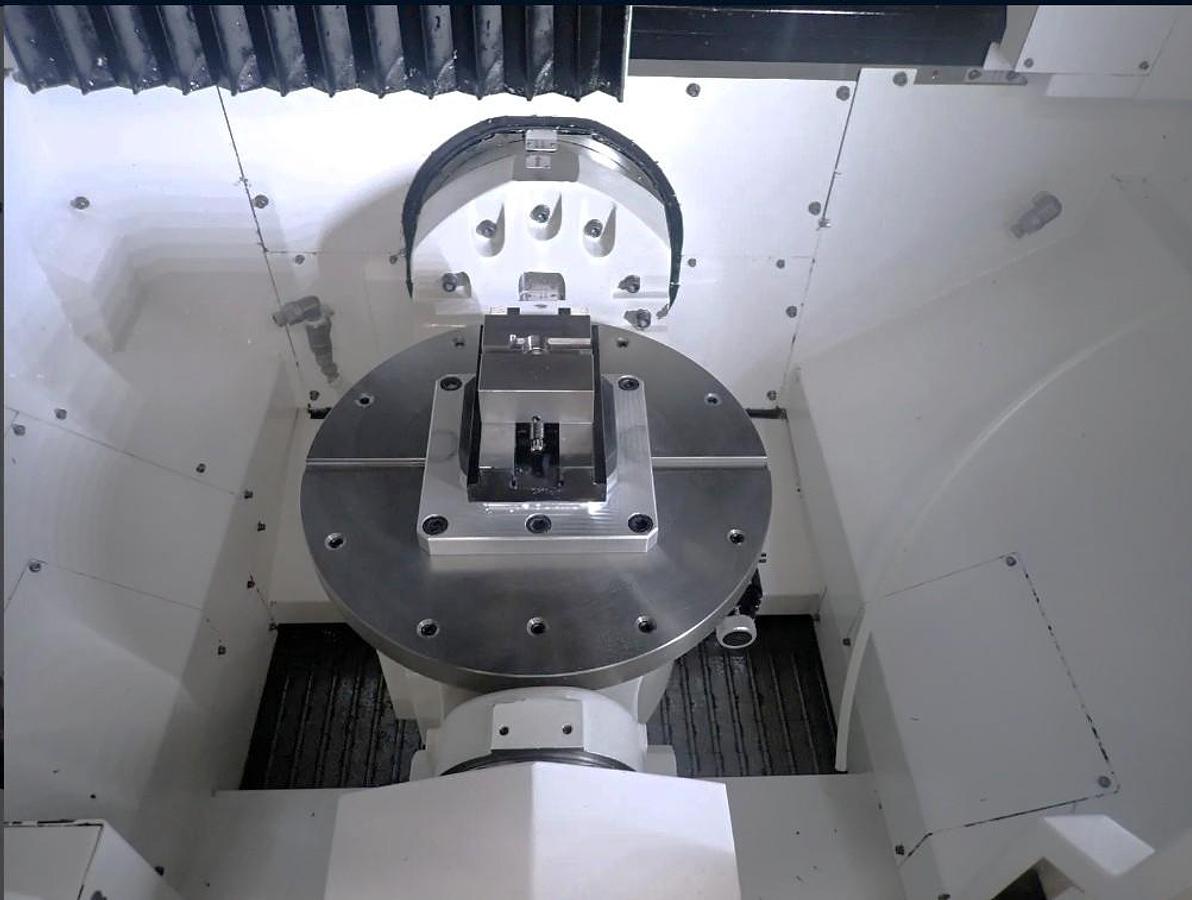

Trunnion Style 5th Axis Table
Rotating 4th Axis Table

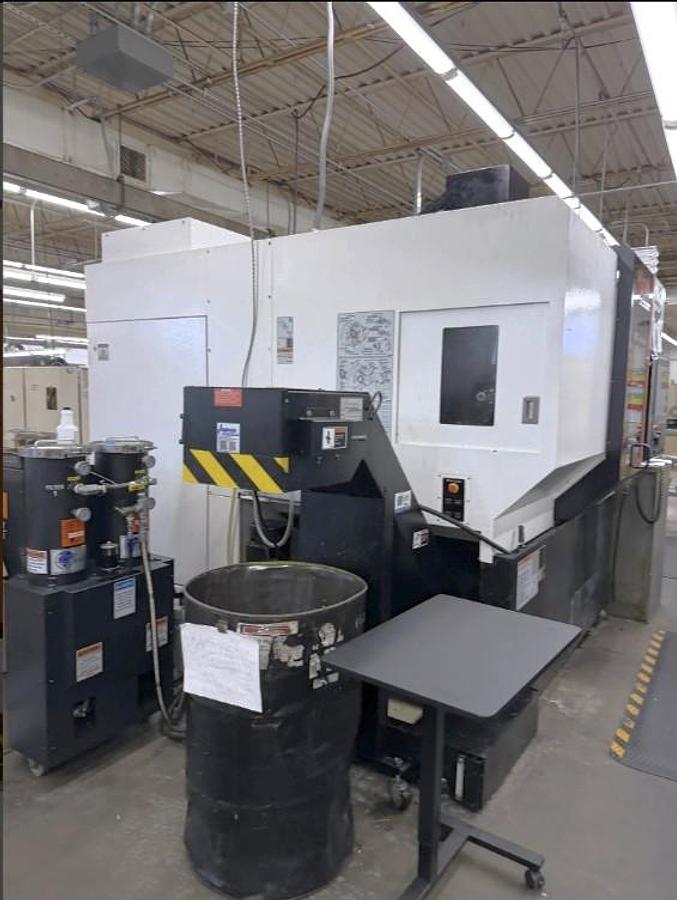

Chip Conveyor
High Pressure Coolant

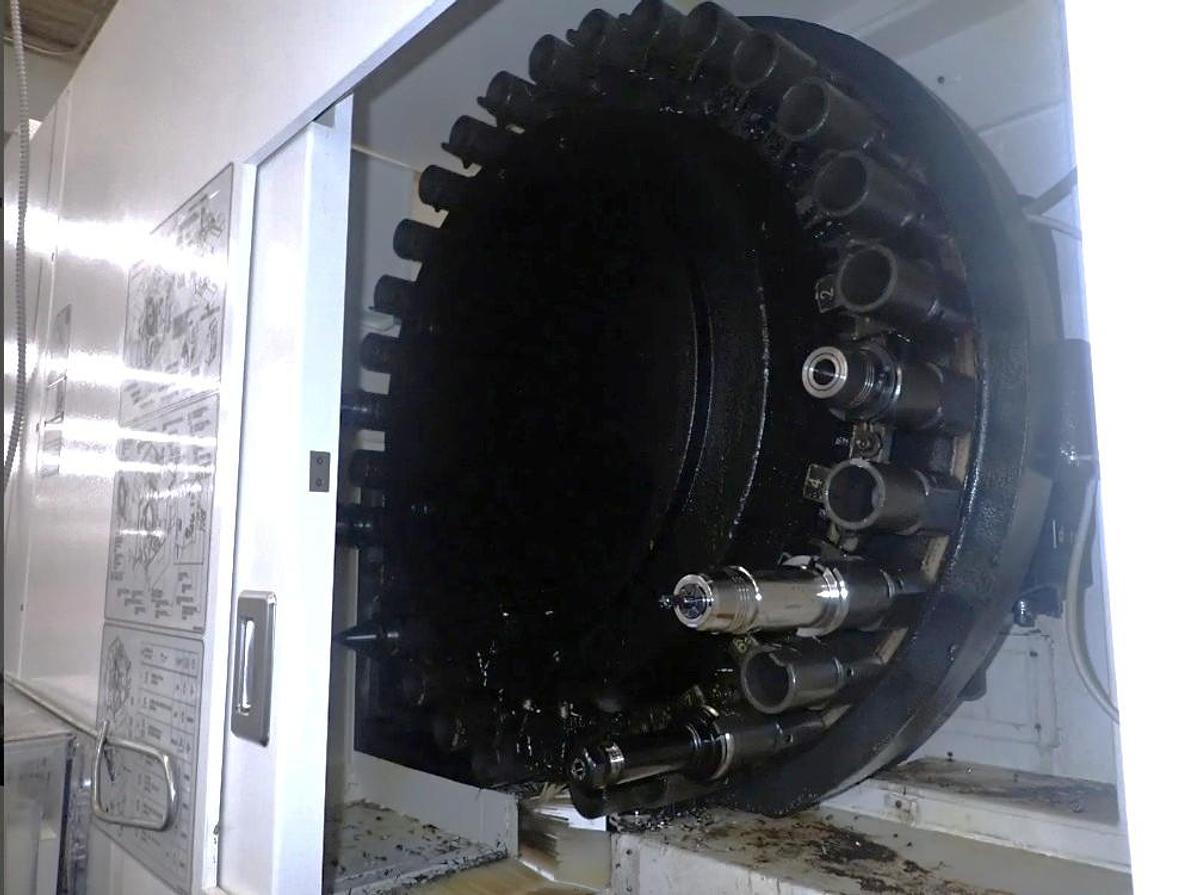

30 Station Side Mounted Tool Changer

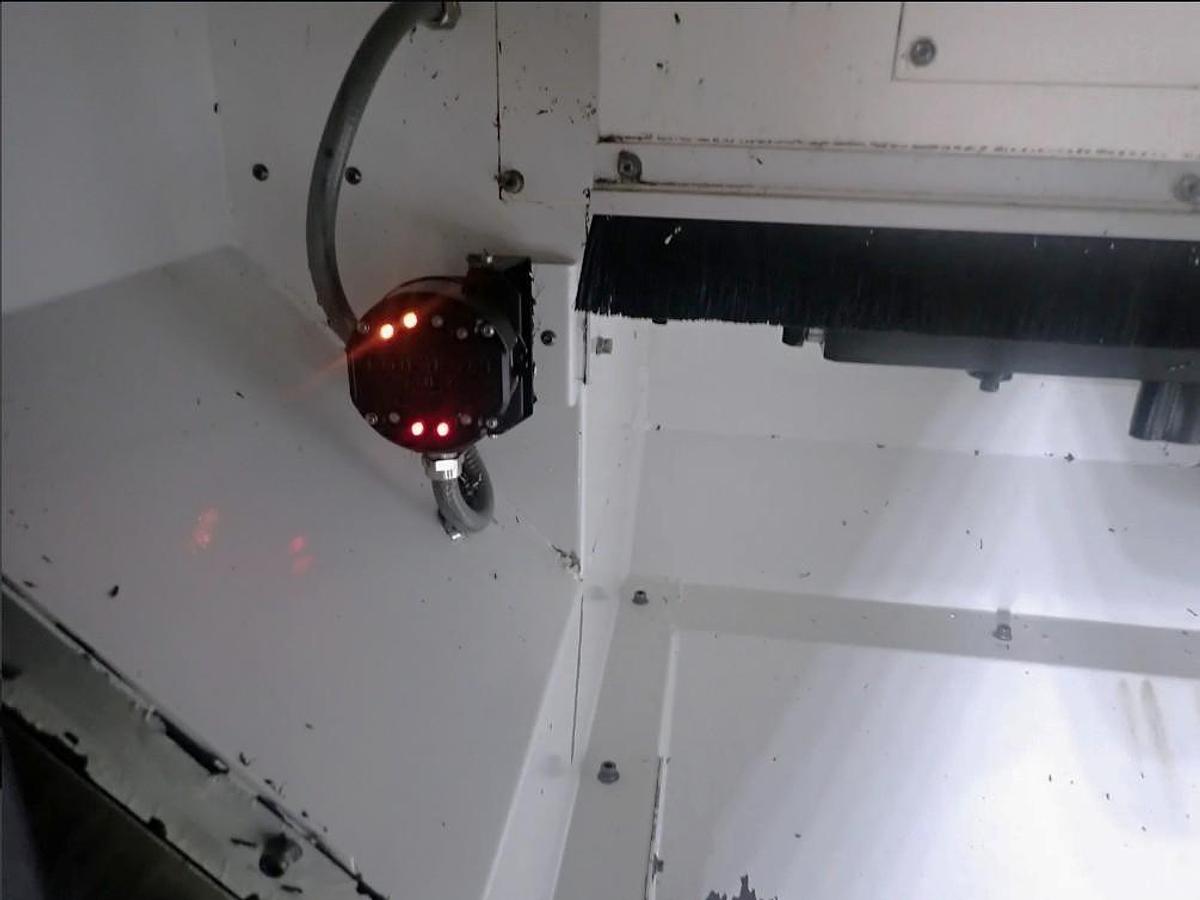

Automatic Tool Length Measurement - Tool Probing
Mazak Monitoring System B
Remote Jog Handle
USB Port Interface
Card Interface
RS 232 Port Interface
Rigid Tapping
Head Oil Chiller Cools Both Head and Table
Roller Gear Cam Drive for Rotary/Tilt Table for Rigidity and Positioning Accuracy for B Axis
Direct Drive Motor for C Axis
All Available Manuals

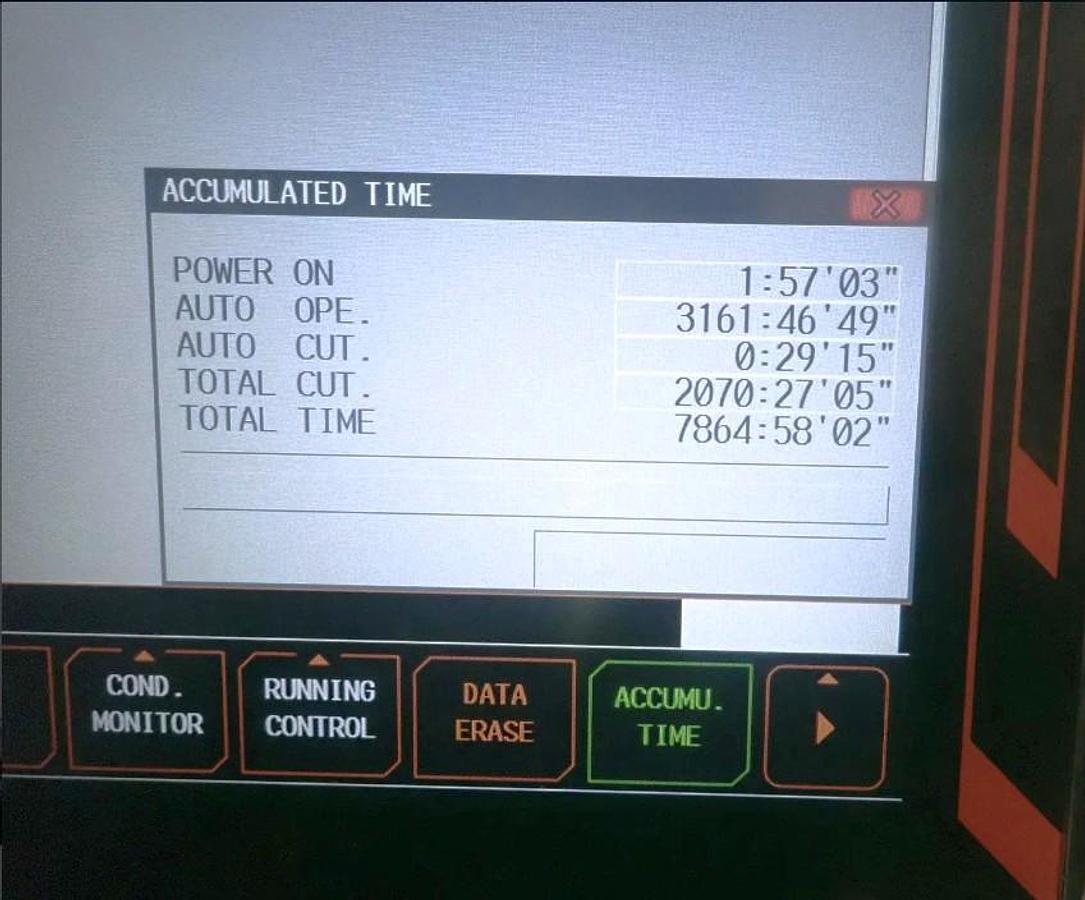

**Total Cutting Hours 2,070**
Specifications
| Manufacturer | Mazak |
| Model | VC-500A-5X |
| Year | 2019 |
| Condition | Used |
| Stock Number | 120931 |

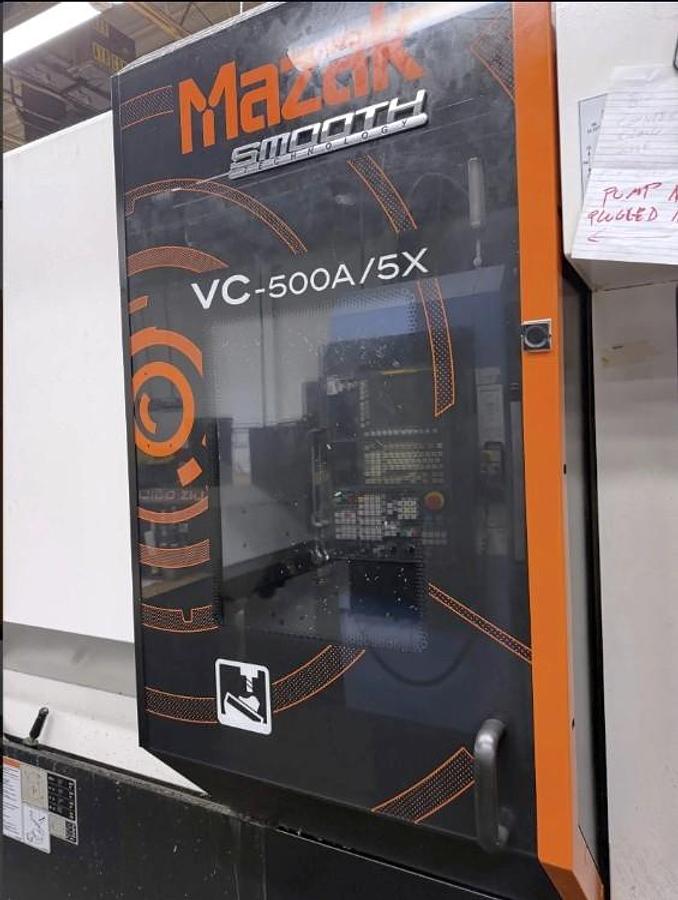

| Machine Control | Mazatrol Smooth Control |
| Table Size | 19.68" Diameter |
| Maximum Workpiece Diameter / Height | 19.68" / 12" |
| Maximum Table Load | 440 lbs |
| X-Axis Travel | 21.85" |
| Y-Axis Travel | 19.88" |
| Z-Axis Travel | 20.07" |
| B-Axis Tilt Movement | +110 Degrees to -110 Degrees |
| C-Axis Rotation | 360 Degrees |
| Spindle Speed | 10,000 RPM |
| Spindle Taper | CAT 40 |
| Spindle Motor | 15 HP |
| Tool Magazine Capacity | 30 Station Tool Changer |
| Maximum Tool Diameter / Length / Weight | 3.15"/ 10.23" / NA |
| Rapid Traverse Rates | 1181 IPM |
| Machine Dimensions LxWxH | 117.5"x78.7"x125" |
| Machine Weight | 10,000 lbs. |
