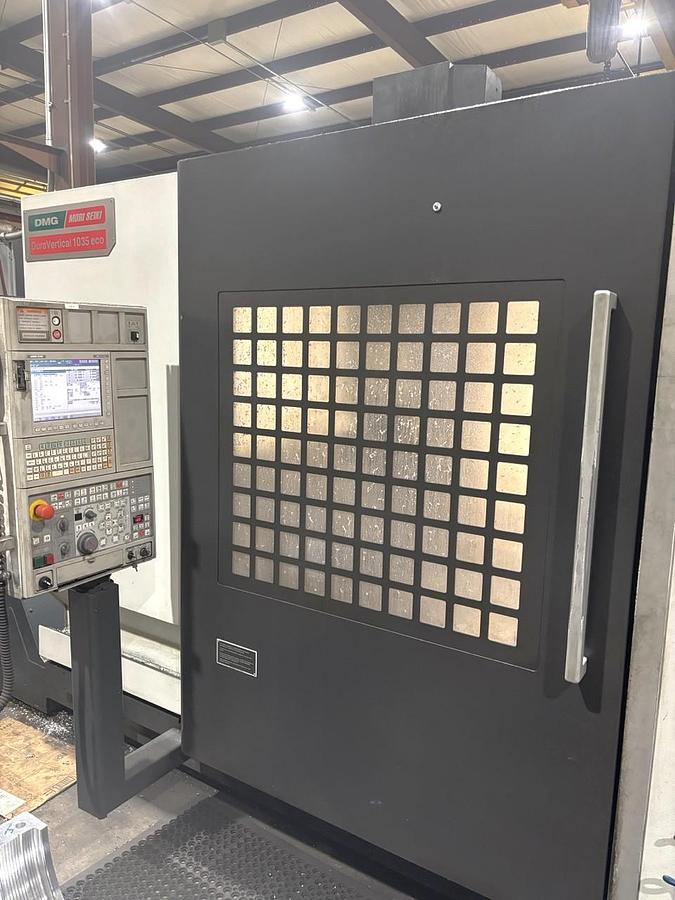

2012 DMG Mori DuraVertical 1035 eco with Coolant Thru Spindle, 4th Axis Ready, 40 Station ATC, 12,000 RPM, CAT 40, Mitsubishi Control
2012 DMG Mori DuraVertical 1035 eco with Coolant Thru Spindle, 4th Axis Ready, 40 Station ATC, 12,000 RPM, CAT 40, Mitsubishi Control
$28,500 (USD)
Location:Pennsylvania
or
Call (863) 439-6066
Description
40 Station Side Mounted Tool Changer

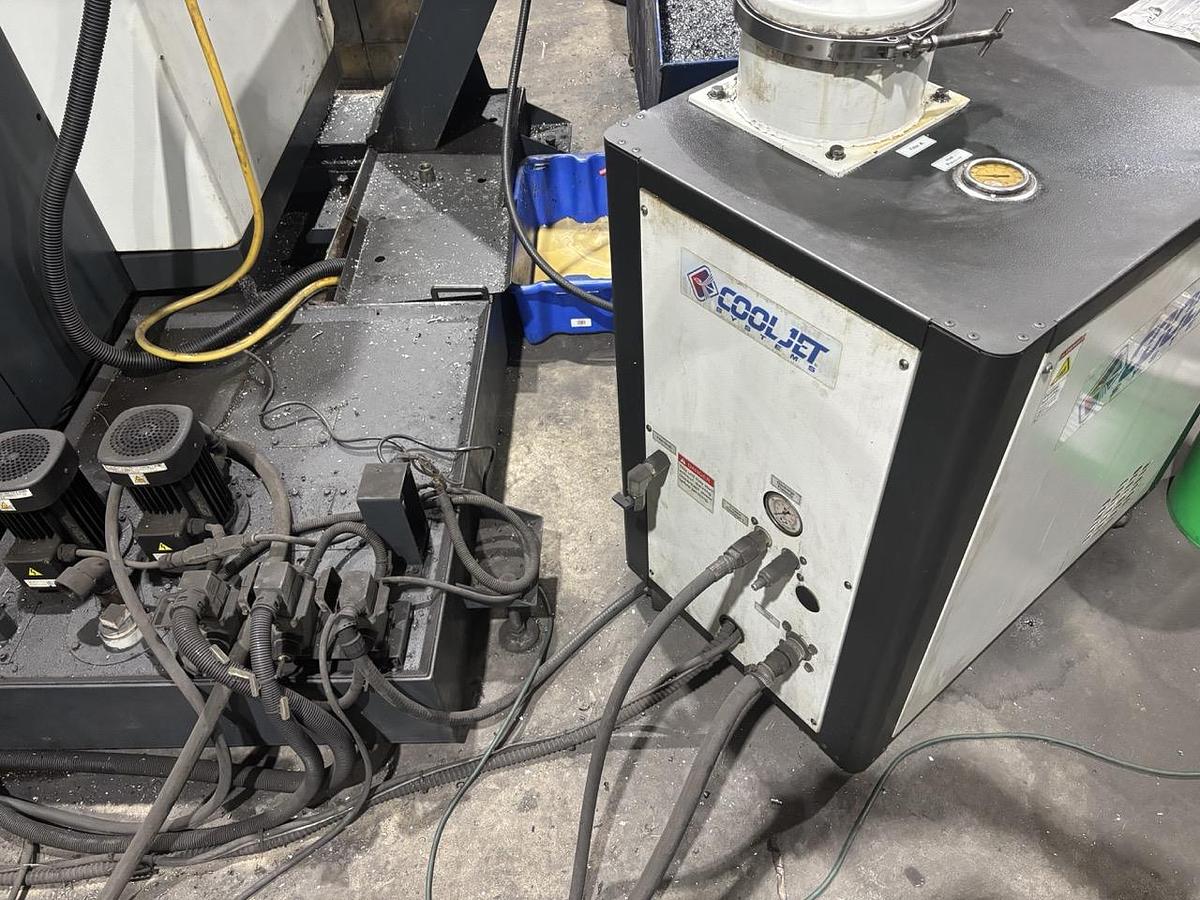

Coolant Through the Spindle - Cool Jet
4th Axis Ready

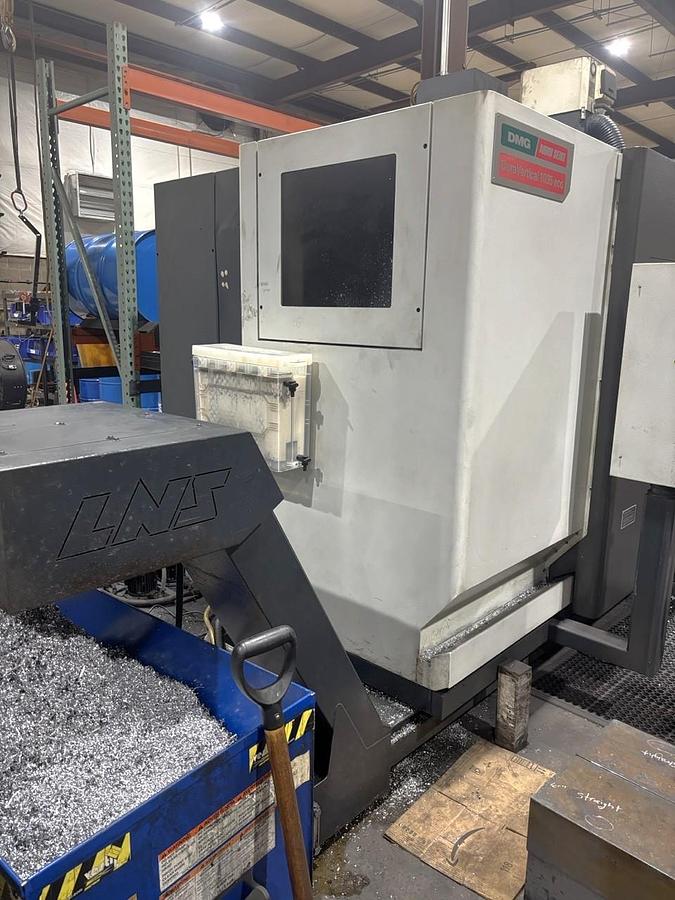

Chip Conveyor
12,000 RPM Spindle
Remote Jog Handle
Rigid Tapping
Coolant Tank with Coolant Pump Card Interface RS-232 Port Interface
Specifications
| Manufacturer | DMG Mori |
| Model | DuraVertical 1035 eco |
| Year | 2012 |
| Condition | Used |
| Stock Number | 120930 |
| Control | Mitsubishi M730BM |
| Table Size | 47.2" x 22" |
| Maximum Table Load | 2,204 lbs. |
| X-Axis Travel | 40.7" |
| Y-Axis Travel | 22" |
| Z-Axis Travel | 20.1" |
| Spindle Taper | CAT #40 |
| Spindle Speeds | 12,000 RPM |
| Spindle Motor | 20 HP |
| Number of Tool Positions | 40 Station Tool Changer - Side Mounted |
| Maximum Tool Diameter / Length | 5.12" / 11.81" |
| Rapid Traverse Rates X, Y / Z | 1181 IPM / 1181 IPM |
| Machine Dimensions | 100" x 98" x 106" |
| Machine Weight | 9,700 lbs. |
