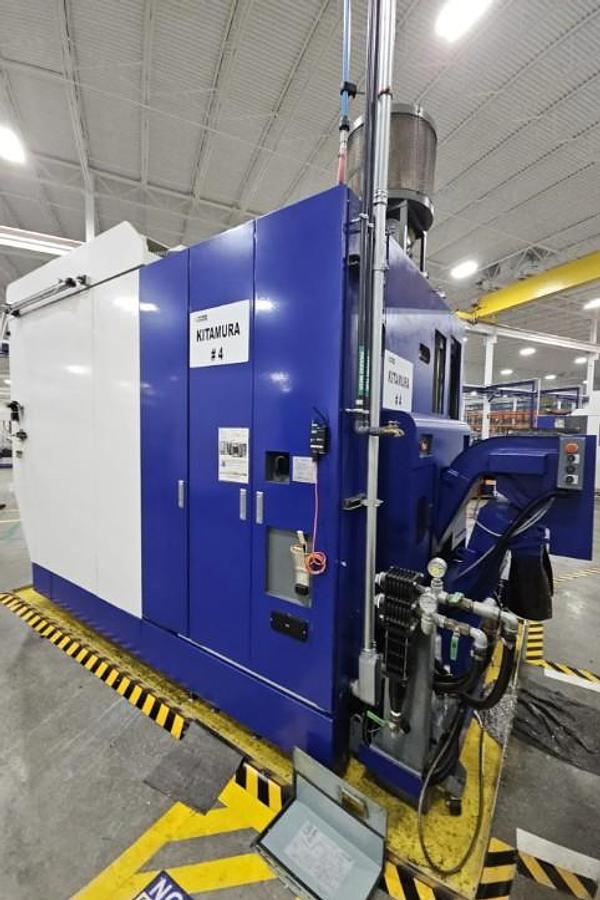

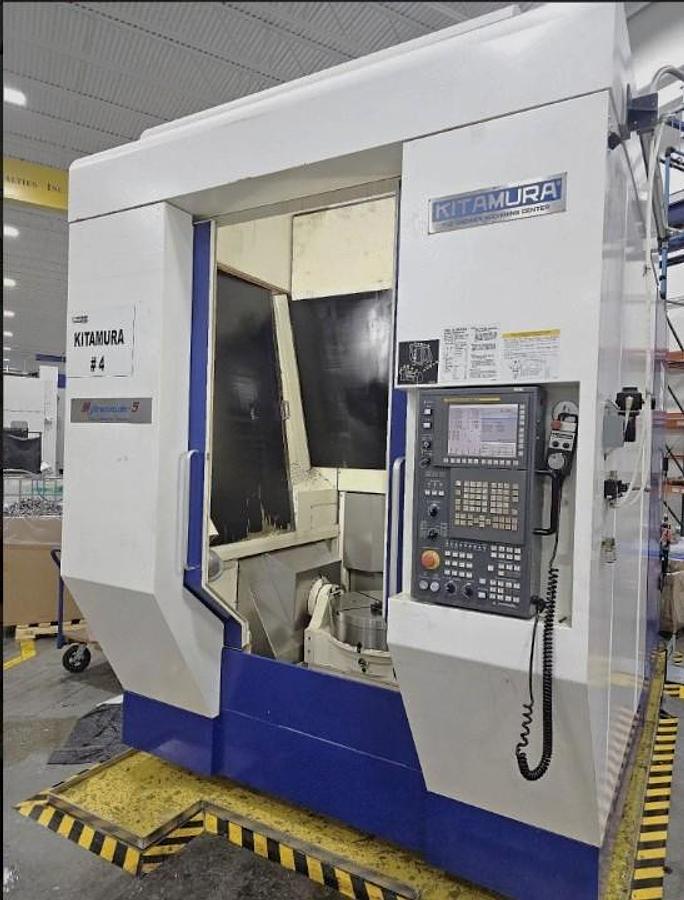

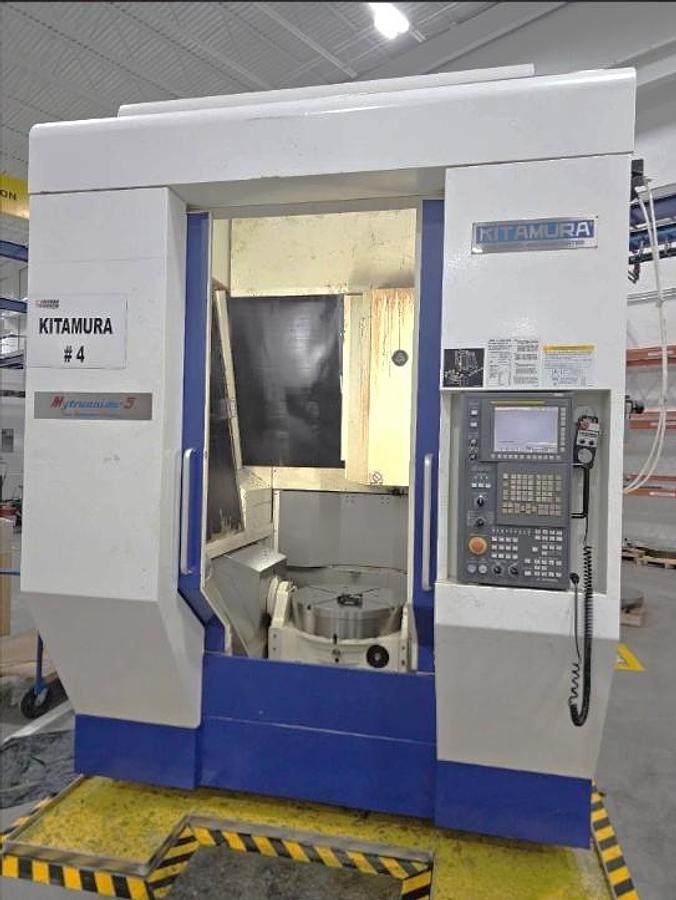

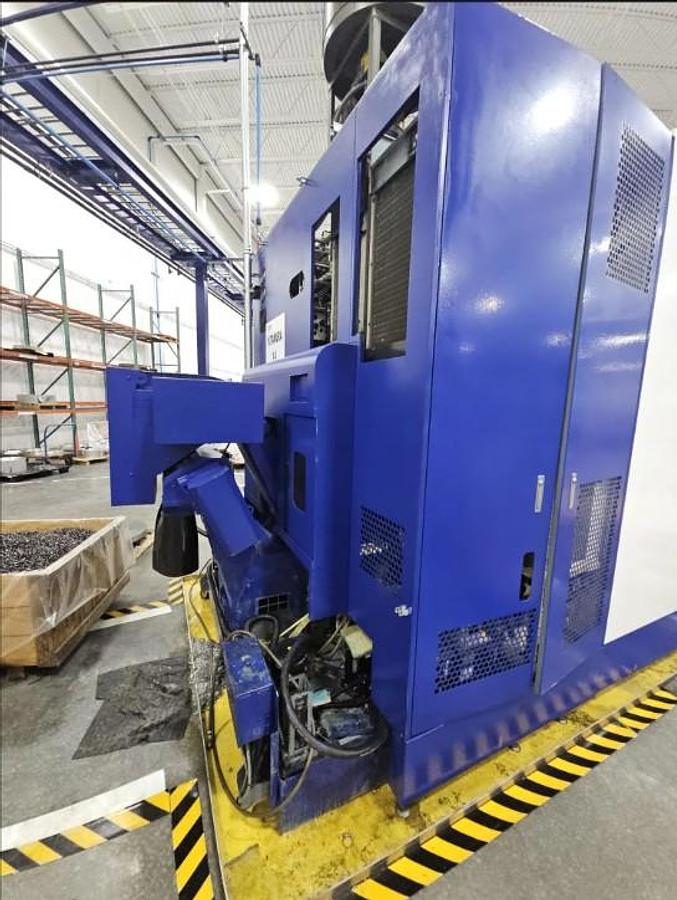

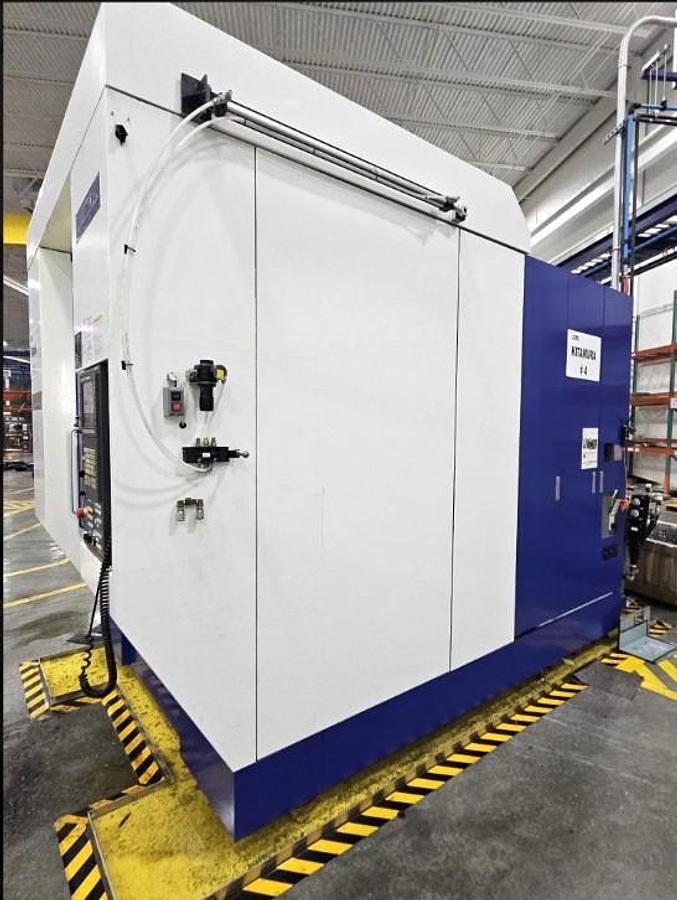

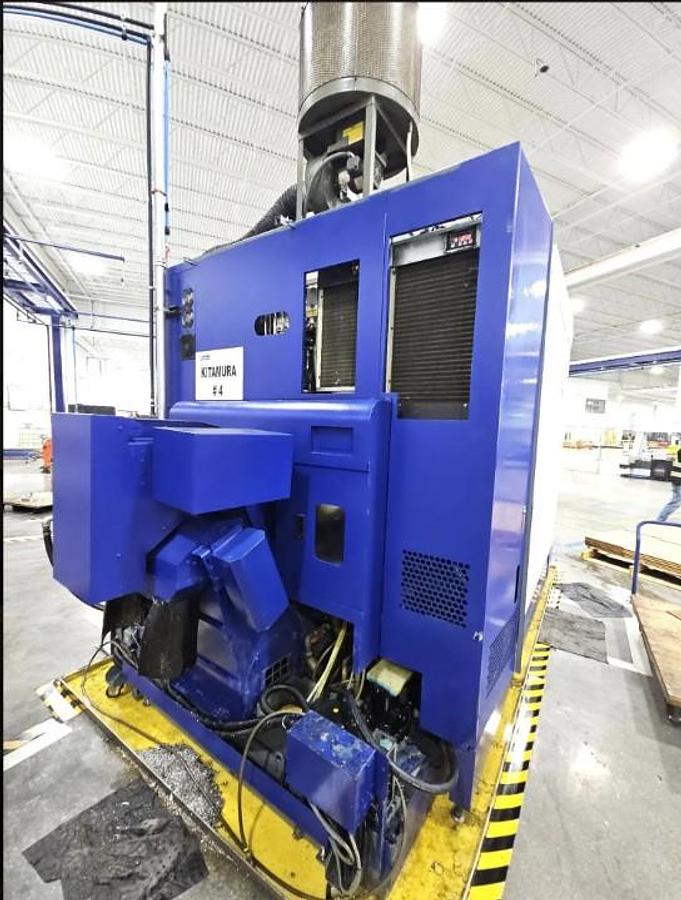

2017 Kitamura MyTrunnion-5 Five Axis Trunnion Style VMC with 20,000 RPM, 50 Station ATC, 24" Diam Chuck, Coolant Thru Spindle, Conveyor
2017 Kitamura MyTrunnion-5 Five Axis Trunnion Style VMC with 20,000 RPM, 50 Station ATC, 24" Diam Chuck, Coolant Thru Spindle, Conveyor
$129,500 (USD)
Location:Michigan
or
Call (863) 439-6066
Description
Simutaneous 5 Axis Machining

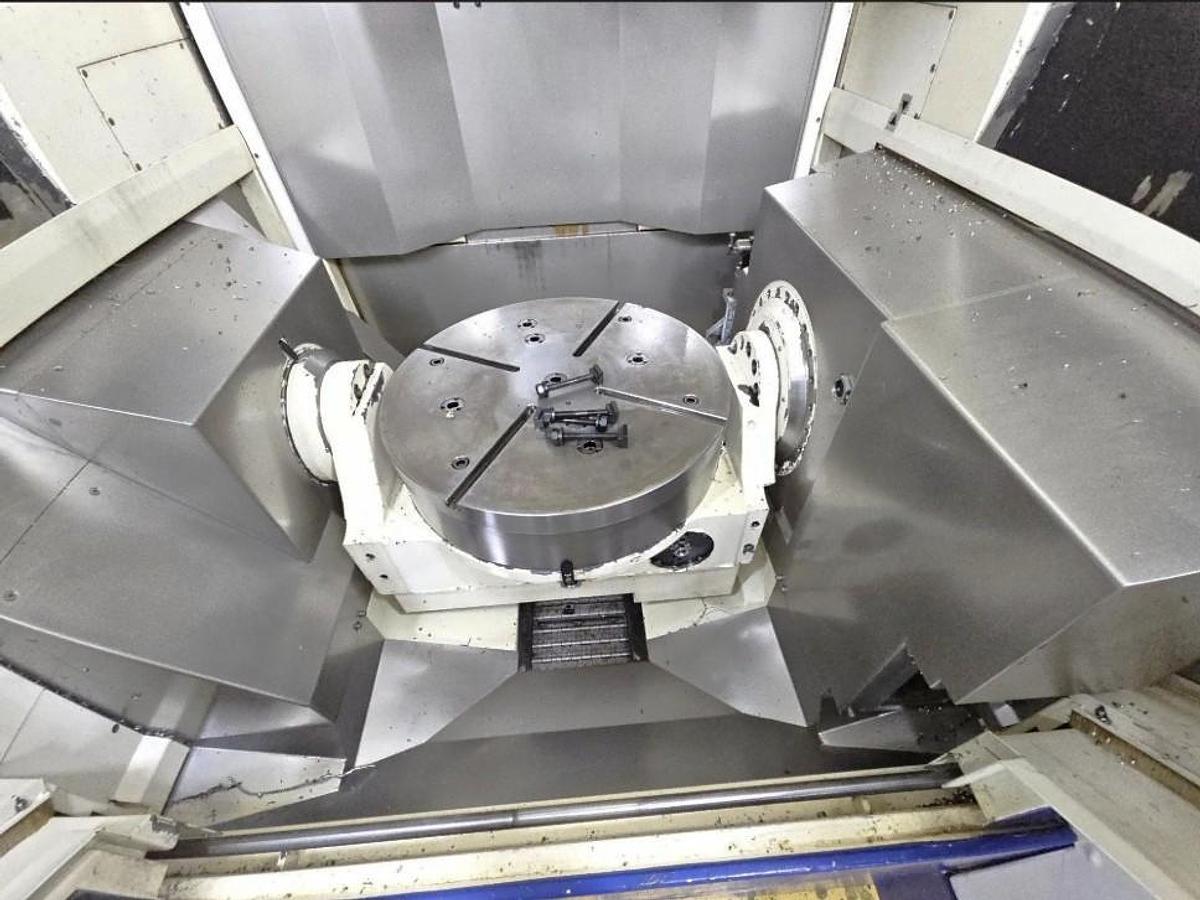

24" 4 Jaw Table

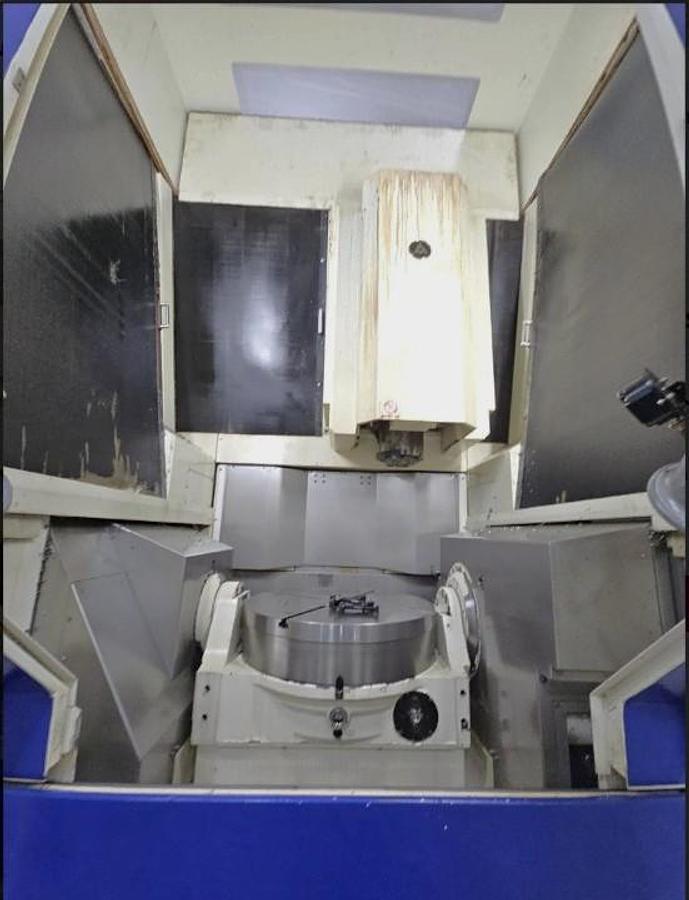

Trunnion Style 5th Axis Table
Coolant Through the Spindle
Chip Conveyor
50 Station Tool Changer - Expandable
Renishaw Probing Software and Transducer
20,000 RPM Spindle
Spindle Chiller Unit
Spindle Orientation
Helical Interpolation
Absolute Incremental Programming
Rigid Tapping
Remote Jog Handle
All Boxed Way Design
128 MB Programming Memory
PCMCIA Card Interface
USB Port Interface
RS 232 Port Interface
Flood Coolant System with Tank & Pump
Oil Cooled Ballscrews
**In plant under power and available for inspection and immediate purchase**
**Contract has ended that had machine being used to light angle drilling on a inconel ring for GE Aerospace**
Specifications
| Manufacturer | Kitamura |
| Model | MyTrunnion- 5 |
| Year | 2017 |
| Condition | Used |
| Stock Number | 120922 |
| Machine Control | Fanuc 30i - Model B |
| Table size | 24" Diameter |
| Table load capacity | 880 lbs |
| X axis travel | 32.3" |
| Y axis travel | 29.3" |
| Z axis travel | 19.6" |
| B axis rotate of trunnion | 150 Degrees |
| C axis table rotation | 360 Degrees |
| Spindle taper | CAT #40 |
| Spindle speed | 20,000 RPM |
| Spindle motor | 30 HP |
| Distance Spindle Nose to Table Top | 3.9" - 23.6" |
| Tool magazine | 50 Station Tool Changer |
| Maximum Tool Diameter / Length / Weight | 5.91" / 11.8" / 22 lbs. |
| Rapid traverse rates | 1968 IPM / 984 IPM |
| Maximum feed rates | 984 IPM |
| Machine dimensions | 157" x 94" x 101" |
| Machine weight | 30,000 lbs |
