2013 Doosan Puma 400LC with 6.5" Bar Cap, 21" Hyd Chuck, 23.2" TD x 81.7" Turn Length, 50 HP, SMW Hyd Steady, Tailstock, Conveyor

Chip Conveyor

21" 3 Jaw Hydraulic Chuck

Programmable Tailstock

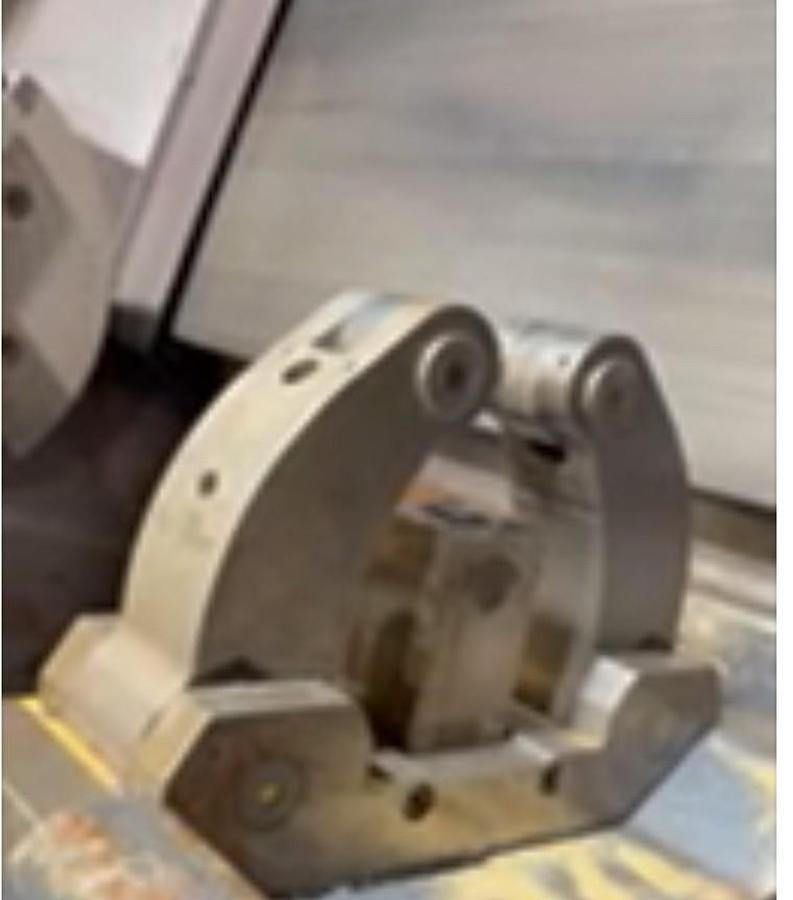

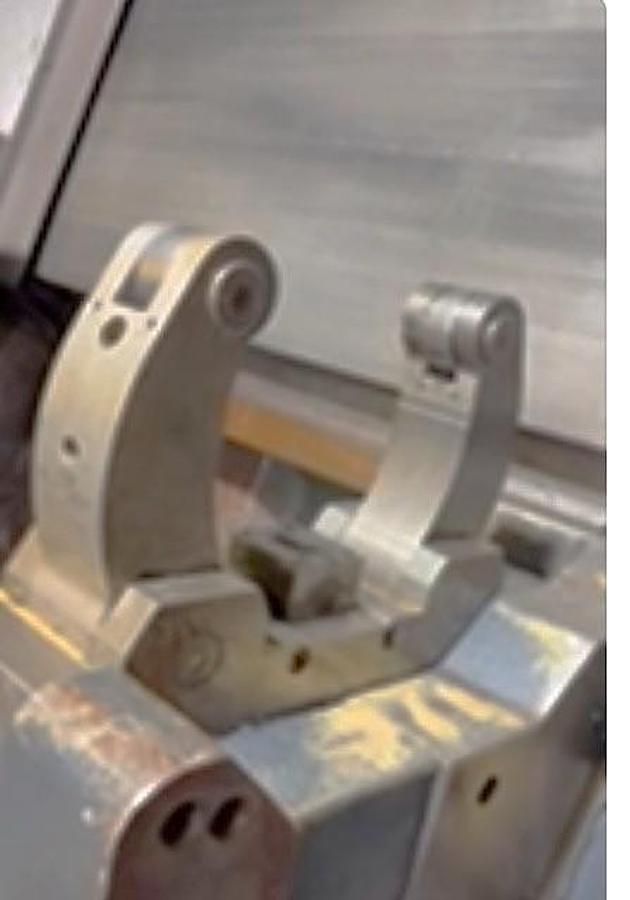

SMW Autoblok Hydraulic Steady Rest

Tool Presetter

3.5" Floppy Disk Interface

Card Interface

RS 232 Port Interface

Coolant System with Tank & Pump

Boxed Way Construction on Slant Bed

All Available Tooling

All Available Manuals

**Approximately 7,000 Run Hours**

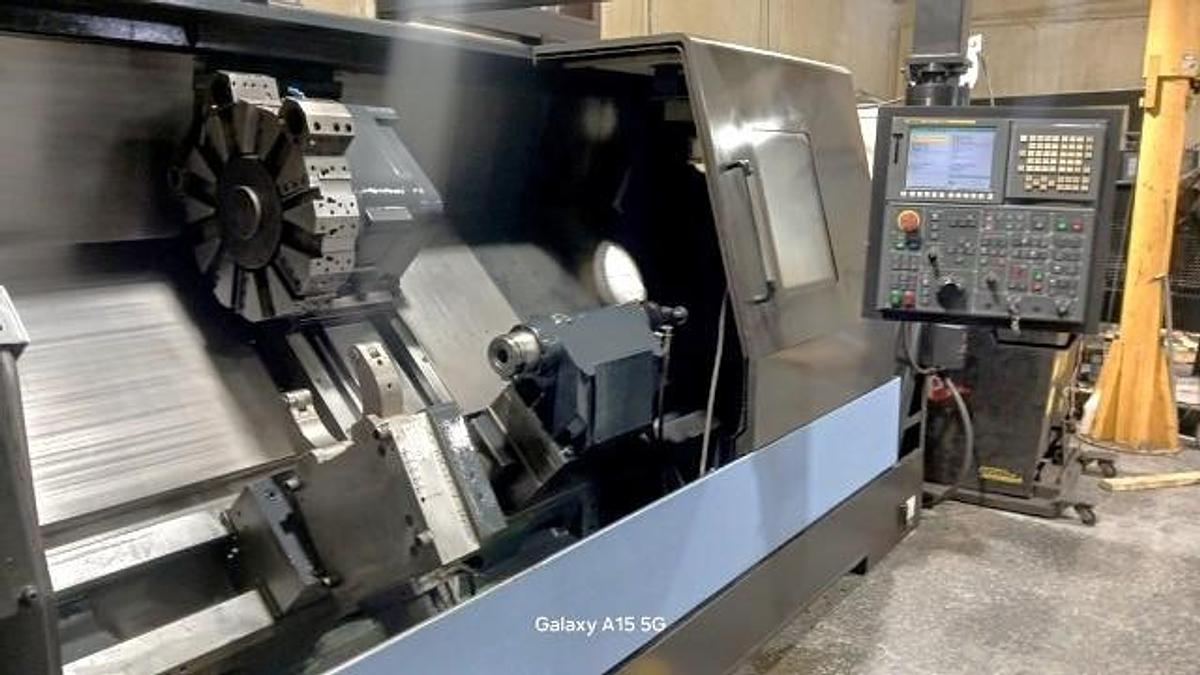

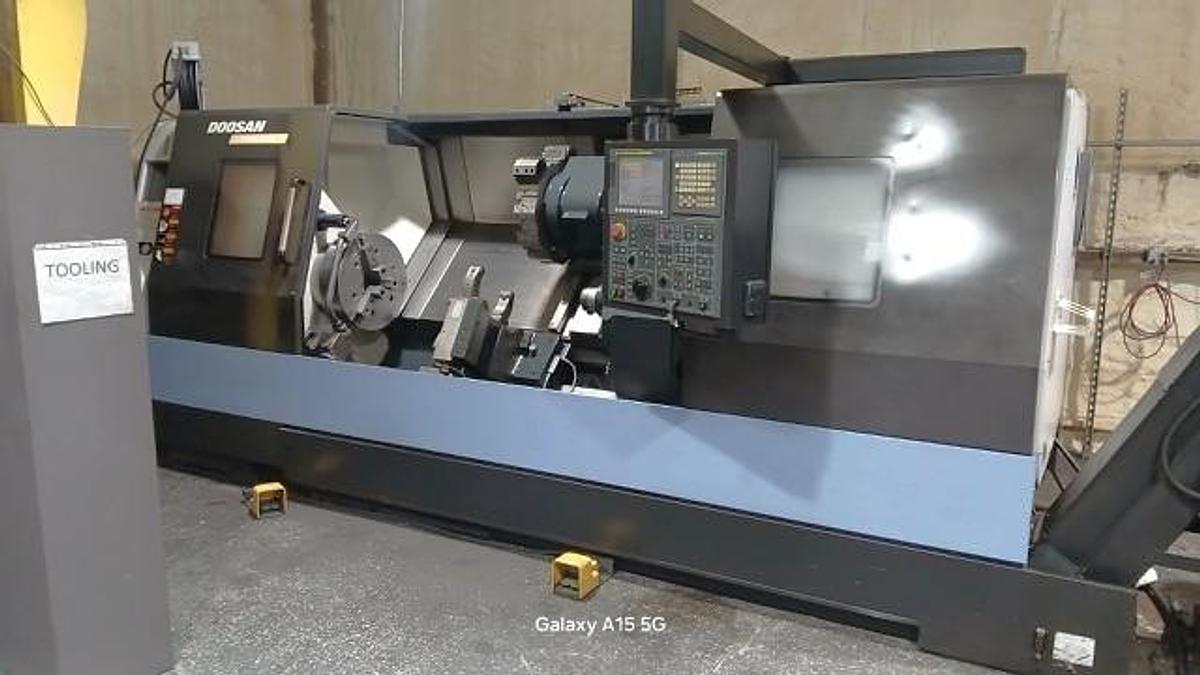

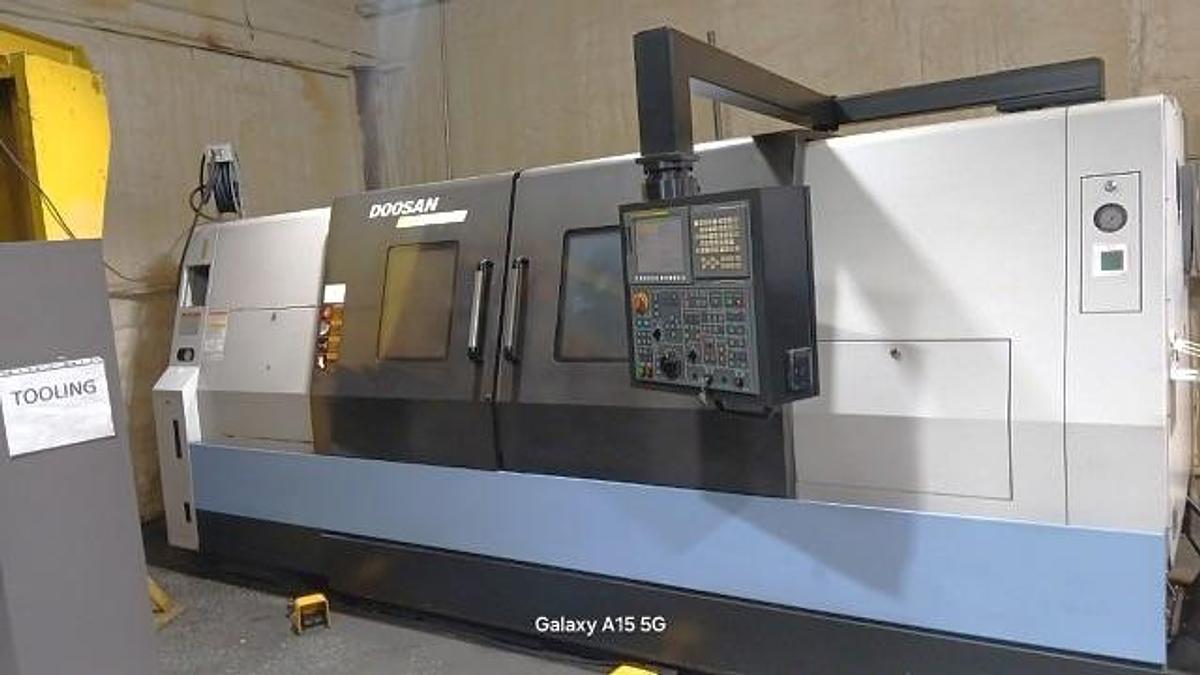

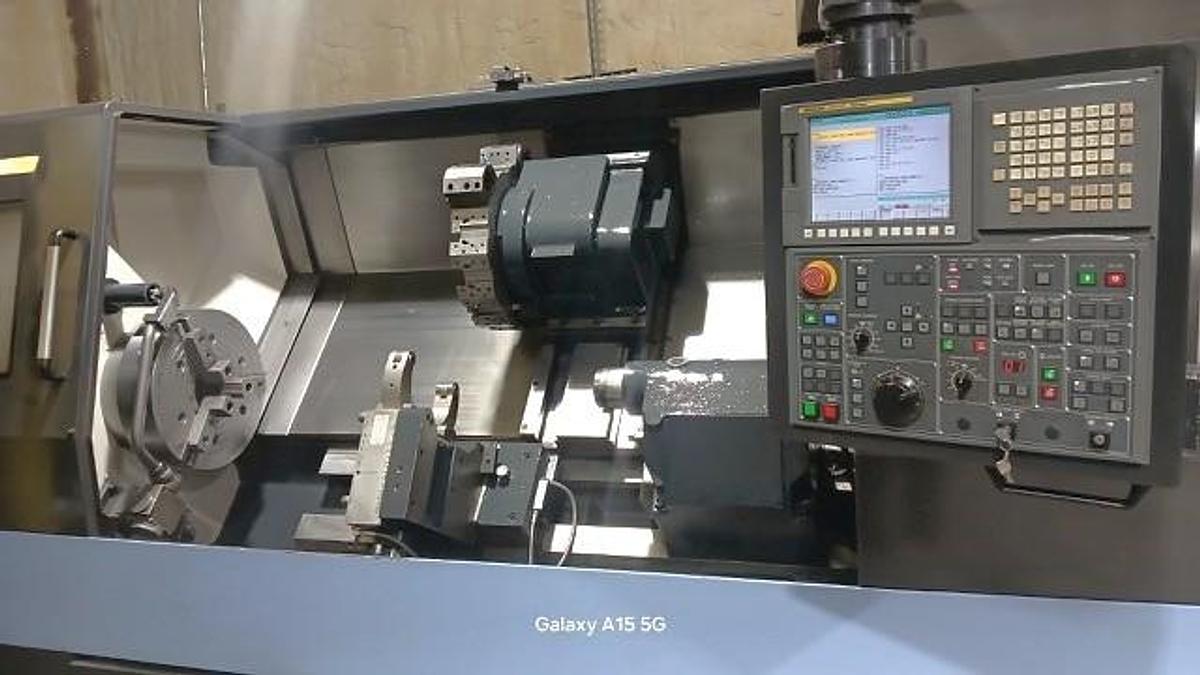

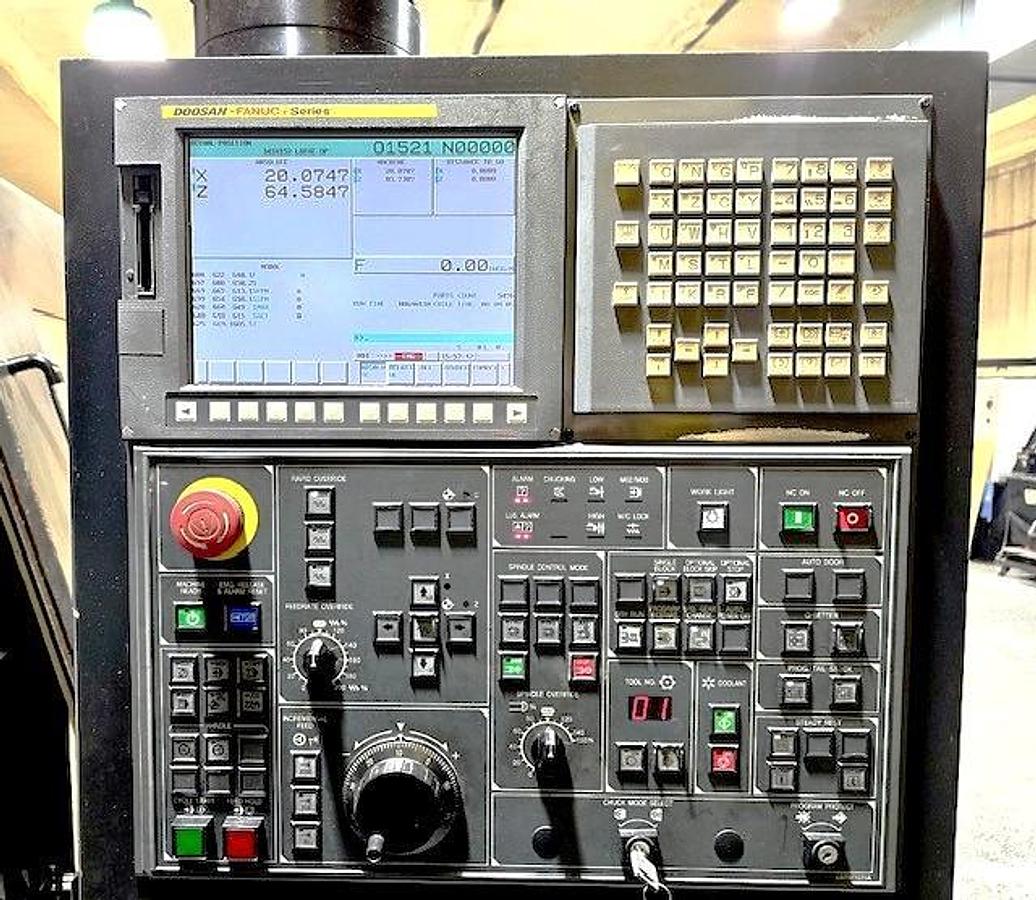

The 2013 Doosan Puma 400LC is a robust CNC lathe, designed to handle demanding machining tasks with precision and efficiency. It features a 21" hydraulic chuck and offers a substantial maximum turning diameter of 23.2", with a turning length capacity of up to 81.7". Powered by a 50 HP spindle motor, the machine can achieve spindle speeds up to 1,500 RPM, ensuring powerful and rapid operations. Equipped with a Fanuc i Series Control system, the lathe provides ease of operation and precise control. The machine boasts a bar capacity of 6.5" and includes an A2-15 spindle nose with a 7.1" spindle bore. With rapid traverse rates of 630 IPM for the X-axis and 790 IPM for the Z-axis, this equipment ensures quick and efficient positioning. Additionally, the 12-position turret and hydraulic tailstock provide versatility for various machining tasks. The Doosan Puma 400LC is fitted with an SMW hydraulic steady and a conveyor for efficient chip management. Despite its heavy-duty capabilities and machine weight of 25,500 lbs., it maintains a compact footprint with dimensions of 210" x 94" x 89". This CNC lathe is an optimal choice for industries requiring consistent and reliable performance.
