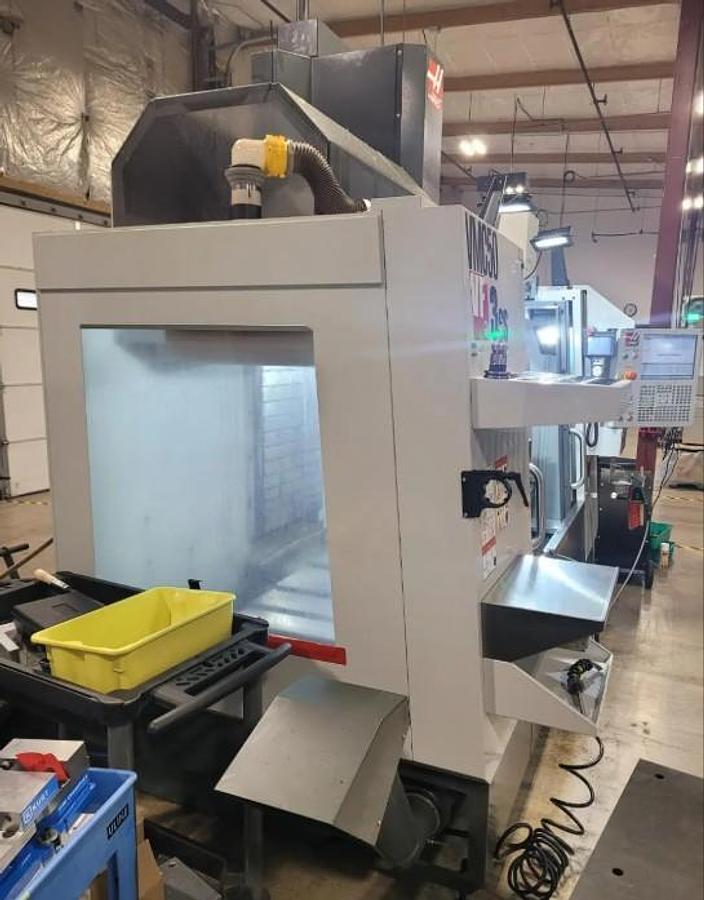

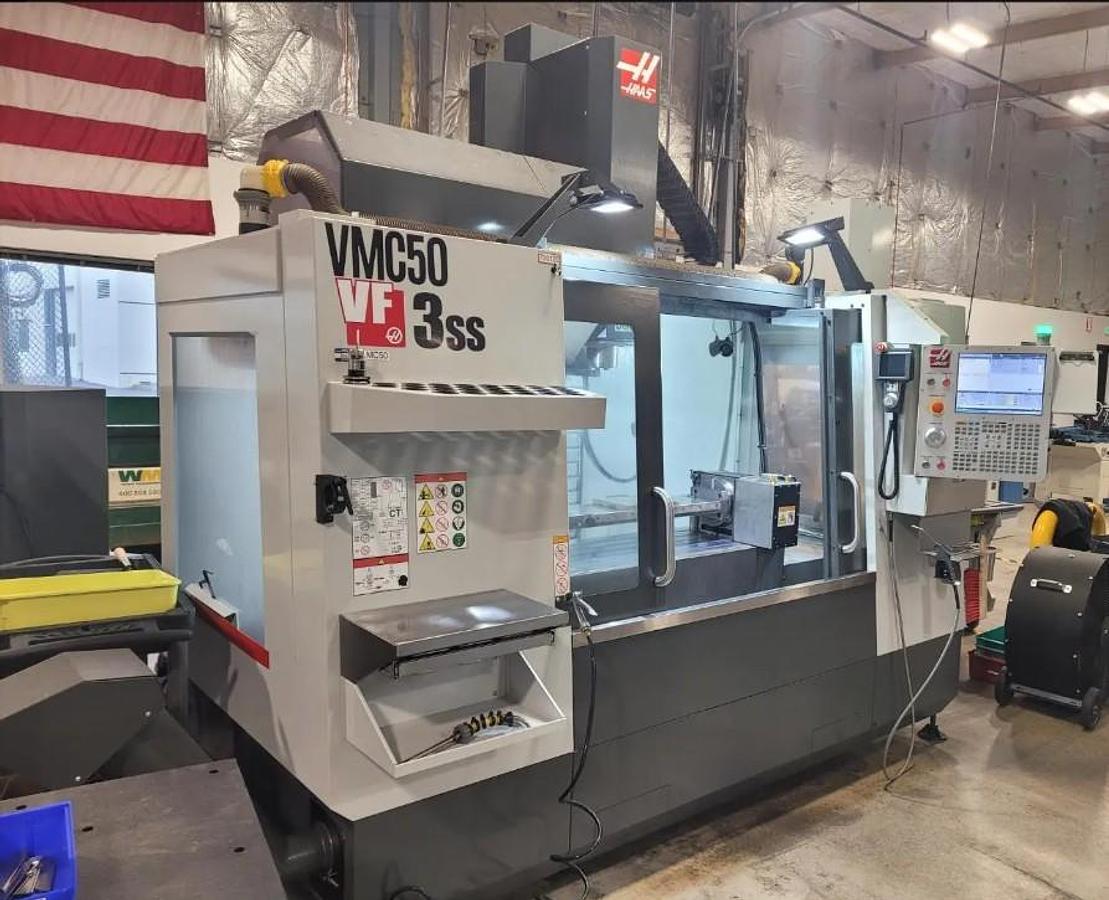

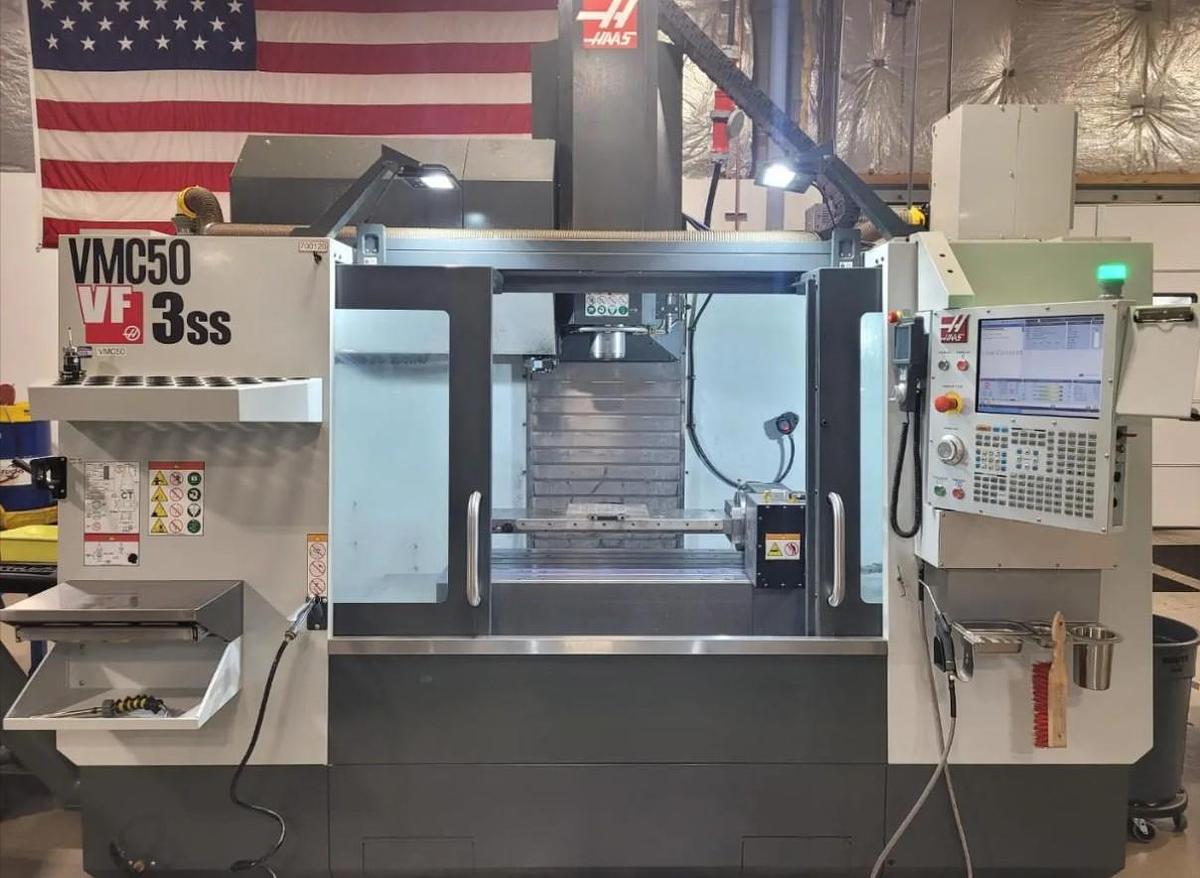

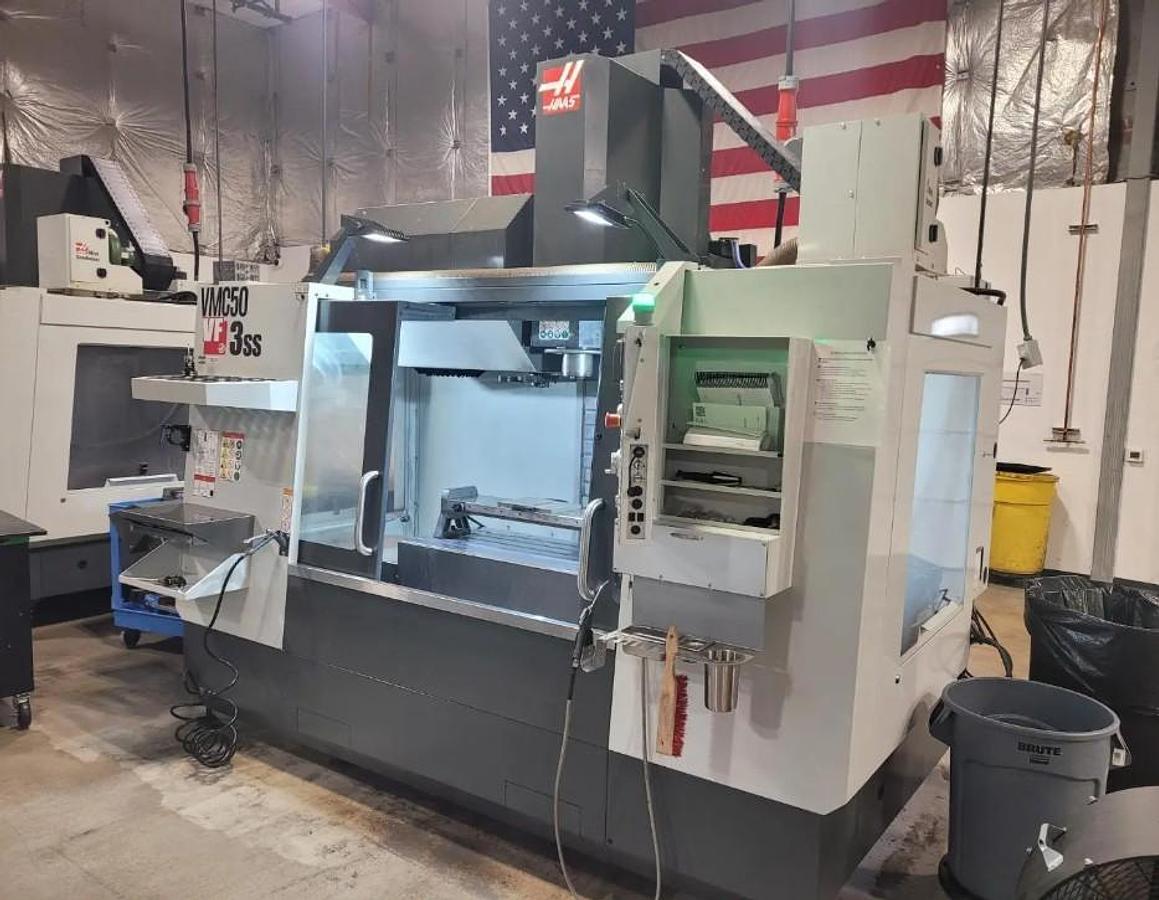

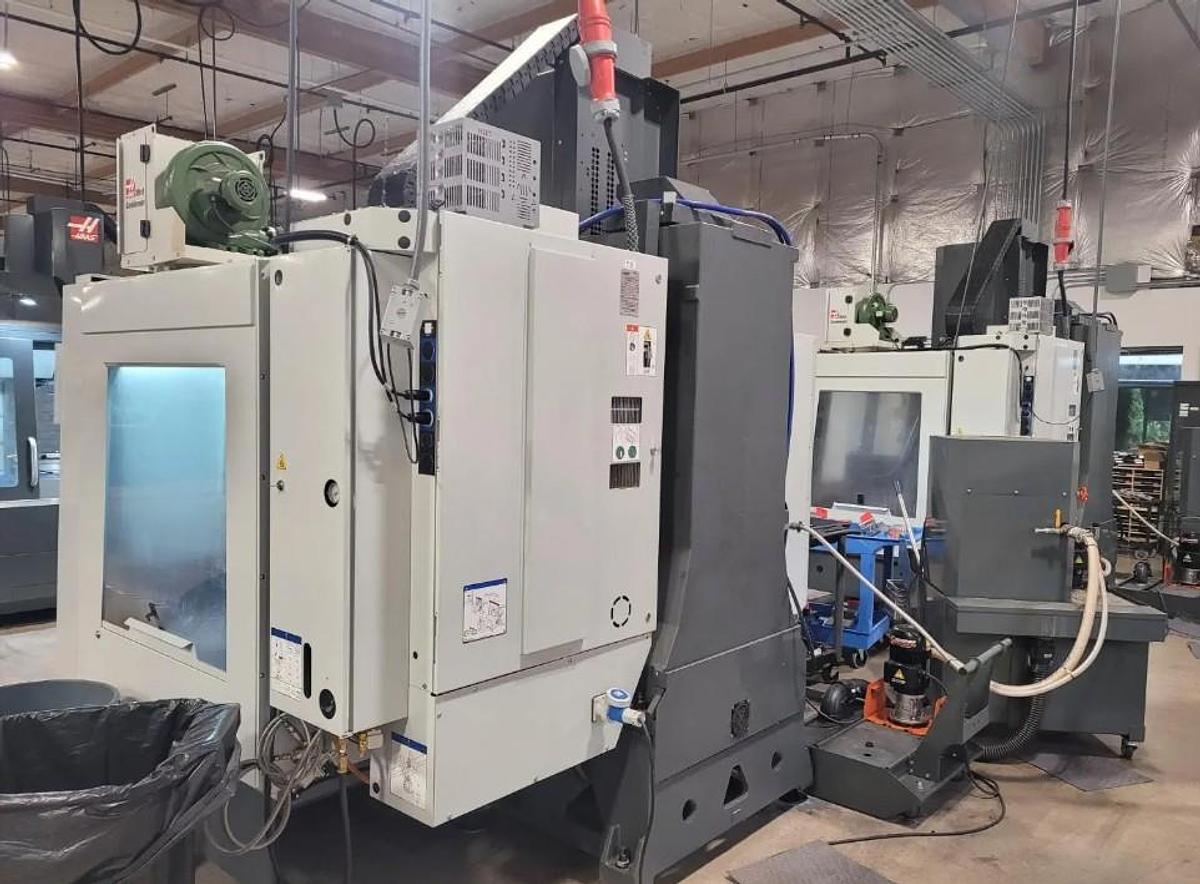

2024 Haas VF-3SS with Haas HRT210 Rotary Tbl, Probing, Prepped for Coolant Thru Spindle, PCool, HSM, 30 ATC, 12k RPM

2024 Haas VF-3SS with Haas HRT210 Rotary Tbl, Probing, Prepped for Coolant Thru Spindle, PCool, HSM, 30 ATC, 12k RPM
$119,500 (USD)
Location:California
Description
4th Axis Drive & Wiring

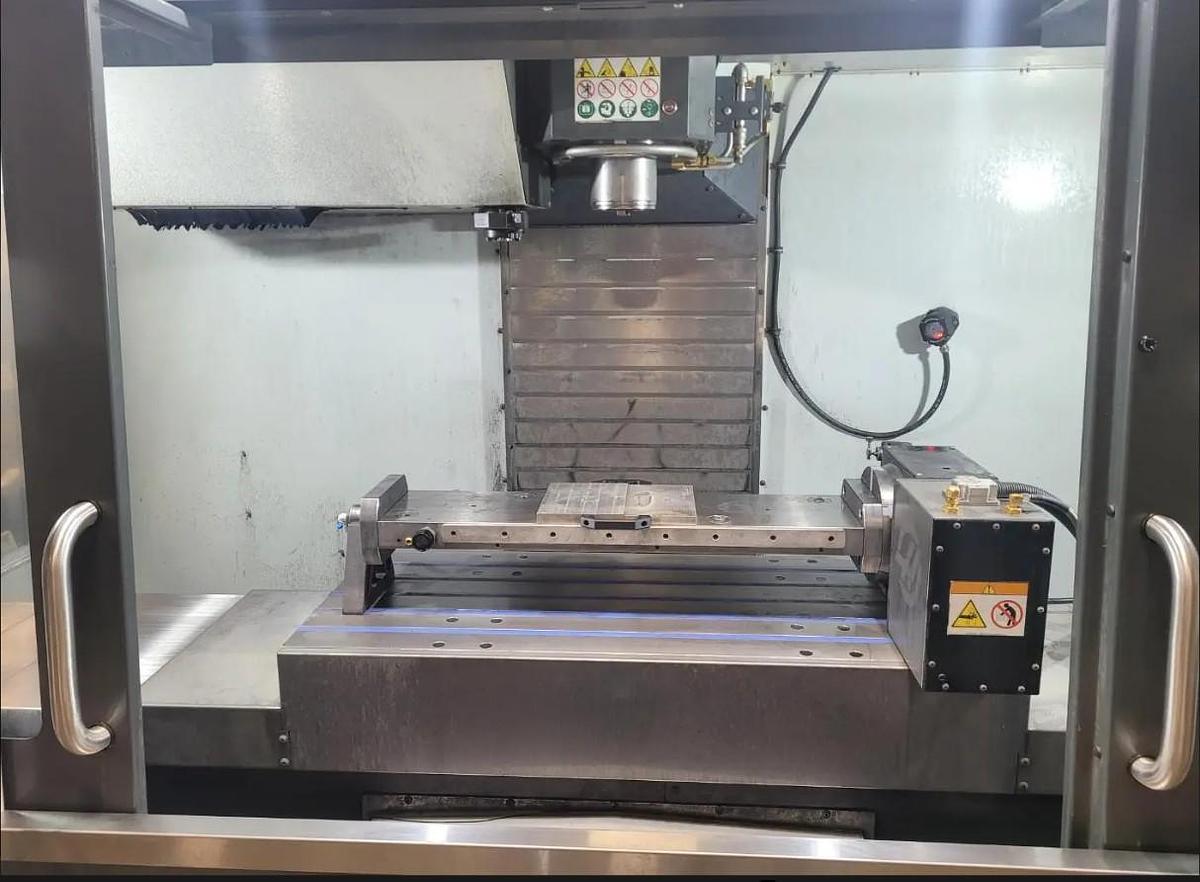

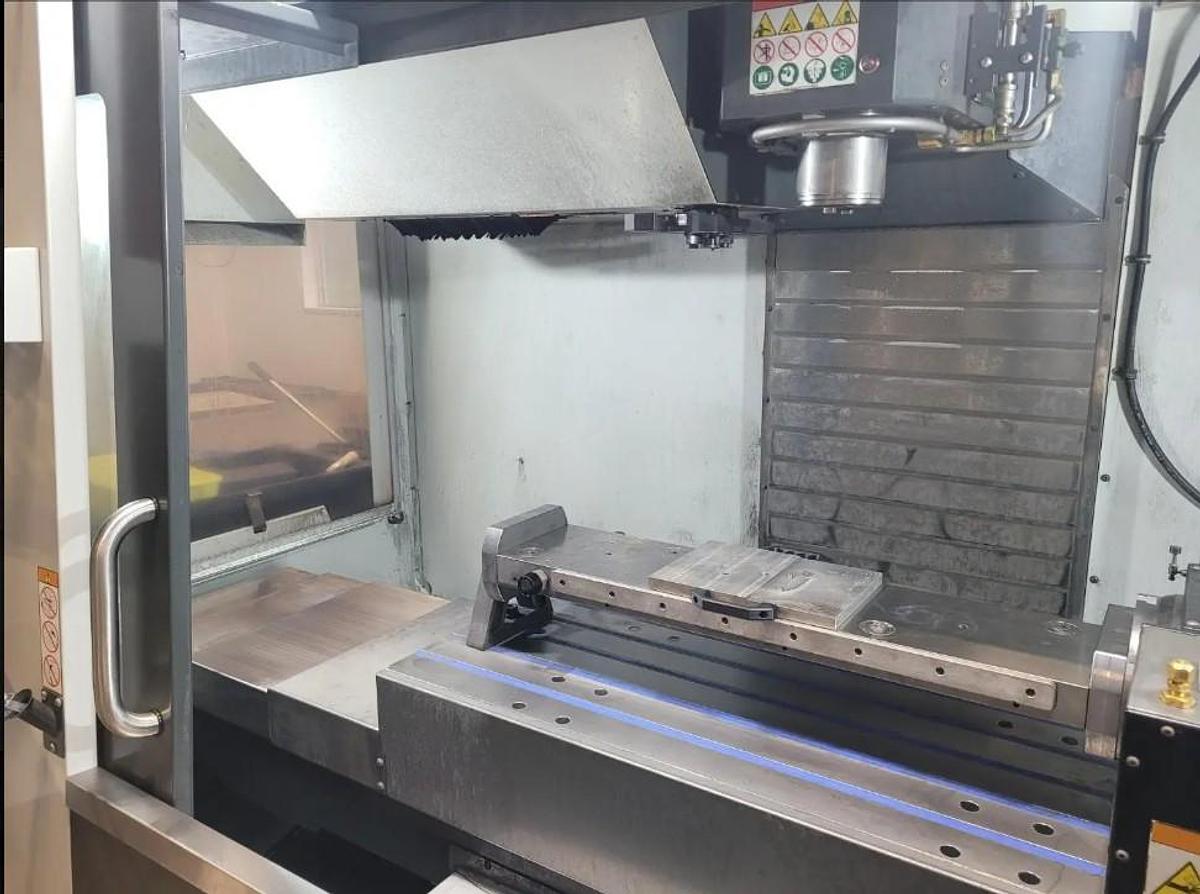

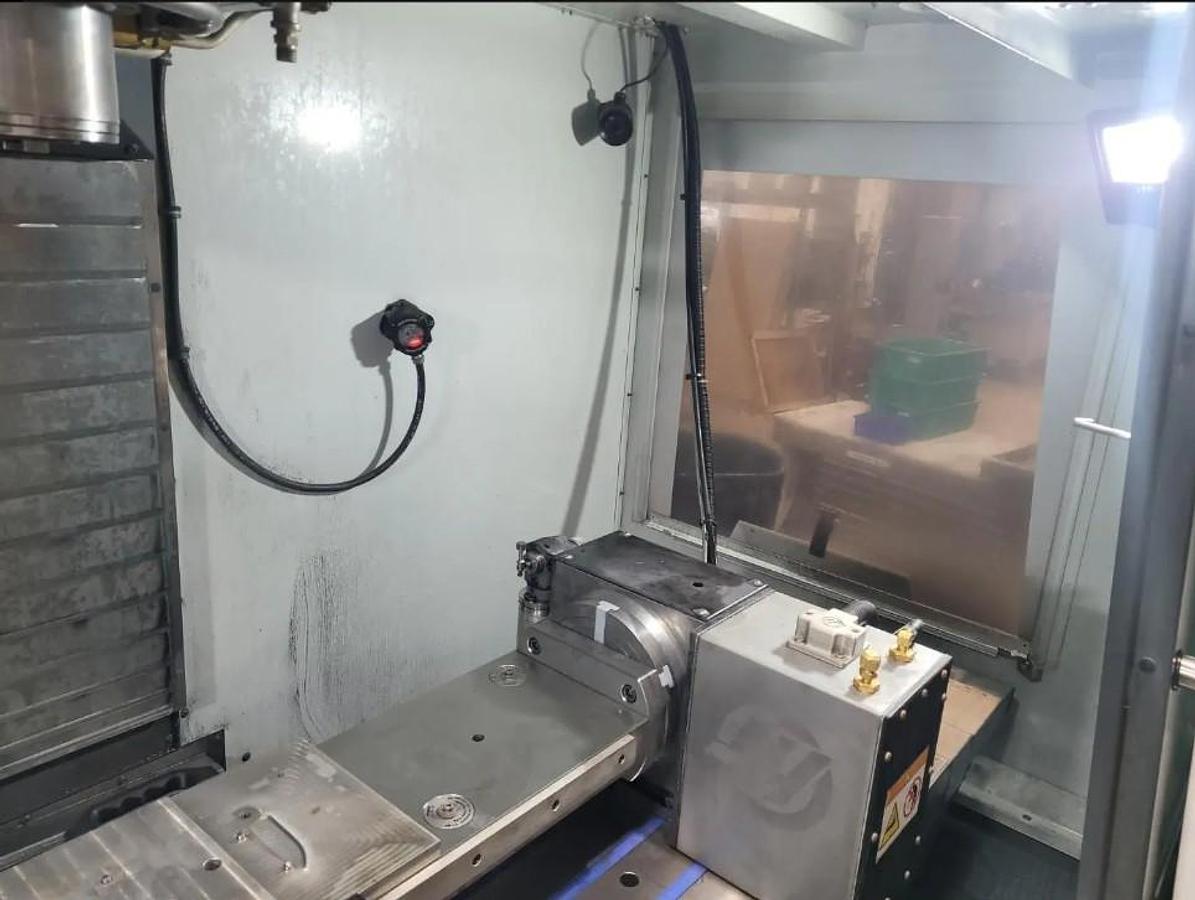

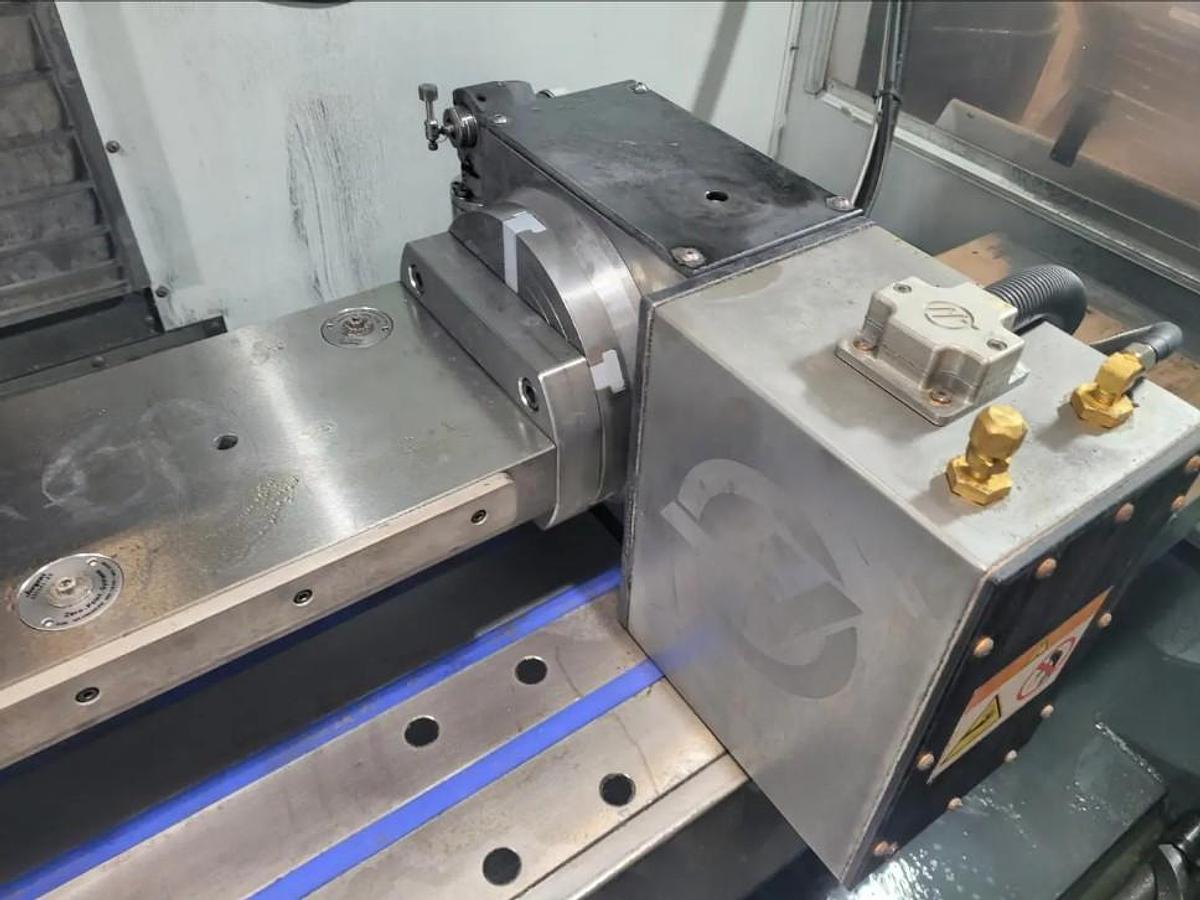

Haas HRT-210 4thg Axis Rotary Table
Quick Change Plate/Support for HRT210 Table
Rotary Brake Booster

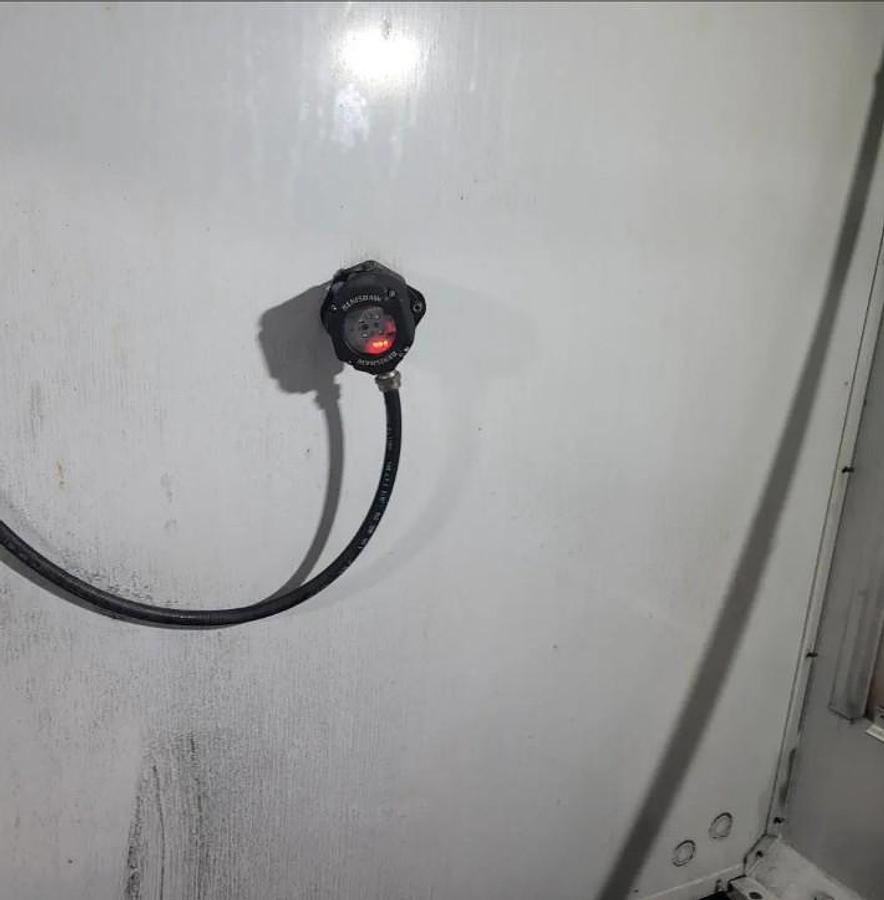

Haas Wireless Tool & Part Probing (WIPS)
High Speed Machining
Prepped for Coolant Thru the Spindle
30 Position Side Mounted Tool Changer
Programmable Coolant Nozzle
Prepped for Coolant Thru the Spindle
Through the Tool Air Blast
Auger Style Chip Conveyor

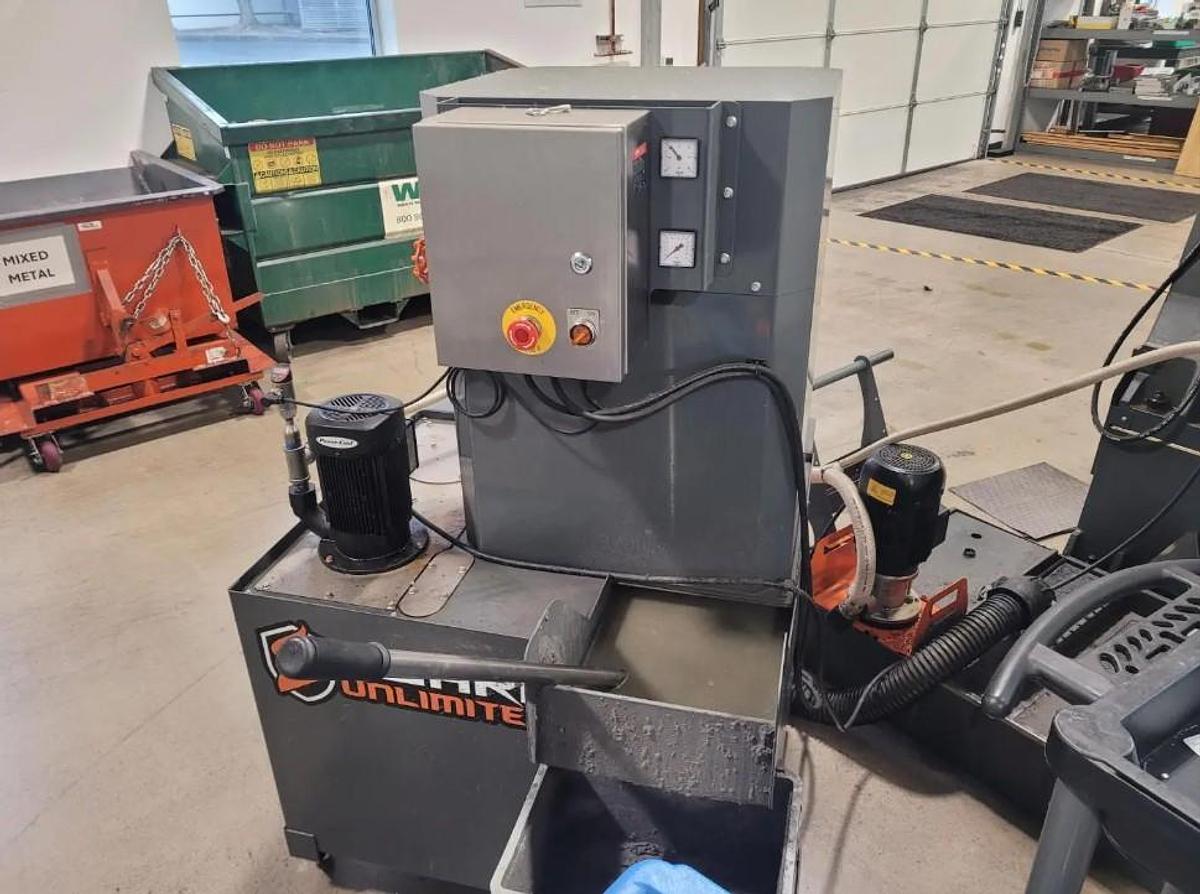

Swarf Unlimited Management System
- Removable Sludge/Swarf Pots
- Swarf Washdown System
Rigid Tapping

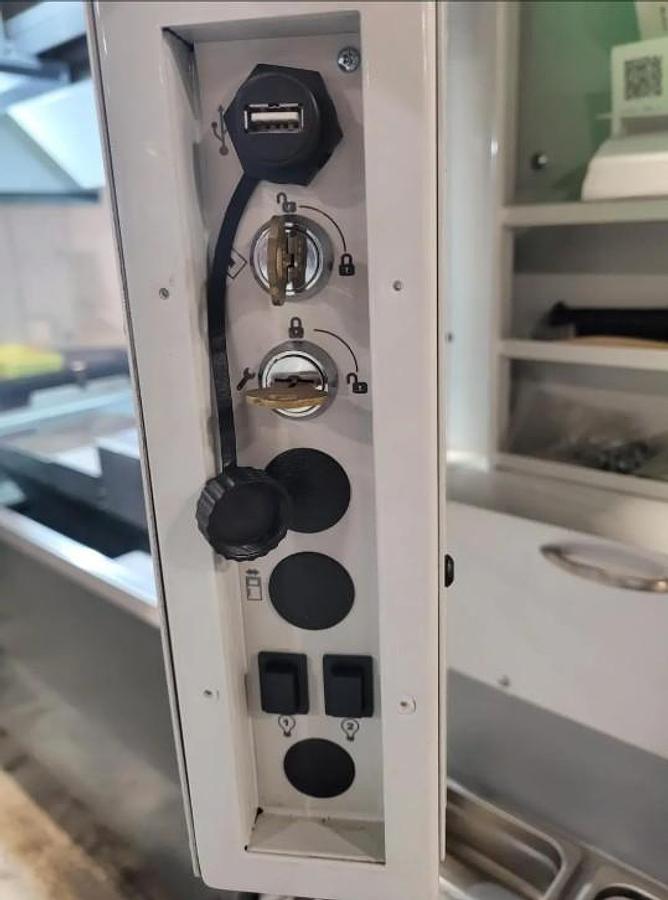

USB Port Interface
1 GB Programming Memory
Haas Visual Part Programming

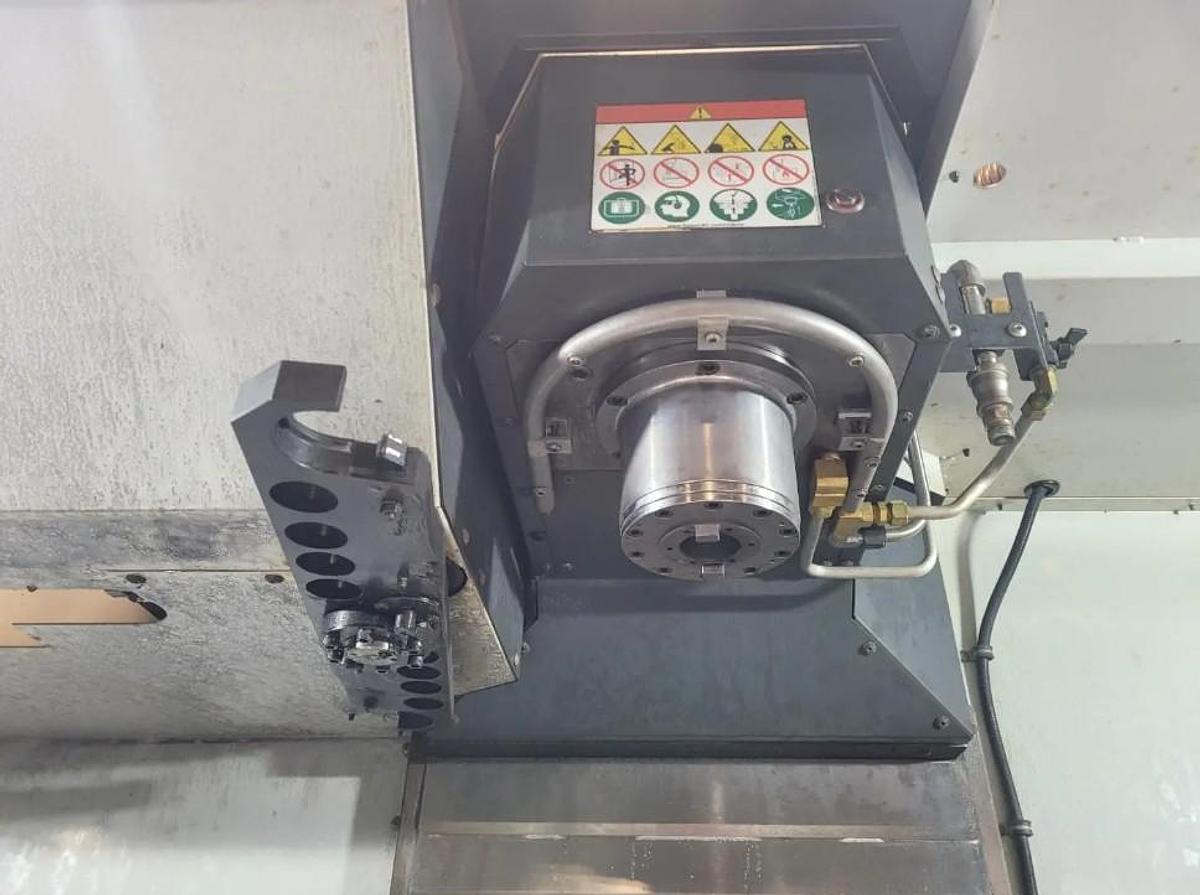

Spindle Orientation
Coordinate Rotation & Scaling
User Definable Macros
High Intensity Lighting

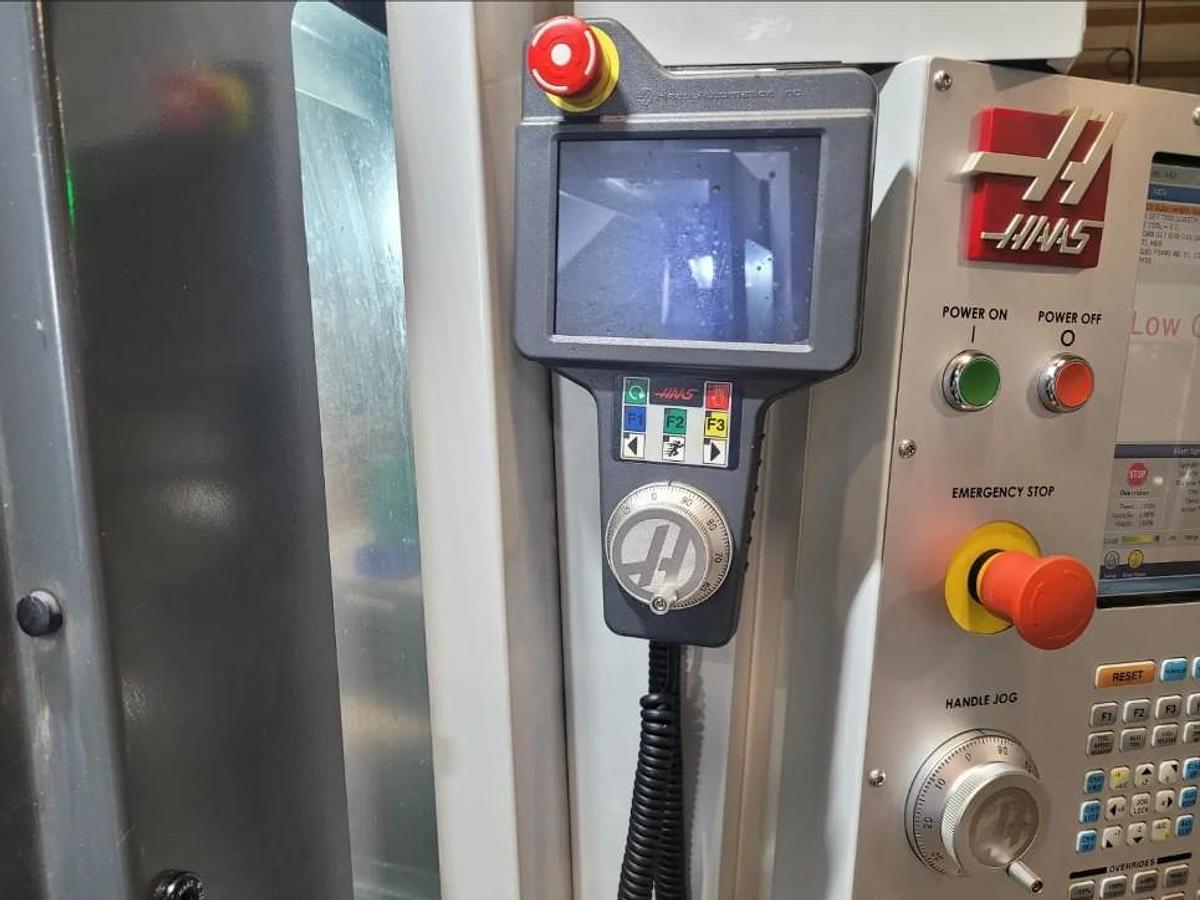

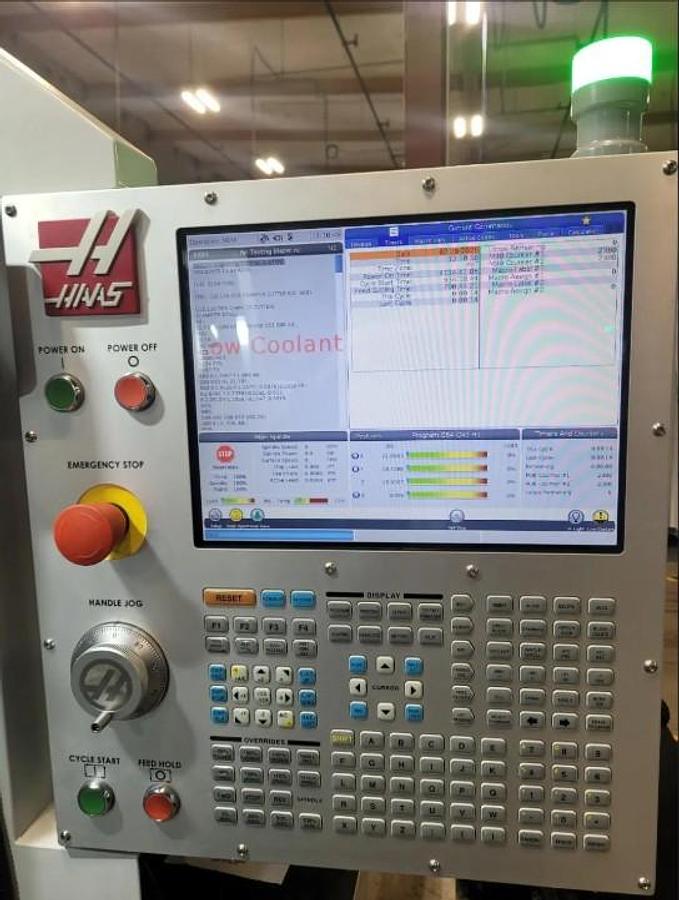

Remote Jog Handle

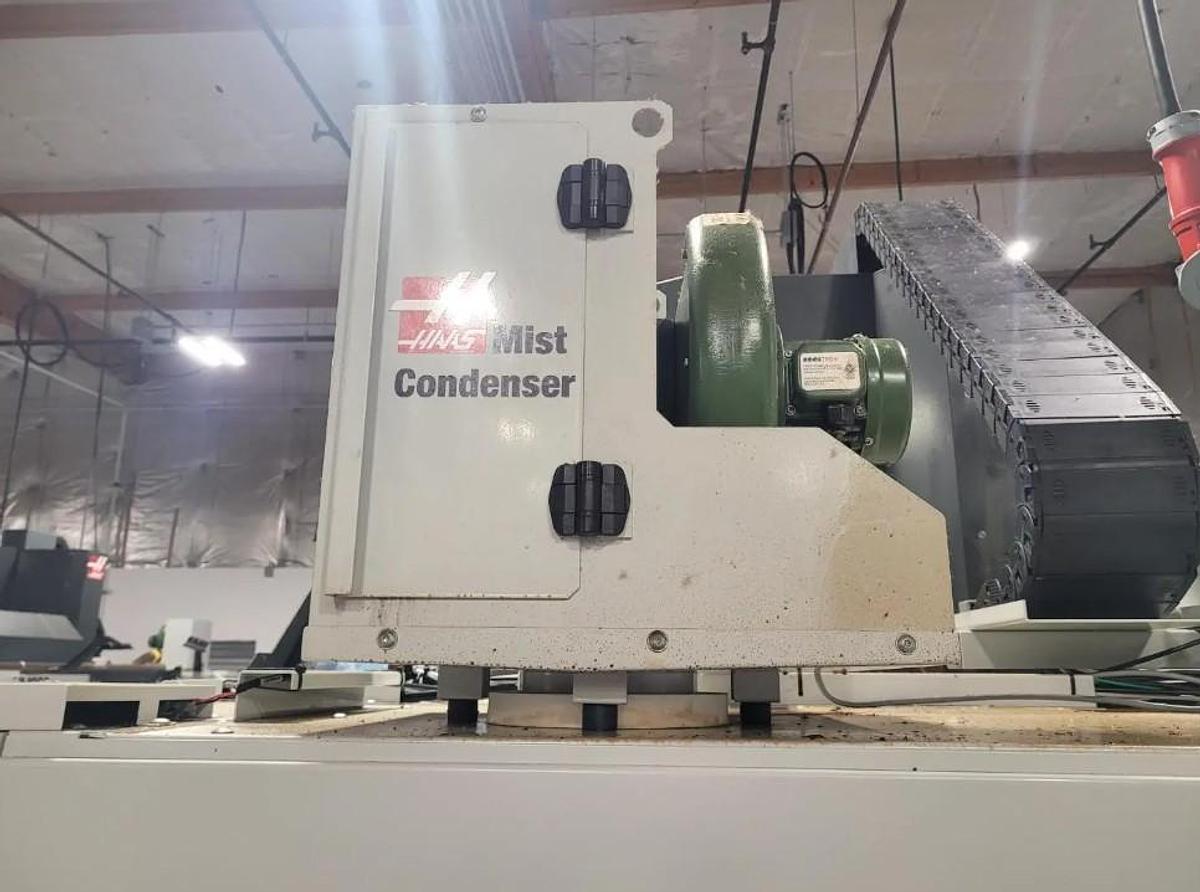

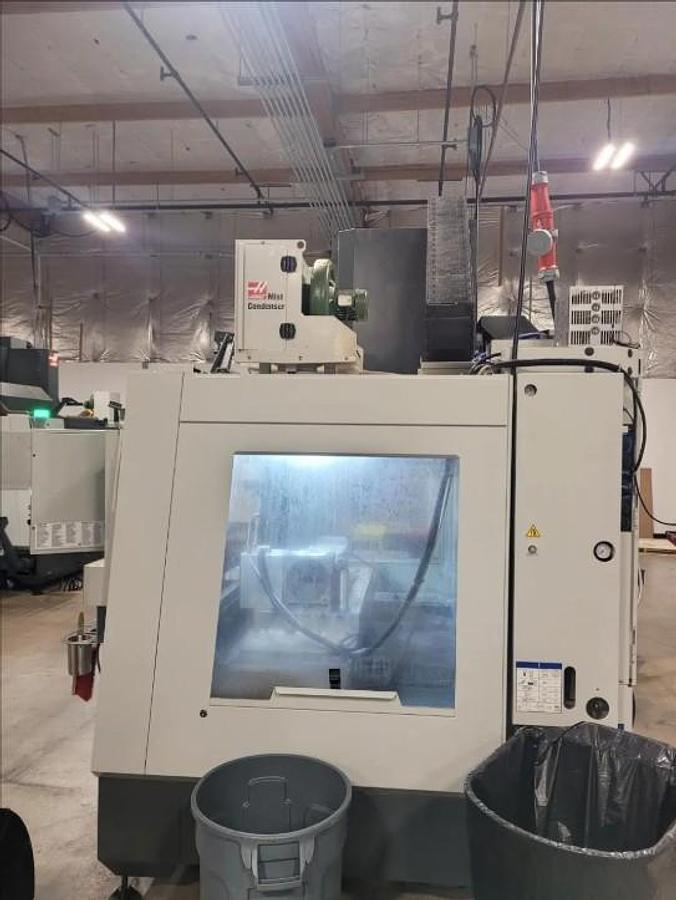

Mist Condenser
Variable Flow Coolant Pump
Coolant System with Tank & Pump
RS 232C Port Interface for DNC Operation
Wired 220V Electrics
Some Tool Holders Included
**Power On Hours 4,134**
**Cycle Start Hours 934**
**Feed Cutting Time 791**
**Price of new machine today as equipped is $150,240 with HRT-210 ($17,295) table included**
**Purchased New in 2024. System comes with 4th axis rotary table, tool holders, chip conveyor (swarf system), probing and more. The owner has decided to sell some of these machines (3 are available, all identical). Under power for inspection and immediately available**
Specifications
| Manufacturer | Haas |
| Model | VF-3SS |
| Year | 2024 |
| Condition | Used |
| Stock Number | 120901 |
| Table size | 48" x 18" |
| Max table load | 1,750 lbs |
| X axis travel | 40" |
| Y axis travel | 20" |
| Z axis travel | 25" |
| Spindle taper | CAT #40 |
| Spindle speed | 12,000 RPM |
| Spindle motor | 30 HP - Direct Drive |
| Spindle nose to table top | 4.2" - 29.2" |
| Number of tool positions | 30 Position Side Mount |
| Max tool weight | 12 lbs. |
| Rapid feed rate (x,y,z) | 1,400 IPM |
| Cutting feed rate | 0.1 - 833 IPM |
| Machine dimensions | 152" x 100" x 120" |
| Machine weight (approximately) | 13,500 lbs. |
